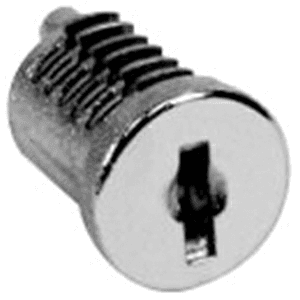

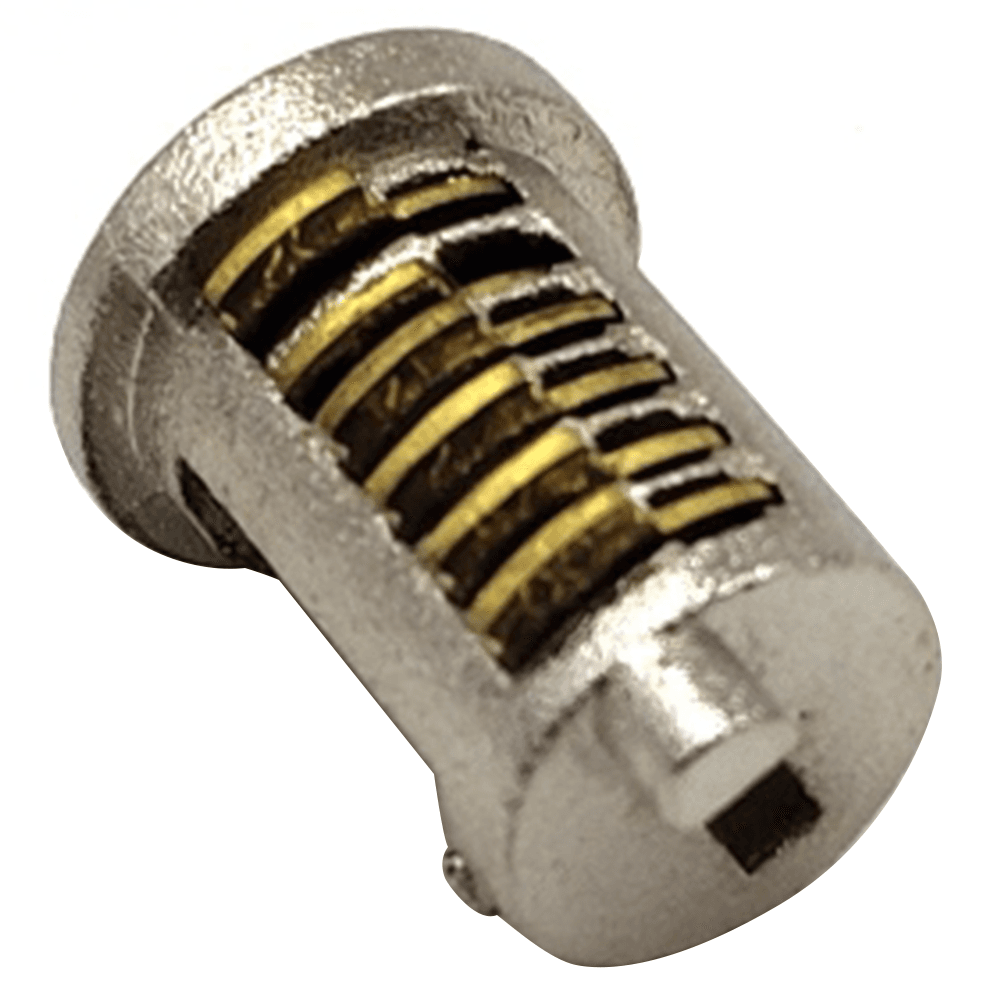

RemovaCore Disc Tumbler Lock Plug, Bright Nickel, Keyed to C390A/Master Keyed

Features: • 90ø Cam turn locks come with one stop washer allowing cam to turn 90ø, 90ø and 180ø Cam turn locks come with two stop washers to allow cam to turn either 90ø or 180ø based on application • Removacore locks are factory master keyed • Once assembled, the master key for the Removacore will open any pre-assembled disc tumbler from Compx National that is factory master keyed (KAMKD or KDMKD) • For drawers, RH or LH doors either lipped, flush or overlay • Separate core plug and cylinder assembly (lock housing) • Requires 3/4" diameter hole for installation • Key removable in locked position only • Control key is required to install core plugs into cylinder assembly • Plugs supplied with 2 keys • Housing supplied with trim washer, spur washer (for wood), mounting nuts and two cams (Straight: 1-1/2" extension; Formed: 1-1/8" extension and 11/32" offset) • Cannot mix assembled locks (i.e. C8053) with this product, they are not master keyed
