955 Disc Tumbler Cam Lock for Doors and Drawers Application, Bright Nickel, Keyed to KA420 Key
Keyed As:
Finish:
Certifications:
Hardware Included:
Product Details
• KA420 key cam lock in bright nickel finish
• Lock comes assembled
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal
• Shipped with cylinder and body assembled via patented retainer staple
• Keys are not required for assembly
• Spur washer with eyelet
• When screwed into place, the spur washer prevents lock rotation and keeps fixing nut from loosening after installation
• Revolutionary cylinder + cylinder extender allows cylinders to easily be swapped between different size cam lock bodies increasing inventory and keying flexibility
• Custom keying typically ships direct from mfr in 48-72 hours
• 90deg cam turn
• For drawers, right-hand or left-hand doors

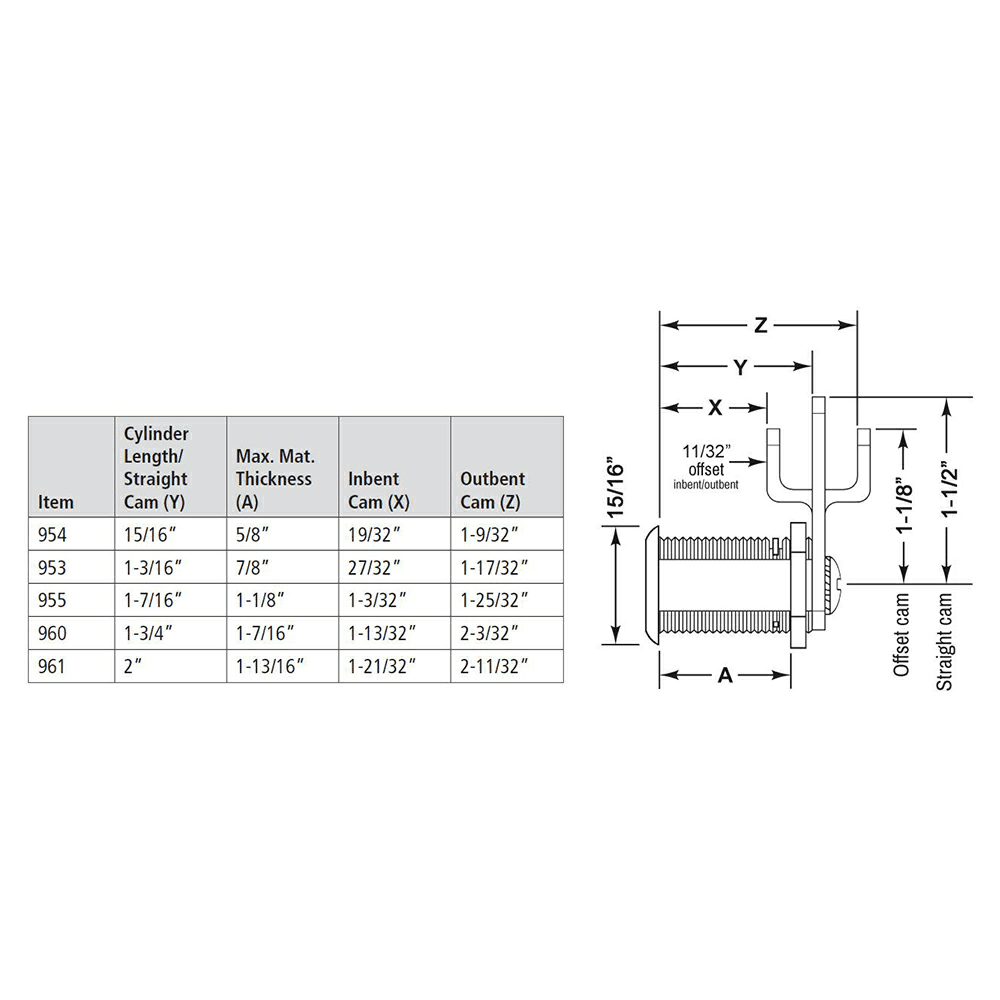

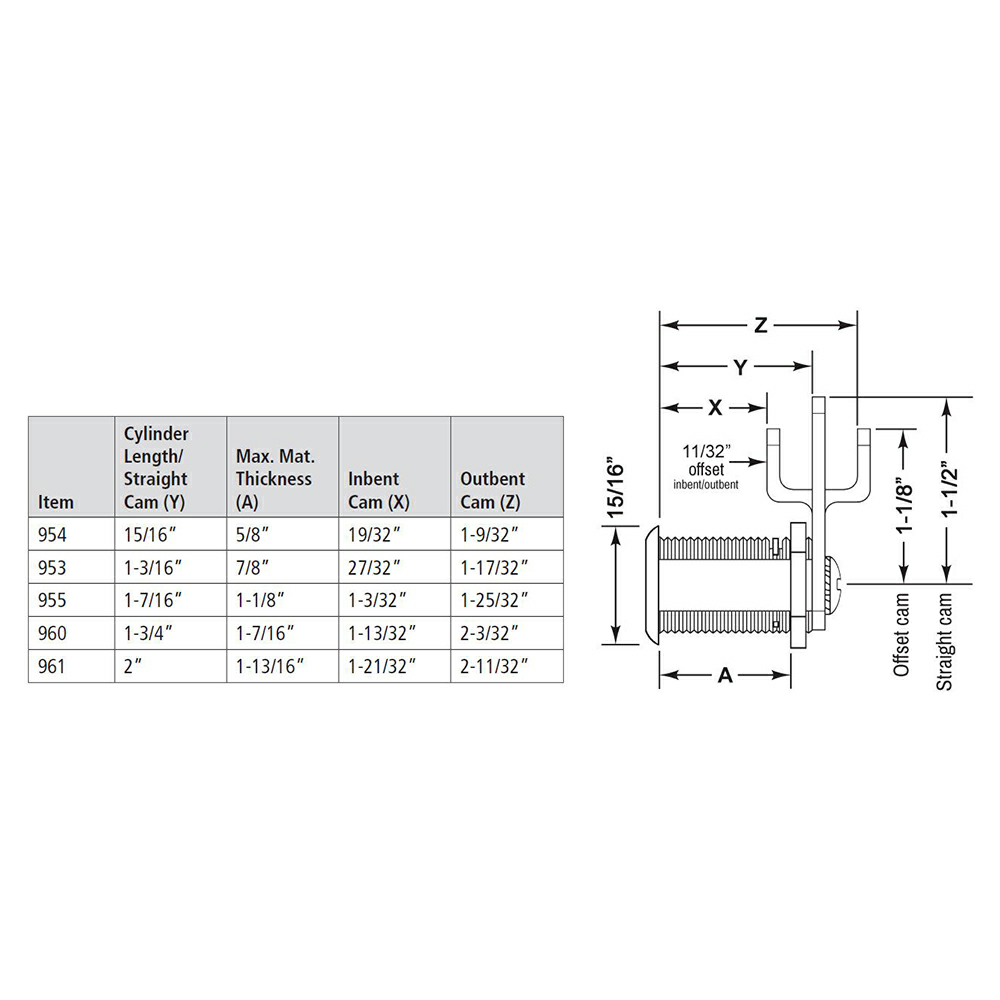

• Lipped/overlay construction (1-1/2" straight cam) or flush construction (1-1/8" extension, 11/32" offset offset cam)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below
• Key removable in both locked and unlocked positions

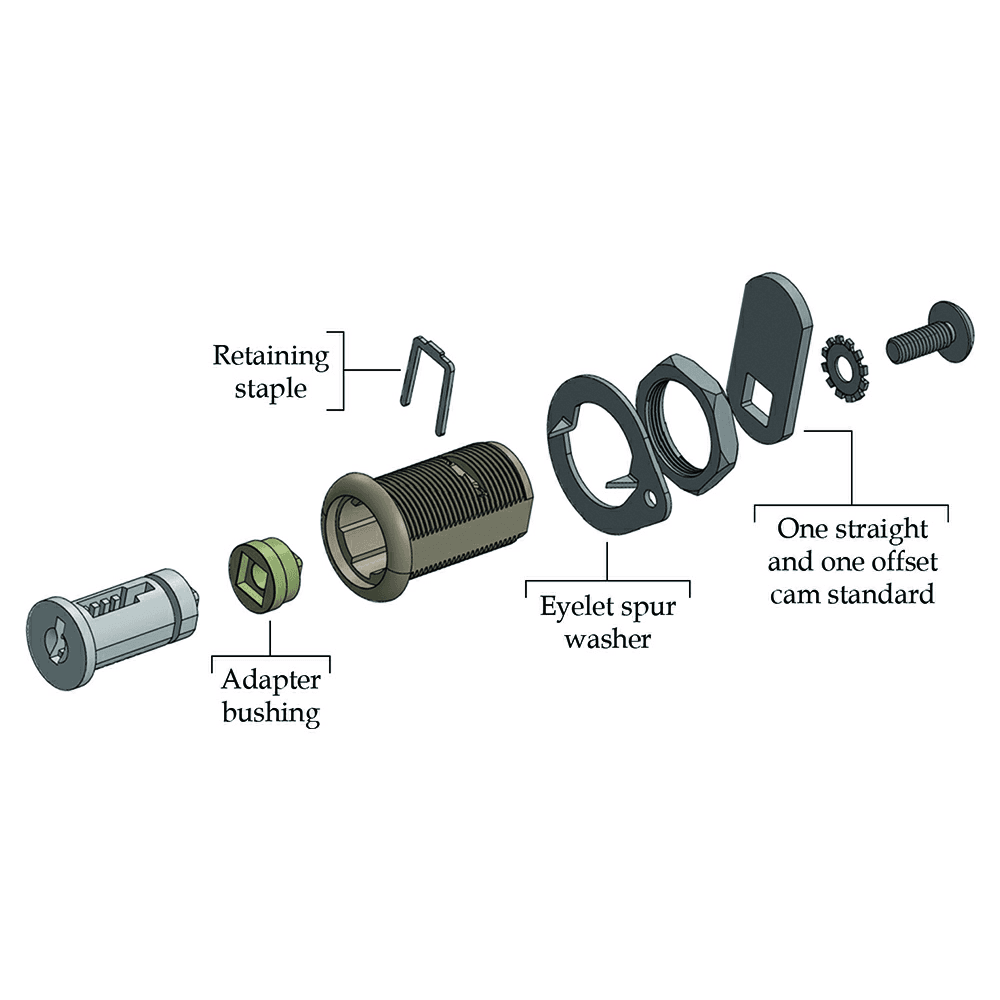

• Includes: 2 keys, 2 cams, eyelet spur washer, fixing nut, trim ring, cam screw with star washer and retainer staple
• All keyed alike to key number specified, master key will not work on these locks
This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 15 |
| Keyed As | KA420 Key |
| Finish | Bright Nickel |
| Product Type | Cam Lock |
| Material | Zinc Die Cast |
| Cylinder Diameter | 15/16" |
| Certifications | ANSI/BHMA Grade 2 |
| Hardware Included | Yes |
| Tumbler Type | Disc |
