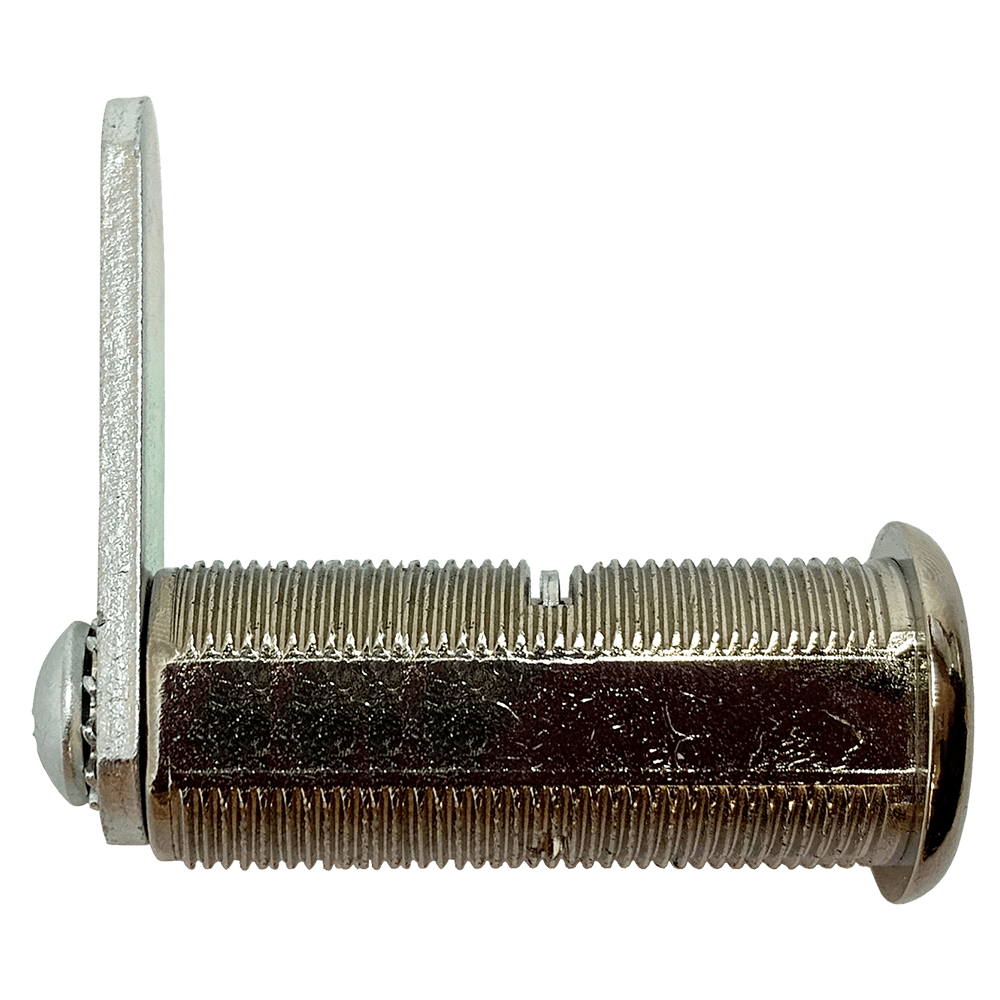

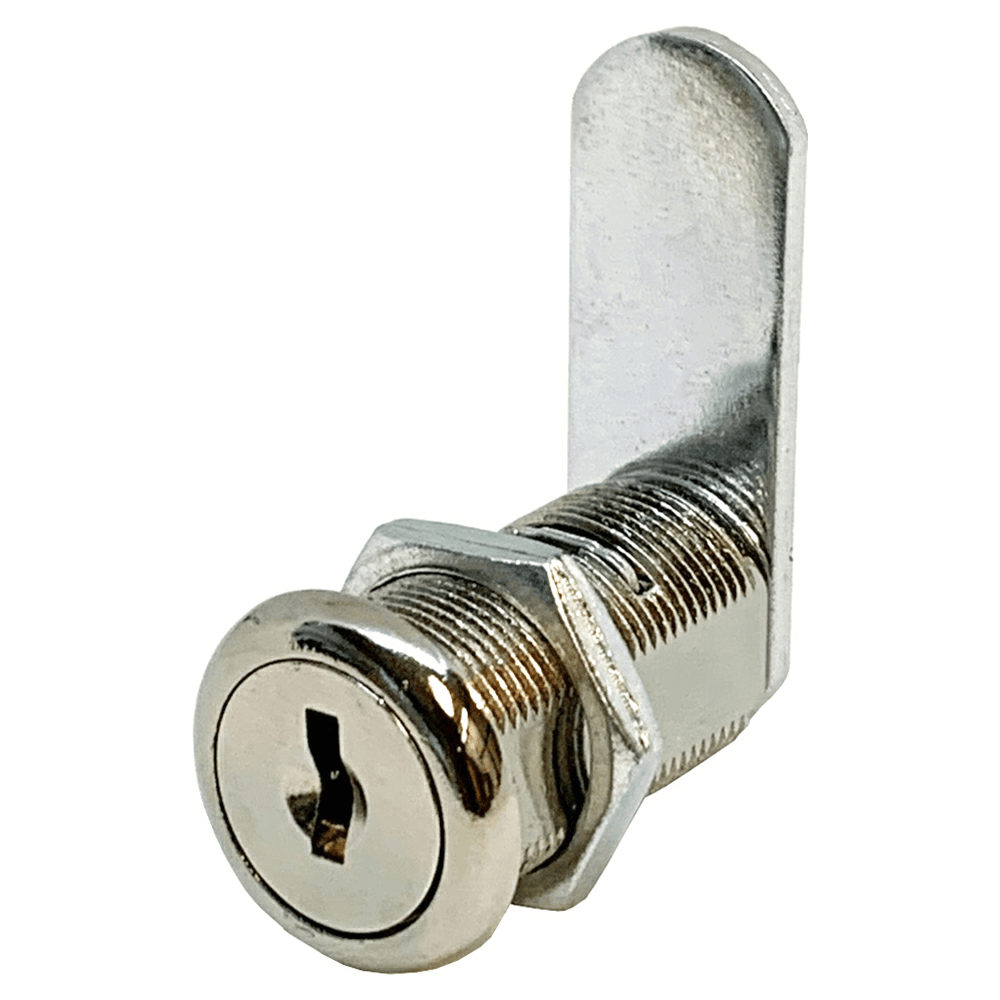

953 Disc Tumbler Cam Lock for Doors and Drawers Application, Bright Nickel, Keyed Different/Master Keyed

Features:
• Keyed different and master keyed cam lock in bright nickel finish
• Lock comes assembled
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal

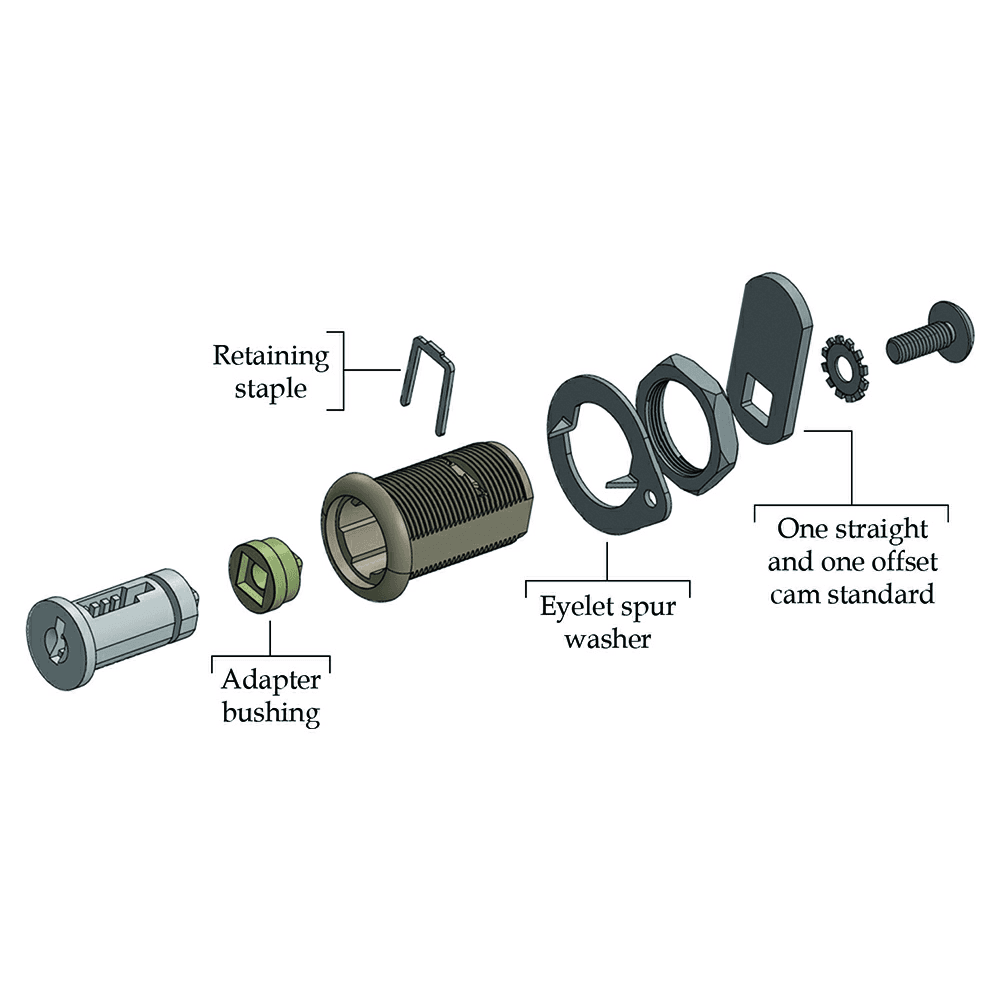

• Shipped with cylinder and body assembled via patented retainer staple
• Keys are not required for assembly

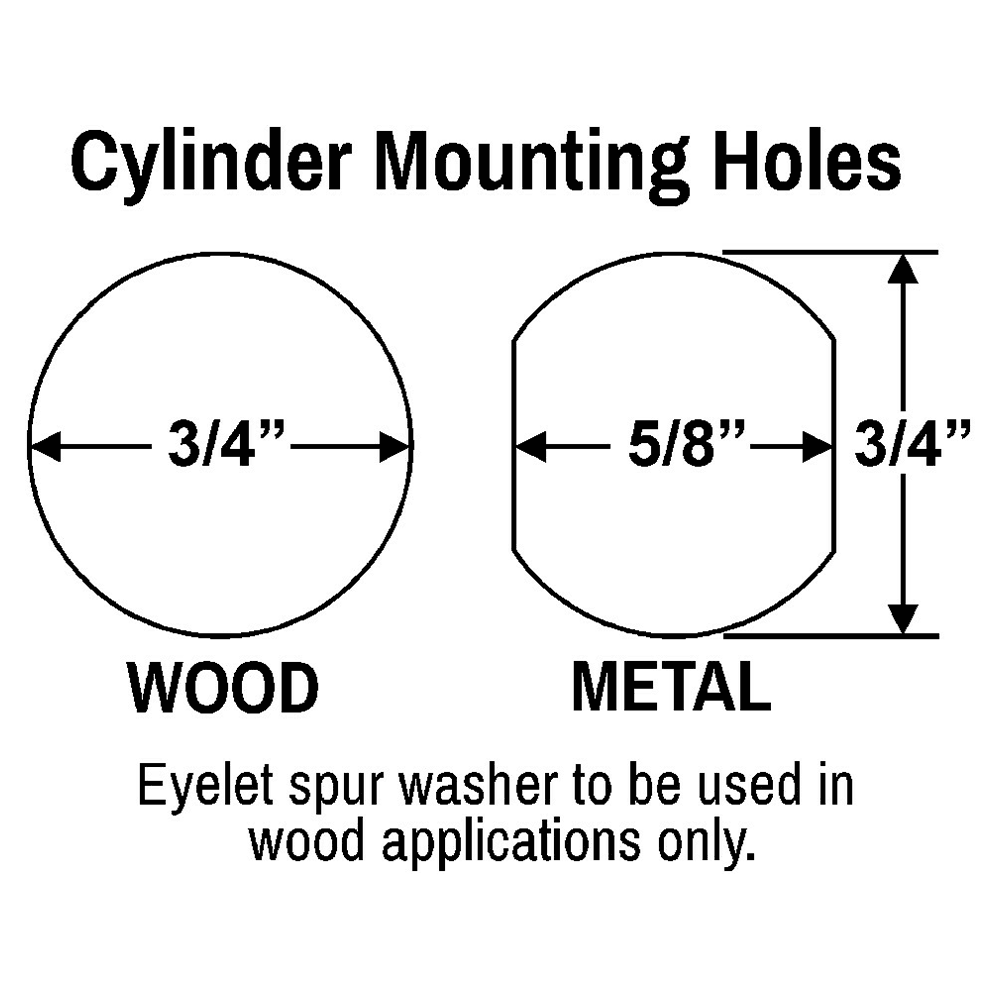

• Spur washer with eyelet
• When screwed into place, the spur washer prevents lock rotation and keeps fixing nut from loosening after installation
• Revolutionary cylinder + cylinder extender allows cylinders to easily be swapped between different size cam lock bodies increasing inventory and keying flexibility
• Custom keying typically ships direct from mfr in 48-72 hours
• 90deg cam turn
• For drawers, right-hand or left-hand doors

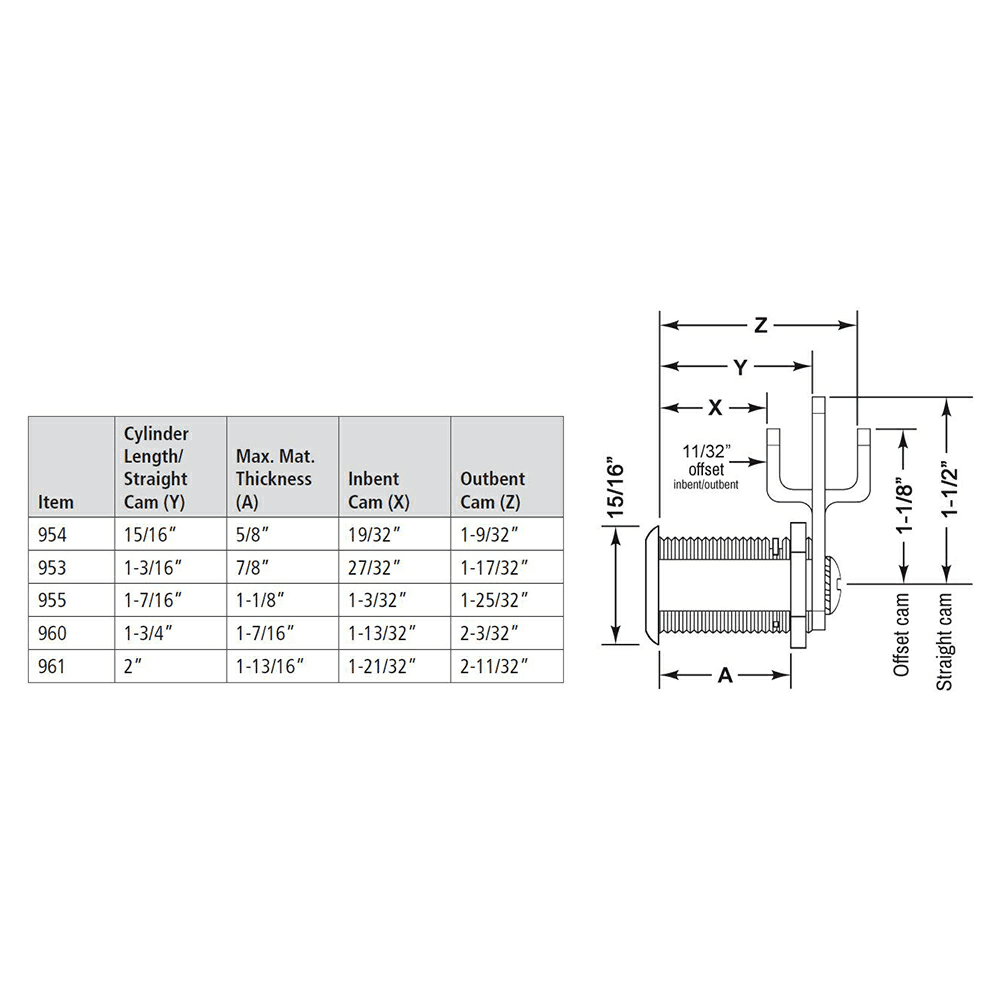

• Lipped/overlay construction (1-1/2" straight cam) or flush construction (1-1/8" extension, 11/32" offset offset cam)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below
• Key removable in both locked and unlocked positions
• Includes: 2 keys, 2 cams, eyelet spur washer, fixing nut, trim ring, cam screw with star washer and retainer staple
• KDMK = All Keyed Different and master keyed, master key will work on these locks
