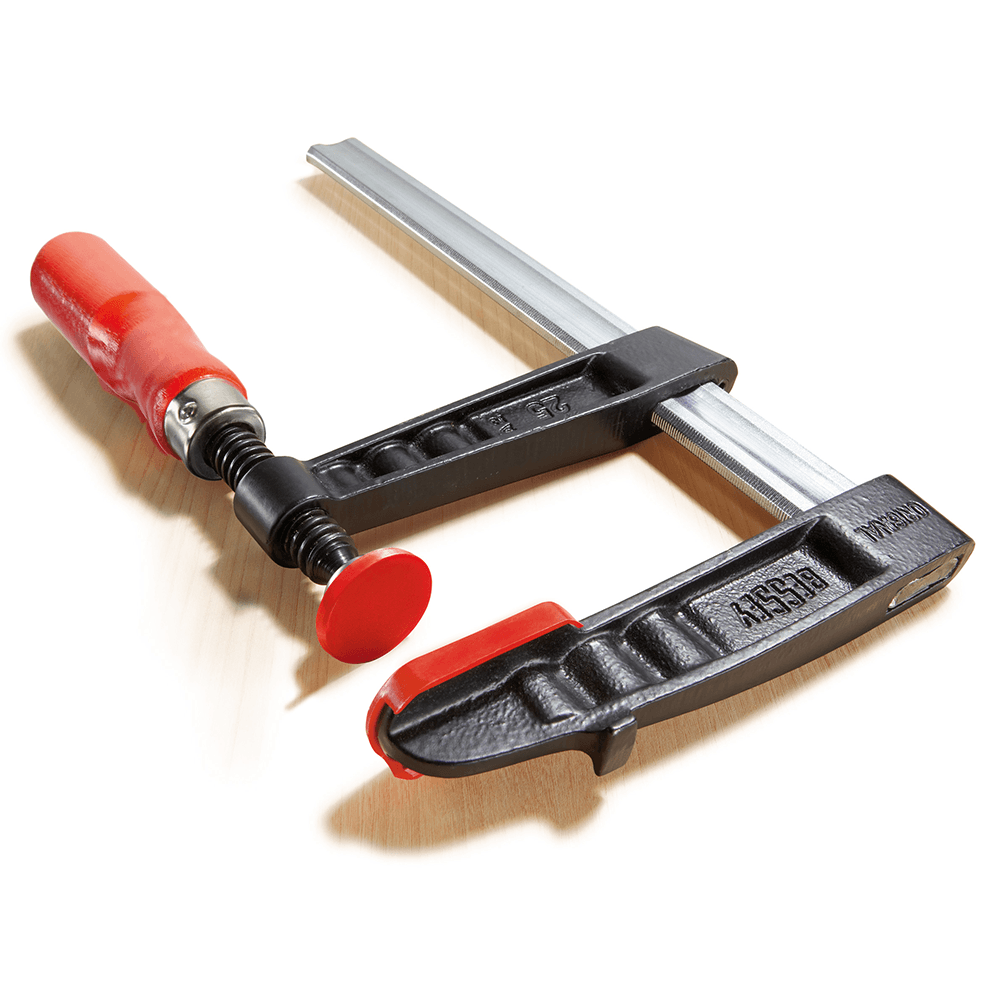

8" Light-Duty Bar Clamp with Wood Handle, 4" Throat Depth
Item # AKTGJ4.008-2K
•Mfr # TG4.008+2K
$32.02
/Each
Clamping Capacity: 8"
Min Order: 10
Qty mult. by: 10
Product Details

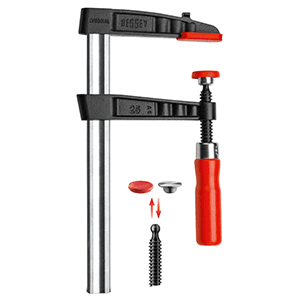

Introduced in 1936 the original Bessey malleable cast iron bar clamp was the world's first sliding arm clamp. Clamps with traditional wood handles are still available & quite popular; however many models are now also available with "2K" composite handles as well as with "tommy bar" (sliding pin) handles. Many of these clamps have also been fitted with snap-on pressure pads that are easily replaced, and allow for replacement of damaged spindles.
The original malleable cast iron bar clamp with an inline wood handle was the world's first sliding arm bar clamp. Clamps with traditional wood handles are still available and quite popular. Now many models are also available with composite plastic handles as well as with T-bar (sliding pin) handles. Many of these clamps have also been fitted with pressure pads that are easily replaced, and allow for replacement of damaged spindles. These clamps are available in a wide variety of sizes.
Features:
• Wood handle
• Bessey anti-slip system - the set screw is molded into the sliding arm and interlocks with the serrated rail to prevent sliding
• Corrugated malleable cast iron fixed jaw and sliding arm generate powerful, rigid clamping. Top jaw press fitted to rail - no mechanical fasteners to loosen
• High-quality profiled steel rail acts as a reliable reinforcement against torsional forces, while the serration on six faces additionally prevents the clamp from slipping
• Hardened, smooth-running spindle with Acme thread = more clamping with less cranking
The original malleable cast iron bar clamp with an inline wood handle was the world's first sliding arm bar clamp. Clamps with traditional wood handles are still available and quite popular. Now many models are also available with composite plastic handles as well as with T-bar (sliding pin) handles. Many of these clamps have also been fitted with pressure pads that are easily replaced, and allow for replacement of damaged spindles. These clamps are available in a wide variety of sizes.
Features:
• Wood handle
• Bessey anti-slip system - the set screw is molded into the sliding arm and interlocks with the serrated rail to prevent sliding
• Corrugated malleable cast iron fixed jaw and sliding arm generate powerful, rigid clamping. Top jaw press fitted to rail - no mechanical fasteners to loosen
• High-quality profiled steel rail acts as a reliable reinforcement against torsional forces, while the serration on six faces additionally prevents the clamp from slipping
• Hardened, smooth-running spindle with Acme thread = more clamping with less cranking
Downloads
Specifications
| Box Quantity | 10 |
| Product Type | Bar Clamp |
| Width | 6-1/8" |
| Length | 11-15/32" |
| Jaw Width | 1-1/4" |
| Clamping Force | 880lb |
| Throat Depth | 4" |
| Style | |
| Clamping Capacity | 8" |
