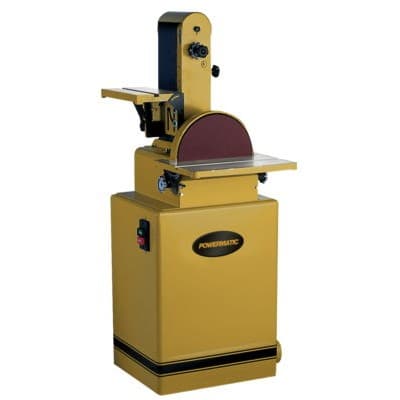

Powermatic 31A Belt Disc Sander 2HP 3Ph 230/460V
Item # JPW1791292K
•Mfr # PM9-1791292K
$2,199.99
/Each
Freight: $225.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
Loaded with features, the 31A Sander from Powermatic can tackle the most demanding tasks. Full cast iron construction is great for heavy woodworking. The integral dual dust port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.
• Versatile belt and disc sanding allows for multiple sanding angles.
• Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding.
• Multi-position belt head locks at any angle from 0° to 90° includes indexing pin for 0, 45°, and 90° stops.
• 6" x 48" sanding belt can be changed and adjusted quickly and easily.
• Belt and disc tables are precision ground cast iron with miter slots for precision and rigidity.
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support.
• 12" disc is balanced for flat, even coverage.
• 460V operation requires an additional 460V magnetic switch, part 31A-MSA-2.
• Versatile belt and disc sanding allows for multiple sanding angles.
• Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding.
• Multi-position belt head locks at any angle from 0° to 90° includes indexing pin for 0, 45°, and 90° stops.
• 6" x 48" sanding belt can be changed and adjusted quickly and easily.
• Belt and disc tables are precision ground cast iron with miter slots for precision and rigidity.
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support.
• 12" disc is balanced for flat, even coverage.
• 460V operation requires an additional 460V magnetic switch, part 31A-MSA-2.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Sanding Arm Locking Positions | 0/45/90 |
| Prewired Voltage (V.) | 230V/460V |
| Belt Table Size (L x W) (In.) | 13-1/4 x 7-1/2 |
| Dust Port Outside Diameter (In.) | 4 |
| Disc Diameter (In.) | 12 |
| Motor Current (Amps) | 7/3.5 |
| Impeller Diameter (In.) | |
| Style (Type) | Combination Belt/Disc |
| Belt Table Tilt (Deg.) | 45 Down |
| Wiring Remarks | Magnetic Switch / Must purchase 31A-MSA-2 for 460V operation |
| Motor Power (HP) | 2 |
| Disc Table Tilt (Deg.) | 15 Up, 45 Down |
| Belt Speed (RPM) | 2410 |
| Motor Phase | 3 |
| Disc Speed (RPM) | 2375 |
| Motor Voltage (V.) | 230/460 |
| Sanding Belt Size (L x W) (In.) | 6 x 48 |
| Disc Table Size (L x W) (In.) | 17-1/4 x 9 |
| Canister Filter (Microns) | |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Recommended Circuit Size (Amps.) | 20/10 |
| Warranty | 5 Years |
| Belt Size | 6" x 48" |
| Drive Motor | |
| Product Type | Drum Sander |
