Manhattan Finish and the Scale to Handle Full-Height Casework

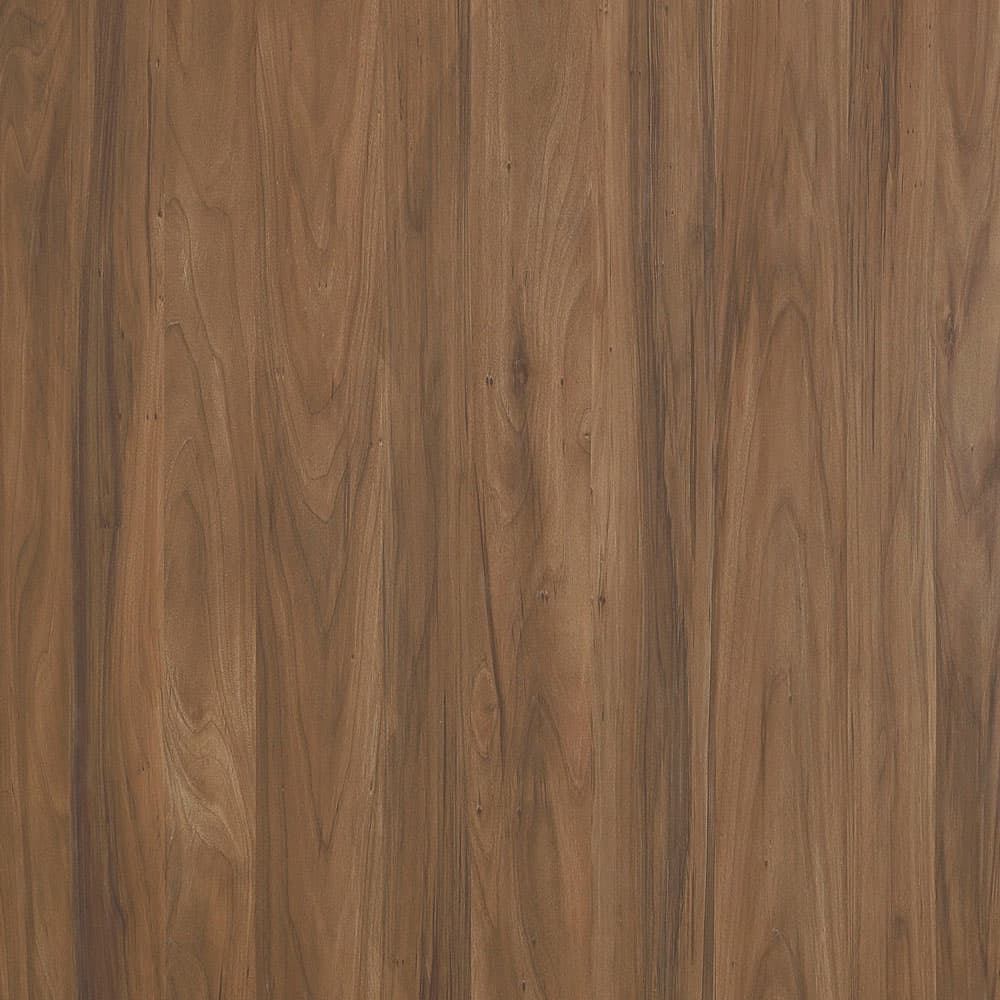

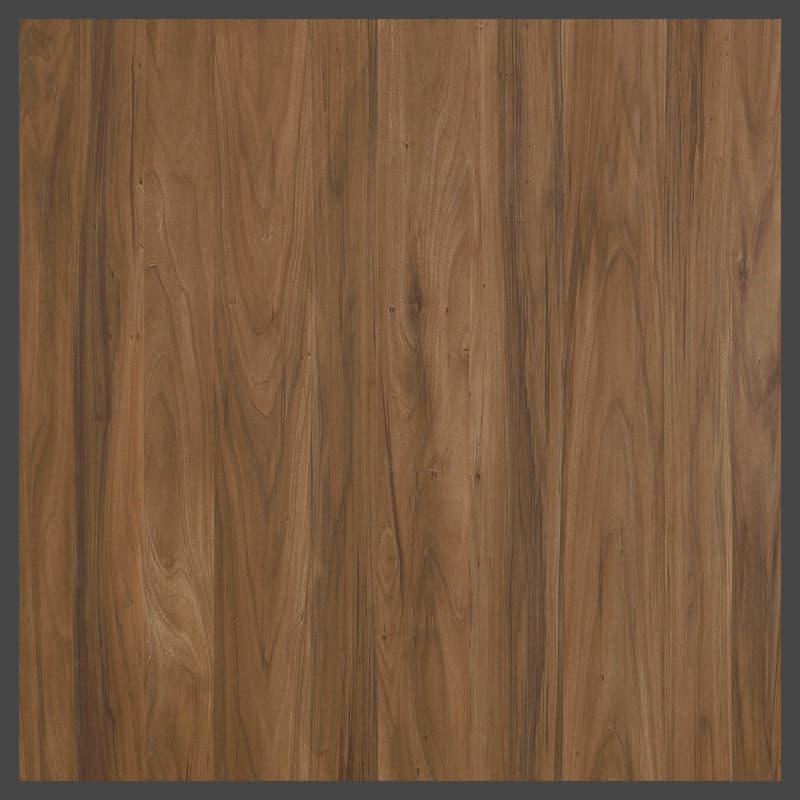

The SM'art A/A decorative panel in SMM021 Chrysler brings a refined Manhattan finish to large-format casework work. This thermally fused laminate panel ships with the same decorative face on both sides, so either face can show without a second operation. At 81-1/2 inches by 120-5/64 inches and 19 mm thick, it is sized to yield full-height cabinet parts with room for efficient nesting.
Key Features
- 13-hour water-resistant core — a vendor test result, not a wet-area rating, and useful where spills and humidity are routine.
- 50% post-consumer recycled core — half the core content is reclaimed wood fiber.
- CARB2 compliant — meets the California formaldehyde emission limits that commercial and residential specifications ask for.
- CARB2 hardwood particleboard core — the substrate the decor is fused to.
- A/An A/A construction delivers the same SMM021 Chrysler decor on both faces, making it suitable for open shelving, room dividers, and any component visible from both sides.
- Manhattan finish is a distinct surface texture within the SM'art collection, giving the panel a specific tactile and visual character suited to contemporary interiors.
- 19 mm thickness pairs directly with standard confirmat fasteners and 23 mm ABS edgebanding for a complete cabinet build without substitutions.
- Large-format sheet at 81-1/2 inches by 120-5/64 inches supports efficient yield on tall carcass parts and minimizes seam count on wide runs.
- Thermally fused laminate face bonds the decorative layer directly to the core with no separate adhesive line, so there is nothing to delaminate at the edge.
- Matching ABS edgebanding is available in this color, closing cut edges so face and edge read as a single surface.
Where This Panel Fits the Work
The A/A grade makes this panel the right call whenever a component is seen from more than one angle. Open wardrobe carcasses, back-to-back shelving units, freestanding room dividers, and retail display cases all expose both faces in use. With A/A construction there is no need to plan the layout around hiding a backer, which simplifies cutting and reduces the chance of an orientation error at install. The large sheet size is also an advantage on tall pantry and floor-to-ceiling cabinet runs, where a smaller sheet forces an extra horizontal seam that the 120-5/64 inch length avoids entirely.
Surface, Core, and Build
TFL fuses the Manhattan-finish Chrysler decor directly to the core under heat and pressure, producing a face that is part of the board rather than a layer on top of it. The result is a clean, consistent edge once the sheet is cut, and a face that handles the routine contact of cabinet interiors and door backs without showing wear in those zones. At 19 mm the panel falls in line with the rest of a standard cabinet box build: confirmat joinery, cam locks, and dowels all engage the thickness the way a shop's existing setups expect. Matching ABS edgebanding in SMM021 Chrysler carries the same decor and finish family onto every cut edge, so a banded and trimmed edge disappears against the face rather than reading as a separate material.
Who Orders This Panel
Cabinet shops running contemporary residential or commercial interiors reach for the Manhattan finish when the specification calls for a surface with clear tactile character but not a wood grain. The SMM021 Chrysler colorway works in neutral-palette kitchens, wardrobe systems, and office millwork where the color stays out of the way of other finish decisions. Designers specifying full-height cabinetry value the sheet length because it eliminates the approval conversation around a mid-panel seam. For contractors sourcing for a multi-unit project, the A/A construction keeps site inventory simple: every sheet can become any component regardless of which face ends up visible.
Does the Manhattan finish feel different from a standard matte TFL panel?
Yes. Manhattan is a named finish family within the SM'art collection with its own emboss profile. It has a specific texture that reads and feels distinct from a generic flat matte. Ordering a sample before committing to a large run is the best way to confirm it suits the project.
Is matching HPL available for SMM021 Chrysler?
Yes. SM'art matching HPL is available in 60 inch by 120 inch sheets, which lets you carry the Chrysler color onto a countertop or high-wear horizontal surface that the panel program does not cover on its own.
What edgebanding width works with a 19 mm panel?
A 23 mm ABS band is the standard match for a 19 mm panel. It applies with enough overhang to trim flush on both faces and leaves a clean finished edge. Matching ABS edgebanding in SMM021 Chrysler is stocked to pair with this panel.
Can this panel be used for cabinet interiors as well as door fronts?
Absolutely. The A/A construction and TFL surface are well suited to cabinet boxes, drawer bottoms, shelves, and interior carcass parts, not just show faces. Many shops use the same sheet for both interior and exterior components to keep color consistent throughout the build.
A Panel That Keeps Both Sides in Play
When every face of a component needs to look finished, an A/A panel in a strong, well-characterized color like SMM021 Chrysler removes the layout constraint and gives a shop the freedom to cut and assemble without tracking orientation.
