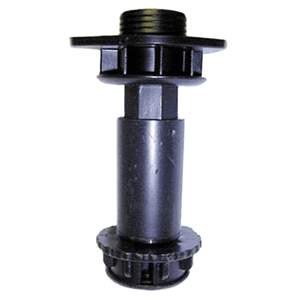

Press-In Cabinet Leg Leveler with 30mm Knock-In Socket
Item # B611120.77
•Mfr # 27015644
$2.43
/Each
100 items
$2.28/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
An alternative for base cabinet construction and installation. Save time and material by eliminating toe kick notching. Install at jobsite. Following installation, attach a continuous toe kick strip for a clean, finished appearance. Easy height adjustment without shimming (3 3?4" to 5 1?2"). Levelers screw on or press into the bottom of the cabinet.
Features:
• Press-in doweled mounting
• Black ABS plastic
• Load capacity of up to 850 lb per set of four levelers
• Toe kick can be easily removed to allow access for cleaning or extermination
• Adjustable from either the inside or the outside of the cabinet with only a standard slotted screwdriver
Installation:
• Assemble leg levelers
• Attach the mounting block during cabinet construction and install the leg at cabinet installation
• Drill the mounting hole center 26 mm behind the back edge of the toe kick and 26 mm to the inside of the side panel
• Attach the mounting block with the large flange towards the center of the cabinet so that the small flange supports the cabinet side panel
• Use standard screwdriver.
Features:
• Press-in doweled mounting
• Black ABS plastic
• Load capacity of up to 850 lb per set of four levelers
• Toe kick can be easily removed to allow access for cleaning or extermination
• Adjustable from either the inside or the outside of the cabinet with only a standard slotted screwdriver
Installation:
• Assemble leg levelers
• Attach the mounting block during cabinet construction and install the leg at cabinet installation
• Drill the mounting hole center 26 mm behind the back edge of the toe kick and 26 mm to the inside of the side panel
• Attach the mounting block with the large flange towards the center of the cabinet so that the small flange supports the cabinet side panel
• Use standard screwdriver.
Specifications
| Mounting Type | Press-In |
| Height Adjustment | 3-3/4"-5-1/2" |
| Weight Capacity | |
| Swivel Radius | |
| Wheel Tread Width | |
| Product Type | Cabinet Leg Leveler |
| Diameter | |
| Finish | |
| Width | |
| Length | |
| Height | |
| Material | |
| Load Capacity |
