Baileigh HPB-45NC 5 HP Horizontal Press Brake, 3 Phase/220V
Item # JPWBA9-1004703
•Mfr # BA9-1004703
This item may incur additional shipping costs and lead times.
Product Details

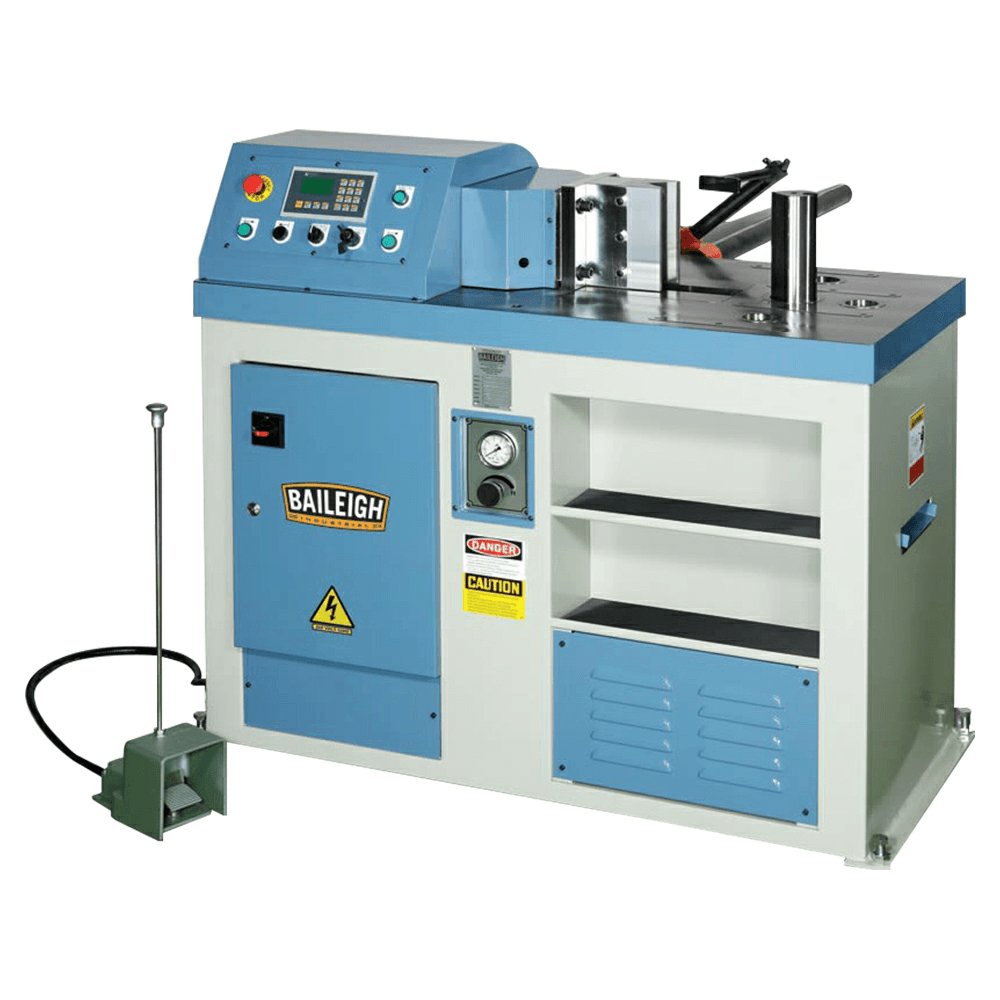

This Baileigh horizontal press brake machine can bend, punch, and shear with the right tooling. You can easily make small parts, like flanges and brackets, because material lies on a flat surface.
Recommended for:

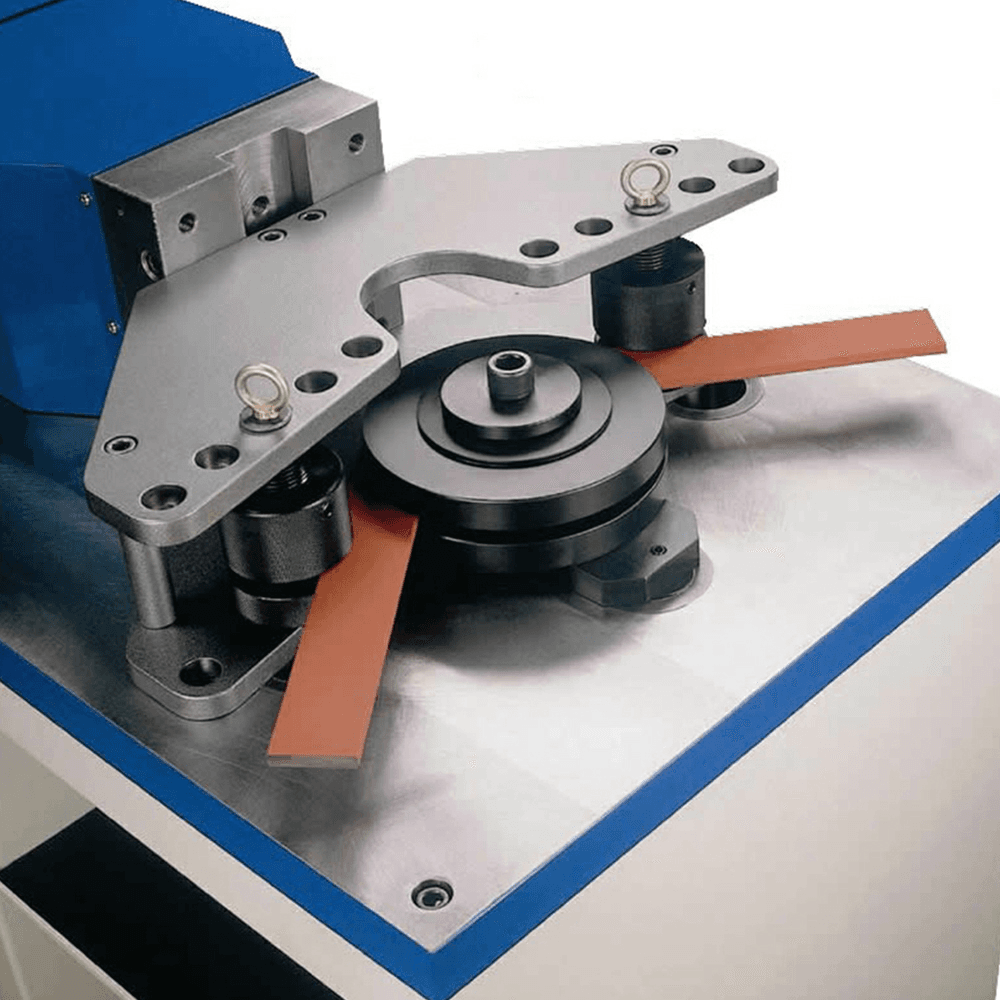

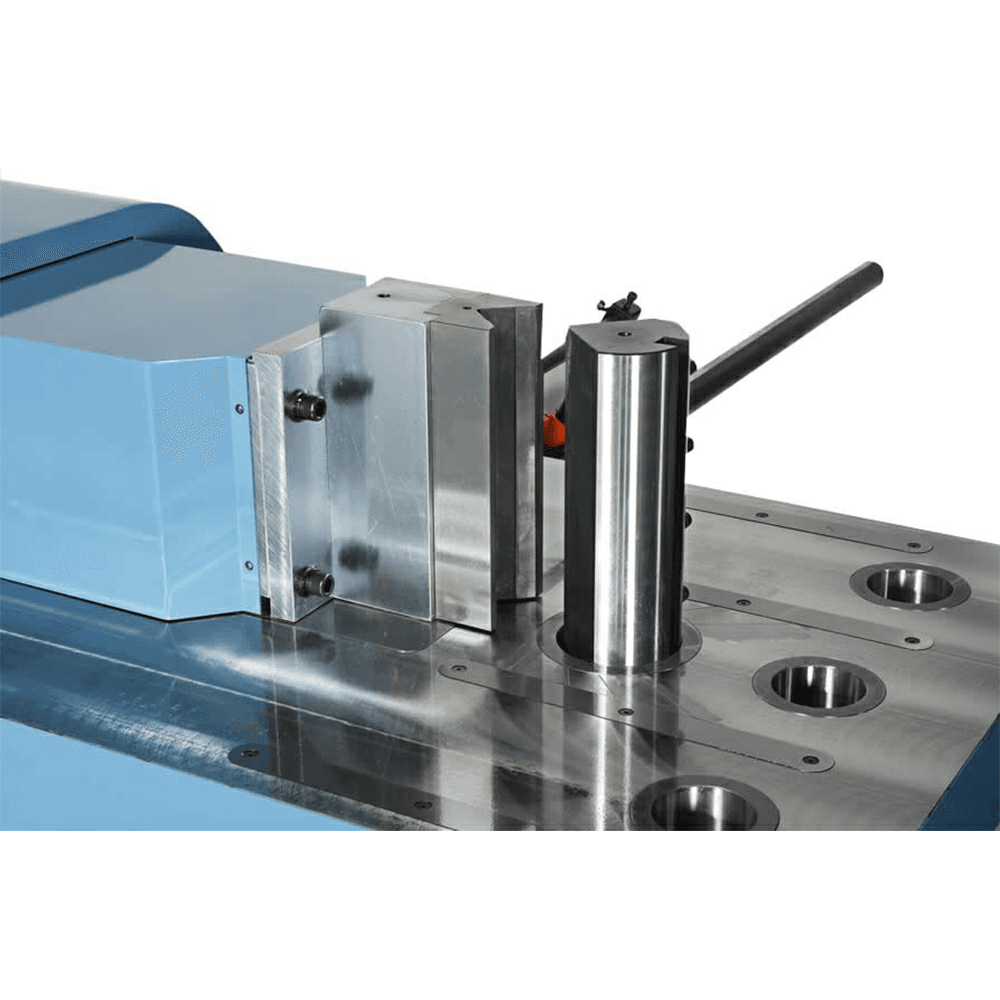

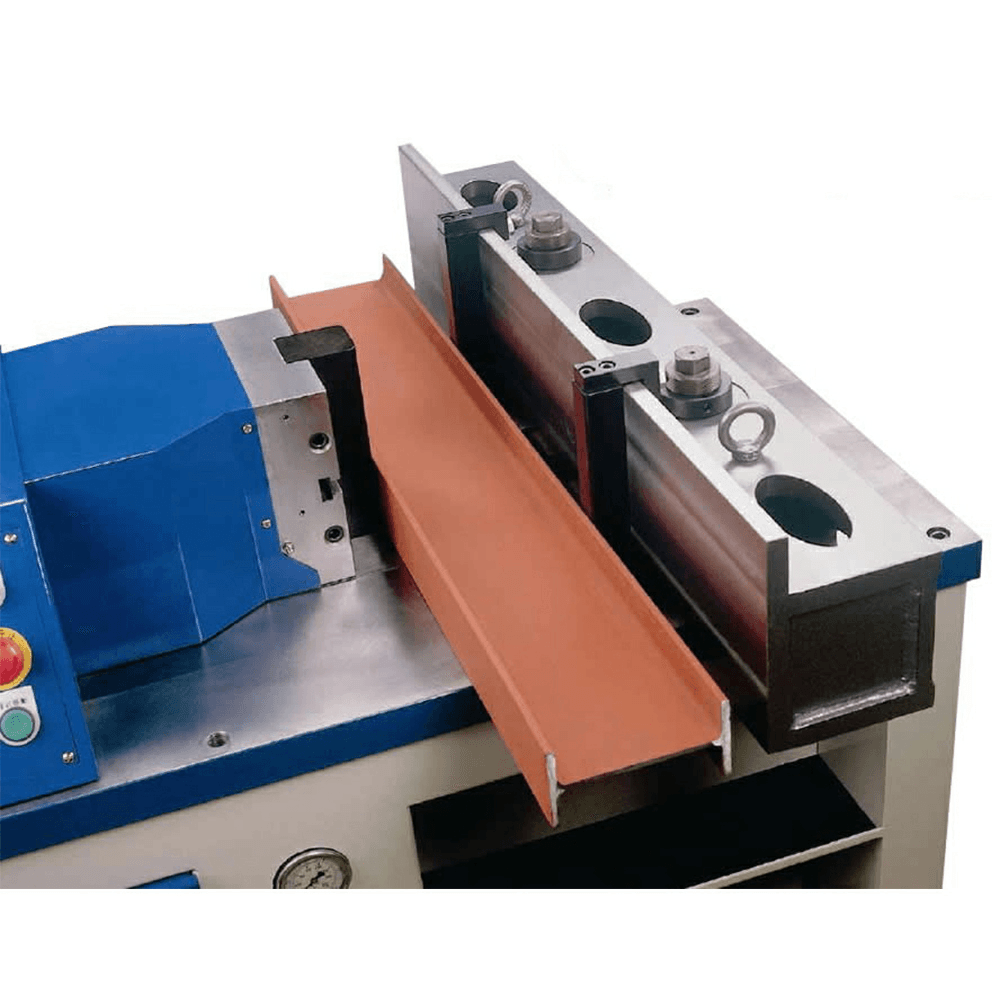

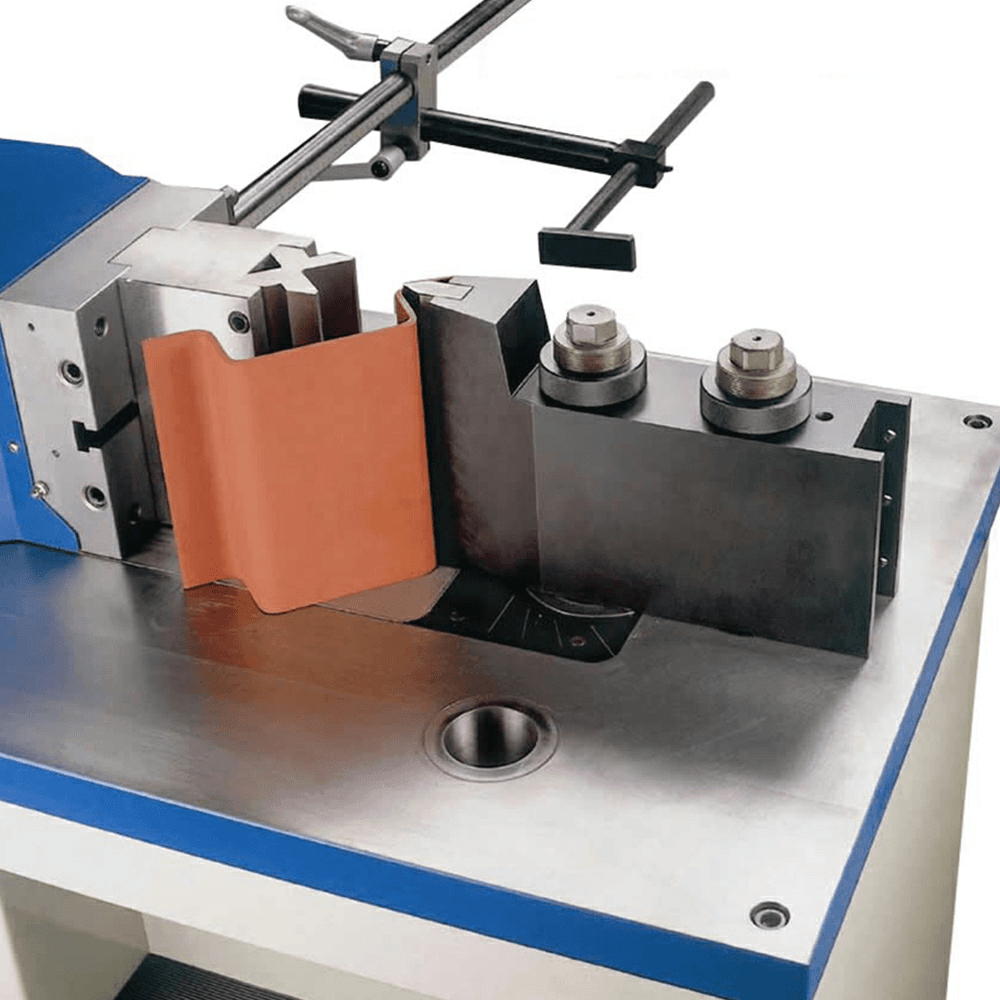

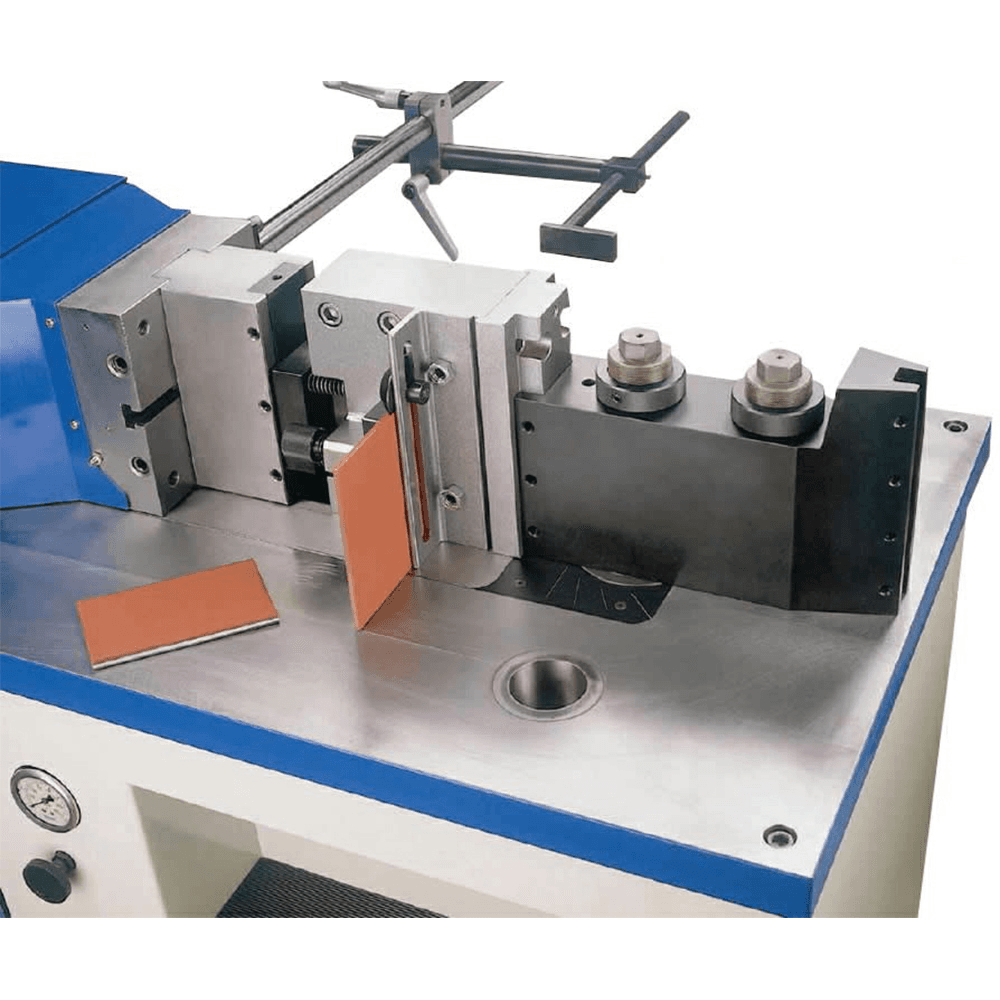

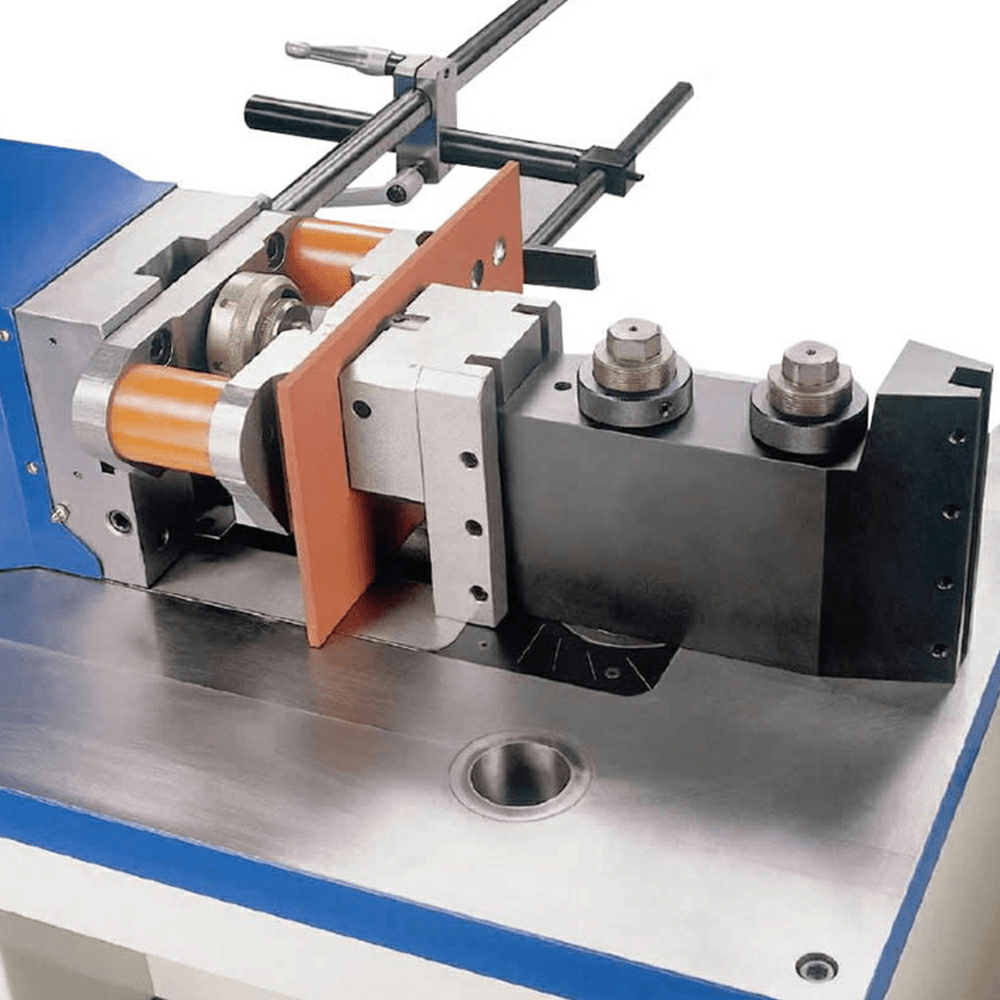

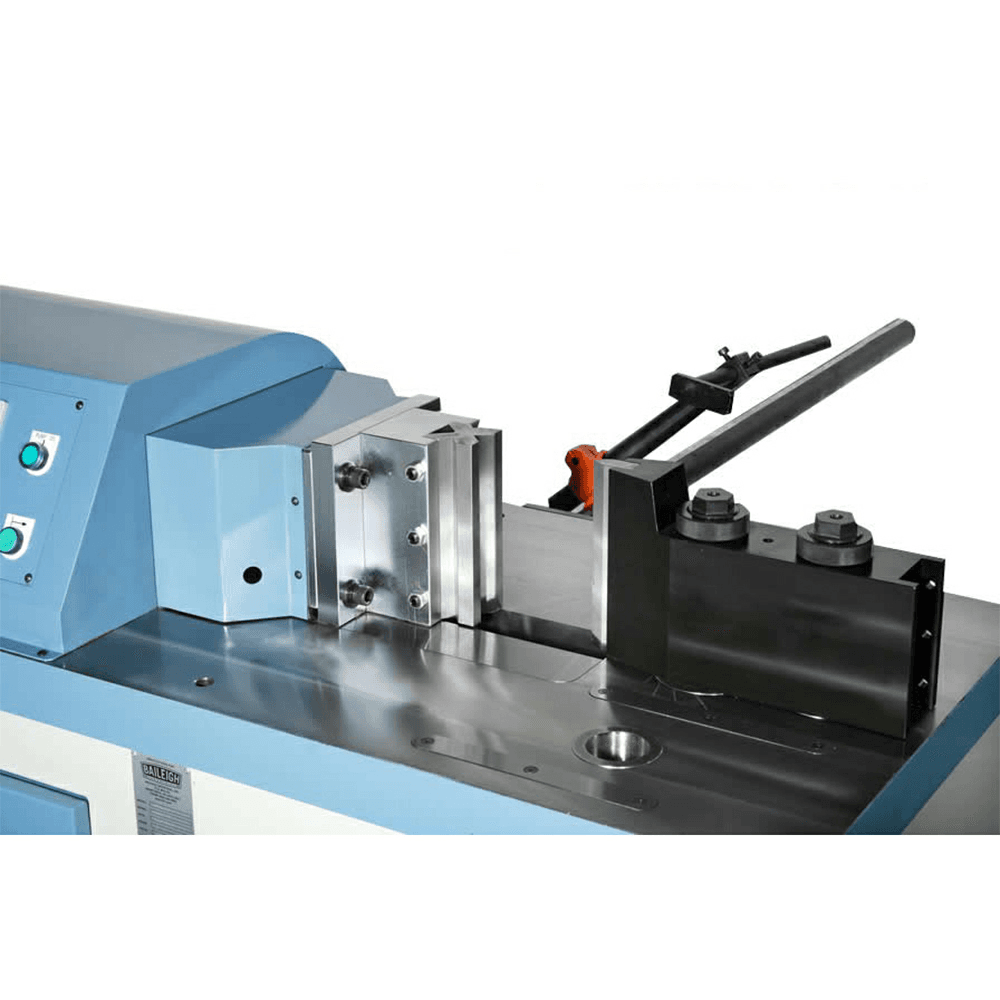

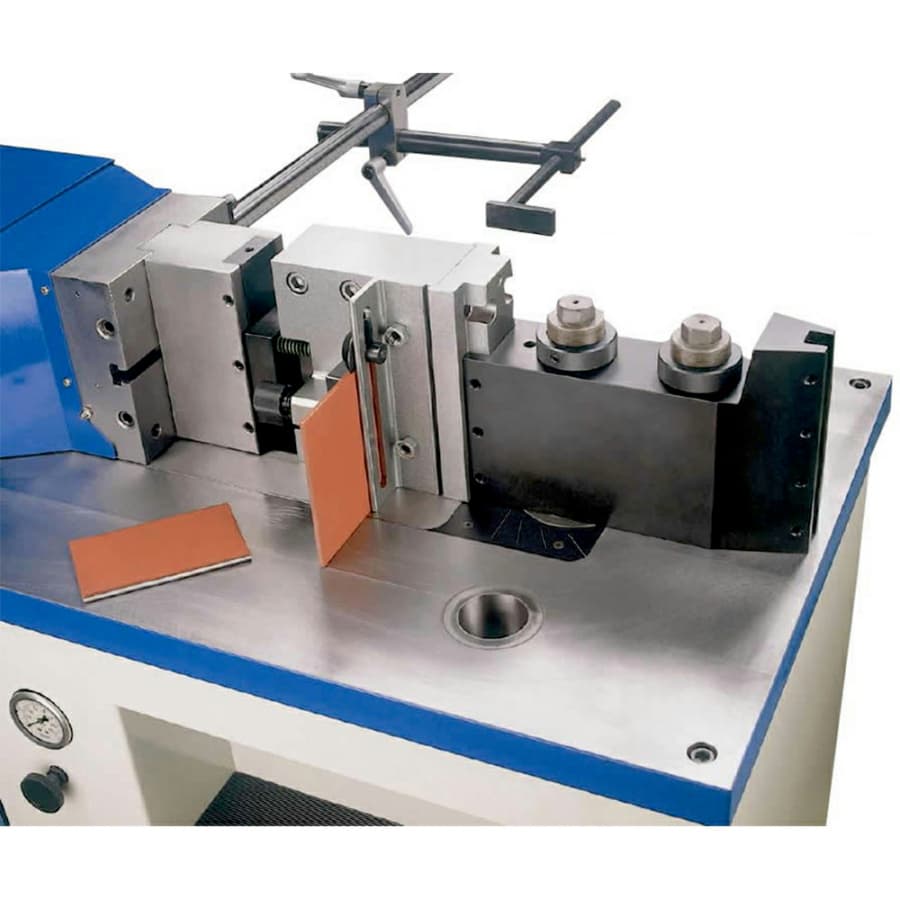

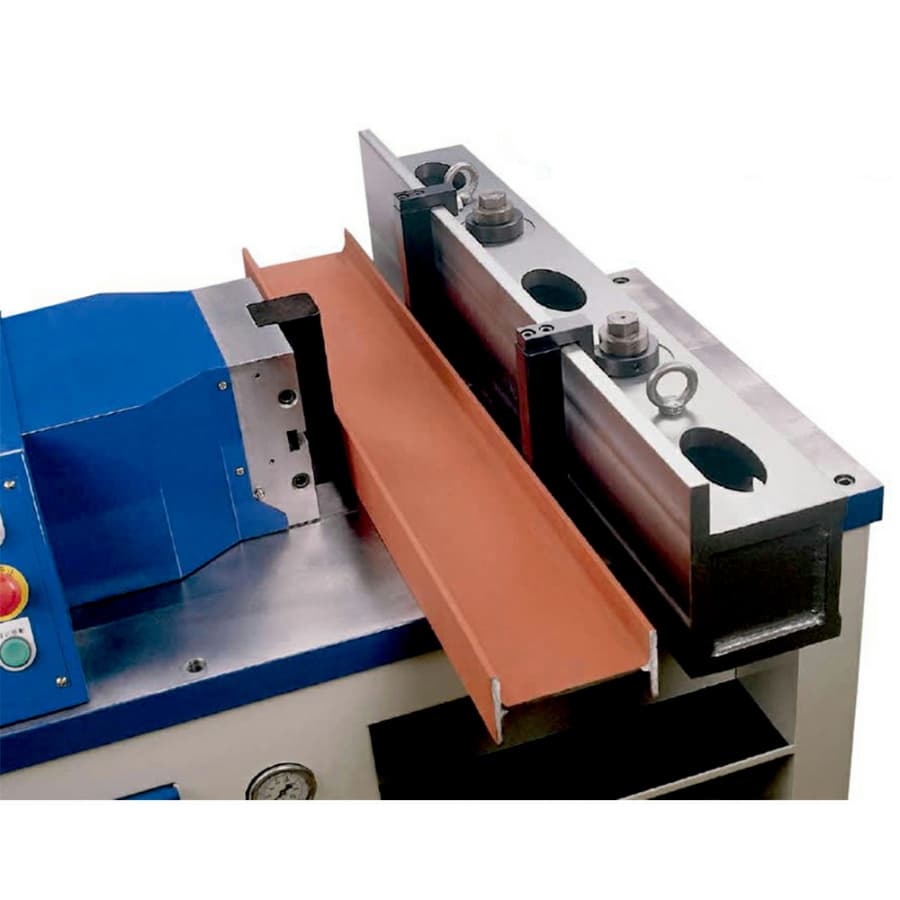

• Full industrial production, including shipbuilding yards, boiler manufacturers, nuclear applications • Making parts that are thick, but not wide (die size is limited) Features: • Electronic encoders make this hydraulic press brake accurate to +/- .002" • Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material. Numerical control (NC) programmer can store up to 50 programs with 10 bends per program • You can adjust the pressure of the hydraulics for your material. You can also run the metal press brake in a manual mode for one-off projects as well as set-up • Robust manual back gauge bolts to the machine and helps with repeatability and product counter makes production runs more efficient • Machined table, 36" high, keeps your material perfectly level. No need to hold one side and hope it's lined up! • Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out • Includes 80mm single-V tooling (V-opening die and V post). Also accepts attachments for punching, straightening, shearing, and even pipe bending • Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary • 2,266-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won't flinch under pressure • Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex and shelving in the front can hold tooling and items you might need on a daily basisSpecifications
| Box Quantity | 1 |
| Approach Speed | 1.5" per sec |
| Miter Angle Range (Deg.) | |
| Motor (HP) | 5 HP |
| Motor Amps | |
| Oil Reservoir Capacity (cc) | |
| Overall Length | |
| Product Type | Horizontal Press Brakes |
| Punch Work Height | 7.875" |
| Range of Speeds | |
| Rectangle at 45 Degrees | |
| Rectangle Capacity | |
| Short Description | *45 tons of pressure *Programmable NC controller *9.84" stroke length *220V 3-phase power *36" working table height |
| Speed (rpm) | |
| Stroke Length | 9.84" |
| Table Height | 36.61" |
| Throat Depth | |
| Minimum Return Speed (In./Sec) | .78" / sec. |
| Maximum Pressure (PSI) | |
| Maximum Notch | |
| Approx. Pressure (Tons) | 45 tons |
| Assembled Machine Dimensions (L x W x H) | |
| Back Gauge Capacity | |
| Back Gauge Motor (hp) | |
| Bending Capacity Max Length And Thickness | 7.875" (.472") |
| Bending Speed | |
| Configurable Base Item | |
| Digital Readout | |
| Distance Between Housings | |
| Distance From Table To Ram | |
| Distance Per Stroke - jpw_distance_per_stroke_in | |
| Fixture Holes | (1) @ 3.268" dia. / (3) @ 2.283" dia. |
| Horse Power (HP) | 5 HP |
| Included Tooling | |
| Input Power | 220V / 3 Phase |
| Volts | 220V |
