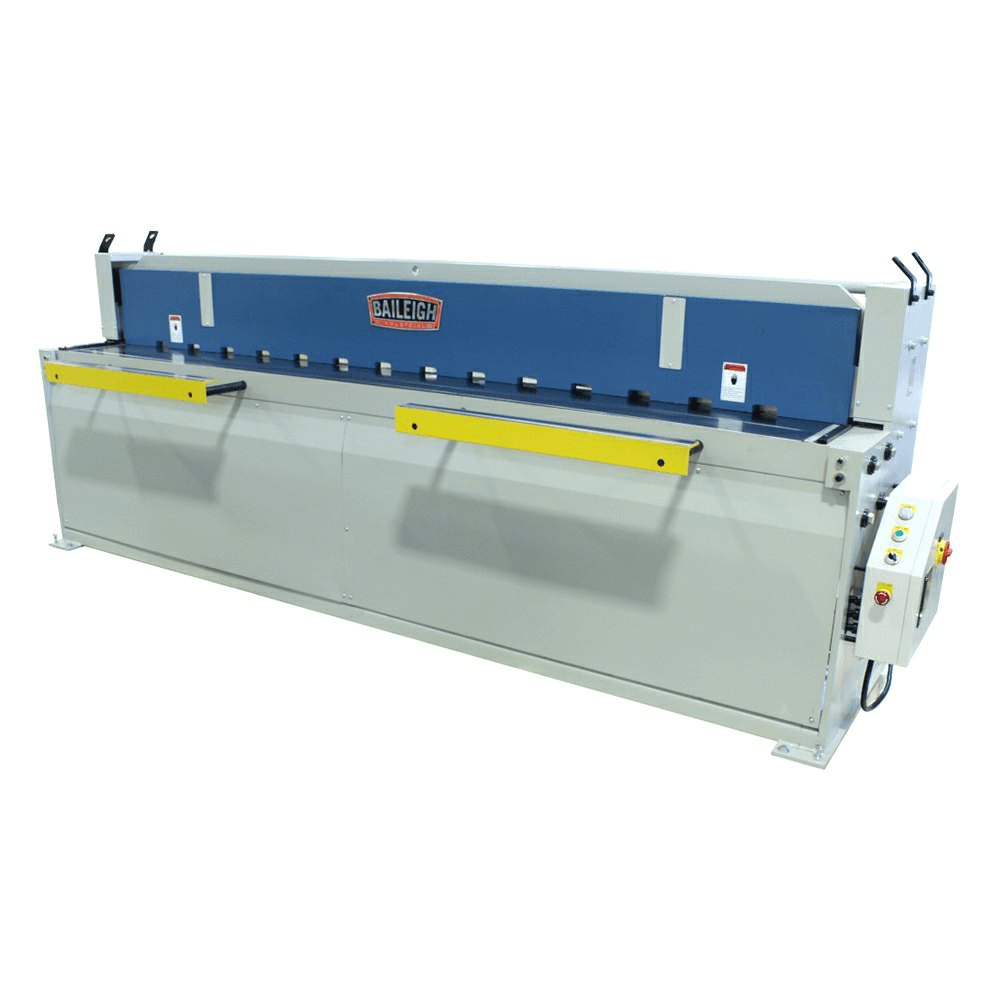

Baileigh SH-12010 7.5 HP Sheet Metal Shear, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
Need to shear extremely long sheets of 10-gauge mild steel. Built with a steel plate frame for accuracy and dependability, this hydraulic shear will help you increase production. Also available in 80"-long and 100"-long versions (both with 10-gauge capacity). We also offer an 120" Shear with a 14-gauge capacity. Features: • 120" length • Up to 20 strokes per minute • 7.5 hp motor runs on 220-volt 3-phase power • 10-gauge mild steel maximum capacity with a minimum capacity of 24-gauge mild steel. Adjustable 24" back gauge ensures repeatability • Powerful industrial-grade hydraulics produce smooth movements that prolong blade life • Front support arms and table guides keep the material square to the blade • 3 modes on the operator console: Inch mode - Jog the control and ease the blade down to the material, Single mode - Make one cut cycle per foot pedal push, and Auto mode - Continue cycling as you hold the pedal down • Comes standard with high carbon chromium blades. Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life • Fully welded steel construction helps prevent flex and maintain accuracy for many years
Specifications
| Box Quantity | 1 |
| Air Consumption (CFM) | |
| Sheet Capacity (Mild Steel) | |
| Shearing Length Capacity | 120" |
| Product Type | Hydraulic Sheet Metal Shears |
| Overall Dimensions (L x W x H) | |
| Mild Steel Capacity (Gauge) | 10 |
| Mild Steel Capacity | 10" |
| Max. Soft. Alloy Capacity (Gauge) | |
| Front Gauge Capacity | 24 |
| Cutting Blade Length | |
| Configurable Base Item | |
| Back Gauge Capacity | 24" |
| Strokes Per Minute (Full Length) | 20" |
