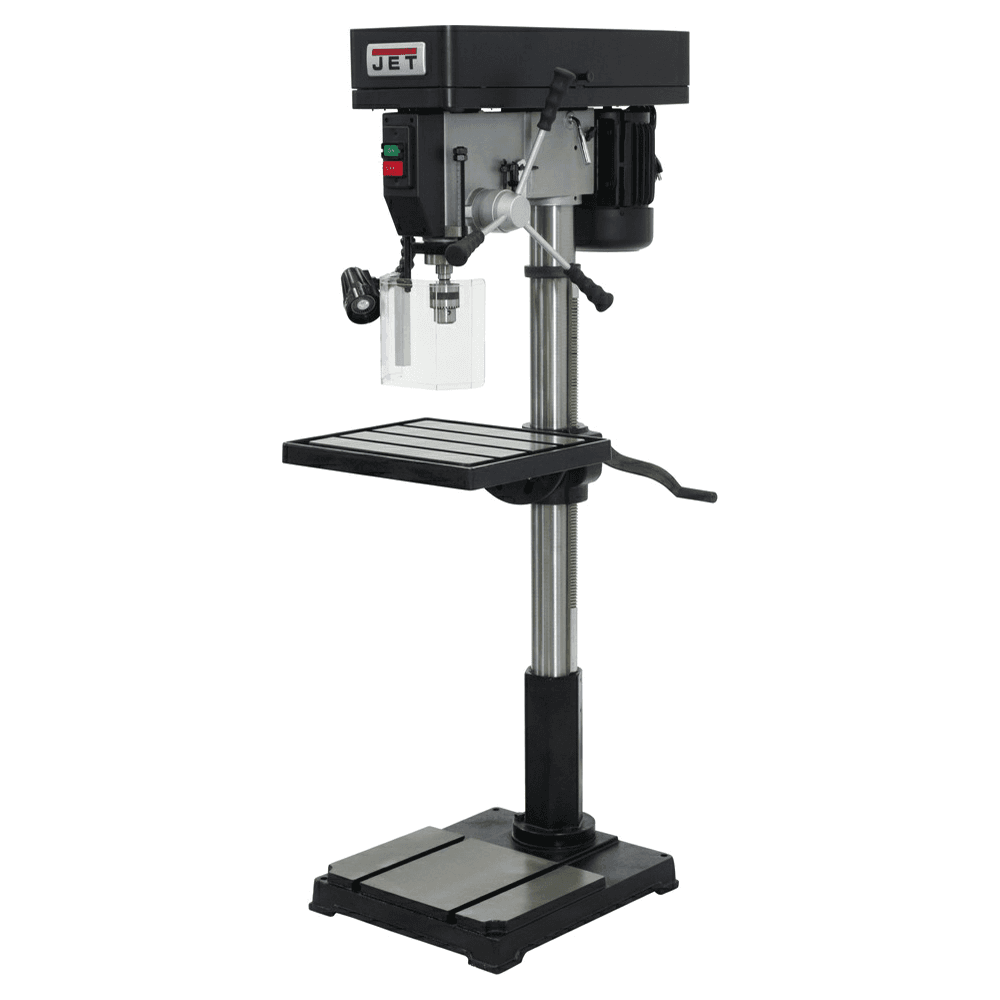

Jet Tools IDP-22 22" Industrial Floor Model Drill Press
This item may incur additional shipping costs and lead times.
Product Details
Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial drill presses. This heavy-duty industrial line of JET drill presses come standard with oversize cast iron tables and base and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty. Features: • 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment • Adjustable tension spindle return spring • Drill chuck and key attach to the side of the drill press always within reach of the operator • Hinged metal belt and pulley cover • Large hand grips designed with the users comfort in mind • On/off switch located on front of the drill press head • Rotating, 45° tilting, crank-operated worktable with quick release clamp • Spindle is supported by high quality ball bearings • Table ground for accuracy
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 176lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | 35" x 19" x 67" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 175 - 3,050 RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | 2", 5/8" |
| T-Slot Centers | 3/4" |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | MT-3 |
| Drills to Center of Circle | 22" |
| Drilling Capacity Mild Steel | 1" |
| Drilling Capacity Cast Iron | 1-1/4" |
| Motor Power (HP) | 1-1/2 HP |
| Column Diameter | 3-5/8" |
| Spindle Travel | 4-13/16" |
| Motor Phase | 1 |
| Base Size | |
| Motor Voltage (V.) | 115/230V |
| Spindle Taper | |
| Table Size (L x W) | 18-5/8" x 16-1/8" |
| Spindle Distance to Base | 48-1/2" |
| Spindle Distance to Table (Max.) | 28" |
| Number of Spindle Speeds | 12 |
| Distance Column to Spindle | 10-7/8" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | 21-1/2" x 18-5/16" |
| Base Slots Number & Size | |
| Base Dimensions | 22-5/8" x 19-7/16" x 3-3/8" |
| Spindle Speed (RPM) | |
| Swing | |
| Chuck Size | 5/8" |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
