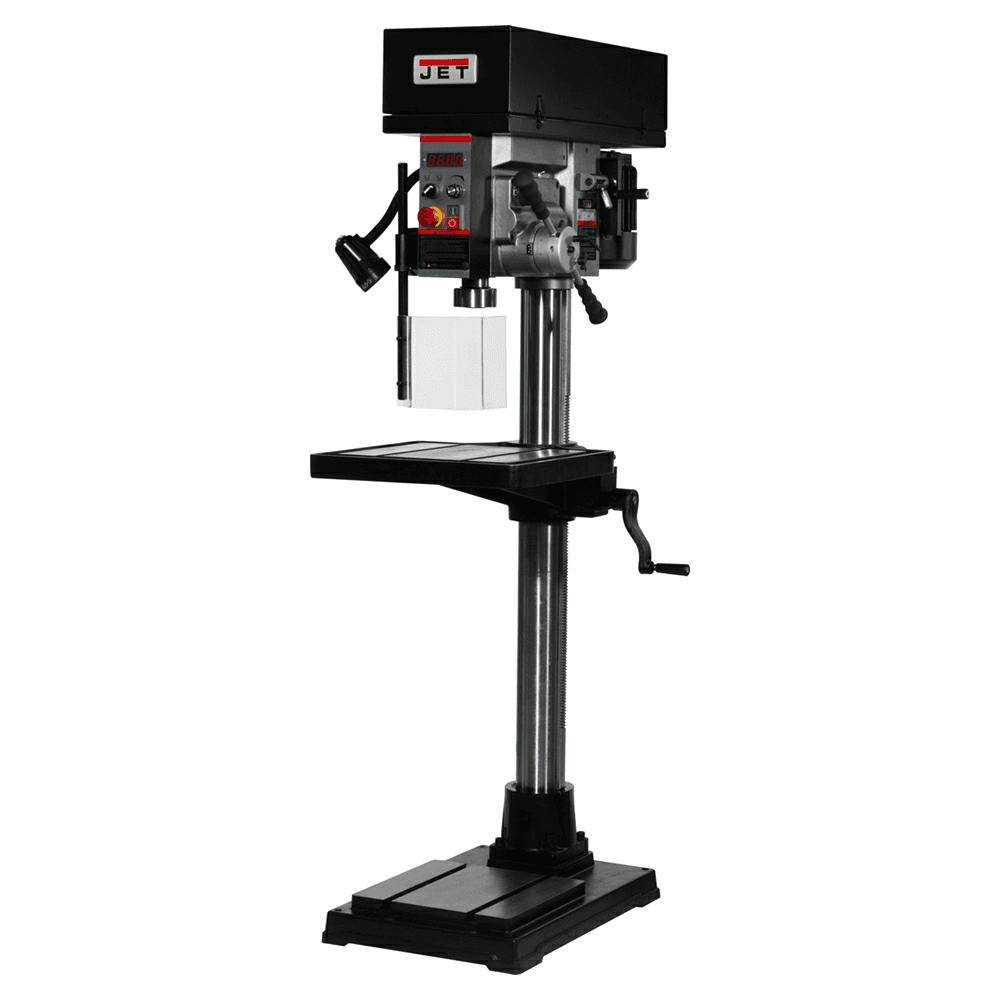

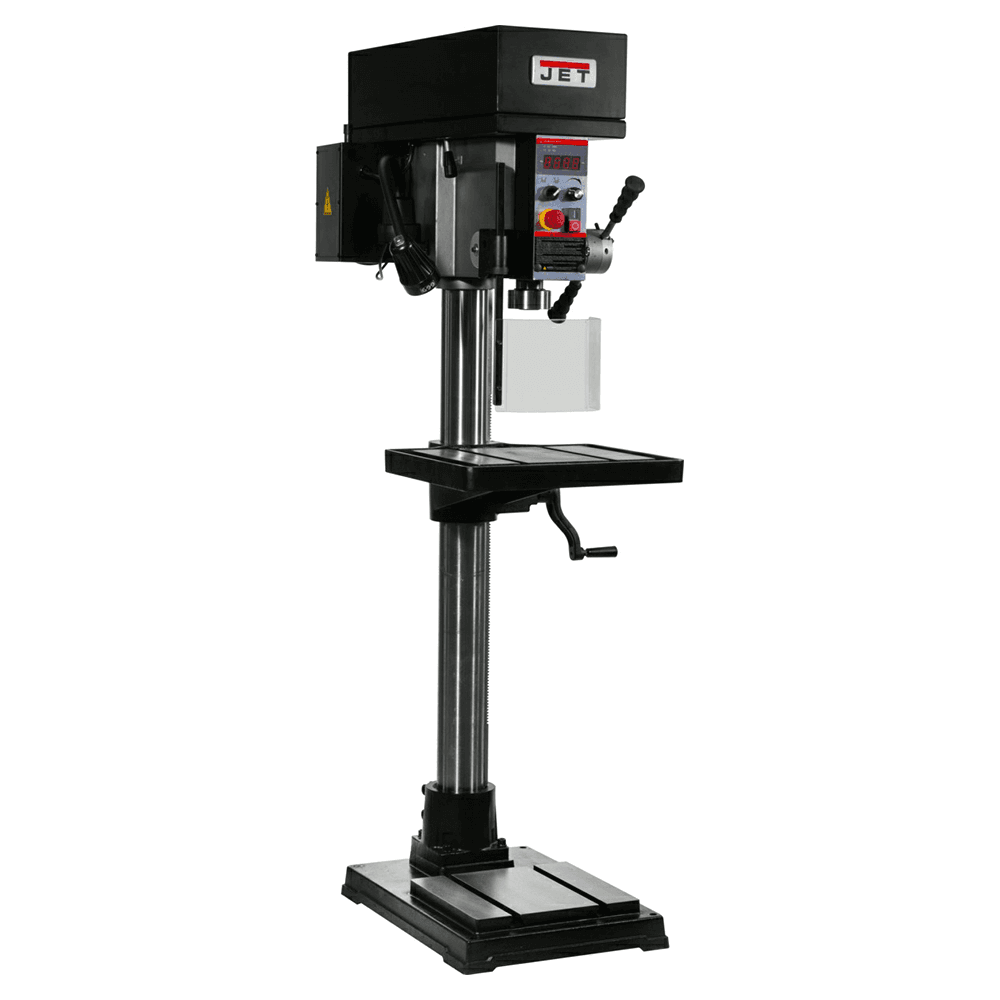

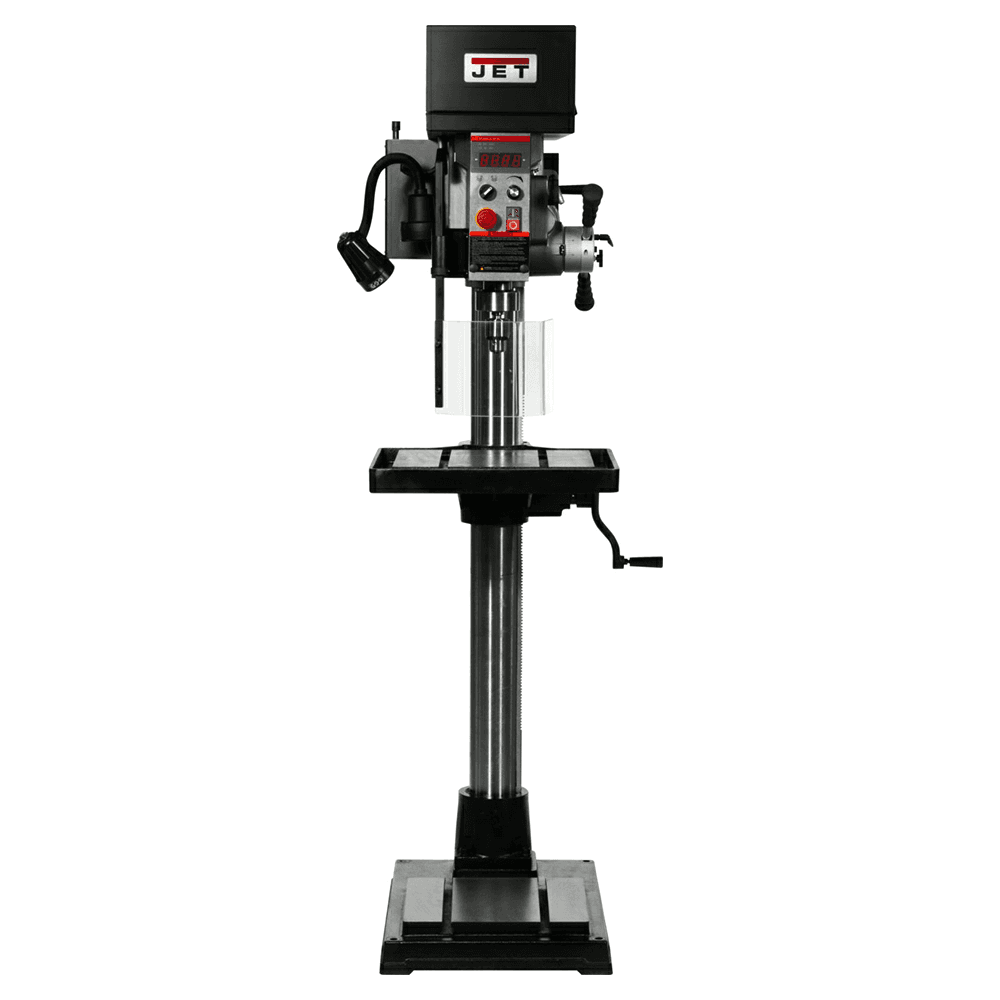

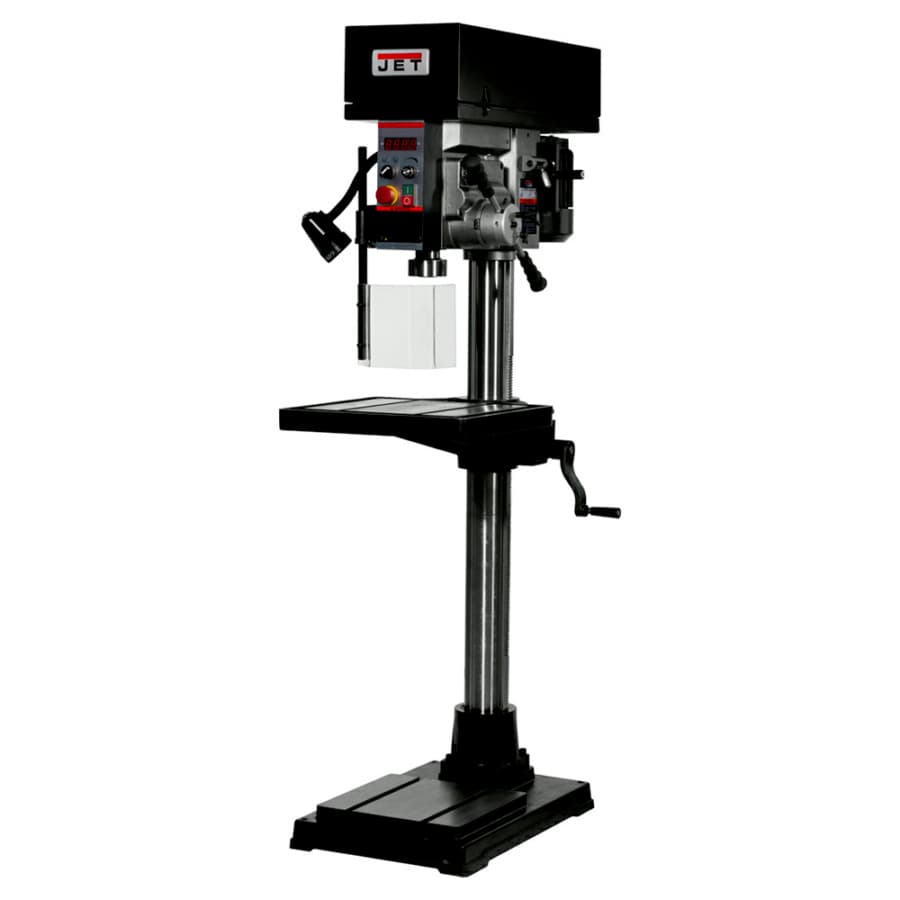

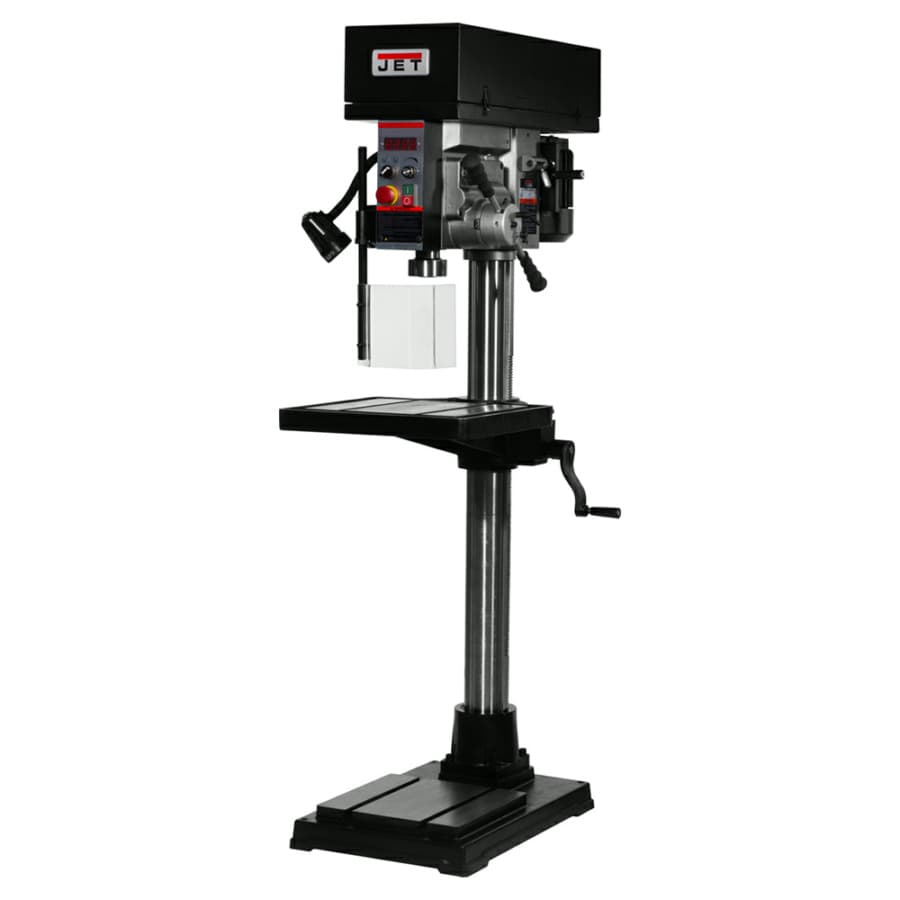

Jet Tools JDPE-20EVSC-PDF 20" 2 HP EVS Drill Press with Power Downfeed/Clutch, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details

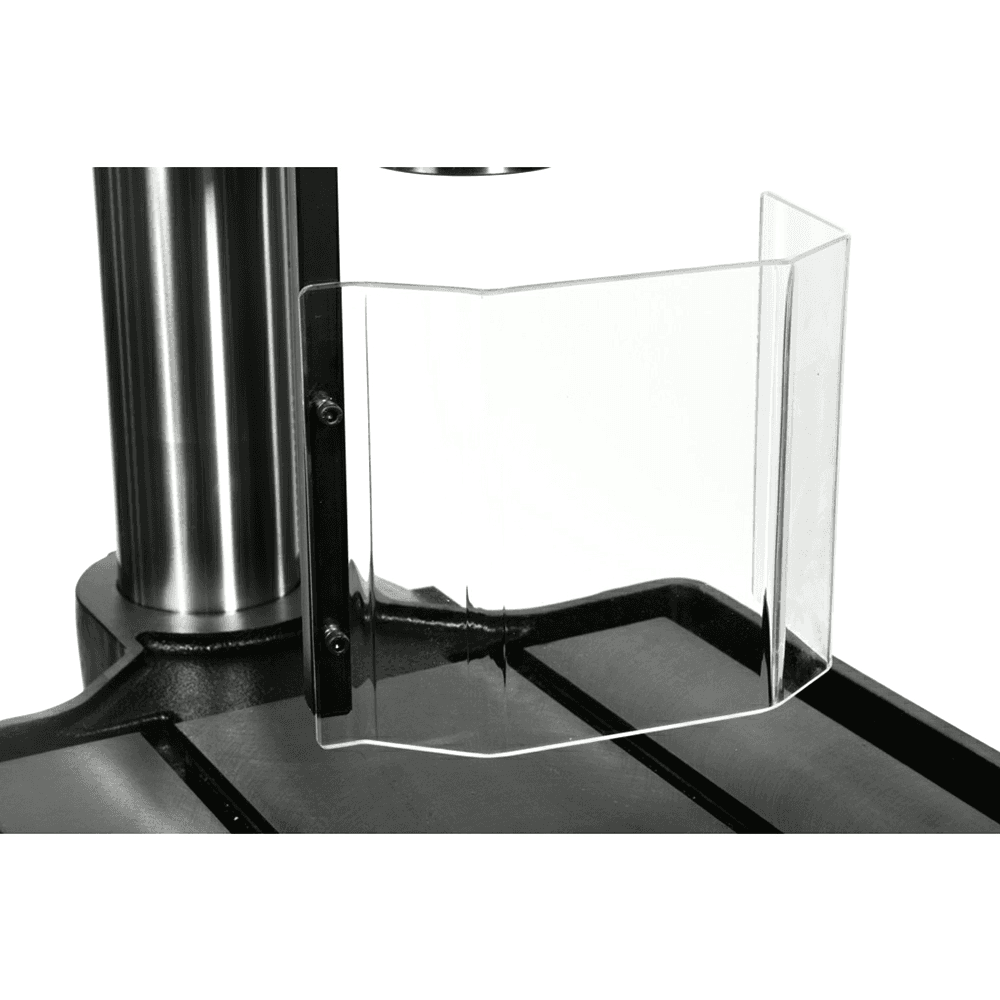

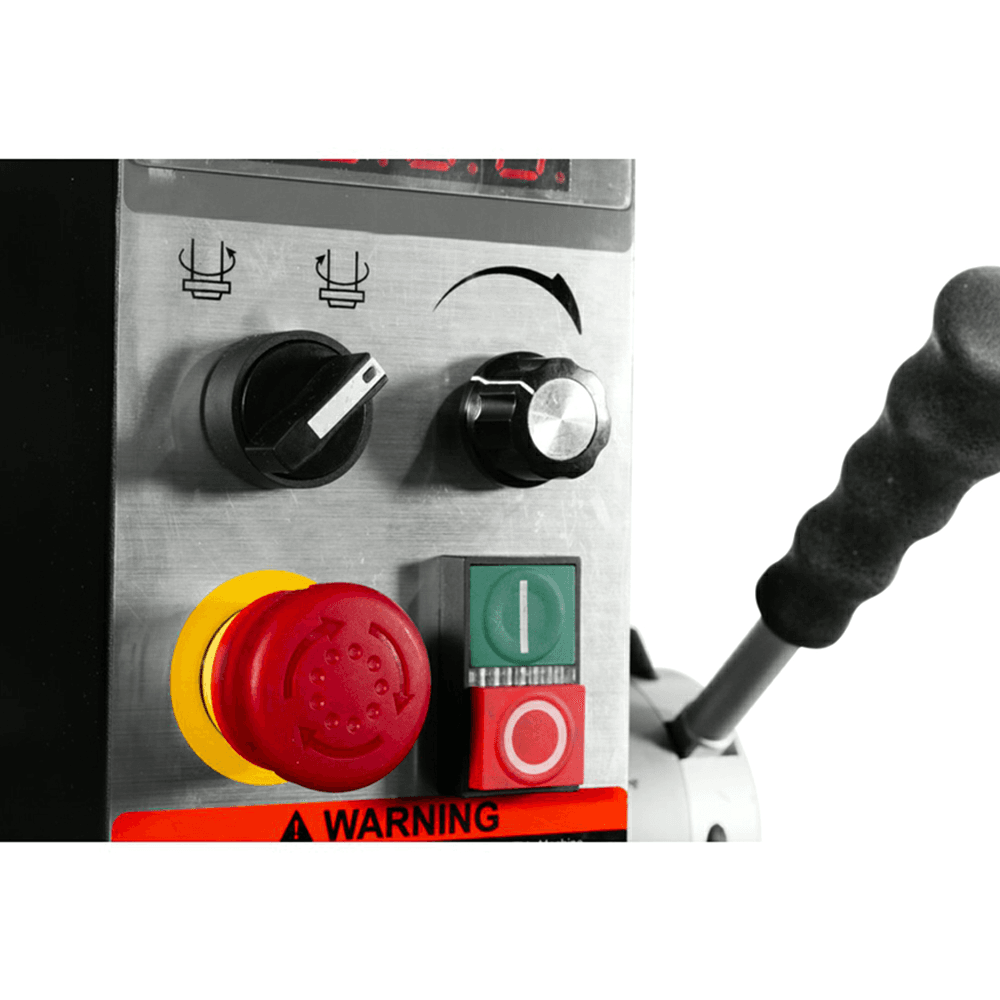

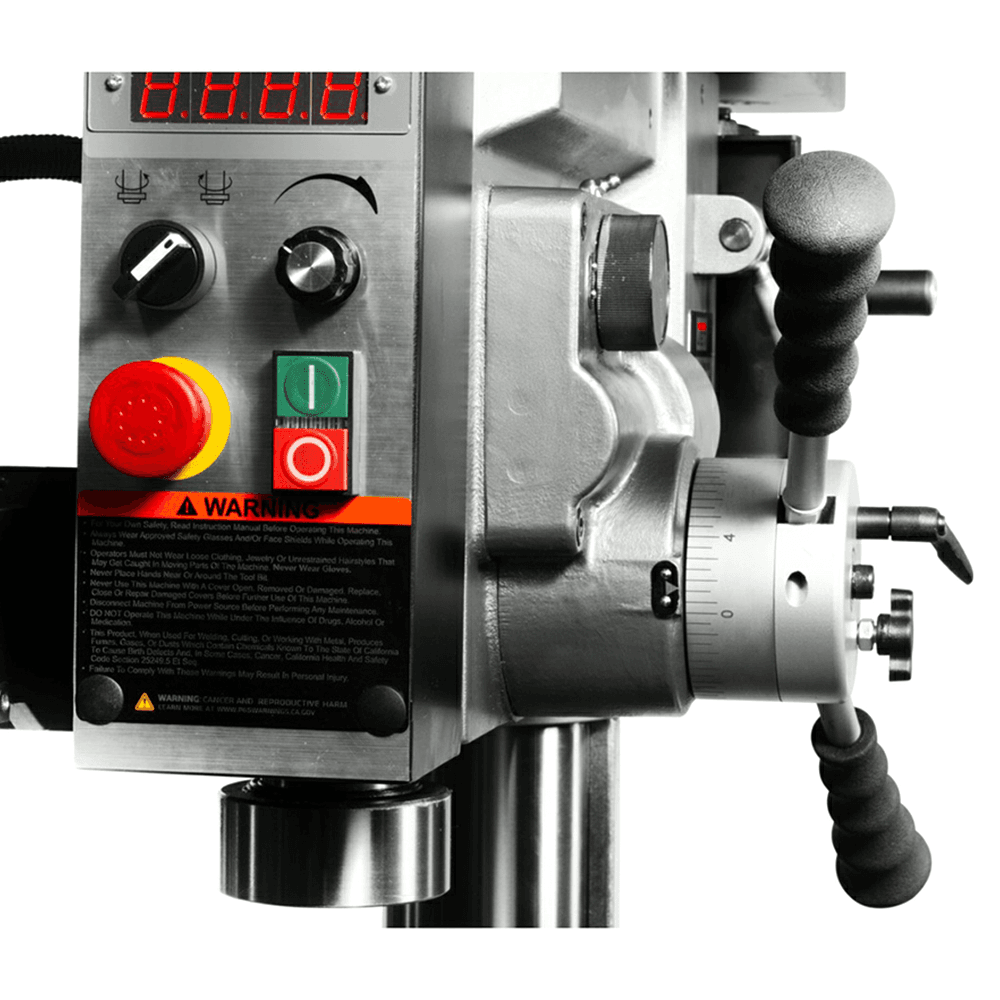

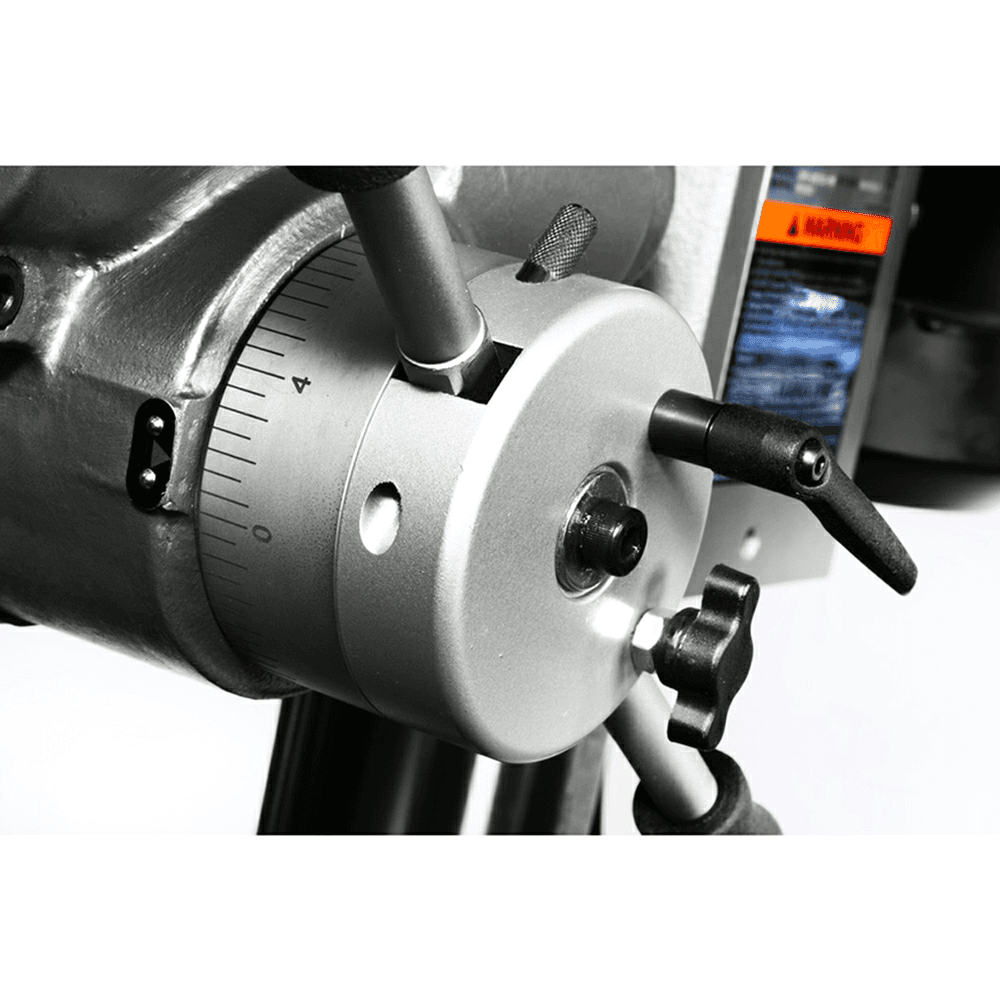

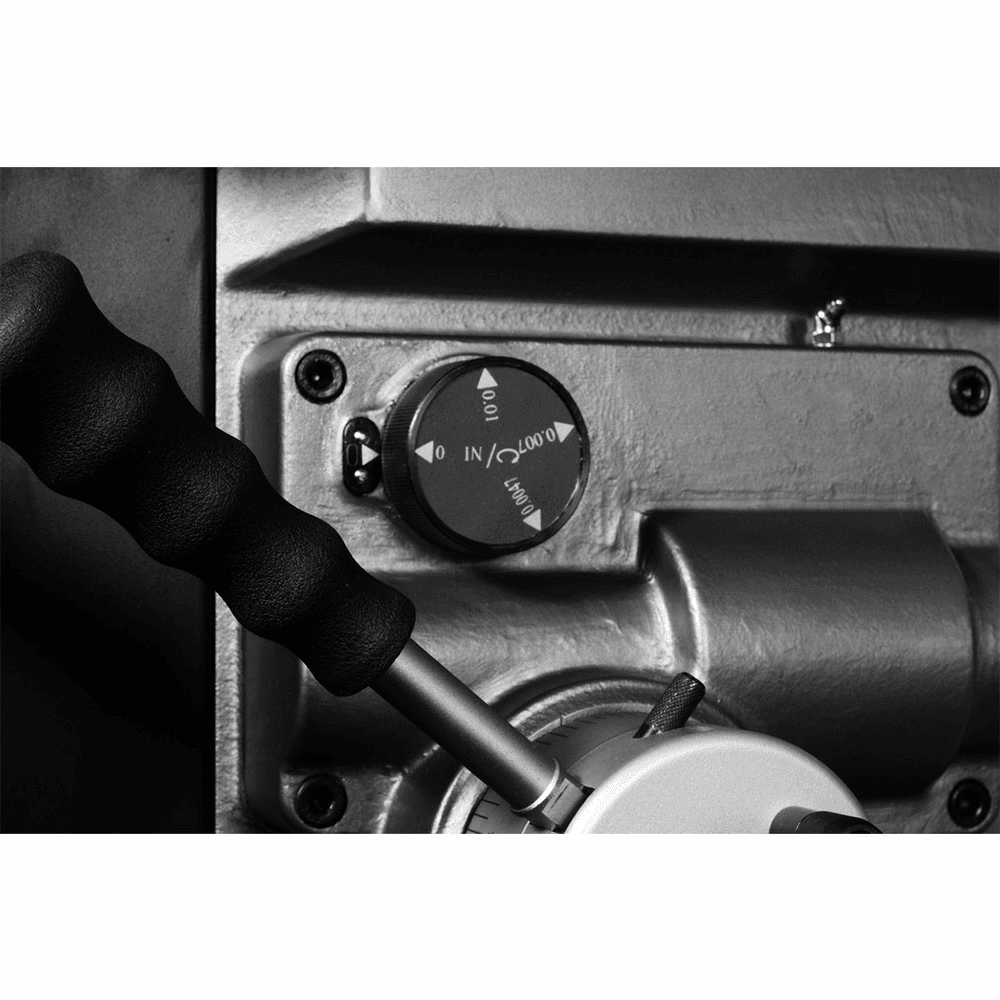

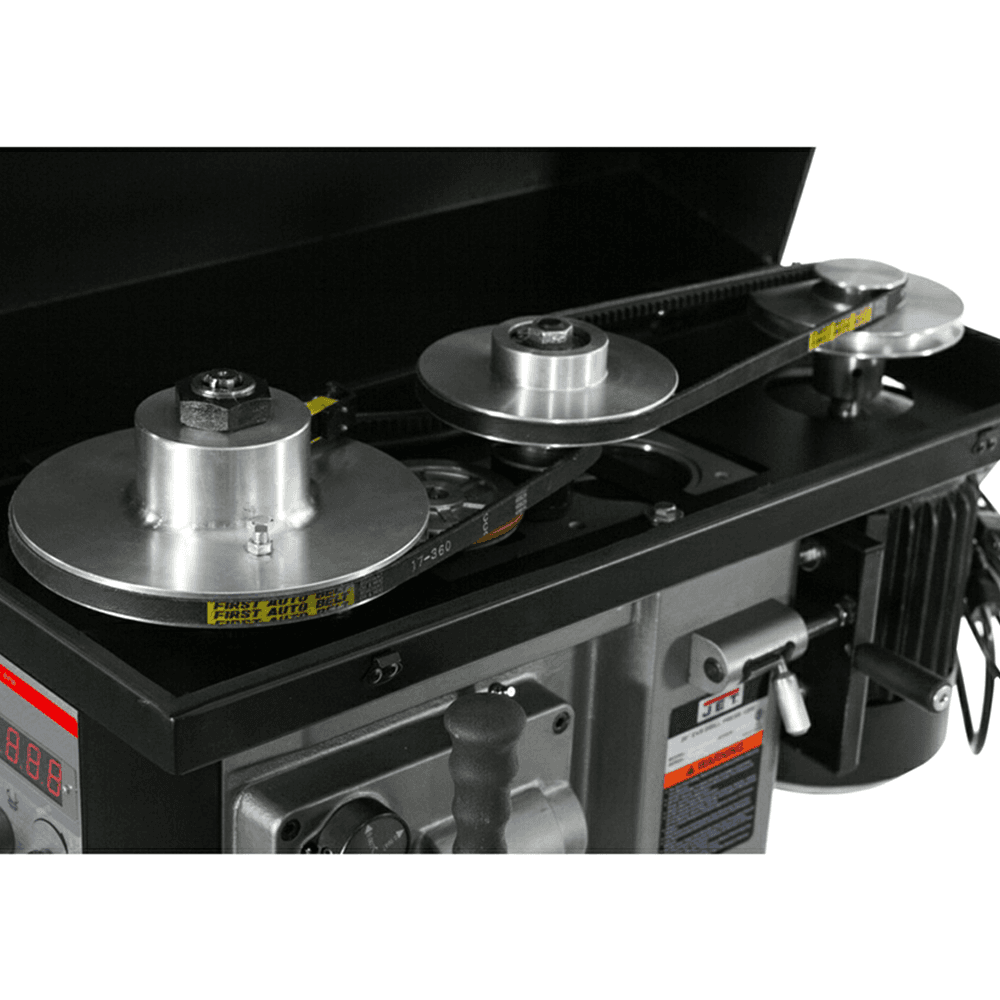

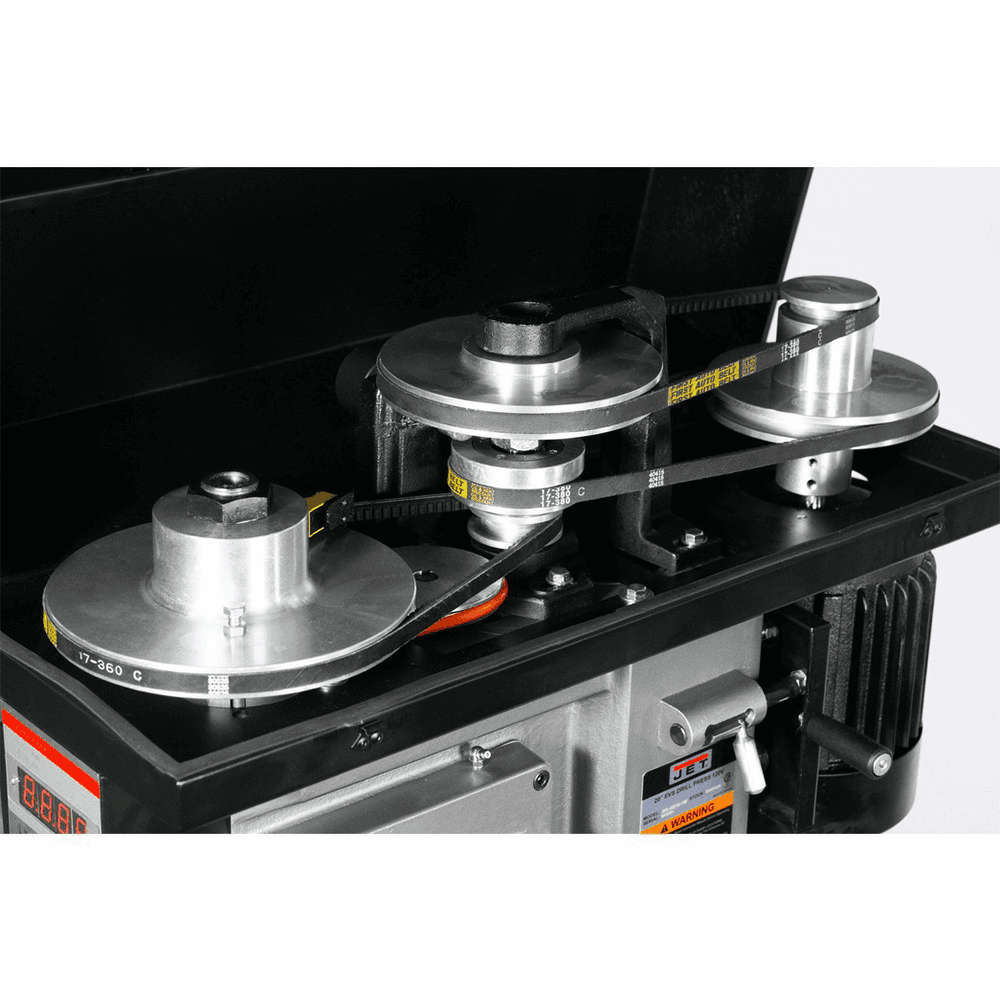

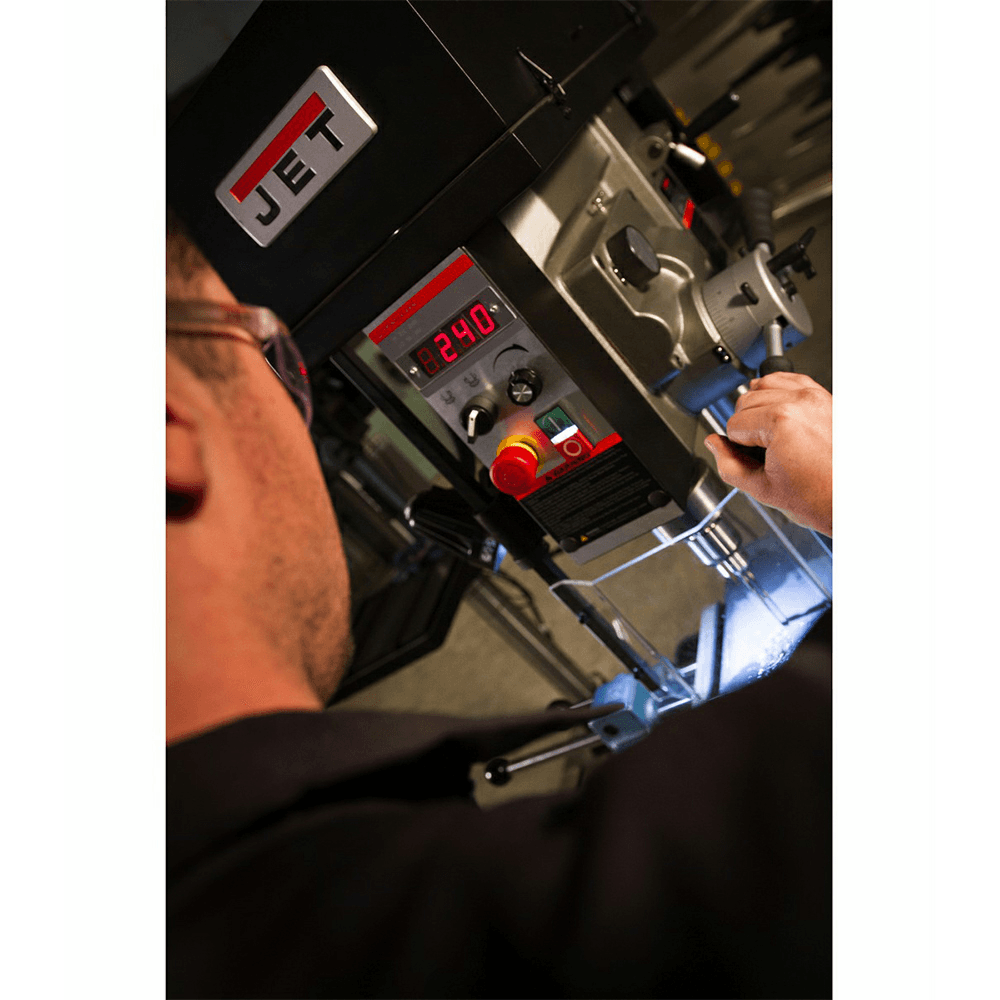

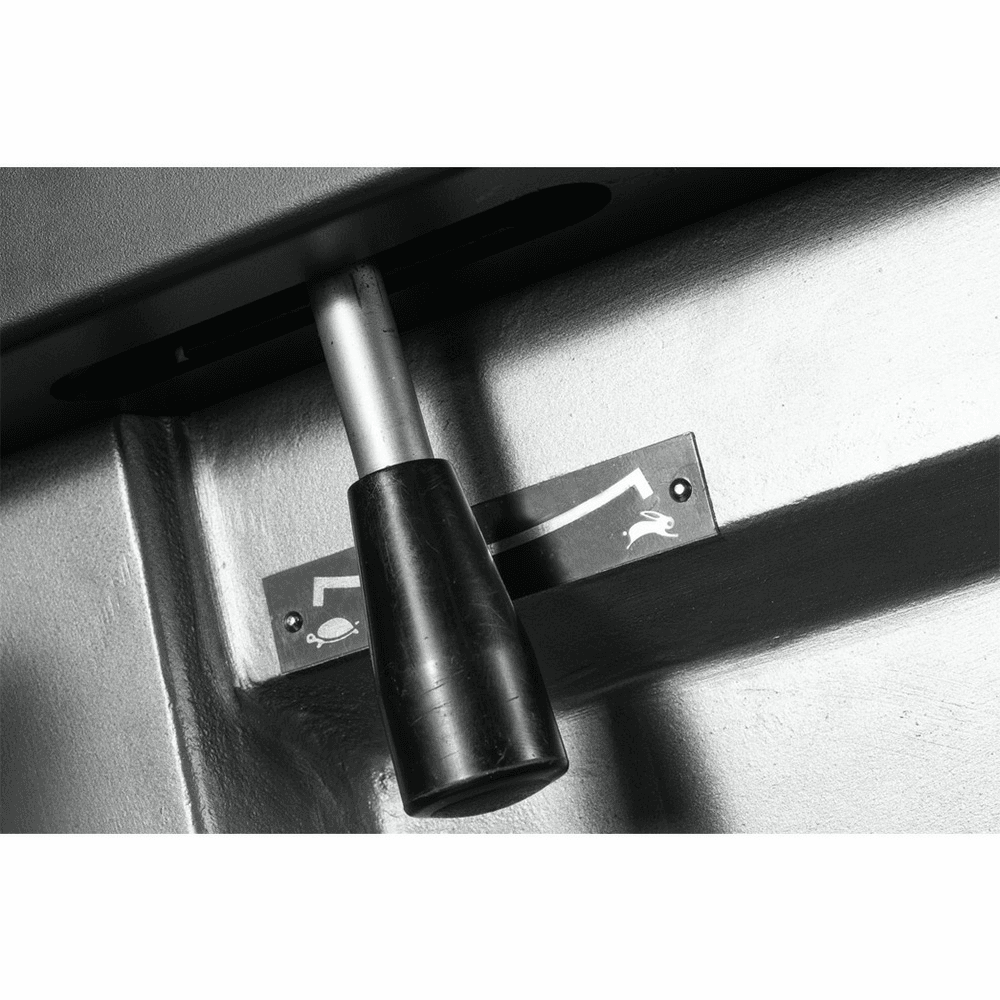

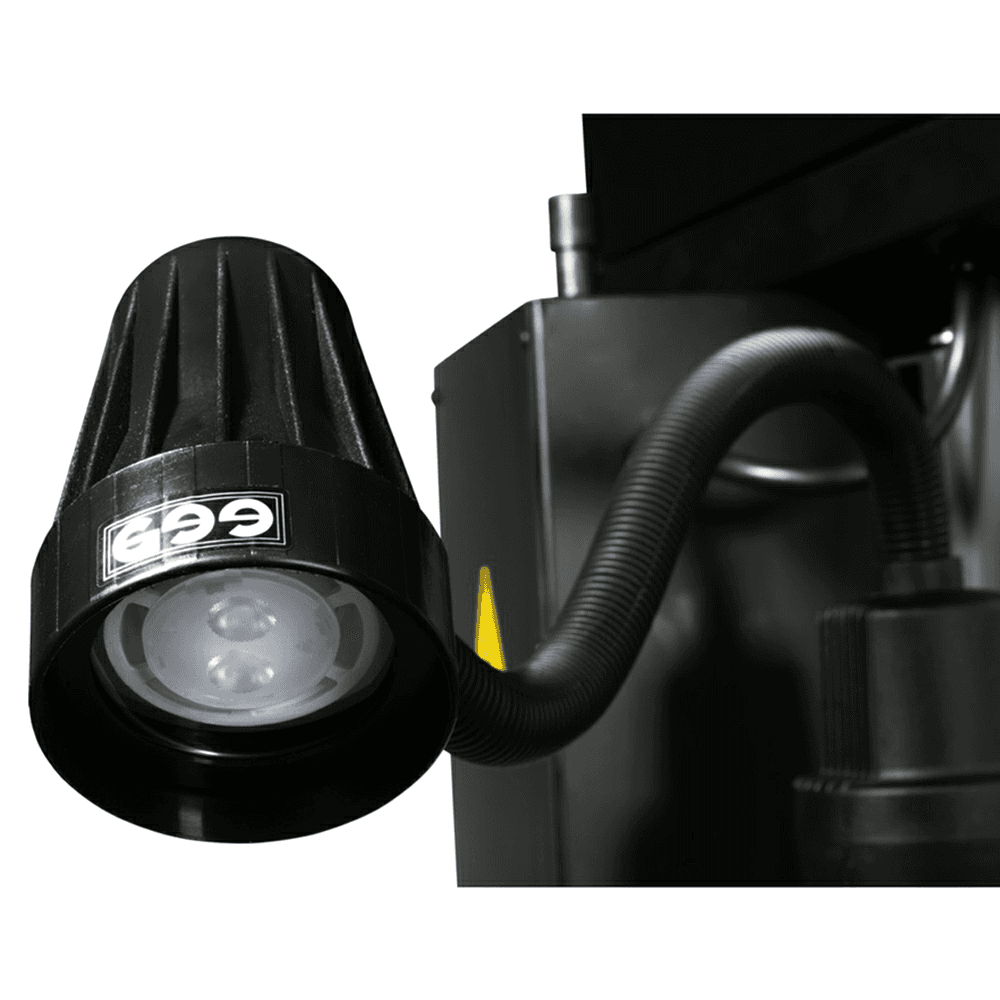

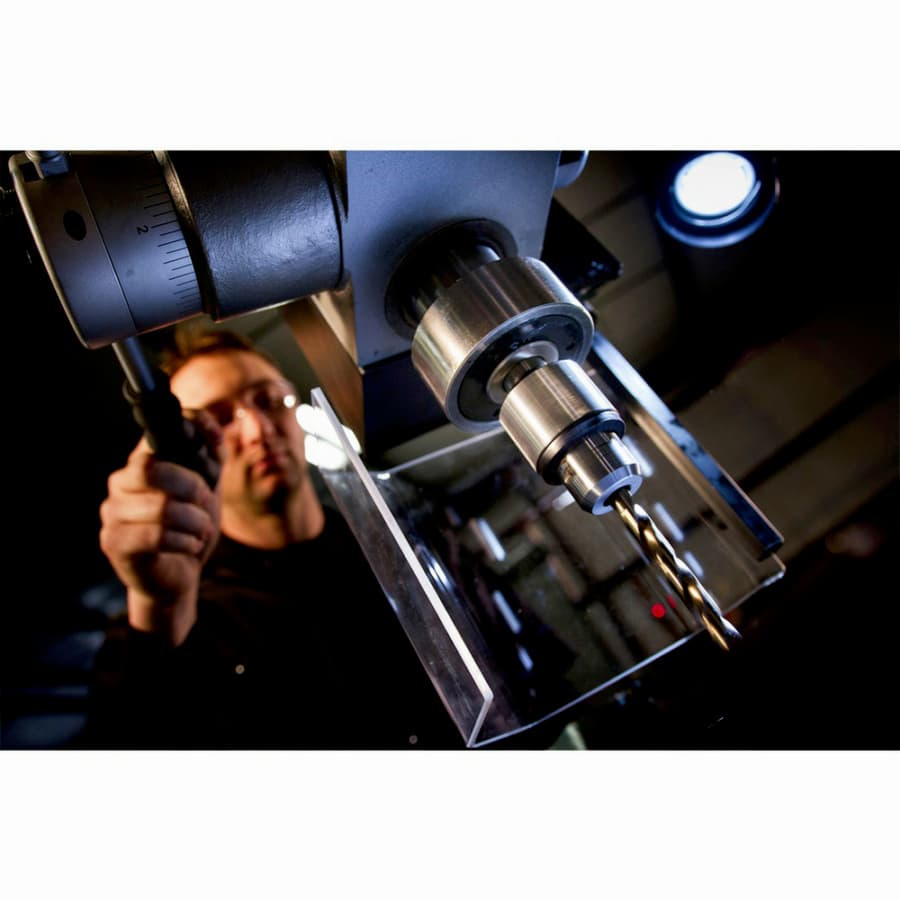

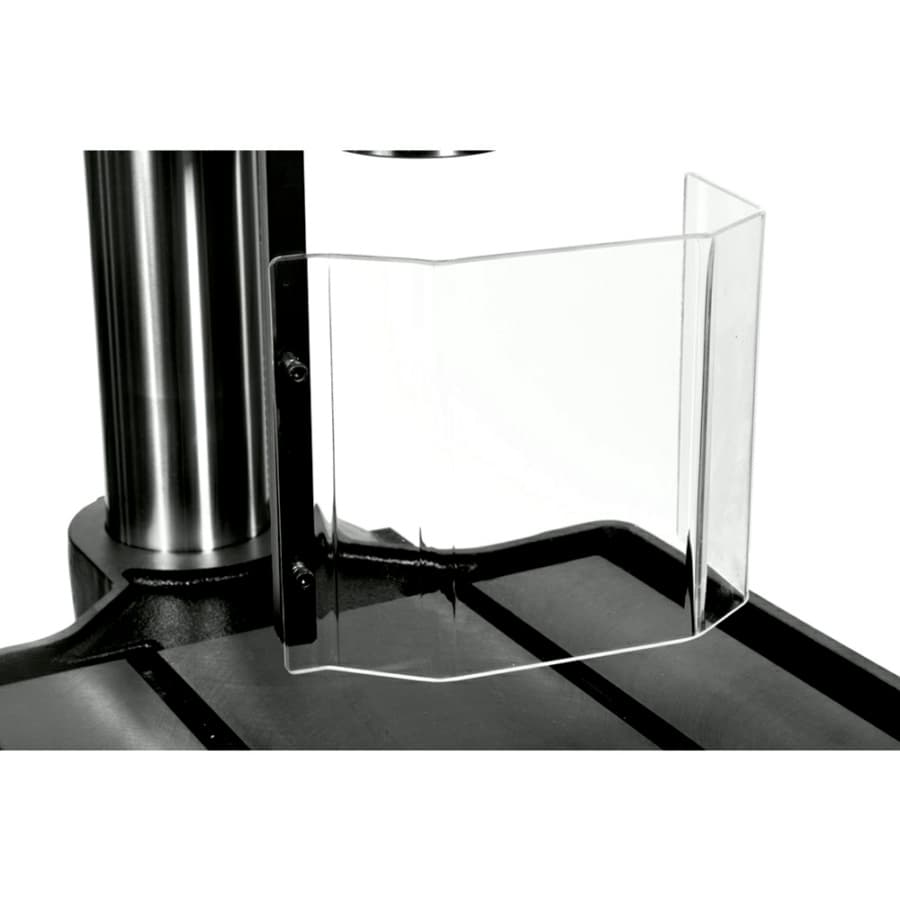

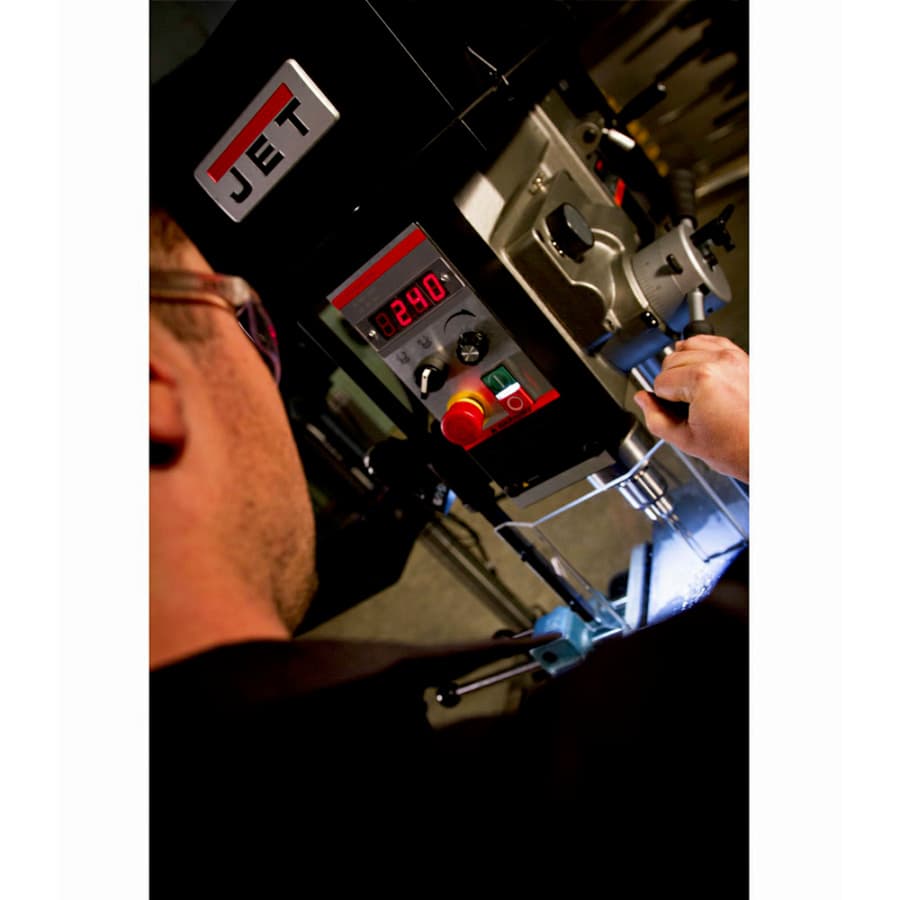

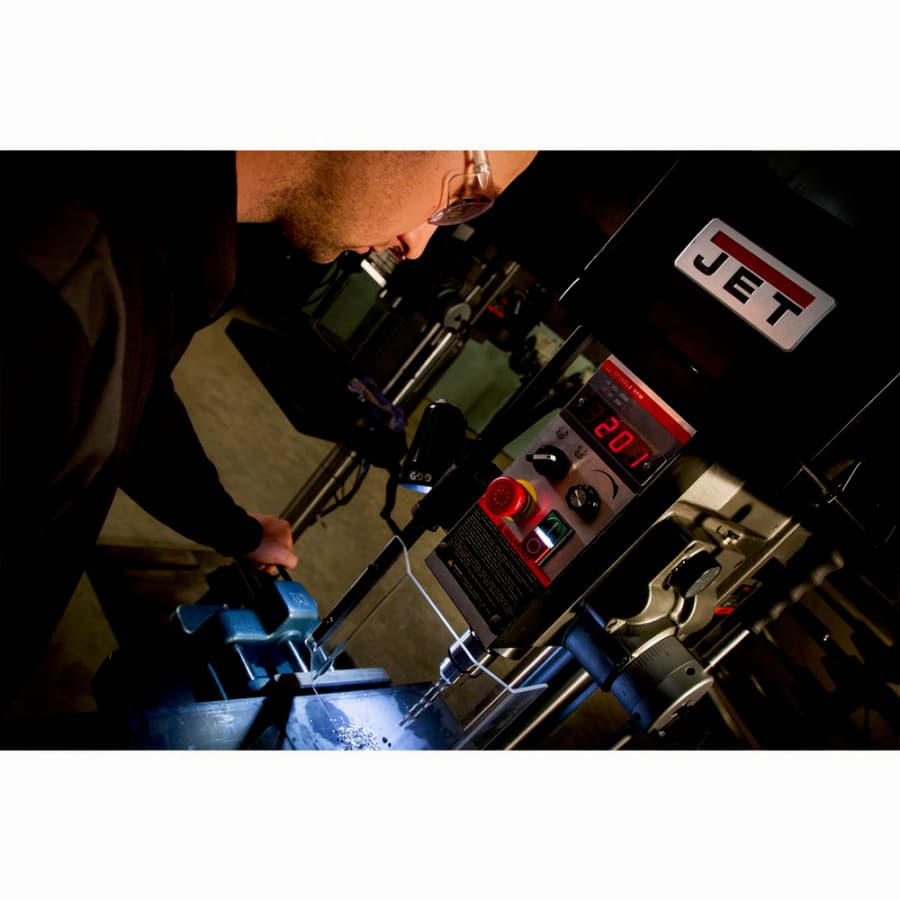

The 20" JET JDPE-20EVS-PDF drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support. Engineered to maximize output, the 20" EVS drill press includes a three-speed power down feed for heavy drilling applications and capable of running various spindle speeds from 50 to 2000 RPMs. CSA/CUS Certified. Features: • Casted head for more accuracy and rigidity • Emergency stop allows for immediate shut off • Forward and reverse switch for instant tapping mode • Front mounted LED spindle RPM readout • Heavy casted column prevents failures prolonging the life of the machine • LED machine lamp delivers extra light for more precise drilling • Speed changes using a clutch system • Spindle guard protects user from flying debris • Spindle power down feed system
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | |
| Quill Feed | |
| Quill Diameter | 2.16" |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | 32-3/5" x 22-2/3" x 70-25/64" |
| Motor Amps | |
| Inverter Type / Power Source | 2HP/115V/1PH |
| Inverter Type | JET Exclusive |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | 2", 1/2" |
| T-Slot Centers | |
| Tapping Capacity Mild Steel | 5/8" |
| Tapping Capacity Cast Iron | |
| Table Travel | |
| Spindle Travel, Manual | 5" |
| Spindle Travel Auto | 4-1/4" |
| Spindle Taper (In. x TPI) | MT-3 |
| Drills to Center of Circle | 10" |
| Drilling Capacity Mild Steel | 1-1/8" |
| Drilling Capacity Cast Iron | 1-1/4" |
| Motor Power (HP) | 1.5 HP |
| Column Diameter | 4" |
| Spindle Travel | |
| Motor Phase | 3 |
| Base Size | |
| Motor Voltage (V.) | 230V |
| Spindle Taper | |
| Table Size (L x W) | 16-1/2" x 18-1/2" |
| Spindle Distance to Base | 48-1/4" |
| Spindle Distance to Table (Max.) | 46.85" |
| Number of Spindle Speeds | |
| Distance Column to Spindle | 26-1/2" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | 14-3/16" x 13" |
| Base Slots Number & Size | |
| Base Dimensions | 17.7" x 25-1/2" |
| Spindle Speed (RPM) | |
| Swing | 19-11/16" |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
