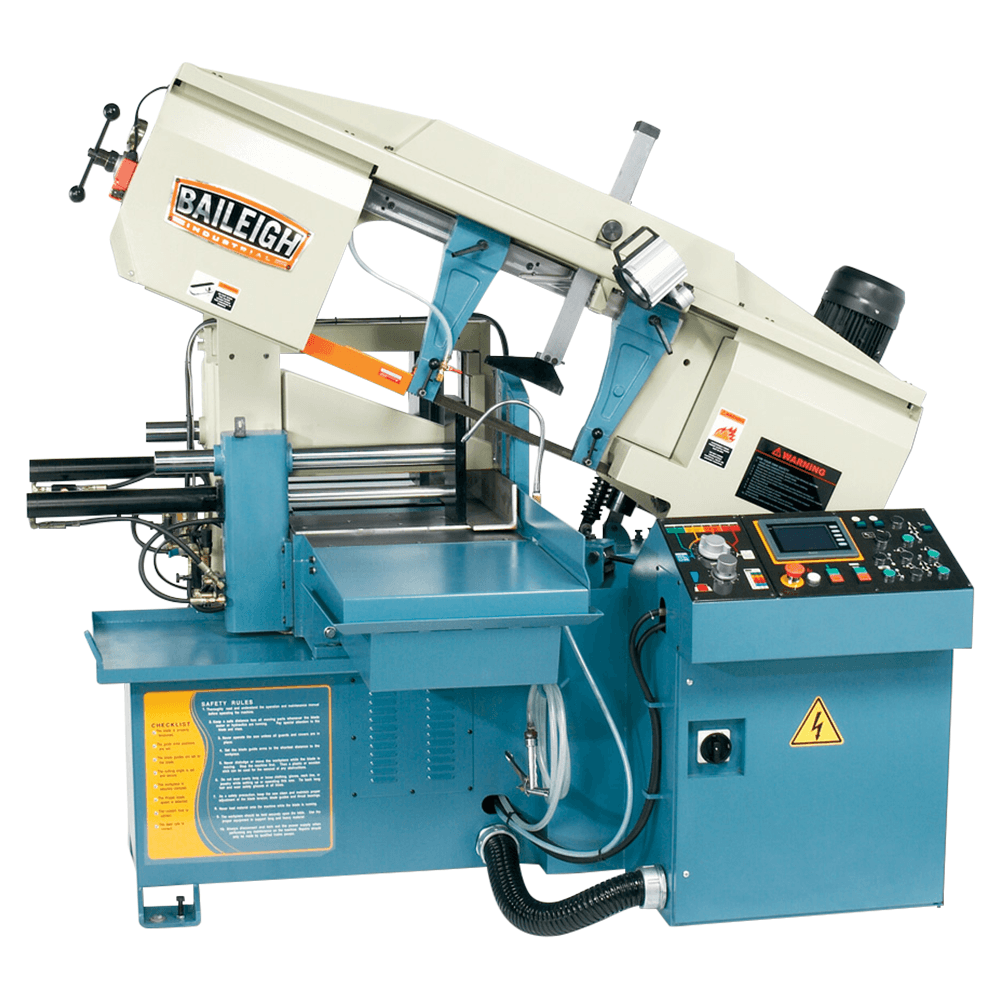

Baileigh BS-20A 5 HP Automatic Band Saw, 3 Phase/220V/440V
Product Details
Need to increase production rates on large jobs? The BS-20A automatic feed band saw's hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame on this 3 phase bandsaw maintains accuracy. Baileigh also offers a Single-Phase Bandsaw. Features: • Cuts up to 13" round and 13" x 18" rectangle at 90° with an automatic blade shut-off that protects your safety • 2-speed blade descent which allows for faster cycle times with 89 to 256 fpm variable speed, so you can fine-tune for your material • Powerful 5 hp motor runs the low-pressure industrial-grade hydraulic system. Available in 220-volt or 440-volt 3-phase models (440-volt is a special order) • Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions • Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces • Delta® touchscreen programmer is easy to use, so you can get to work right away. Programmer can run in manual or automatic mode • Electro-welded steel framework reduces vibrations and gives this automatic horizontal band saw the structural strength to tackle large capacities accurately • Digital encoders feed the material between cuts for repeatability and Infeed and outfeed table can handle 5,000 lbs. of material • Patented blade tension device makes it simple to set the correct tension and the bright halogen work light lets you clearly see what the machine's doing • Accepts a standard 1" blade (included) for speed and precision and miters up to 45° with a degree indicator to show your angle. Variable-speed metal chip auger and coolant system keep the saw clean and make blades last longer
Specifications
| Box Quantity | 1 |
| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 220V / 3-phase |
| Material Clamping Bundling | Hydraulic |
| Material Feed | Hydraulic |
| Miter Angle Range (Deg.) | 0 - 45° |
| Motor (HP) | 5 HP |
| Overall Dimensions (L x W x H) | |
| Product Type | Automatic Band Saws |
| Rectangle at 90 Degrees | |
| Return | Hydraulic |
| Short Description | Available in 220V or 440V 3-phase models 13" round capacity at 90° Miters 45° 1" blade width Variable speed 89 to 256 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 32.3" |
| Drive | |
| Descent Control | Pressure Assist Hydraulic |
| Blade Speeds (SFPM) | 89 - 256 (Variable Speed) |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | 13" x 18" x 13" x 11" |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | 13" x 11" |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | 13" x 11" |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | Hydraulic Auger |
| Type of Miter Adjustment | Swivel Head |
