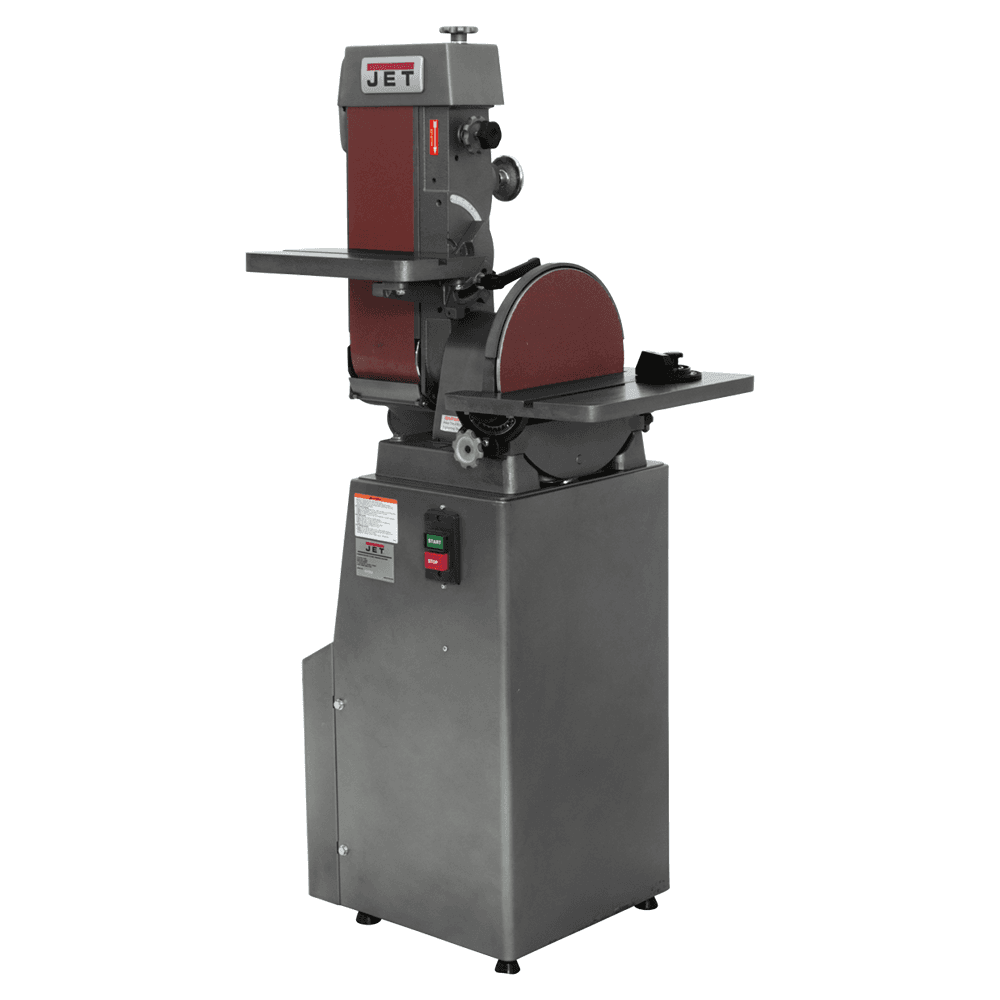

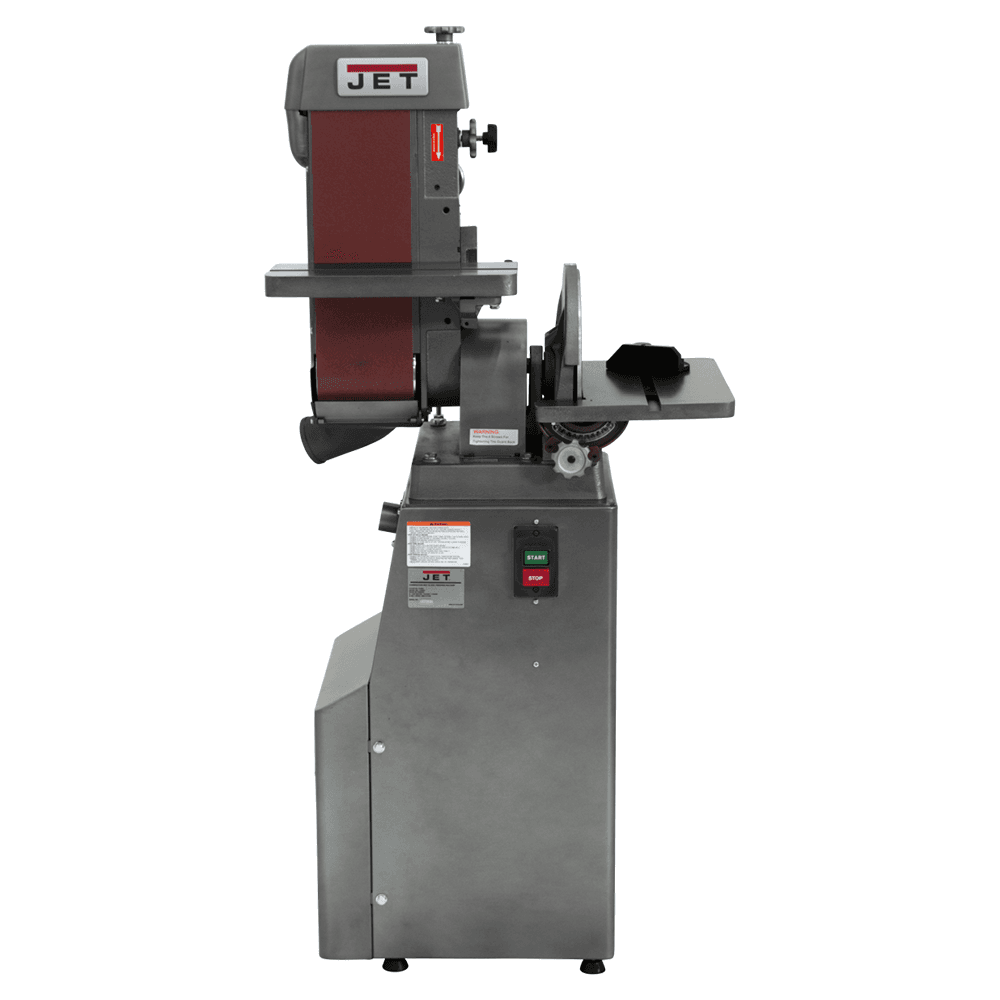

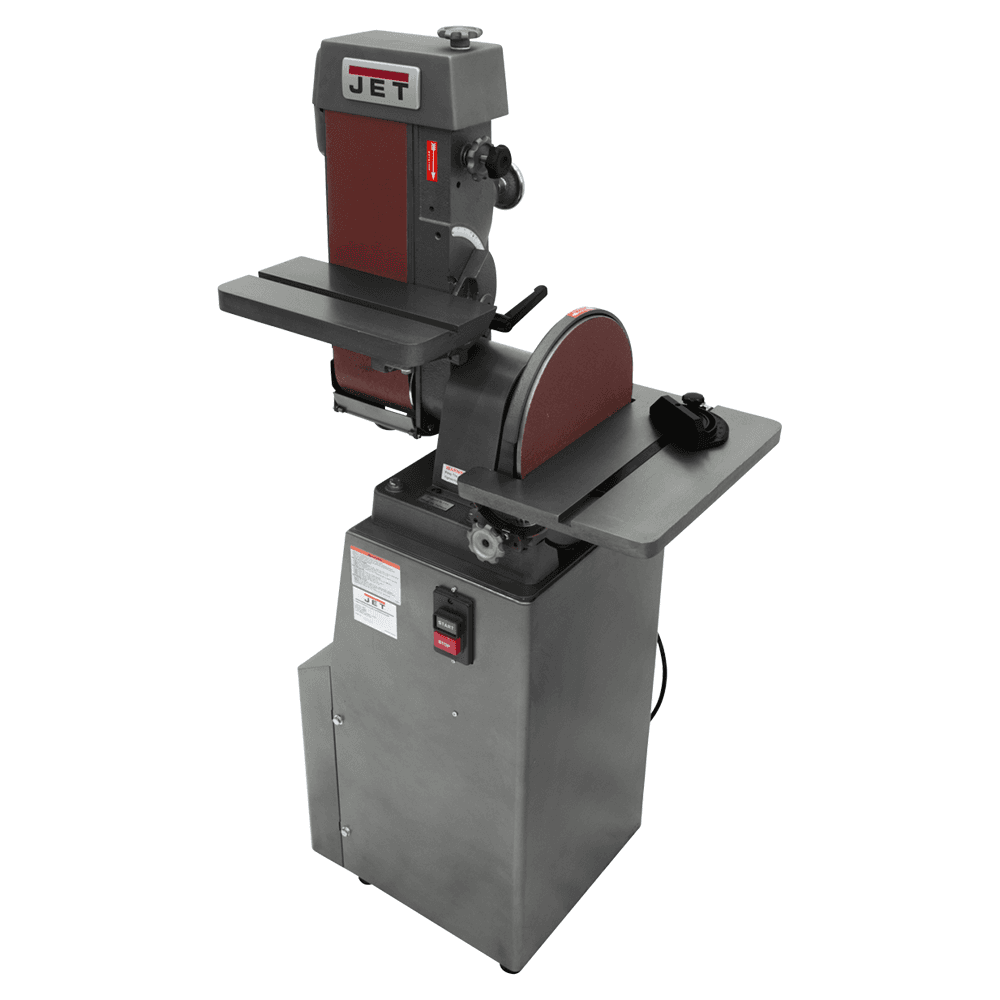

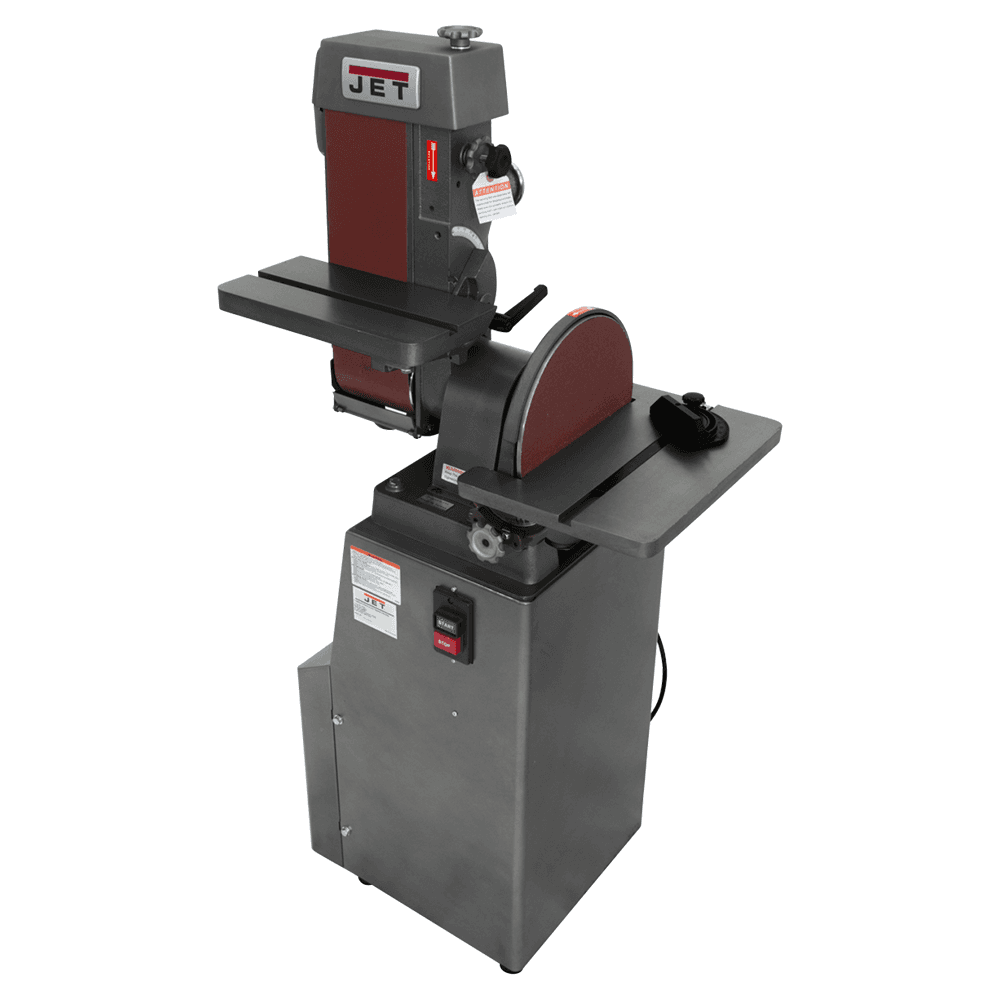

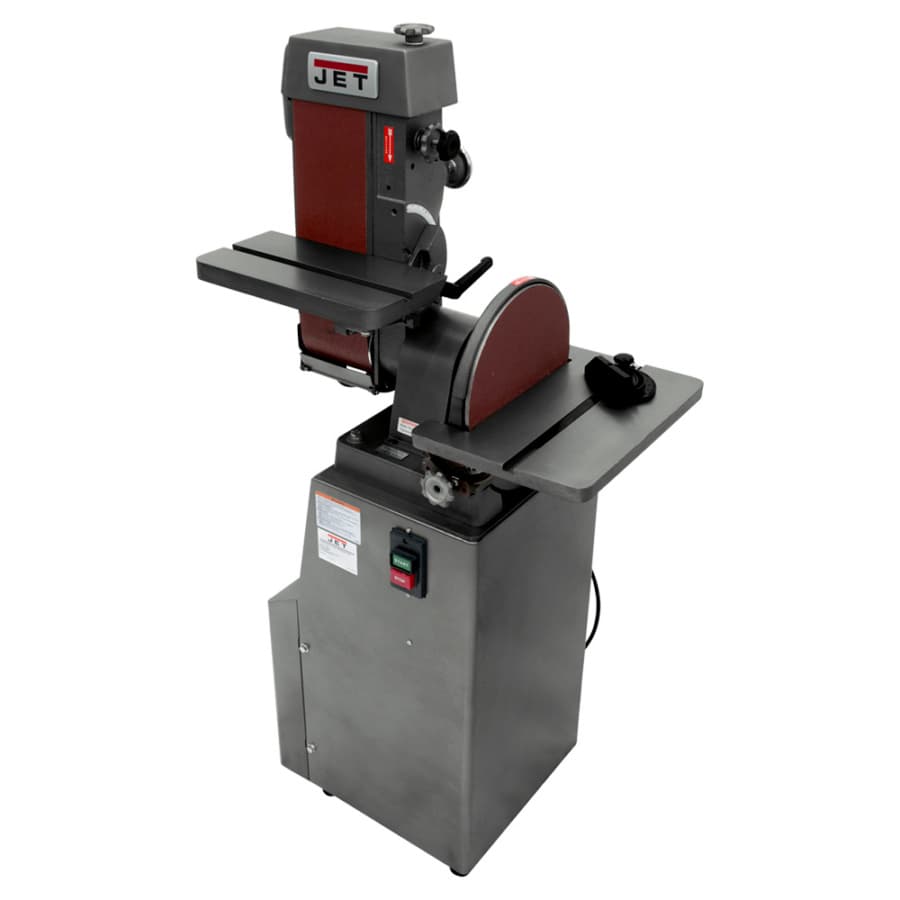

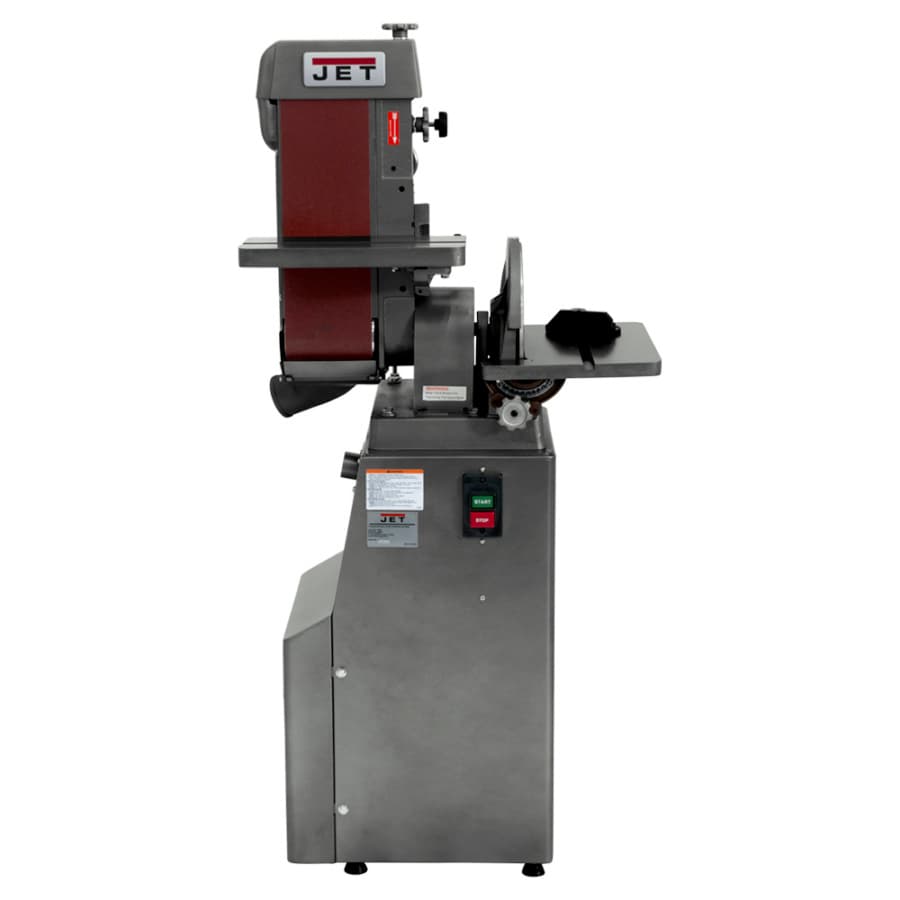

Jet Tools J-4200A-2 6" x 48" Industrial Combination Belt/12" Disc Finishing Machine, 1 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details
High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle, and conforms to curves, angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the Jet industrial combination belt and disc finishing machine. Features: • Adjustable dust collector and dust chute • Belt head adjusts vertically and horizontally • Belt operates at any angle • Completely enclosed drums and guarded sanding belt • Fully machined, balanced disc • Large cast iron slotted table • Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge • Removable upper belt guard for contour finishing • Variable position locks
Specifications
| Box Quantity | 1 |
| Belt Size (W x L) | 6" x 48" |
| Disc Table Size (L x W) | |
| Disc Table Tilt (Deg.) | |
| Drive Wheel | |
| Dust Port Size | |
| Motor Amps | |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230V |
| Overall Dimensions (L x W x H) | 26" x 19" x 58" |
| Serrated Contact Wheel Diameter | |
| Table Slots | |
| Type of Wire Wheel | |
| Wheel Diameter (Dia. x W) | |
| Disc Speed (RPM) | 1960 RPM |
| Disc Diameter | 12 |
| Configurable Base Item | No |
| Motor (HP) | 1-1/2 HP |
| Overall Dimensions (L x W x H) (sanding bracket is parallel) | |
| Overall Dimensions (L x W x H) (sanding bracket is vertical) | |
| Product Type | Belt Sanders and Grinders |
| Shaft Diameter | |
| Belt Grit | |
| Belt Speed (SFPM) | 2850 SFPM |
| Belt Table Size | 7-3/8" x 14-3/4" |
| Belt Table Tilt (Deg.) | 45 Out, 20 In |
| Contact Wheel Durometer | |
| Contact Wheel Size (W x L) | |
| Wheel Grits |
