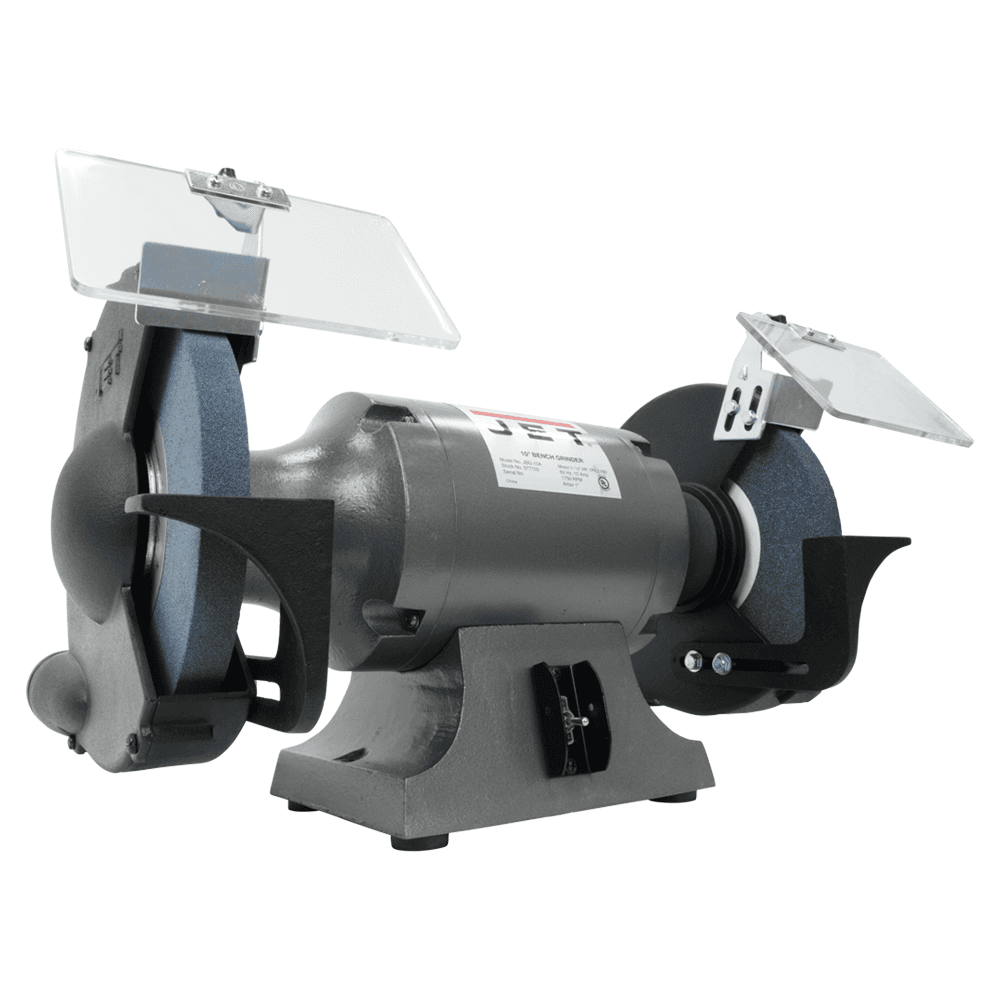

Jet Tools JBG-10B 10" Bench Grinder
This item may incur additional shipping costs and lead times.
Product Details
A cast iron Jet bench grinder delivers work power and pristine finishes. Built to withstand the high-volume demands of even the busiest shops, this high-quality machine grinds, sharpens and smooths with equal precision and flawless results. Features: • Adjustable tool rest • Cast iron wheel guards and dust vents • Fine and coarse vitrified grinding wheels included • Heavy-duty guarded toggle switch • One-piece quick adjusting spark guards • Totally enclosed, pre-lubricated ball bearings • Variable Grinding: Coarse (46-grit) and extra coarse (24-grit) vitrified grinding wheels • Long Machine Life: Totally-enclosed pre-lubricated ball bearings • Built for Durability: Cast iron wheel guards and dust vents • No Shifting: Rubber mounts prevent movement • Added Safety: Follows strict guidelines and electrical requirements to meet CSA Safety standards • For shops that may be short on space, a cast iron Jet bench grinder delivers work power and pristine finishes. Built to withstand the high-volume demands of even the busiest shops, this high-quality machine grinds, sharpens and smooths with equal precision and flawless results
Specifications
| Box Quantity | 1 |
| Belt Size (W x L) | |
| Disc Table Size (L x W) | |
| Disc Table Tilt (Deg.) | |
| Drive Wheel | |
| Dust Port Size | |
| Motor Amps | |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115V |
| Overall Dimensions (L x W x H) | 25" x 16" x 15" |
| Serrated Contact Wheel Diameter | |
| Table Slots | |
| Type of Wire Wheel | grinding |
| Wheel Diameter (Dia. x W) | 10" x 1" |
| Disc Speed (RPM) | |
| Disc Diameter | |
| Configurable Base Item | No |
| Motor (HP) | 1-1/2 HP |
| Overall Dimensions (L x W x H) (sanding bracket is parallel) | |
| Overall Dimensions (L x W x H) (sanding bracket is vertical) | |
| Product Type | Bench Grinders/Buffers |
| Shaft Diameter | 1" |
| Belt Grit | |
| Belt Speed (SFPM) | |
| Belt Table Size | |
| Belt Table Tilt (Deg.) | |
| Contact Wheel Durometer | |
| Contact Wheel Size (W x L) | |
| Wheel Grits | 24 / 46 |
