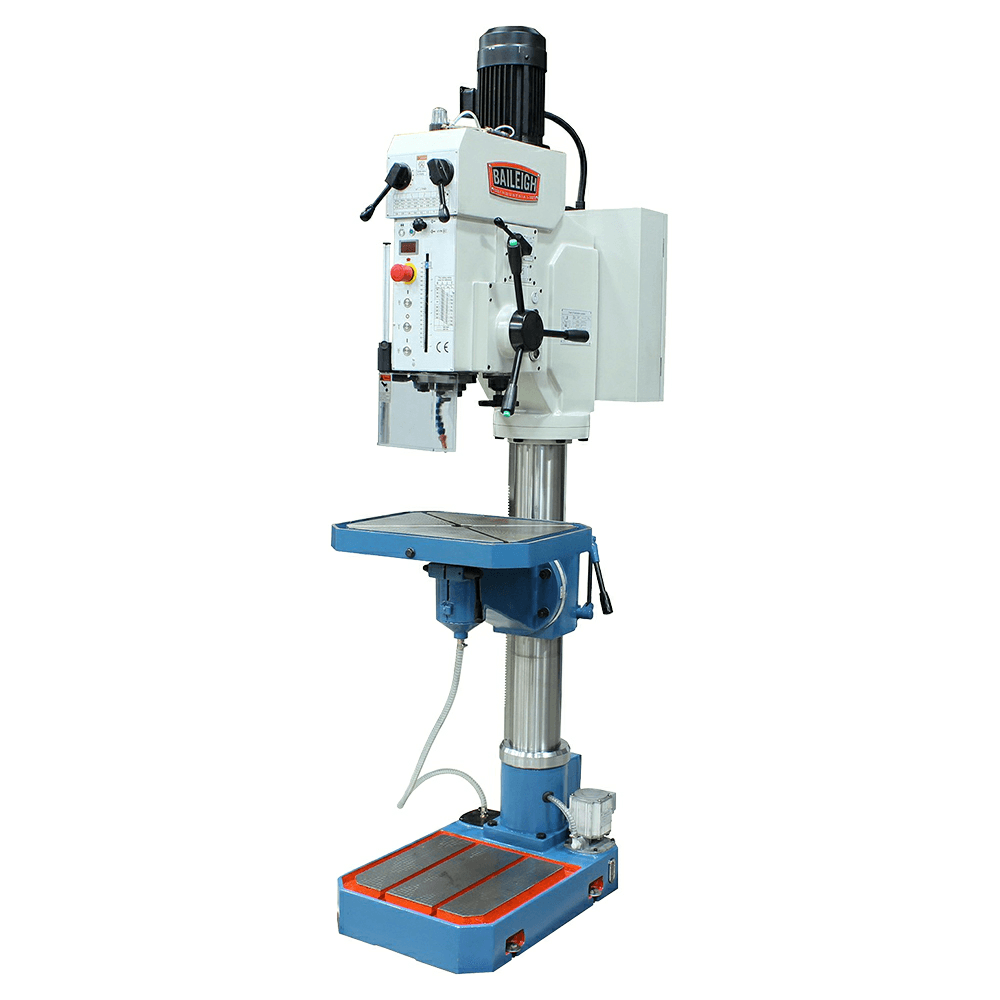

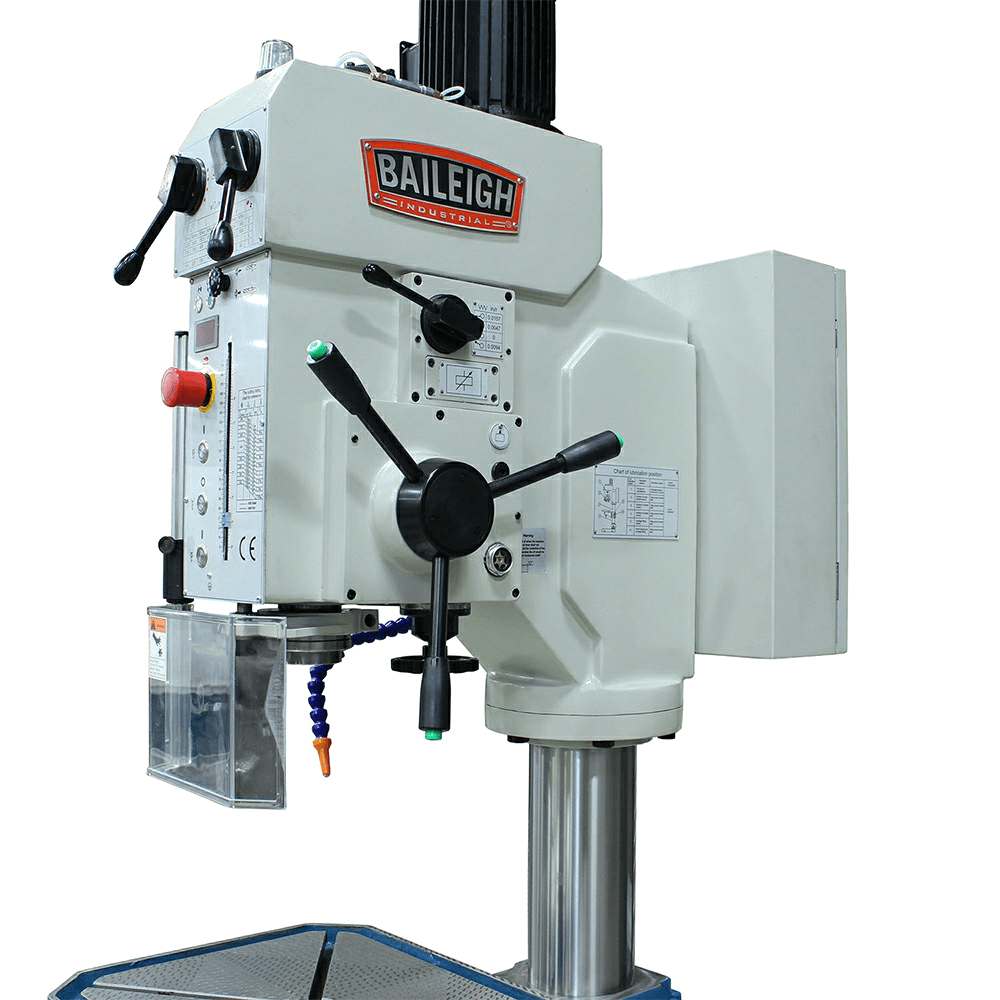

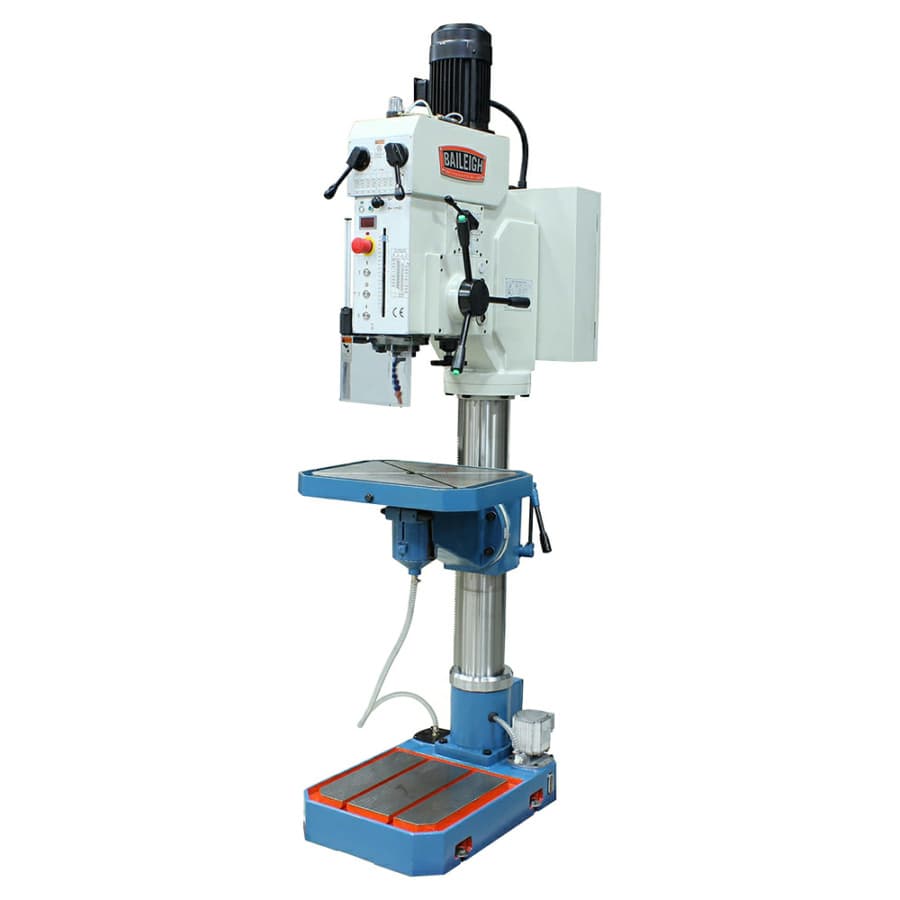

Baileigh DP-1850G 2 HP Gear Driven Drill Press
This item may incur additional shipping costs and lead times.
Product Details

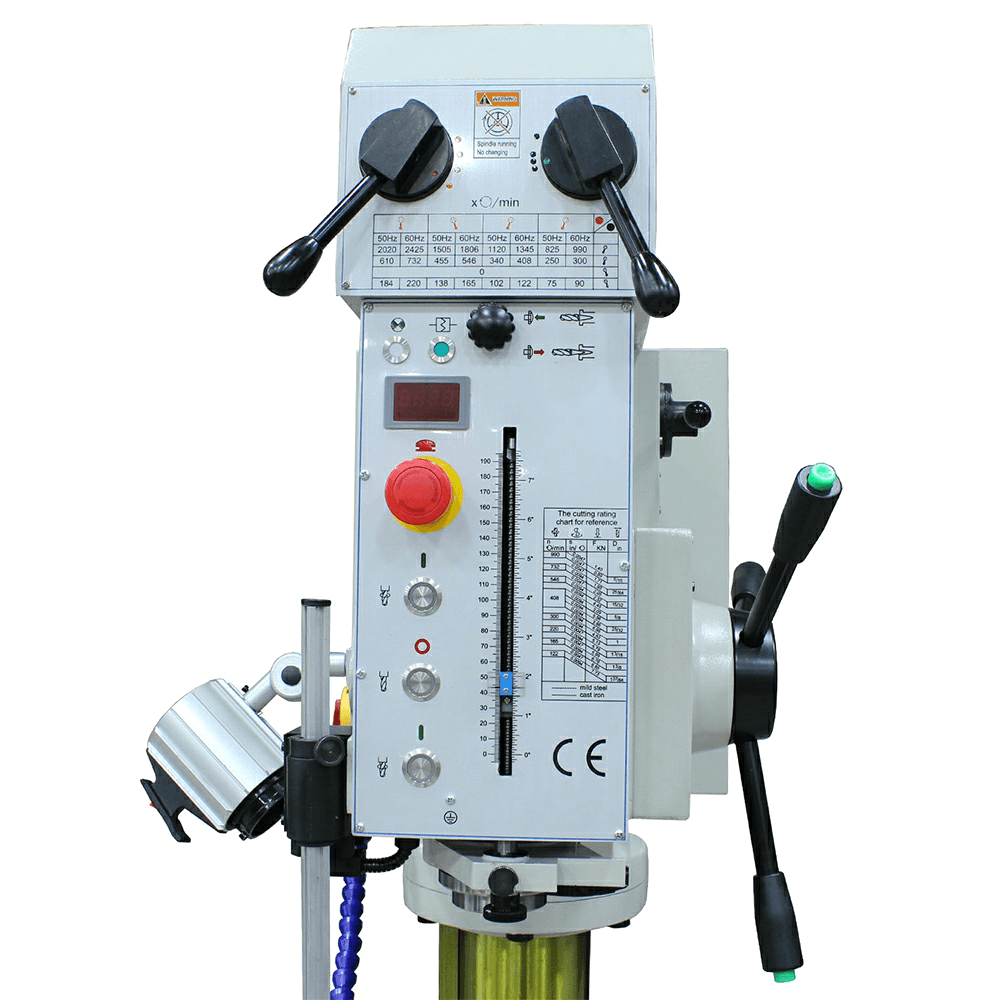

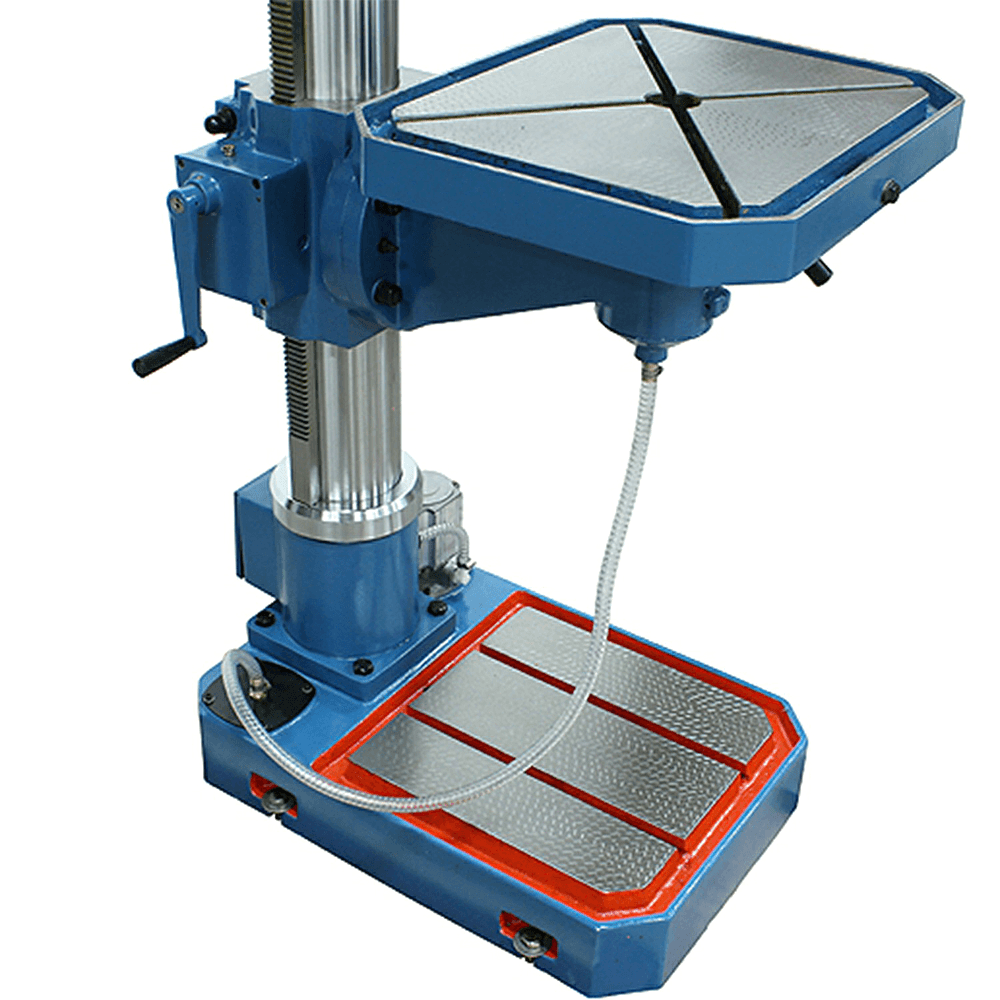

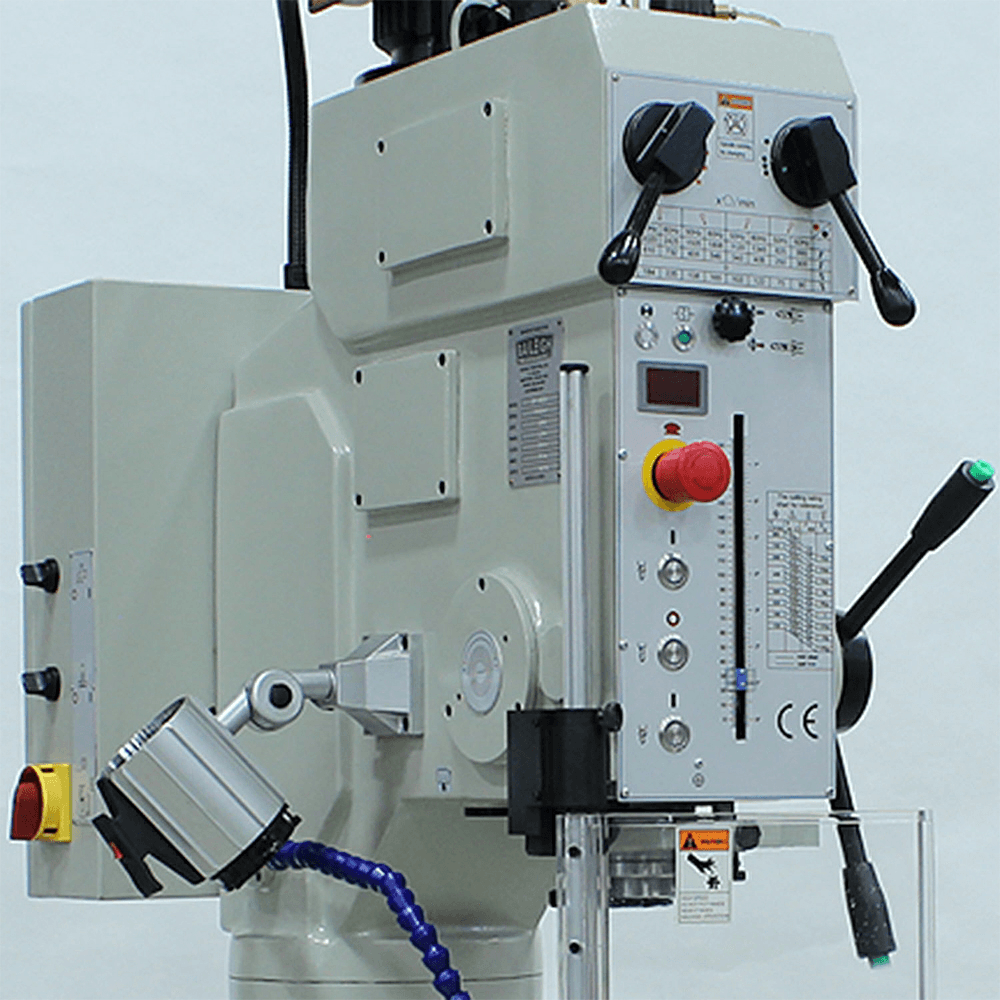

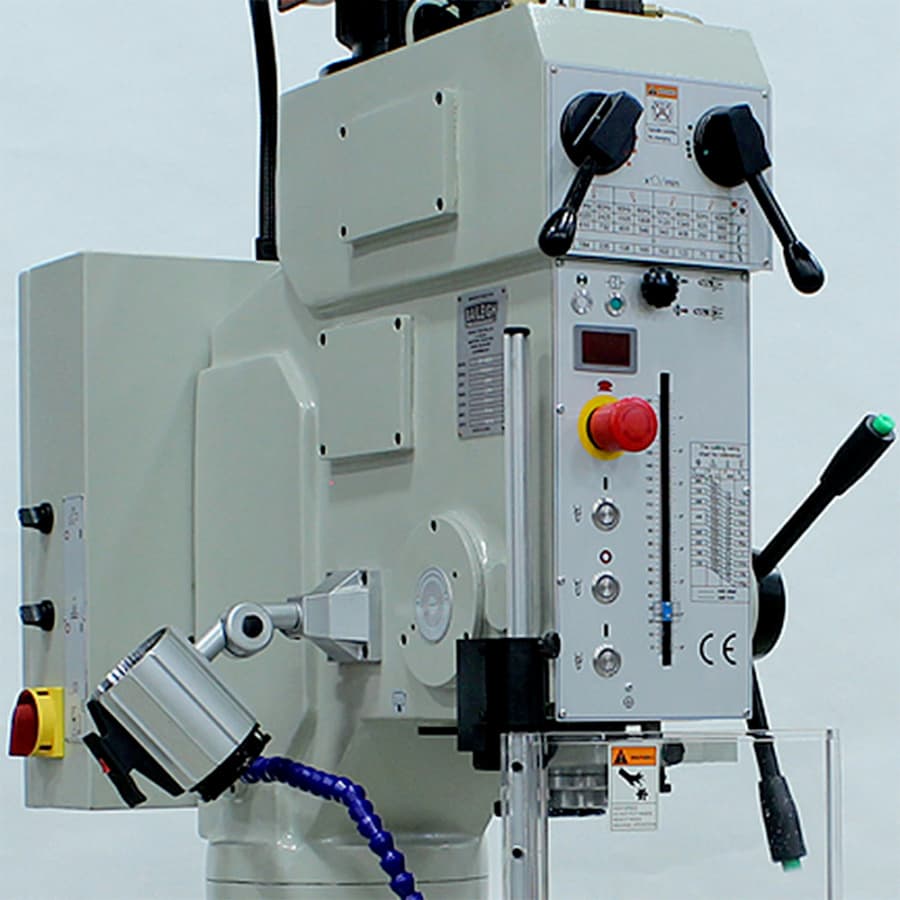

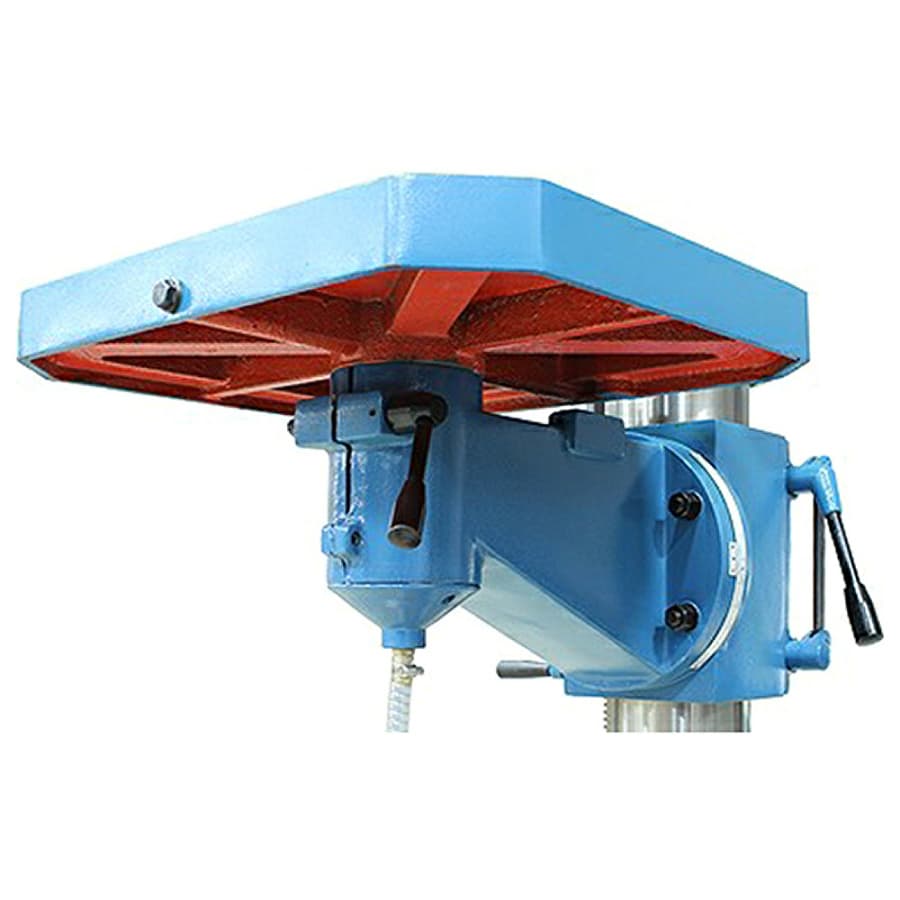

The DP-1850G drill press harnesses a lot of power for its price. This gear drive drill press can handle those bigger, tougher jobs at your fabrication or machine shop. Order this geared drill press online today Features: • 2 hp motor runs on 220-volt 3-phase power • 26-3/4" swing to tackle large pieces of material • Drills a maximum capacity of 1.57" with a tapping capacity of up to 1" • Gear head turns at speeds between 90 and 2425 rpm, so you can select the right speed for almost any application • #4 Morse spindle taper feed is electric and completely adjustable • Massive column and cast steel base reduce flexing even when you’re drilling at full capacity • 21-1/4" x 17-1/4" work table with X-pattern T-Slots • 0.7" table-slots allow for a vise or fixture to get a firm hold on the material • Includes an electronic power-down feed and a coolant system to prolong the drill’s lifetime of use • Equipped with a chuck and an automatic tool ejector to adapt to your project quickly and easily • Comes standard with a protective shield and a halogen light for safer drilling in your shop and elsewhere
Specifications
| Box Quantity | 1 |
| Base Dimensions | |
| Number of Spindle Speeds | 12 |

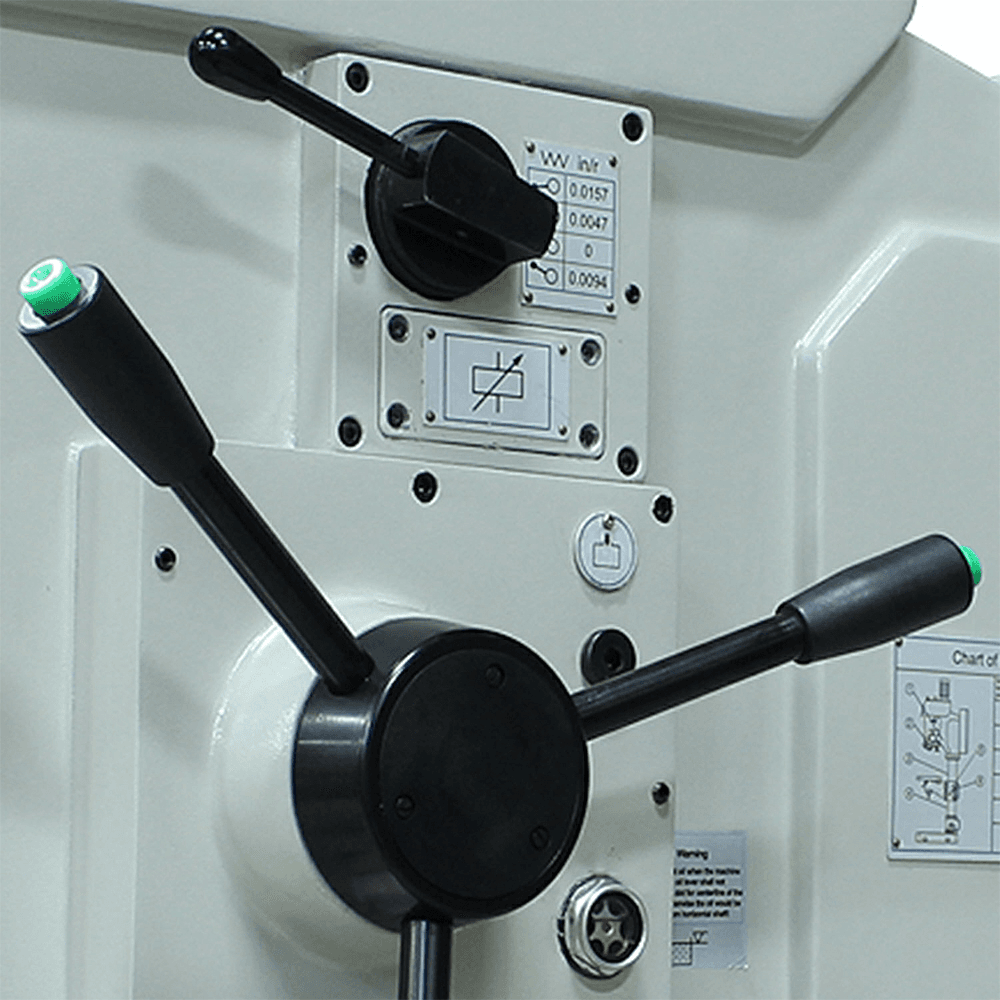

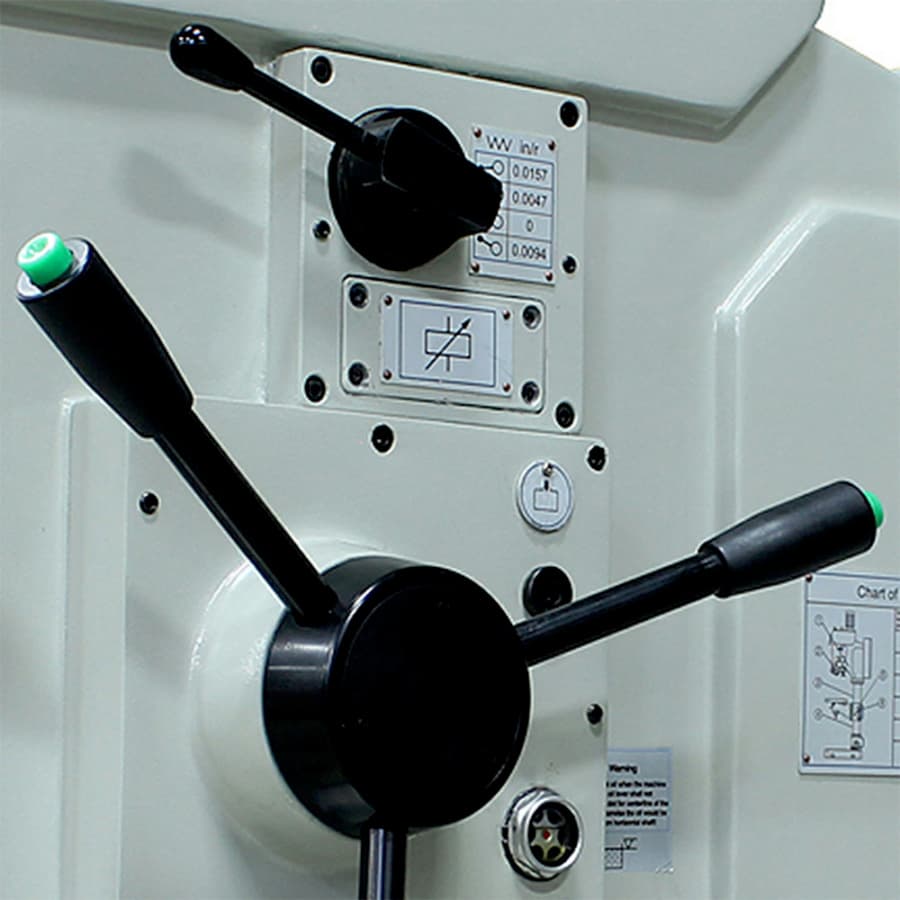

| Power Feed | 0.0047", 0.0094", 0.0157" |
| Product Type | Gear Driven Drill Presses |
| Quill Diameter | 2" |
| Quill Feed | |
| Speed Range | |
| Spindle Distance to Table (Max.) | 4" - 24-3/8" |
| Swing | 26-3/4" |
| Table Slots | |
| Tapping Capacity Cast Iron | |
| Motor Voltage (V.) | 220 V |
| Motor Power (HP) | |

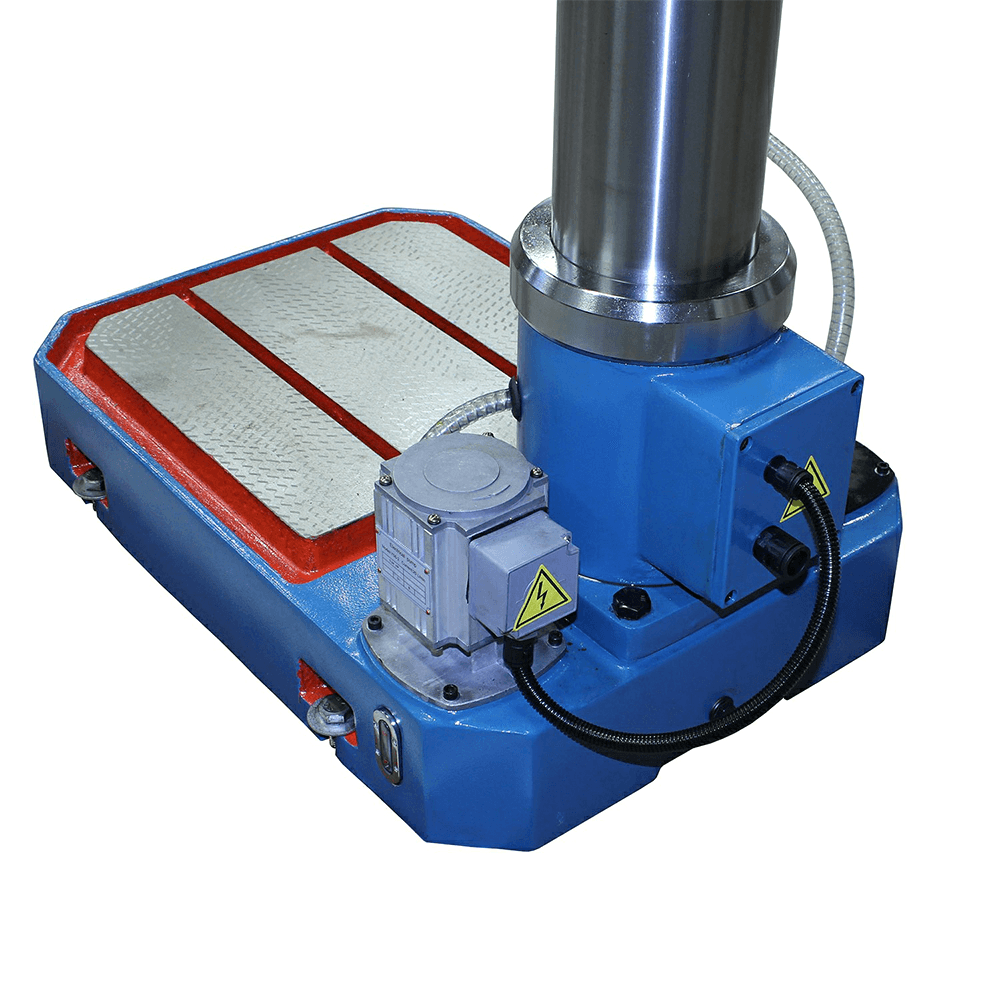

| Base Size | 33" x 25" |
| Column Diameter | |
| Coolant Pump Motor | |
| Distance Base to Spindle (Min.) | 47" |
| Drilling Capacity | |
| Drilling Capacity Cast Iron | |
| Drilling Capacity Mild Steel | |
| Max. Spindle Speed | |
| Min. Spindle Speed | |
| Motor Phase | 3 |
| Tapping Capacity Mild Steel | 7/8" |
