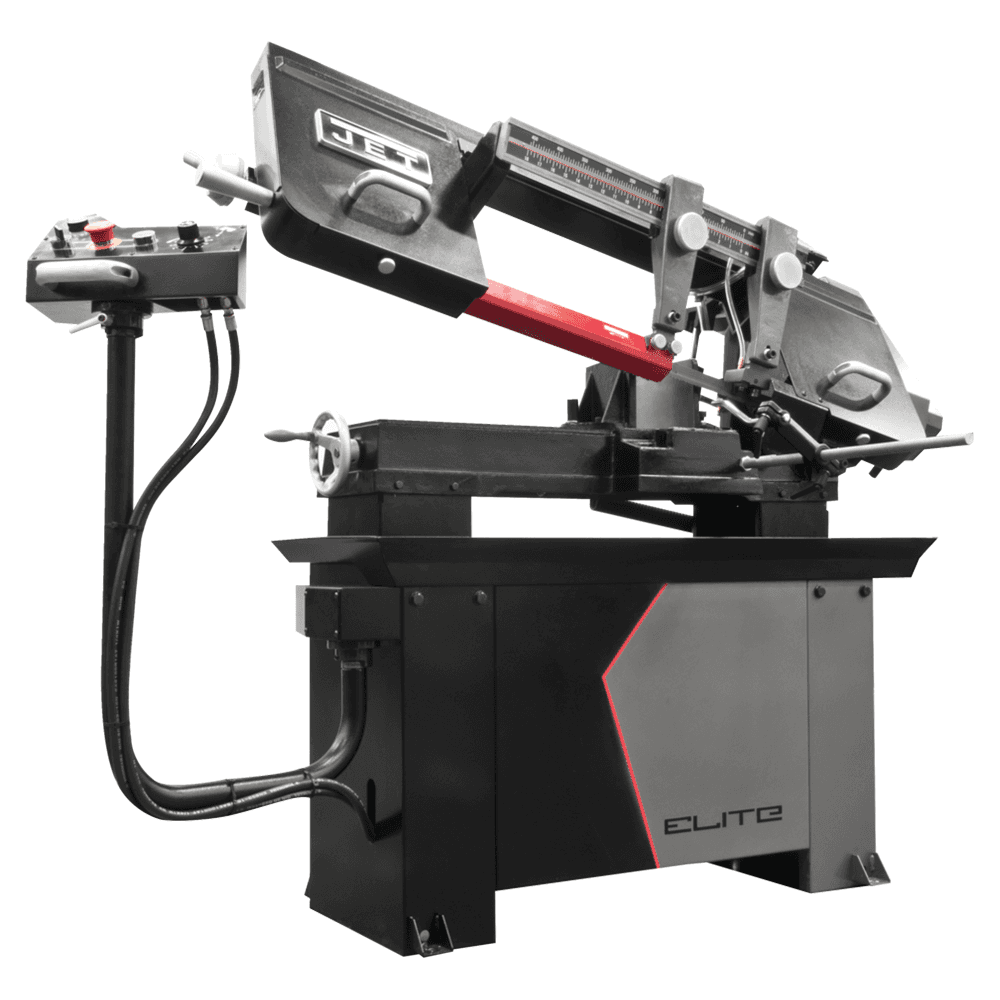

Jet Tools EHB-8VS 8" x 13" Variable Speed Band Saw, 1 Phase/115V/230V
This item may incur additional shipping costs and lead times.
Product Details

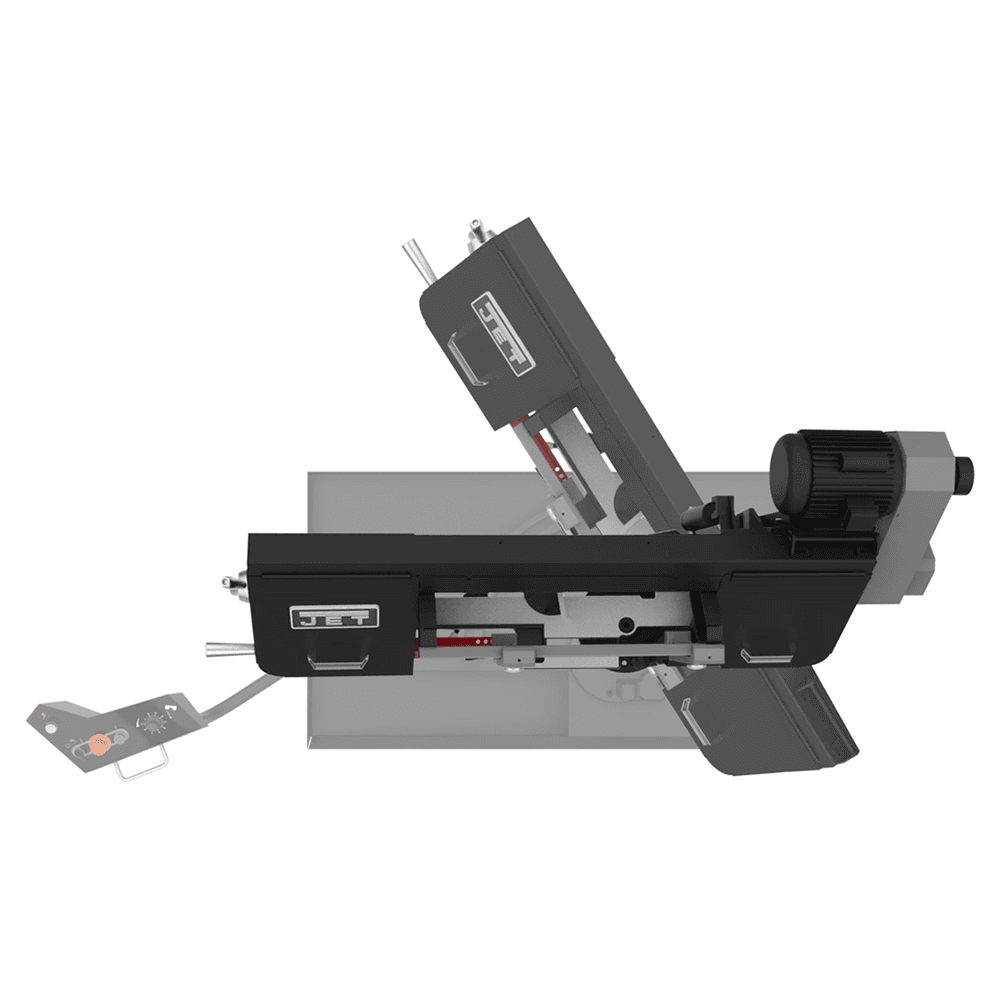

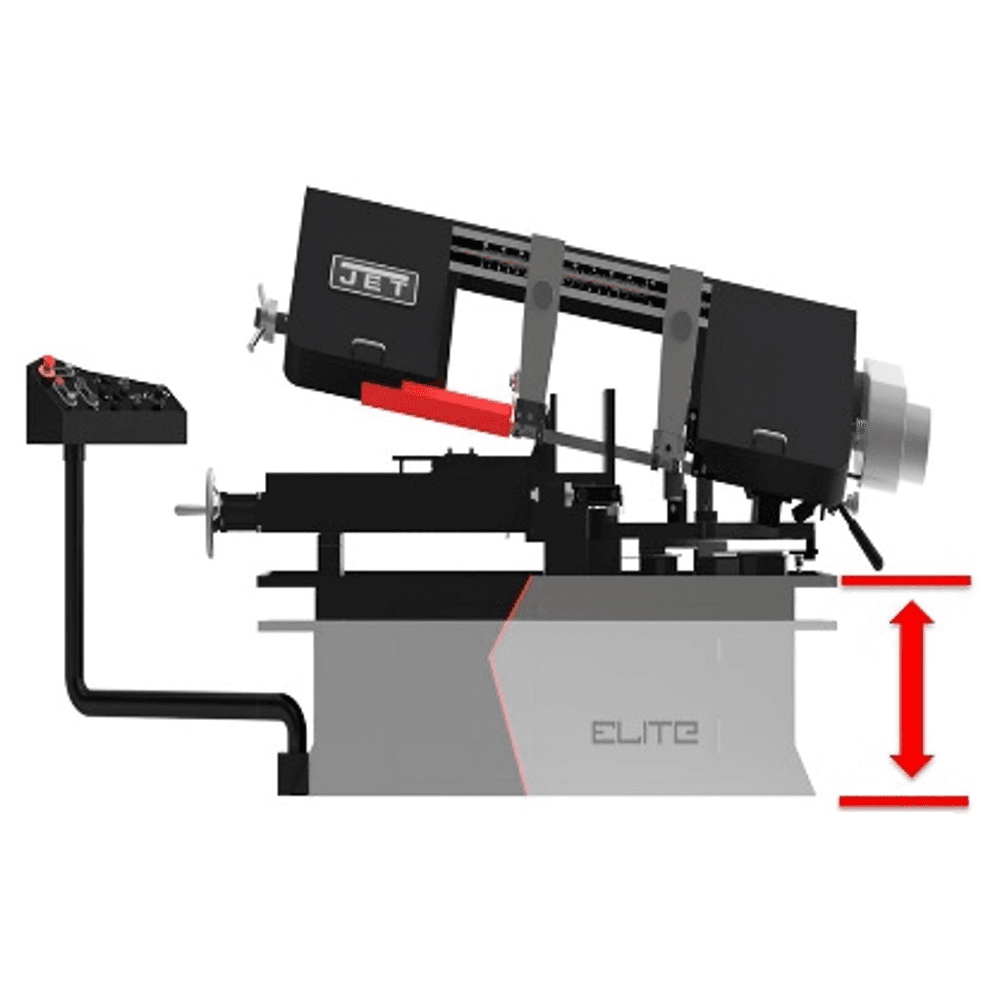

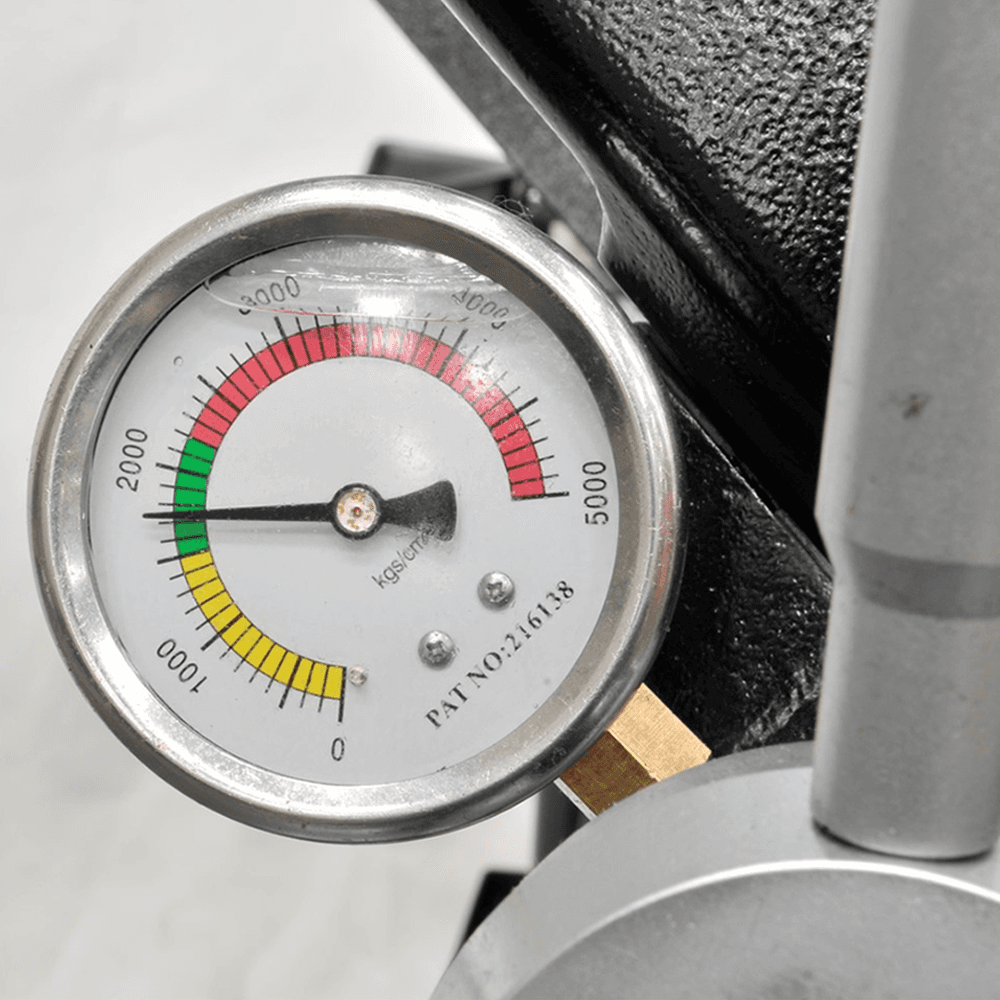

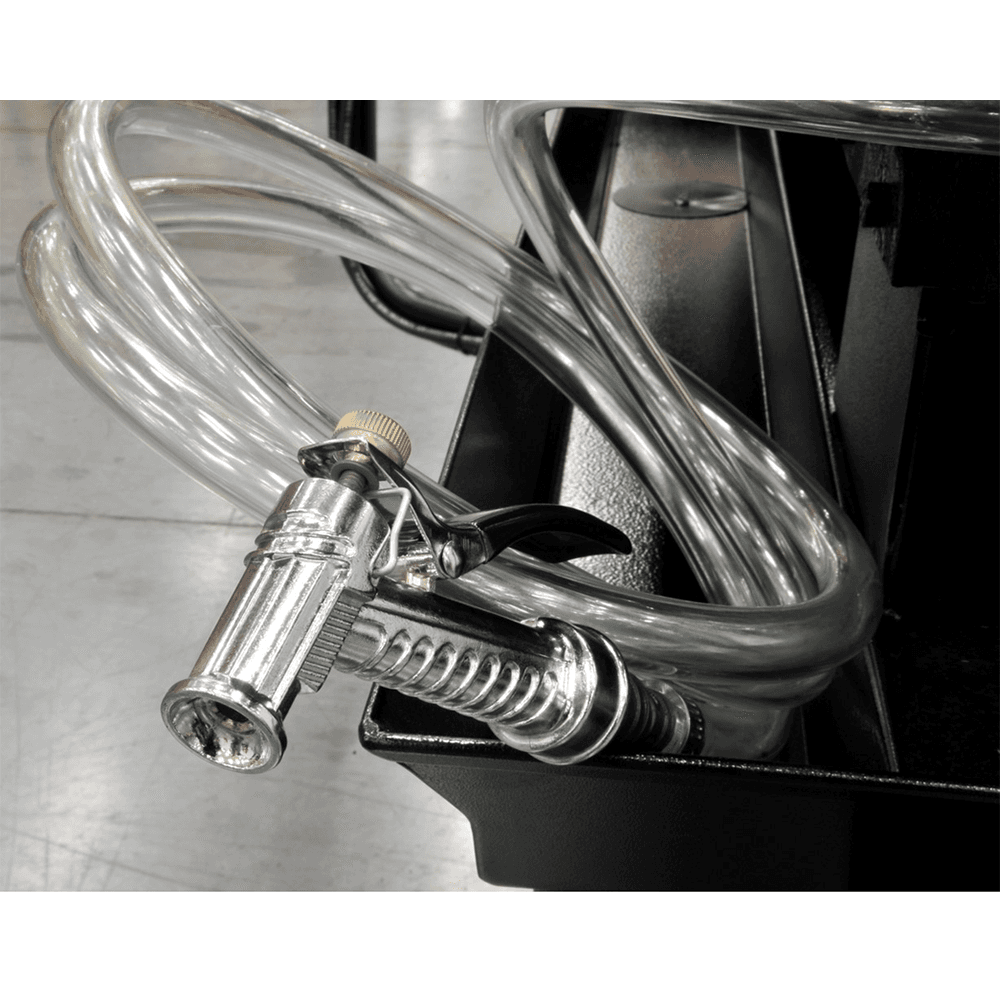

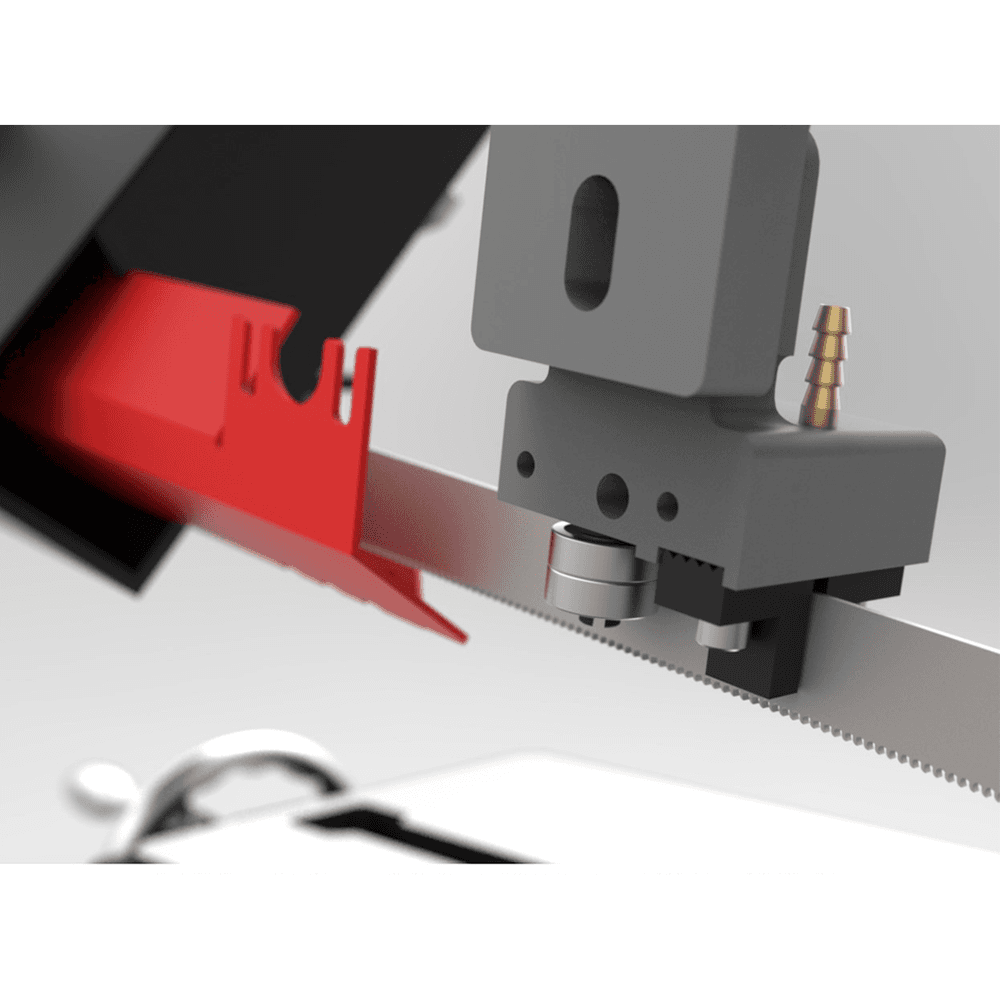

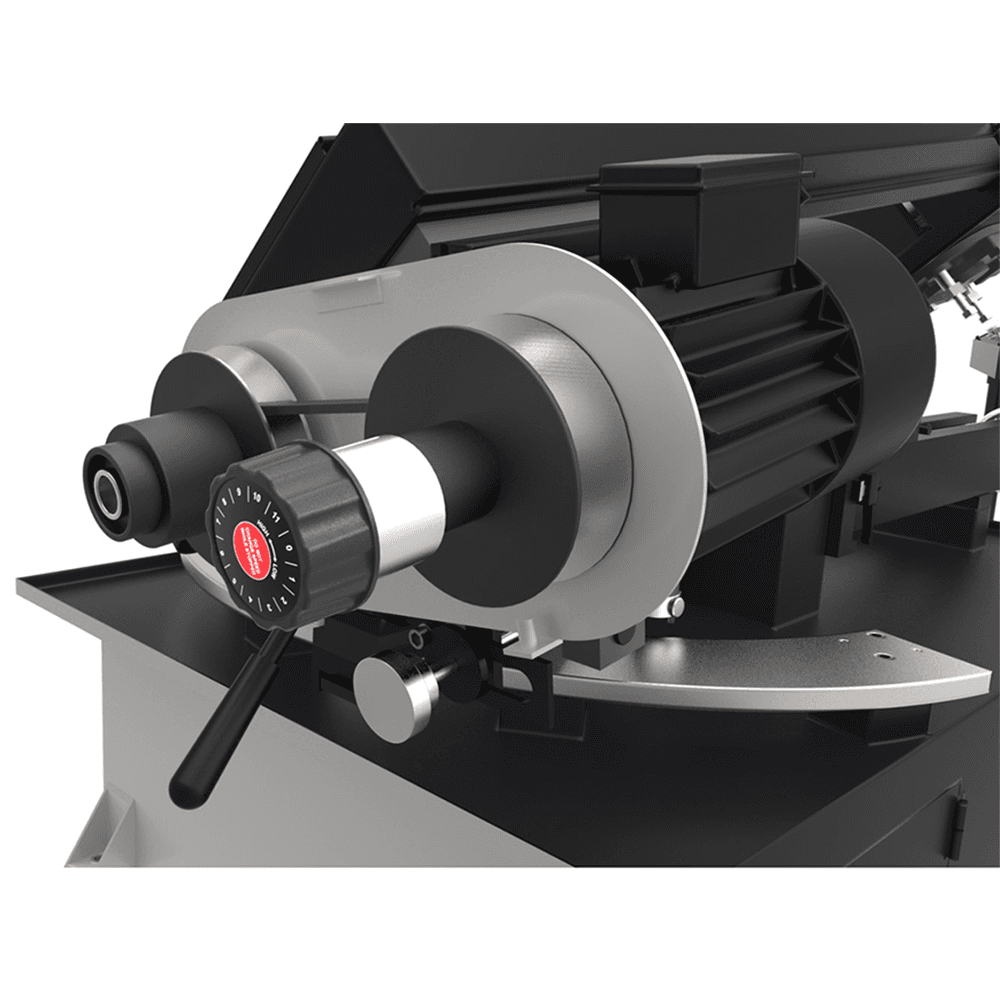

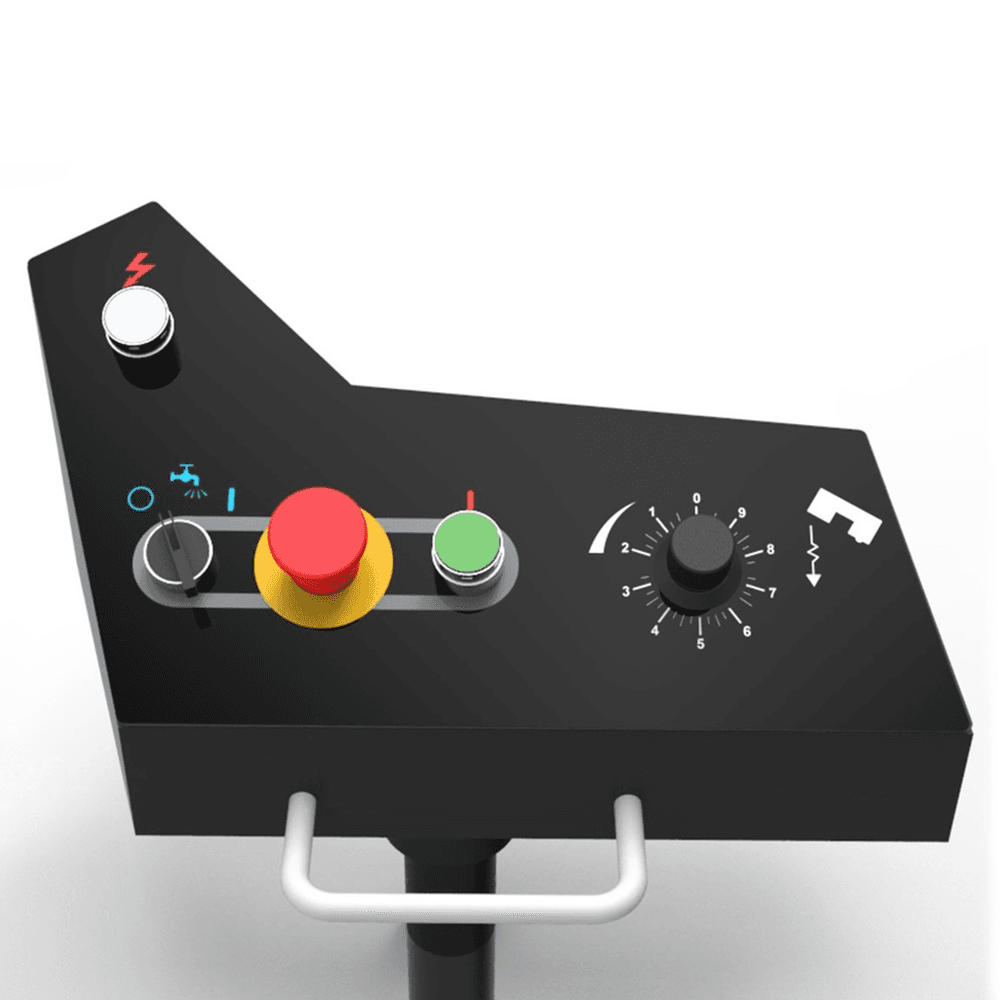

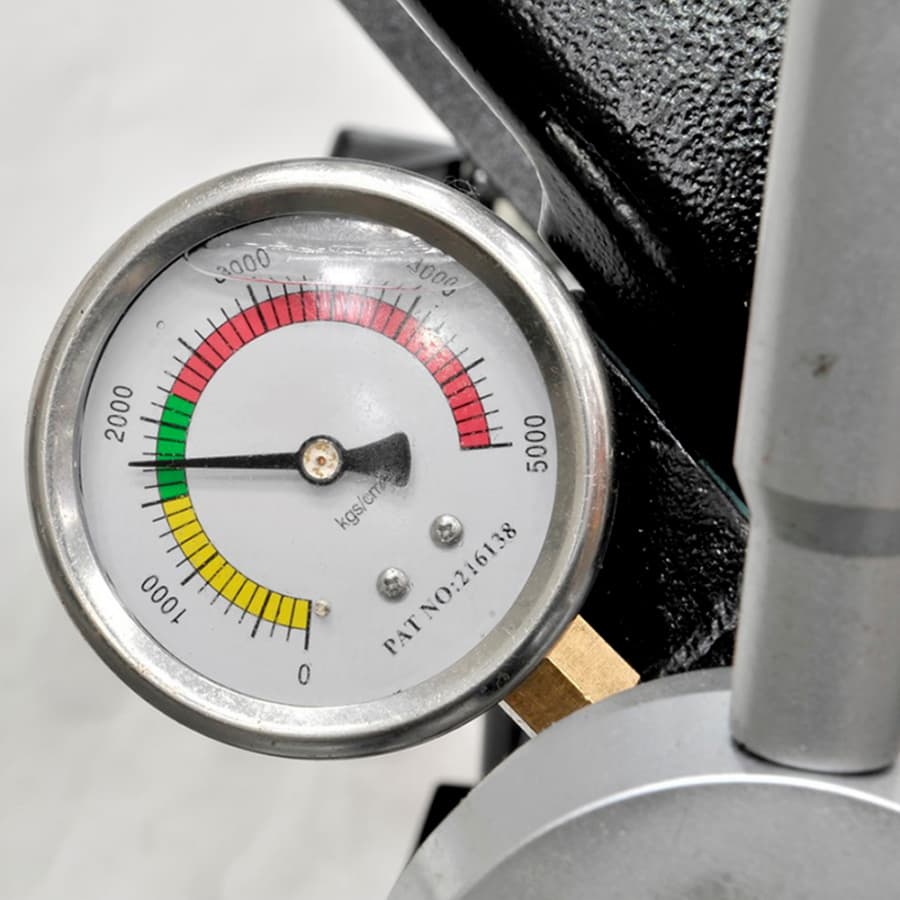

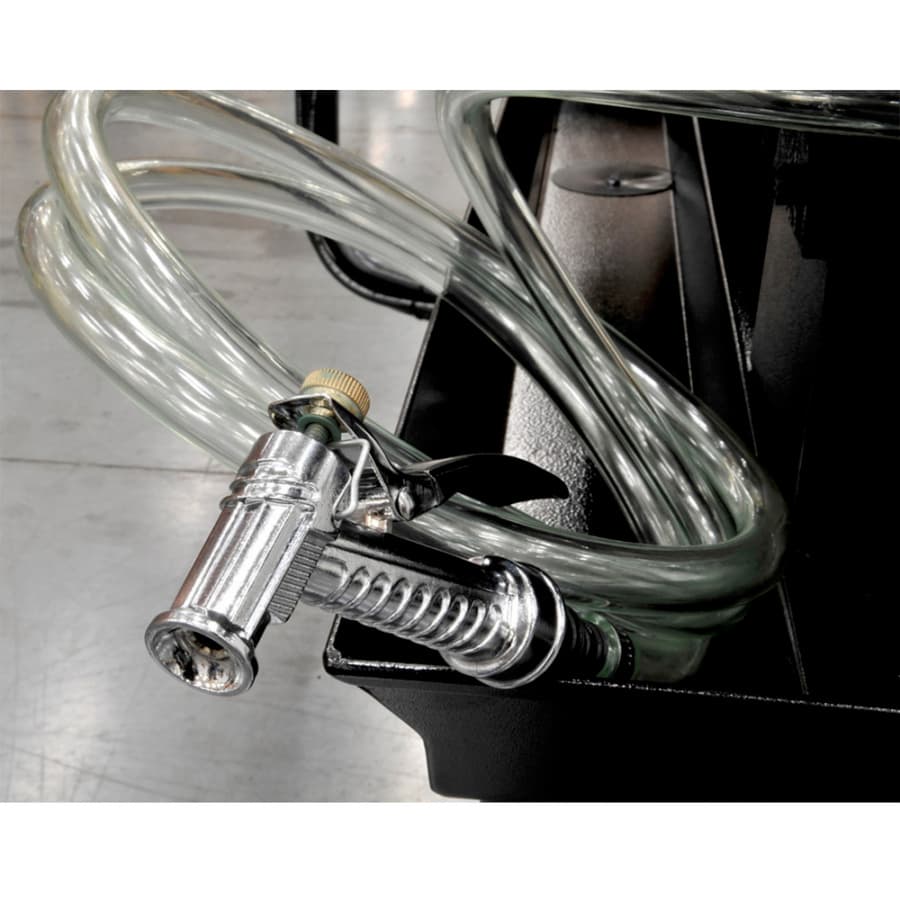

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. Features: • Adjustable material stop • Automatic blade shut off switch stops the sawing process • Built-in, self-propelled chip brush prevents chip build up in blade guides • Integrated pressurized wash hose for easy machine cleaning • Large handwheel with blade tensioning gauge accurately measures blade pressure • Quick positioning vise for clamping of materials • The Elite swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions • To reduce user fatigue and increase Safety of the worker, we increased the saw bed height to up to 32 in • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life • Variable speed drive train allows operator to fine tune the blade speed fast and easily • Reduced Fatigue: Saw bed height has been increased to 32 inches • Easy Cleaning: Includes an integrated pressurized wash hose for machine cleaning • Safety: Automatic blade shut off switch stops the sawing process • Extended Blade Life: Saw includes a coolant system, chip brush, and blade guides • CSA Certified: The EHB-8VS bandsaw follows strict guidelines and electrical requirements
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 8" x 8" or 2" x 9-1/2" |
| Product Type | Horizontal Manual |
| Prewired Voltage | 115V |
| Overall Height | 48" |
| Overall Dimensions (L x W x H) | 62-1/2" x 23" x 48" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V/230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 13" x 5-1/4" / 13-1/4" x 2" |
| Round at 45 Degrees | 8" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | 8" x 8" |
| Square at 60 Degrees | |
| Square at 45 Degrees | 8" x 8" |
| Round at 90 Degrees | 8" |
| Round at 60 Degrees | |
| Motor Power (HP) | 1-1/2 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 11-5/8" |
| Blade Speeds (SFPM) | 82 - 310 |
| Blade Speed (SFPM) | 82 - 310 |
| Blade Size | 1" x 0.35" x 114-1/2" |
| Blade Length | 114-1/2" |
| Bed Height | 32" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | 23 |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | 0° |
| Enhanced Description | Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. JET saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop. |
| Electrics | 1-1/2HP, 115/230V, 1-Ph |
| Drive | Variable Speed |
| Cutting Capacity Width | |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | |
| Amperage |
