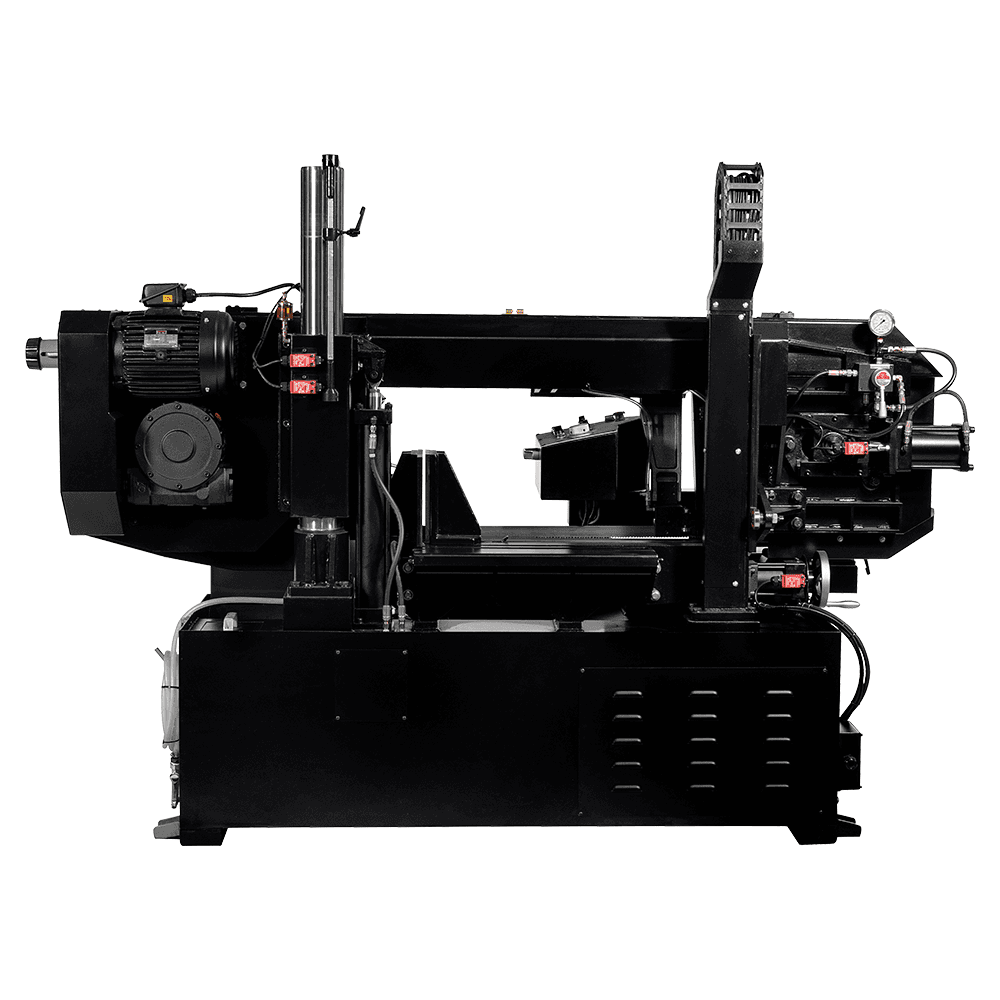

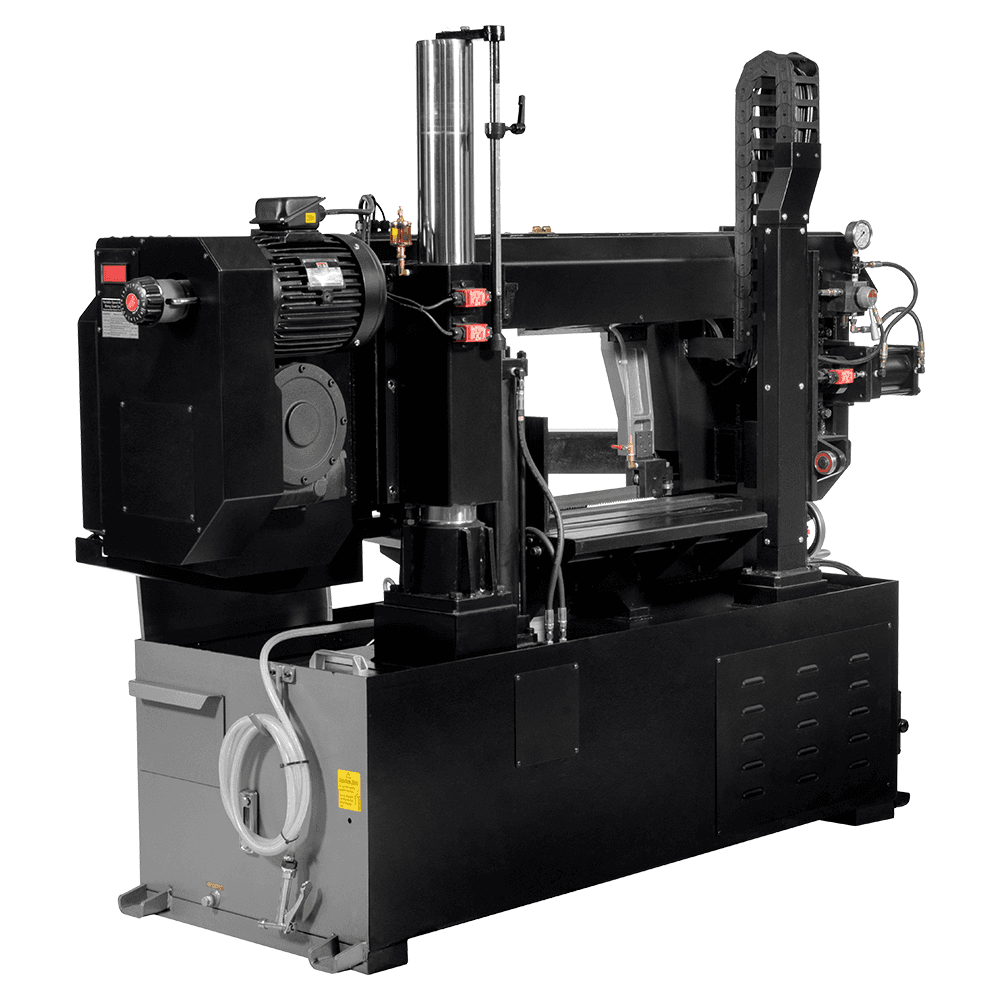

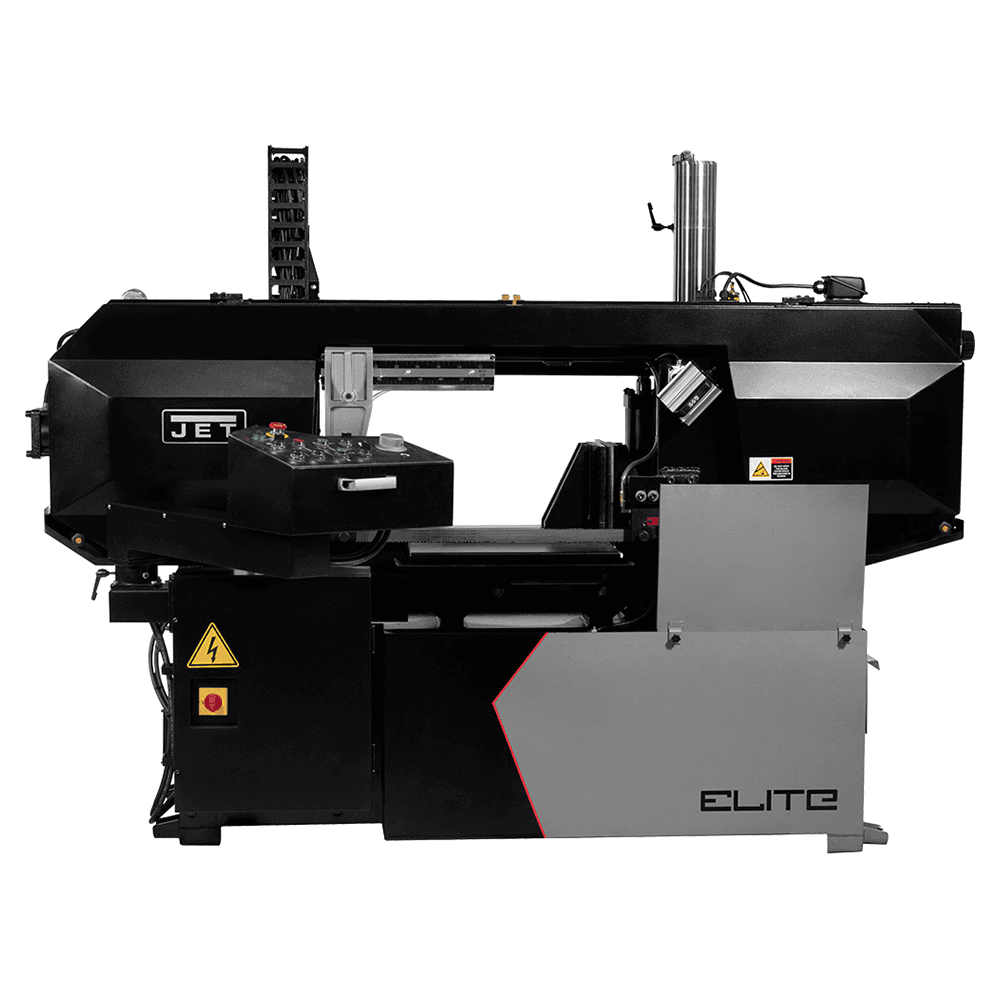

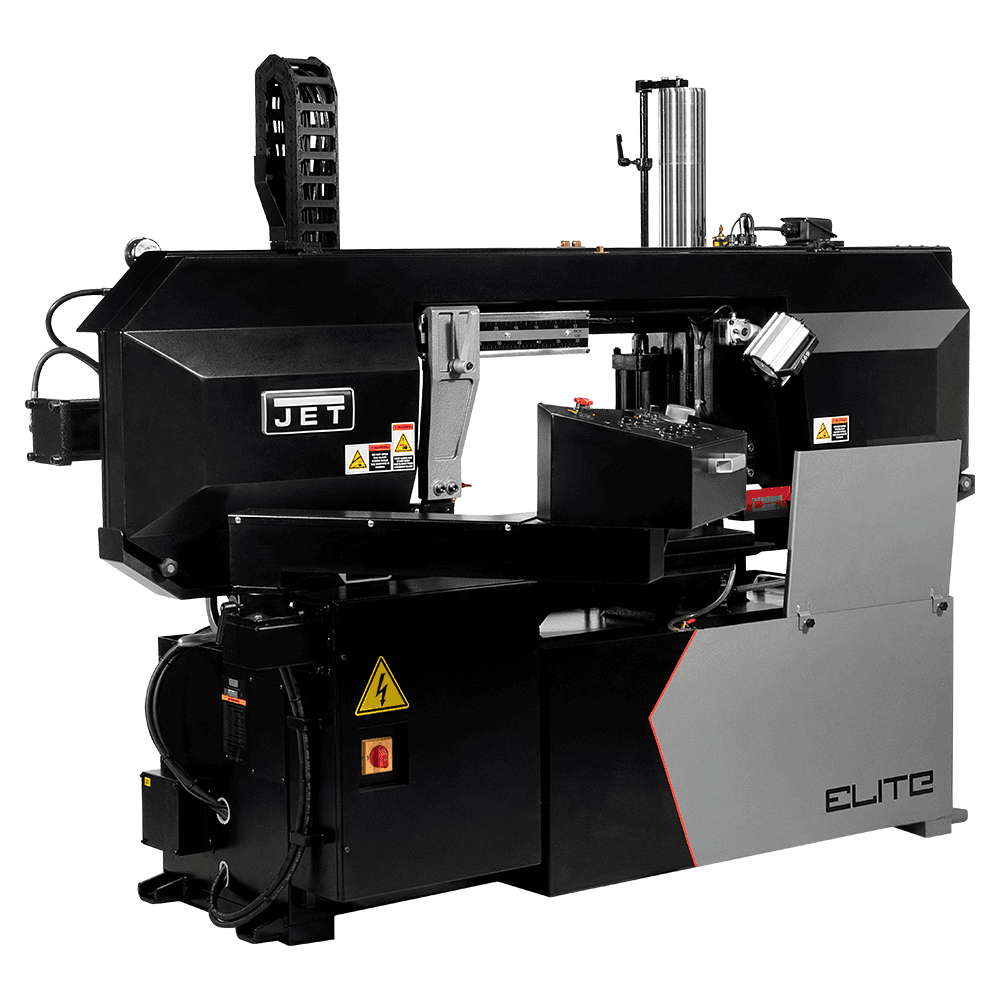

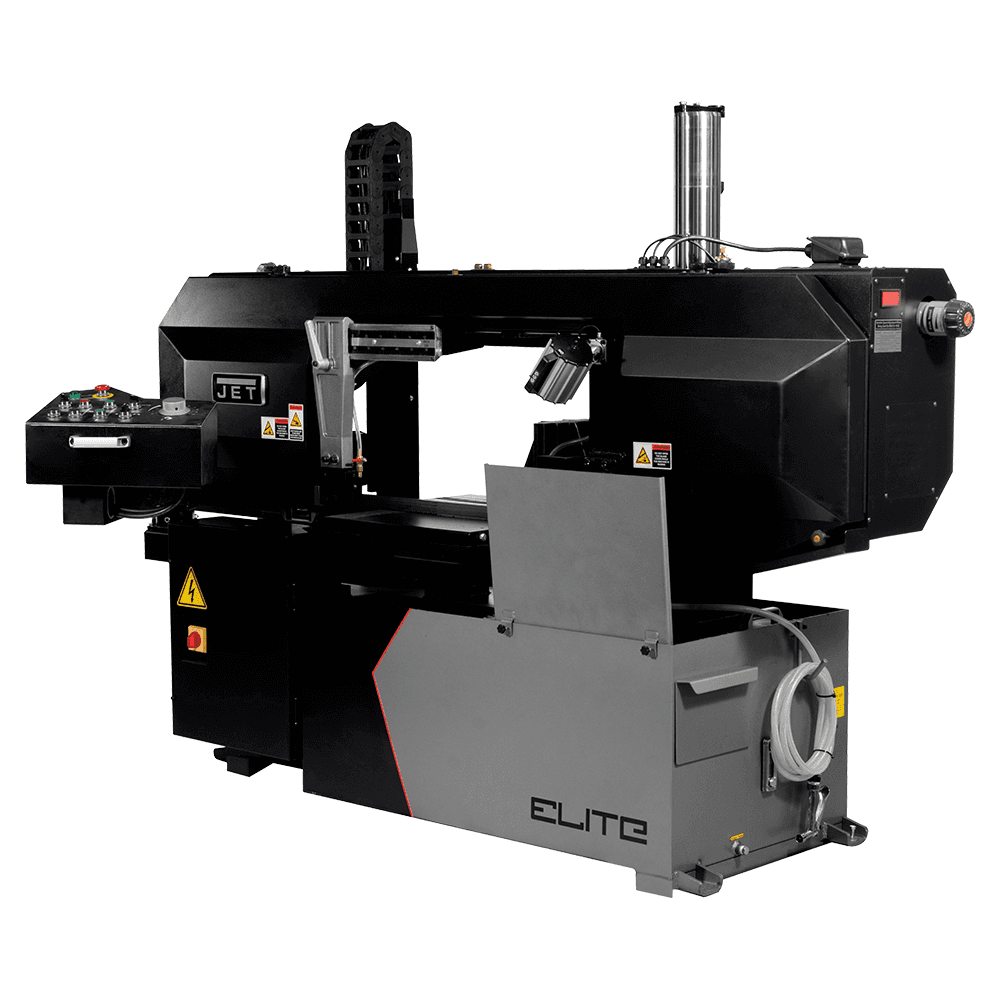

Jet Tools ECB-1422V 14" x 22" Semi-Automatic Variable Speed Dual Column Band Saw, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details

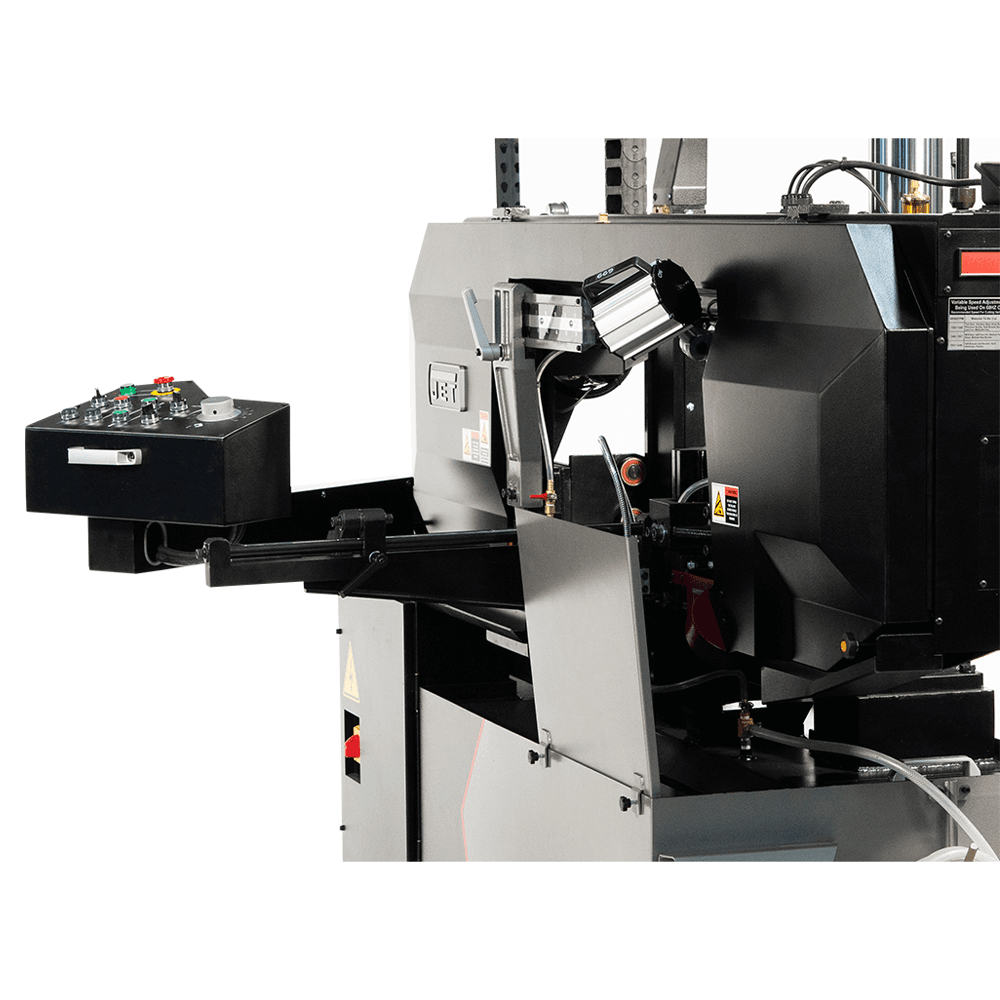

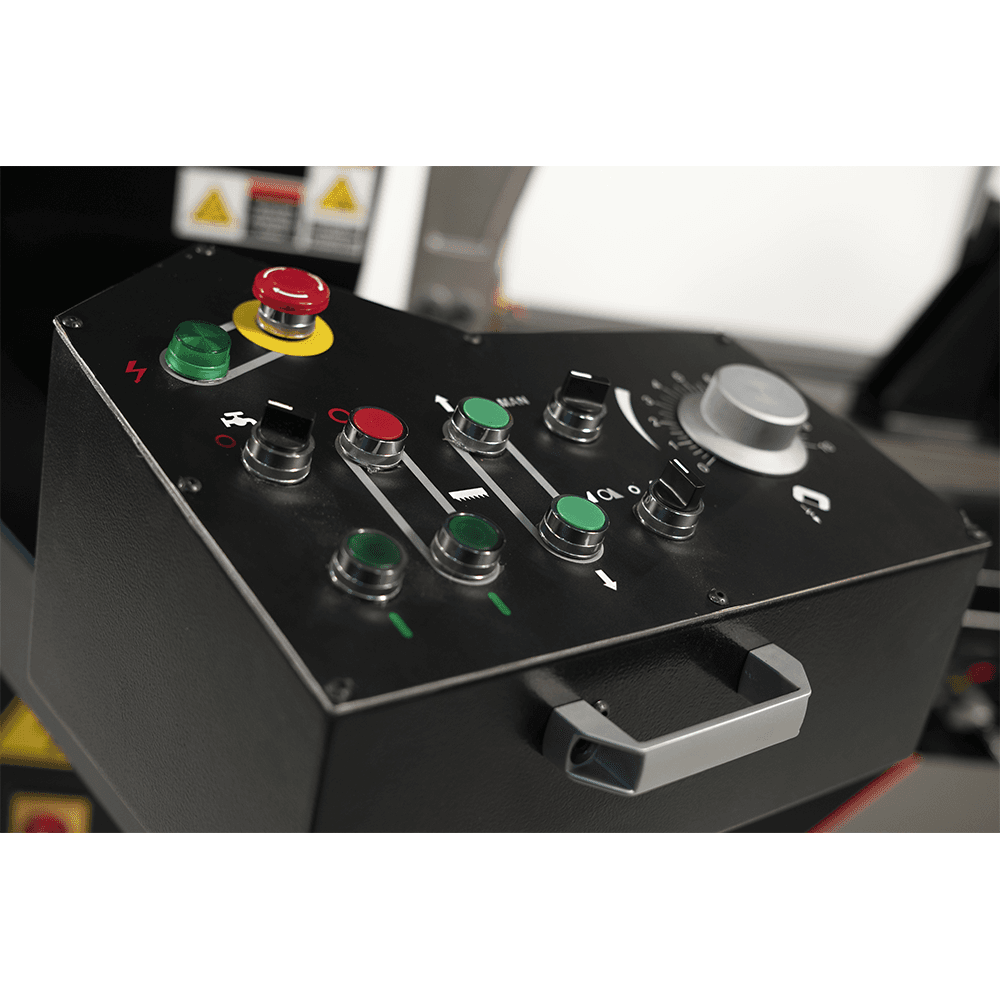

Jet Elite“s Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut. Features: • Heavy duty construction reduces vibration and deflection • Easy frame height adjustment • Blade tension gauge helps to ensure the blade is in the correct cutting position • Mechanical variable speed drive system for easy speed changes • Semi-auto on saw bow lifting and hydraulic vise • Swing away control box allows Operator to use in any position • Two column design for more productive cutting • IDEAL BLADE TENSION: Blade tension gauge helps to ensure the blade is in the correct cutting position • REDUCED VIBRATION: Heavy-Duty construction reduces vibration and deflection • EASY SPEED CHANGES: Mechanical variable-speed drive system turns blade 75-250 SFPM • ADJUSTABLE CONTROLS: Swing-away control box allows operator to use in any position • MORE PRODUCTIVE CUTTING: Dual-column design
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | |
| Rectangle at 45 Degrees | |
| Product Type | Horizontal Semi-Automatic |
| Prewired Voltage | 230V |
| Overall Height | 72-23/32" |
| Overall Dimensions (L x W x H) | 93-1/2" x 25-29/32" x 72-23/32" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | 1HP, 230/460V, 3Ph |
| Motor Voltage (V.) | 230V/460V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 14-1/8" x 22" |
| Round at 45 Degrees | |
| Vertical Cutting Capacity | |
| Throat Depth | 14" x17" |
| Throat Capacity | 14" x 17" |
| Table Height | |
| Square at 90 Degrees | 14-1/8" |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 14-1/8" |
| Round at 60 Degrees | |
| Motor Power (HP) | 5 HP |
| Motor Phase | 3 |
| Blade Width | |
| Blade Wheel Diameter | 18-1/2" |
| Blade Speeds (SFPM) | 75 - 250 |
| Blade Speed (SFPM) | 75 - 250 |
| Blade Size | 1.33" x 0.043" x 192-1/8" |
| Blade Length | 192-1/2" |
| Bed Height | 29" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |

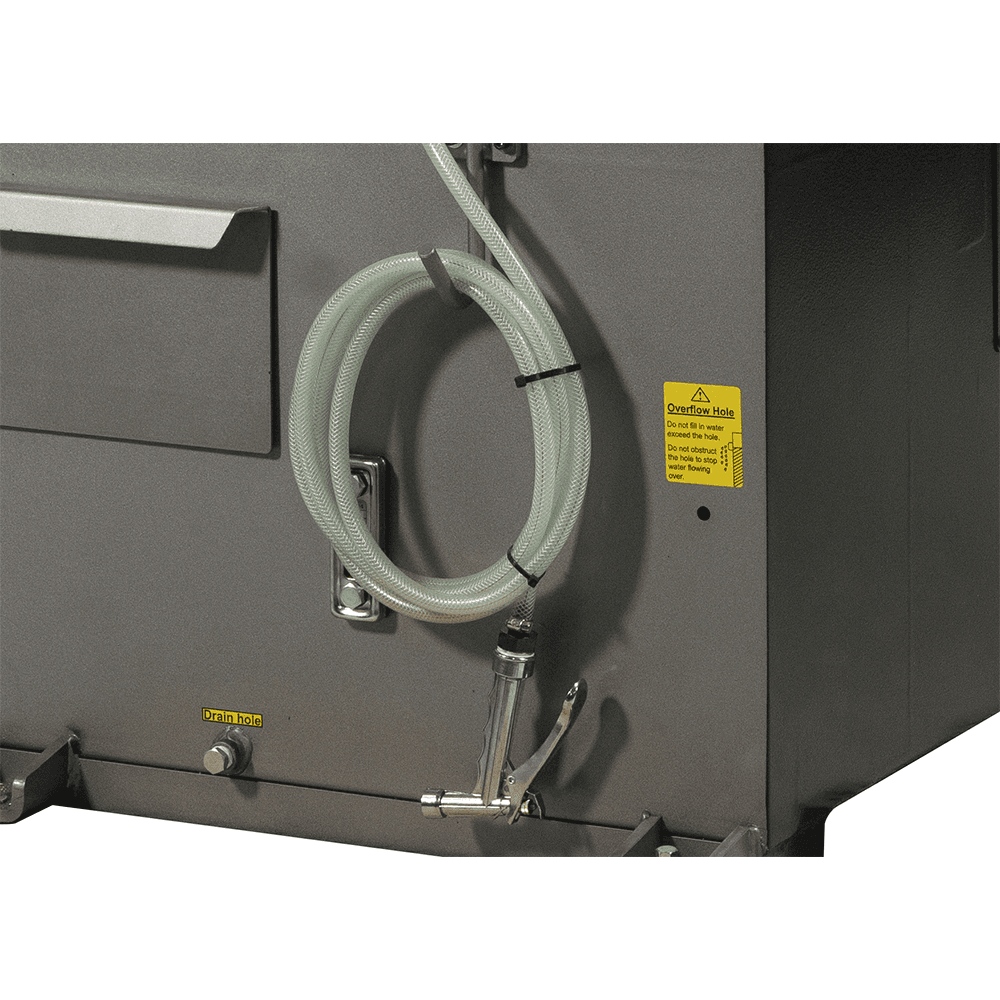

| Coolant Capacity (Gal.) | 23.8 |
| Coolant Pump Motor | 1/6HP, 230/460V |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | JET Elite's Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut. |
| Electrics | 5HP, 230/460V, 3Ph |
| Drive | Variable Speed |
| Cutting Capacity Width | 14" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 14" x 22" |
| Amperage |
