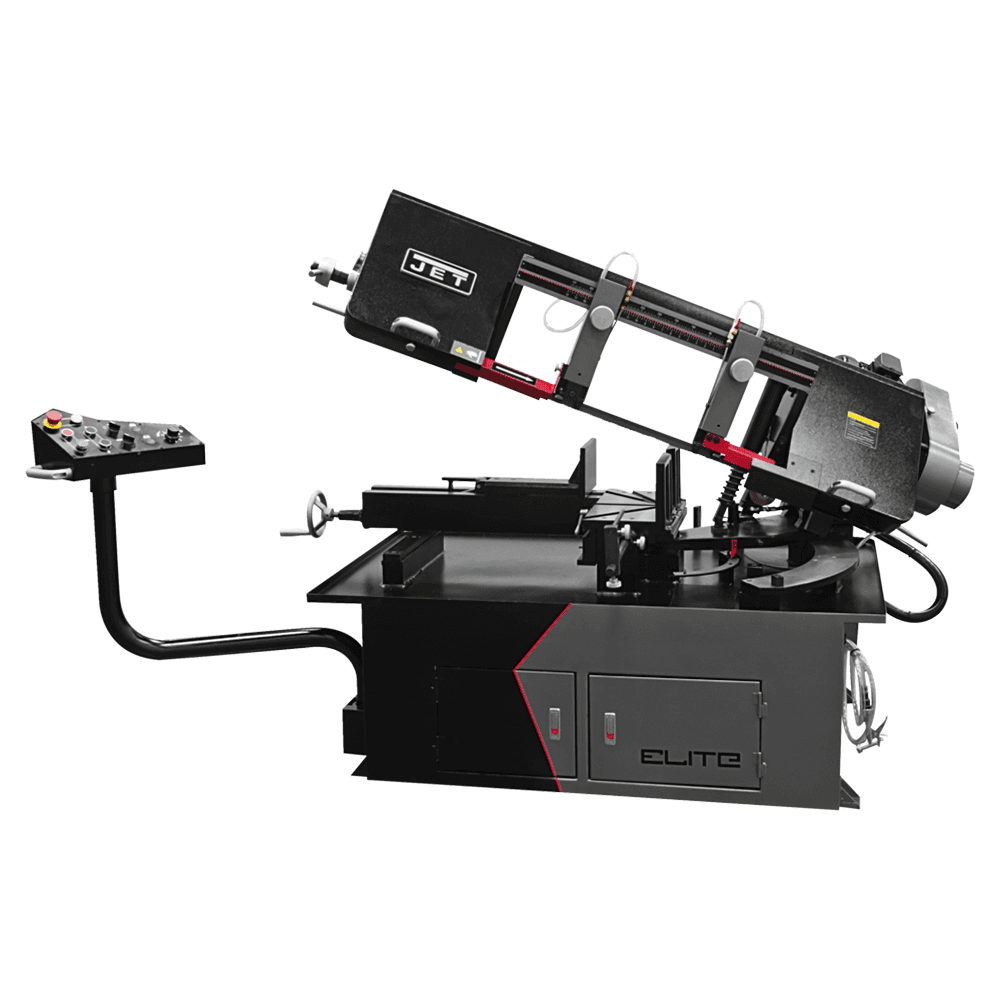

Jet Tools EHB-1018VMH 10" x 18" Semi-Auto Variable Speed Dual Mitering Saw with Hydraulic Vise, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details

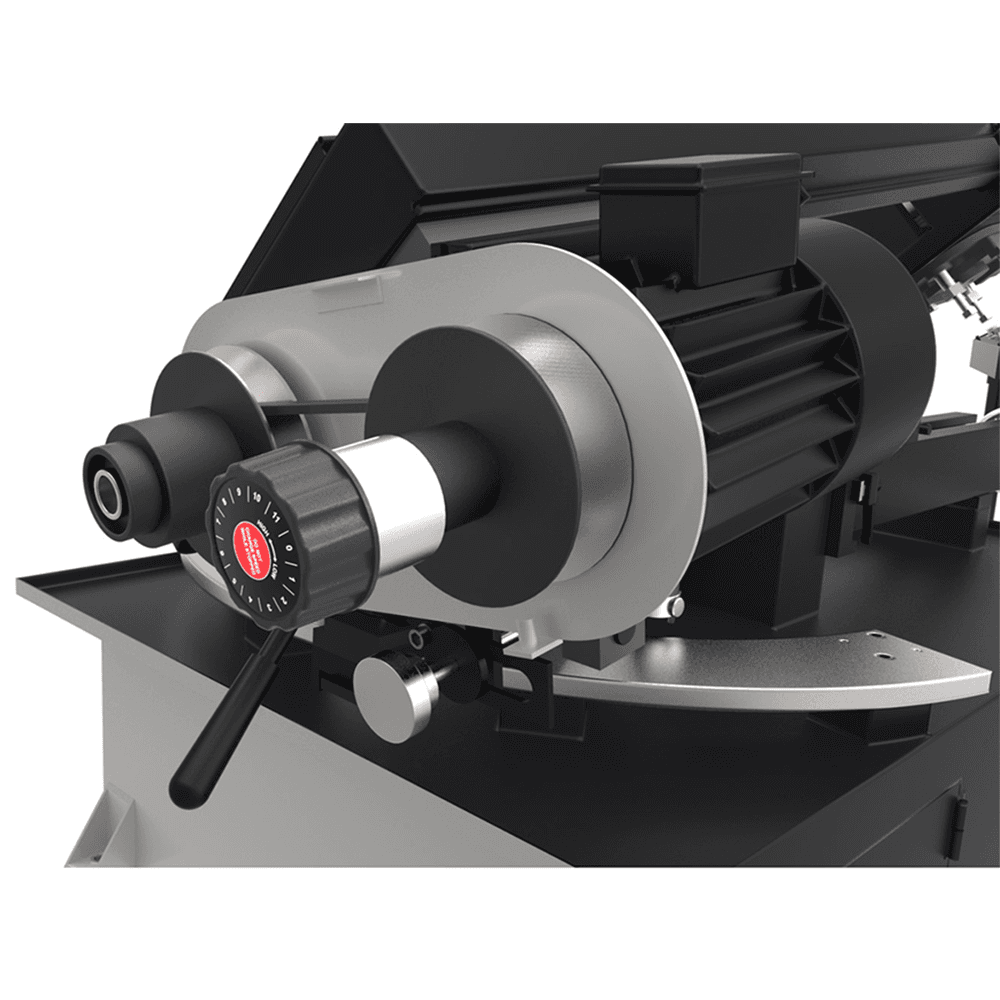

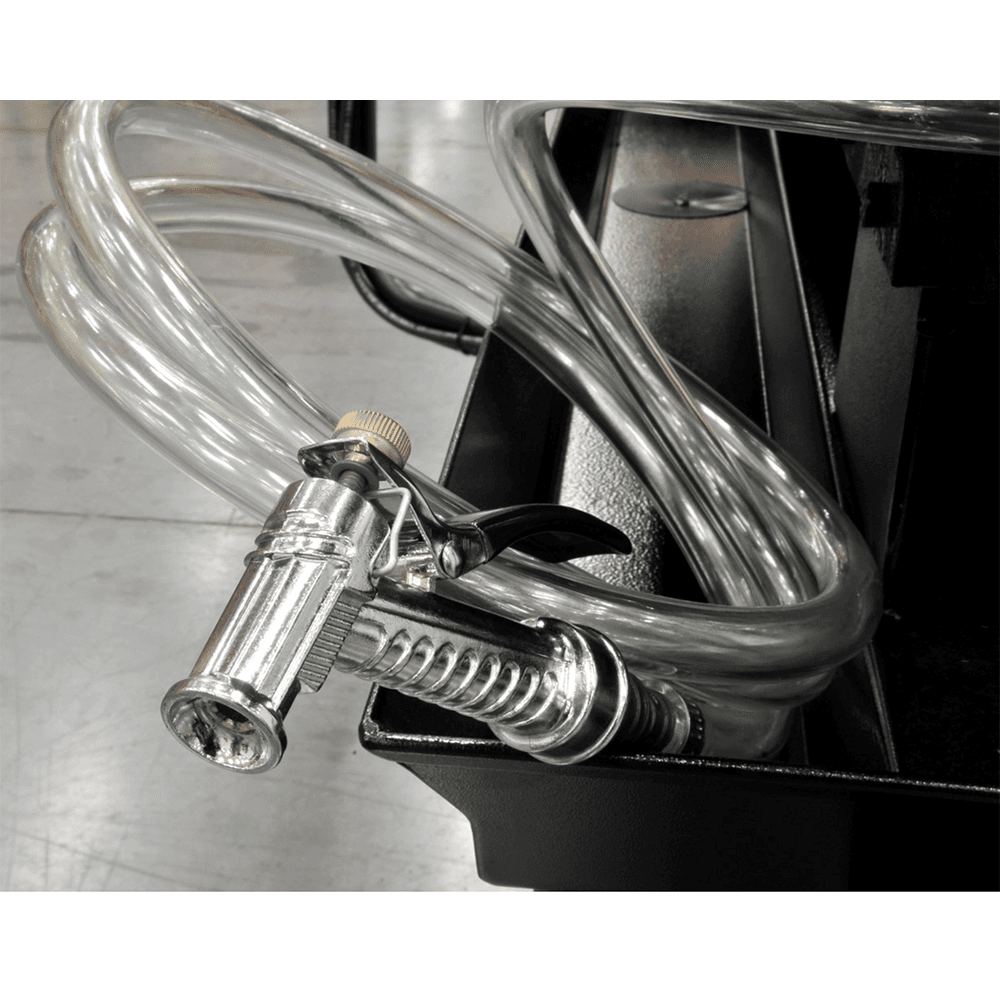

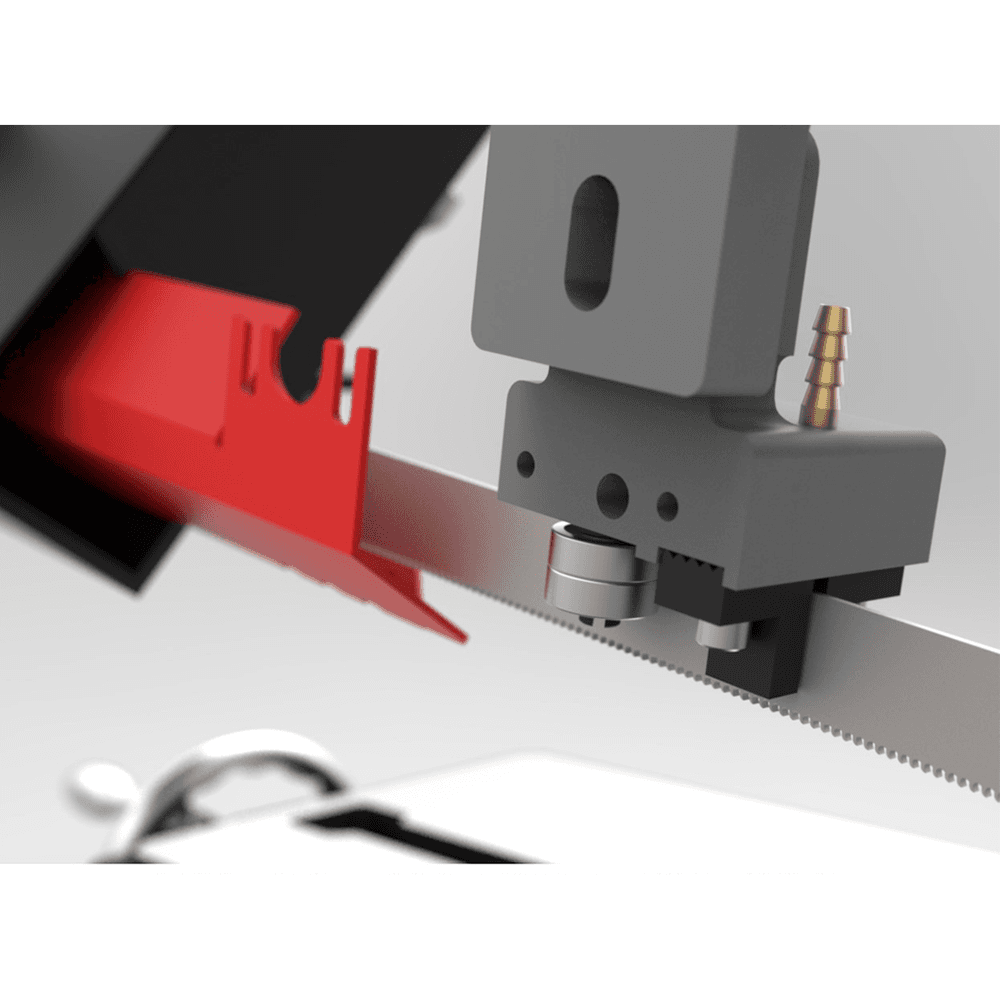

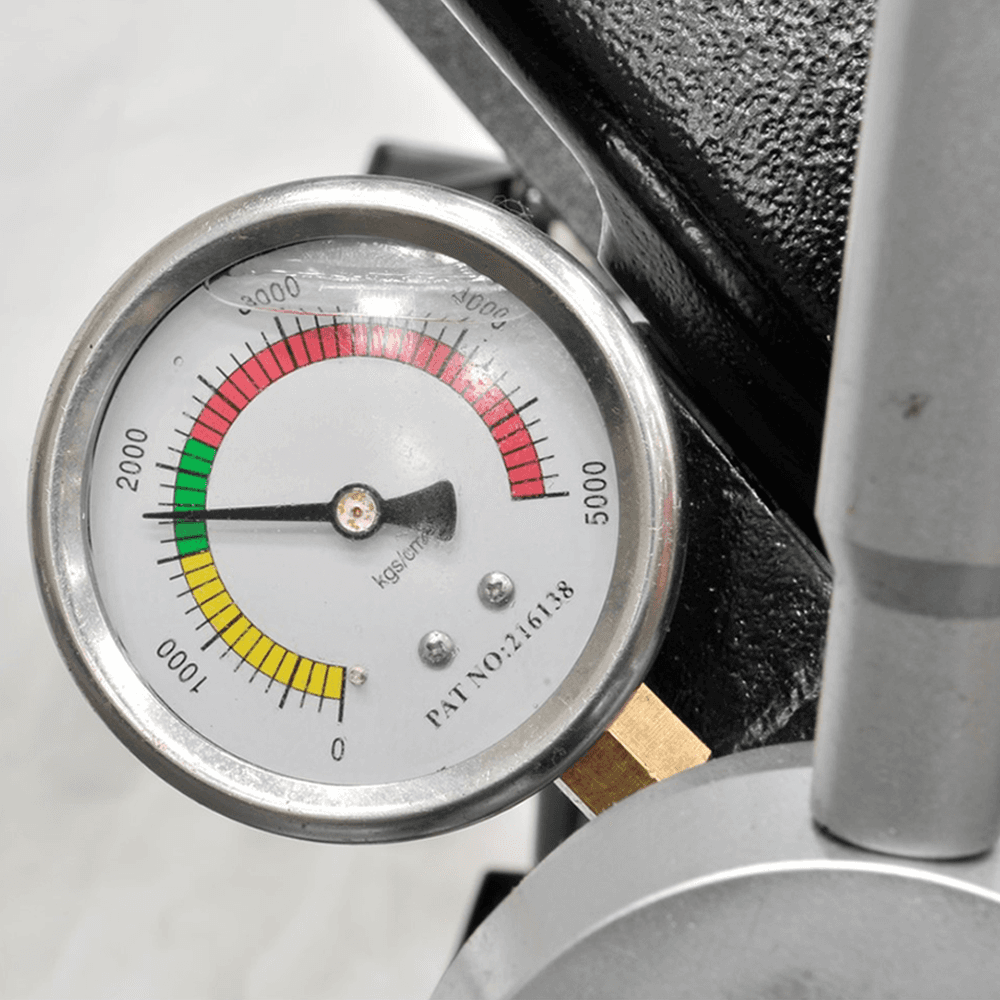

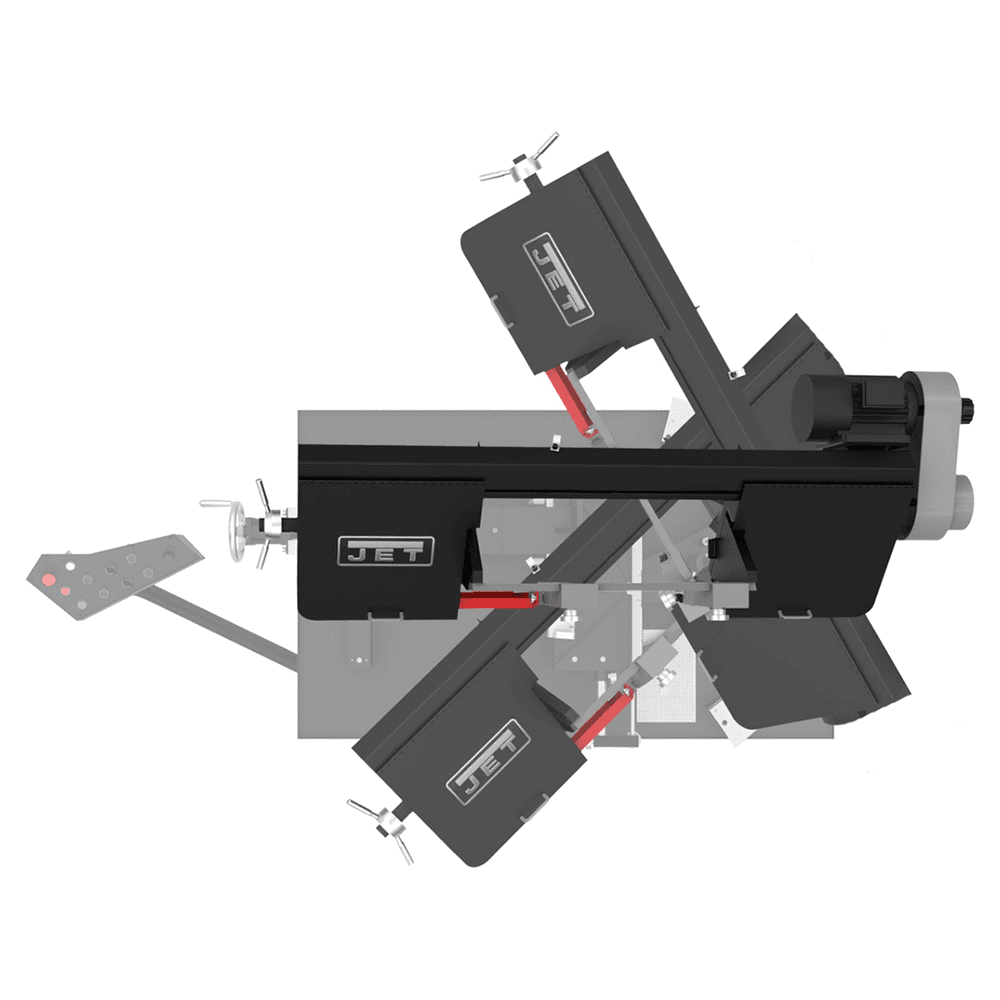

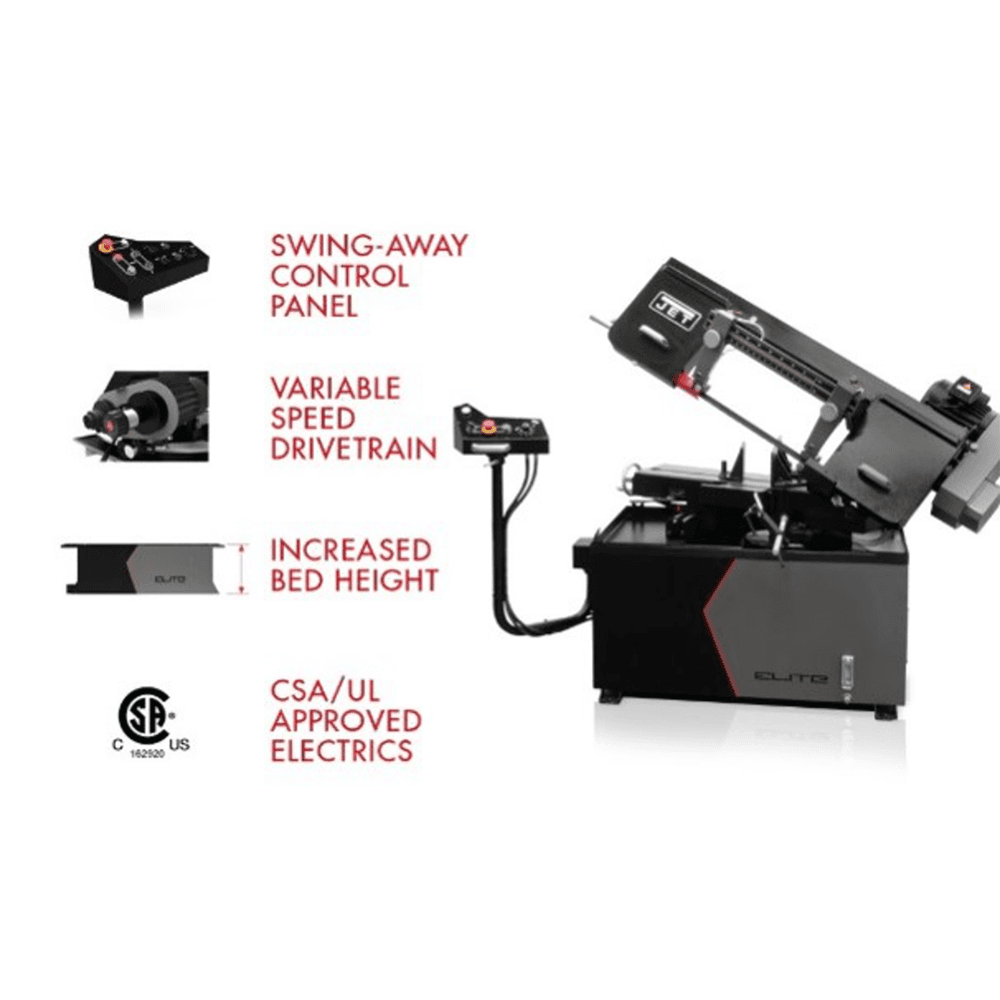

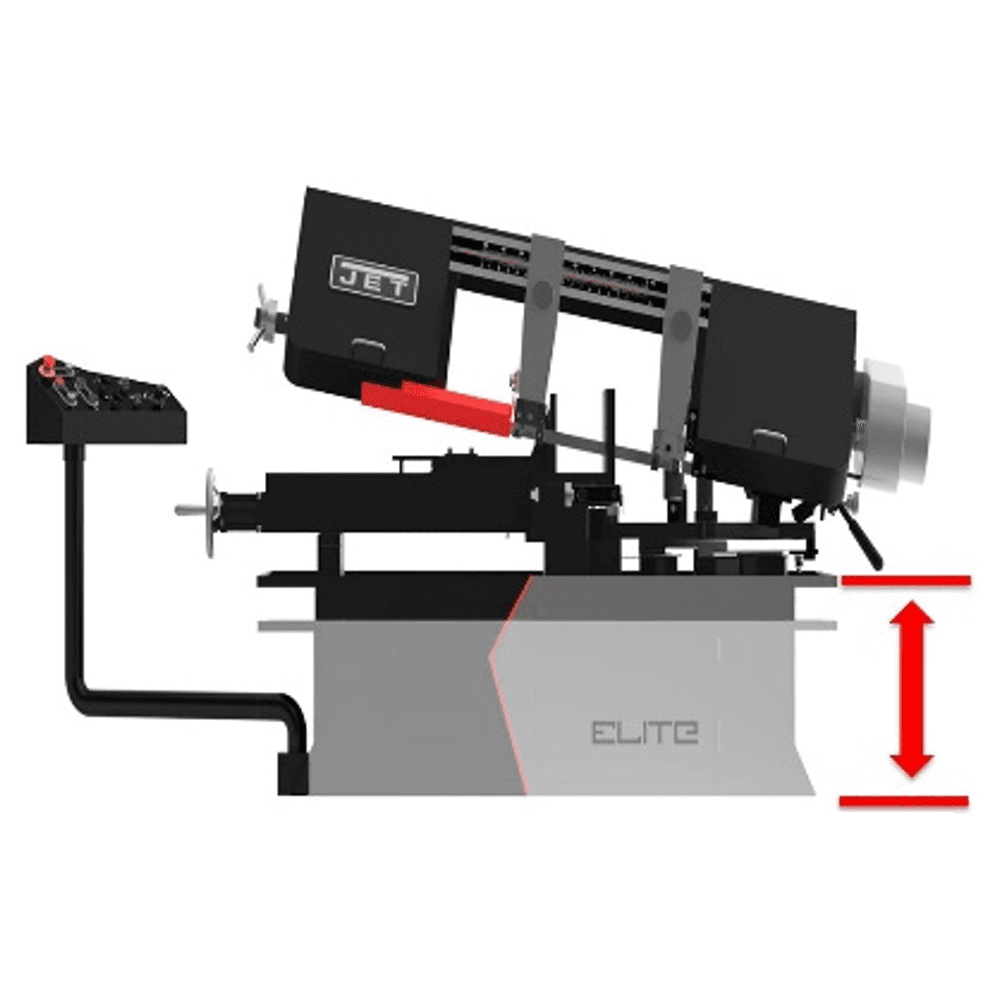

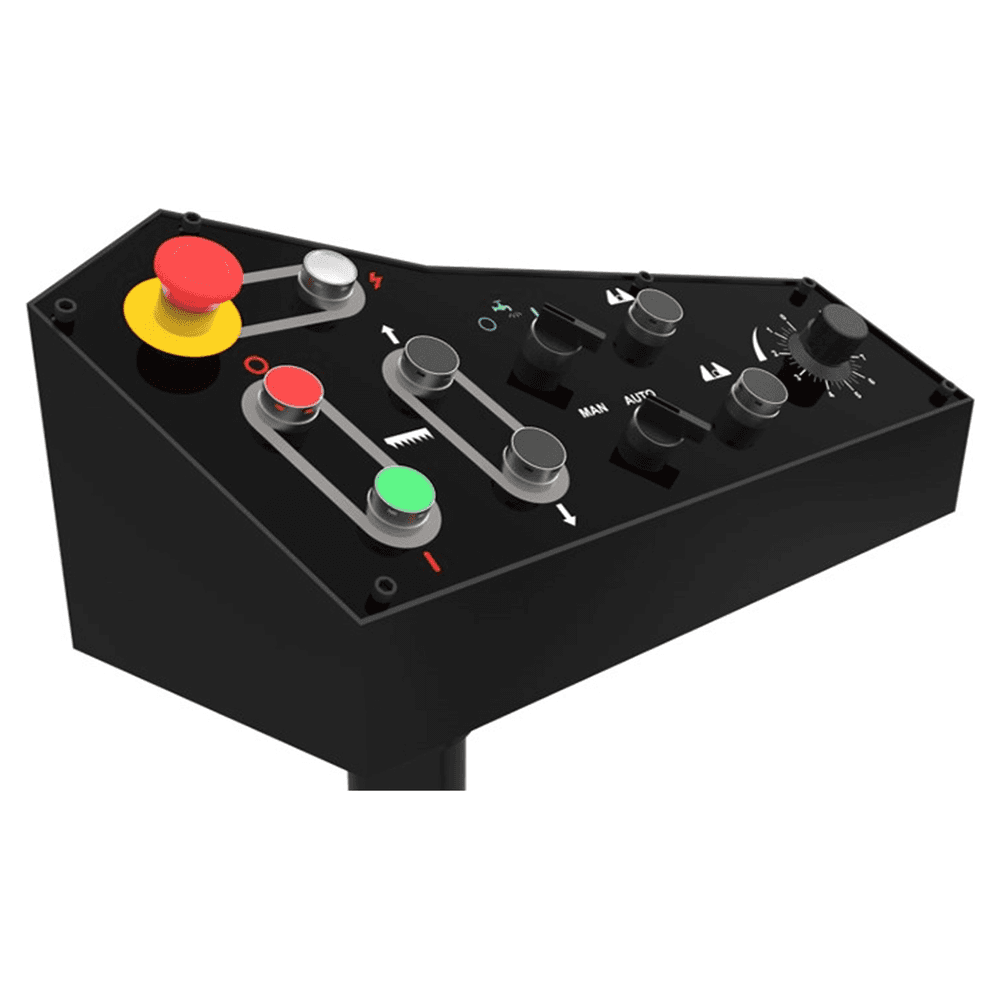

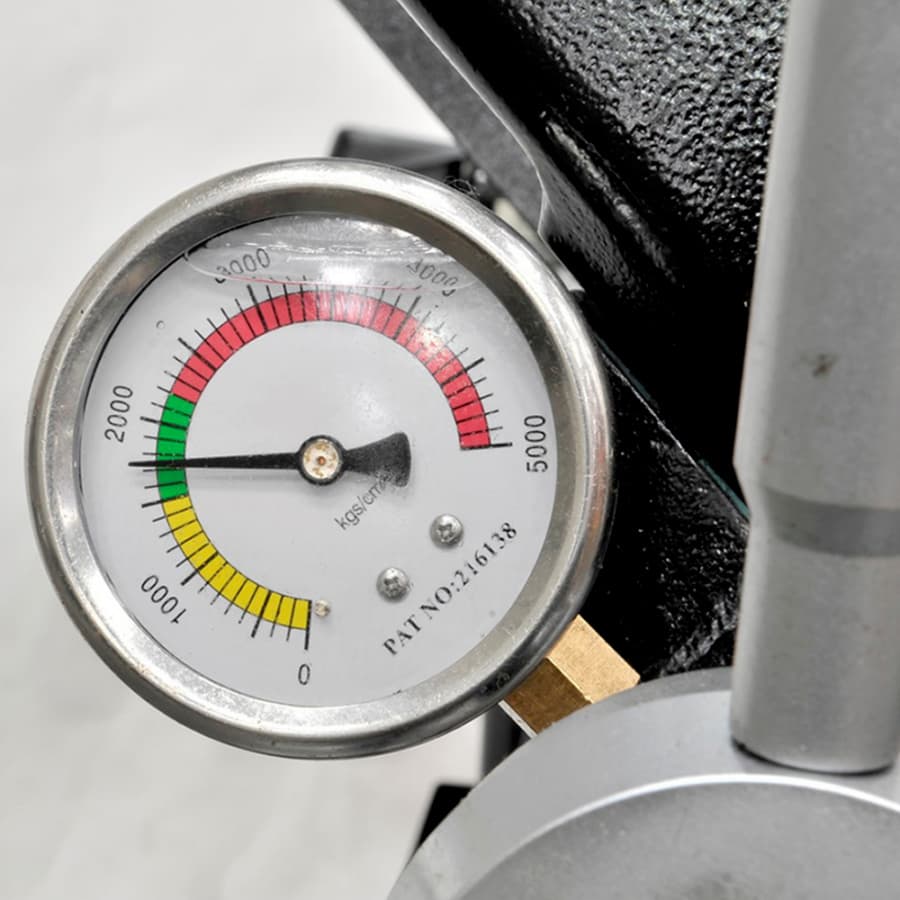

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Designed with heavy-duty construction, these saws reduce vibration and deflection. Mitering and dual mitering saws bring added level of capabilities with dual mitering allowing for compound angle cutting of 60° right and 45° left. All saws come standard with variable speed drive train that allows the operator to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. The Elite swing away panel relocates saw controls to a single location, offering finger-tip Bullets operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop. Features: • Adjustable material stop • Automatic blade shut off switch stops the sawing process • Built-in, self-propelled chip brush prevents chip build up in blade guides • Hydraulic quick positioning vise for clamping of materials • Integrated pressurized wash hose for easy machine cleaning • Large handwheel with blade tensioning gauge accurately measures blade pressure • Quick positioning vise for clamping of materials • Semi-automatic bow raises after cut to predetermined height • To reduce user fatigue and increase Safety of the worker, we increased the saw bed height to up to 27" • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 10" x 12" |
| Product Type | Horizontal Semi-Automatic |
| Prewired Voltage | 230V |
| Overall Height | 44" |
| Overall Dimensions (L x W x H) | 85" x 40" x 44" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V/460V |
| Rectangle at 60 Degrees | 6" x 5" |
| Rectangle at 90 Degrees | 10" x 17" |
| Round at 45 Degrees | 10" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | 10" x 10" |
| Square at 60 Degrees | 5-1/2" x 5-1/2" |
| Square at 45 Degrees | 10" x 10" |
| Round at 90 Degrees | 10" |
| Round at 60 Degrees | 6" |
| Motor Power (HP) | 2 HP |
| Motor Phase | 3 |
| Blade Width | |
| Blade Wheel Diameter | 14" |
| Blade Speeds (SFPM) | 53 - 257 |
| Blade Speed (SFPM) | 53 - 257 |
| Blade Size | 1" x 0.035" x 144" |
| Blade Length | 144" |
| Bed Height | 27" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | 60° |
| Enhanced Description | |
| Electrics | 2HP, 230/460V/ 3-Ph |
| Drive | Variable Speed |
| Cutting Capacity Width | 10" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 10" x 18" |
| Amperage |
