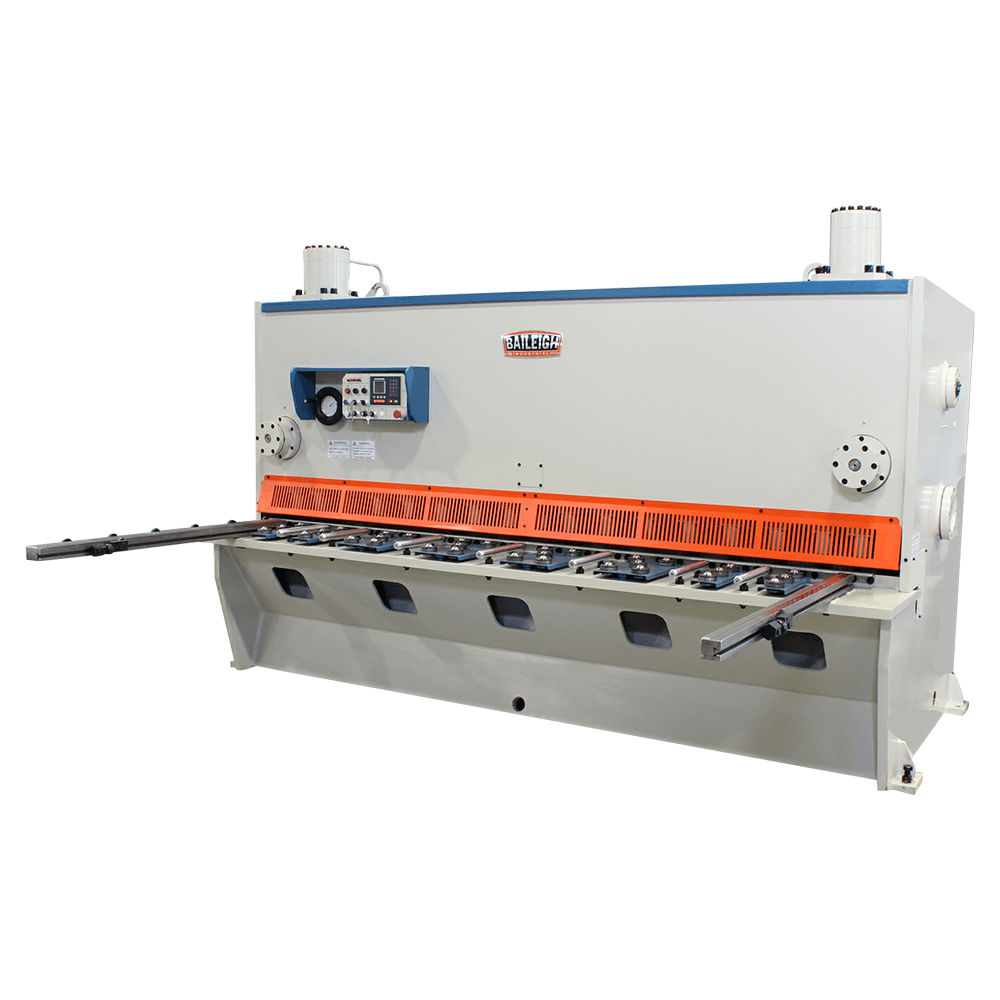

Baileigh SH-120500-HD 30 HP Heavy Duty Hydraulic Shear, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

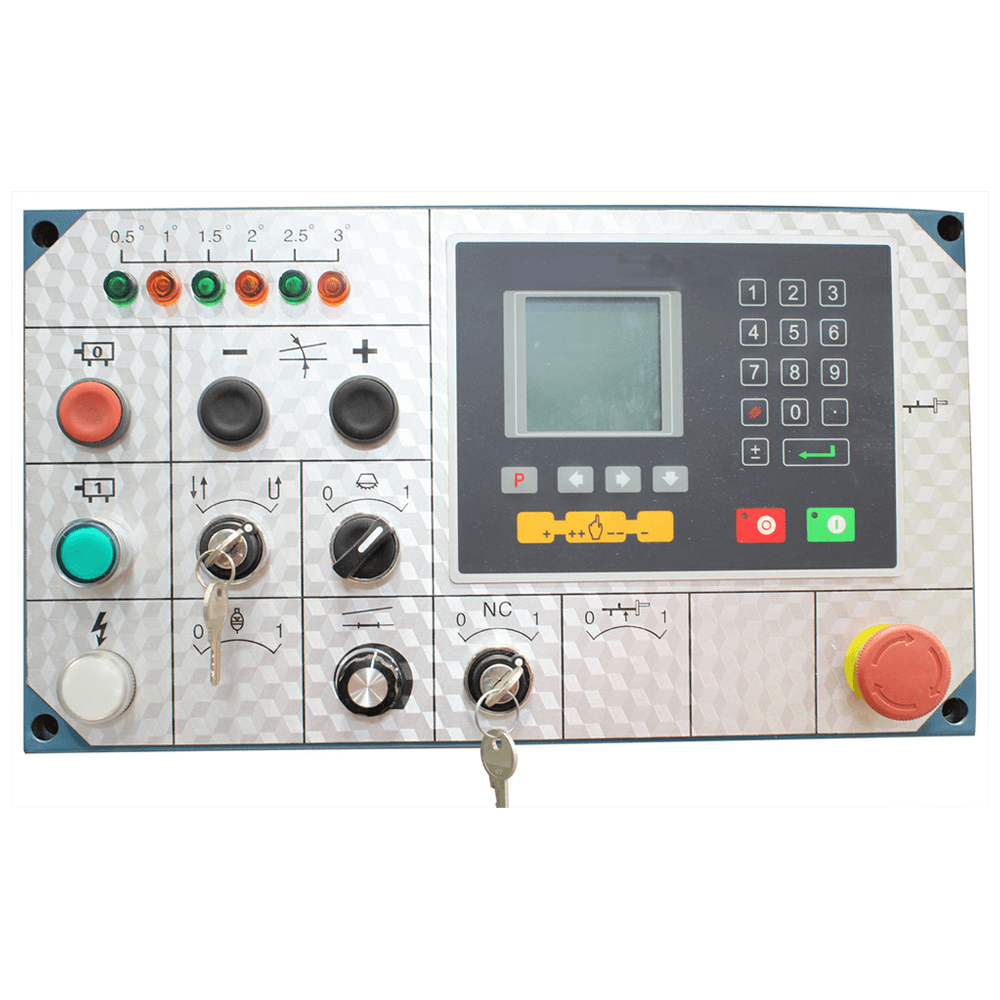

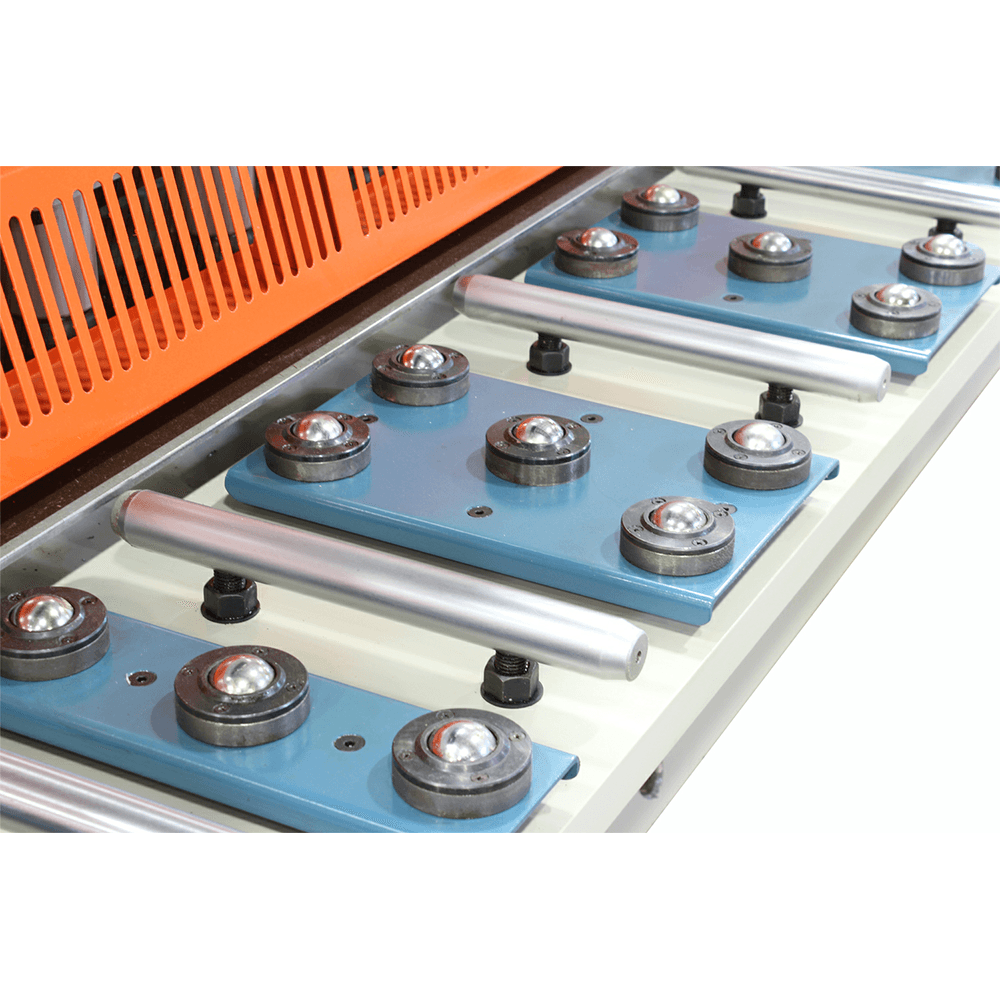

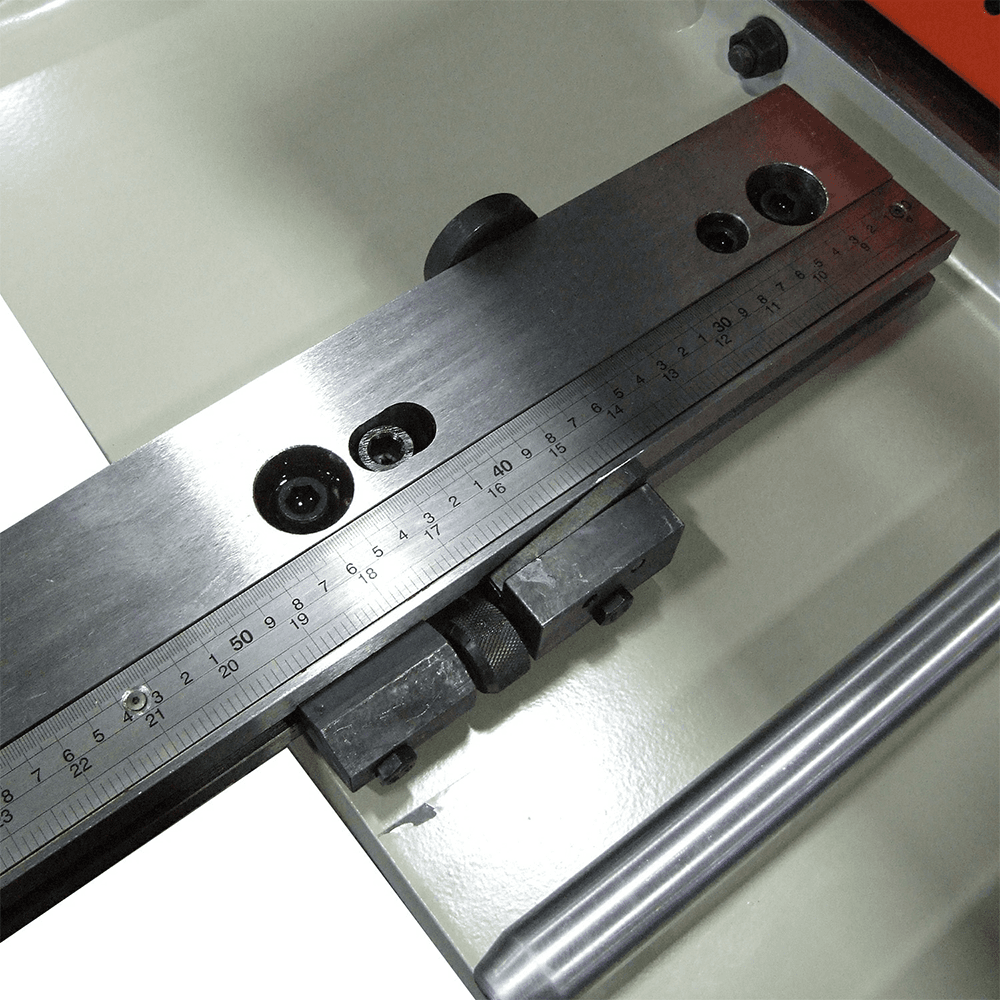

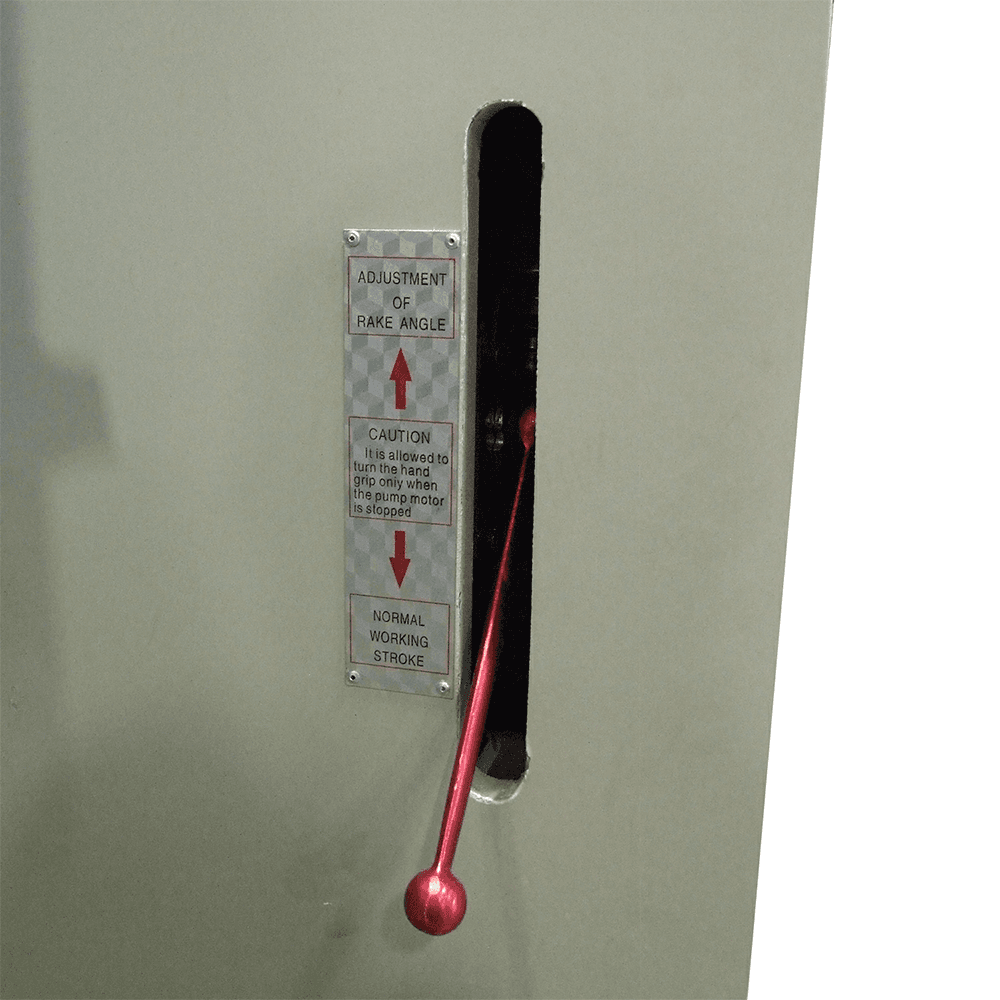

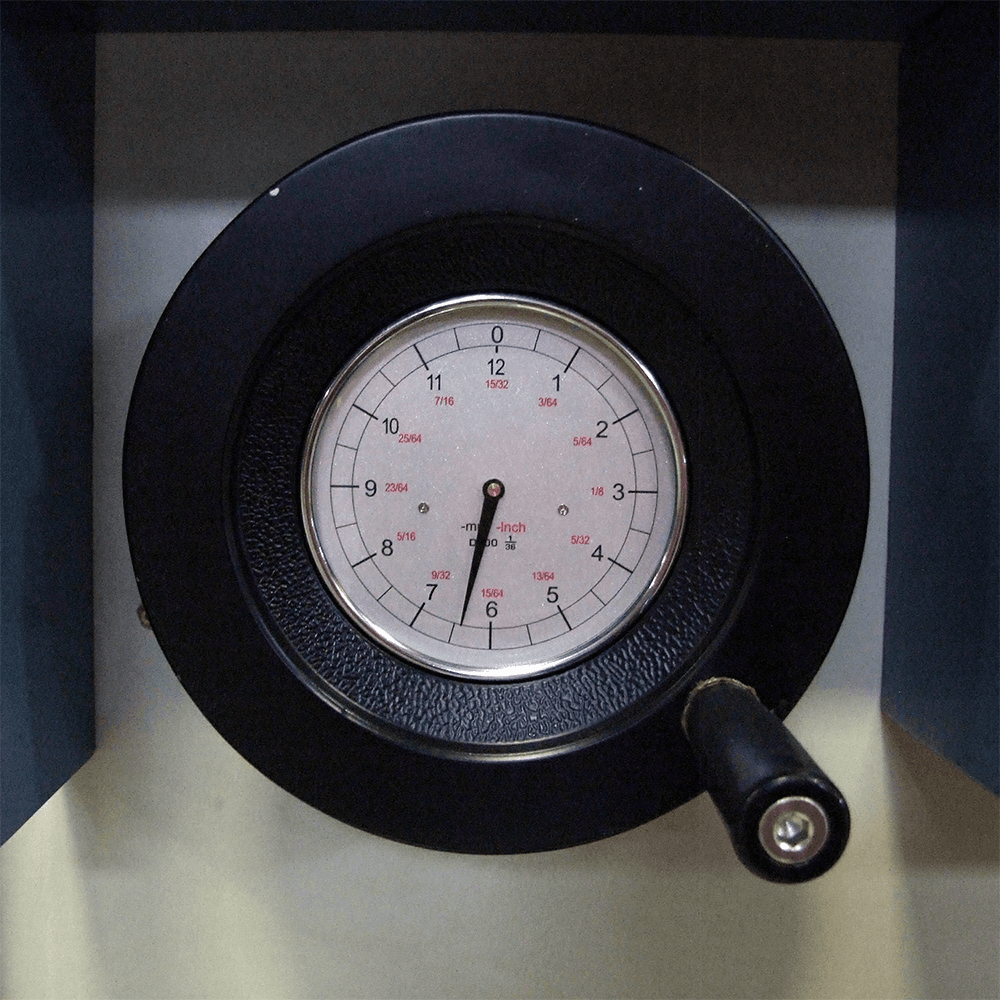

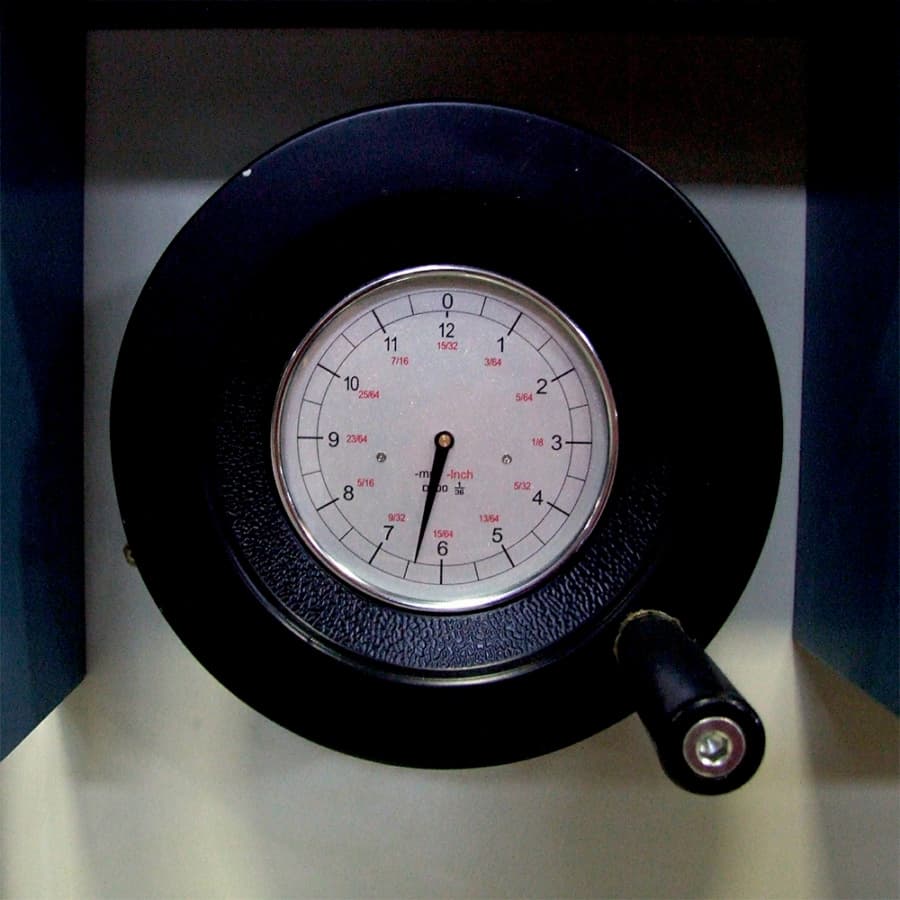

The Hydraulic Shear will perform day in and day out for years. The NC controller lets you easily program the backgauge. Also available in a 96" model with ¼" maximum capacity and 120" model with ¼" maximum capacity. Features: • Maximum capacity of ½"-thick mild steel and produces 9 strokes per minute • 20 hp motor runs on 220-volt 3-phase power with a 120" length for up to 10-foot sheets • Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan • Hydraulics are in the front for simple fluid changes - Just lift the panels using the convenient handles • Squaring arms support the material and keep it square to the blade while the adjustable blade gap prevents crimping or folding - Just turn the handwheel • Roller infeed tables, mounted on the front, help you load heavy materials • Fully programmable back gauge is accurate to =/- .01mm and internal memory can hold up to 100 programs • You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics - Press a button, then pull the lever until the light goes on • Comes standard with shadow line positioner for accurate material placement • Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process
Specifications
| Box Quantity | 1 |
| Input Power | 220V / 3-phase |
| Minimum Material Thickness (Gauge) | 18 |
| Motor (HP) | 30 HP |
| Product Type | Hydraulic Sheet Metal Shears |
| Shearing Length Capacity | 120" |
| Sheet Capacity (Mild Steel) | .50" |
| Short Description | 120" length 1/2" mild steel capacity 220V 3-phase power Adjustable blade gap and rake angle NC programmable backgauge |
| Speed Range (Stroke/min) | 9 |

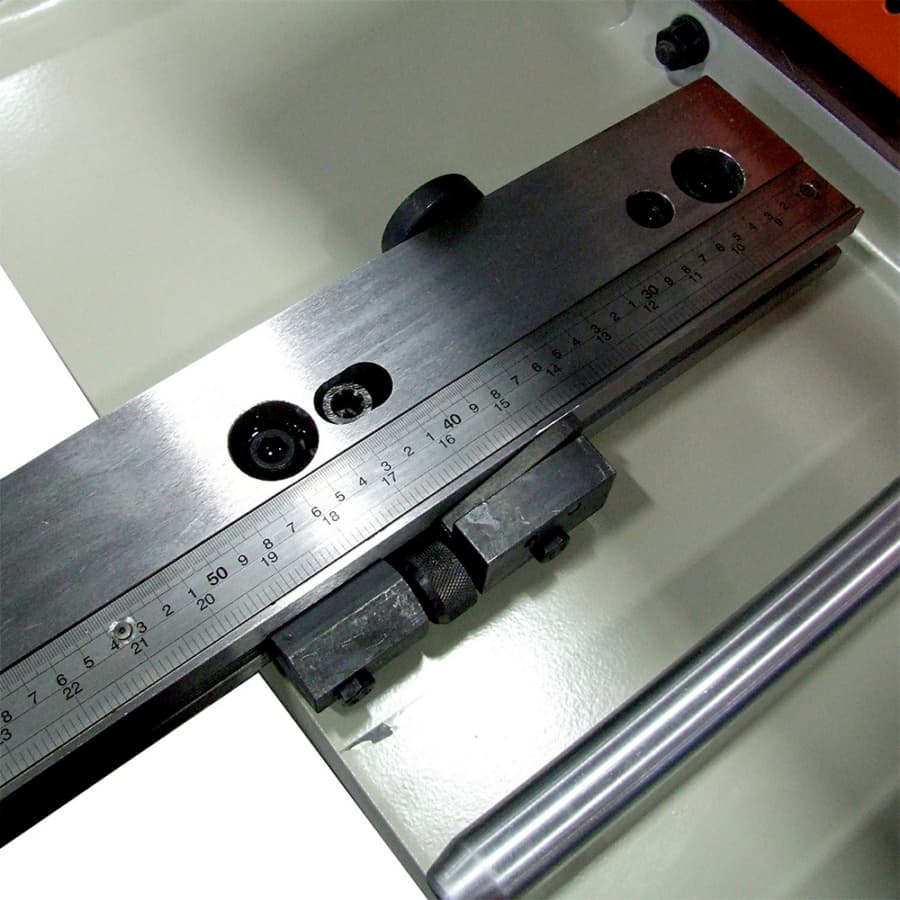

| Squaring Arm Length | 48" (Can be used on right or left side, includes 4 bump stops) |
