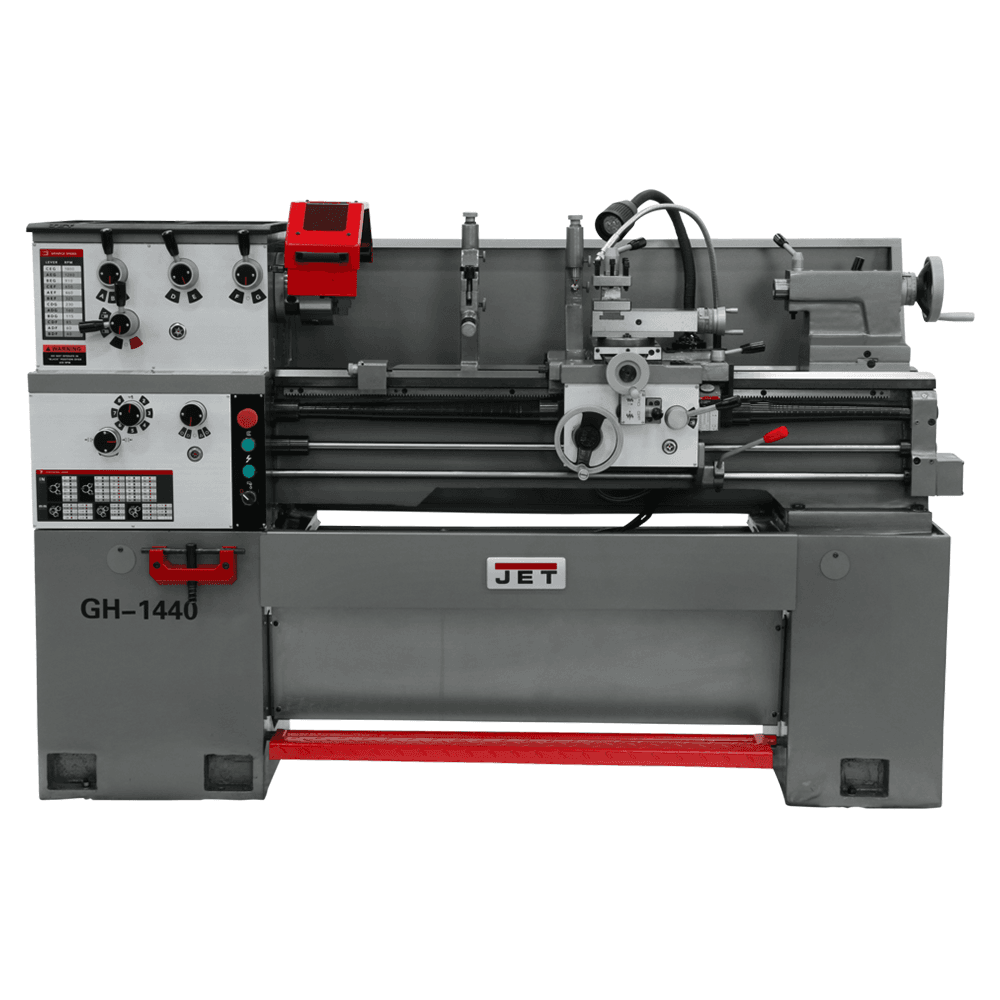

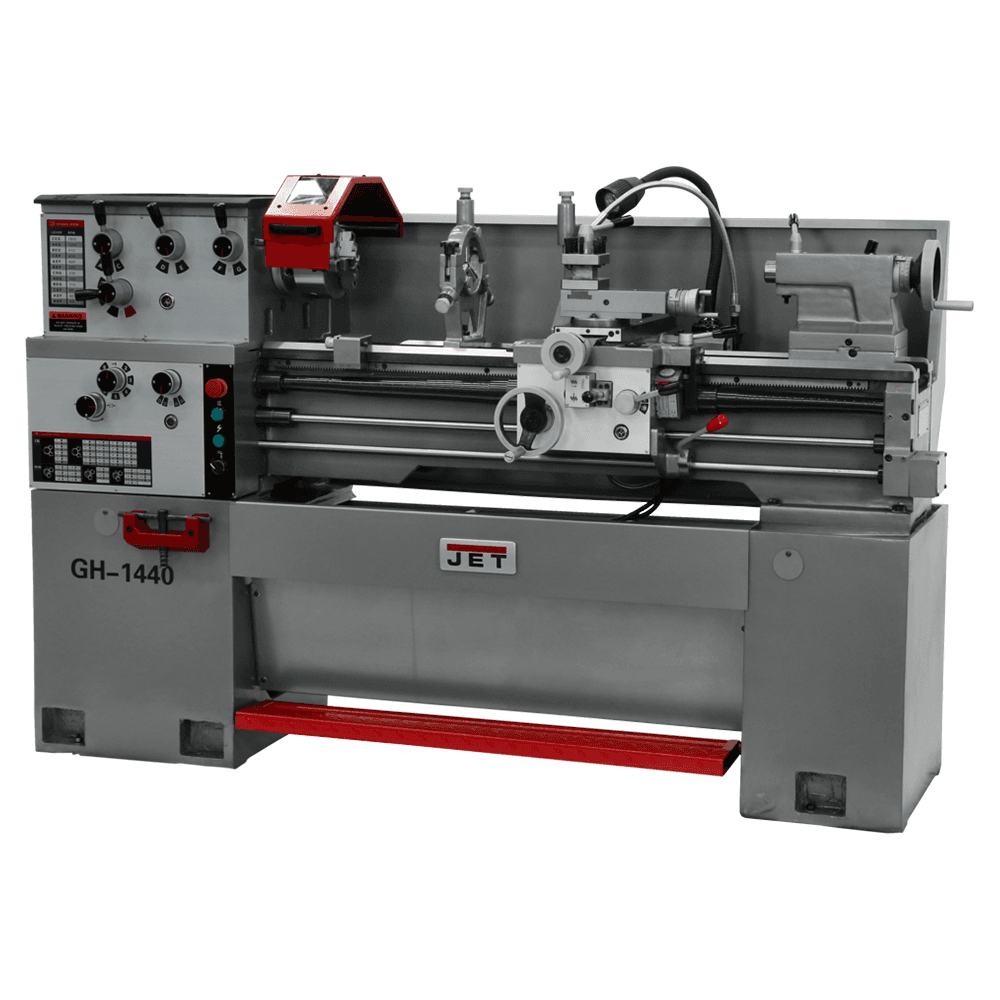

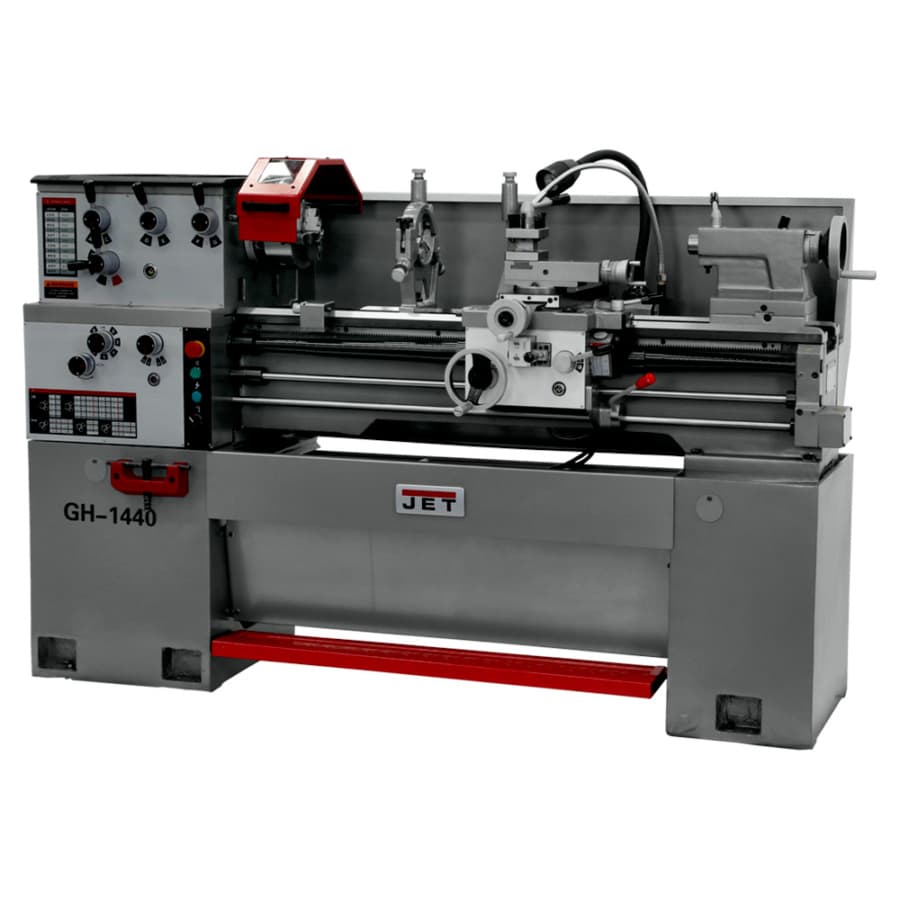

Jet Tools GH-1440-3 3 HP Geared Head Engine Lathe with 203 DRO/Taper Attachment, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details
The new Jet GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked. Features: • Compound and cross slide have backlash elimination • Front Removable Chip Tray • Full Length Splash Guard • Inch-metric dials are standard • Independent lead screw and feed rod • Safety on/off switch • Spindle actuation control is apron mounted • Spindle jog button for easy gear engagement and spindle inching • Splined, not keyed, shafts are utilized • Tailstock may be offset for turning taper
Specifications
| Box Quantity | 1 |
| Width of Bed | 10-1/5" |
| Range of Cross Feeds (IPR) | 0.0004 - 0.0103 |
| Product Type | Lathes |
| Overall Height | 46" |
| Overall Dimensions (L x W x H) | 74-4/5" x 28" x 46" |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 23 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Inch Threads | 40 |
| Range of Inch Threads (TPI) | 4 - 112 TPI |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Metric Threads | 0.45-7.5 |
| Taper in Tailstock Spindle | MT-3 |
| Tailstock Spindle Travel | 4-3/4" |
| Swing Through Gap | 20" |
| Swing Over Cross Slide | 8-1/5" |
| Steady Rest Capacity | 3-1/2" |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Mount | D1-4 |
| Range of Spindle Speeds (RPM) | 40-1800 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 5/8" x 5/8" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 14" |
| Size | |
| Motor Amps | |
| Distance Between Centers | 40" |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 37-1/2" |
| Compound Slide Travel | 3-1/2" |
| Length of Gap | 9-3/8" |
| Input Power | 230/460V, 3Ph |
| Follow Rest Capacity | 2-5/8" |
| Drive | |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | 6-3/8" |
| Coolant Pump Motor | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Motor Phase | 3 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 1-1/2" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 3 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V/460V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
