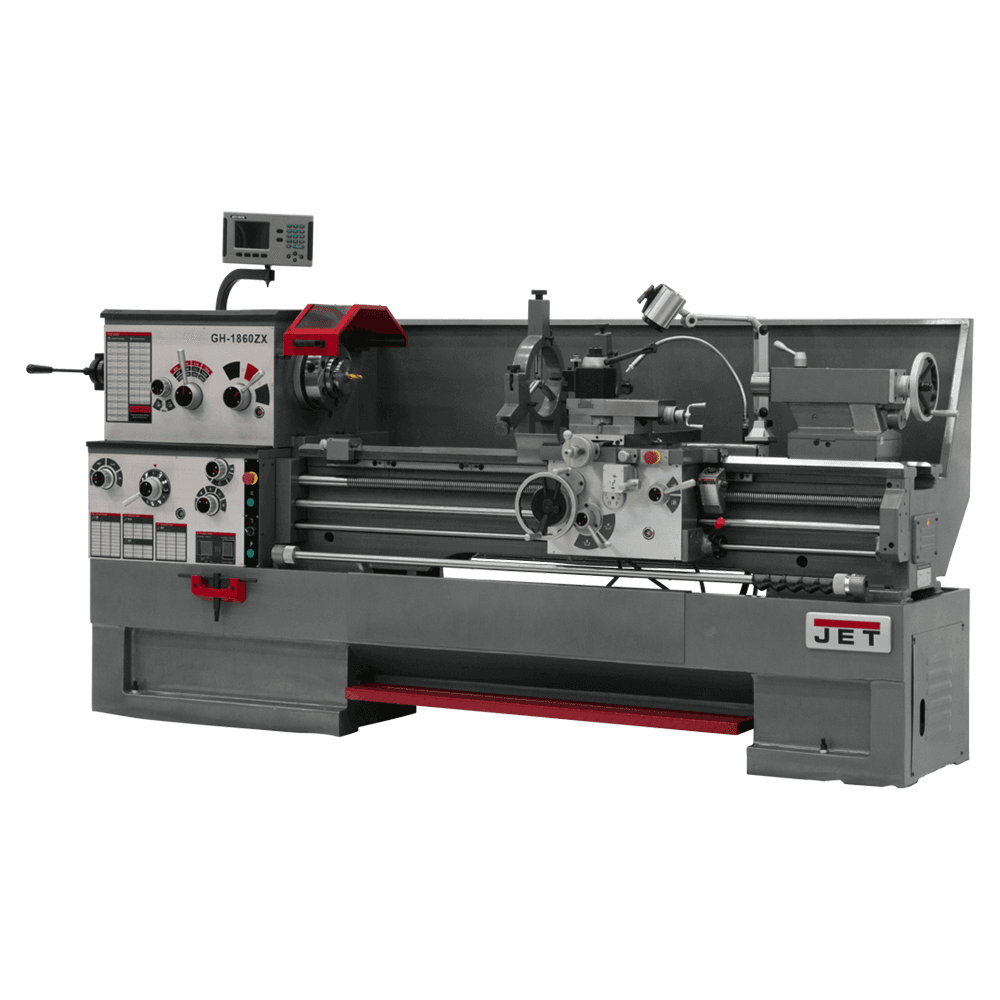

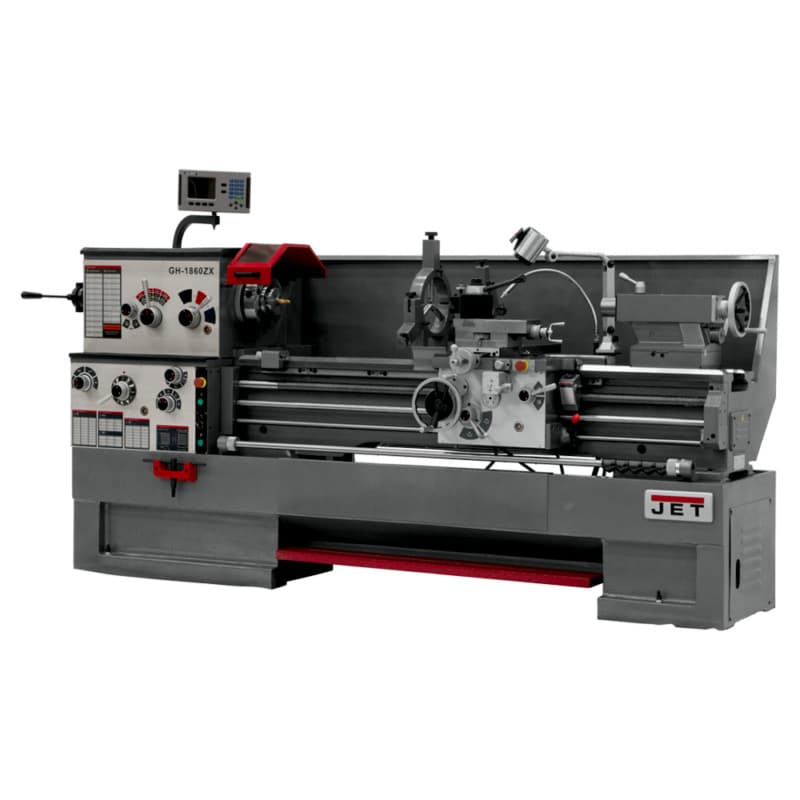

Jet Tools GH-1860ZX 7-1/2 HP Large Spindle Bore Lathe with Newall DP700 DRO/Taper Attachment/Collet Closer, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10" three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a Jet Lathe that is backed by the industry-leading Jet Two Year Warranty. Features: • Articulating LED work lamp • Centrally located controls with jog button • Electronic Chuck Key Holder • Five position automatic carriage stop increases productivity • Full length splash guard and coolant return • Large capacity steady rest with ball bearing tips • Large easy to use foot brake • Mounting pads and levelers • Removable gap allows large diameter work • Tool box and adjusting tools
Specifications
| Box Quantity | 1 |
| Width of Bed | 13-1/8" |
| Range of Cross Feeds (IPR) | .0006 - .0360 |
| Product Type | Lathes |
| Overall Height | 66" |
| Overall Dimensions (L x W x H) | 115" x 44" x 66" |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 24 |
| Number of Longitudinal and Cross Feed Rates | 46/31 |
| Number of Inch Threads | 61 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 TPI |
| Range of Longitudinal Feeds (IPR) | .0015 - .0900 |
| Range of Metric Threads | .05 - 20 |
| Taper in Tailstock Spindle | MT-5 |
| Tailstock Spindle Travel | 5" |
| Swing Through Gap | 27-1/2" |
| Swing Over Cross Slide | 11" |
| Steady Rest Capacity | 3/8" - 7-3/4" |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Spindle Mount | D1-8 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 1" x 1" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 18" |
| Size | 18" x 60" |
| Motor Amps | |
| Distance Between Centers | |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 55-9/16" |
| Compound Slide Travel | 5-1/8" |
| Length of Gap | 12-1/4" |
| Input Power | 230/460V, 3Ph |
| Follow Rest Capacity | |
| Drive | Geared Head |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | 9" |
| Coolant Pump Motor | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Motor Phase | 3 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 3-1/8" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 7-1/2 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V/460V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
