Jet Tools HVBS-712 7" x 12" Horizontal/Vertical Band Saw, 1 Phase/115V/230V
This item may incur additional shipping costs and lead times.
Product Details

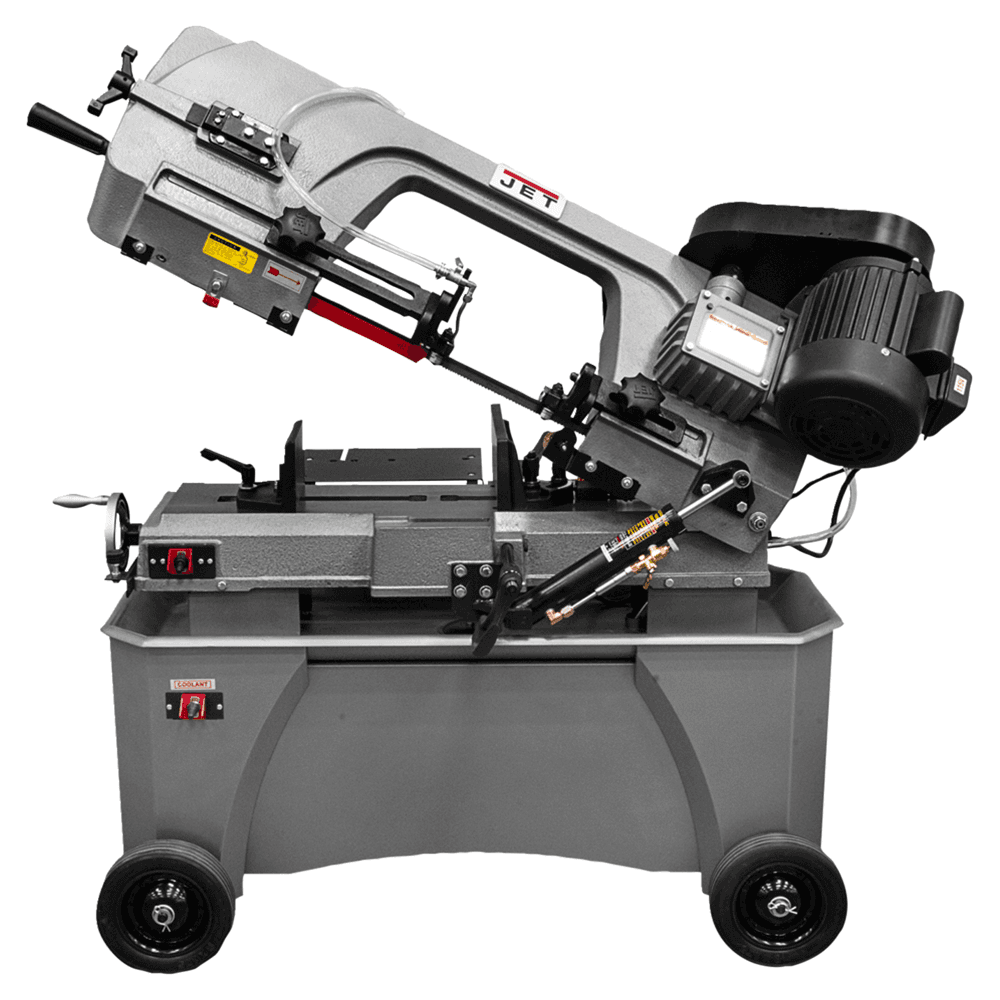

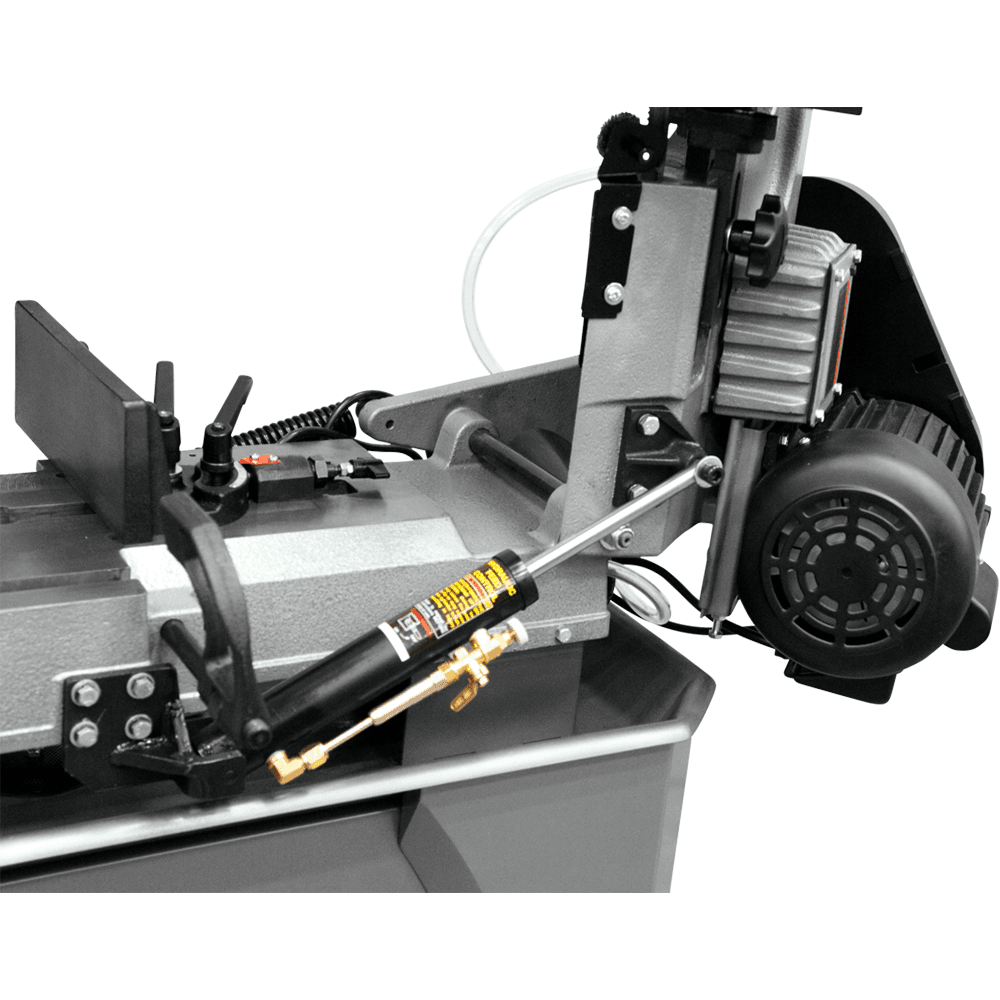

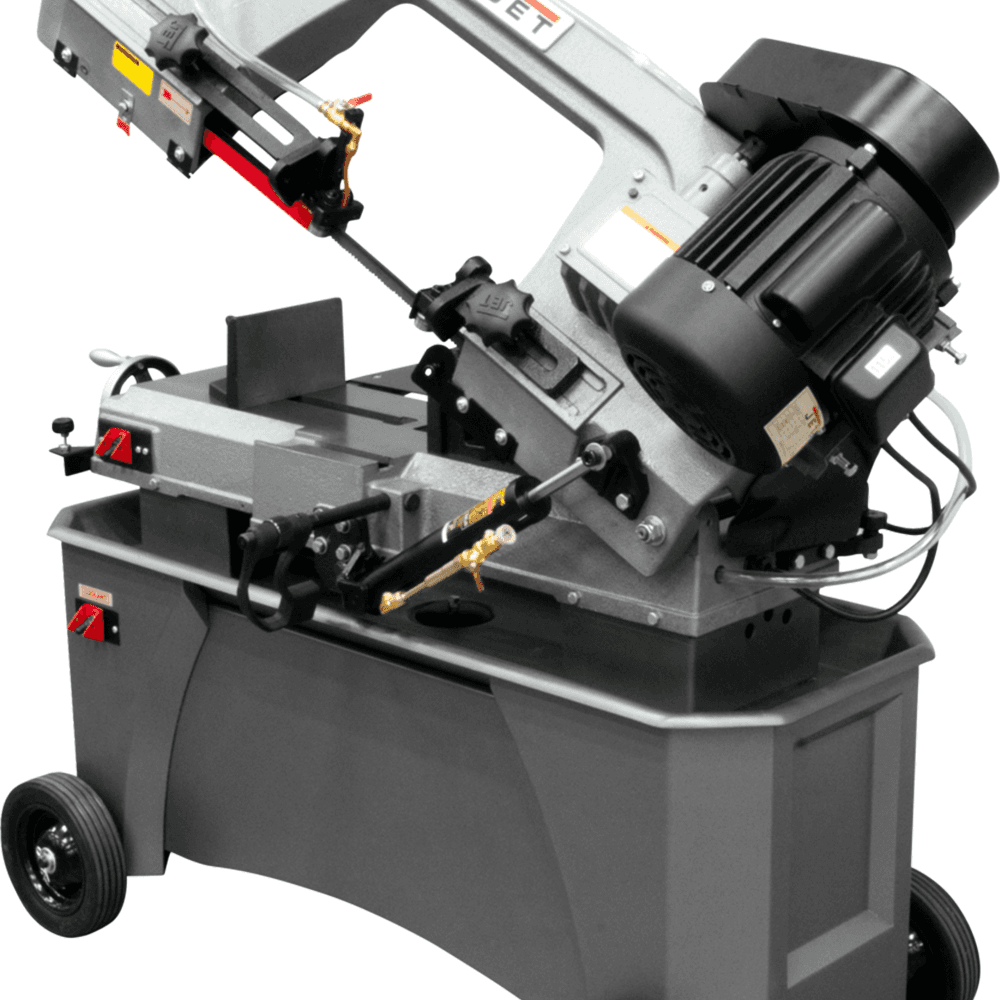

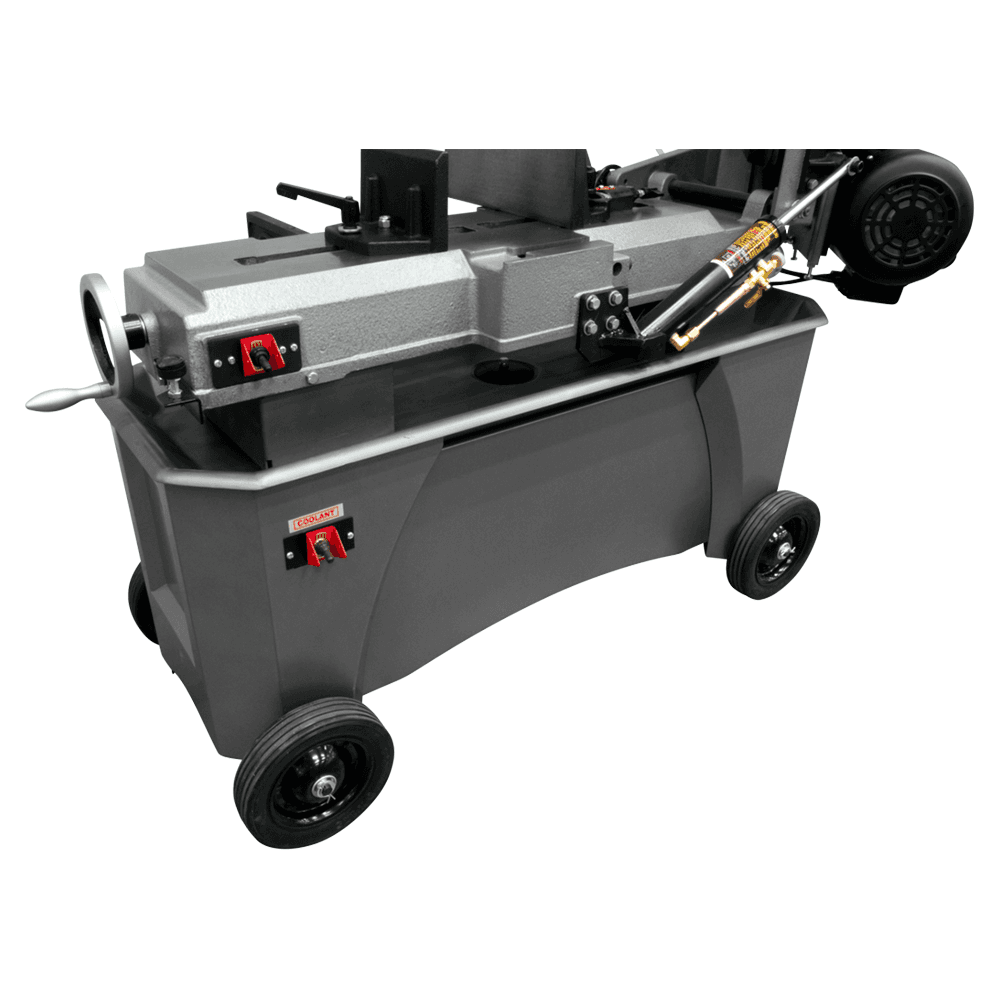

The Jet HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. Jet increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative Jet product packed with features you've come to expect. Features: • 9" x 12" worktable in the vertical position • Adjustable material stop • Adjustable material stop for Repeatability • Blade drive is a belt to sealed, hardened, and ground gear drive system • Blade wheels are made from flanged cast iron • Blade wheels are made from flanged cast iron for increased durability • Cast mounted adjustable hydraulic down feed • CSA/CUS Certified • Four 8" rubber wheels for ease of movement • Improved Height and width of stand with built-in storage cabinet and chip tray
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 6-1/2" x 4-1/2" |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | 115V |
| Overall Height | 40" |
| Overall Dimensions (L x W x H) | 48" x 17" x 40" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V/230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 4" x 11" and 7" x 10-3/8" |
| Round at 45 Degrees | 4-1/2" |
| Vertical Cutting Capacity | |
| Throat Depth | 7" |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | 7" x 7" |
| Square at 60 Degrees | |
| Square at 45 Degrees | 4-1/2" x 4-1/2" |
| Round at 90 Degrees | 7" |
| Round at 60 Degrees | |
| Motor Power (HP) | 3/4 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 11-3/4" |
| Blade Speeds (SFPM) | 86, 132, 178, 260 |
| Blade Speed (SFPM) | |
| Blade Size | 3/4" x 0.032" x 93" |
| Blade Length | 93" |
| Bed Height | 22-1/4" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | 1 |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | 0° |
| Enhanced Description | |
| Electrics | |
| Drive | Step Pulley |
| Cutting Capacity Width | 7" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 7" X 12" |
| Amperage |
