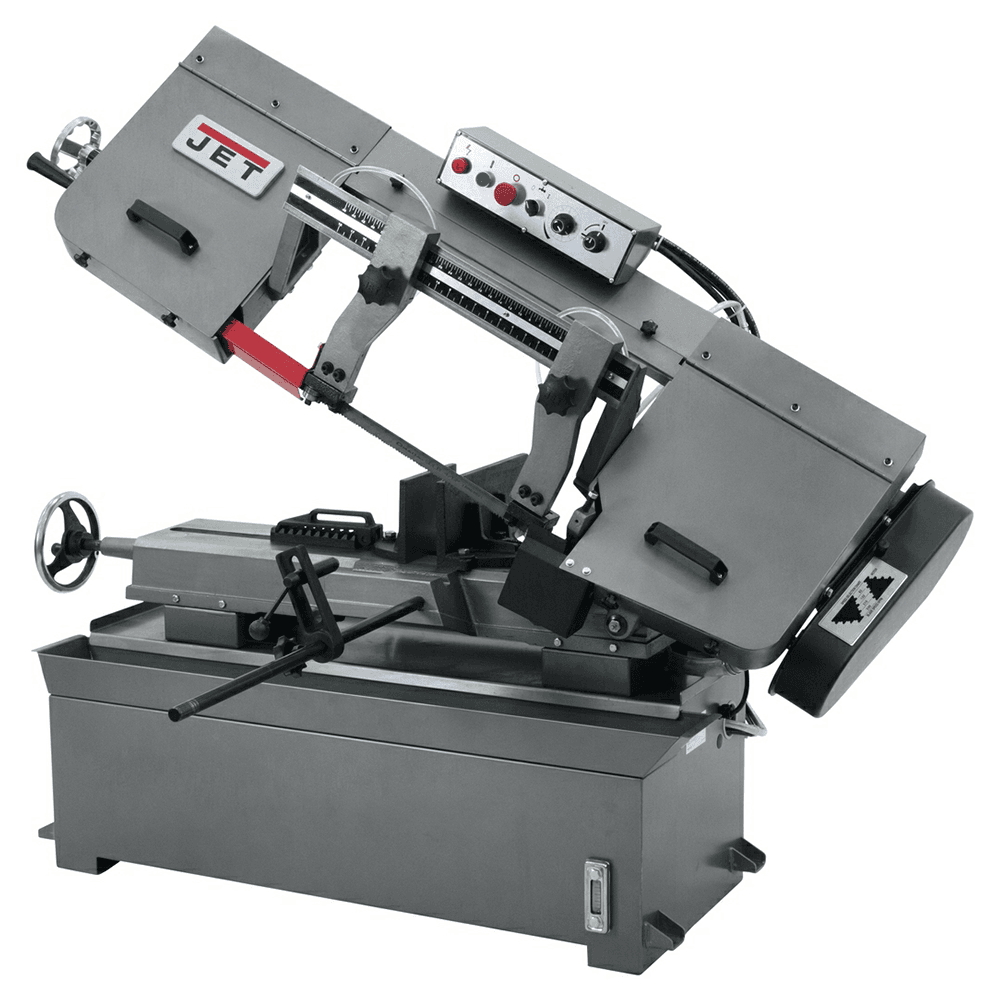

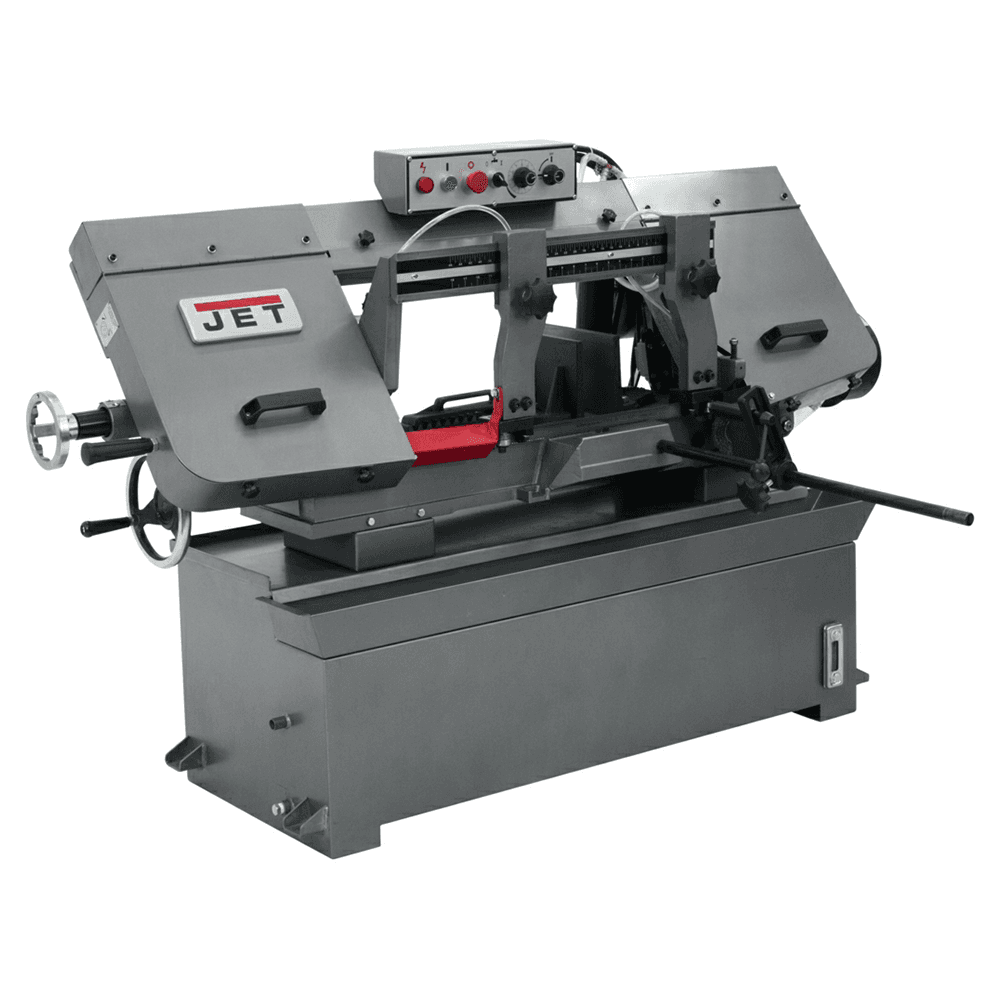

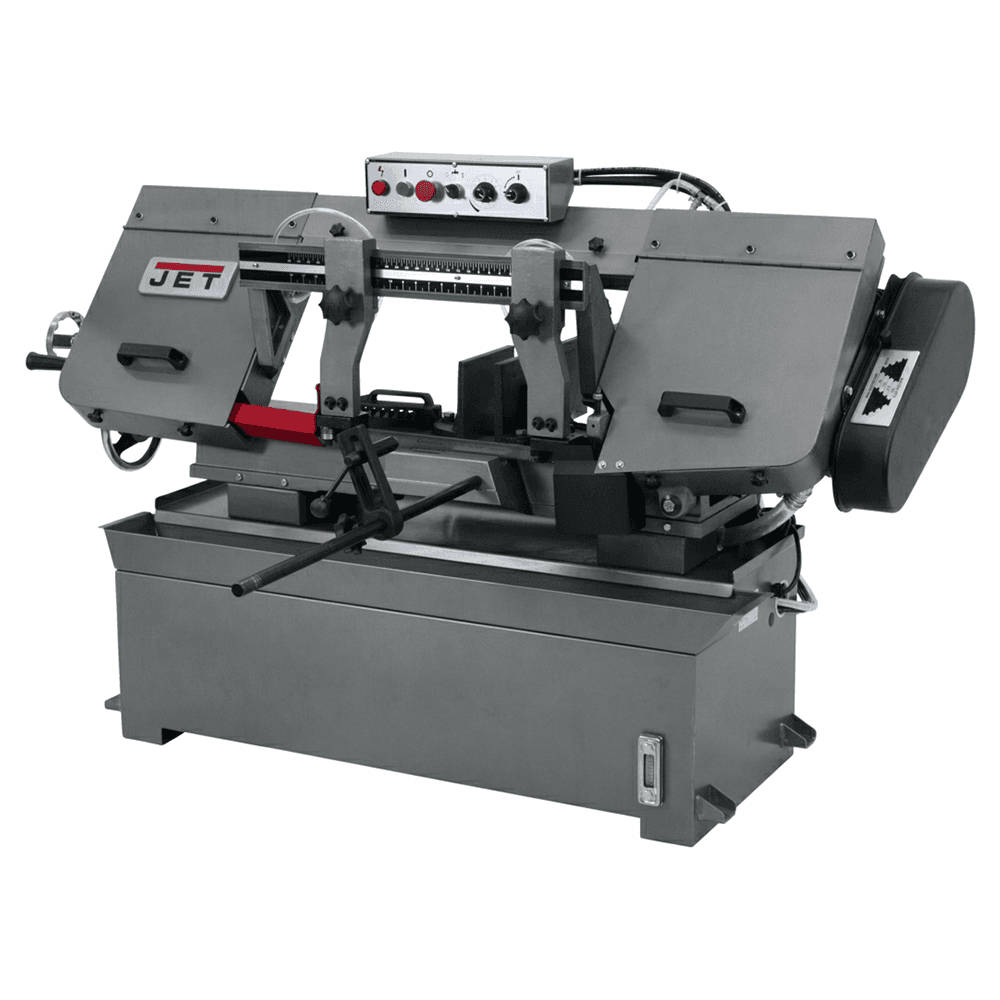

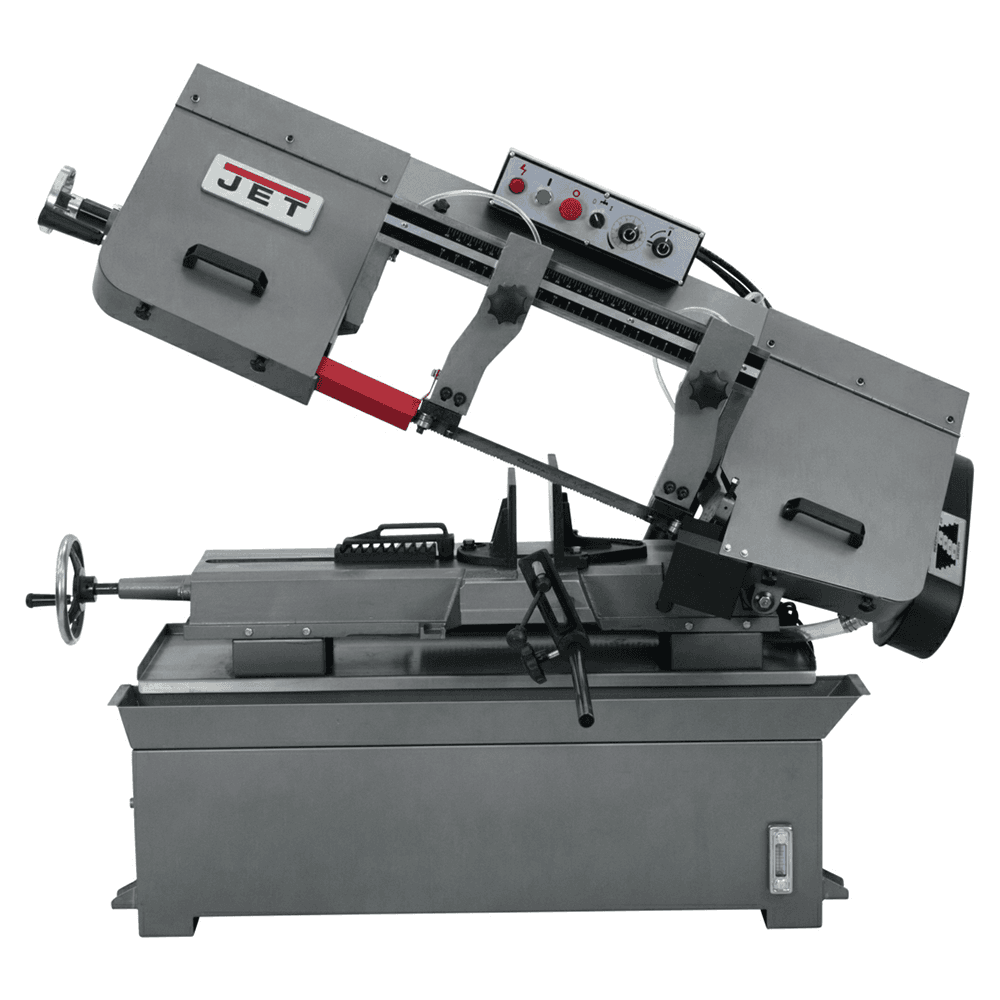

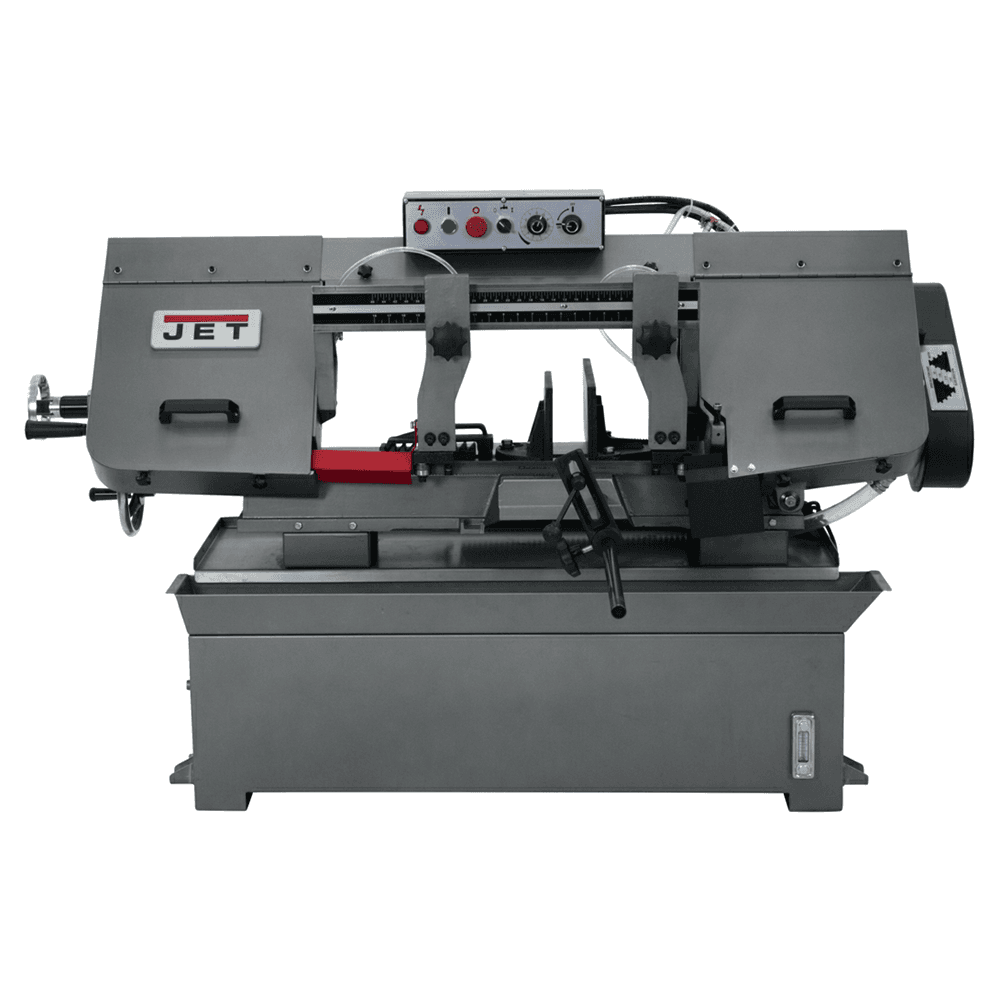

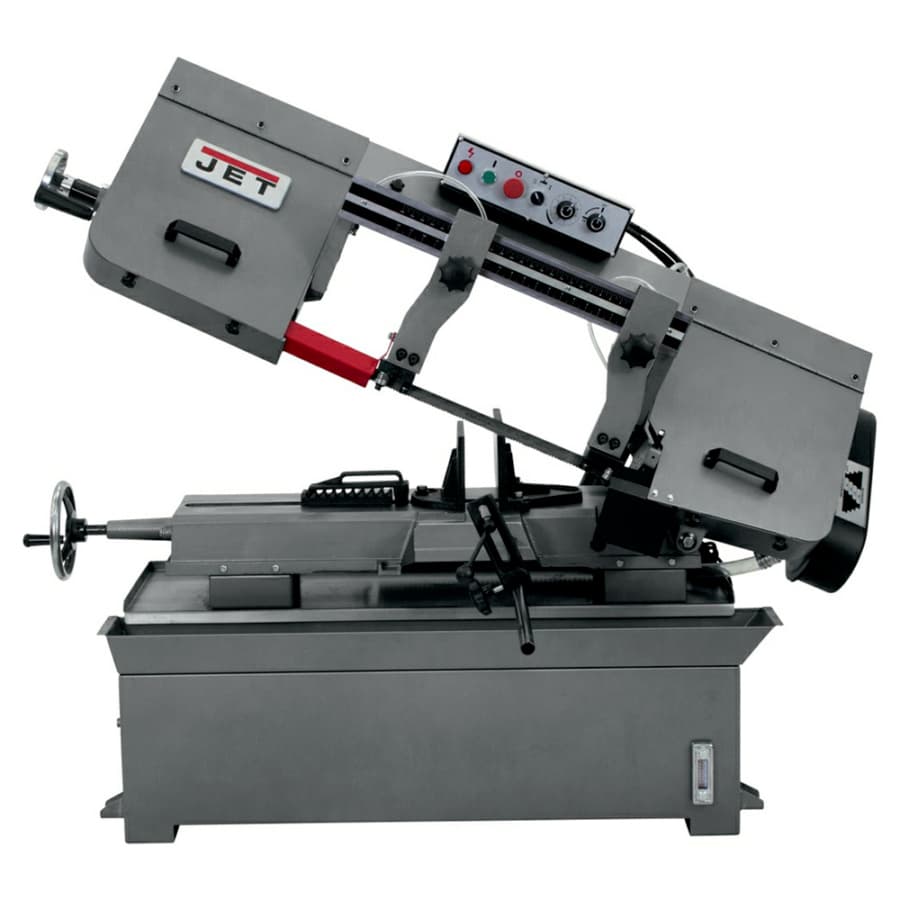

Jet Tools HBS-1018W 10" x 18" Horizontal Band Saw, 1 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

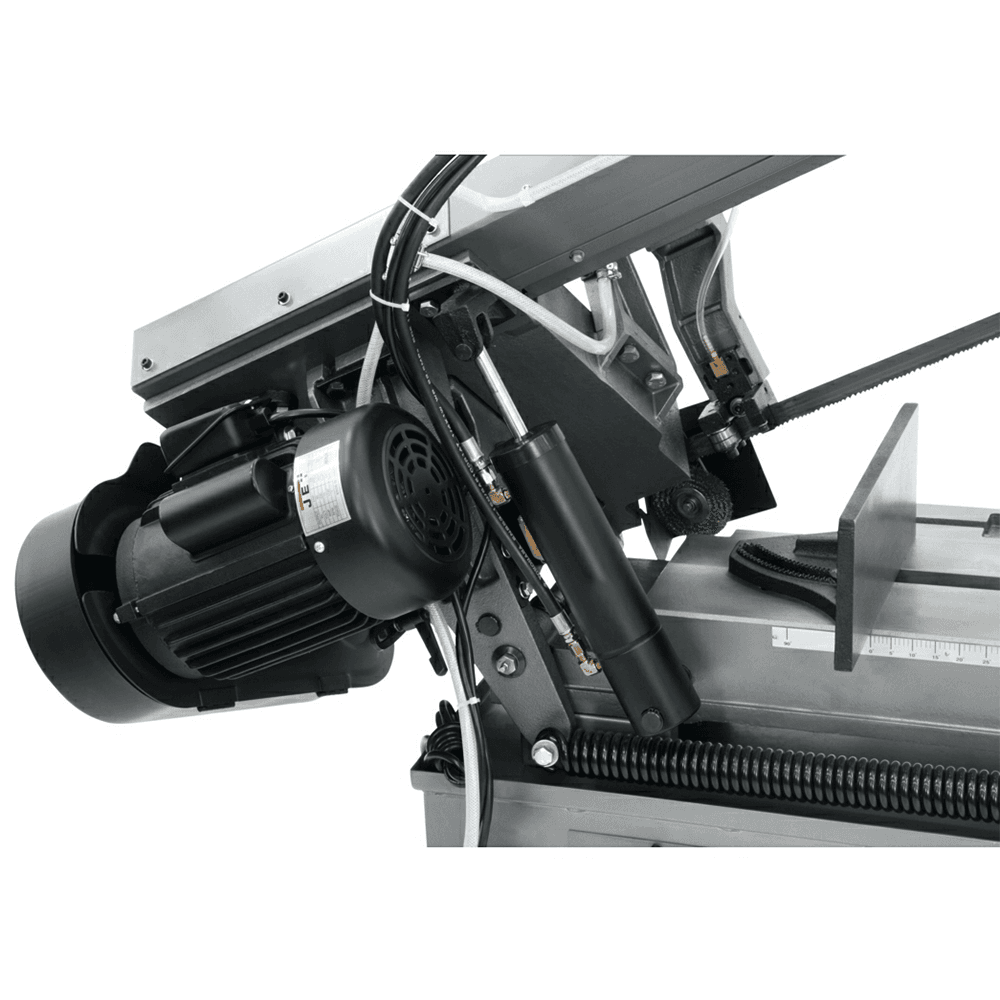

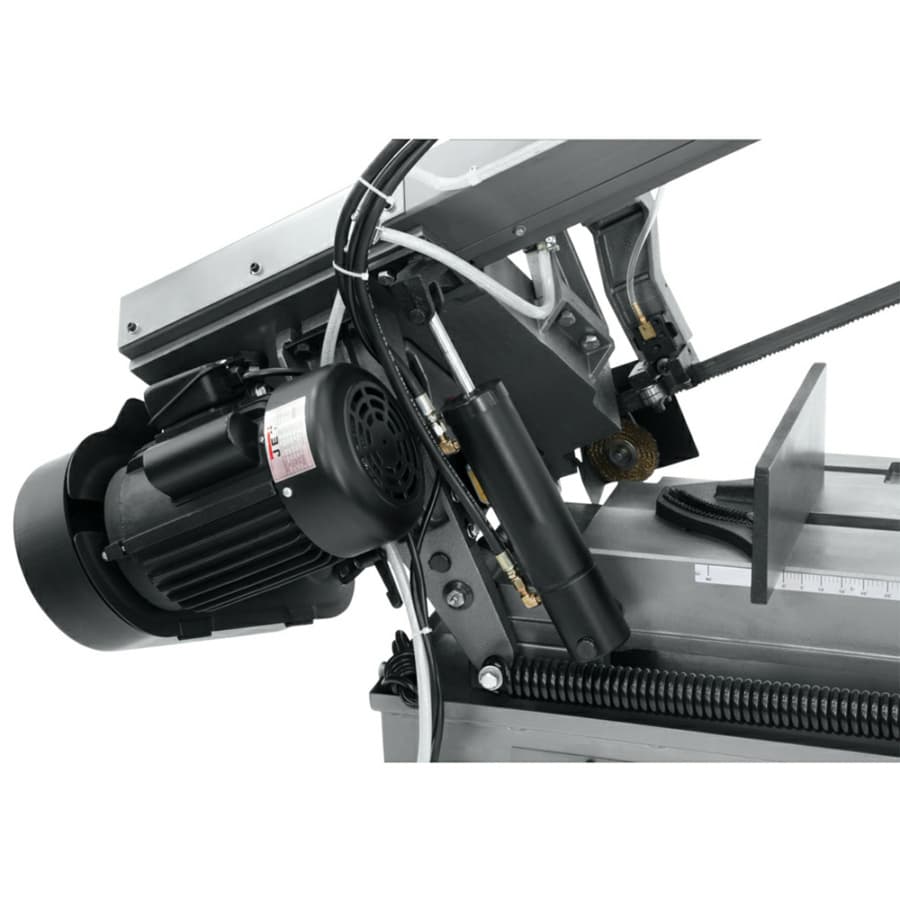

Set on a Heavy-Duty machined tabled bed to eliminate vibration, the Jet 10" x 18" horizontal bandsaw delivers a precision cut time after time. Multiple operational features make this a highly desired piece of machinery for any shop. Features: • Adjustable material stop • Blade guides feature parallel double-row ball bearing support • Built-in, self-propelled blade brush extends blade life • Carbide blade guides feature parallel double-row ball bearing support • Coolant is distributed through the blade guides • Fully adjustable hydraulic down feed with separate on/off control valve • Large hand wheel and built-in gauge provides easy blade tensioning • Proprietary oversized chip tray design minimizes over spray and reduces clean up • Quick-positioning vise with fully adjustable jaws
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 10" x 7-1/2" |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | 230V |
| Overall Height | 42-3/4" |
| Overall Dimensions (L x W x H) | 69" x 28" x 42-3/4" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 10" x 16" and 6-1/2" x 18" |
| Round at 45 Degrees | 7-1/2" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 10" |
| Round at 60 Degrees | |
| Motor Power (HP) | 2 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 14" |
| Blade Speeds (SFPM) | 82, 132, 210, 330 |
| Blade Speed (SFPM) | 82, 132, 210, 330 |
| Blade Size | 1" x .035" x 130-1/2" |
| Blade Length | 130-1/2" |
| Bed Height | 23.5" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | |
| Electrics | |

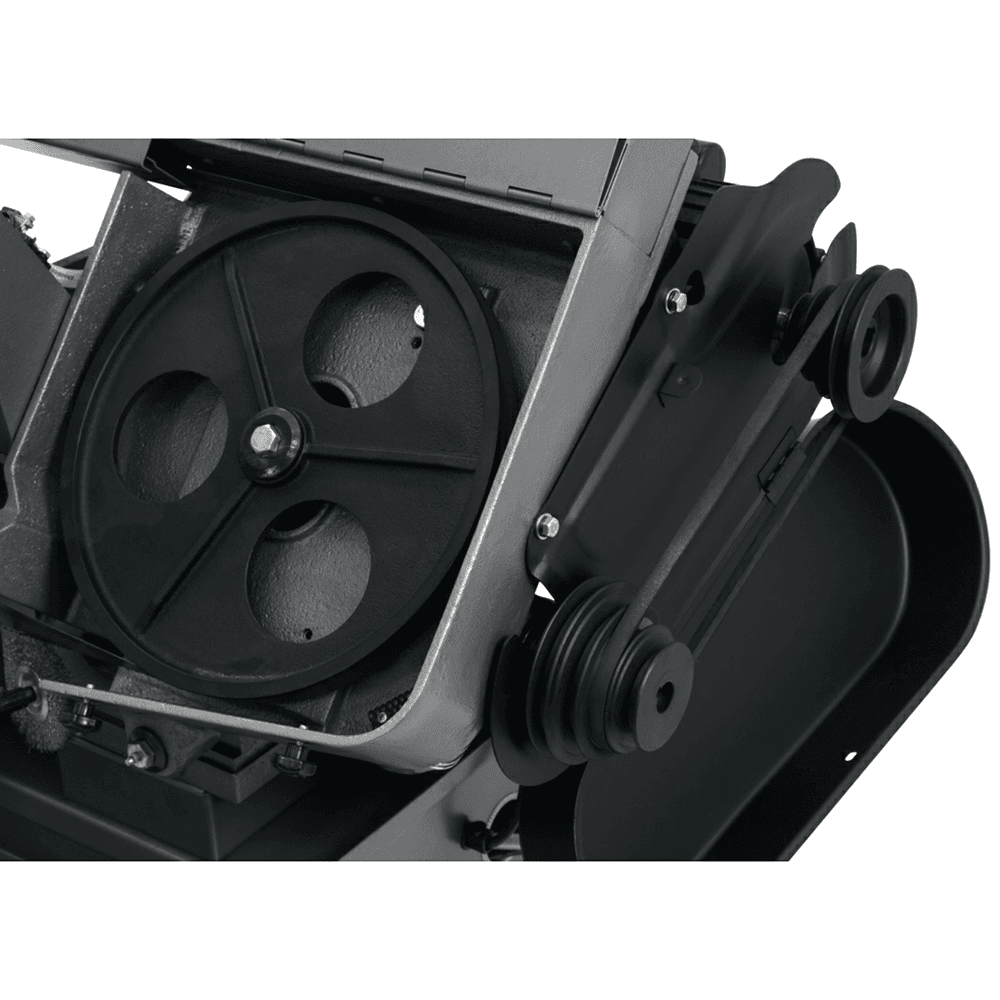

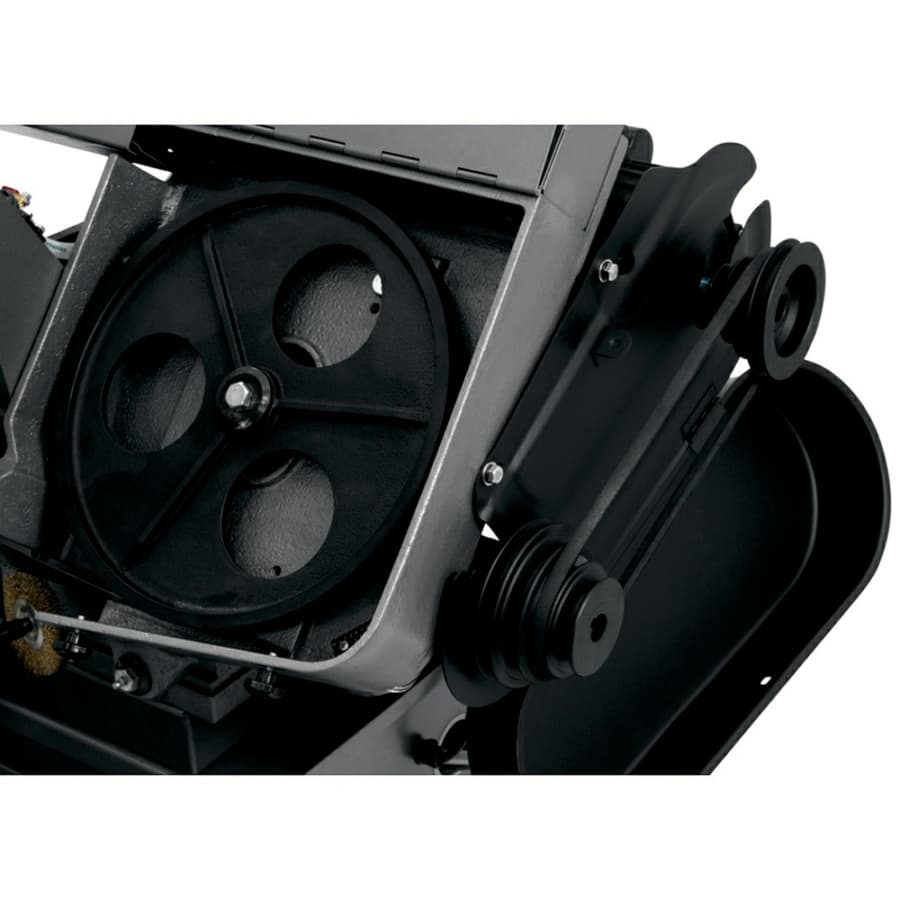

| Drive | Belt Drive |
| Cutting Capacity Width | 10" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 10" x 18" |
| Amperage | 13A |
