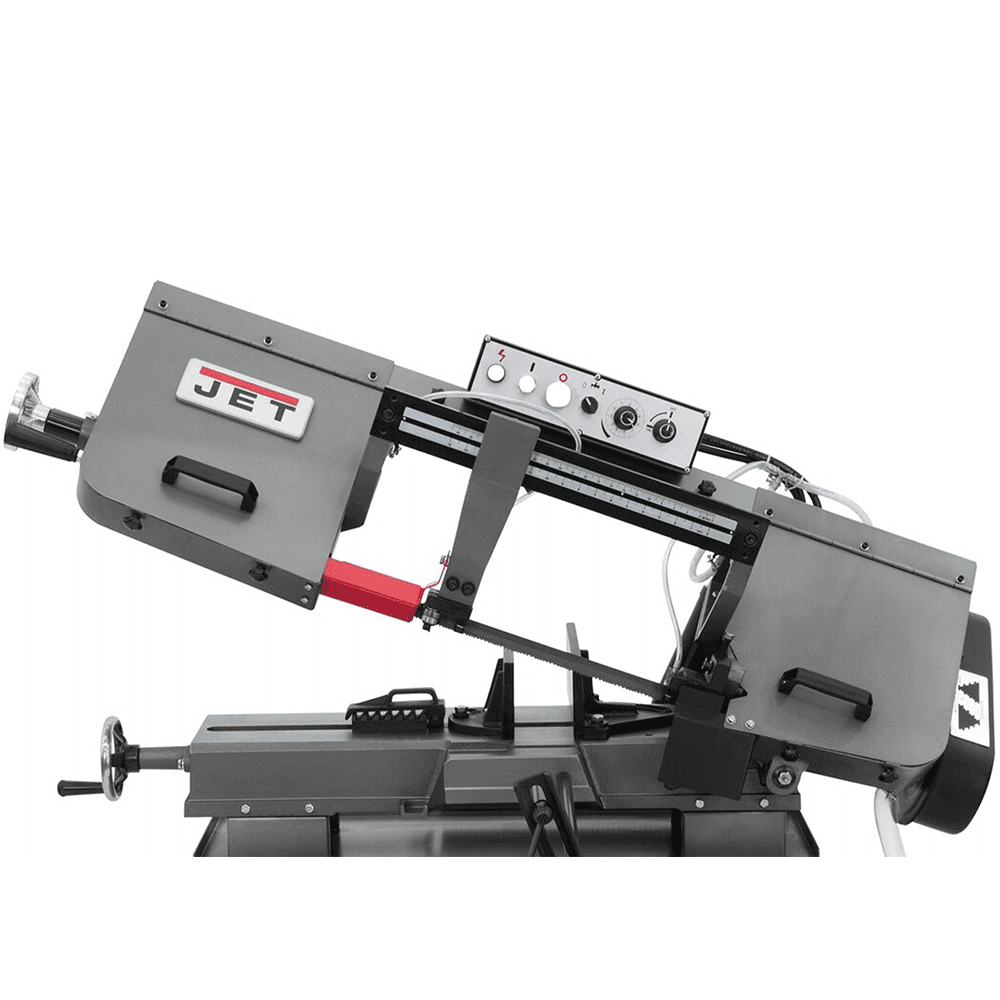

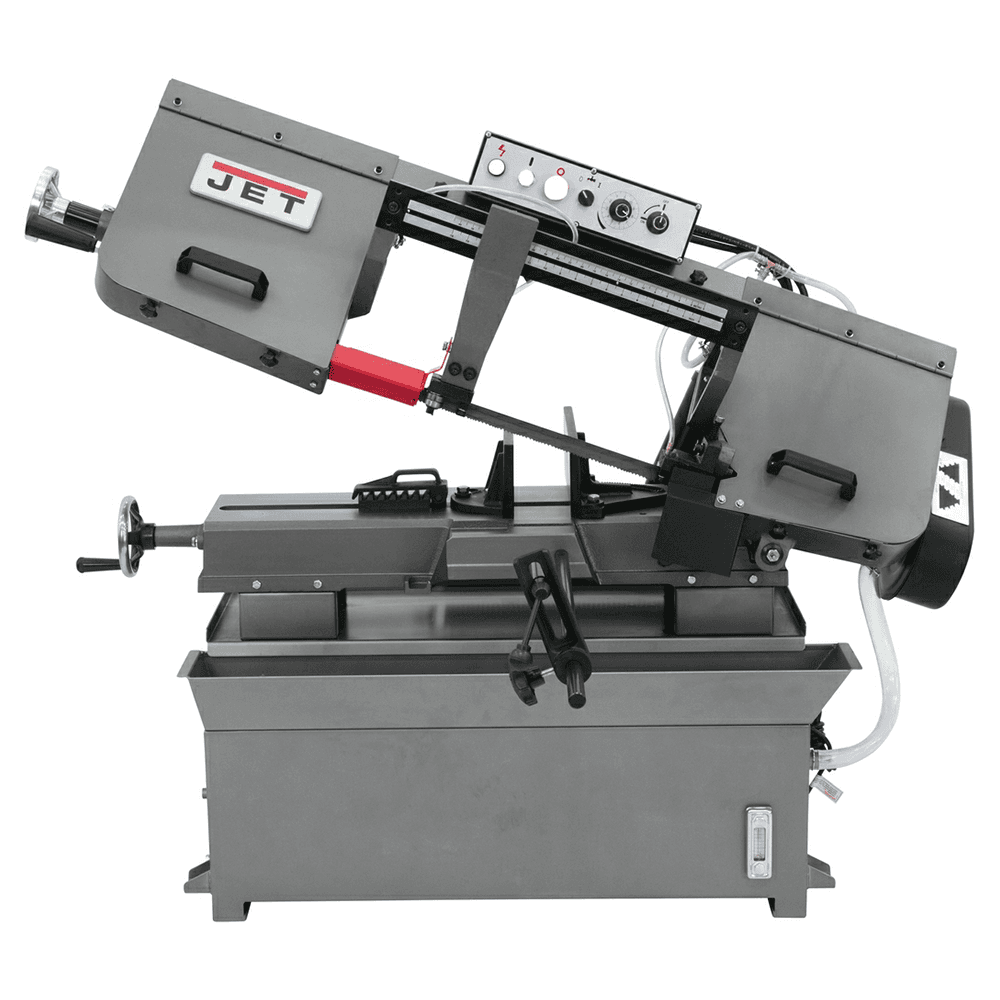

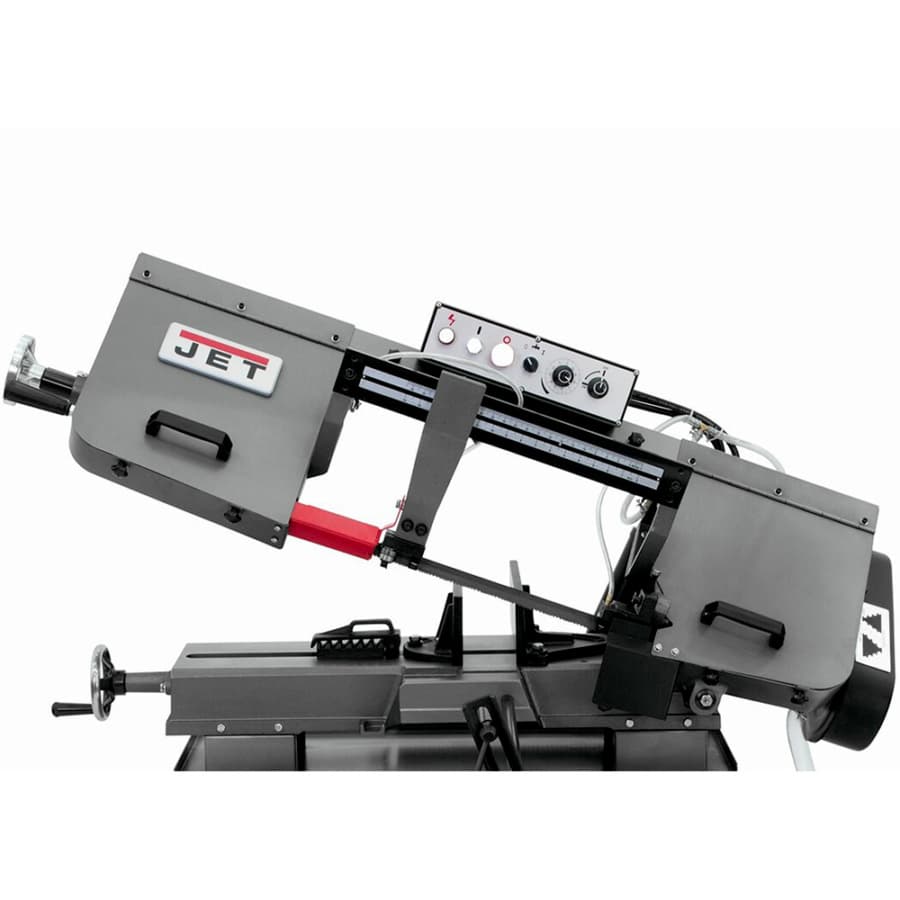

Jet Tools HBS-916 9" x 16" Horizontal Band Saw, 1 Phase/115V/230V
This item may incur additional shipping costs and lead times.
Product Details
Large handwheel, built-in gauge, blade guides, quick-positioning vise and removable chip tray are but a few of the features that make this Jet horizontal bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time. Features: • Adjustable material stop • Blade guides feature parallel double-row ball bearing support • Built-in, self-propelled blade brush extends blade life • Carbide blade guides feature parallel double-row ball bearing support • Coolant is distributed through the blade guides • Fully adjustable hydraulic down feed with separate on/off control valve • Large hand wheel and built-in gauge provides easy blade tensioning • Proprietary oversized chip tray design minimizes over spray and reduces clean up • Quick-positioning vise with fully adjustable jaws • Quick-positioning vise with fully adjustable jaws, swivels to 45° • Ease of Use: Fully-adjustable hydraulic down feed with separate on/off control valve • Versatility: Quick-positioning vise with fully adjustable jaws, swivels to 45° • Long Blade Life: A coolant system, and self-propelled blade brush, increases cutting efficiency and prolongs blade life • precision: Carbide blade guides feature parallel double-row ball bearing support • Consistency: Adjustable material stop
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 9" x 6-1/8" |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | 115V |
| Overall Height | 42" |
| Overall Dimensions (L x W x H) | 65" x 28" x 42" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V/230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 8-1/2" x 14" and 2" x 16" |
| Round at 45 Degrees | 6-1/8" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 9" |
| Round at 60 Degrees | |
| Motor Power (HP) | 1-1/2 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 13" |
| Blade Speeds (SFPM) | 82, 132, 170, 235 |
| Blade Speed (SFPM) | 82, 132, 170, 235 |
| Blade Size | 1" x .035" x 119-1/2" |
| Blade Length | 119-1/2" |
| Bed Height | 25" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | A large handwheel, built-in gauge, blade guides, quick-positioning vise and removable chip tray are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision, and functionality combined, deliver superior results time after time. At JET Tools, we see a future built on great brands, products, and people. In every facet of our business, we leverage the strengths of our global infrastructure to maximize the benefits of all three. |
| Electrics | |
| Drive | Belt Drive |
| Cutting Capacity Width | 9" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 9" x 16" |
| Amperage |
