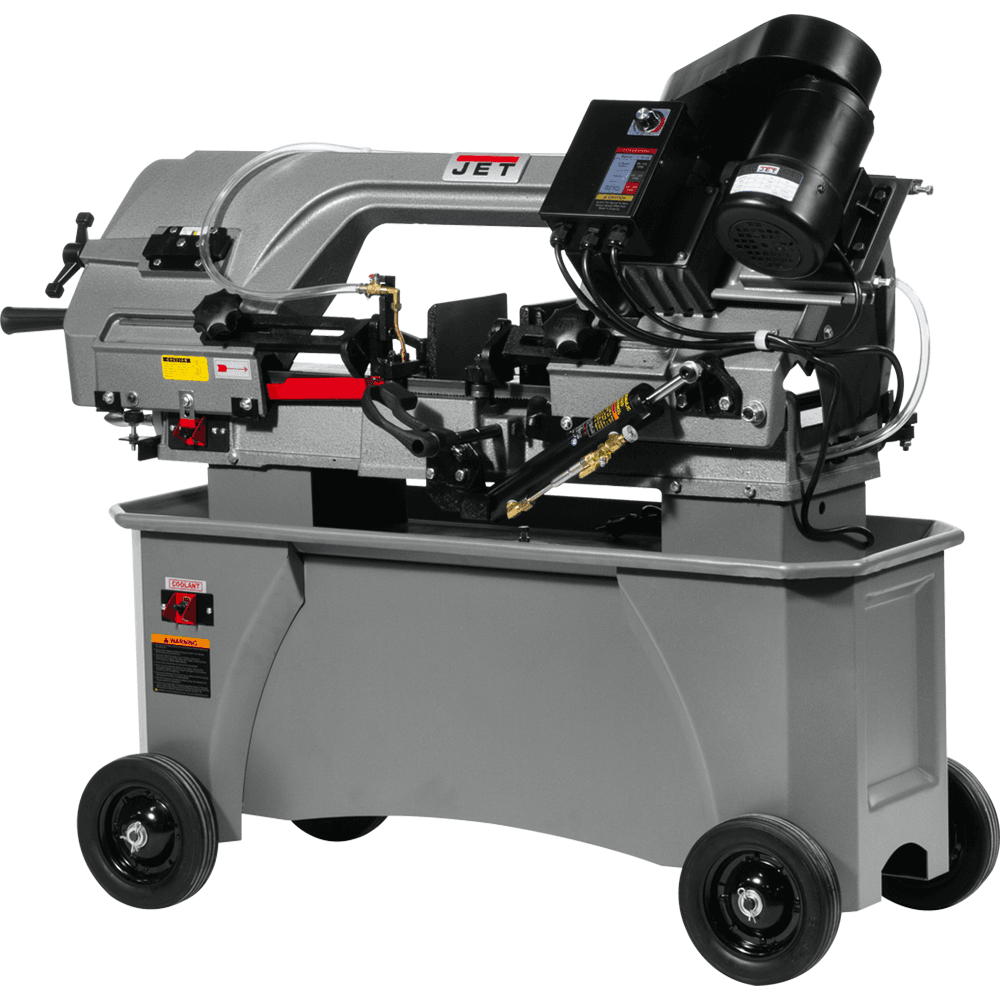

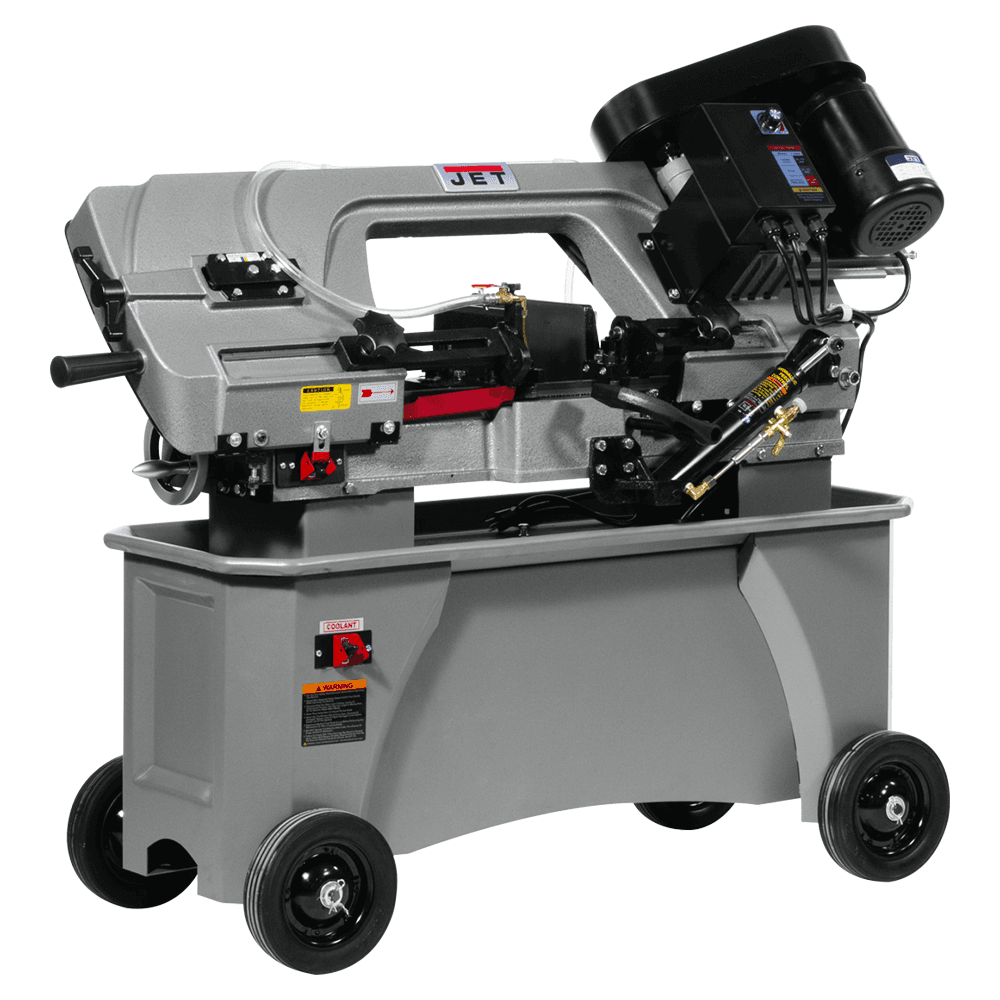

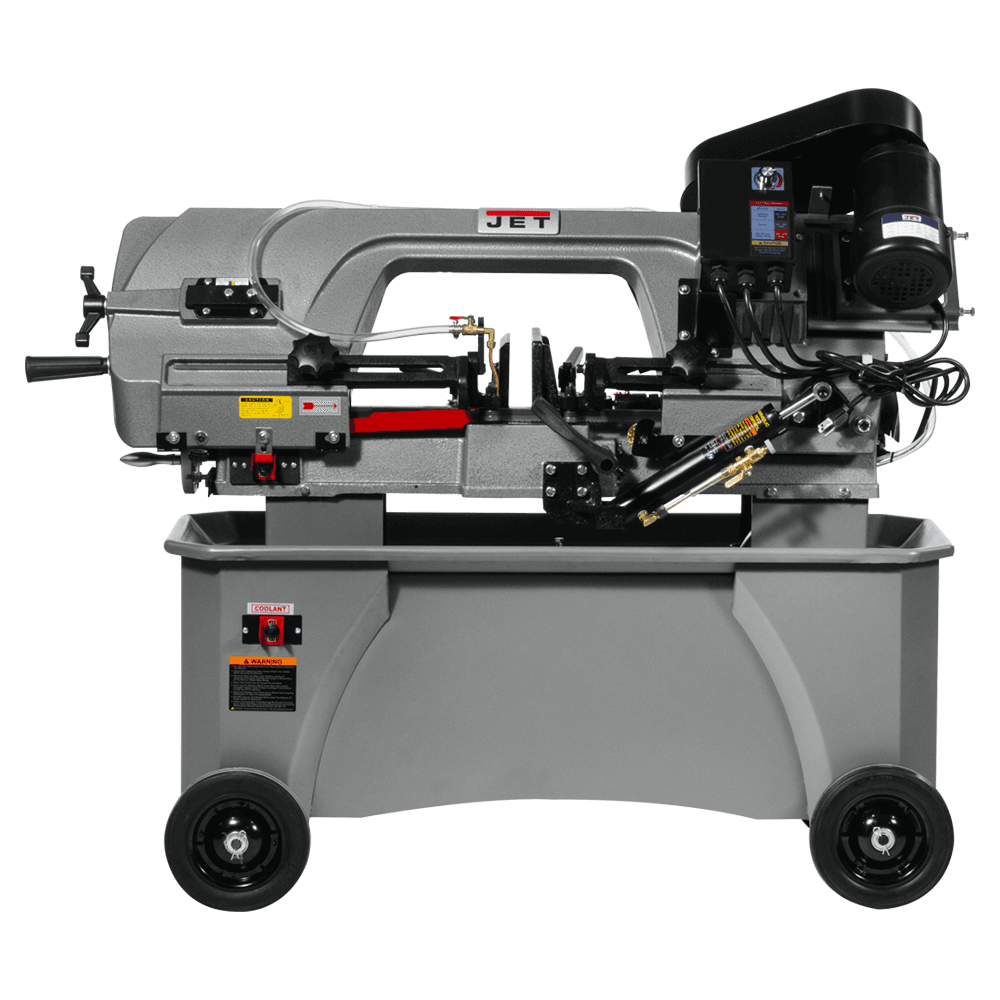

Jet Tools HVBS712DV 7" x 12" Variable Speed Horizontal/Vertical Band Saw Deluxe, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details

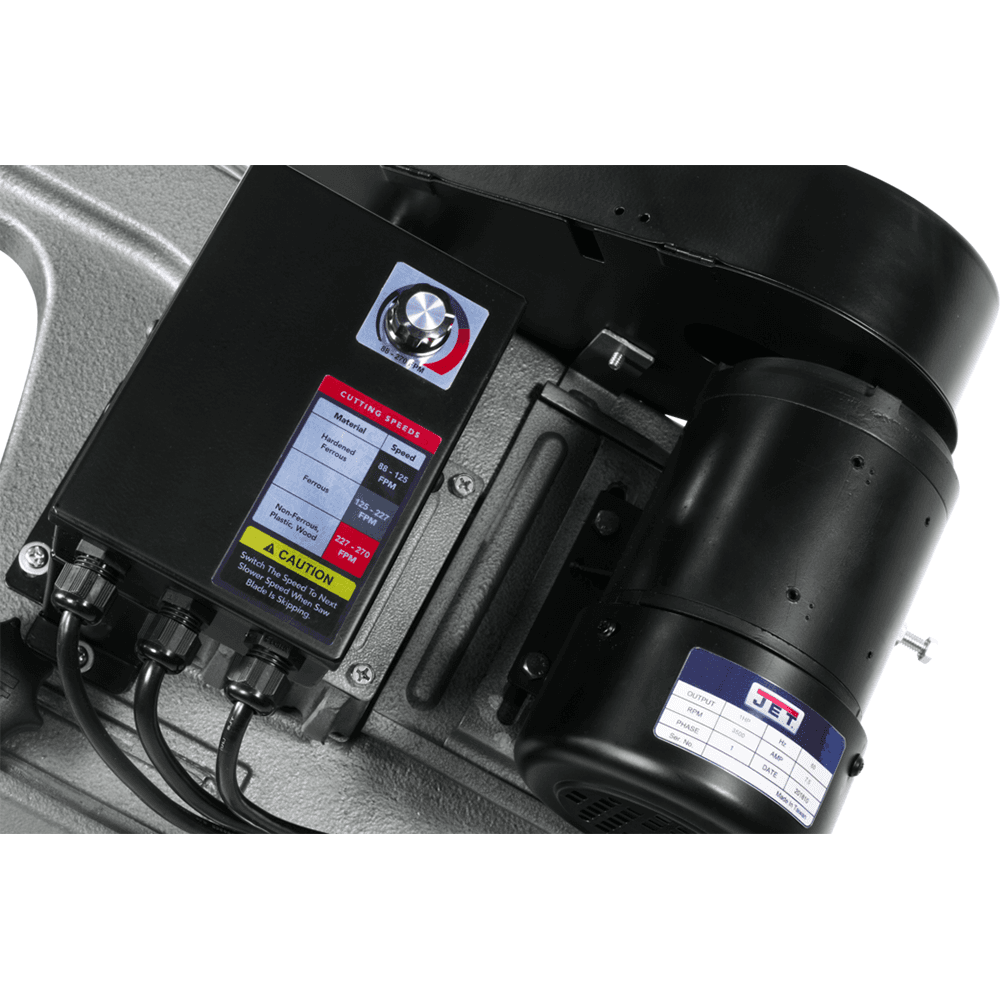

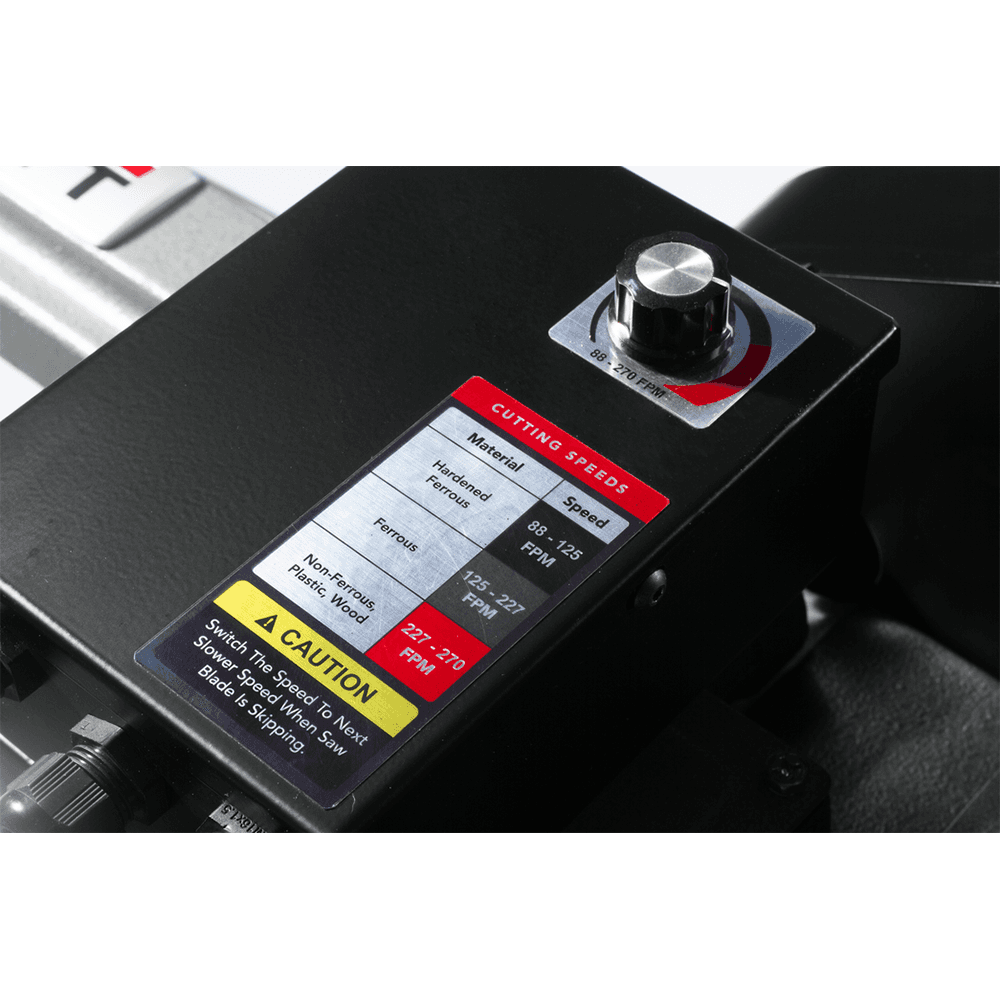

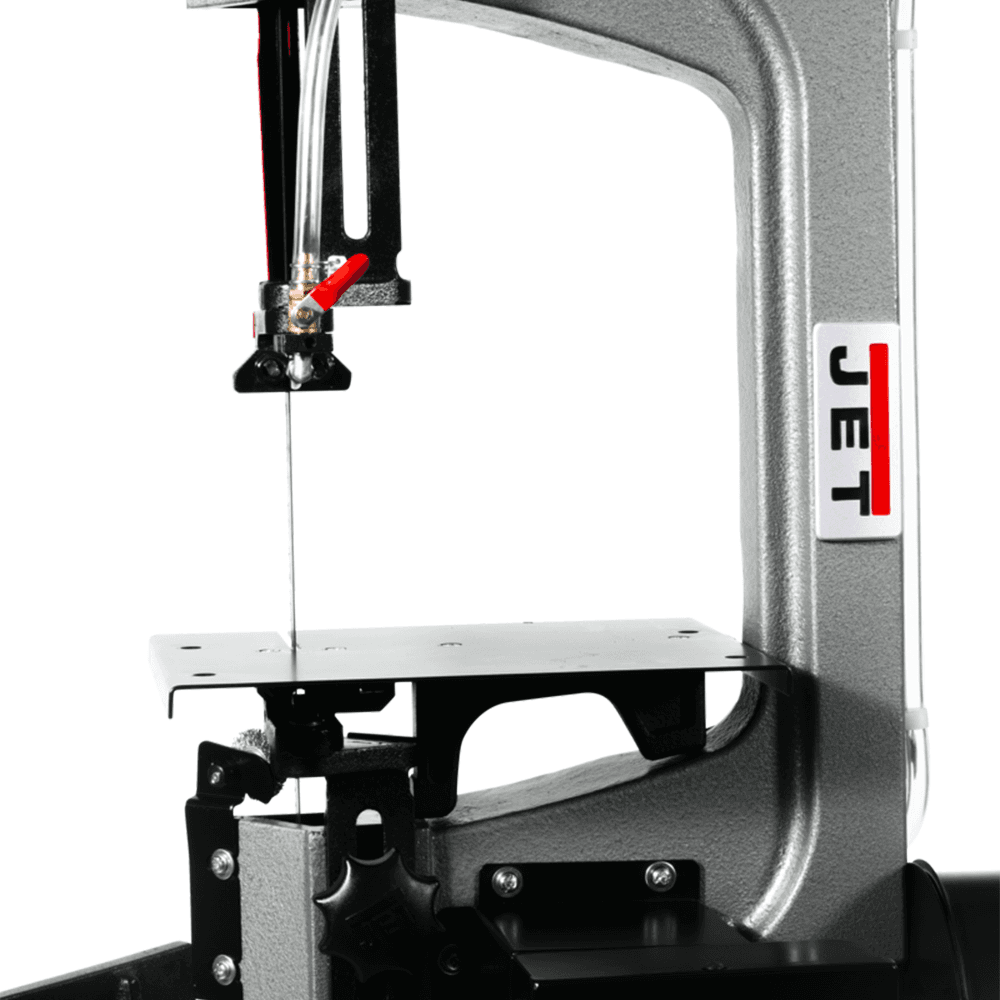

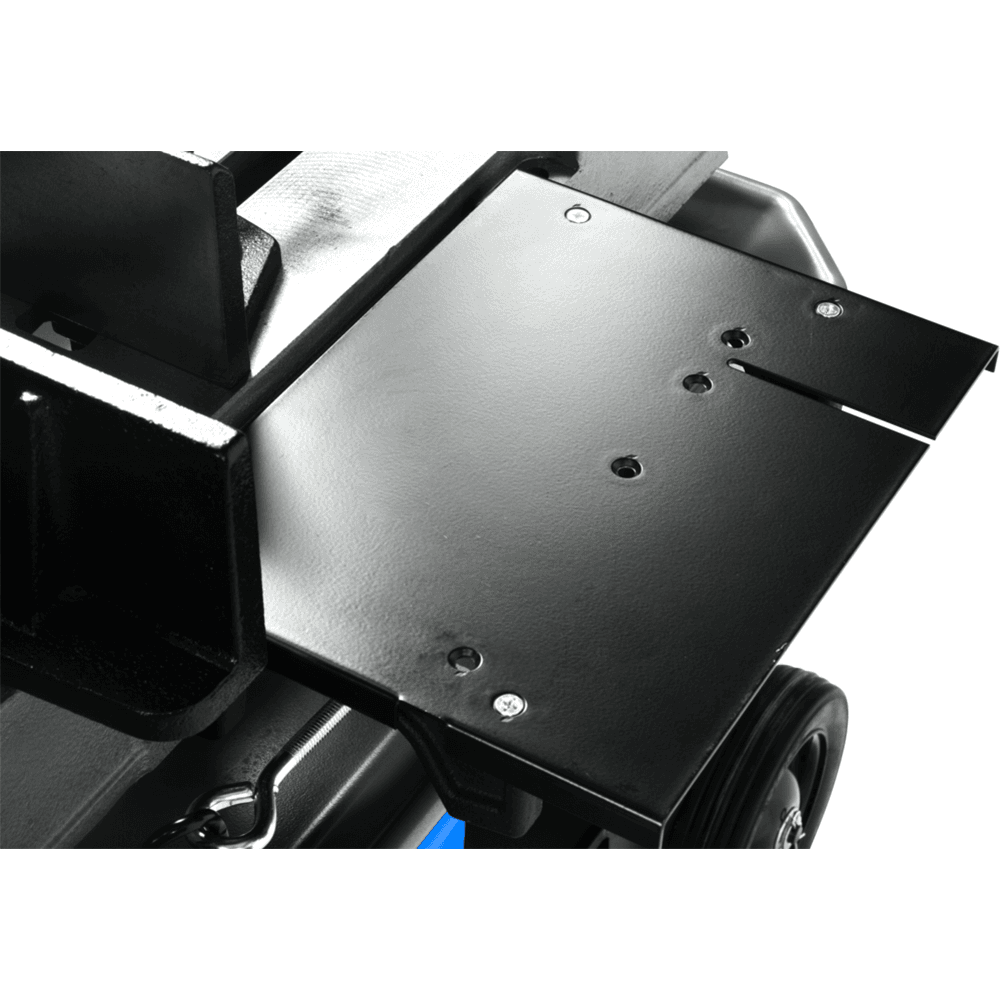

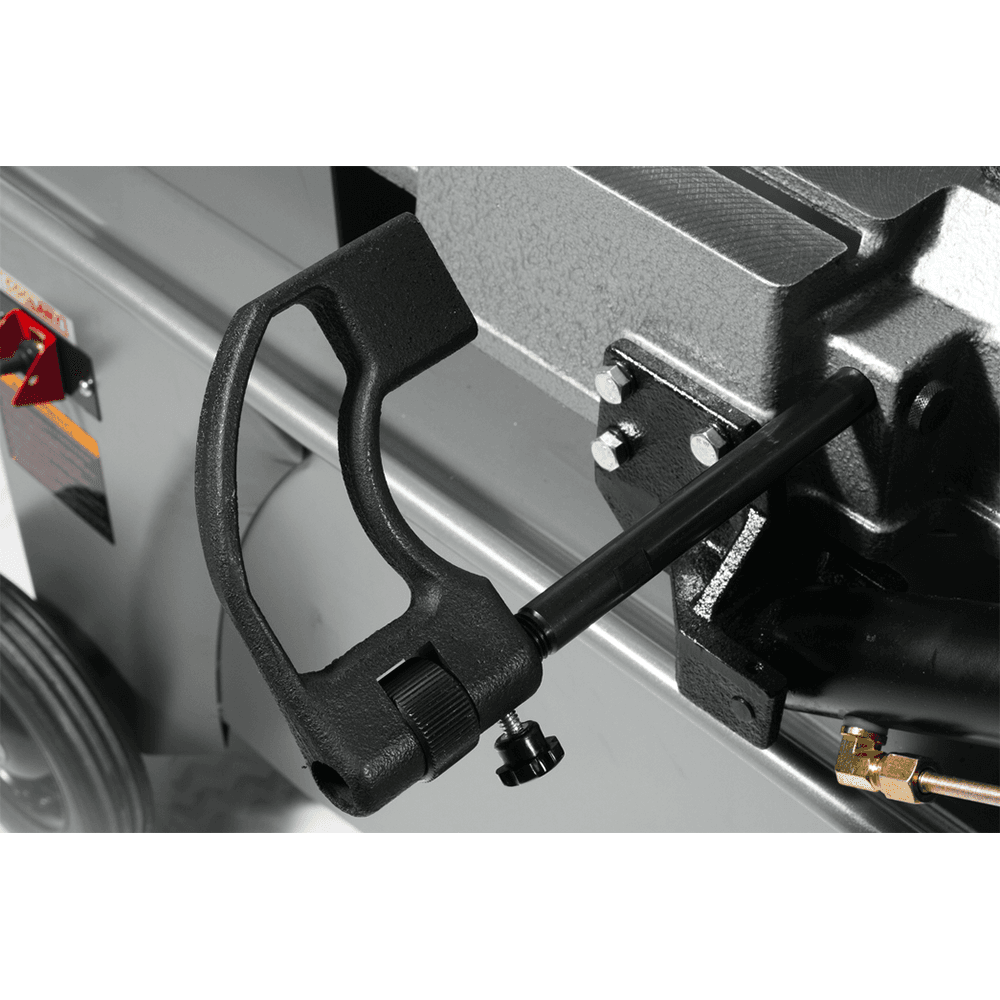

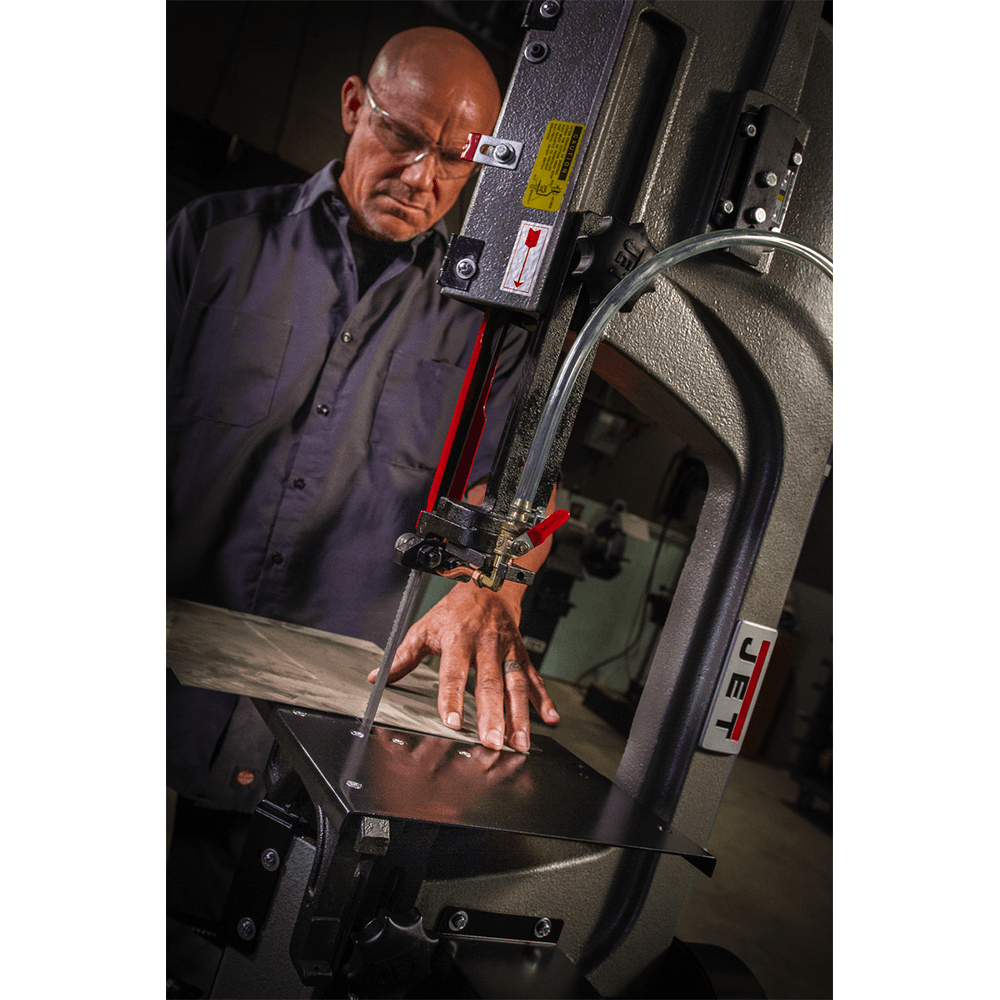

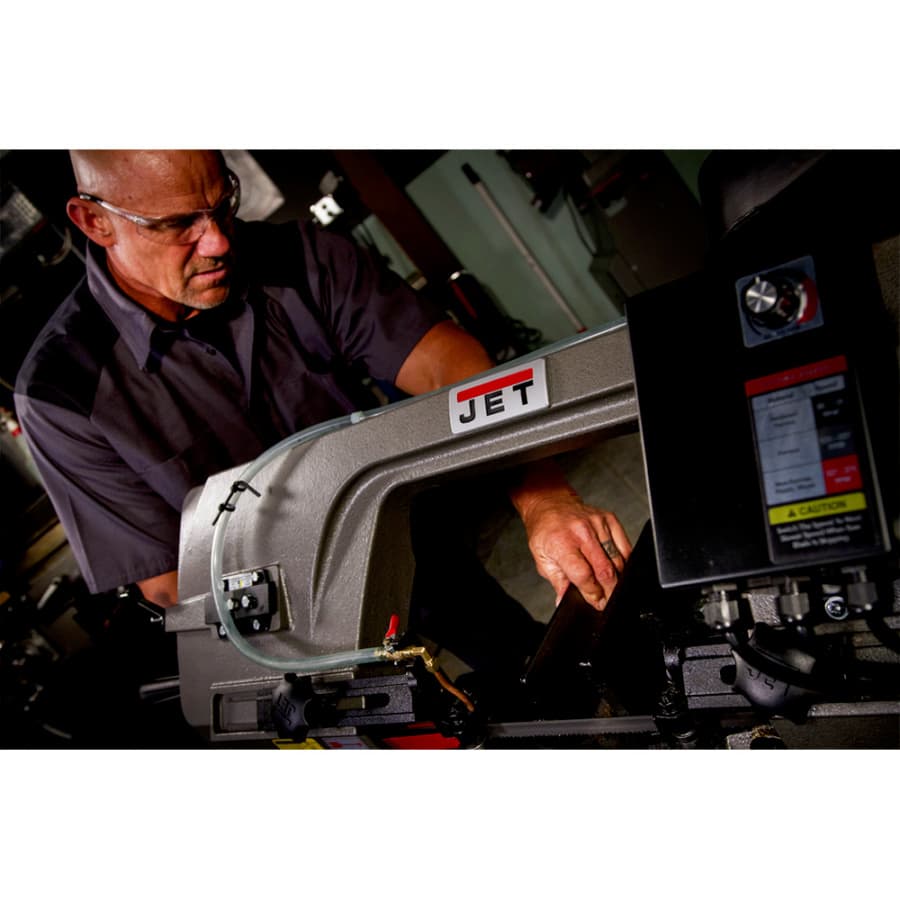

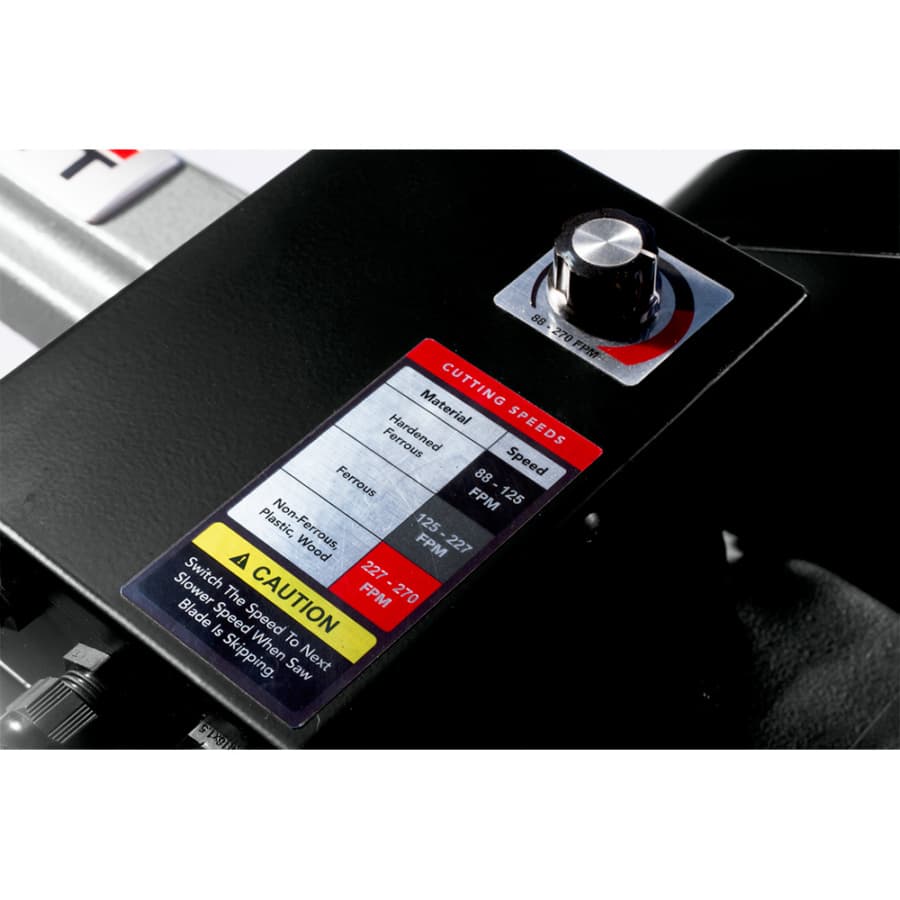

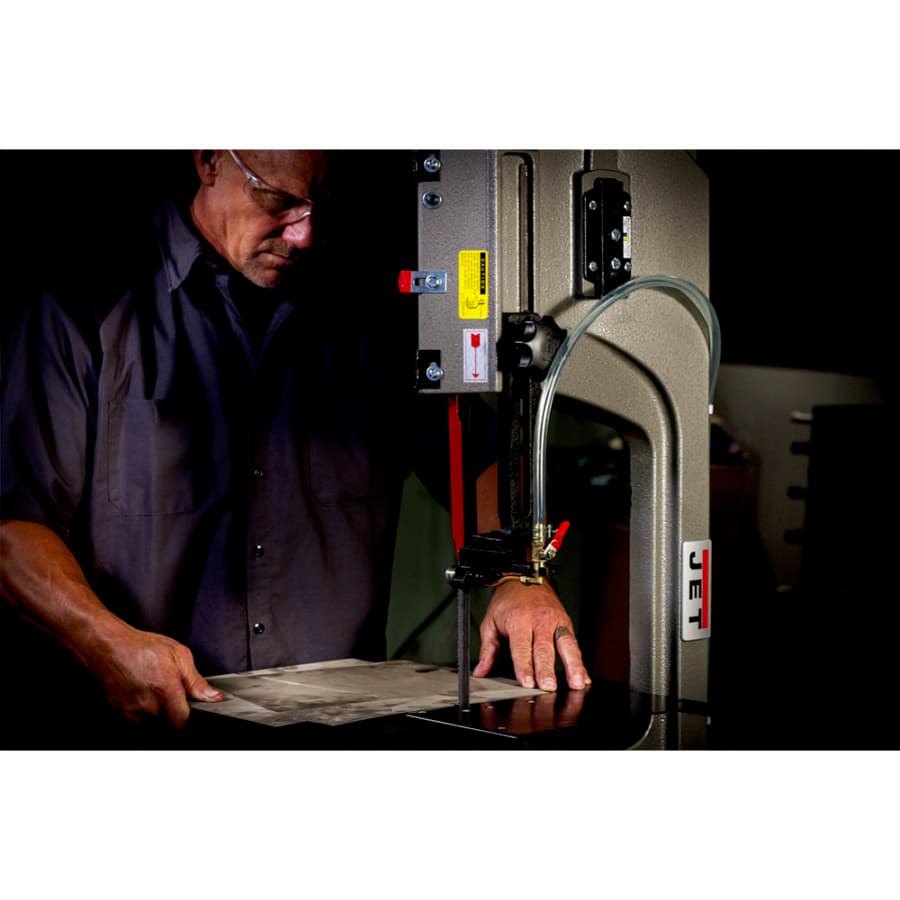

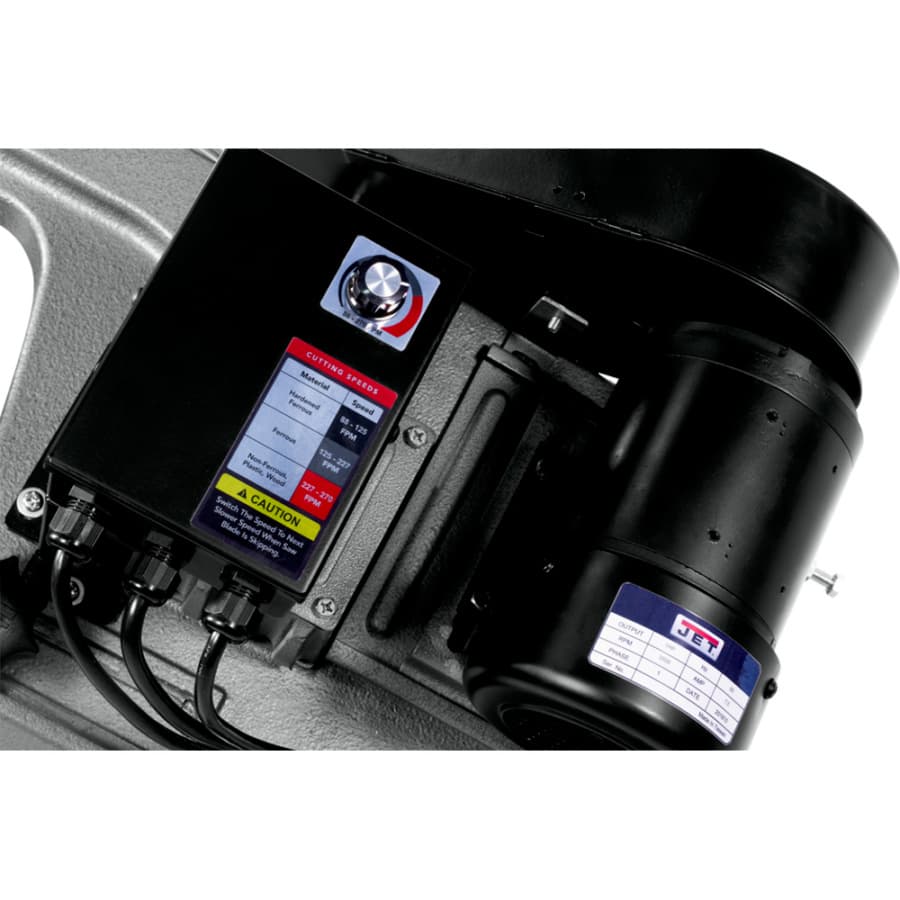

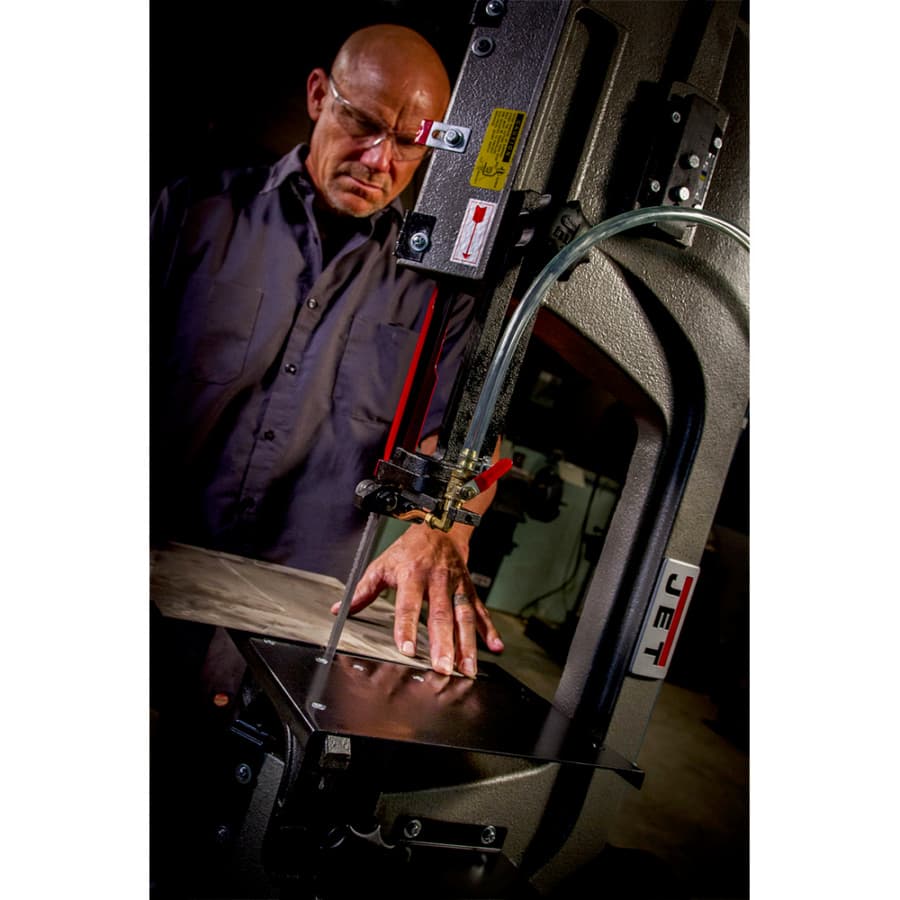

The Jet HVBS-712DV horizontal/vertical variable speed metalworking Bandsaw industry-leading innovation is centered around increased output and operator Safety. Powered by a 3-step gear, one horse power DC motor, the HVBS-712V produces unbeatable torque while consuming less energy and is capable of producing speeds from 88 – 270 SFPM. The multi-position blade guide increases throat capacity from 4" to 8" inches in vertical position. Change speeds with the turn of a knob, no need to change belts anymore. Includes vertical 9" x 12" worktable. CSA/CUS certified. UL listed. Features: • Adjustable toolless material stop • Four 8" rubber wheels for ease of movement • Heavy casted iron bow and bed • Hydraulic down feed for ease of cut • Improved wider stand with built-in storage cabinet and chip tray • Sealed hardened and ground gear drive • Side-Eccentric shaft and ball bearing, Rear-ball bearing
Specifications
| Box Quantity | 1 |

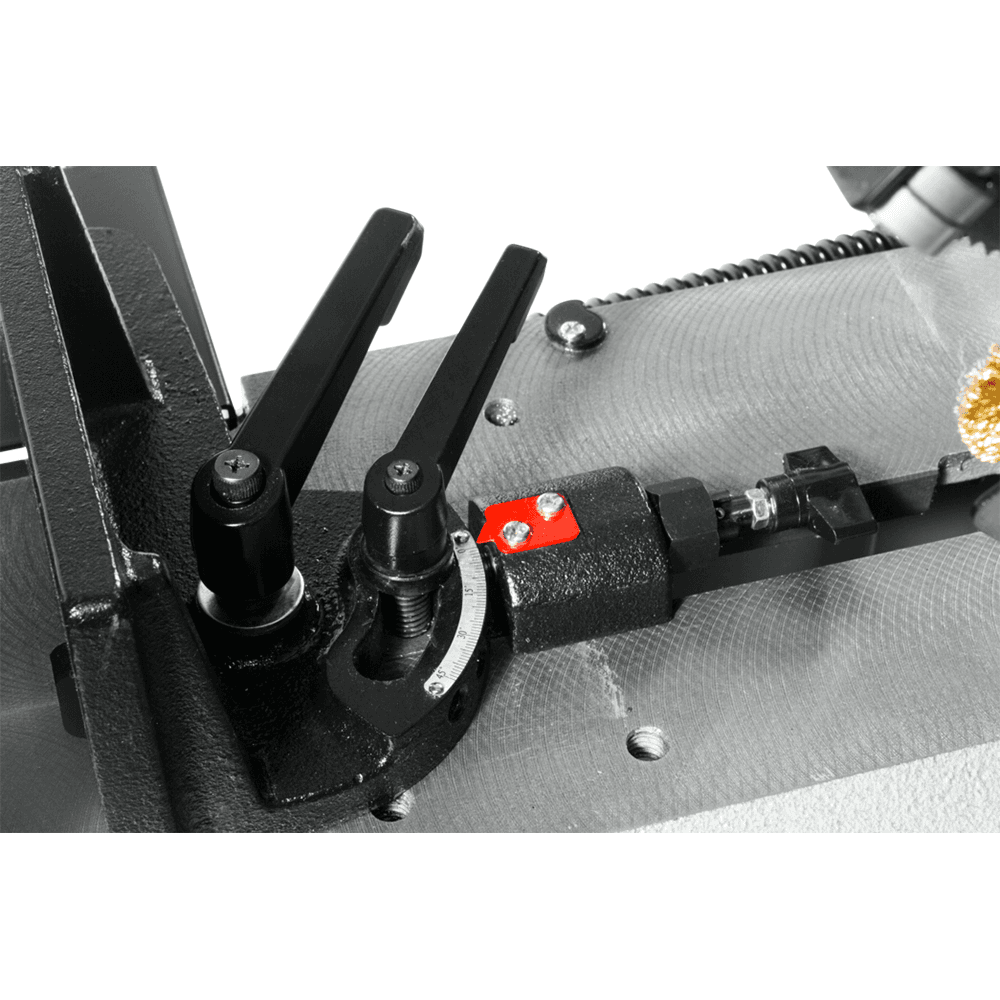

| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 6" (H) x 4" (W) |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | |
| Overall Height | 44" |
| Overall Dimensions (L x W x H) | 48" x 17" x 44" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | |
| Round at 45 Degrees | 5" |
| Vertical Cutting Capacity | |
| Throat Depth | 7" |
| Throat Capacity | 4" - 8" |
| Table Height | |
| Square at 90 Degrees | 7" x 7" |
| Square at 60 Degrees | |
| Square at 45 Degrees | 5" x 5" |
| Round at 90 Degrees | 7" |
| Round at 60 Degrees | |
| Motor Power (HP) | 1 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 11-3/4" |
| Blade Speeds (SFPM) | 88 - 270 |
| Blade Speed (SFPM) | |
| Blade Size | 3/4" x .032" x 93" |
| Blade Length | |
| Bed Height | 22-1/4" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | 7.5 Amp, 3500RPM DC motor |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | |
| Electrics | |
| Drive | |
| Cutting Capacity Width | |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | |
| Amperage |
