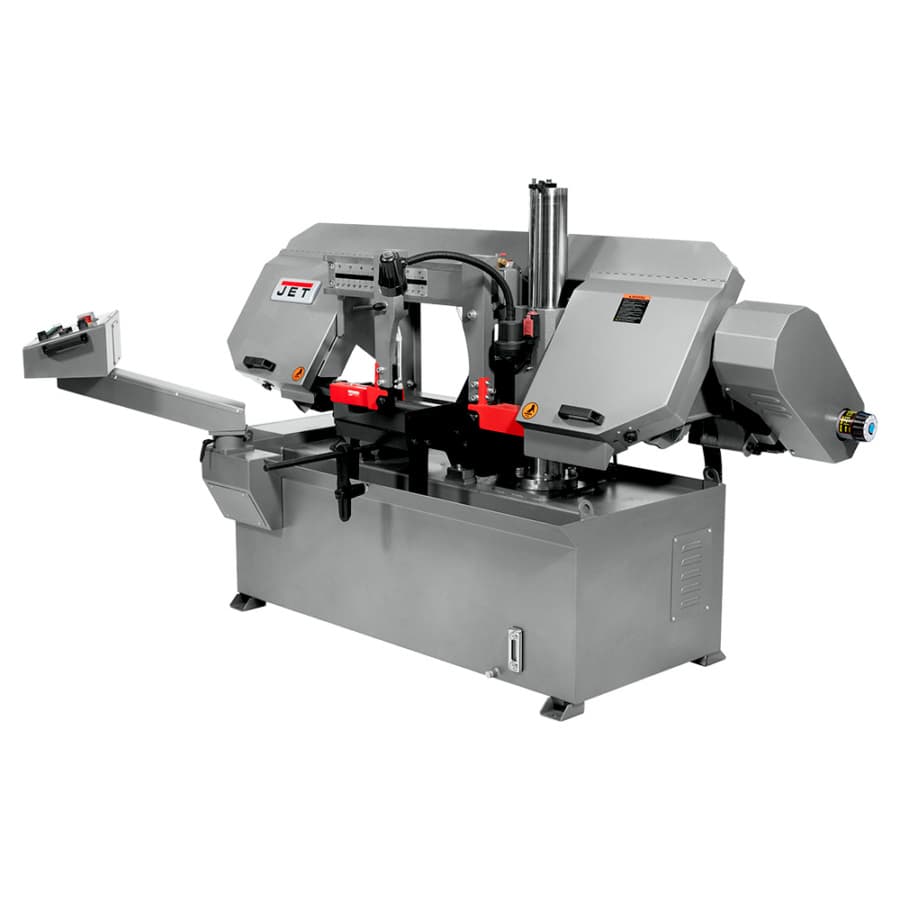

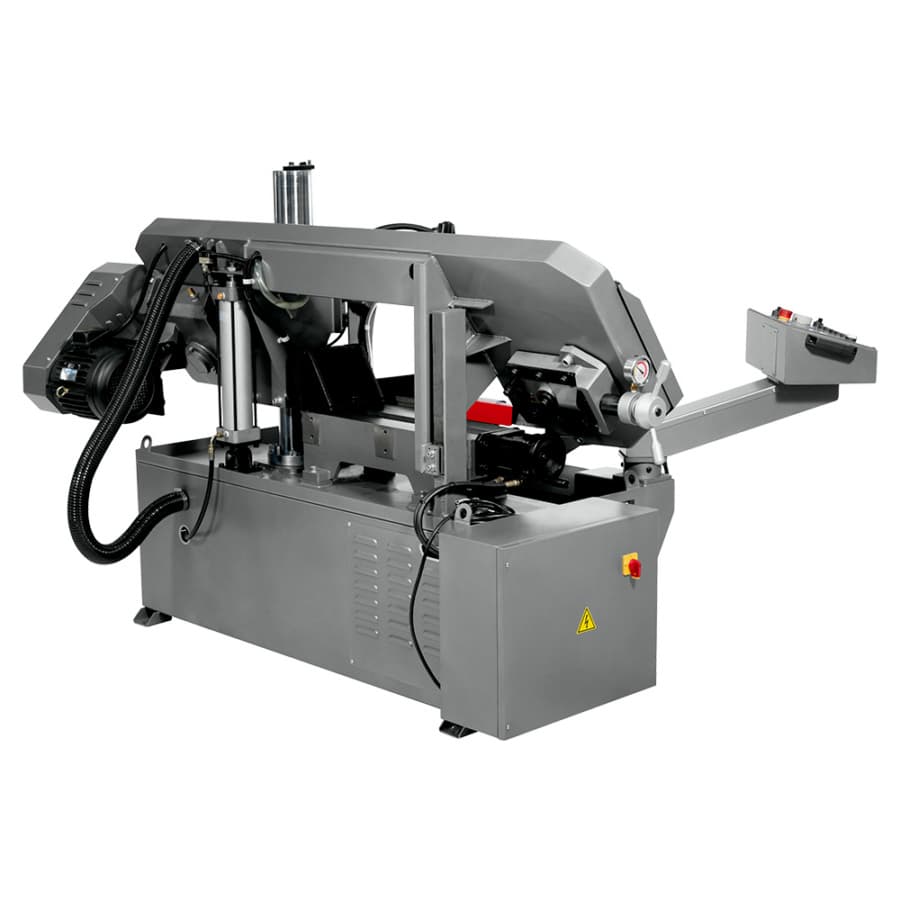

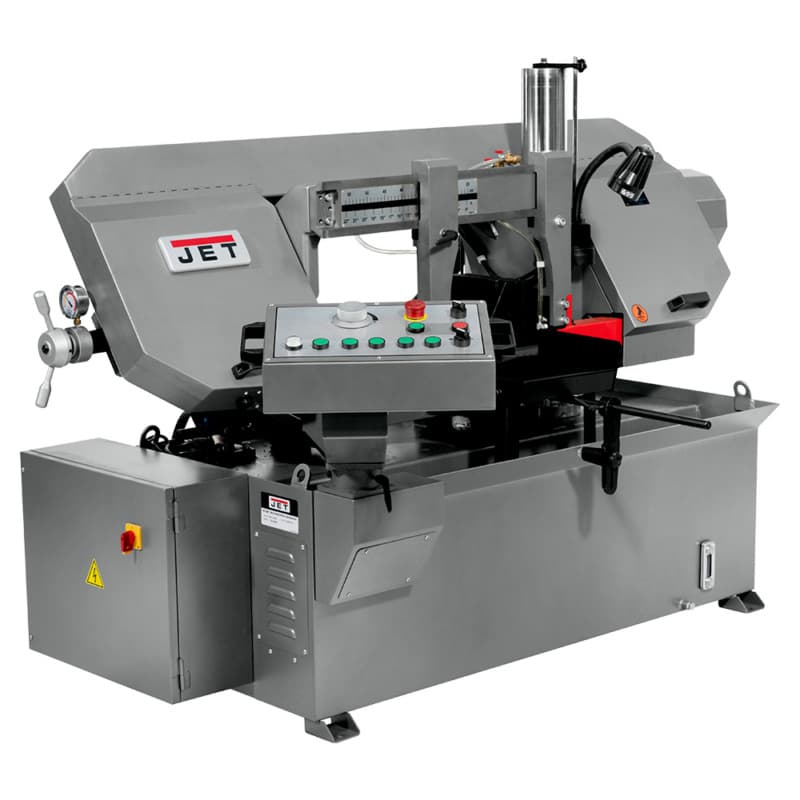

Jet Tools HBS1220DC 12" x 20" Semi-Automatic Dual Column Band Saw, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details
Jet Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut. Features: • Heavy duty construction reduces vibration and deflection • Coolant is distributed through the blade guides through an integrated coolant system • Blade tension gauge helps to ensure the blade is in the correct cutting position • Built-in, self-propelled blade brush prevents chip build up in blade guides • Motor designed for continuous operation • Powerful gearbox for long life • Two column design for more productive cutting
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | |
| Rectangle at 45 Degrees | |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | 230V |
| Overall Height | 54-1/2" |
| Overall Dimensions (L x W x H) | 81" x 42-1/2" x 54-1/2" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | 1HP, 230/460V, 3Ph |
| Motor Voltage (V.) | 230V/460V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 12" x 20" |
| Round at 45 Degrees | |
| Vertical Cutting Capacity | |
| Throat Depth | 12" x 12" |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | 12" |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 12" |
| Round at 60 Degrees | |
| Motor Power (HP) | 3 HP |
| Motor Phase | 1 |
| Blade Width | 0.043" |
| Blade Wheel Diameter | 16" |

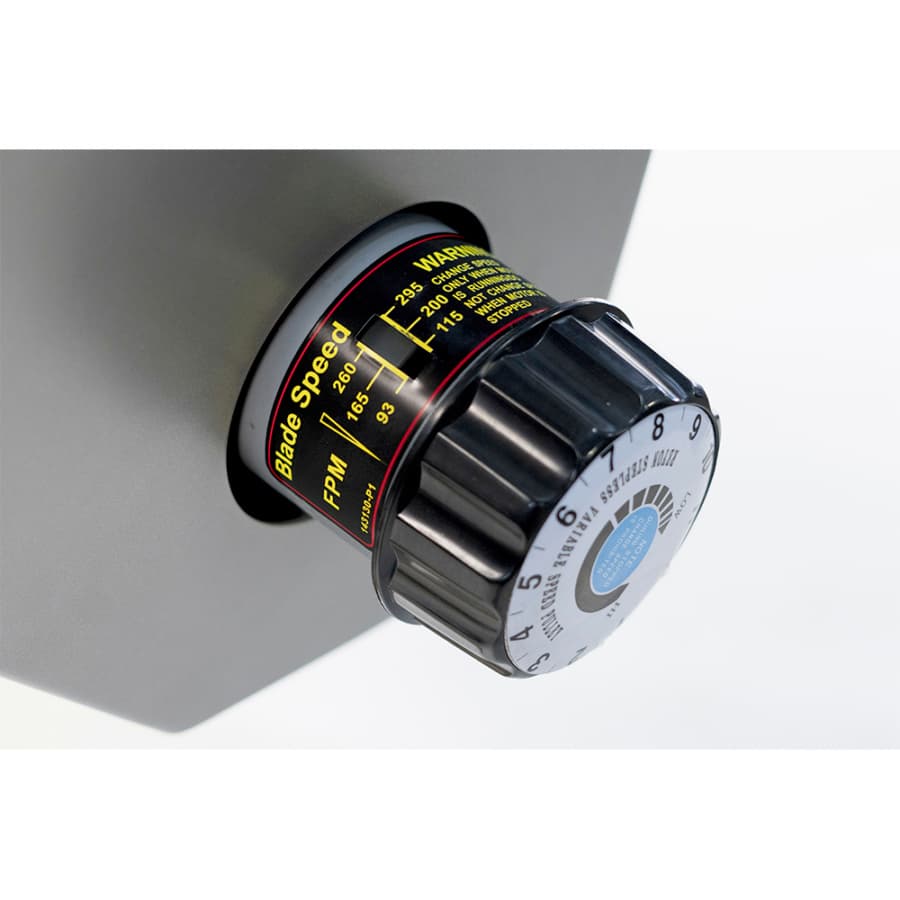

| Blade Speeds (SFPM) | 86, 157, 228, 330 |
| Blade Speed (SFPM) | 95 - 295 |
| Blade Size | 1-1/8" x 0.043" x 155-1/2" |
| Blade Length | 155-1/2" |
| Bed Height | 27" |
| Band Saw Size/Wheel Diameter | 16" |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | 1/8HP, 230/4660V, 3Ph |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | |
| Electrics | 3HP, 230/460V, 3Ph |
| Drive | Mechanical Variable Speed |
| Cutting Capacity Width | 20" |
| Cutting Capacity Height | 12" |
| Cutting Capacity (W x D) | |
| Amperage |
