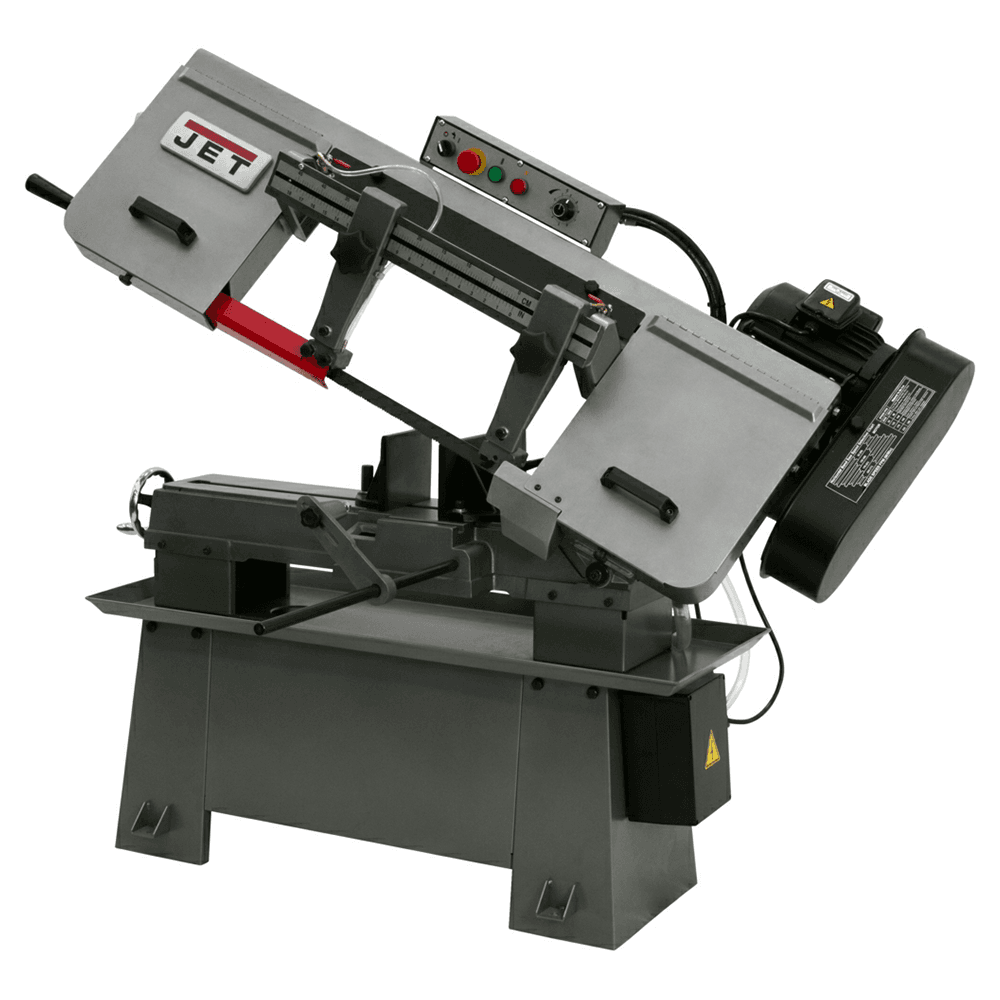

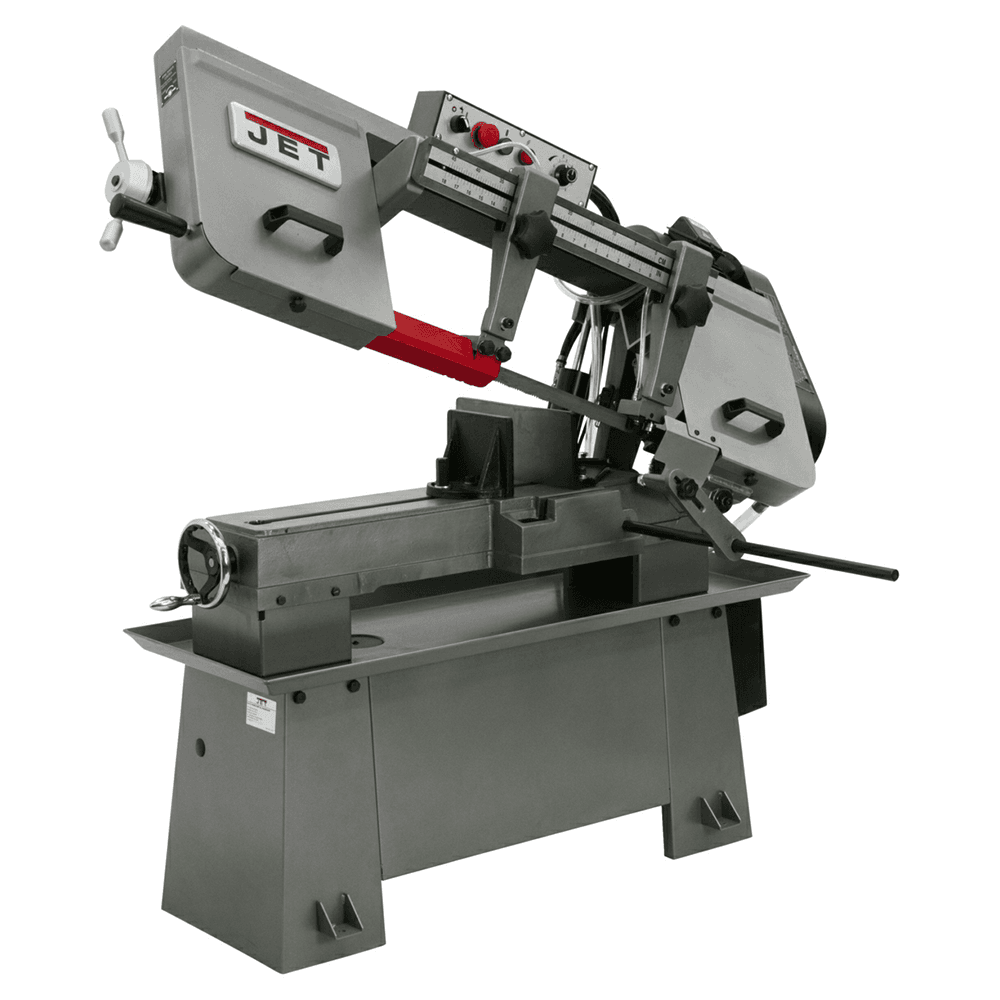

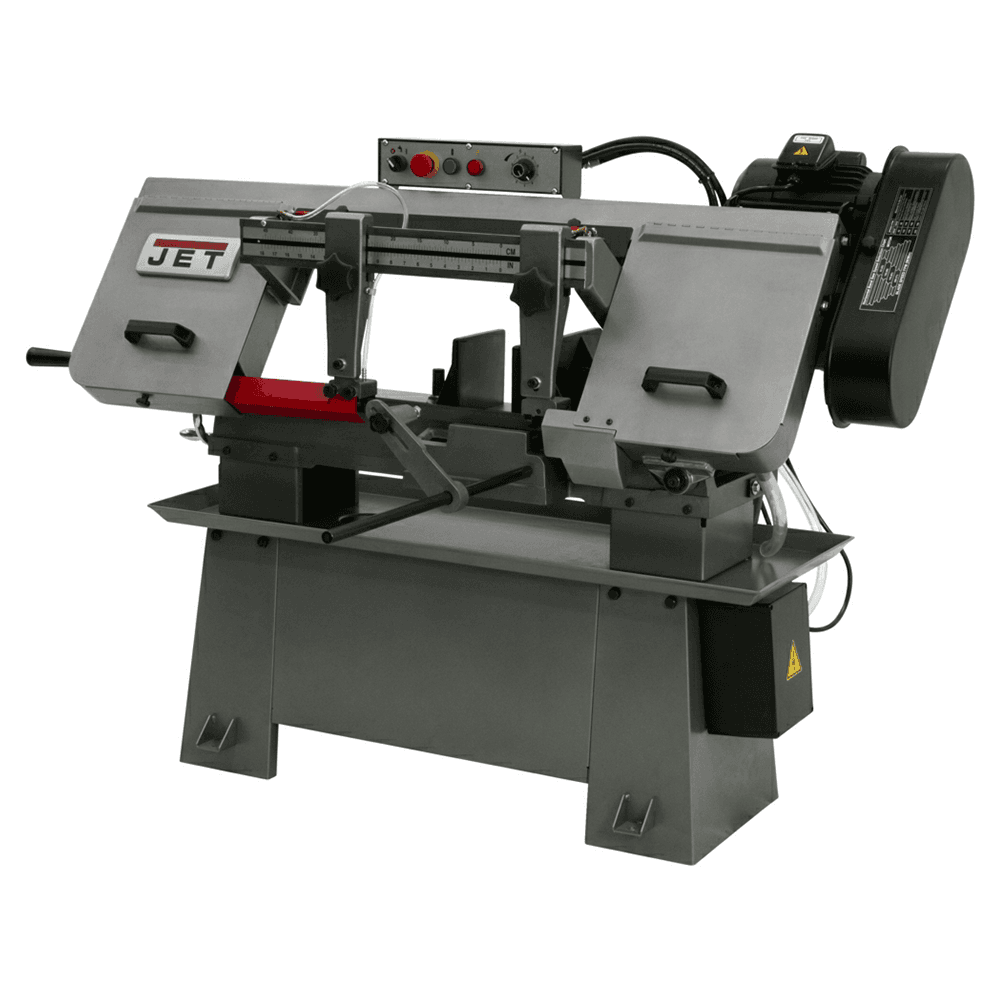

Jet Tools J-7015 8" x 13" Horizontal Band Saw, 1 Phase/115V/230V
This item may incur additional shipping costs and lead times.
Product Details

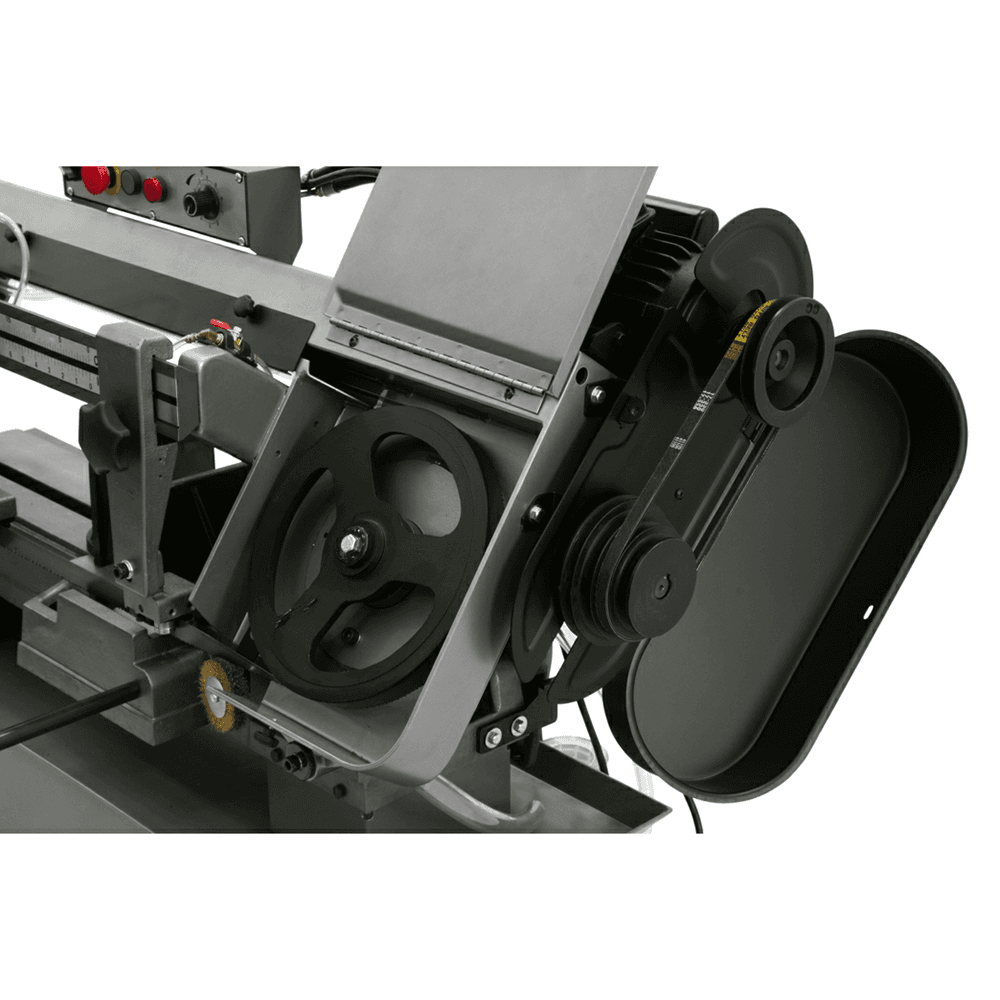

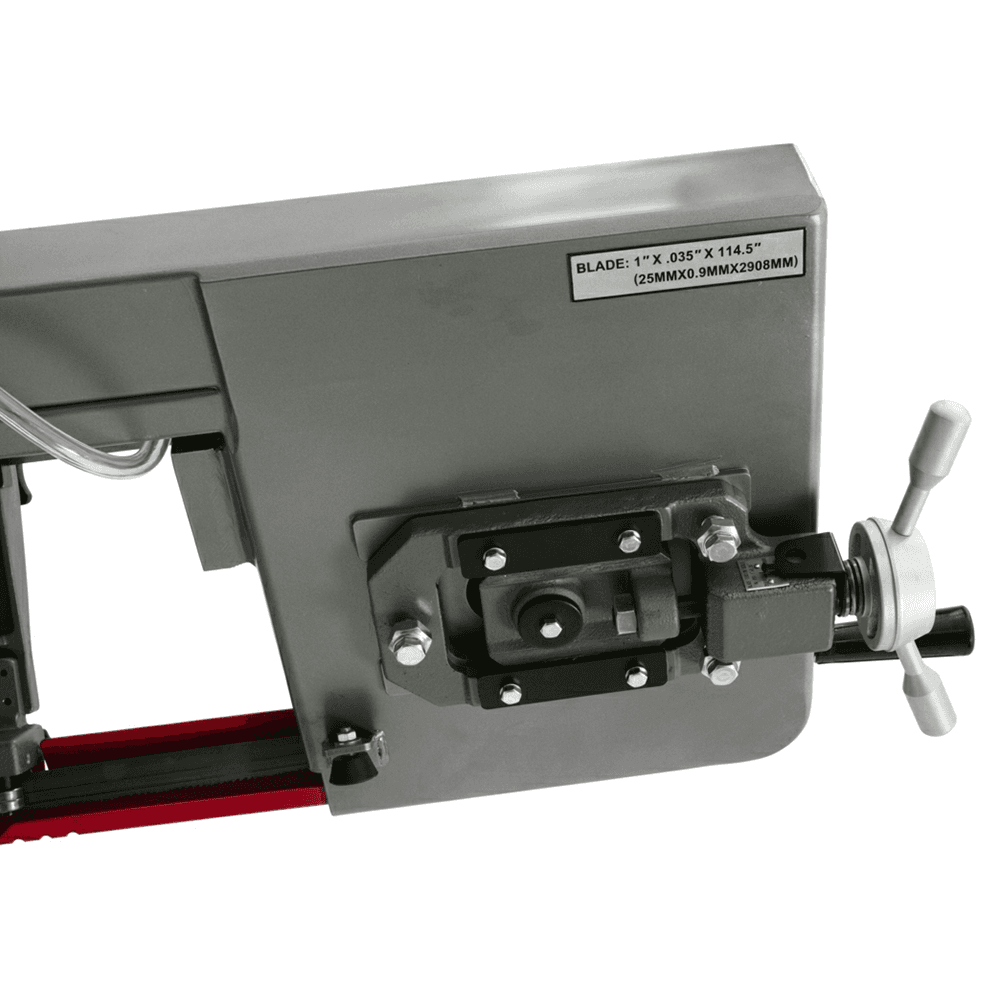

The Jet J-7015 horizontal bandsaw was manufactured for long lasting, efficient use. Designed to deliver accurate cuts without undue blade fatigue, this Jet saw works longer and stronger so productivity never suffers. Features: • Adjustable material stop • Blade guides feature parallel double-row ball bearing support • Carbide blade guides feature parallel double-row ball bearing support • Cast iron construction • Easy-to-use belt drive tensioner does not require tools for blade speed changes or belt replacement • Fully adjustable hydraulic down feed system • Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath • Heavy-Duty, rigid steel and cast iron construction of the head and base provides full blade support, eliminating vibration and deflection • Longer blade wheel base reduces blade fatigue and increases blade life • Quick-positioning vise with fully adjustable jaws, swivels to 45° • Carbide Blade Guides: Parallel double-row ball bearing support • Tool-less Blade Changes: Easy-to-use belt drive tensioner for blade speed changes or belt replacement • Accurate Cuts: Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath • Reduced Vibration and Deflection: Heavy-Duty, rigid steel and cast iron head and base provides full blade support • Increased Blade Life: Longer blade wheel base reduces blade fatigue
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 9" x 8" |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | |
| Overall Height | 48" |
| Overall Dimensions (L x W x H) | 62-1/2" x 23" x 48" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V/230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 9" x 13" |
| Round at 45 Degrees | 9" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | 8-1/2" |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 9" |
| Round at 60 Degrees | |
| Motor Power (HP) | 1-1/2 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 11-5/8" |
| Blade Speeds (SFPM) | 82, 132, 170, 235 |
| Blade Speed (SFPM) | |
| Blade Size | 1" x .035" x 114-1/2" |
| Blade Length | 114-1/2" |
| Bed Height | 27-1/2" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | The JET J-7015 Horizontal Bandsaw was manufactured for long-lasting, efficient use. Designed to deliver accurate cuts without undue blade fatigue, this JET saw works longer and stronger so productivity never suffers. |
| Electrics | |
| Drive | Belt Drive |
| Cutting Capacity Width | 8" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 8"x 13" |
| Amperage |
