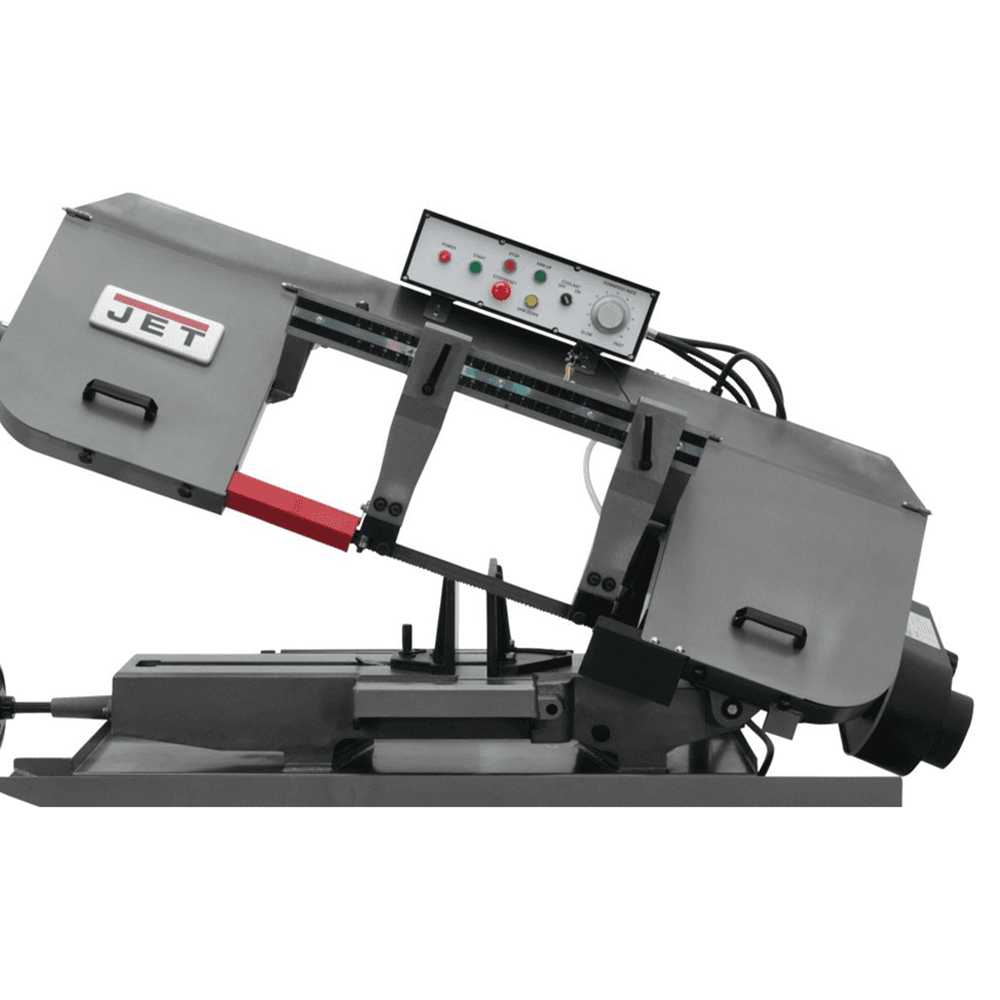

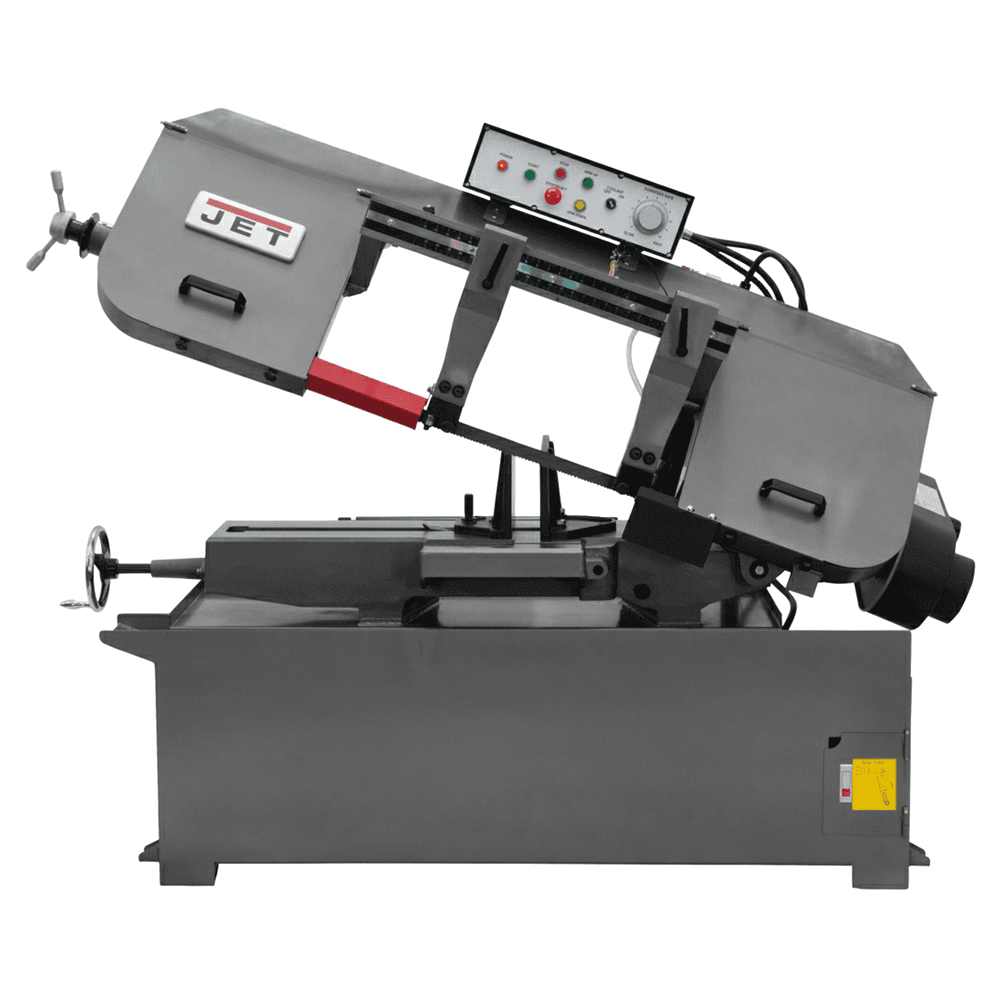

Jet Tools HBS-1321W 13" x 21" Semi-Auto Horizontal Band Saw, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details
Loaded with operational and Safety features, the Jet HBS-1321W makes starting and completing any job a smooth operation. The semi-automatic bow raises after cut is complete to a predetermined height while the easy access chip tray allows for quick cleanup with help from the cleaning hose and nozzle which assist in washing chips away. Loaded with special features, this Jet saw is perfect for your shop or worksite. Features: • Adjustable material stop • Built-in, self-propelled blade brush extends blade life • Carbide blade guides with roller bearings • Coolant is distributed through the blade guides • Fully adjustable hydraulic down feed controls the rate of decent • Large hand wheel and built-in gauge provides easy blade tensioning • Quick-positioning vise lessons set-up time • Safety switch shuts off motor if band breaks • Variable blade speed allows optimum cutting performance • Variable blade speeds from 80 to 260 SFPM
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 11-1/2" x 10-1/2" |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | |
| Overall Height | 55" |
| Overall Dimensions (L x W x H) | 84" x 32-1/2" x 55" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V/460V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 10" x 21" and 13" x 19" |
| Round at 45 Degrees | 10-1/2" |
| Vertical Cutting Capacity | |
| Throat Depth | 13" |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 13" |
| Round at 60 Degrees | |
| Motor Power (HP) | 3 HP |
| Motor Phase | 3 |
| Blade Width | |
| Blade Wheel Diameter | 18" |
| Blade Speeds (SFPM) | 80 - 260 |
| Blade Speed (SFPM) | |
| Blade Size | 1-1/4" x .042" x 161-1/2" |
| Blade Length | 161-1/2" |
| Bed Height | 28-3/4" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | At JET Tools, we see a future built on great brands, products, and people. In every facet of our business, we leverage the strengths of our global infrastructure to maximize the benefits of all three. |
| Electrics | |
| Drive | Variable Speed |
| Cutting Capacity Width | 13" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 13" x 21" |
| Amperage |
