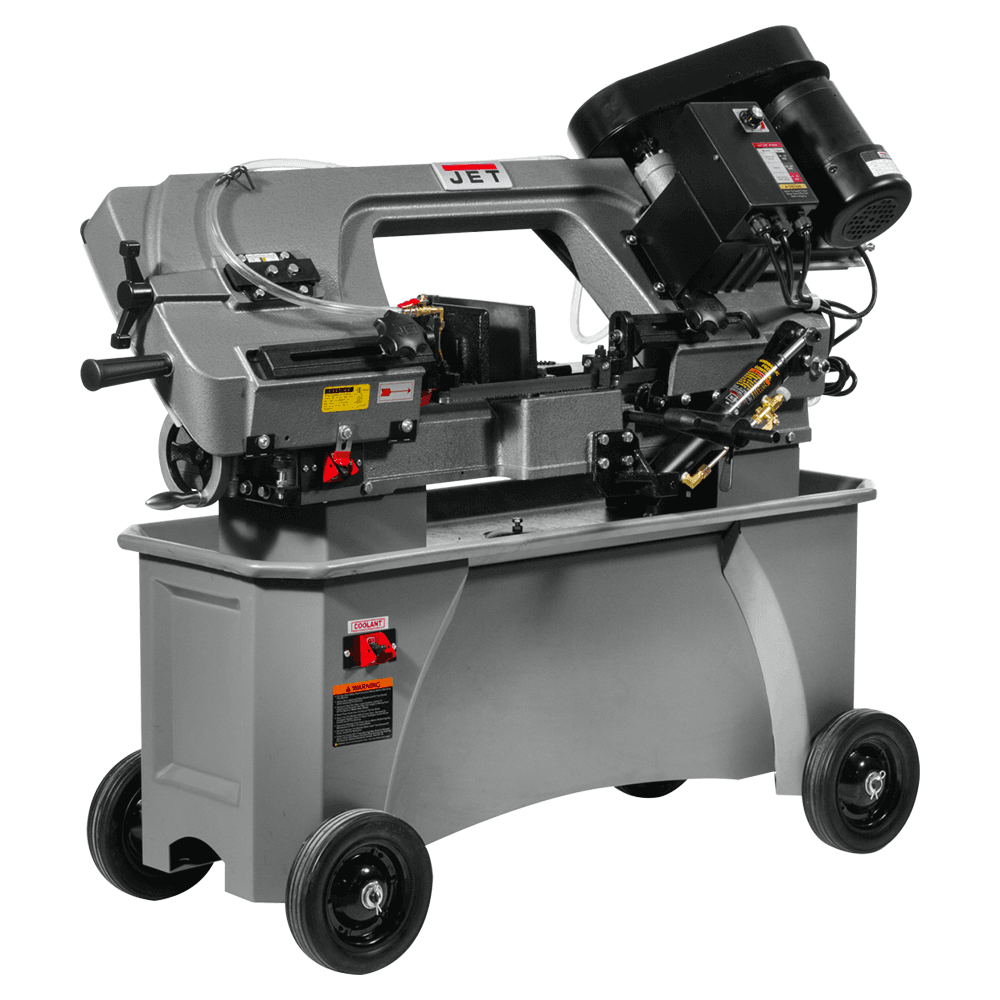

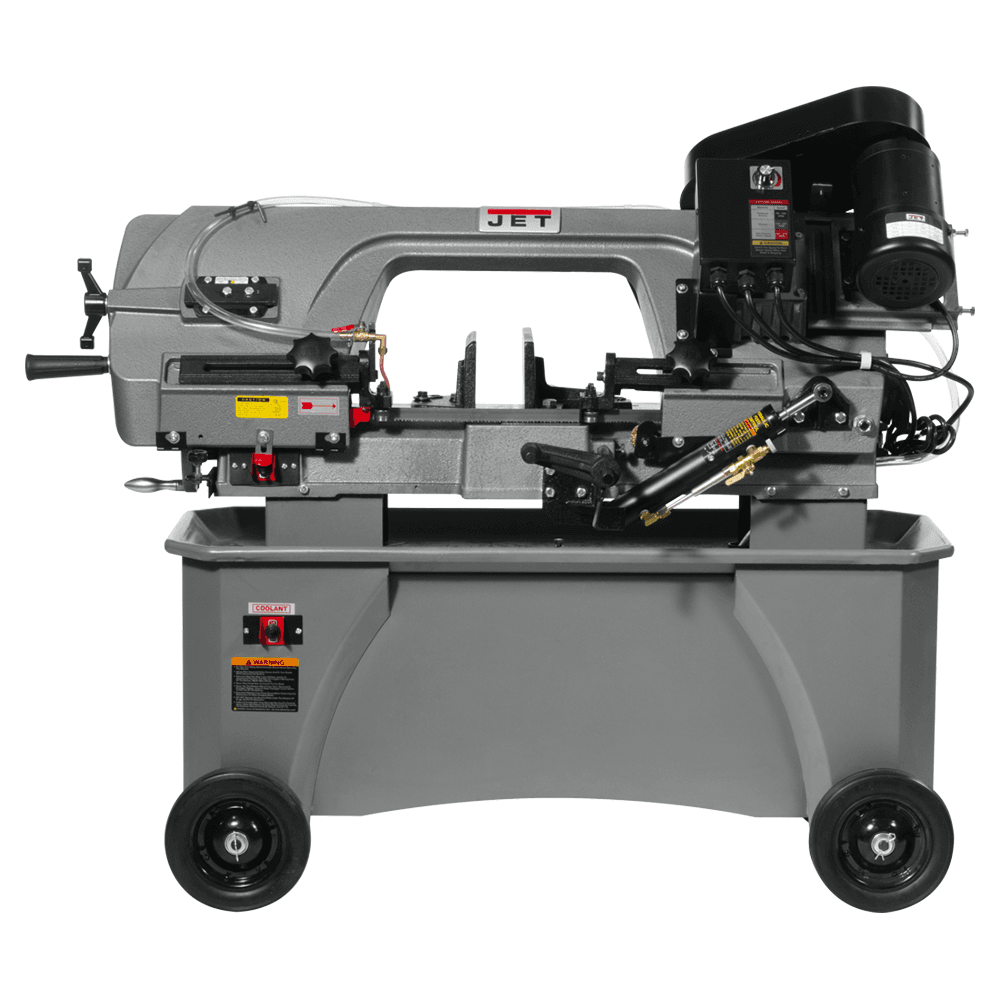

Jet Tools HVBS712V 7" x 12" Variable Speed Horizontal/Vertical Band Saw, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details

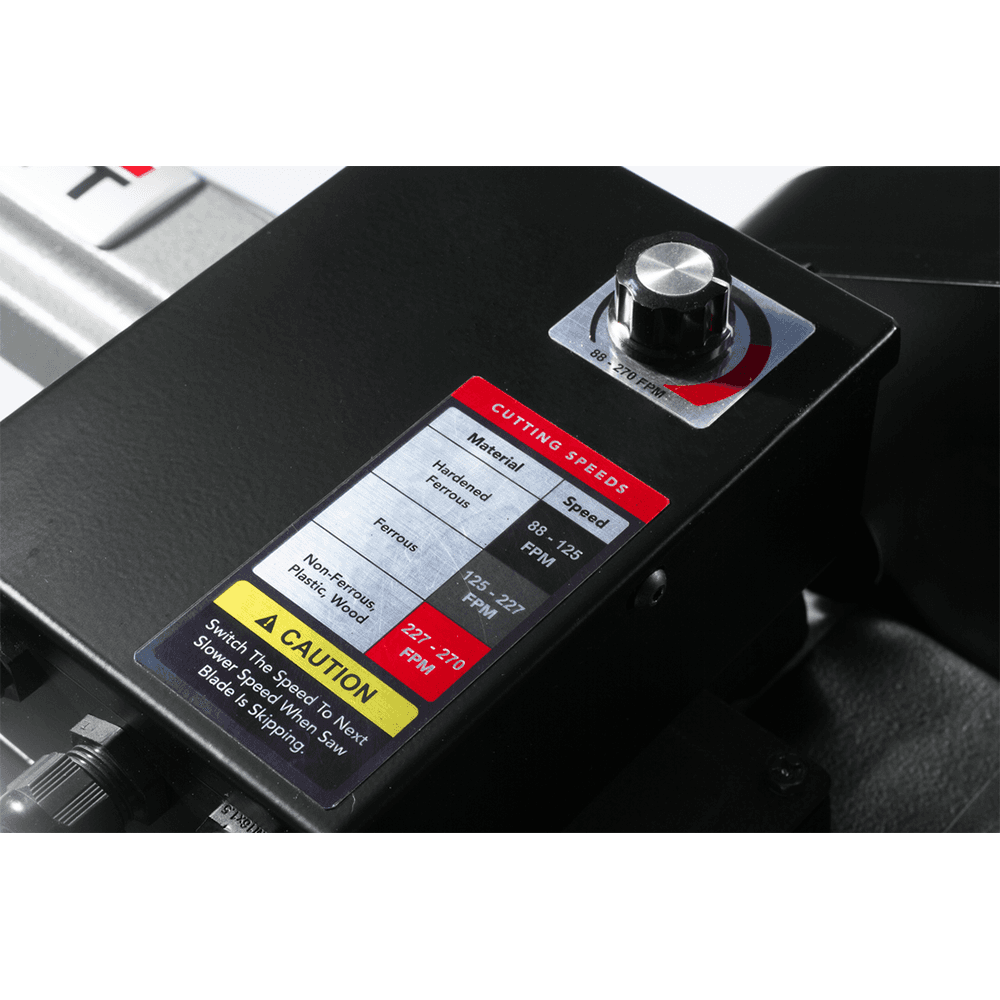

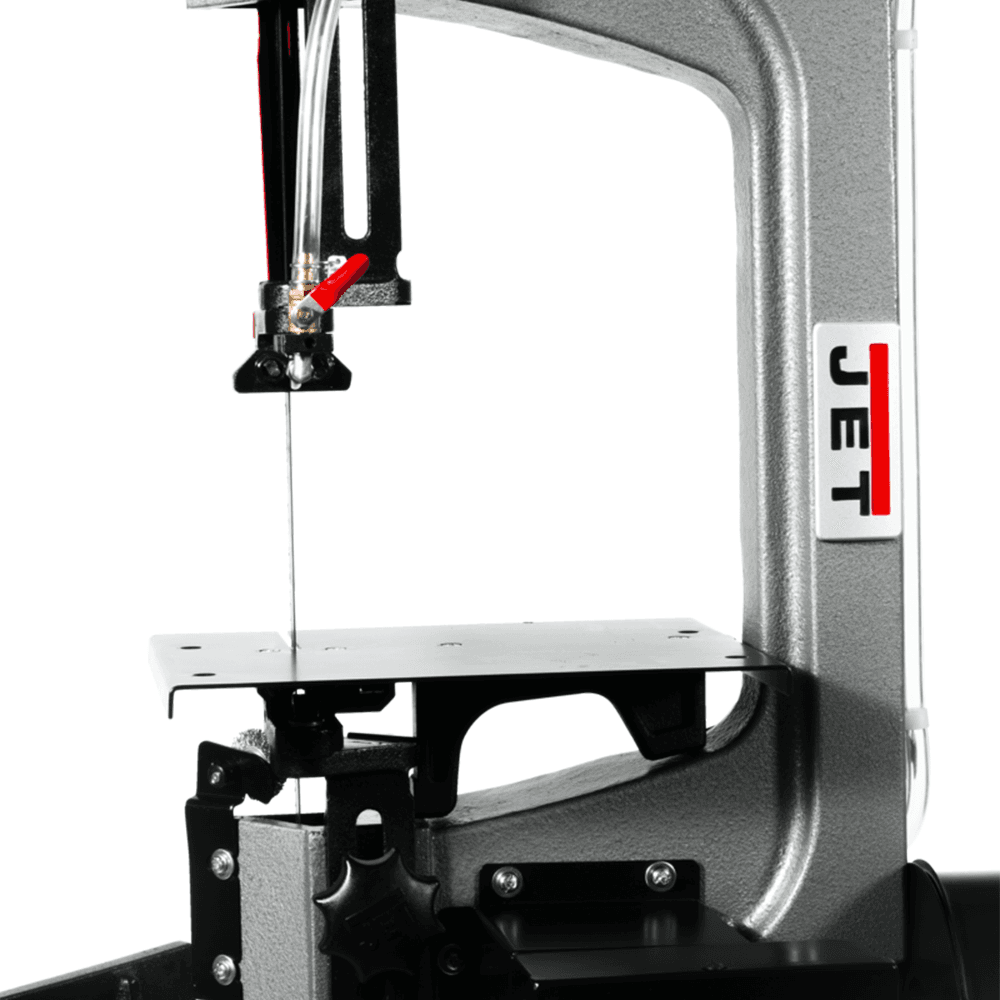

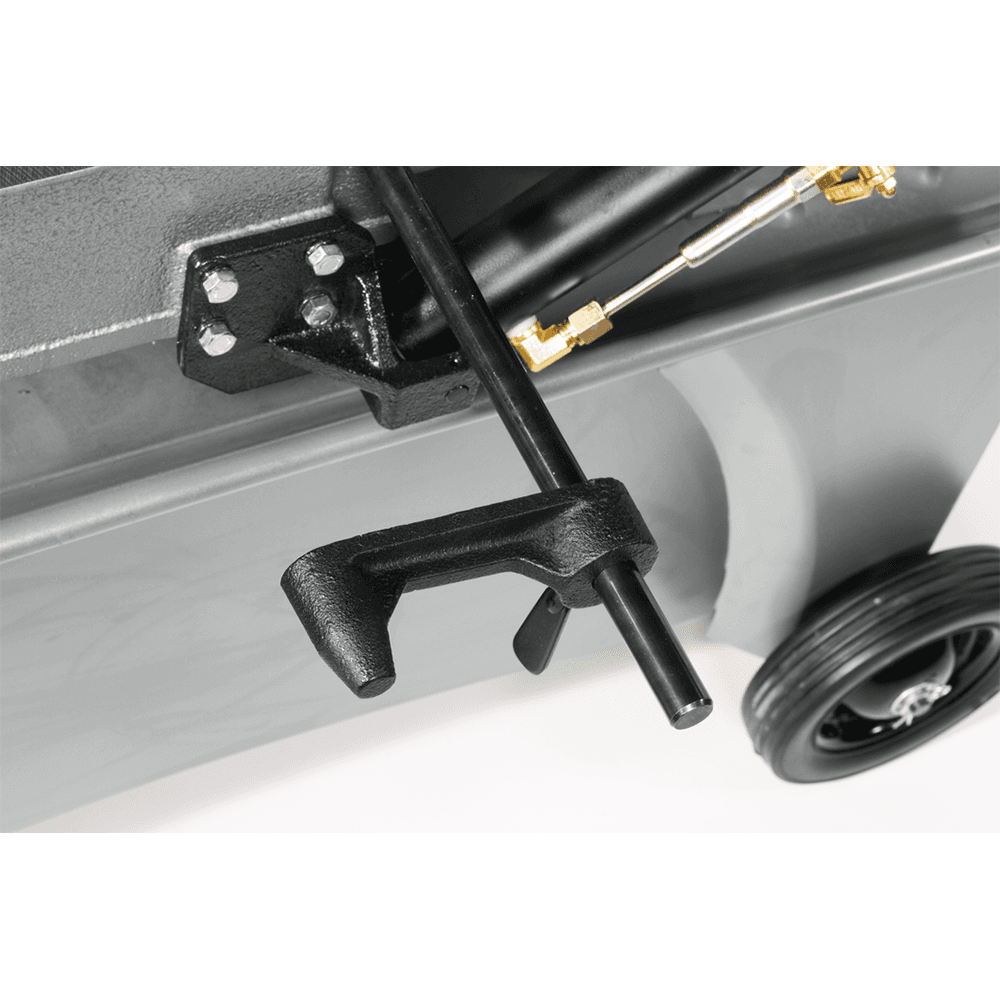

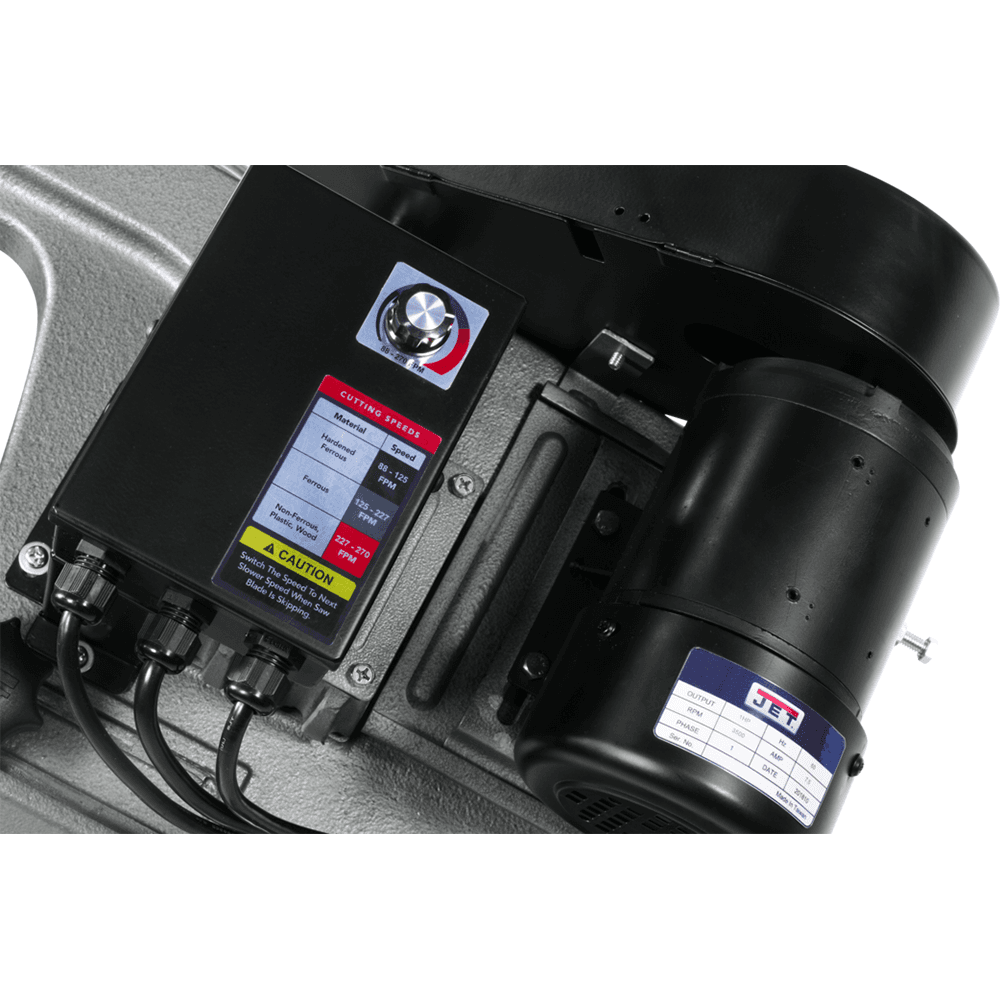

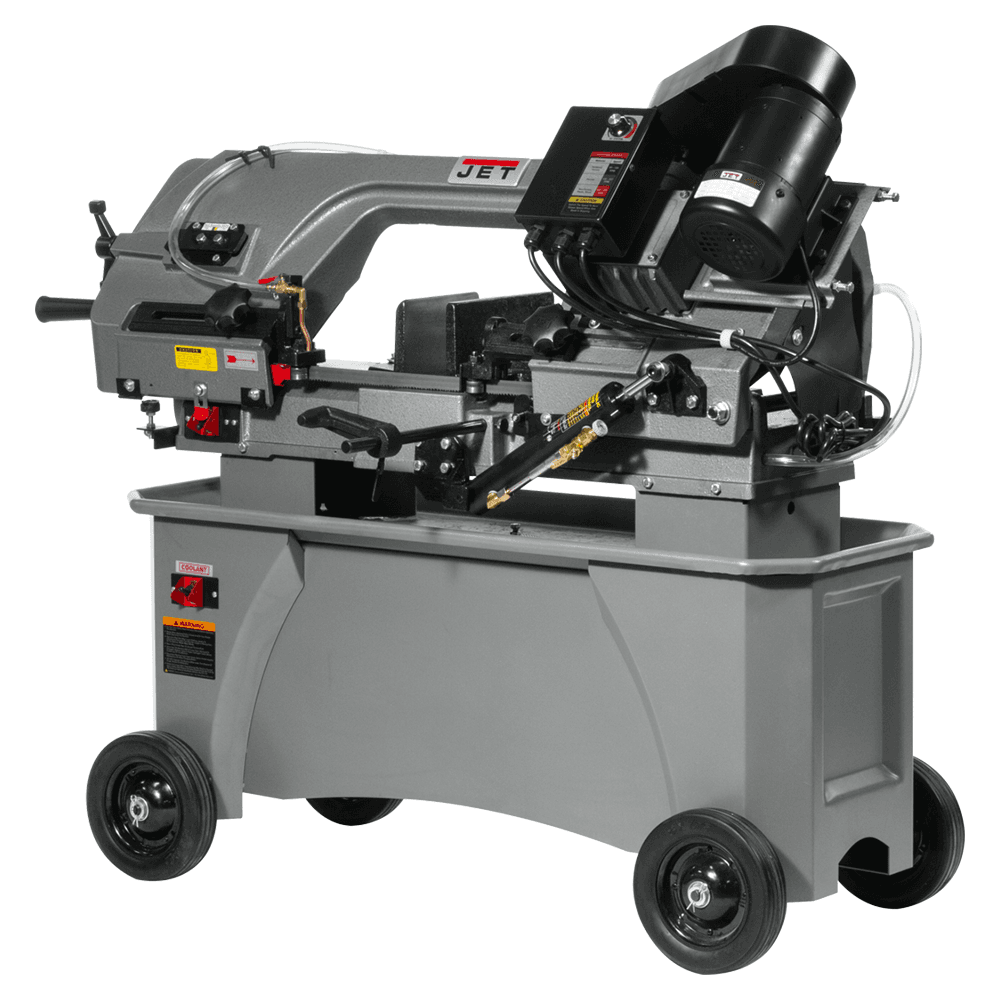

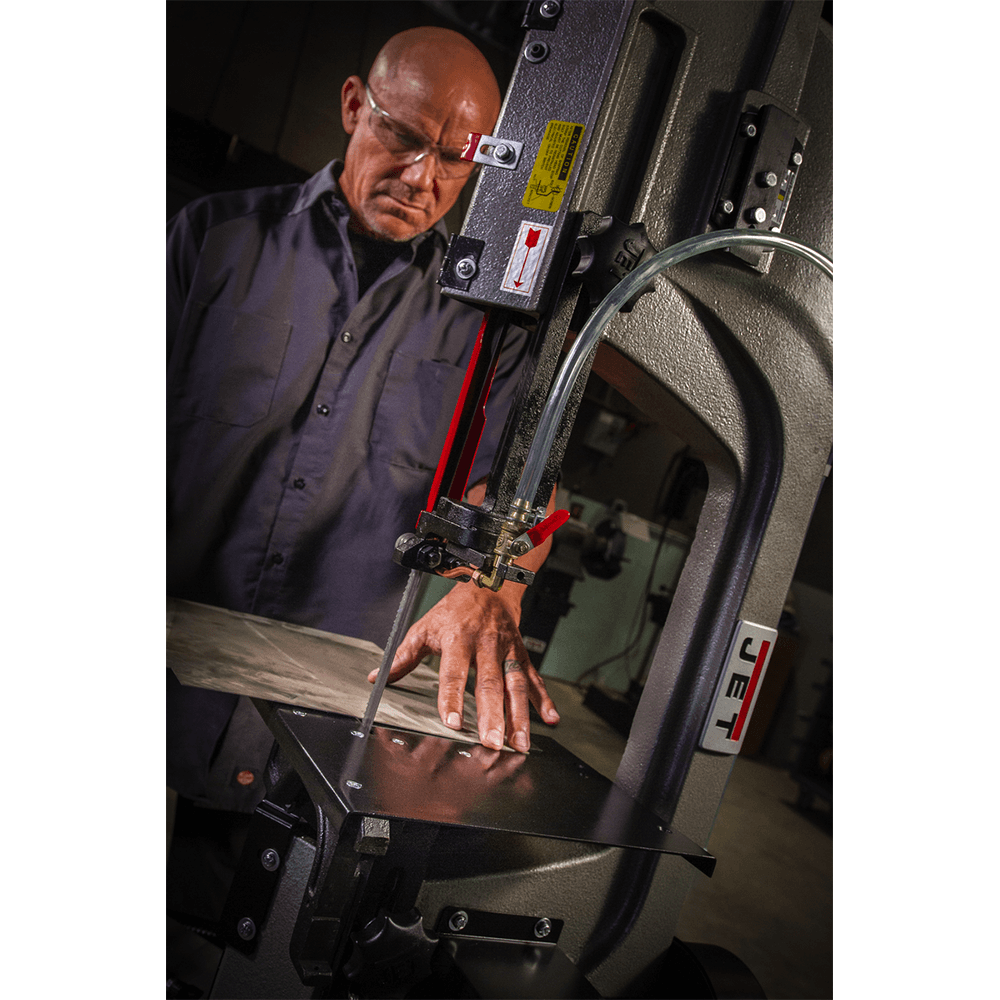

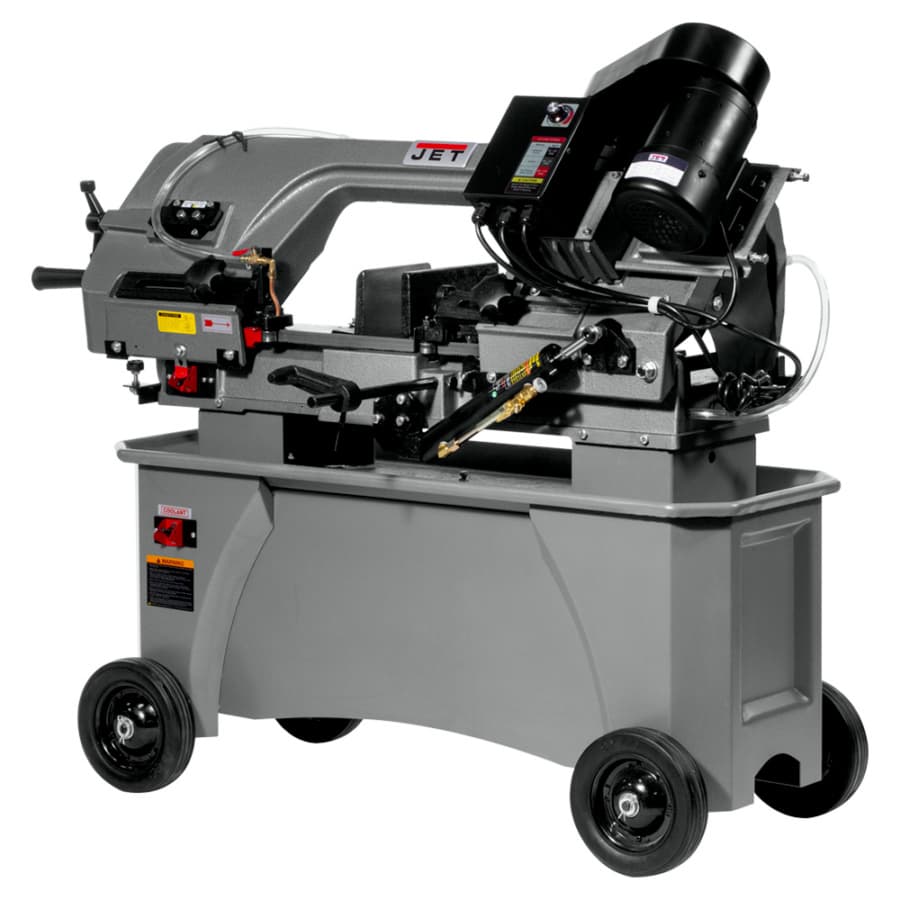

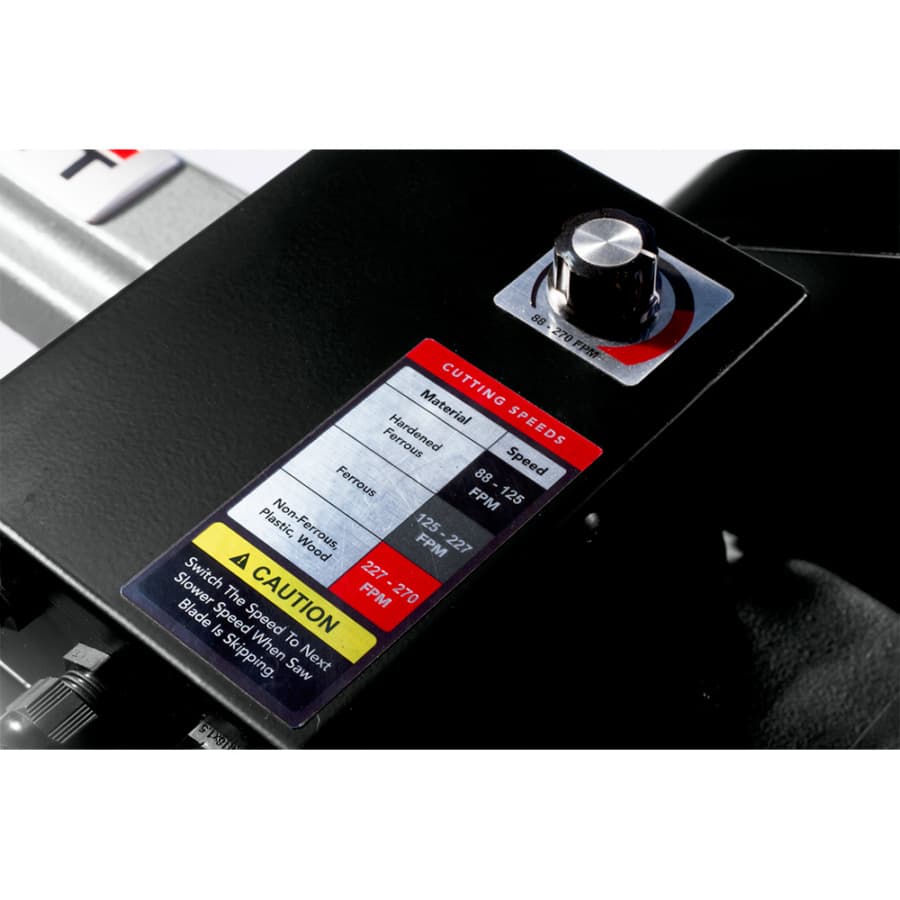

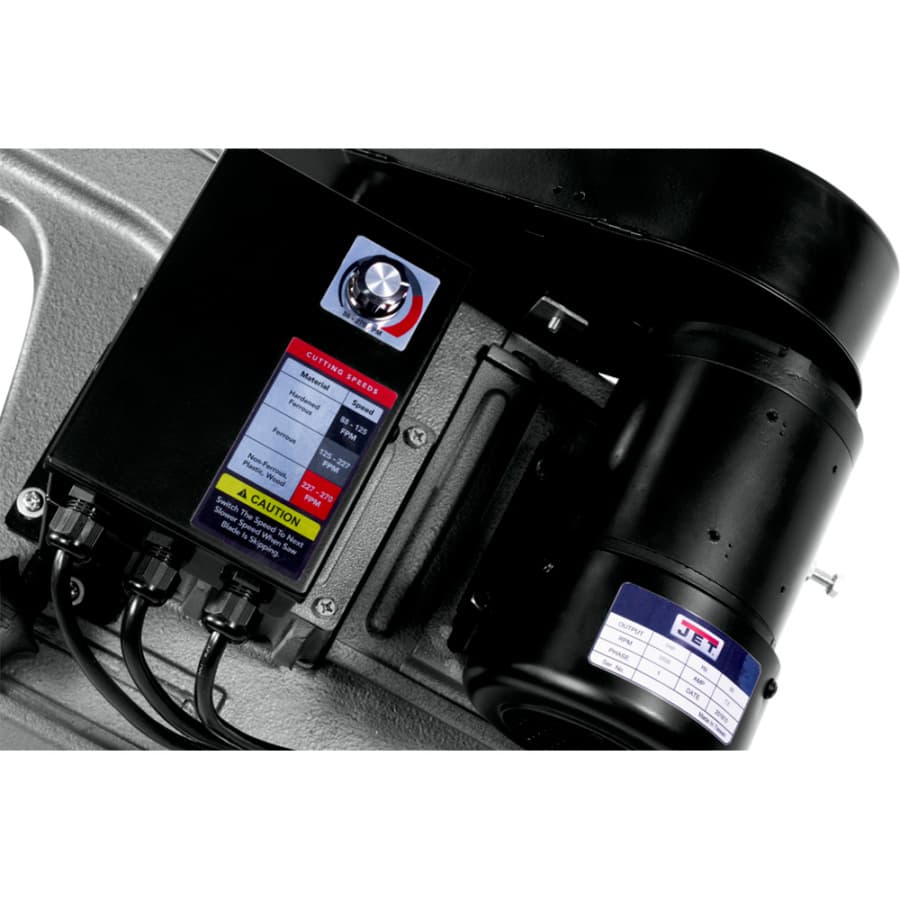

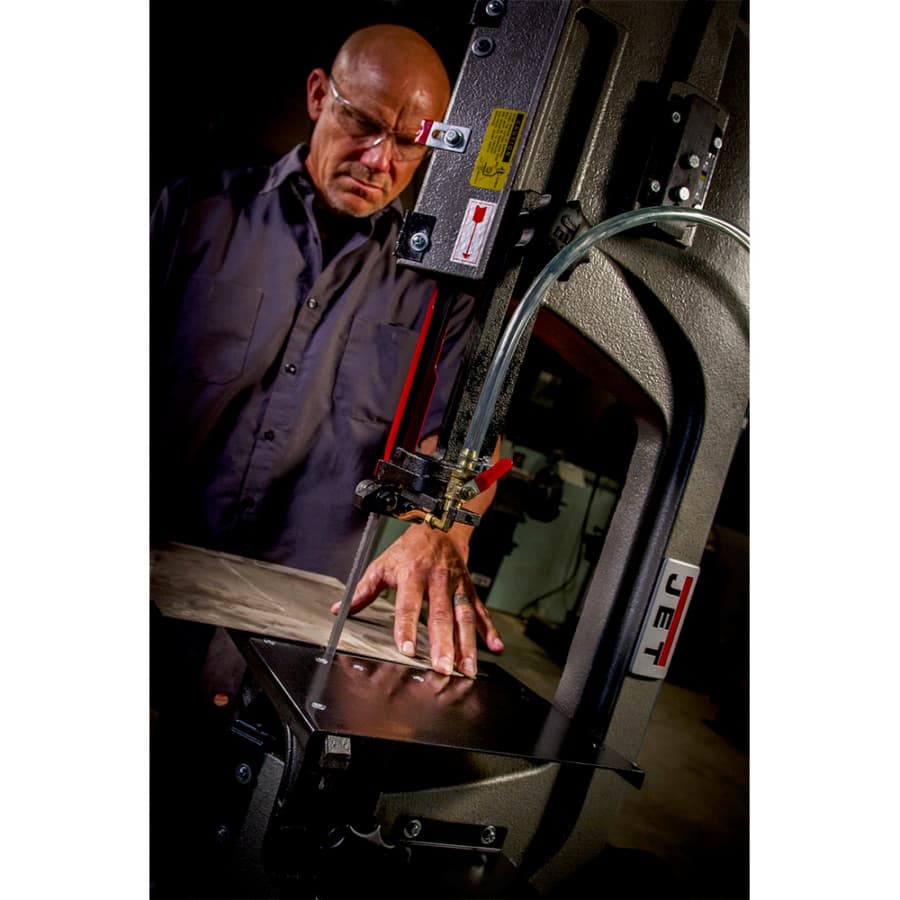

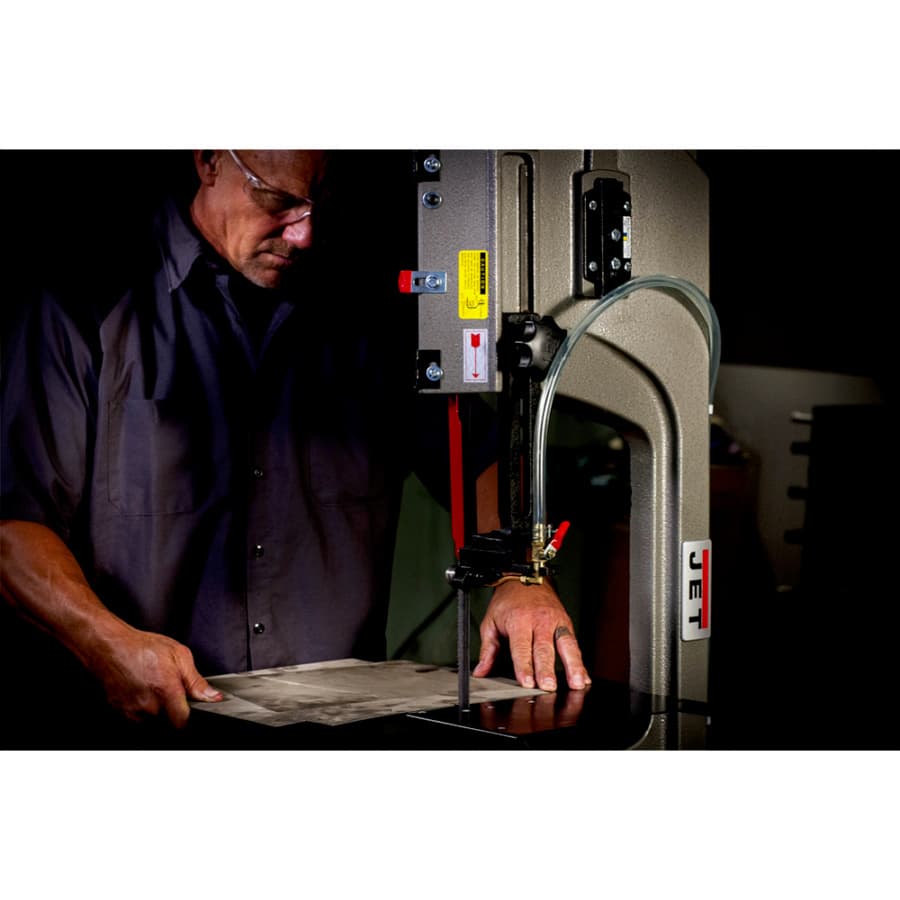

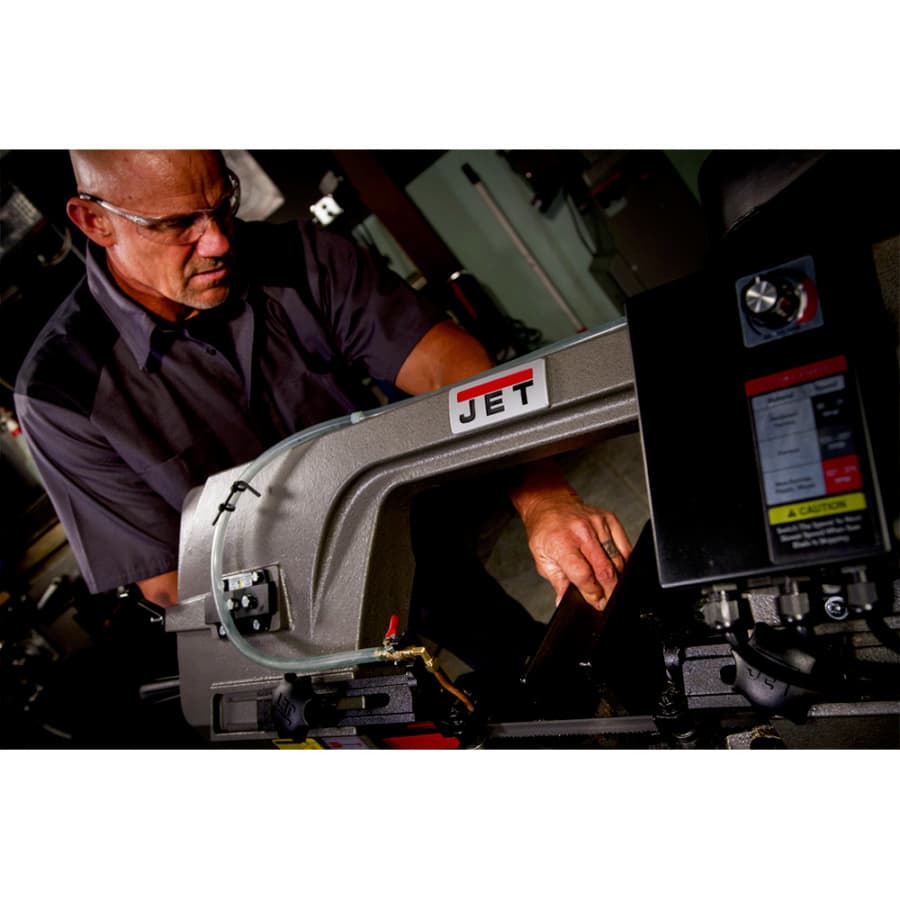

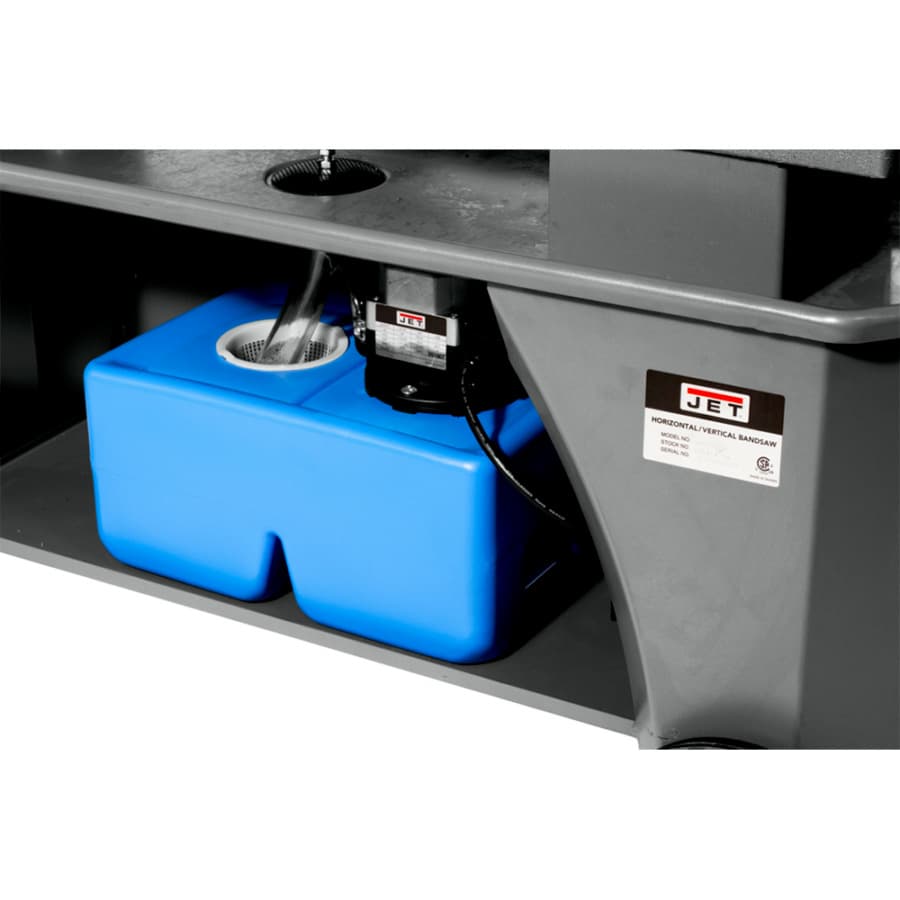

The Jet HVBS-712V horizontal/vertical variable speed metalworking bandsaw's industry-leading innovation is centered around increased output and operator Safety. Powered by a 3-step gear one horse power DC motor, the HVBS-712V produces unbeatable torque while consuming less energy and is capable of producing speeds from 88-270 SFPM. Change speeds with the turn of a knob, no need to change belts anymore. Includes vertical 9" x 12" worktable. CSA/CUS Certified. UL Listed. Features: • Adjustable toolless material stop • Four 8" rubber wheels for ease of movement • Heavy casted iron bow and bed • Hydraulic down feed for ease of cut • Improved wider stand with built-in storage cabinet and chip tray • Multi-position blade guide • Sealed hardened and ground gear drive • Side-Eccentric Shaft and ball bearing: Rear-Ball bearing blade guides • Toolless quick change vise miters to 45 degrees
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 6-1/2" (H) x 4-1/2" (W) |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | |
| Overall Height | 40" |
| Overall Dimensions (L x W x H) | 48" x 17" x 40" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V/230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | |
| Round at 45 Degrees | 4-1/2" |
| Vertical Cutting Capacity | |
| Throat Depth | 7" |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | 7" x 7" |
| Square at 60 Degrees | |
| Square at 45 Degrees | 4-1/2" x 4-1/2" |
| Round at 90 Degrees | 7" |
| Round at 60 Degrees | |
| Motor Power (HP) | 3/4 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 11-3/4" |
| Blade Speeds (SFPM) | 88 - 270 |
| Blade Speed (SFPM) | |
| Blade Size | 3/4" x .032" x 93" |
| Blade Length | |
| Bed Height | 22-1/4" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | 7.5 Amp, 3500RPM DC motor |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | |
| Electrics | |
| Drive | |
| Cutting Capacity Width | |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | |
| Amperage |
