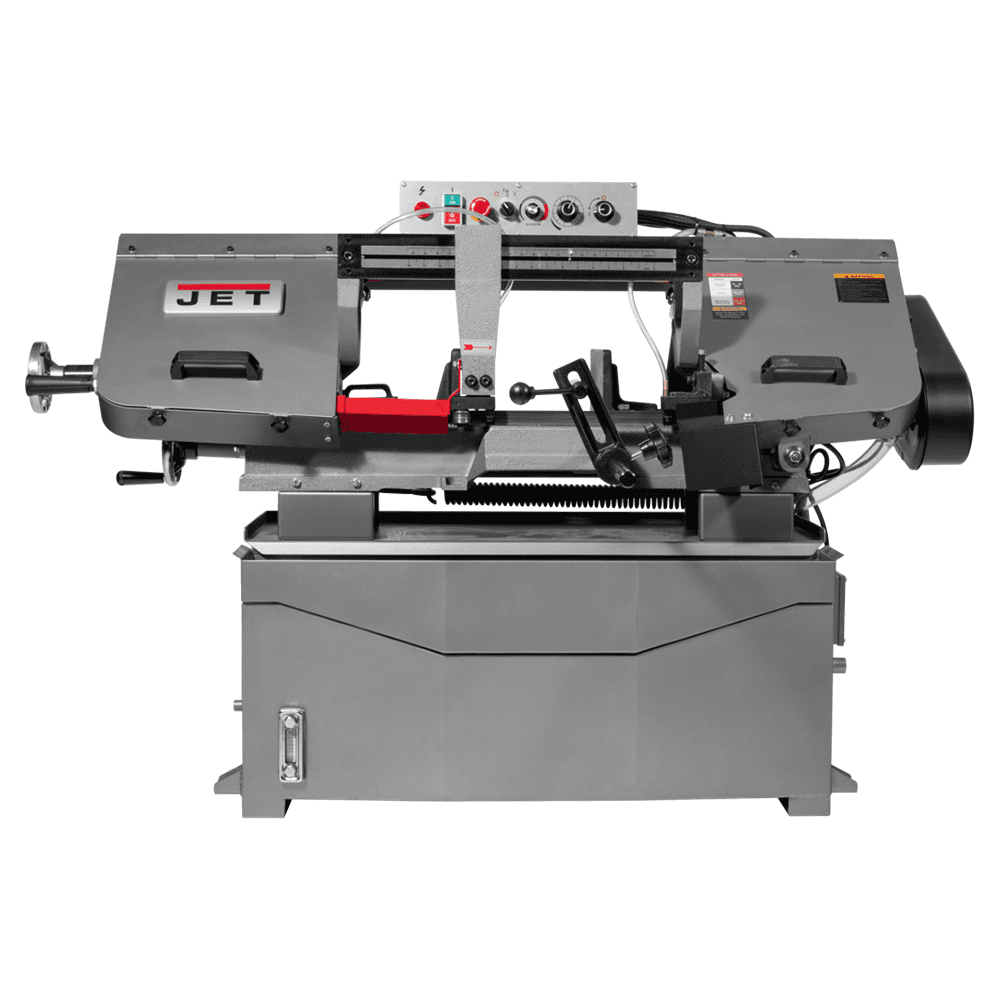

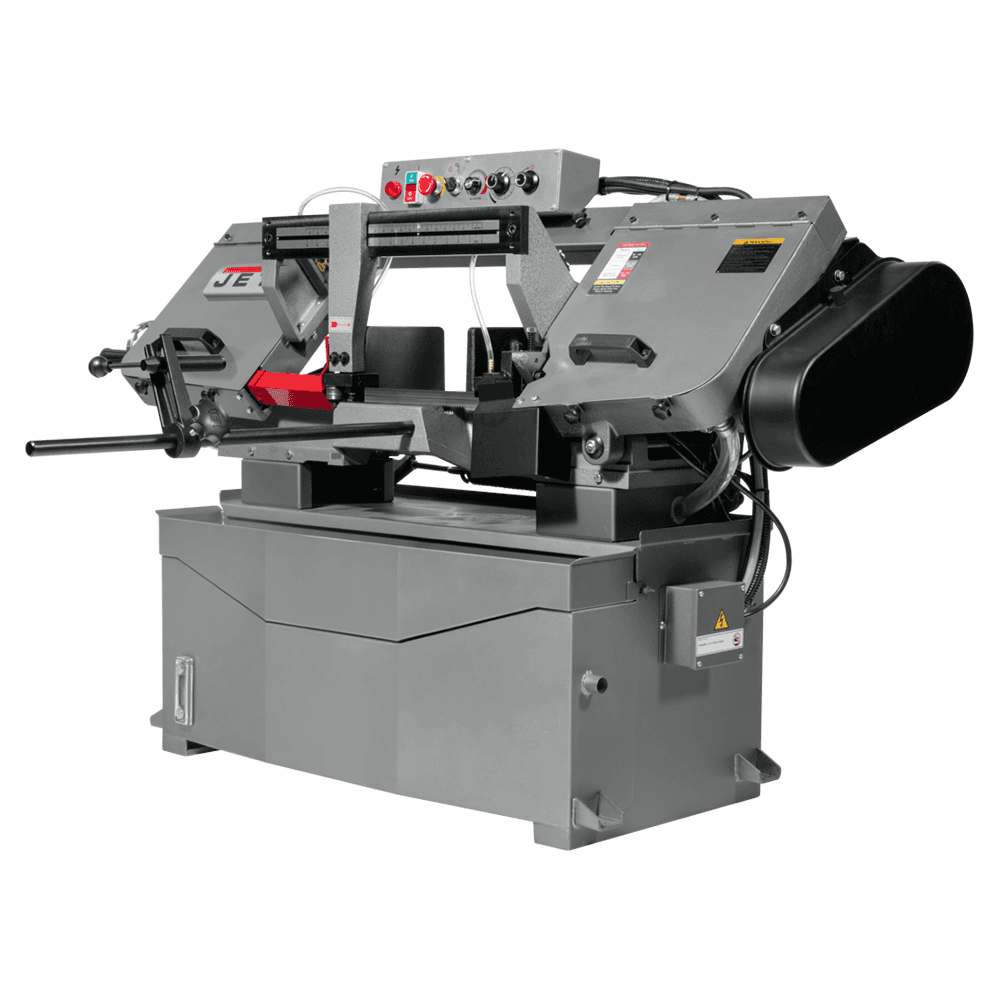

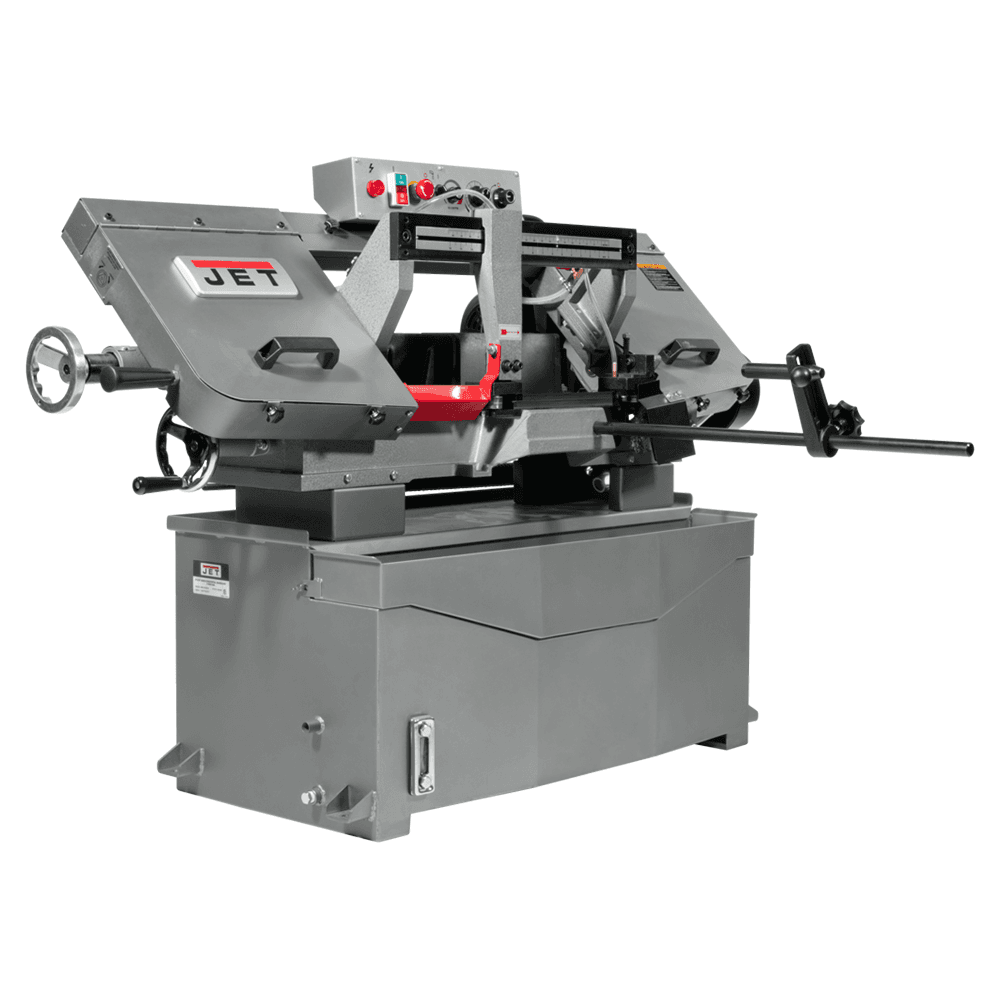

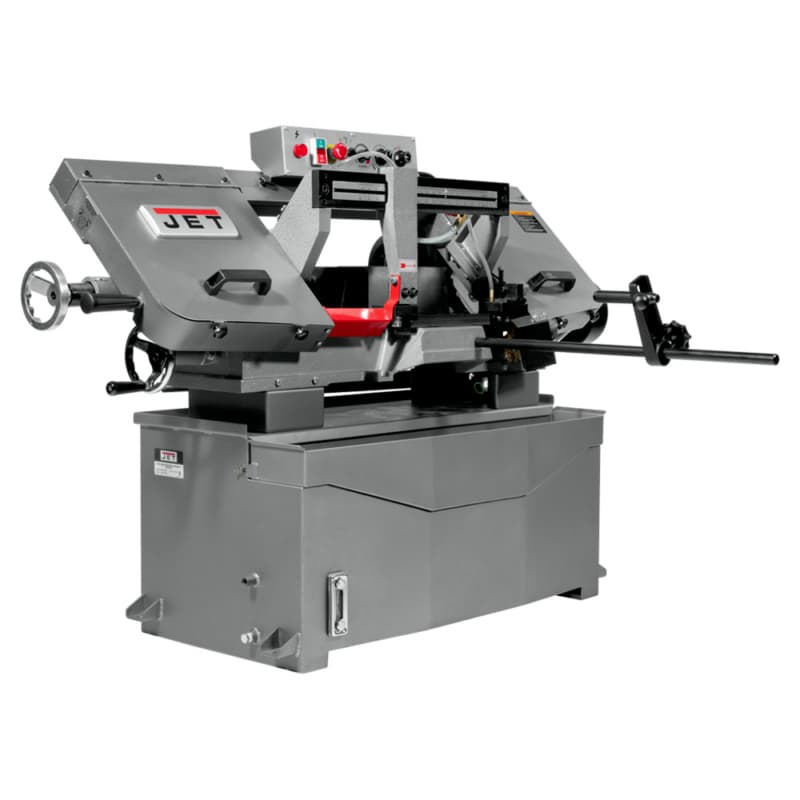

Jet Tools HBS-916EVS 9" x 16" Electronic Variable Speed Horizontal Band Saw, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details
Electronic variable speed, oversized removable chip tray, large handwheel, built-in gauge, blade guides and quick-positioning vise that swivels to 45° are but a few of the features that make this Jet horizontal bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time. Features: • Adjustable material stop • Built-in, self-propelled blade brush extends blade life • Carbide blade guides feature parallel double-row ball bearing support • Coolant is distributed through the blade guides • Electronically controlled blade speed from 82 - 330 SFPM • Fully adjustable hydraulic down feed with separate on/off control valve • Standard coolant system with coolant is distributed through the blade guides
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 9" x 6-1/8" |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | 115V |
| Overall Height | 46-1/4" |
| Overall Dimensions (L x W x H) | 67" x 25" x 46-1/4" |
| Overall Assembled (Bow Raised) (L x W x H) | 65" x 25" x 67" |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 8-1/2" x 14" and 2" x 16" |
| Round at 45 Degrees | 6-1/8" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 9" |
| Round at 60 Degrees | |
| Motor Power (HP) | 1-1/2 HP |
| Motor Phase | 3 |
| Blade Width | |
| Blade Wheel Diameter | 13" |
| Blade Speeds (SFPM) | (EVS) 82 - 330 |
| Blade Speed (SFPM) | (EVS) 82 - 330 |
| Blade Size | |
| Blade Length | 119-1/2" |
| Bed Height | 23.5" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | 5 |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | |
| Electrics | |
| Drive | EVS |
| Cutting Capacity Width | 9" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 9" x 16" |
| Amperage | 5 |
