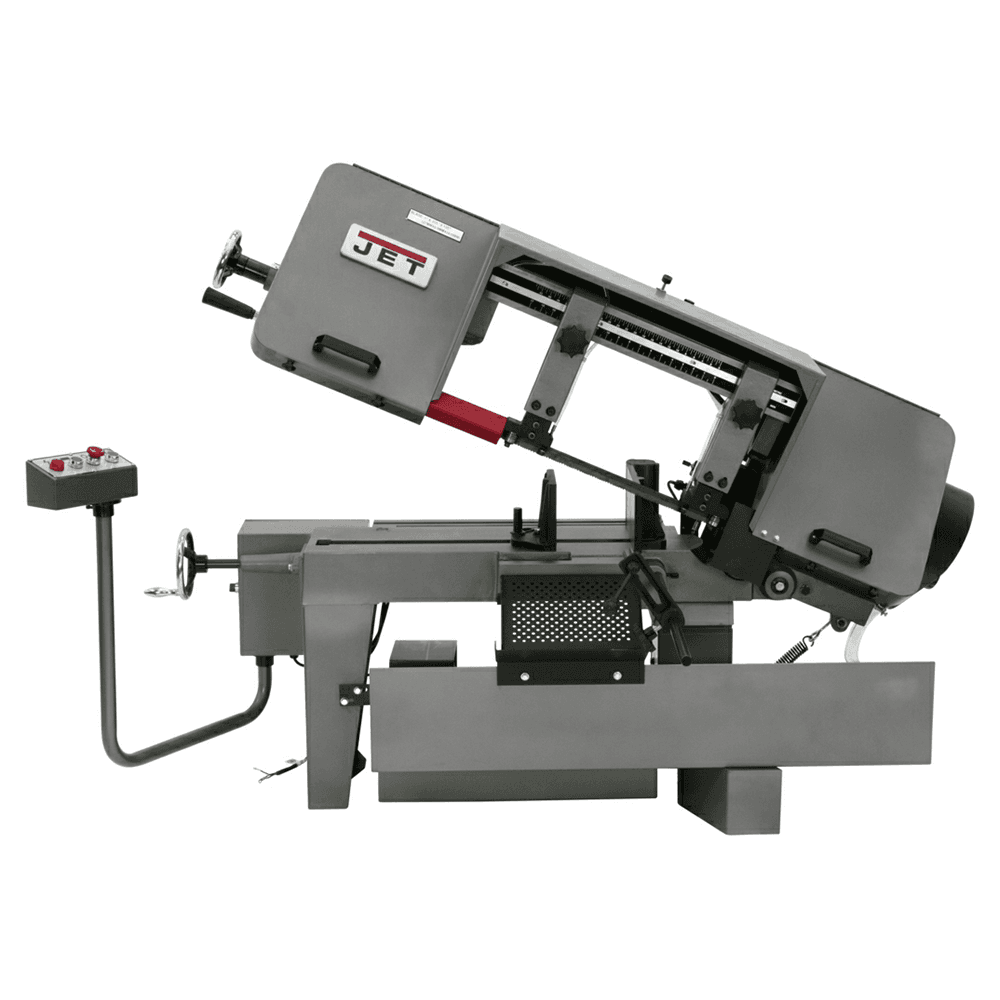

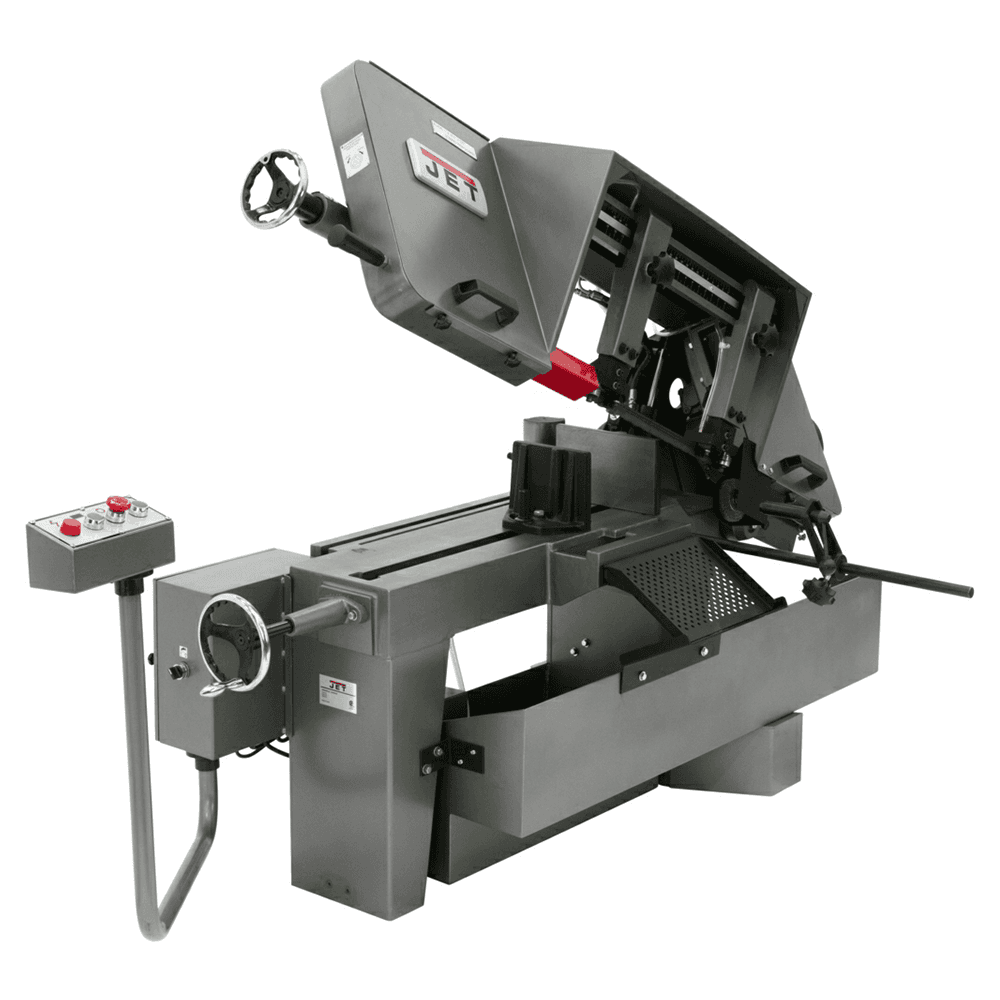

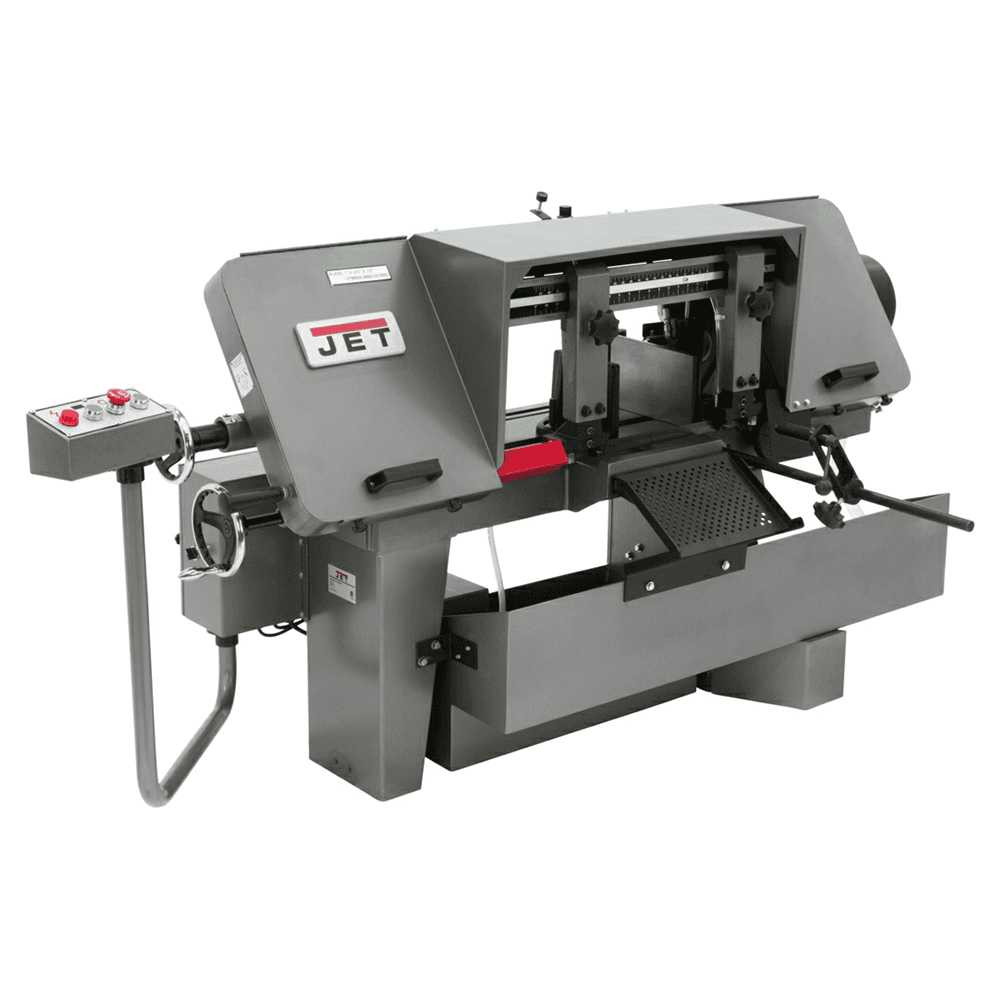

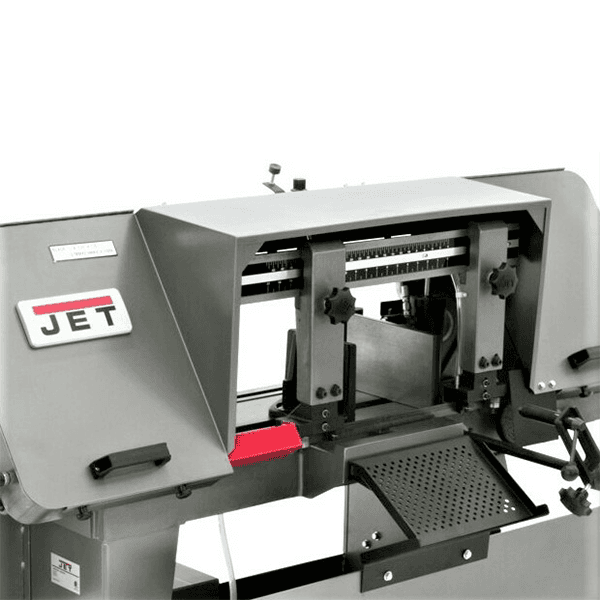

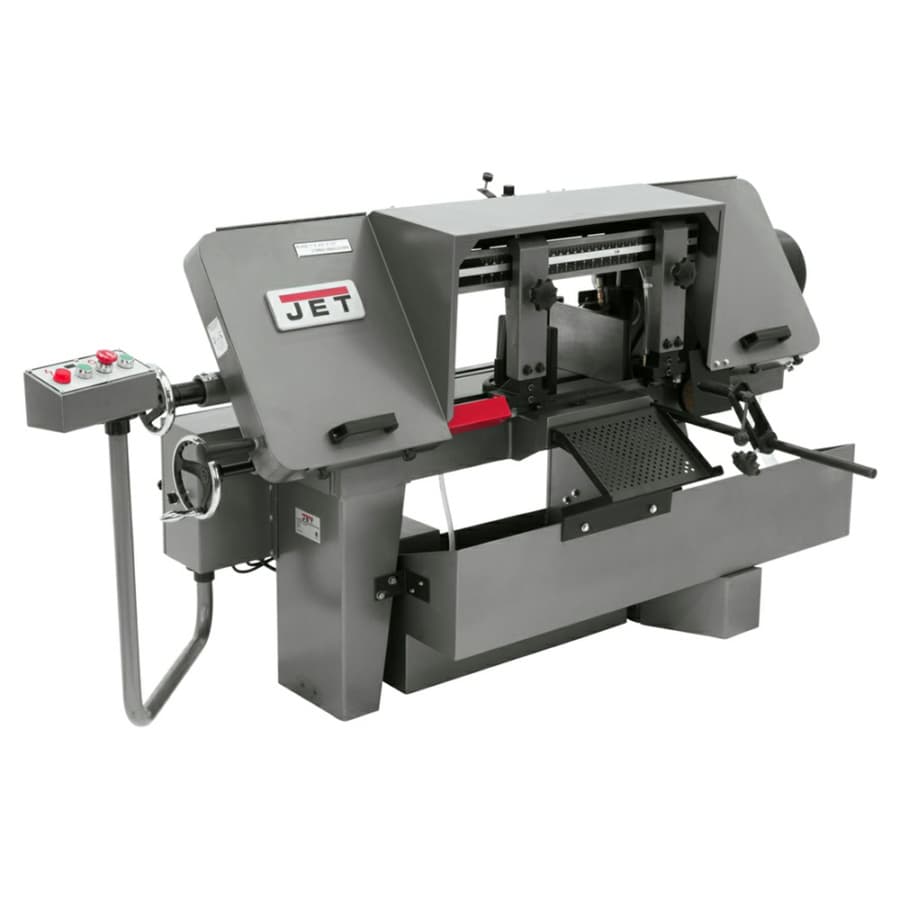

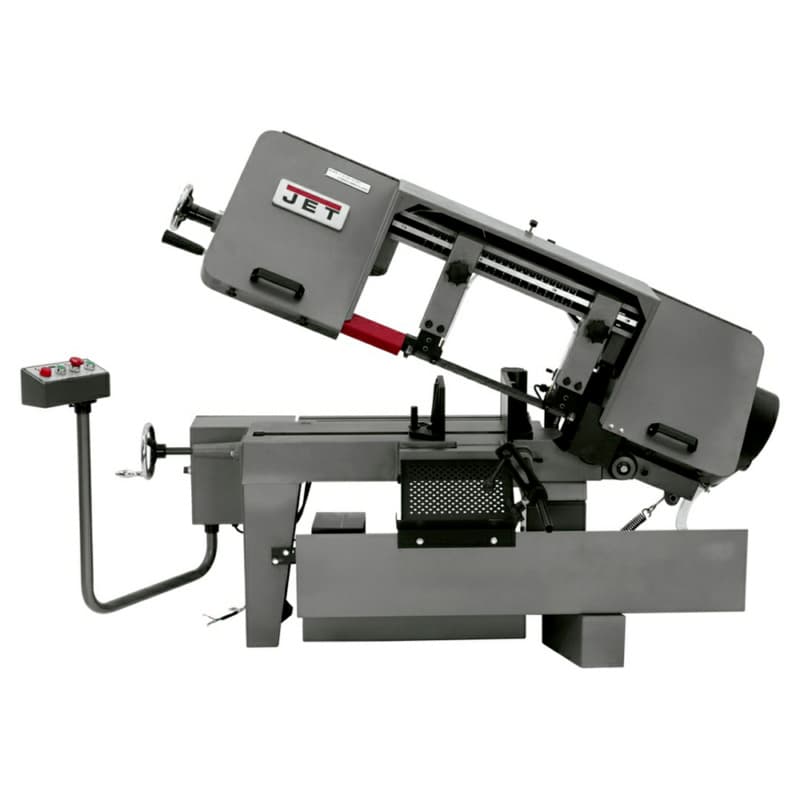

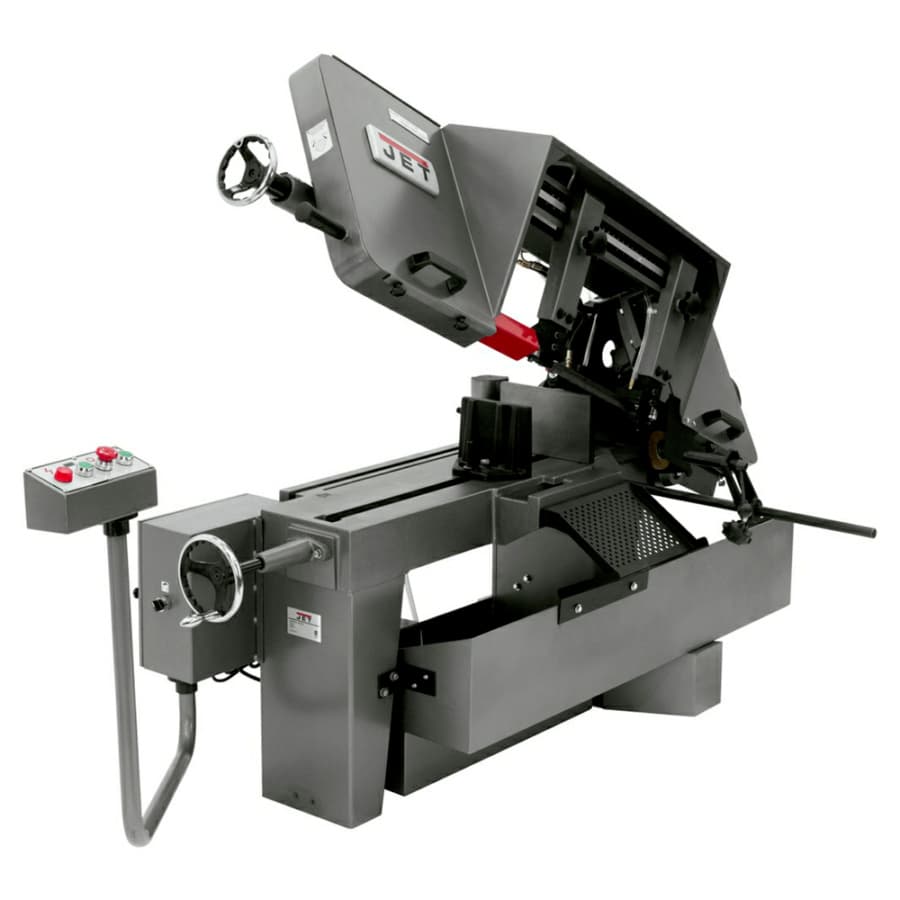

Jet Tools J-7040 10" x 16" Horizontal Band Saw, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

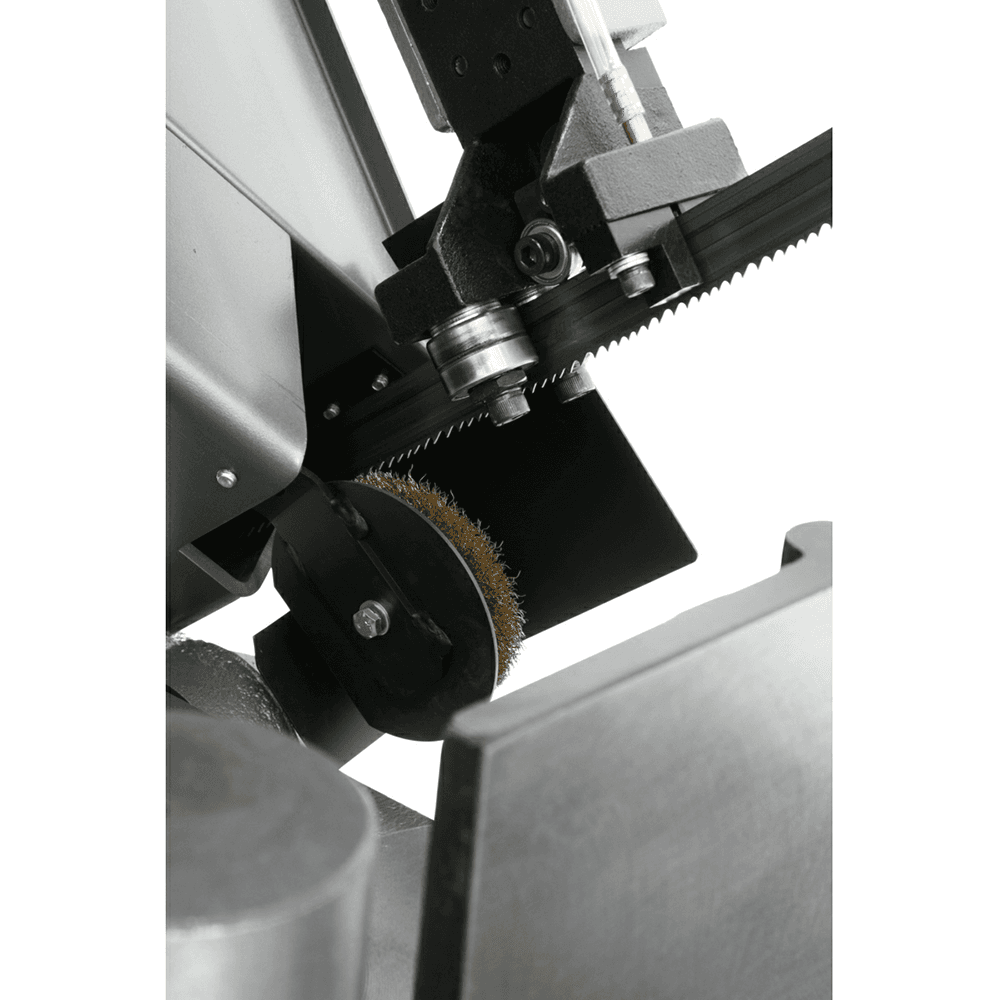

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged Jet saw enhance overall function and performance. Features: • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades • Adjustable material stop • Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath • Patented 3-Jaw vise with rapid action moveable jaw for faster set up • Swing away control panel houses major saw controls • Variable speed drive system
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 6-1/2" x 11" |
| Product Type | Manual & Semi-Automatic Horizontal Bandsaws |
| Prewired Voltage | |
| Overall Height | 41" |
| Overall Dimensions (L x W x H) | 75-1/2" x 33" x 41" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 10" x 10" and 7" x 16" |
| Round at 45 Degrees | 10" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 10" |
| Round at 60 Degrees | |
| Motor Power (HP) | 2 HP |
| Motor Phase | 3 |
| Blade Width | |
| Blade Wheel Diameter | 14" |
| Blade Speeds (SFPM) | 100 - 350 |
| Blade Speed (SFPM) | |
| Blade Size | 1" x .035" x 135" |
| Blade Length | 130" |
| Bed Height | 23-1/2" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | |
| Electrics | |
| Drive | Variable Speed |
| Cutting Capacity Width | 10" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 10" x 16" |
| Amperage |
