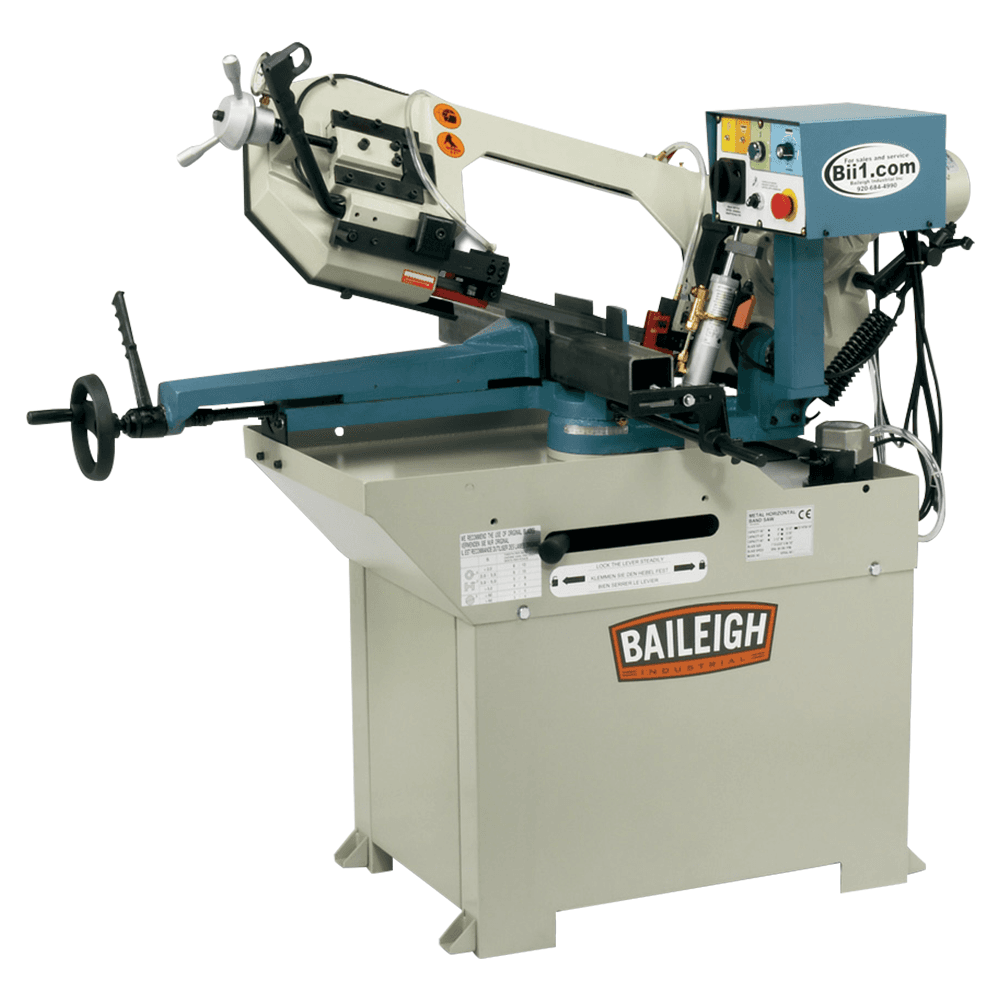

Baileigh BS-250M 2 HP Mitering Band Saw, 1 Phase/110V
Product Details

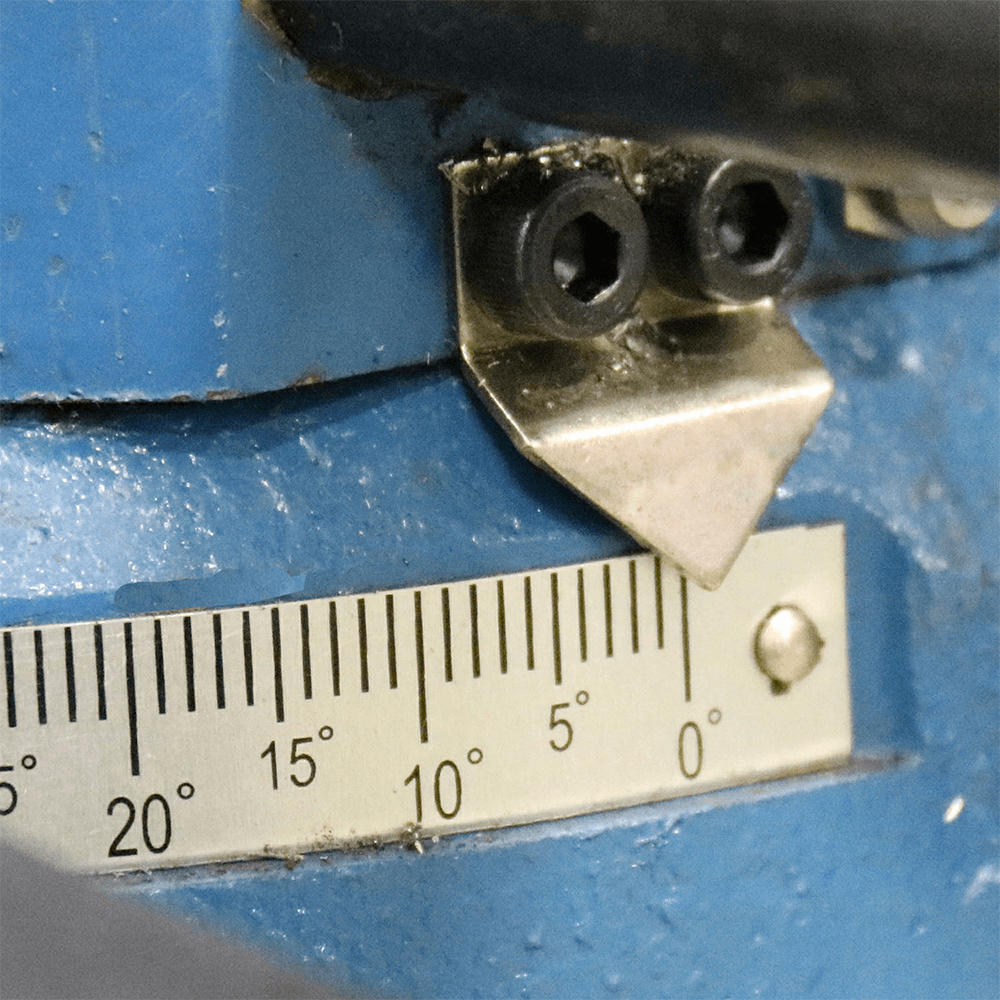

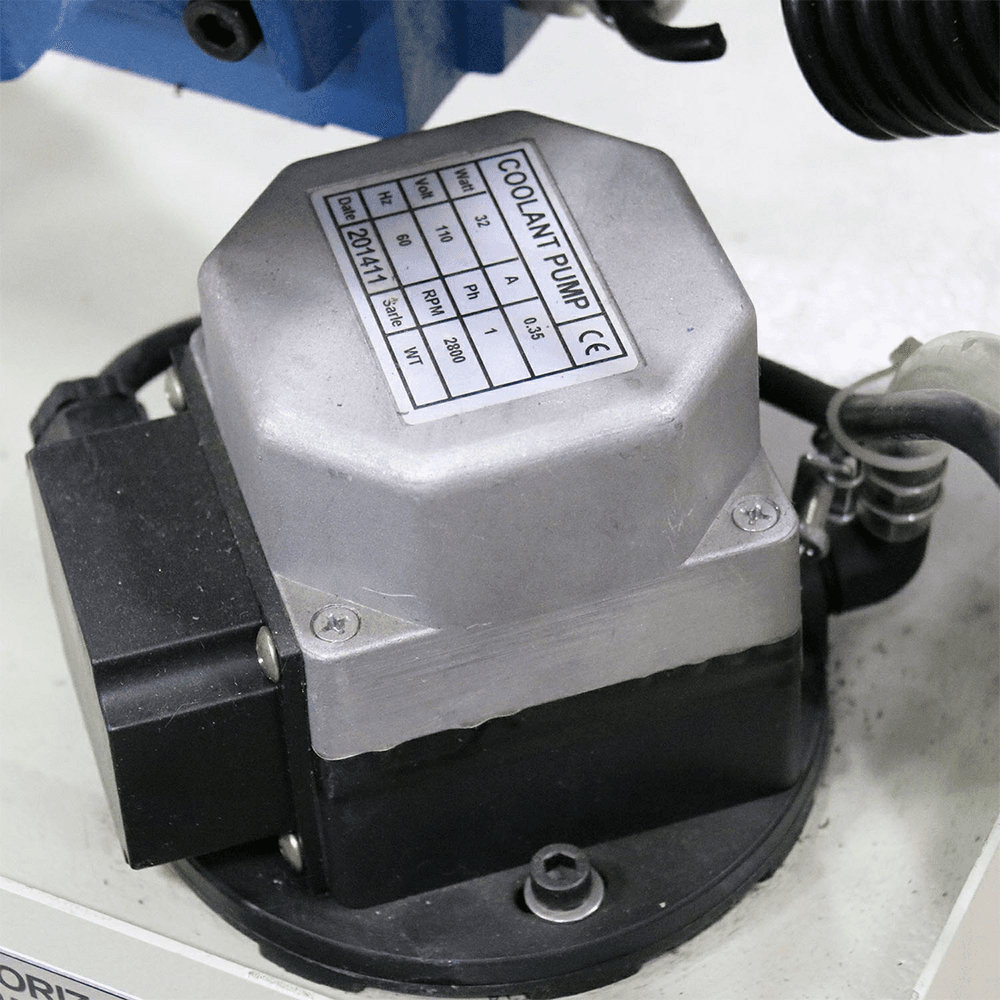

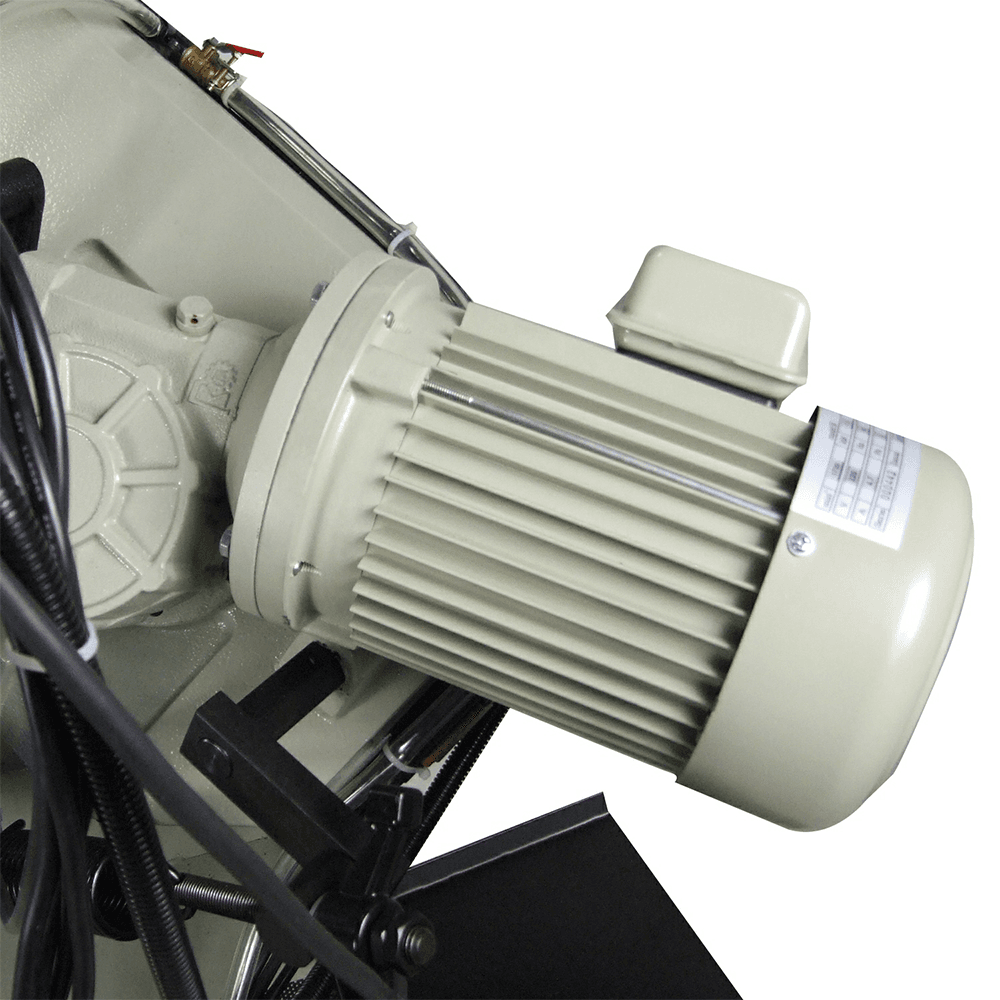

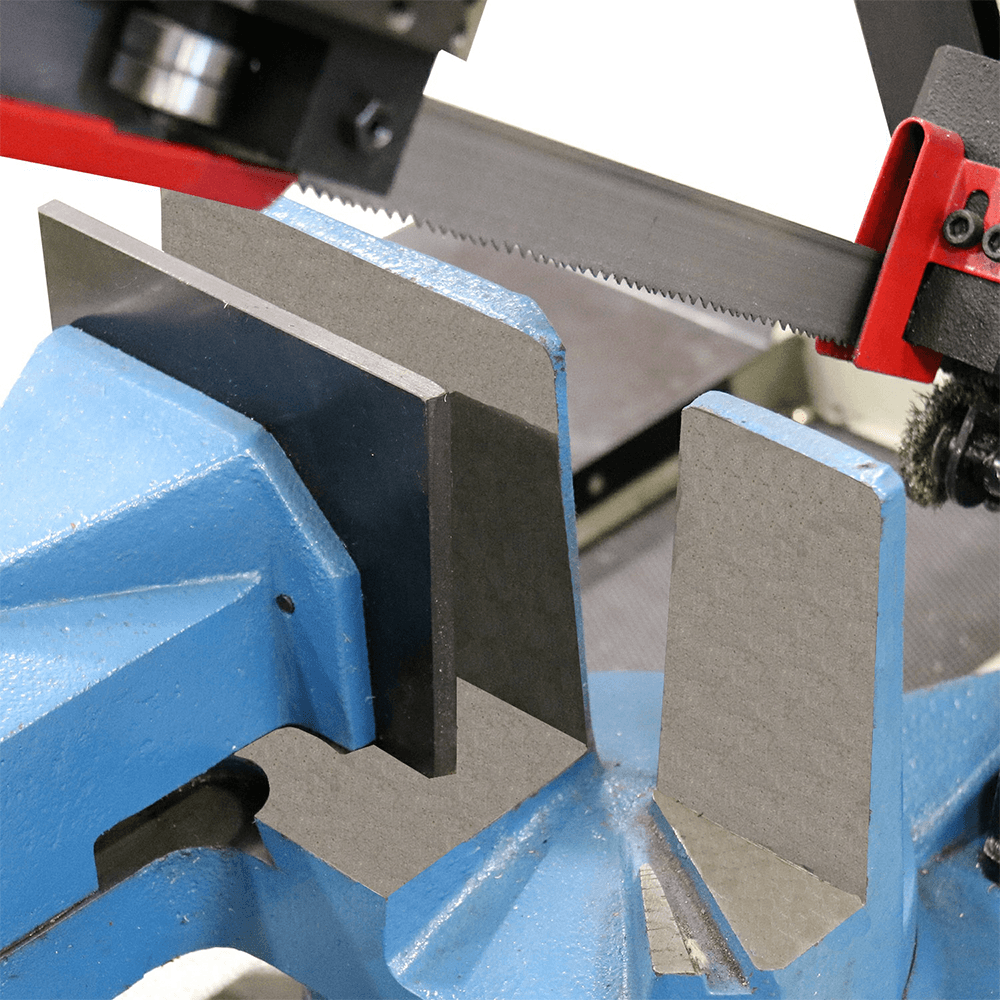

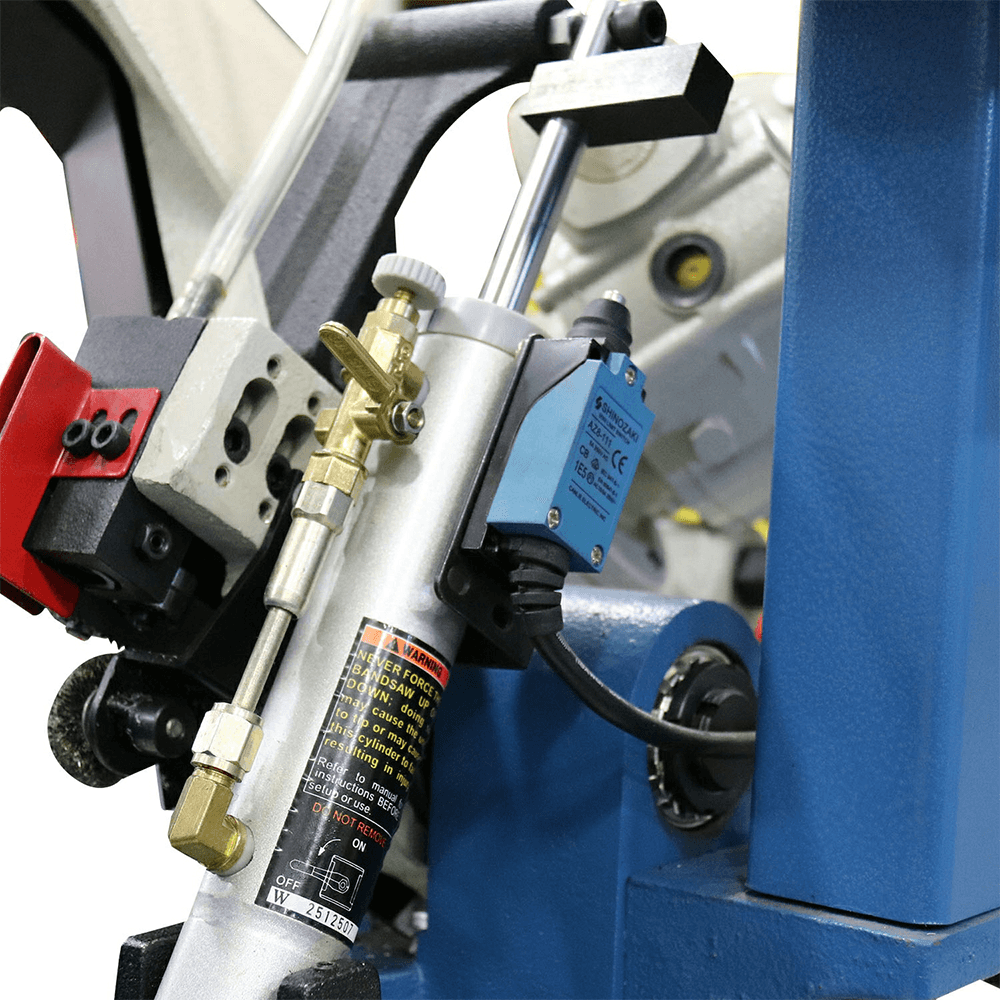

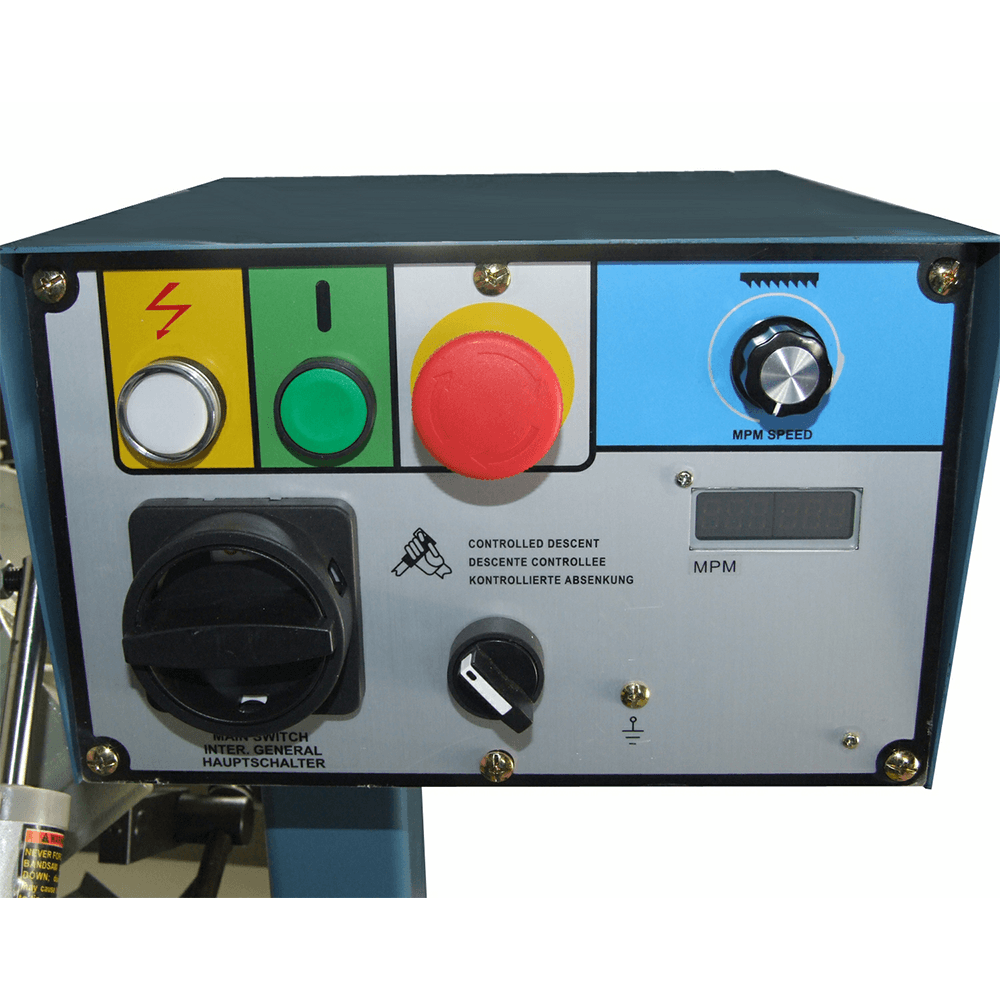

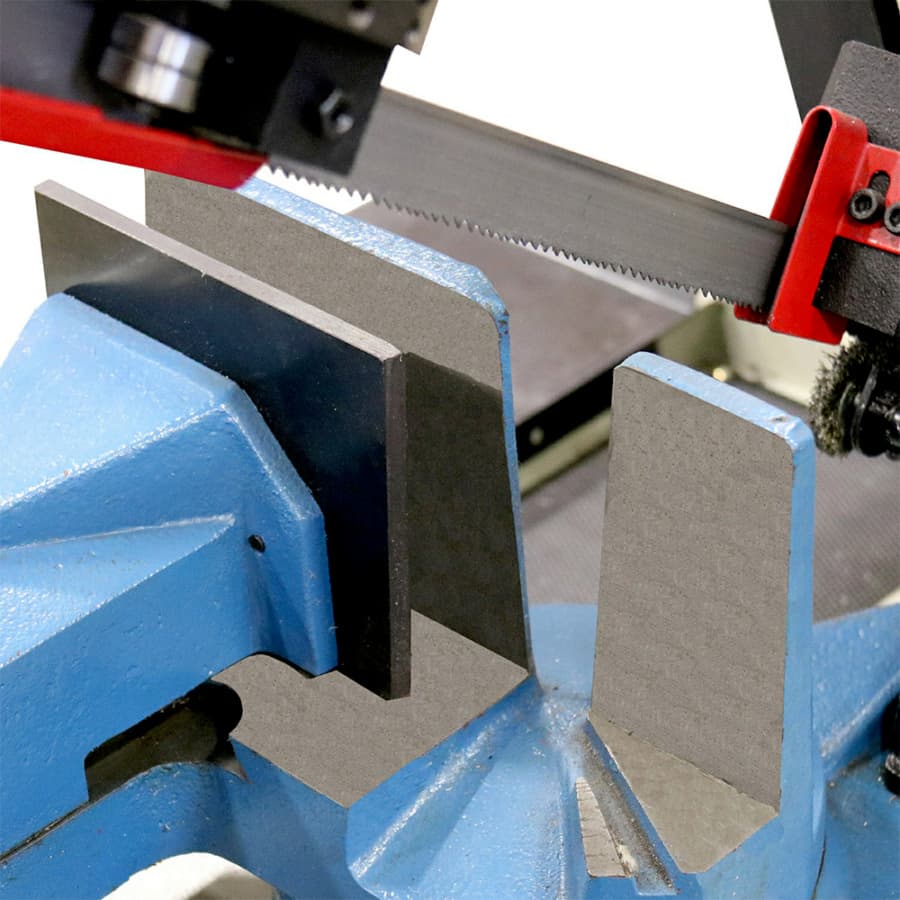

Does you cut a variety of materials and profiles. This single-miter horizontal band saw is a great investment. With a welded steel framework, the saw offers decades of precision. Features: • Runs on 110-volt single-phase power, so you can use it practically anywhere • Cuts up to 8.66" round metal stock at 90° and accepts a standard 1" blade • Swivel head miters up to 60° • Angle changes takes seconds-and the vise stays in place • Cast iron saw head and bow reduce vibrations and keep the saw accurate • Adjustable speed from 66 to 280 fpm for the blade and the material, increasing the blade life and decreasing costs • Patented blade tension device (a liquid-filled gauge) makes it easy to check the tension and correct it • An inverter drives the 2 hp motor through a gearbox, so there are no pulleys to adjust or belts to break! • 2 ways to operate this metal band saw: Manual descent and Hydraulic descent • Includes a powerful coolant pump that washes away metal chips, cools the blade teeth, and lubricates the blade, helping it last longer
Specifications
| Box Quantity | 1 |

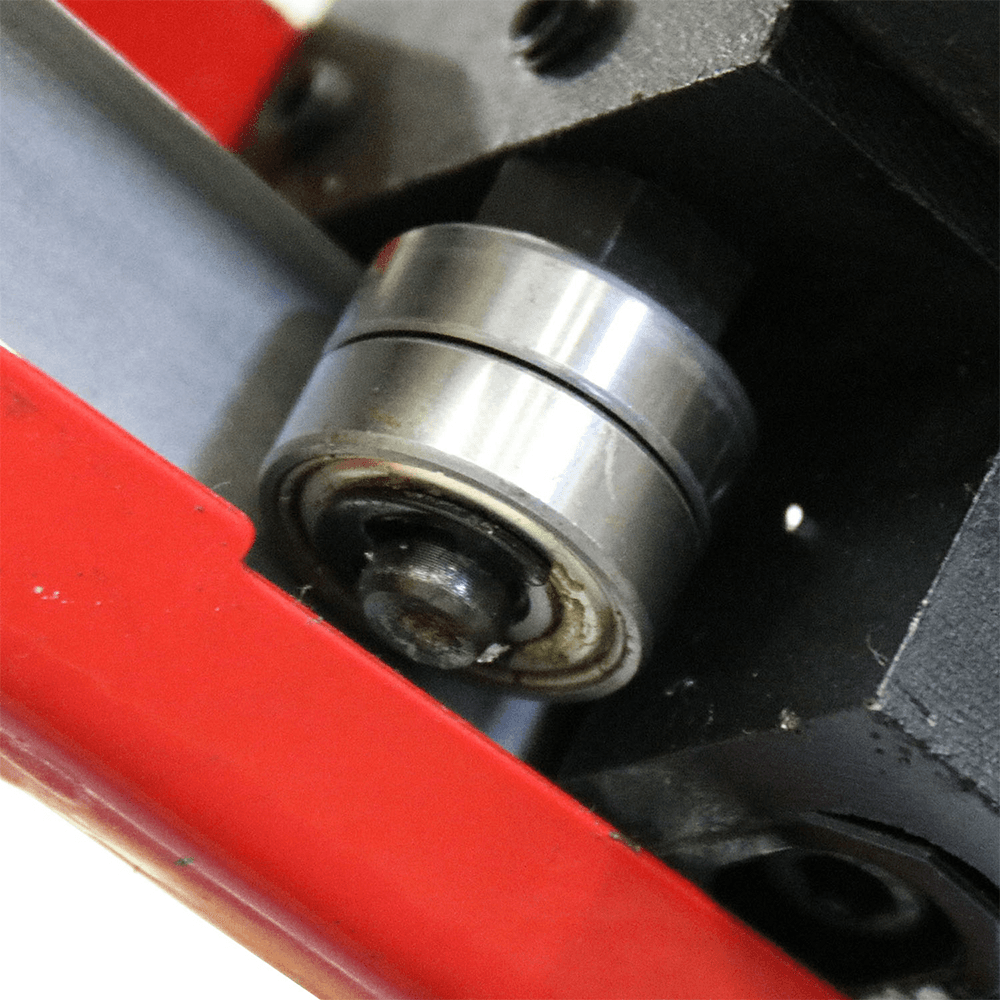

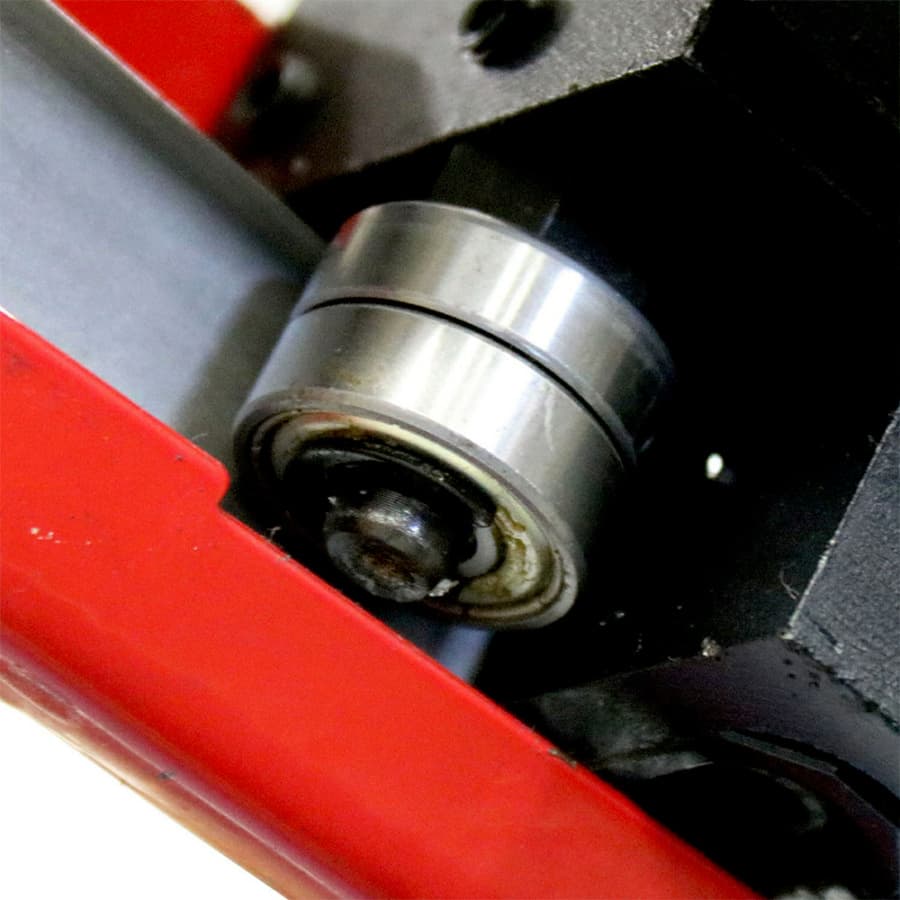

| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 110V |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 60° |
| Motor (HP) | High Torque 1.1Kw (AC) |
| Overall Dimensions (L x W x H) | |
| Product Type | Manual Band Saws |
| Rectangle at 90 Degrees | |
| Return | Manual |
| Short Description | 110V horizontal band saw 8.66" round capacity at 90° Swivel head miters 60° 1" blade width Variable speed : 66 to 280 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 33.07" |
| Drive | Gear |
| Descent Control | Hydraulic |
| Blade Speeds (SFPM) | 66 - 280 Variable |
| Capacity Rectangular 90 X 45 | 10.23" x 4.33" |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | |
| Capacity Round 90 X 45 X 60 | 8.66" / 6" / 3.5" |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | 8.46" / 5.875" / 3.375" |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Swivel Head |
