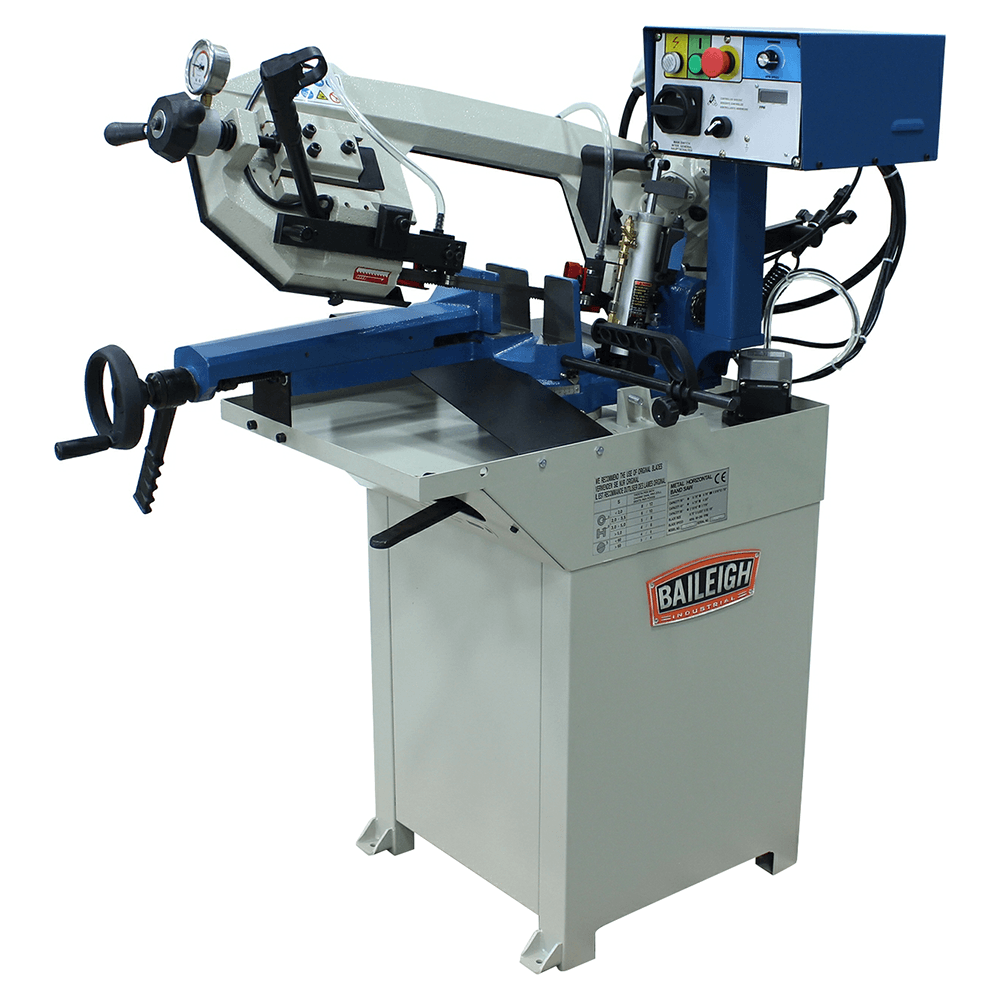

Baileigh BS-210M 1 HP Horizontal Band Saw, 1 Phase/110V
Product Details

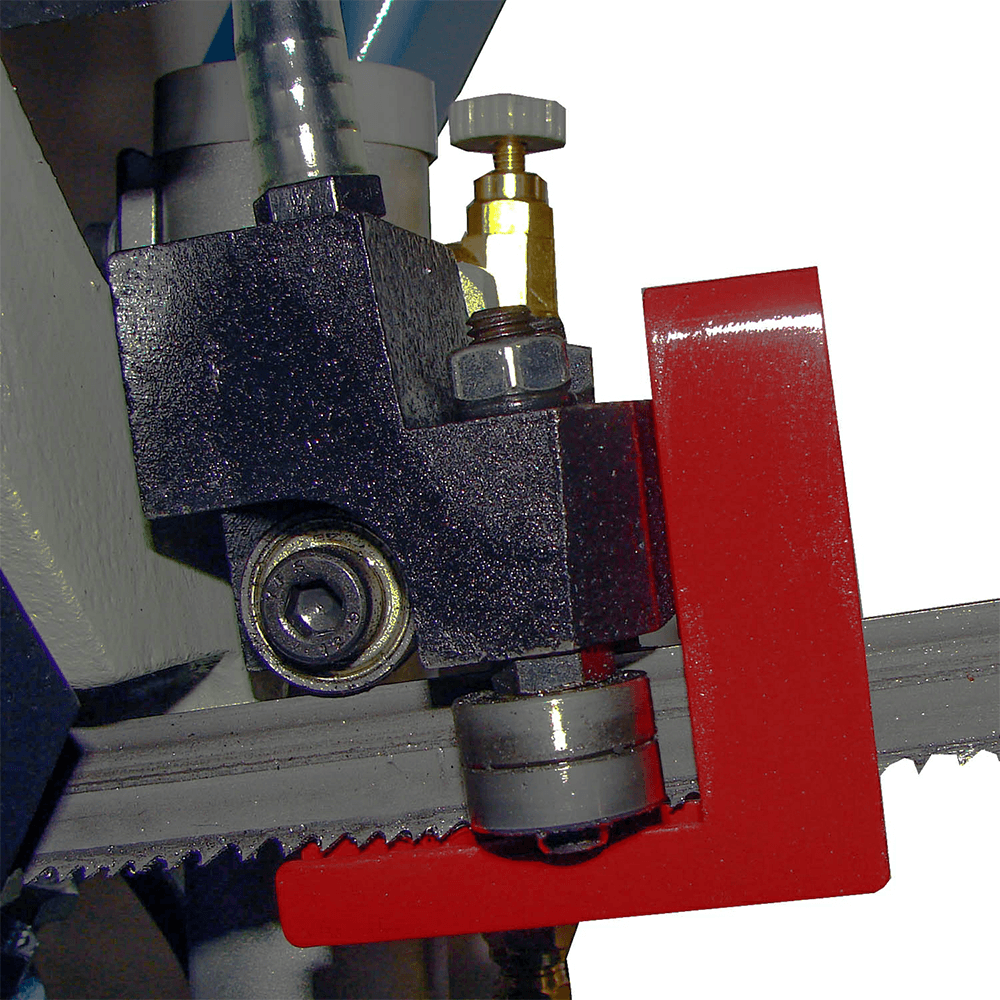

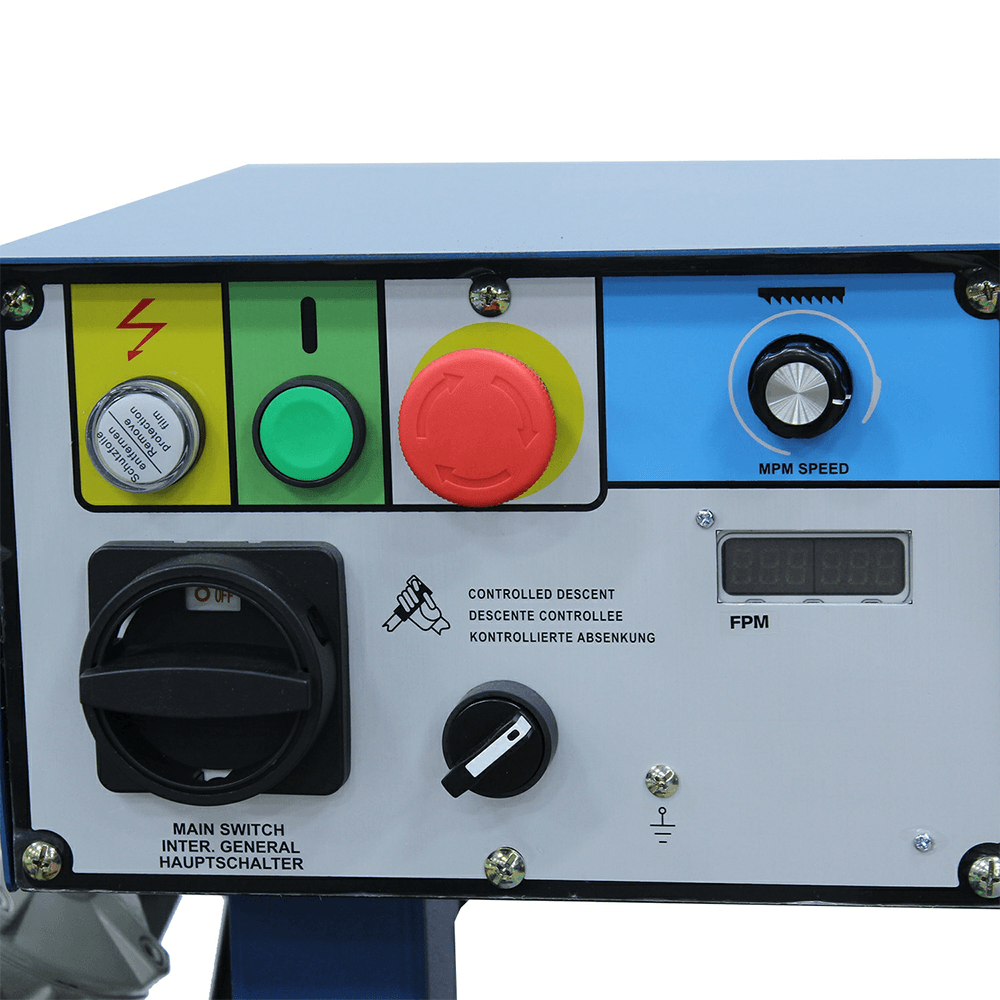

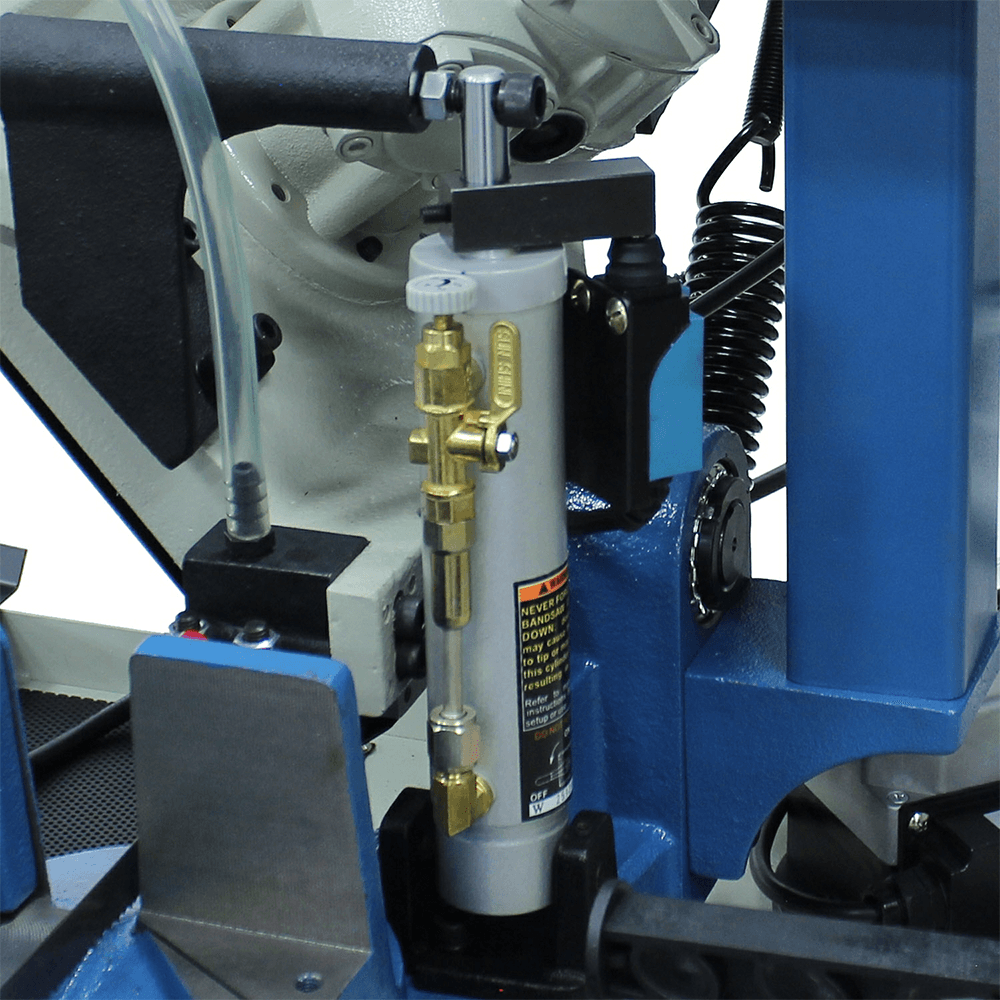

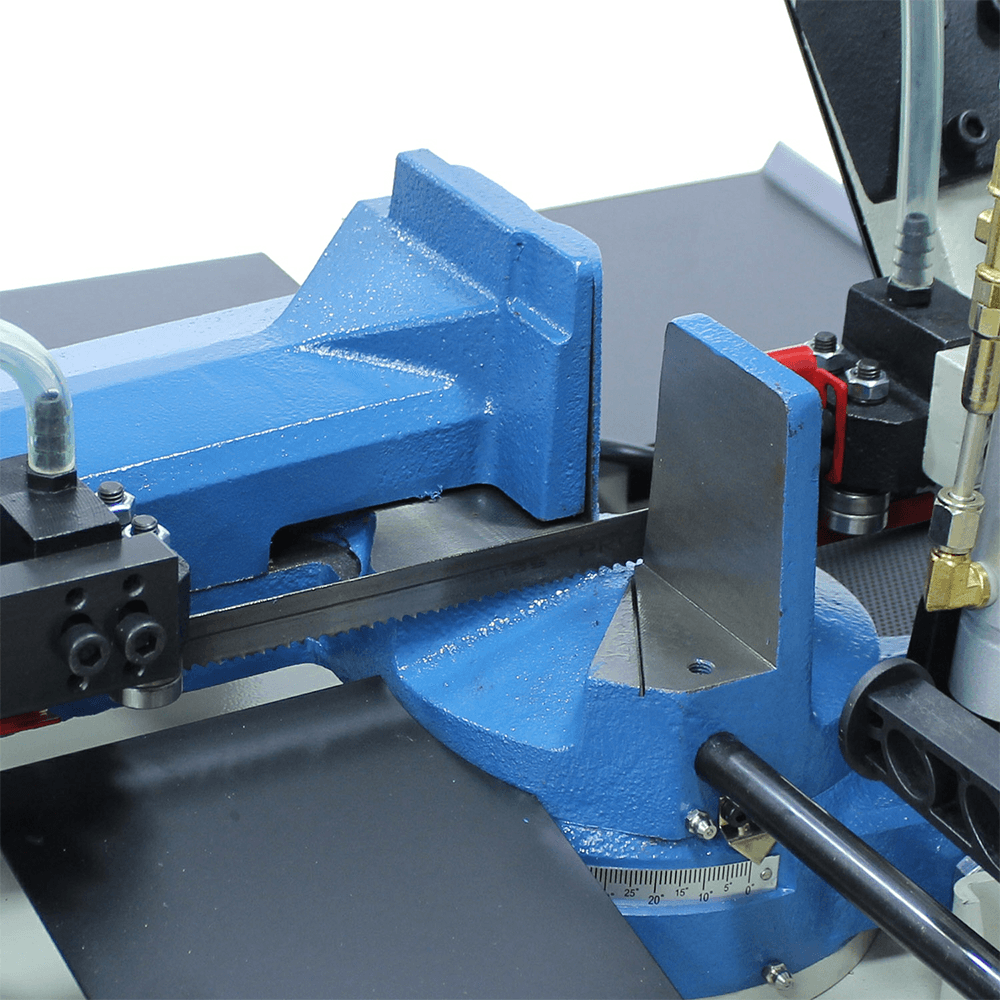

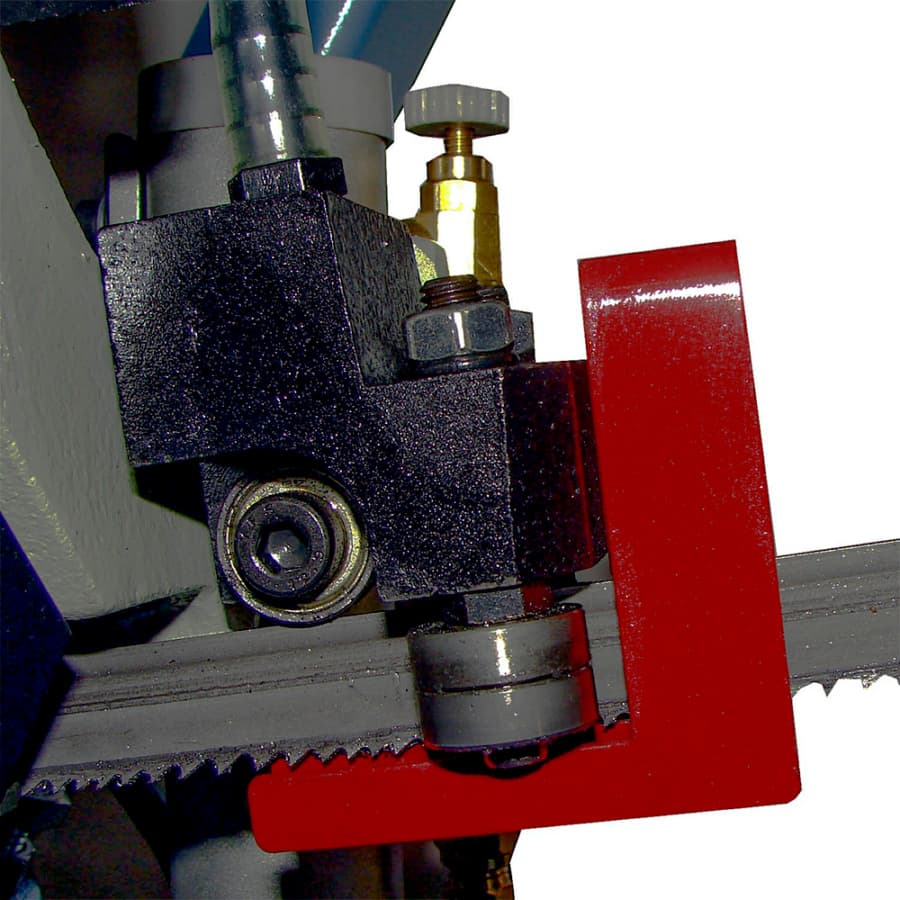

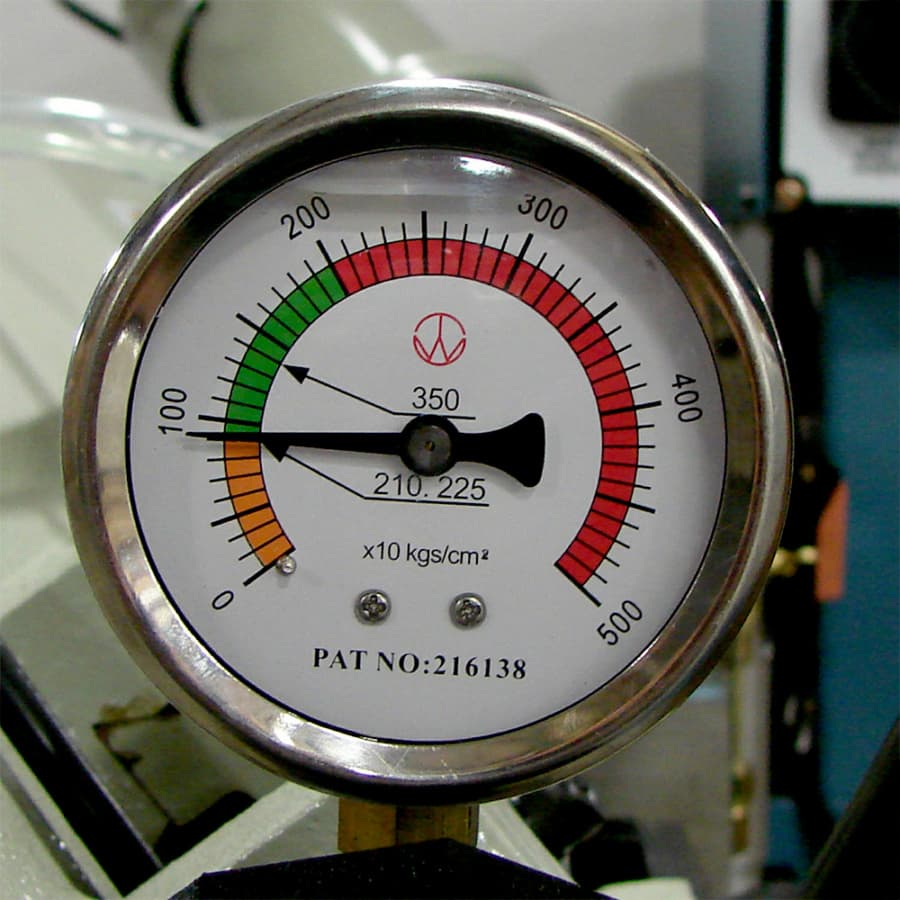

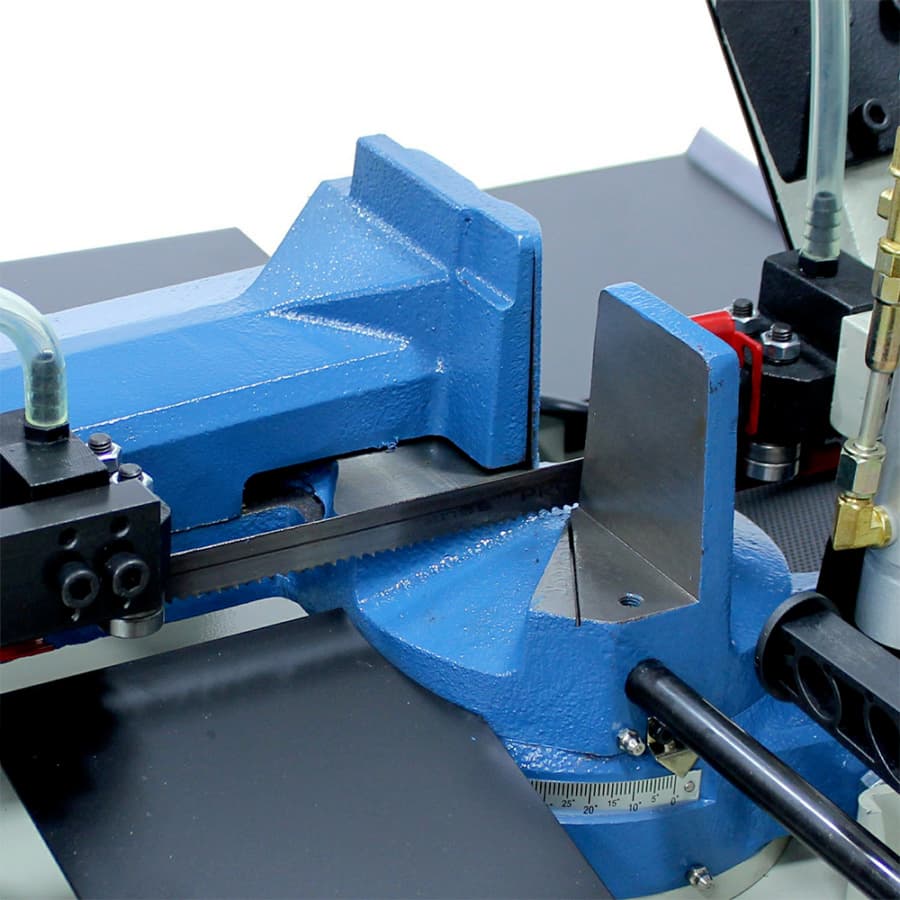

You can control the descent of the BS-210M horizontal band saw in 2 ways: manually (with a trigger switch) or with a hydraulic descent features-usually seen only on more expensive models. Order this industrial horizontal band saw today! Features: • 1 hp motor requires only 110 volts to run, so you can use it anywhere • 6.692" round maximum capacity at 90° with standard .75" blades • Swivel head miters up to 60° and doesn't compromise the holding power of the vise • Cast iron saw head and bow reduce vibrations and help to produce clean, accurate cuts • You can adjust the infinitely variable blade speed from 66 to 280 fpm, controlled by an inverter, to produce quality cuts and prolong blade life. • Adjustable blade guides, attached to sealed ball bearings, get as close to the material as possible to keep alignment straight and prolong blade life • Control the hydraulic descent pressure and choose the right speed to make a perfect cut for a given application • The blade will automatically stop once it's done cutting the metal, so there is no need to monitor the machine • Fully welded steel plate frame stabilizes the machine and gives it the structural strength to cut at maximum capacity without straining • With a good mix of features at an economical price, this horizontal metal bandsaw is ideal for small-to-medium machine shops or even garage or home shops
Specifications
| Box Quantity | 1 |
| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 110V |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 60° |
| Motor (HP) | High Torque .75Kw (AC) |
| Overall Dimensions (L x W x H) | |
| Product Type | Manual Band Saws |
| Rectangle at 90 Degrees | 8.26" x 6.69" |
| Return | Manual |
| Short Description | 110V 1-phase power 6.692" round capacity at 90° Swivel head miters up to 60° 0.75" blade width Variable speed : 66 to 280 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 35.1" |
| Drive | Gear |
| Descent Control | Hydraulic |
| Blade Speeds (SFPM) | 66 - 280 Variable |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | |
| Capacity Round 90 X 45 X 60 | 6.692" / 4.724" / 2.755" |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | 6.692" / 4.375" / 2.44" |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Swivel Head |
