Baileigh BS-260M Gear Driven Band Saw, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

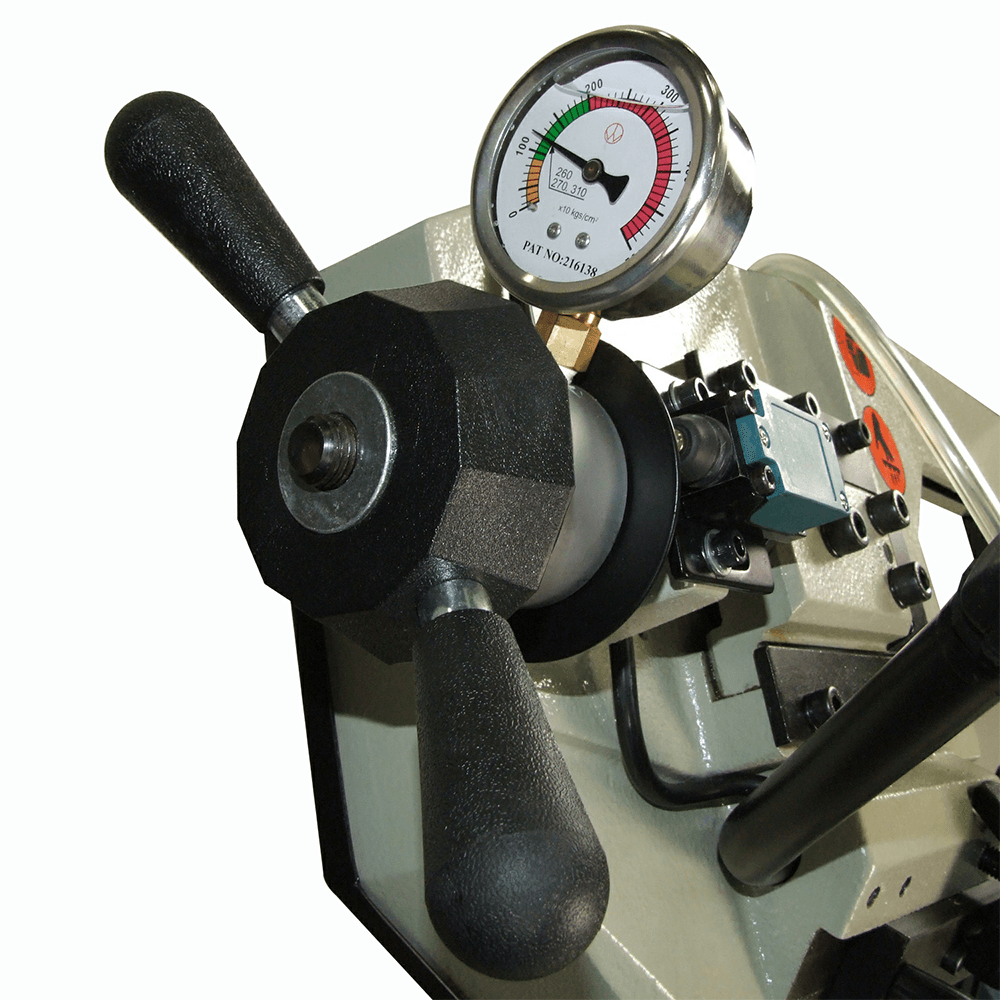

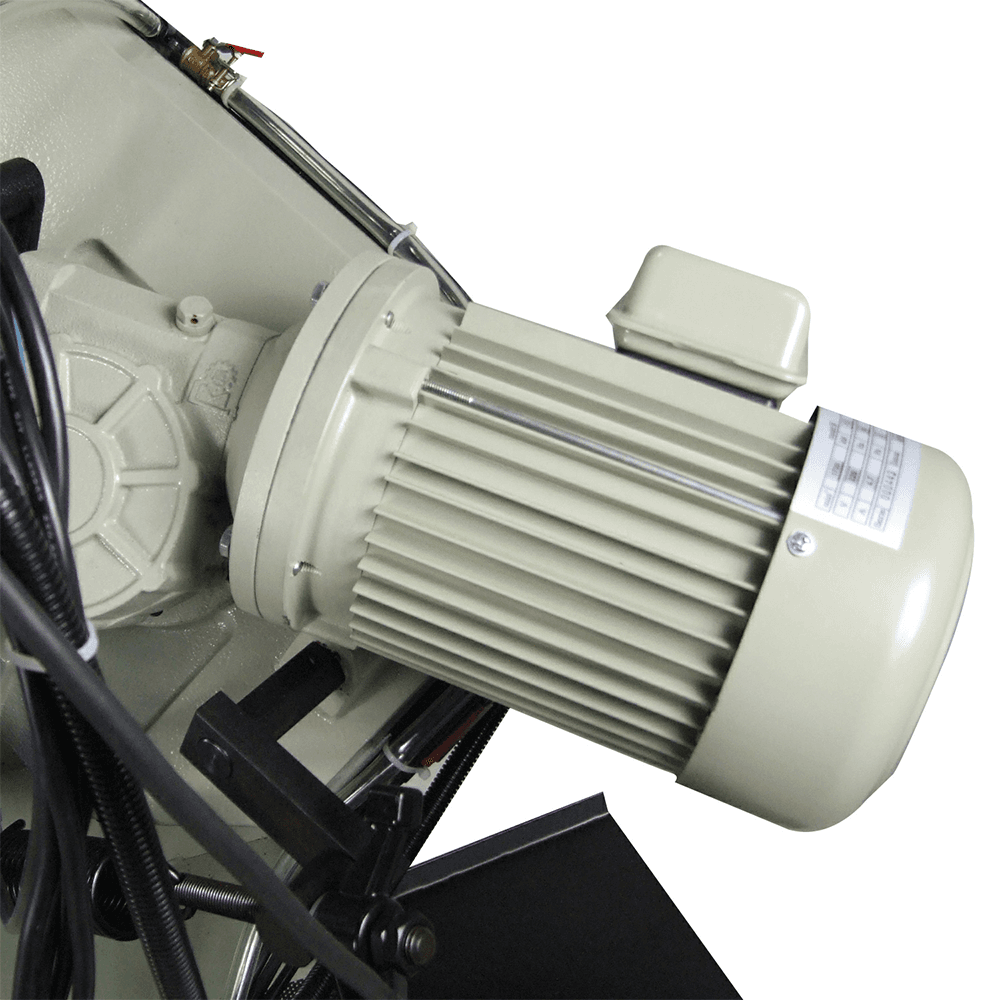

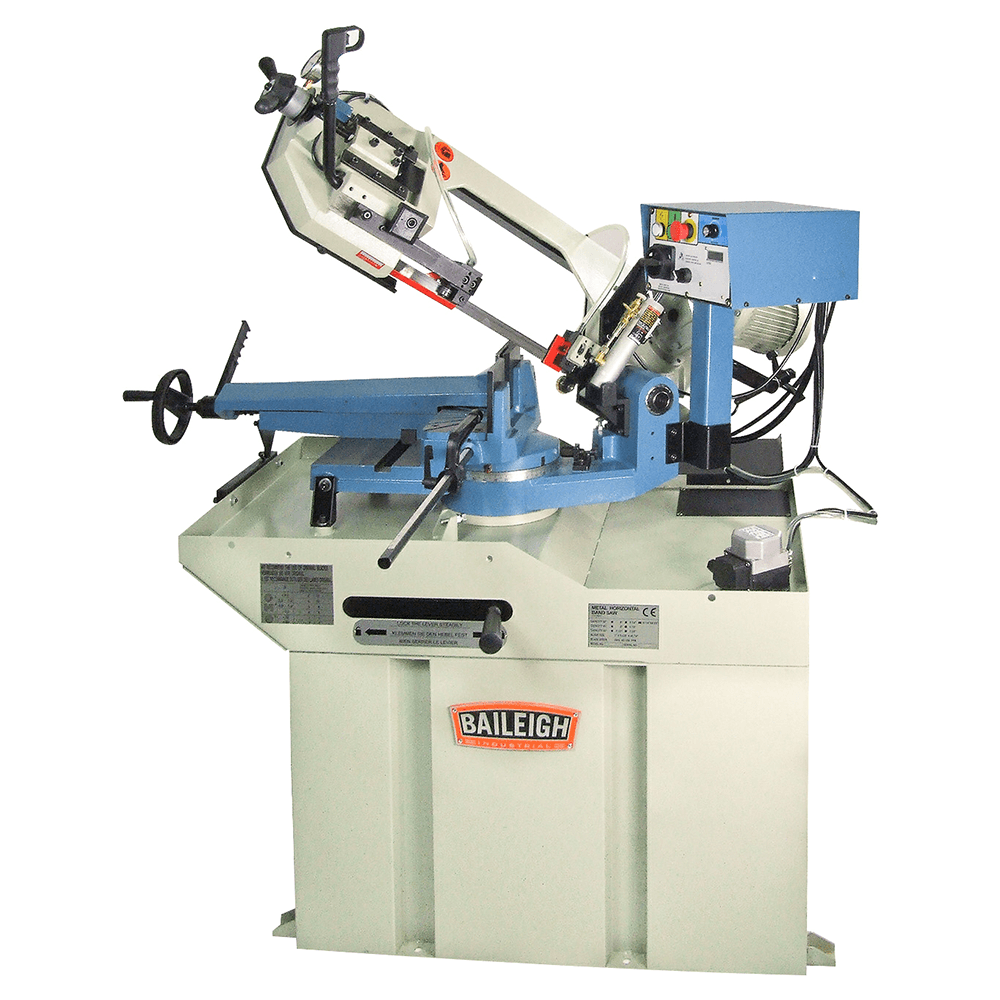

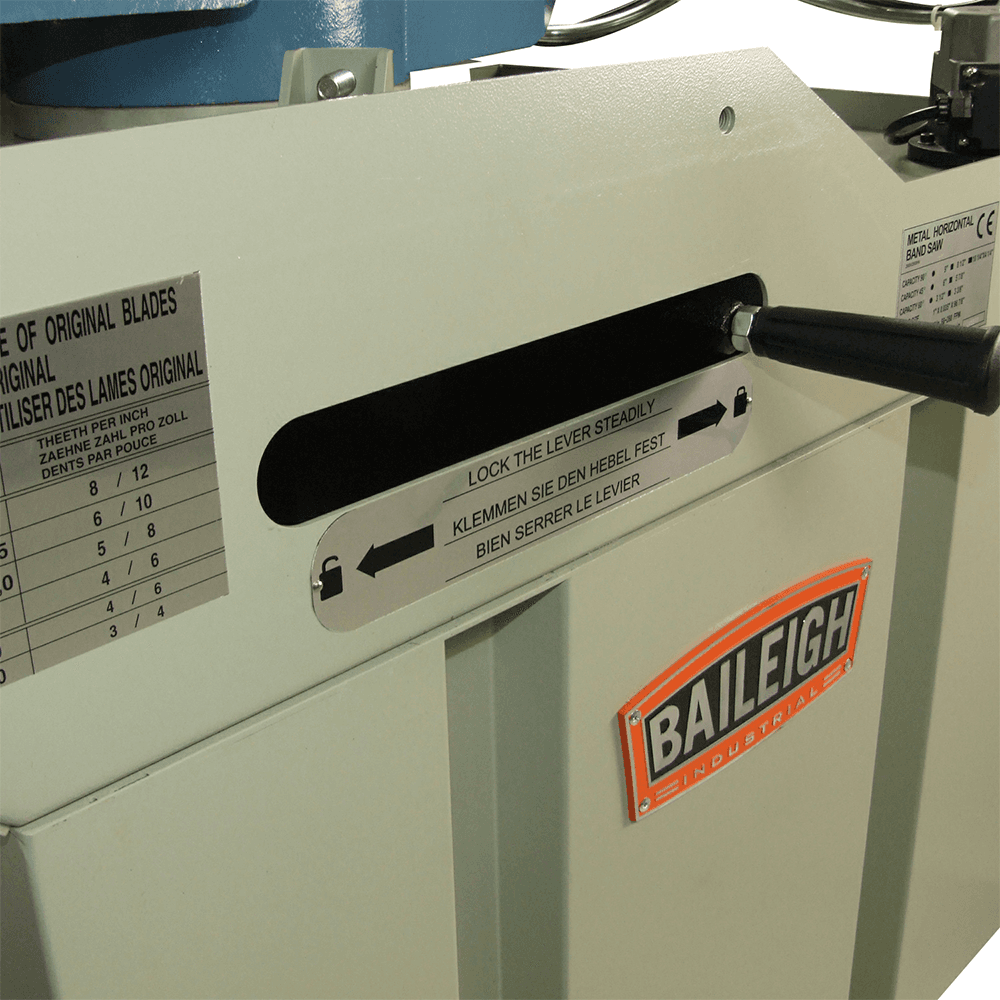

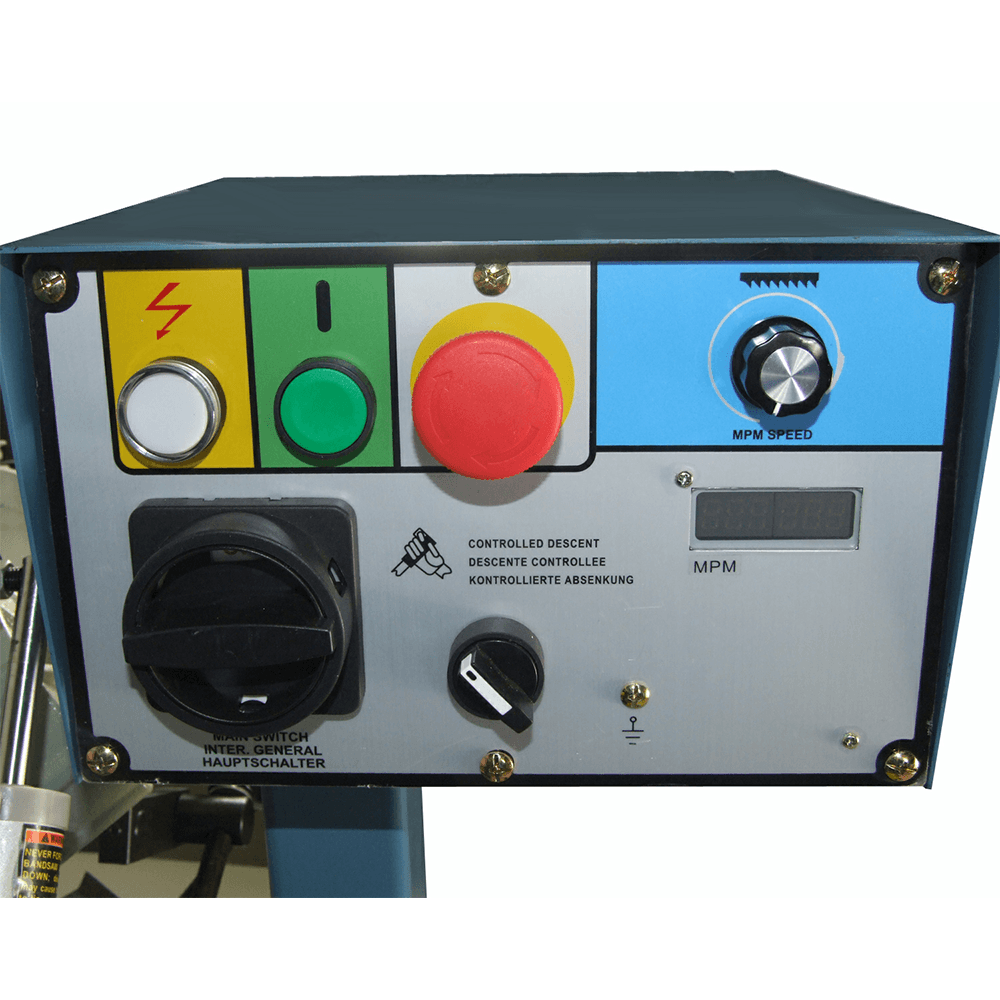

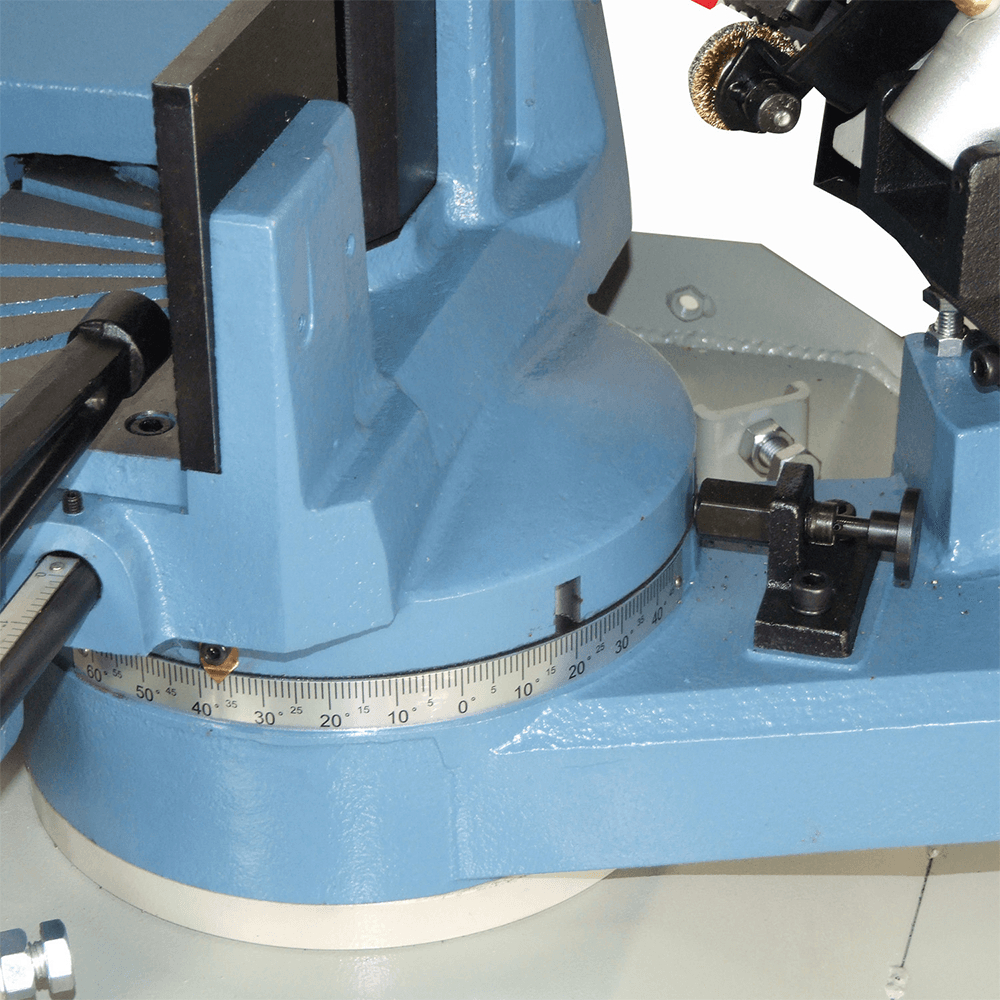

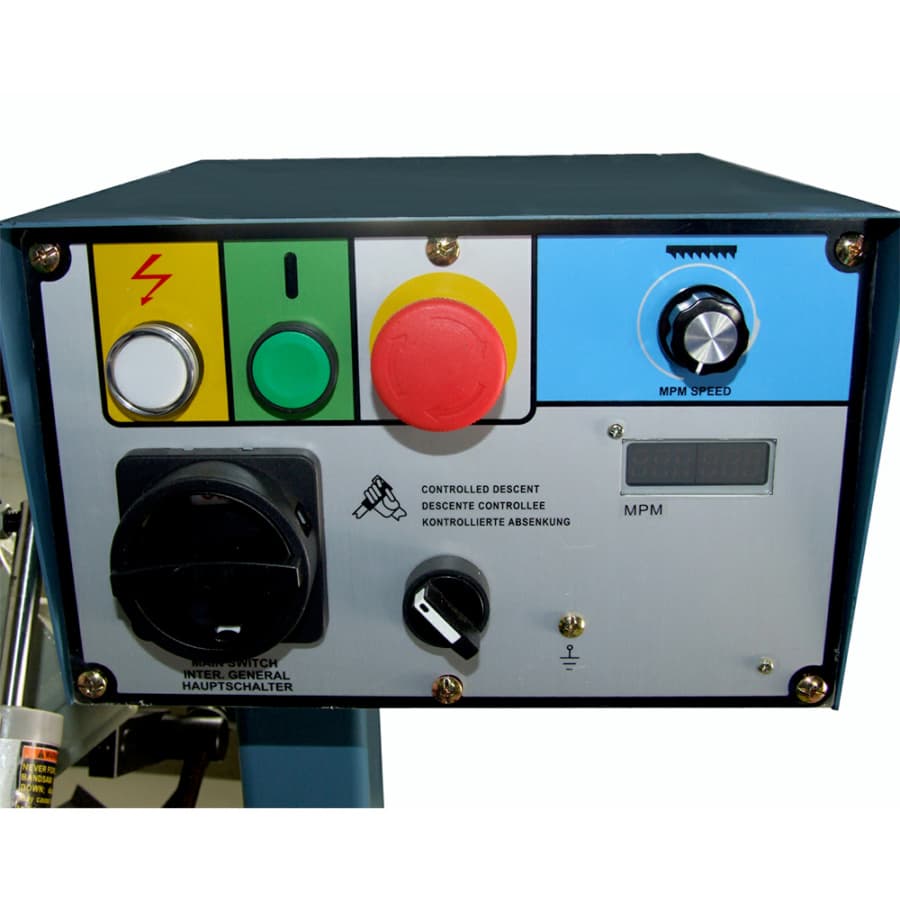

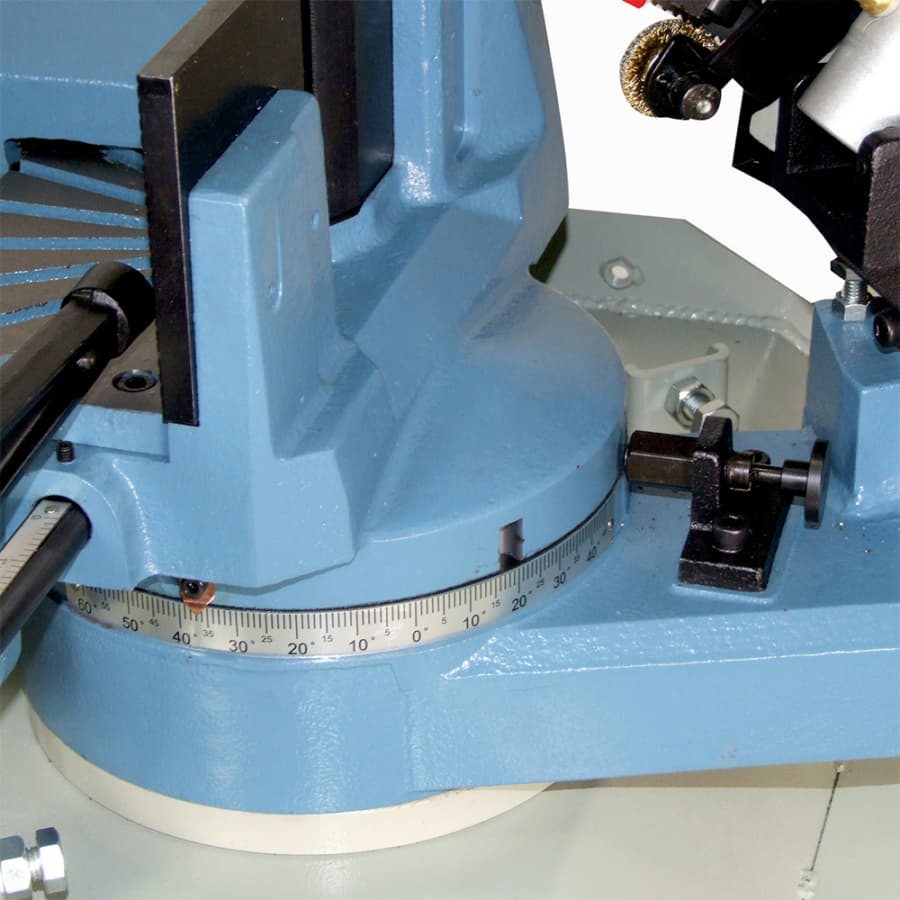

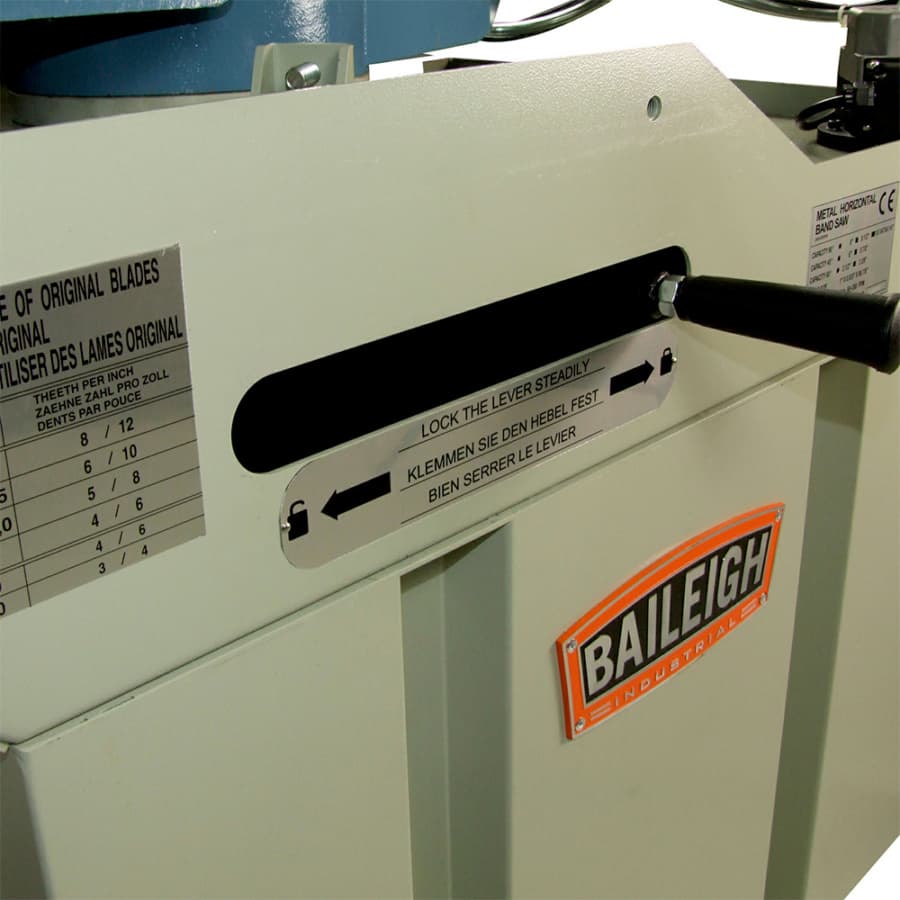

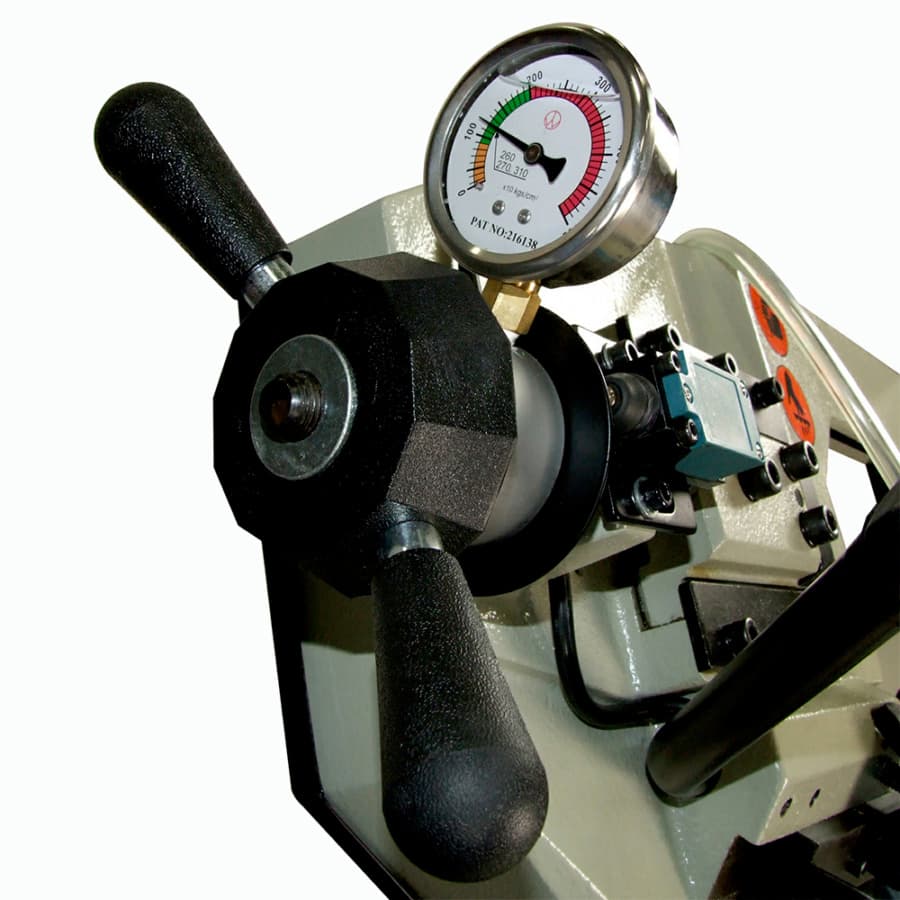

The gear-driven BS-260M industrial band saw is one of the most versatile saws on the market. An AC inverter for speed control runs on 220-volt single-phase power. Use it almost anywhere! • Capacity of 8.66" round at 90° • Dual-mitering head swivels up to 60° to the right and up to 45° to the left • Change the miter angle in seconds with the quick-release head lock • Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration • Accepts standard 1" blades • 8 precision ball bearings keep the blade in line • Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks • You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material • Direct-drive gearbox design saves you time in the long run-no pulleys to adjust or belts to break!
2 Operating Modes:

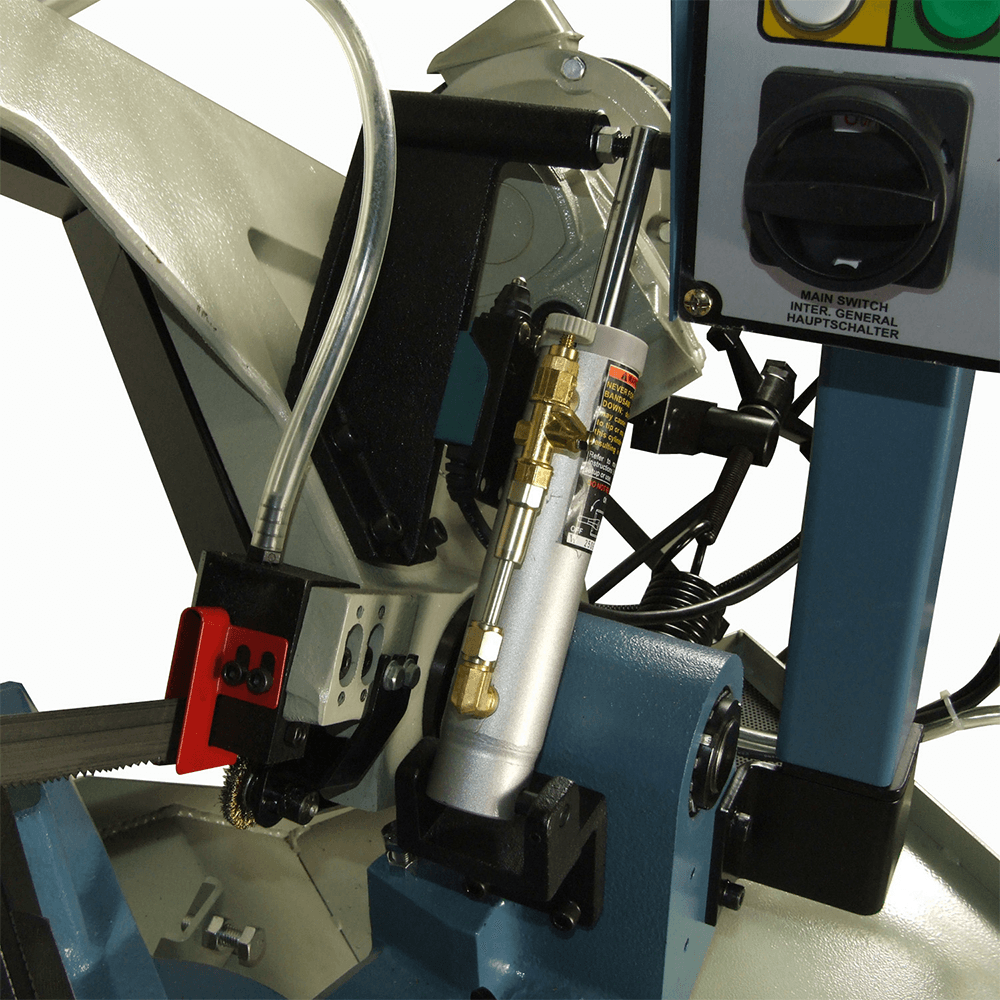

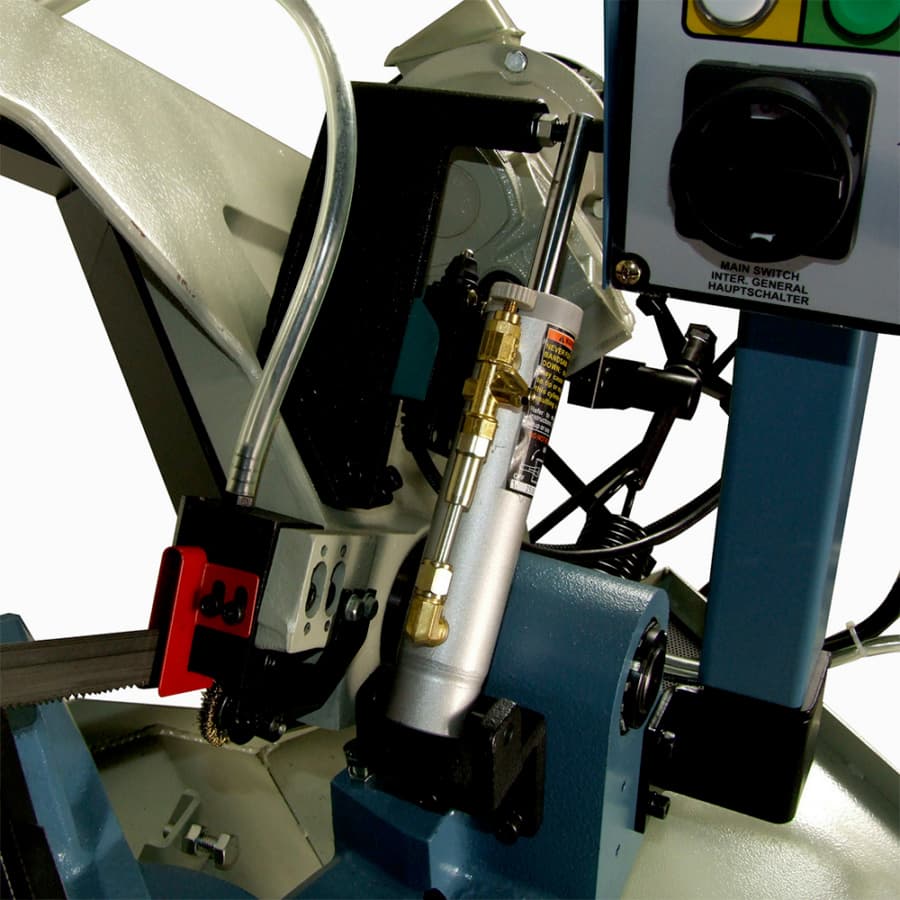

• Manual descent mode for small production runs: Turn on the machine via the trigger switch, then manually guide the material. Perfect for small-to-medium-sized shops • Hydraulic descent for larger production runs: Increases blade life and reduces operator fatigue. The hydraulic descent has a down feed adjustment for feed pressure • Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life • Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades • Baileigh covers this small horizontal band saw with a 1-year parts warranty • We typically keep all replacement parts in stock for fast deliveries Features: • Capacity of 8.66" round at 90° and accepts standard 1" blades • Dual-mitering head swivels up to 60° to the right and up to 45° to the left. Change the miter angle in seconds with the quick-release head lock • Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration • 8 precision ball bearings keep the blade in line • Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks • You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material • Direct-drive gearbox design saves you time in the long run-no pulleys to adjust or belts to break! • 2 operating modes: Manual descent mode for small production runs and Hydraulic descent for larger production runs • Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life • Fully welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decadesSpecifications
| Box Quantity | 1 |
| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 220V 1-Phase |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 60°, 45°L |
| Motor (HP) | High Torque 1.1Kw (AC) |
| Overall Dimensions (L x W x H) | |
| Product Type | Manual Band Saws |
| Rectangle at 90 Degrees | |
| Return | Manual |
| Short Description | 220V 1-phase power 8.66" round capacity at 90° Head swivels 60° right and 45° left 1" blade width Variable speed : 66 to 280 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 35" |
| Drive | Gear |
| Descent Control | Hydraulic |
| Blade Speeds (SFPM) | 66 - 280 Variable |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | 8.66" / 5.9" / 3.5" / 5.31" |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | 8.46" / 5.7" / 3.34" / 4.33" |
| Chip Removal | |
| Type of Miter Adjustment | Dual Swivel Head |
