Baileigh BS-712MS 1 HP Horizontal/Vertical Band Saw, 1 Phase/120V
This item may incur additional shipping costs and lead times.
Product Details

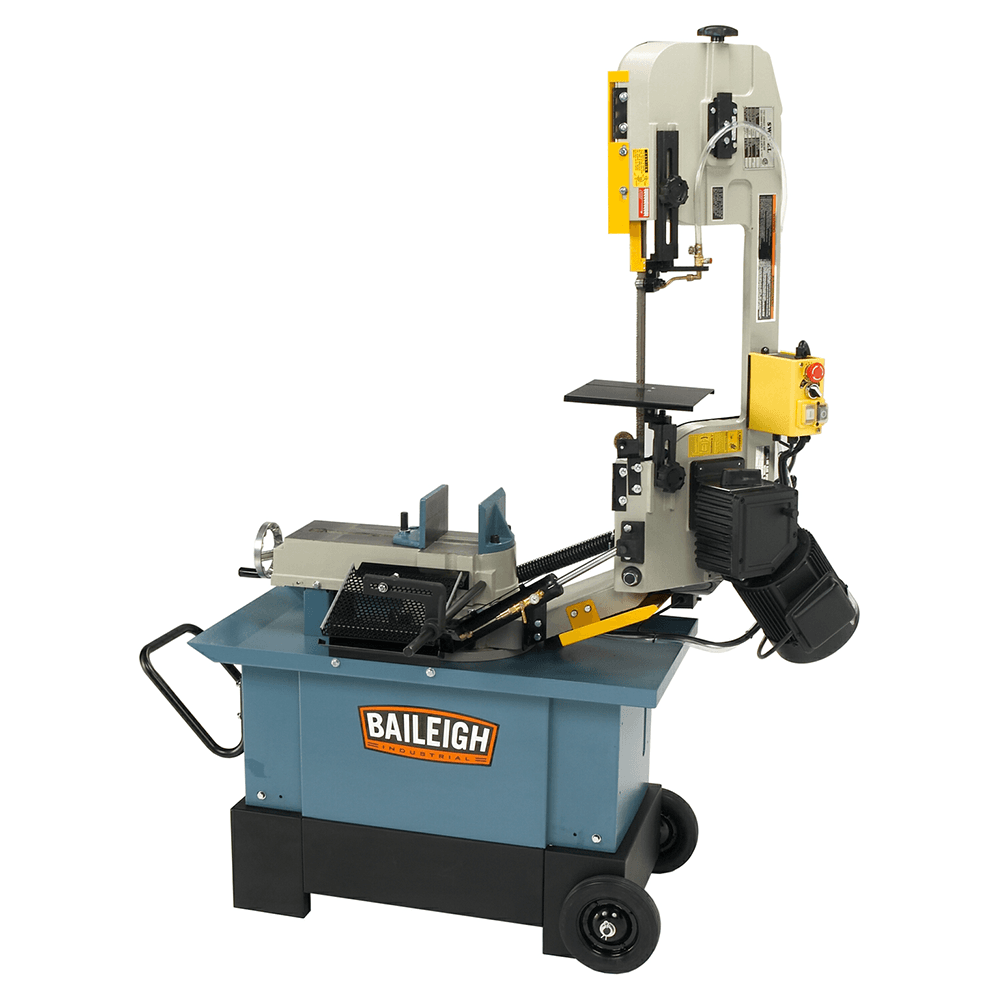

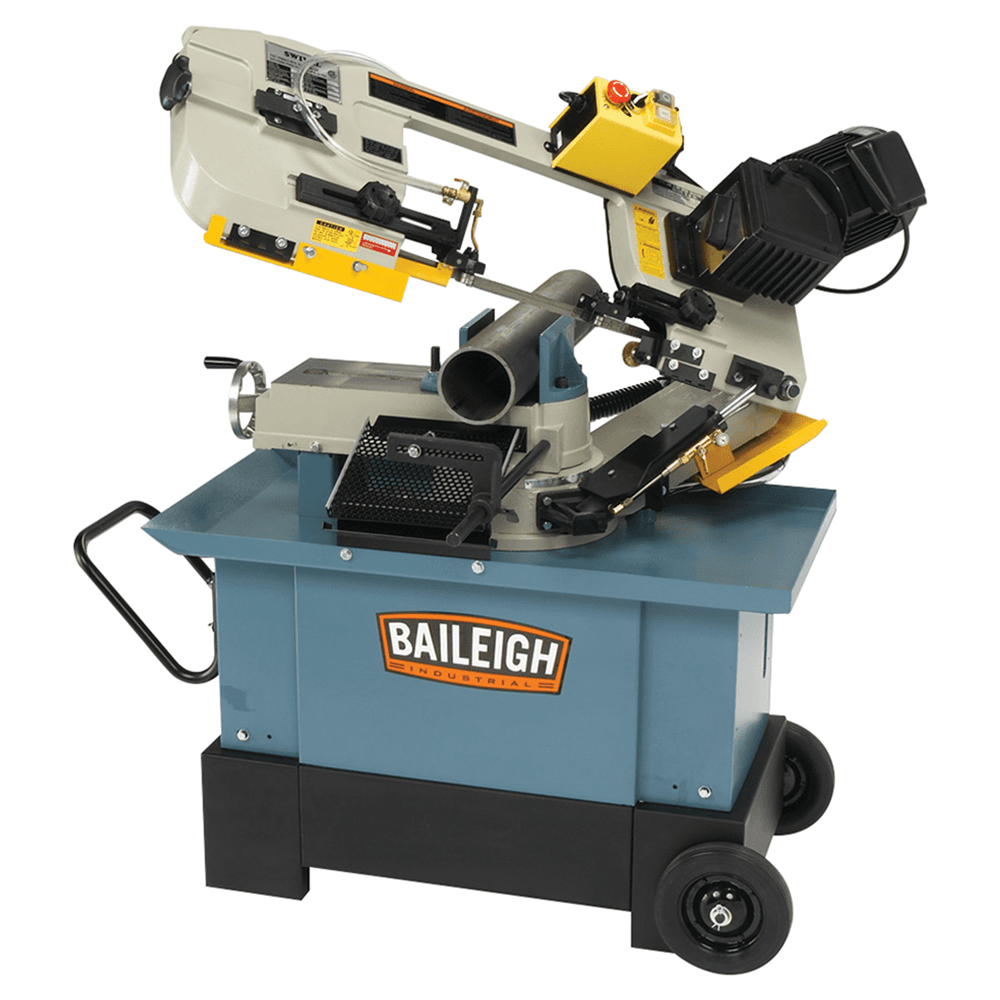

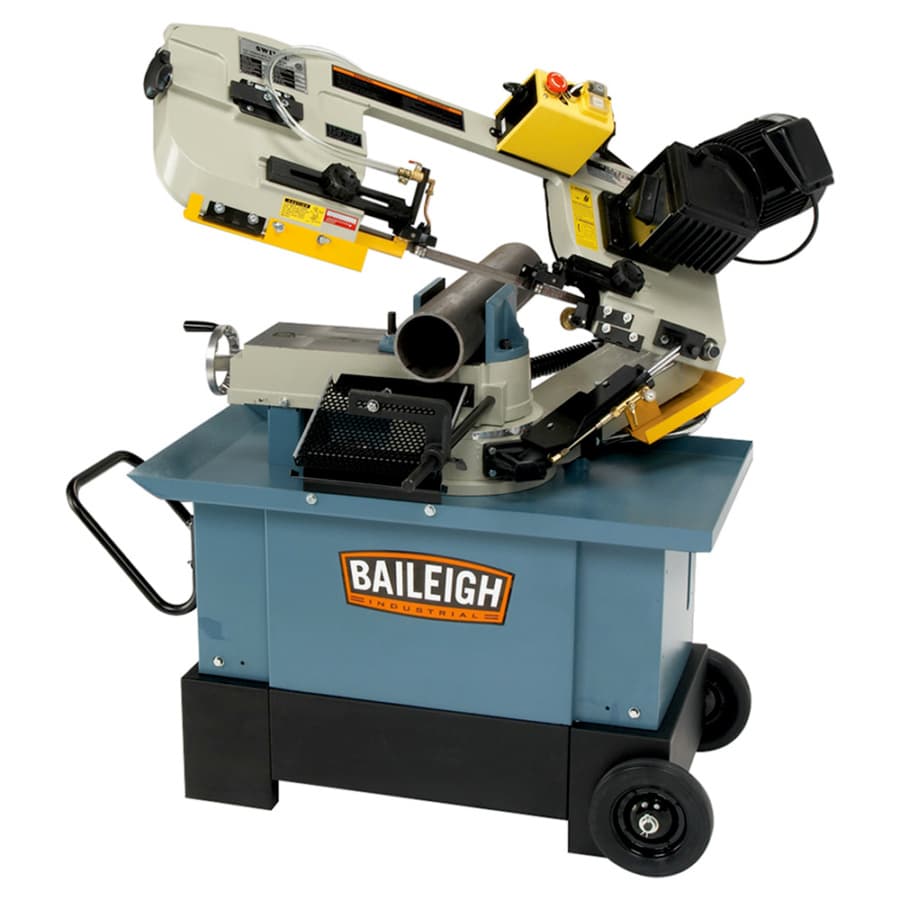

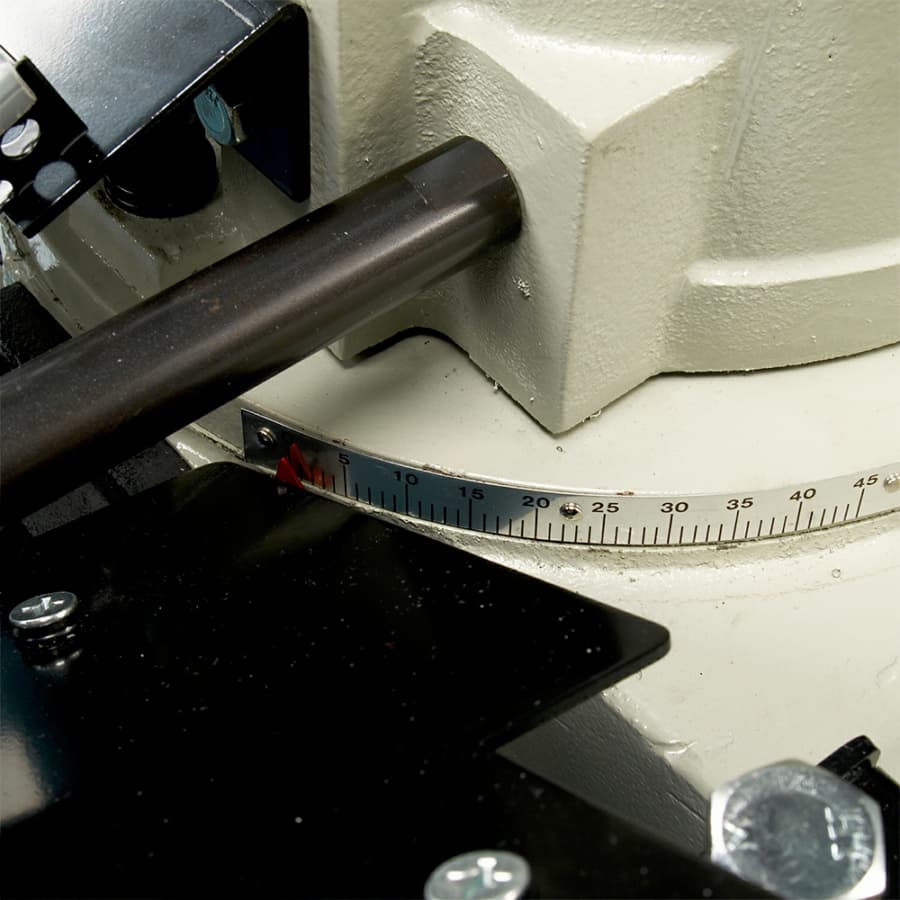

Like 2 machines for the price of 1! Use the BS-712MS as a horizontal band saw or a vertical band saw. This model has the same capacity as our BS-712M, but with a swiveling head. Features: • The BS-712MS horizontal vertical metal bandsaw is recommended for any shop, home, or work, with wheels on the base make this saw easy to move and store • Powered by 120-volt single-phase power, so you can run it just about anywhere • Capacity of 7" OD round and 7" x 10-1/4" rectangle in horizontal position (for traditional cutoffs) at 90° • Choose from 3 cutting speeds: 125, 215, and 270 fpm with the standard .75"-wide blades • Cast iron head and bow, machined to exacting tolerances, ensure proper alignment during the cutting process and help the saw last for years • Operate the machine in vertical position (for precise shape cutting) just by lifting the bow and locking it in place • Swivel head for mitering allows for faster production times and less waste than you'd get with a moving vise • Pair of adjustable blade guides, attached to the saw head along with 8 sealed ball bearings, maintain alignment and increase the life of the blade • Fully welded steel plate framework keeps the machine stable and gives it the structural strength to tackle its maximum capacity • Comes standard a flood coolant system, often considered an upgrade by other brands, and a chip removal brush
Specifications
| Box Quantity | 1 |
| Blade Guide | Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 120V, 1-phase |
| Material Clamping Bundling | |
| Material Feed | |

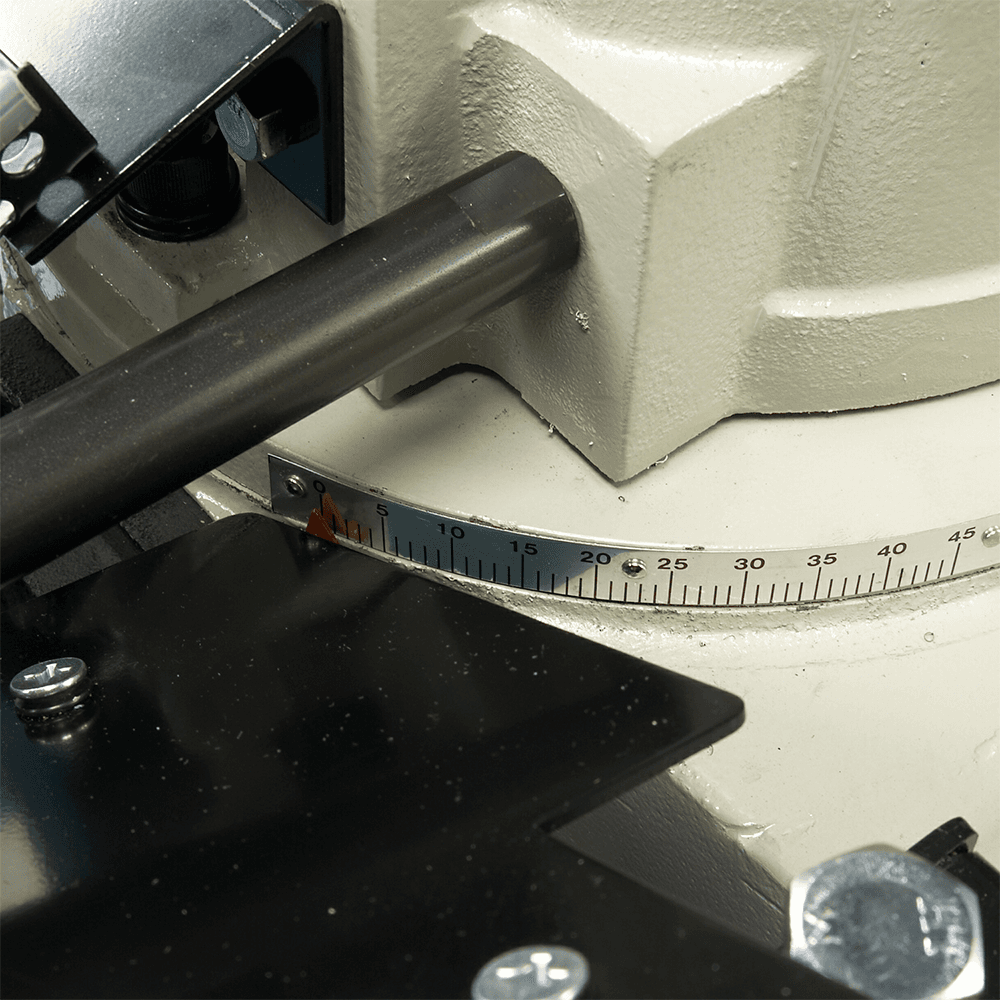

| Miter Angle Range (Deg.) | 0 - 45° |
| Motor (HP) | 1 HP |
| Overall Dimensions (L x W x H) | 51" x 23" x 43" |
| Product Type | Manual Band Saws |
| Rectangle at 90 Degrees | |
| Return | Manual |
| Short Description | 120V 1-phase power 7" round capacity at 90° Swivel head miters 45° 0.75" blade width 3 cutting speeds Variable speed : 125, 215, 270 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 23" |
| Drive | Gear |

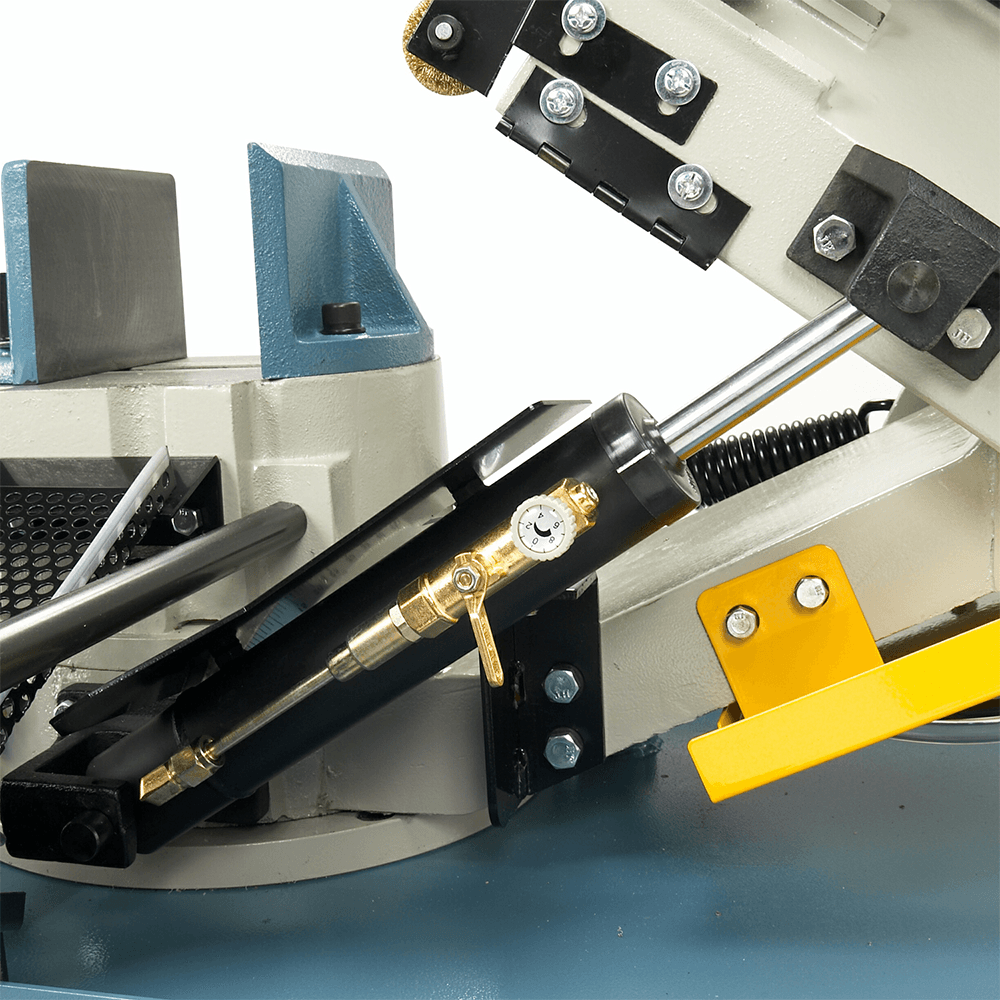

| Descent Control | Hydraulic |
| Blade Speeds (SFPM) | 125, 215, 270 |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | 7" x 10.23" x 4.72" x 4.13" |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | 7" x 4.33" |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Swivel Head |
