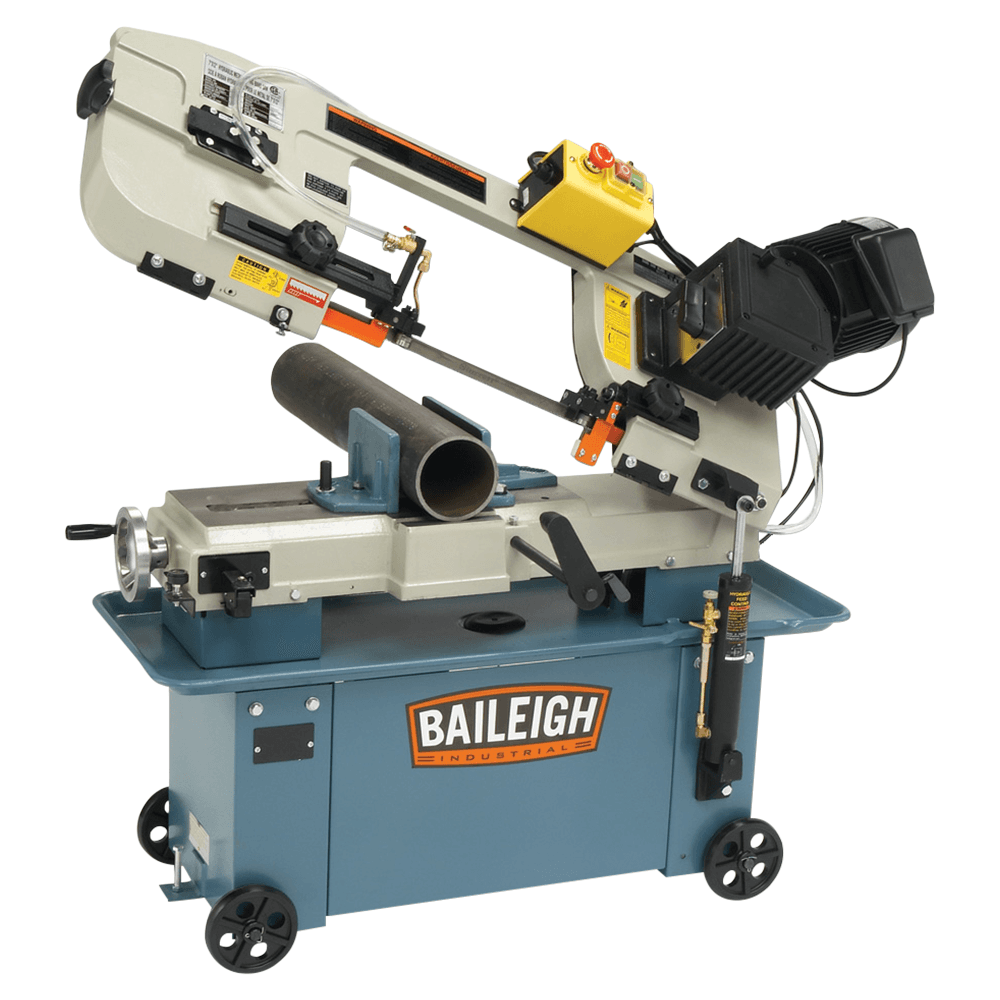

Baileigh BS-712M 1 HP Metal Cutting Band Saw, 1 Phase/120V
This item may incur additional shipping costs and lead times.
Product Details
Need a compact saw that can handle a variety of jobs? You can use this machine as a horizontal band saw for general cutoffs or as a vertical band saw for precise shape cutting. Features: • 1 hp motor runs on 120-volt single-phase power, so you can use it almost anywhere • Cutting capacity of 7" OD round and 7' x 10.25" rectangle at 90° • Miters up to 45° - simply loosen the vise and rotate it to the proper angle • Cast iron saw head and bow minimize vibrations, ensuring clean, accurate cuts • You can operate the saw in horizontal or vertical position (just lift the bow and lock it in place) • Adjustable blade guides attached to the saw head, with 8 sealed ball bearings, help align the blade and increase its lifetime of use • Head and bow are made from heavy cast iron, precisely machined to exacting tolerances, maintaining proper alignment during the cutting process • Electro-welded steel plate framework makes the machine sturdy and strong enough to cut at maximum capacity without trouble • Moves on wheels for portability • Includes chip removal brush and flood coolant system to keep the saw running smoothly for many years
Specifications
| Box Quantity | 1 |
| Blade Guide | Roller |
| Input Power | 120 volt |
| Miter Angle Range (Deg.) | 0 - 45° |
| Motor (HP) | 1 HP |
| Product Type | Manual Band Saws |
| Return | Manual |
| Short Description | 120V horizontal and vertical band saw 7" round capacity at 90° Vise miters up to 45° 0.75" blade width 3 cutting speeds Variable speed : 125, 215, 270 fpm |
| Table Height | 22" |
| Drive | Gear |
| Descent Control | Hydraulic |
| Blade Speeds (SFPM) | 125 x 215 x 270 |
| Capacity Rectangular 90 X 45 X 45 | 7" x 10.23" x 4.72" x 4.13" |
| Capacity Round 90 X 45 | 7" x 4.33" |
| Type of Miter Adjustment | Vise |
