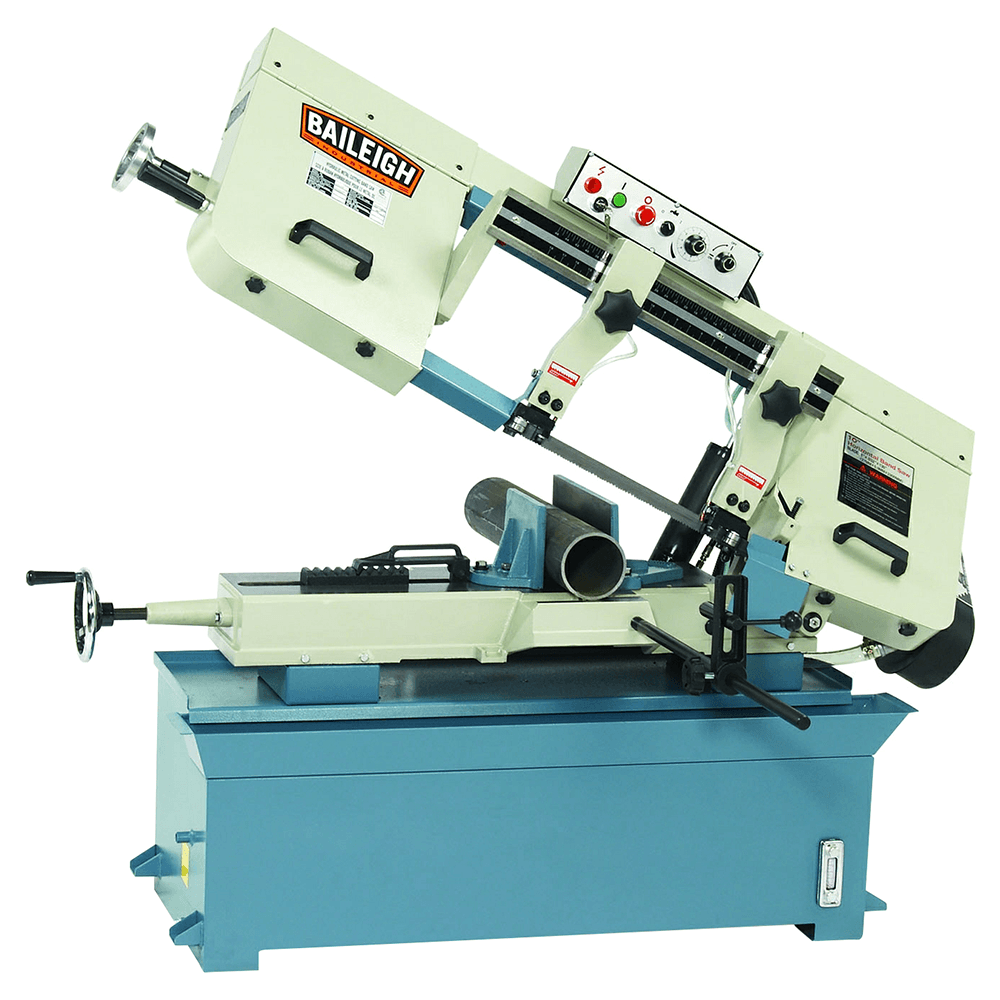

Baileigh BS-300M 2 HP Horizontal Band Saw, 1 Phase/240V
This item may incur additional shipping costs and lead times.
Product Details

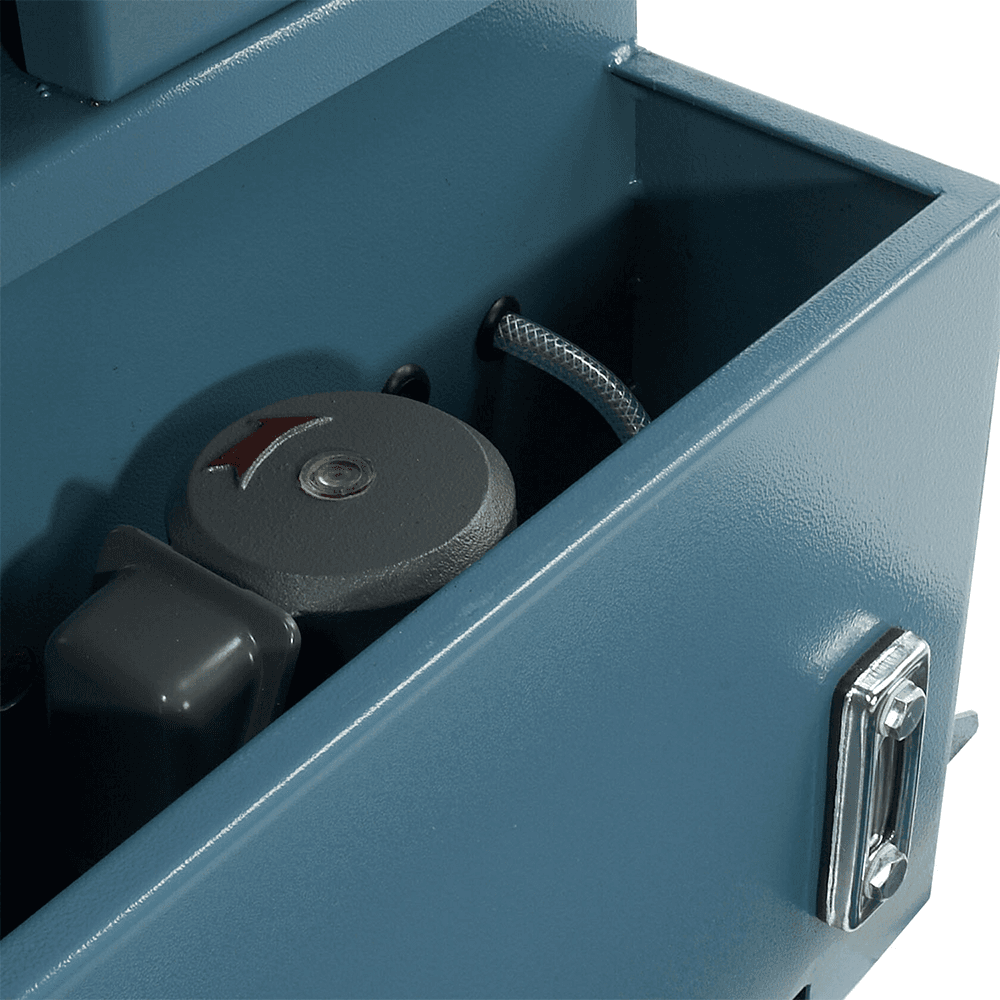

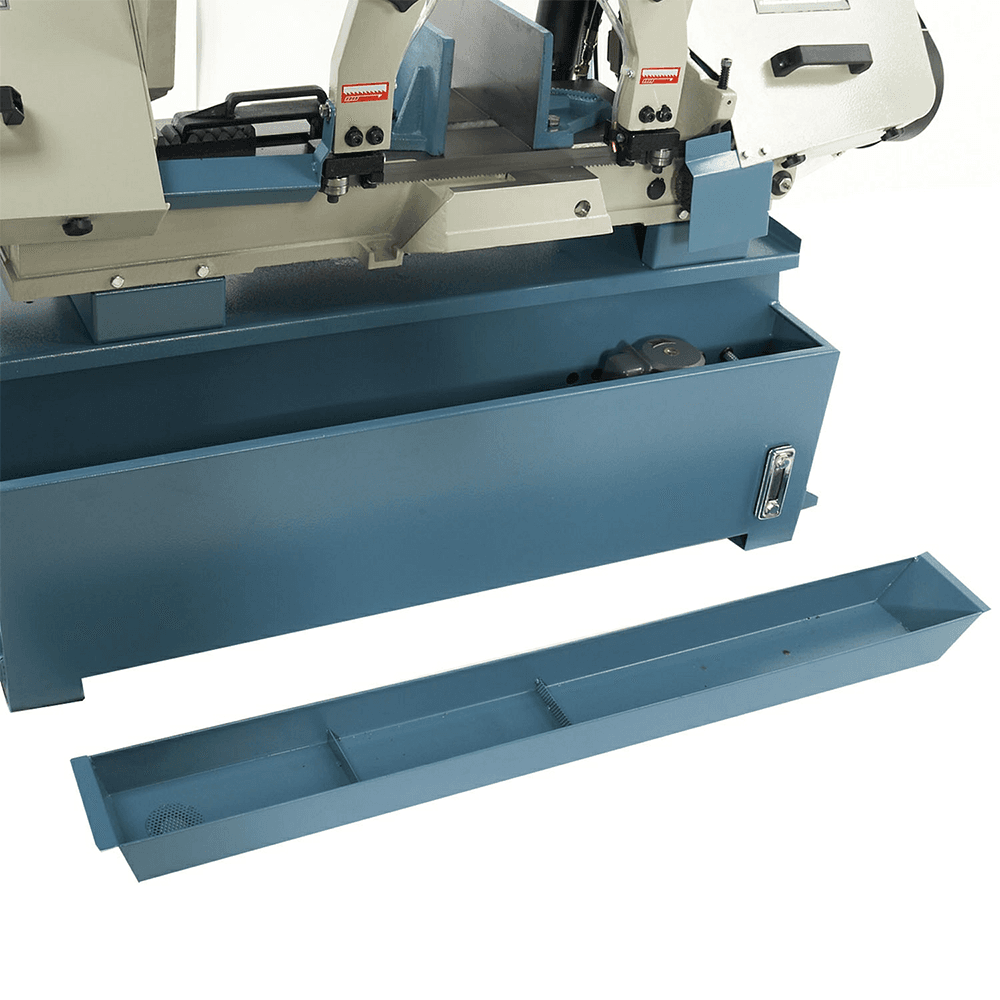

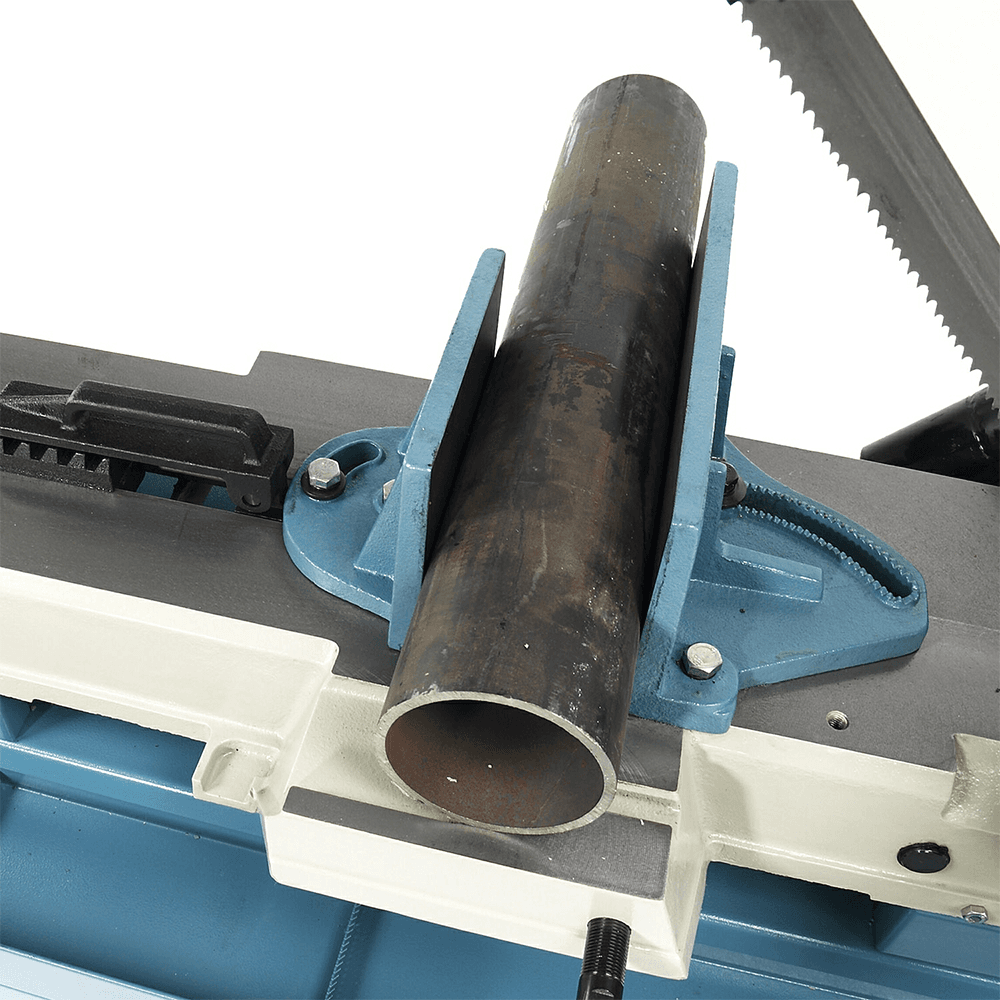

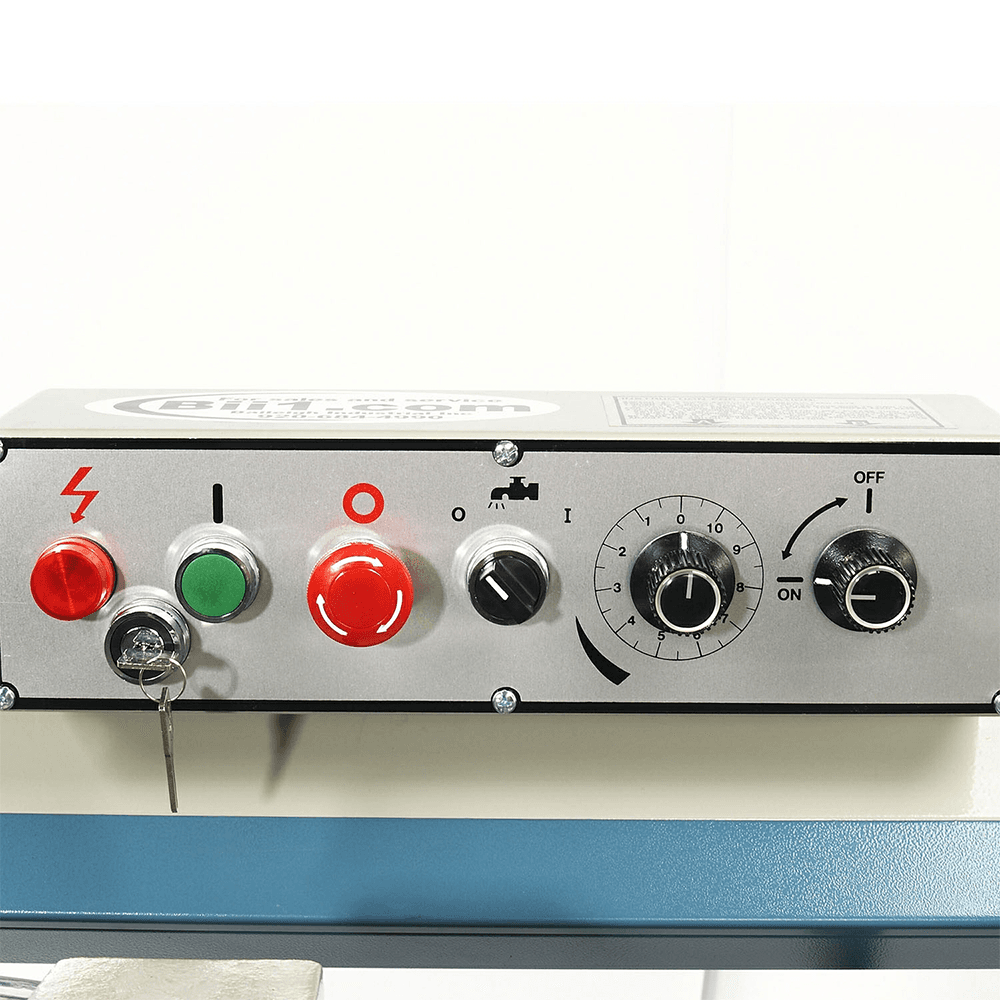

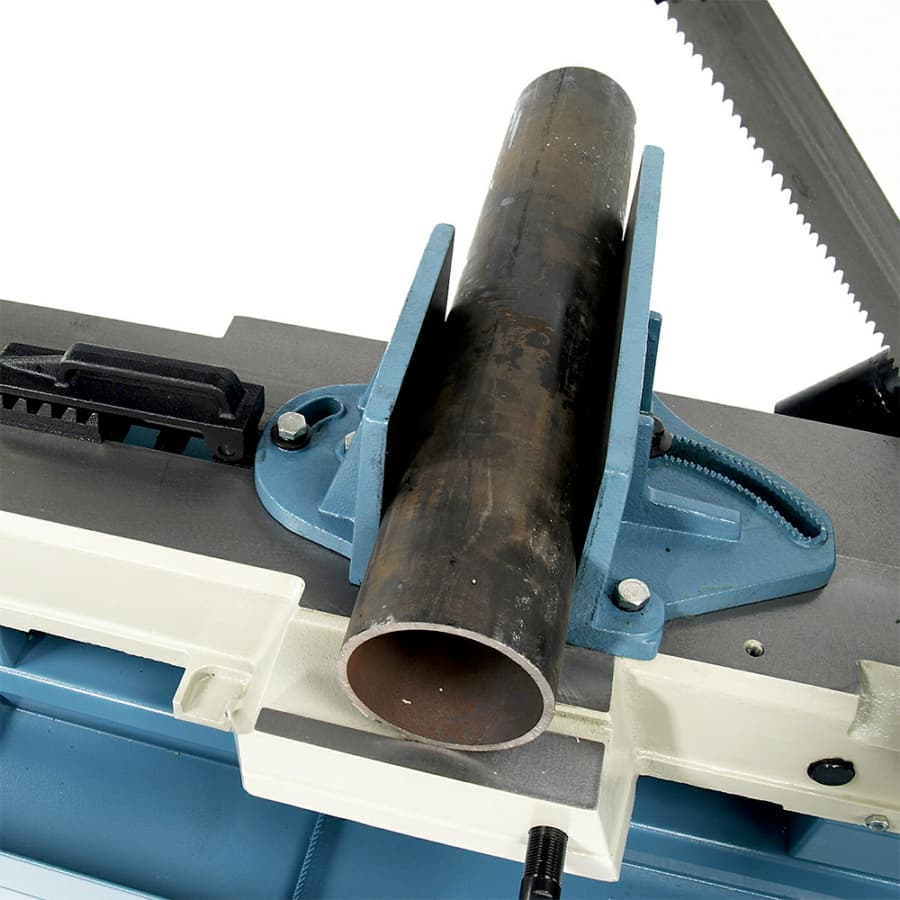

Do you love old-time American-style band saws-and how well they handle? The variable-speed, horizontal band saw band saw BS-300M updates that sturdy design with time-saving features. Features: • 2 hp motor runs on 240-volt single-phase power, so any shop can reap the benefits of this saw • 9.75" round maximum capacity at 90° • Standard 1" blade width - Cuts almost anything that you can throw at it, including many different shapes and profiles of metal • Vise miters up to 45° • 4 cutting speeds (82, 132, 170, 235 fpm) allow you to fine-tune the saw for better cut quality • Includes our patented blade tension device: a liquid-filled gauge that makes it easy to check whether your blade is properly tensioned • Hydraulic descent pressure controlled by a panel located on top of the bow • Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe • Comes standard with a flood coolant system (which some companies charge extra for) to wash away metal chips, help blades last longer, and reduce expenses • Fully welded steel base minimizes vibrations to deliver clean, accurate cuts and adds structural strength to the machine
Specifications
| Box Quantity | 1 |
| Blade Guide | Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 240V / 1-phase |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 45° |
| Motor (HP) | 2 HP |
| Overall Dimensions (L x W x H) | |
| Product Type | Manual Band Saws |
| Rectangle at 90 Degrees | |
| Return | Manual |
| Short Description | 240V 1-phase metal band saw 9.75" round capacity at 90° Vise miters 45° 1" blade width 4 cutting speeds Variable speed : 82, 132, 170, 235 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 30.7" |
| Drive | Belt x Pulley |

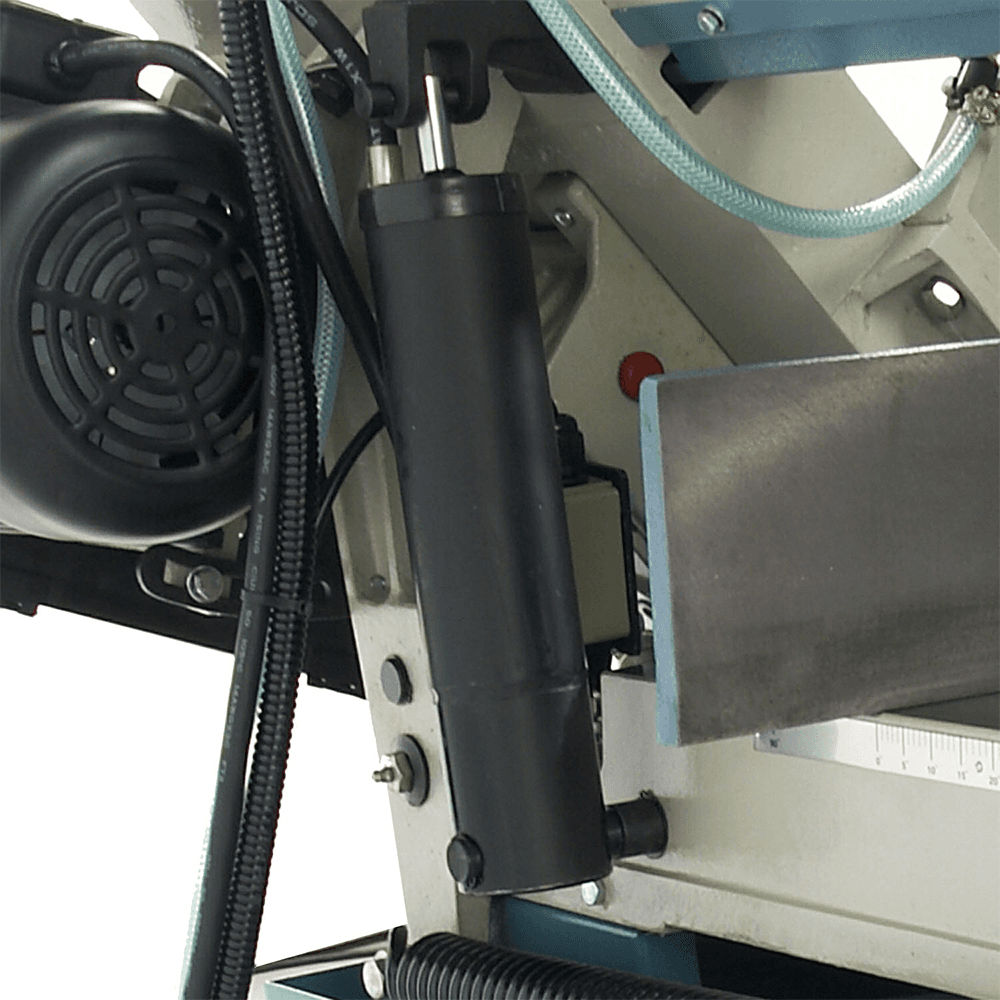

| Descent Control | Hydraulic |

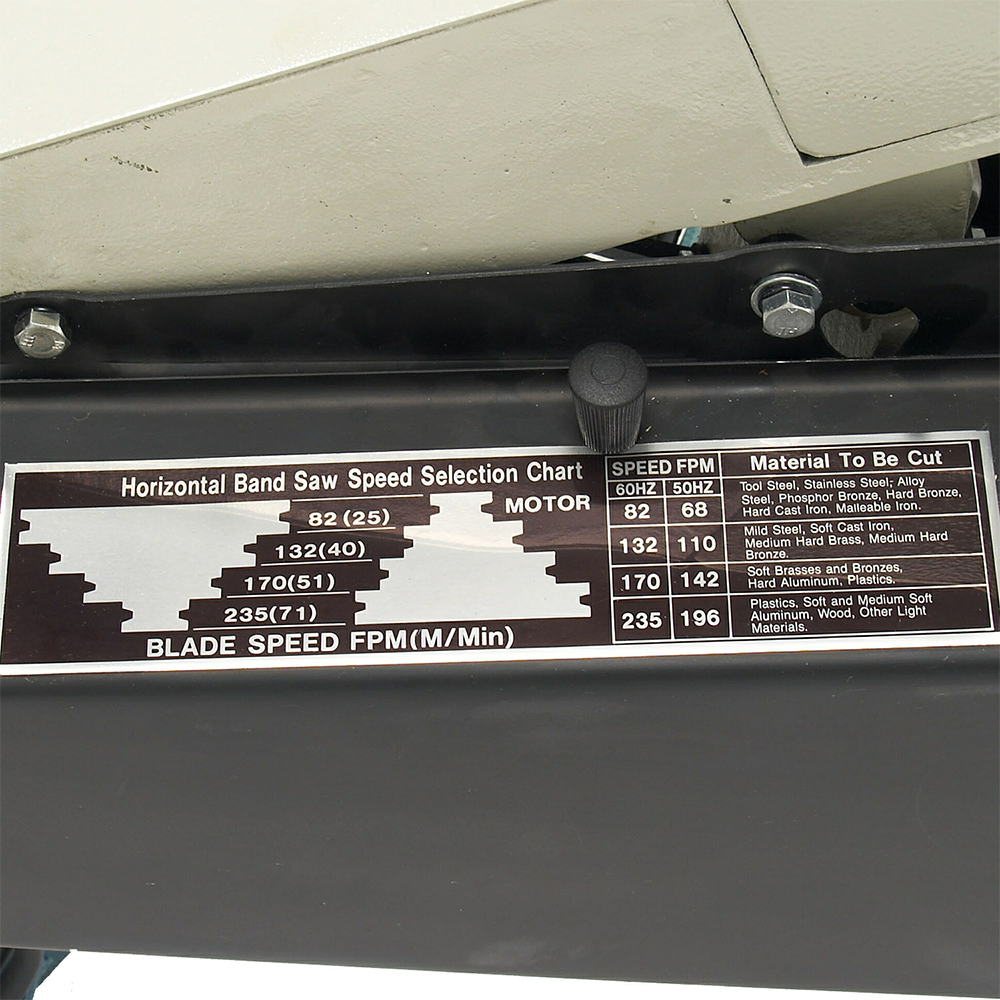

| Blade Speeds (SFPM) | 82, 132, 170, or 235 |
| Capacity Rectangular 90 X 45 | 9.84" x 16.33" / 9.84" x 7.50" |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | 9.84" x 7.5" |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | 9.84" x 7.5" |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Vise |
