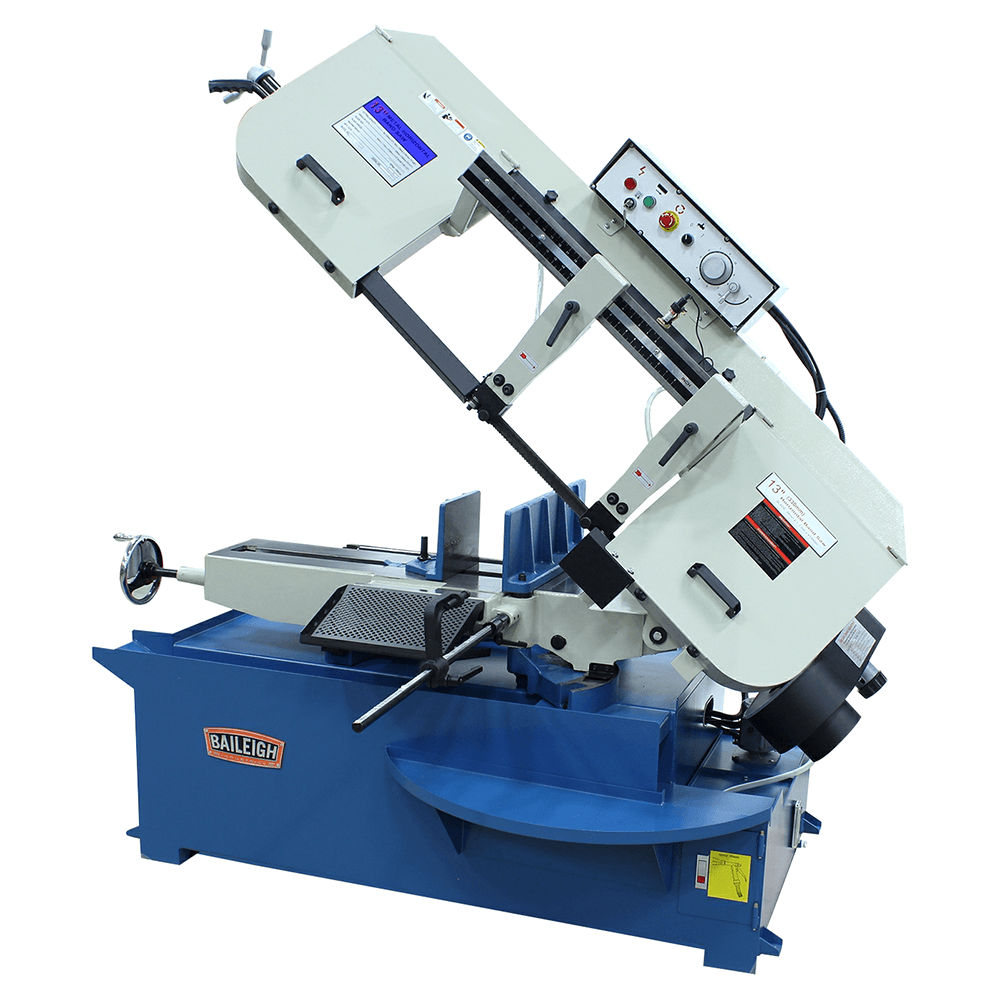

Baileigh BS-330M 3 HP Metal Cutting Band Saw, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

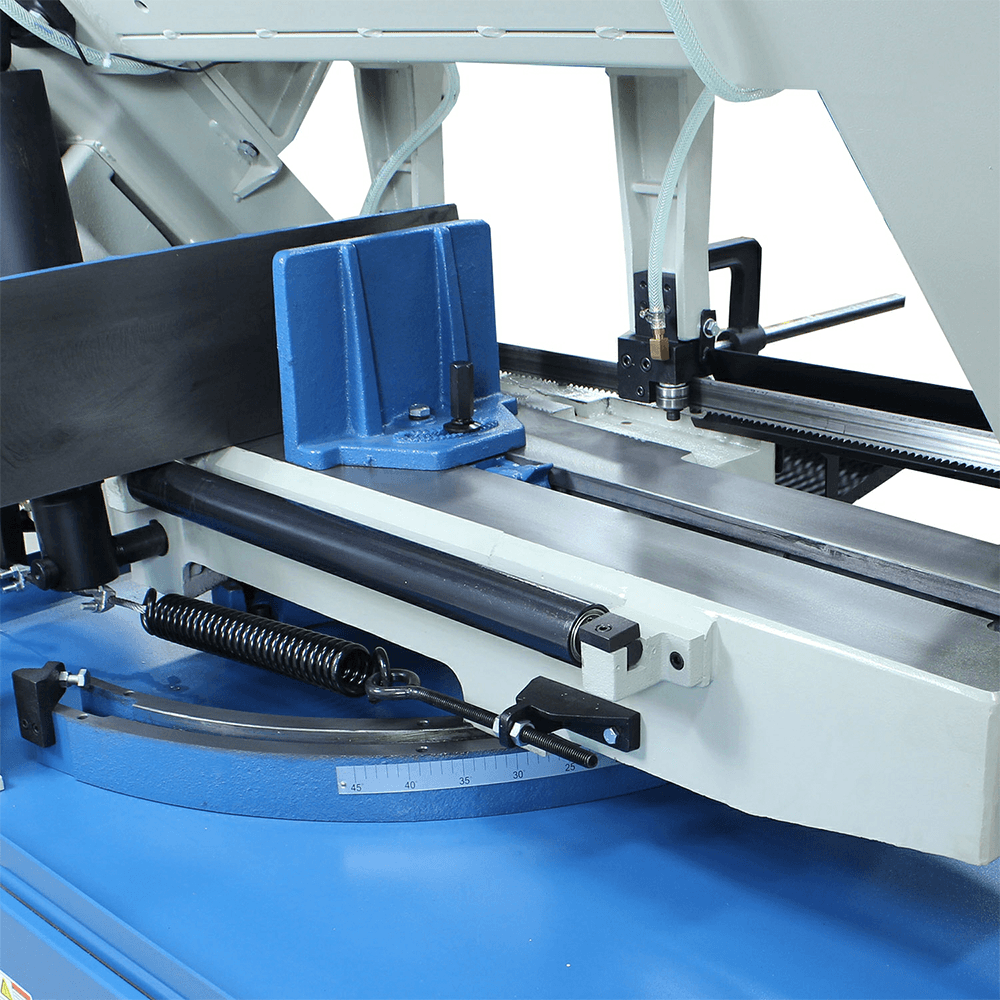

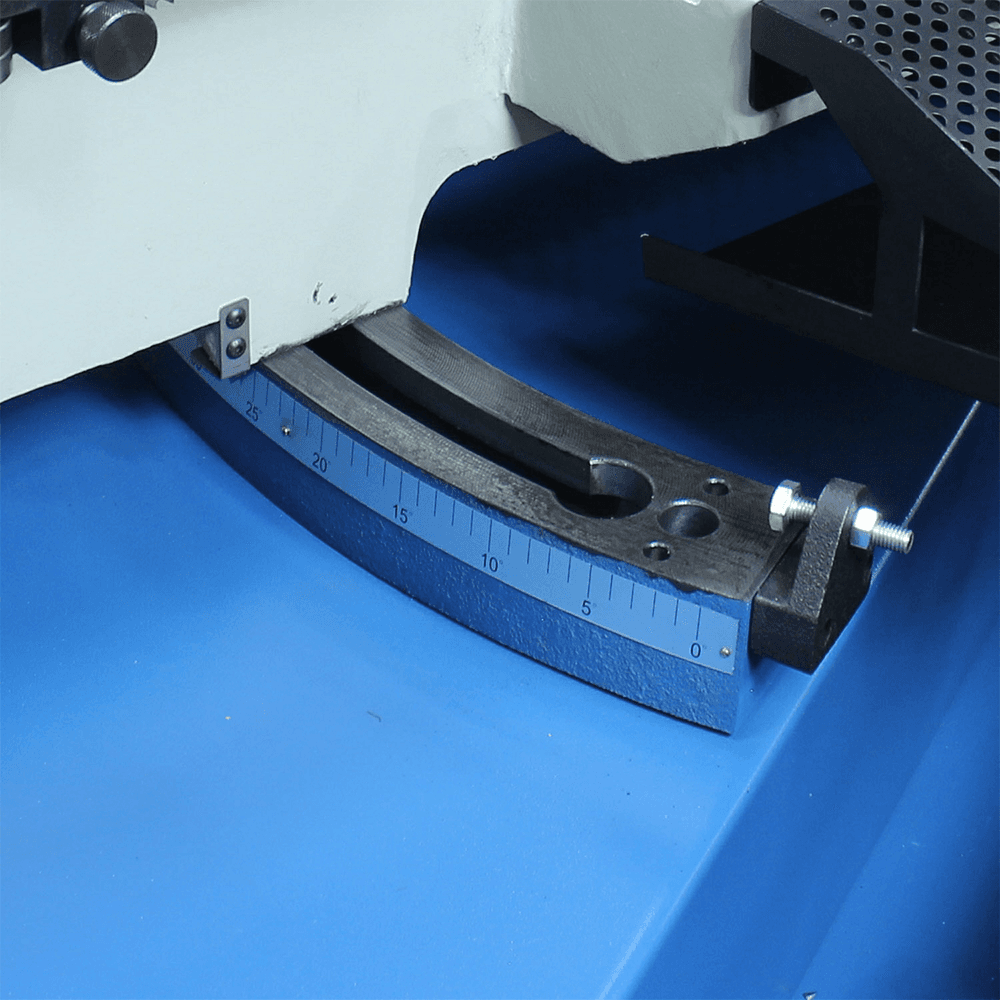

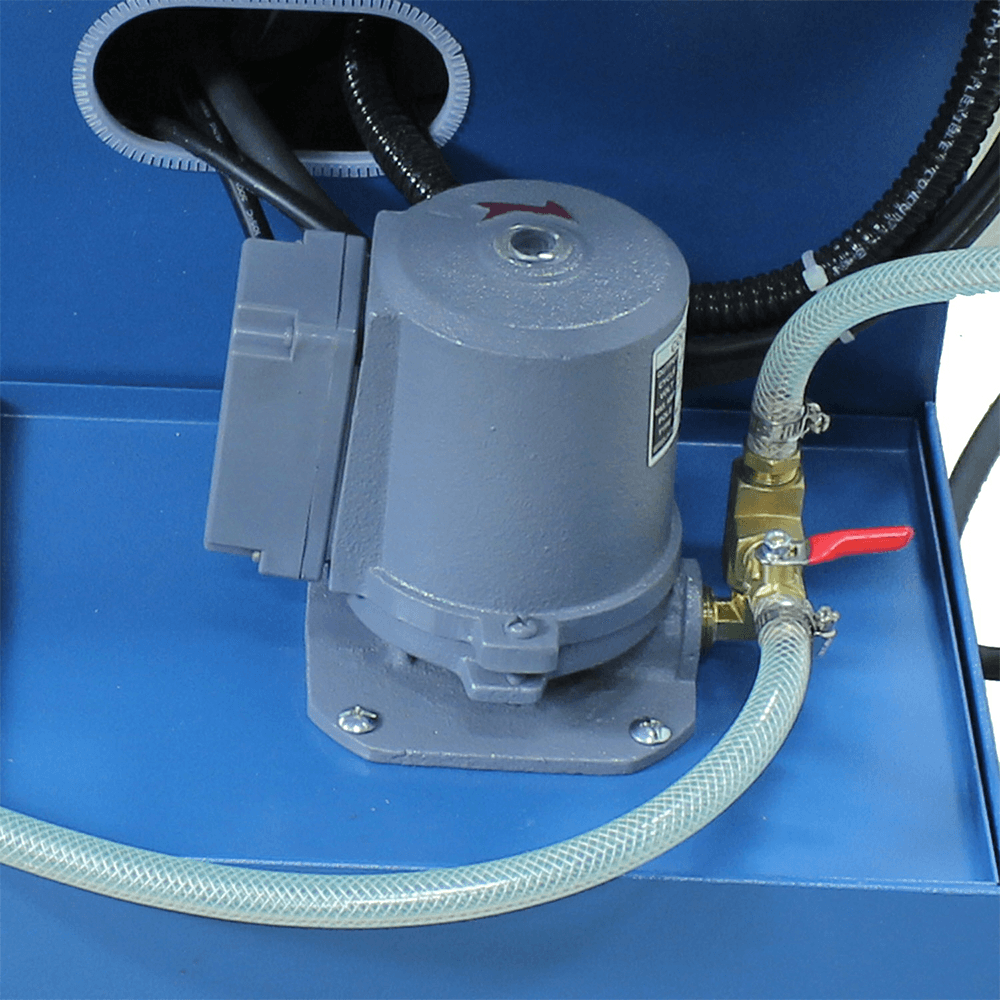

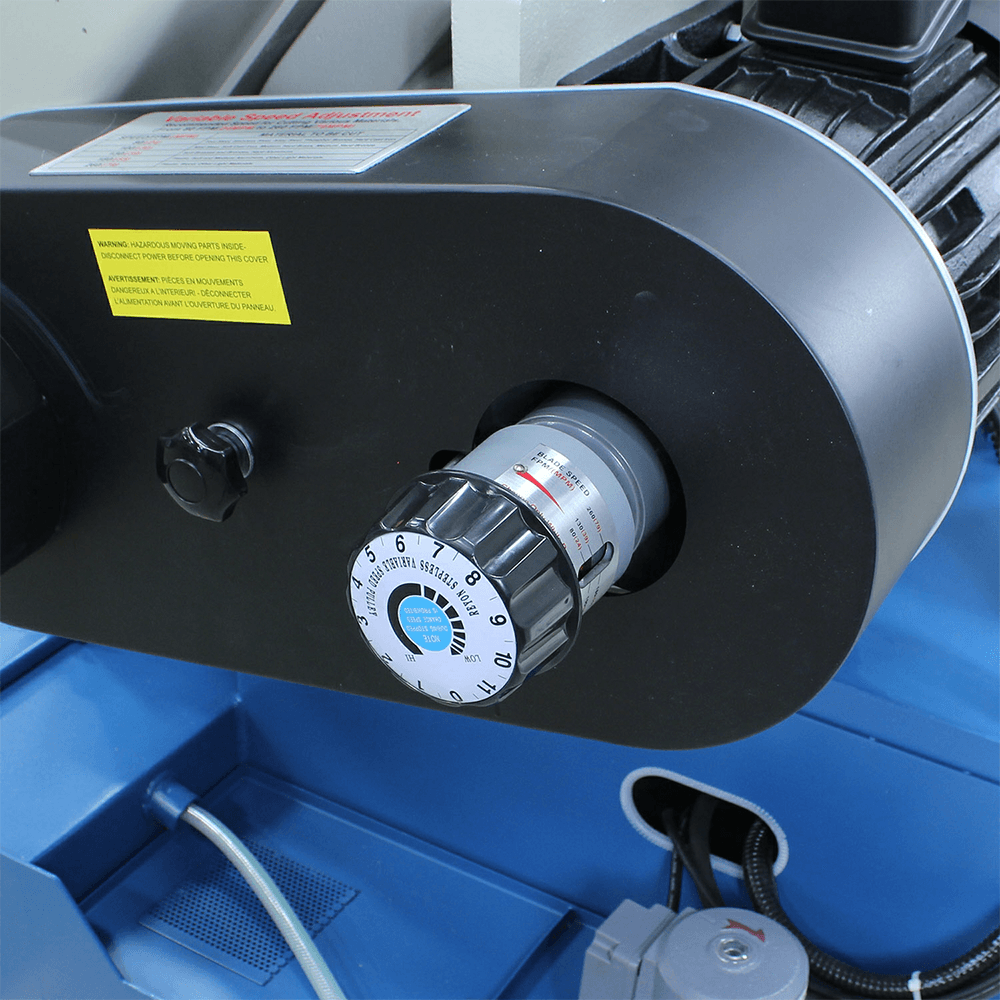

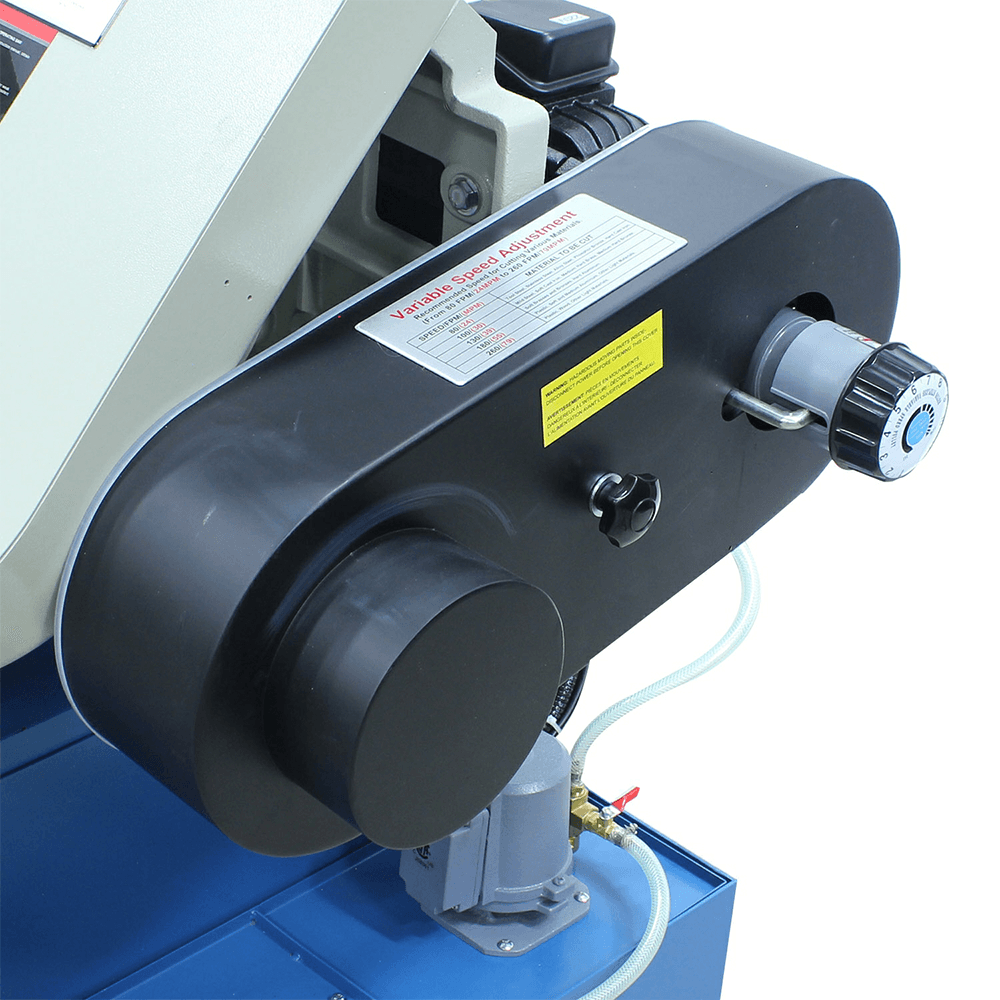

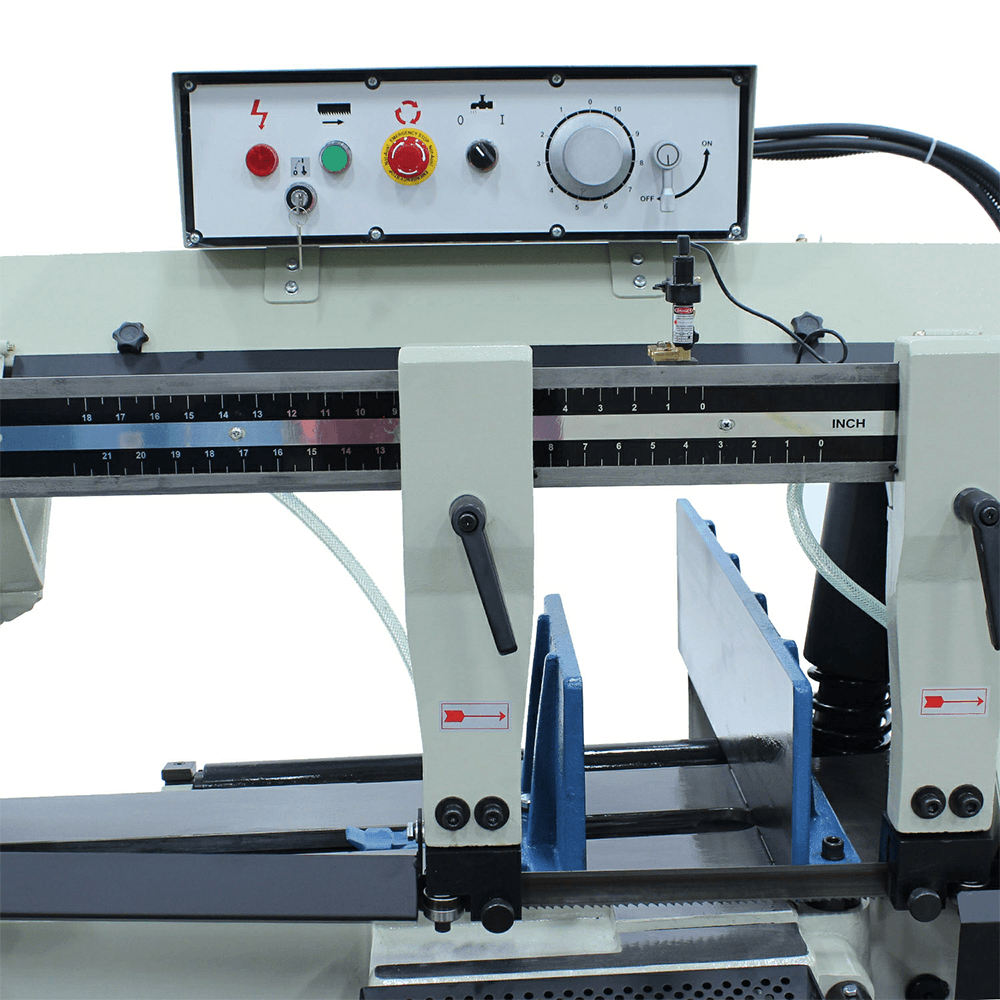

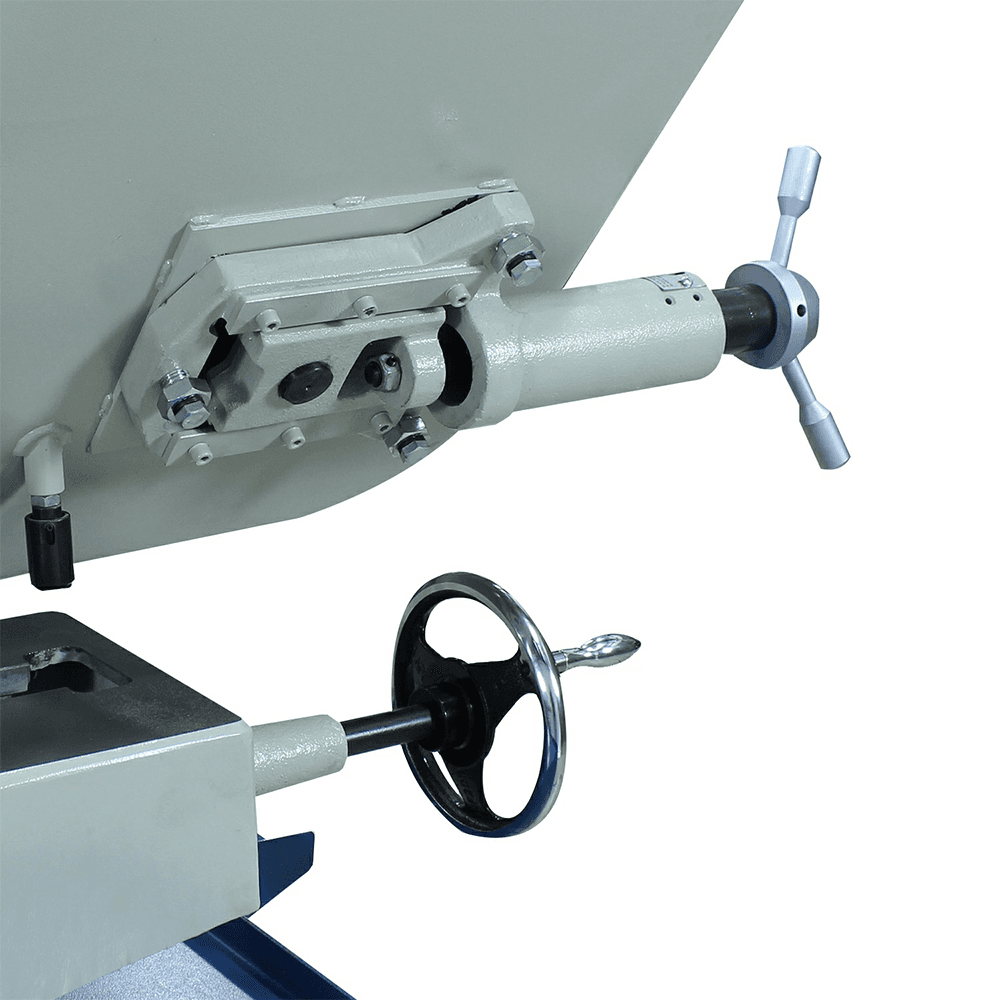

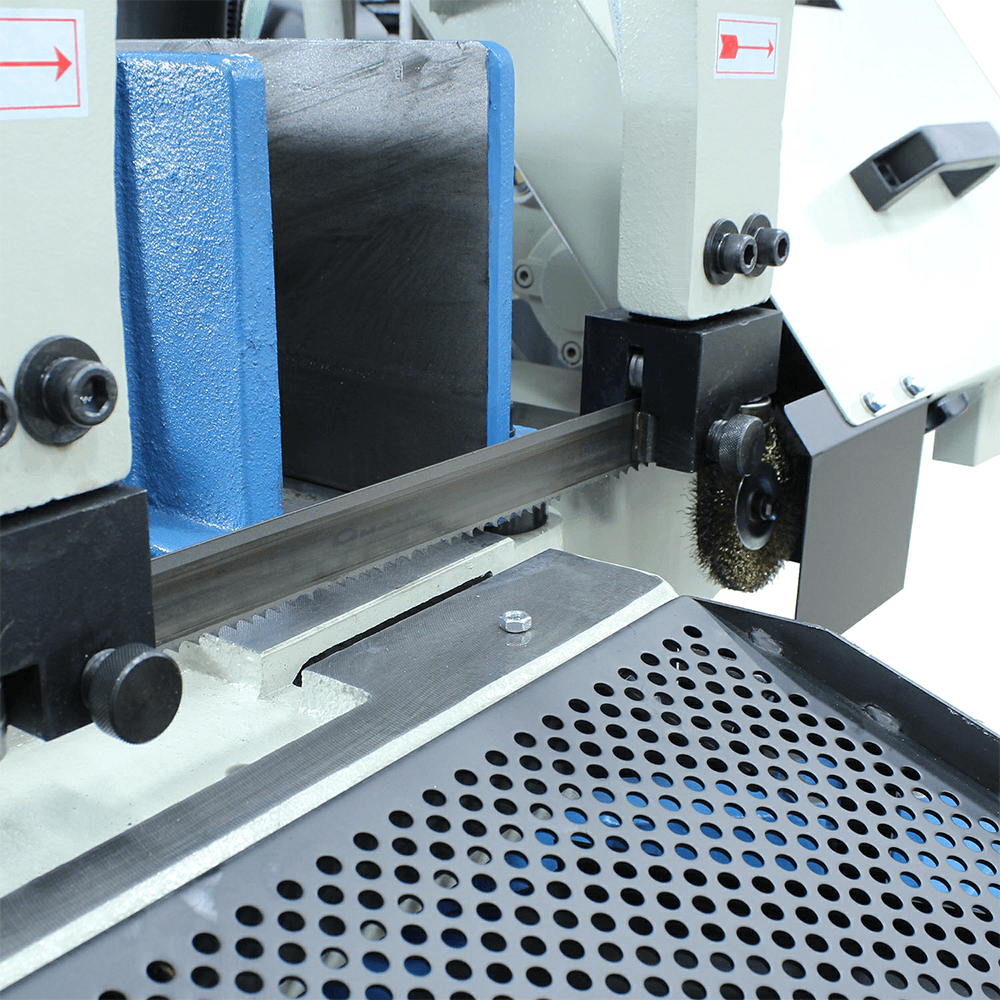

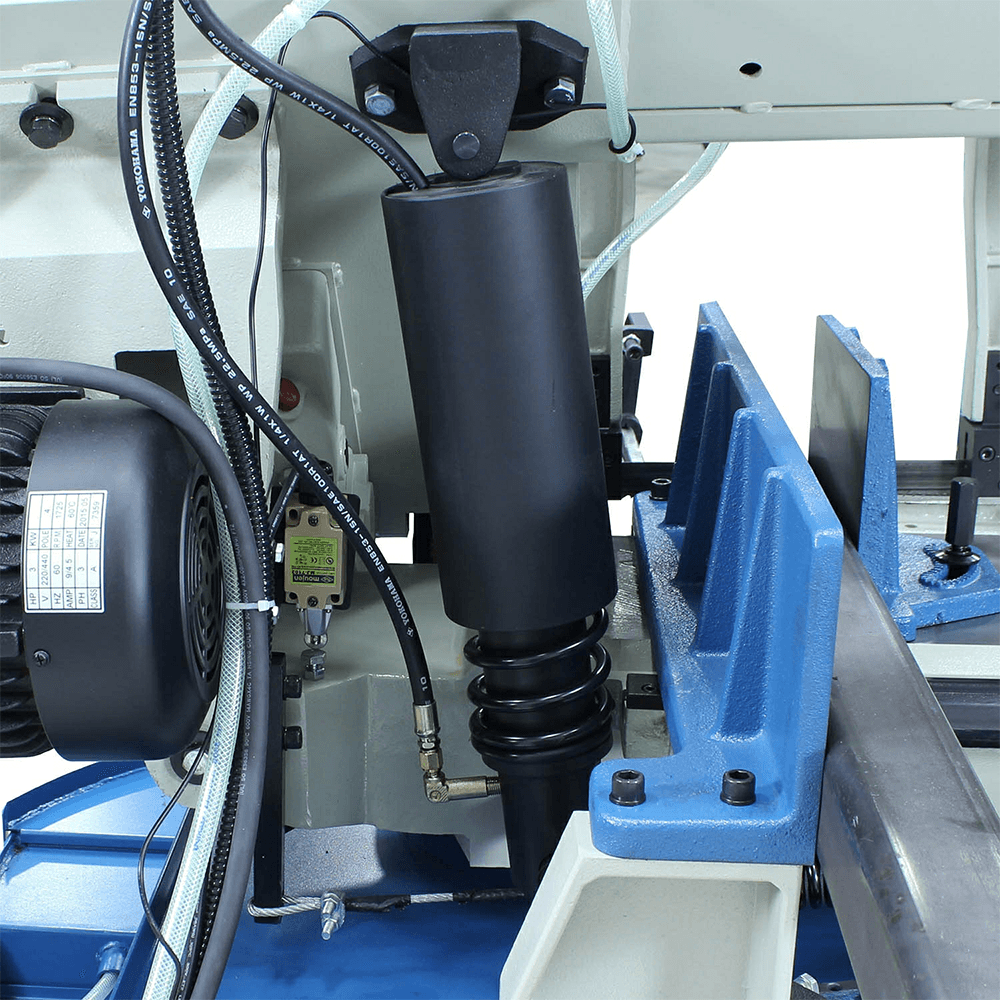

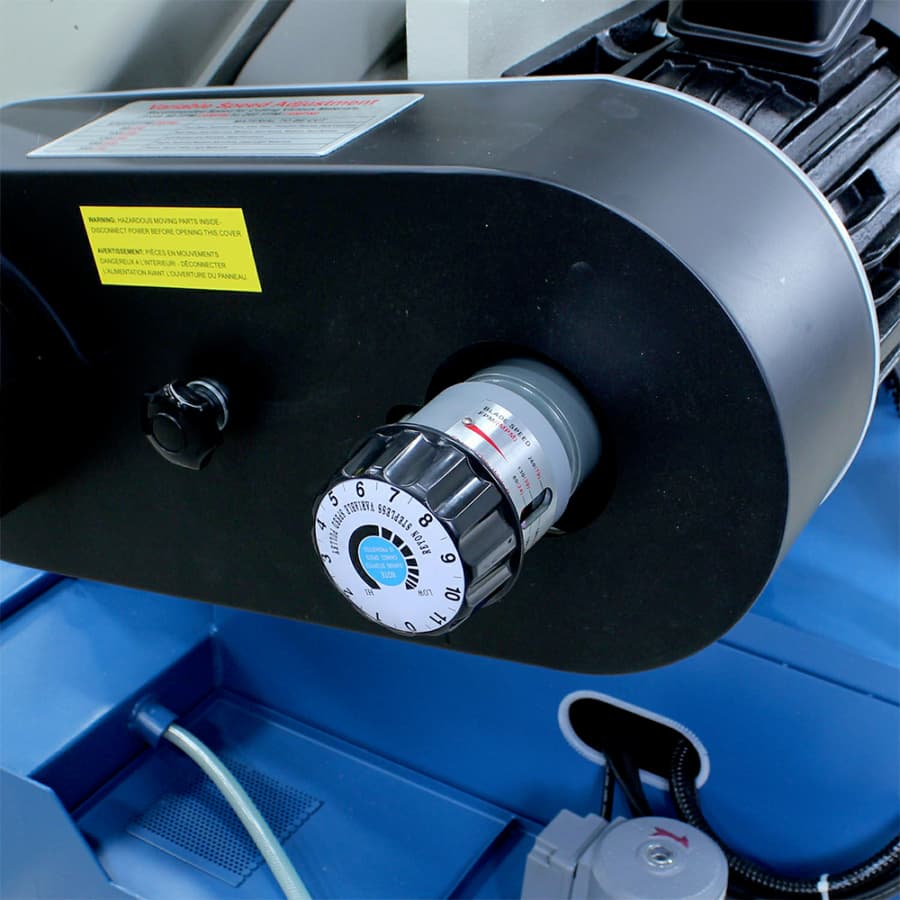

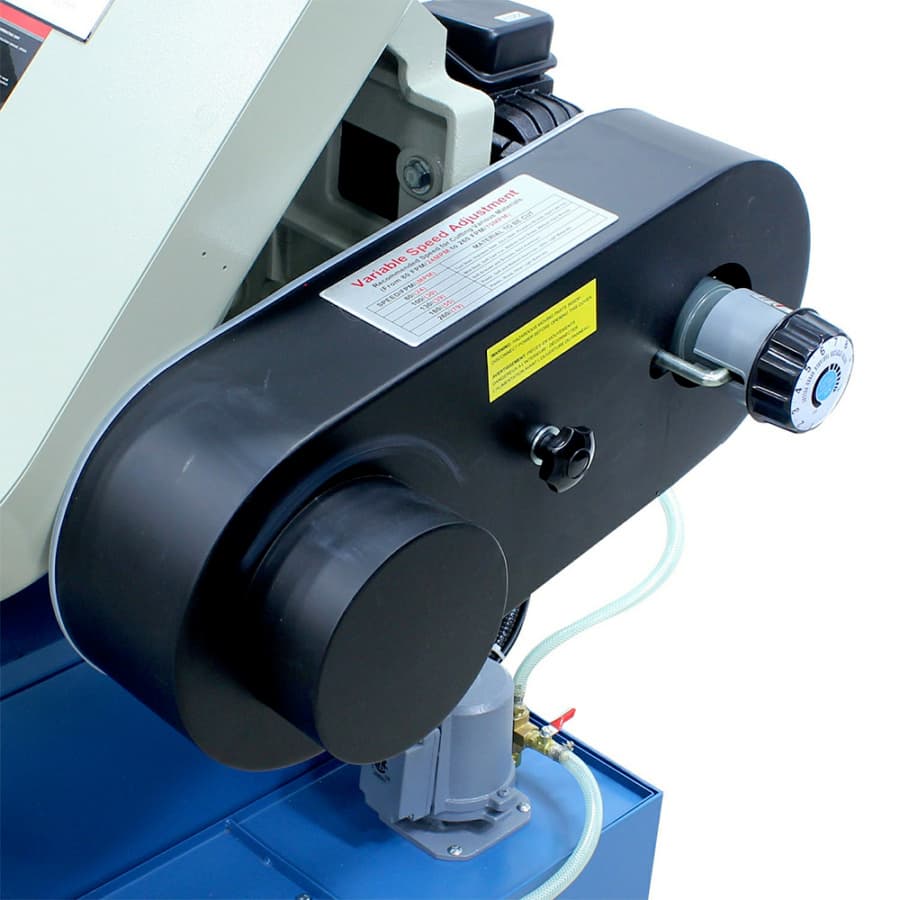

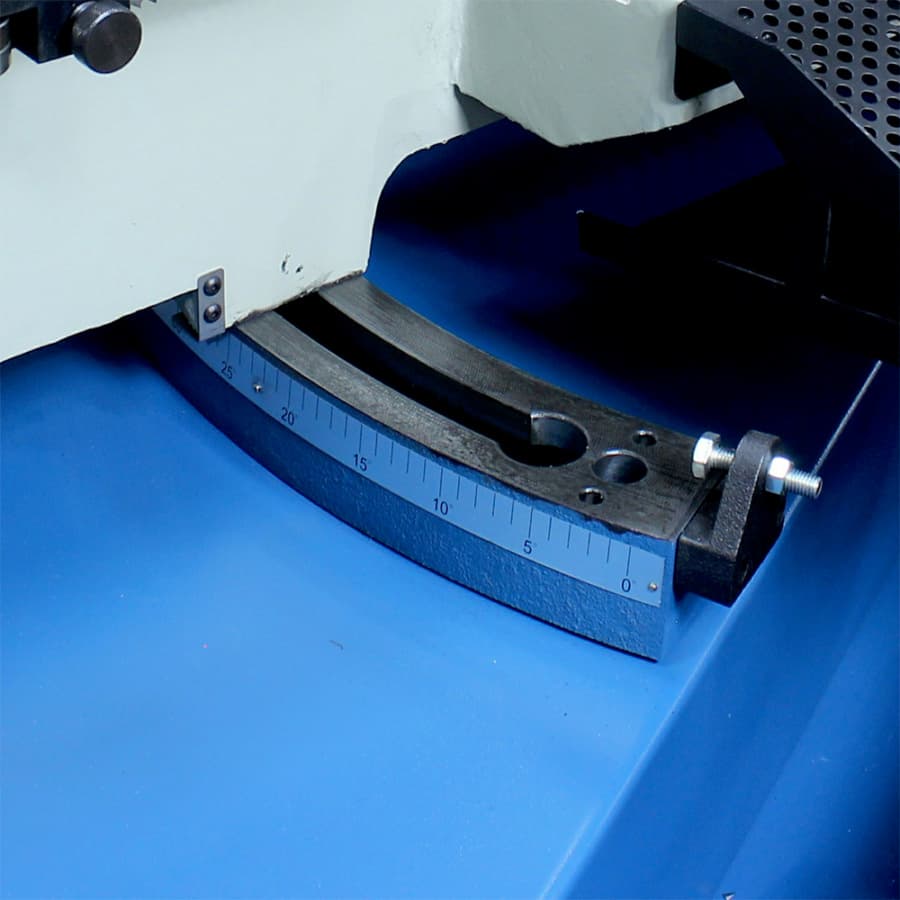

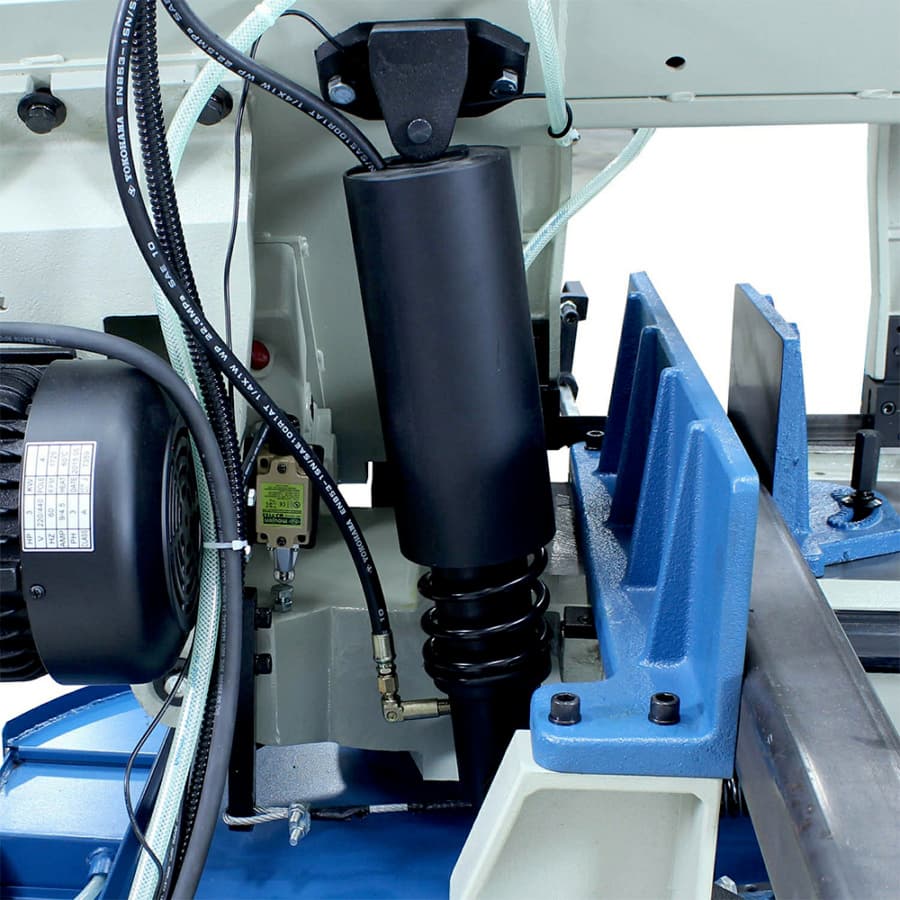

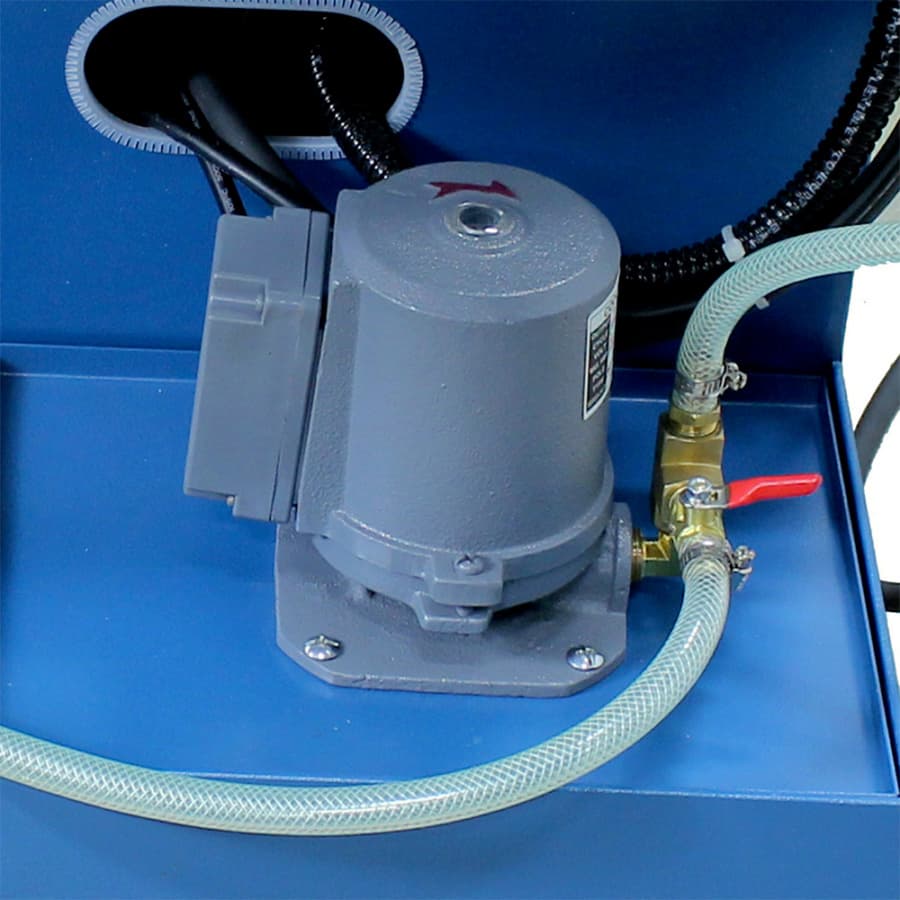

In 2005, we introduced the BS-330M manual mitering band saw. With steel frames and smooth hydraulic descent, these saws have given shops trouble-free productivity for 10+ years. Features: • Features include: Maximum capacity of 13" OD round at 90°, large 1.25" blade, and laser guide that helps you see where your cut will be and line it up • Other features include: Swing-away material stop enables you to easily make repeatable cuts and a flood coolant system that will wash away metal shavings and prolong blade life • Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood • Saw head miters up to 45° with a 3 hp motor that runs on 220-volt triple-phase power, more reliable and efficient than single-phase • Heavy cast iron head and bow reduce vibrations while cutting and the heavy electro-welded steel construction minimizes vibrations to keep cuts accurate • Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue • Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts while the durable steel flywheels drive the blade • Adjustable vise can move back and forth. A quick cam lock system holds it in place • Control panel has large start and emergency stop buttons and a dial for adjusting the speed with the automatic shut-off safety feature that stops the blade from running when the saw gets to the bottom of the cut • Baileigh's patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you're good to go
Specifications
| Box Quantity | 1 |
| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 220V / 3-phase |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 45° |
| Motor (HP) | 3 HP |
| Overall Dimensions (L x W x H) | |
| Product Type | Manual Band Saws |
| Rectangle at 90 Degrees | |
| Return | Manual |
| Short Description | 220V 3-phase power 13" round capacity at 90° Head miters 45° 1.25" blade width Variable speed : 82 - 270 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 30.5" |
| Drive | Belt x Pulley |
| Descent Control | Hydraulic |
| Blade Speeds (SFPM) | 82 - 270 |
| Capacity Rectangular 90 X 45 | 13" x 18.9" / 11" x 10.04" |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | 13" x 8.86" |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | 13" x 8.86" |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Swivel Head and Vise |
