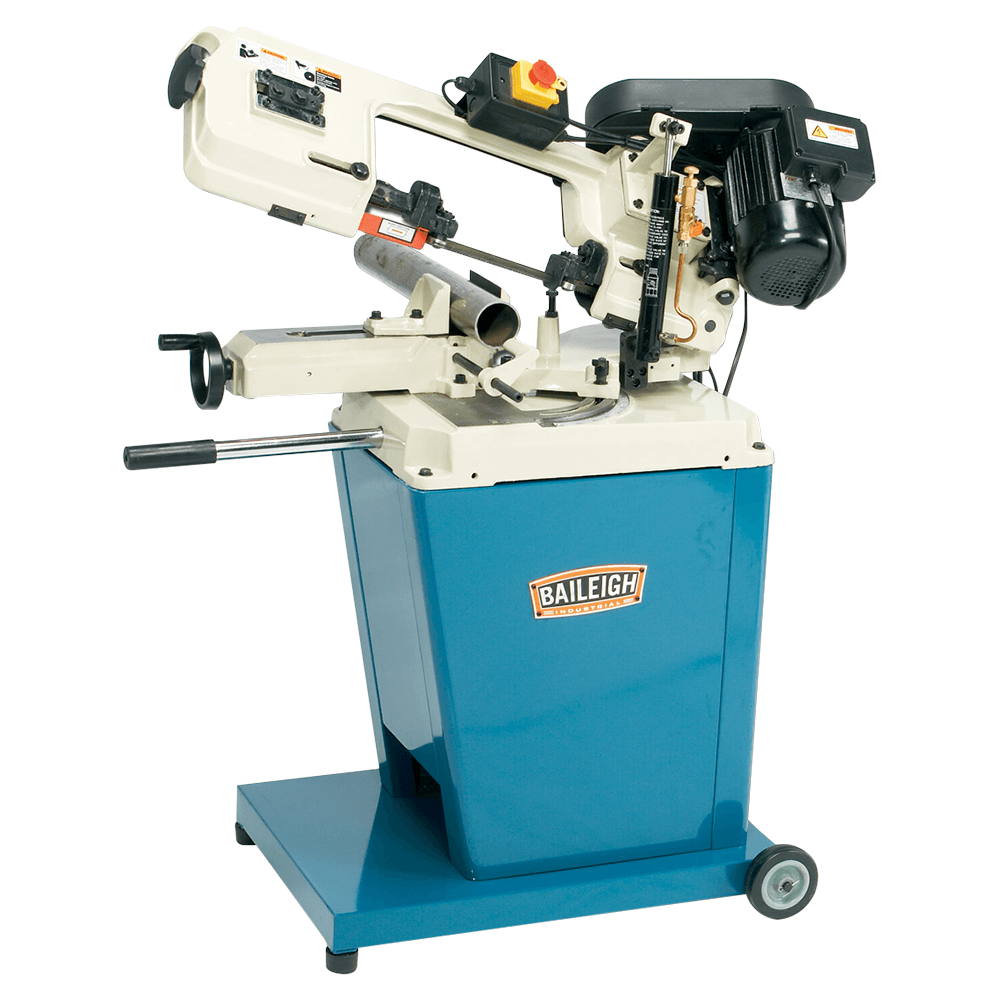

Baileigh BS-128M 3/4 HP Portable Metal Cutting Band Saw, 1 Phase/110V
Product Details

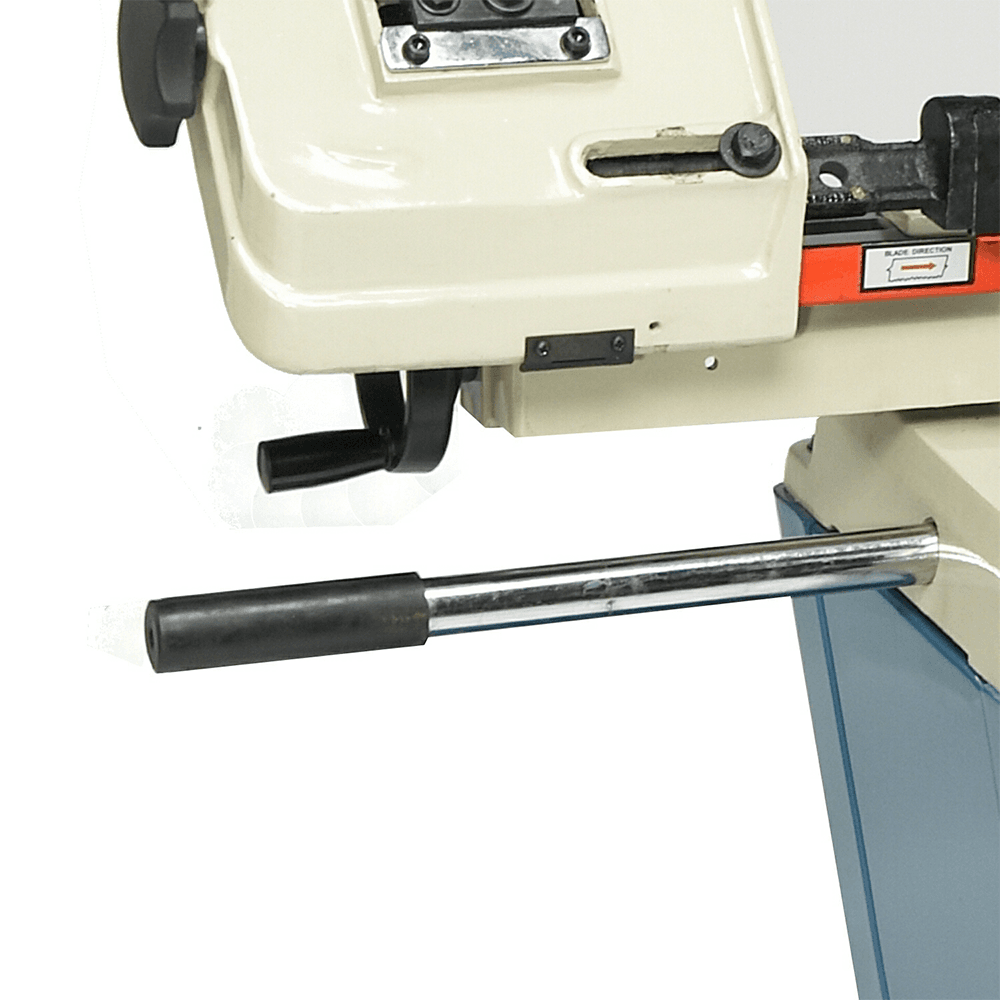

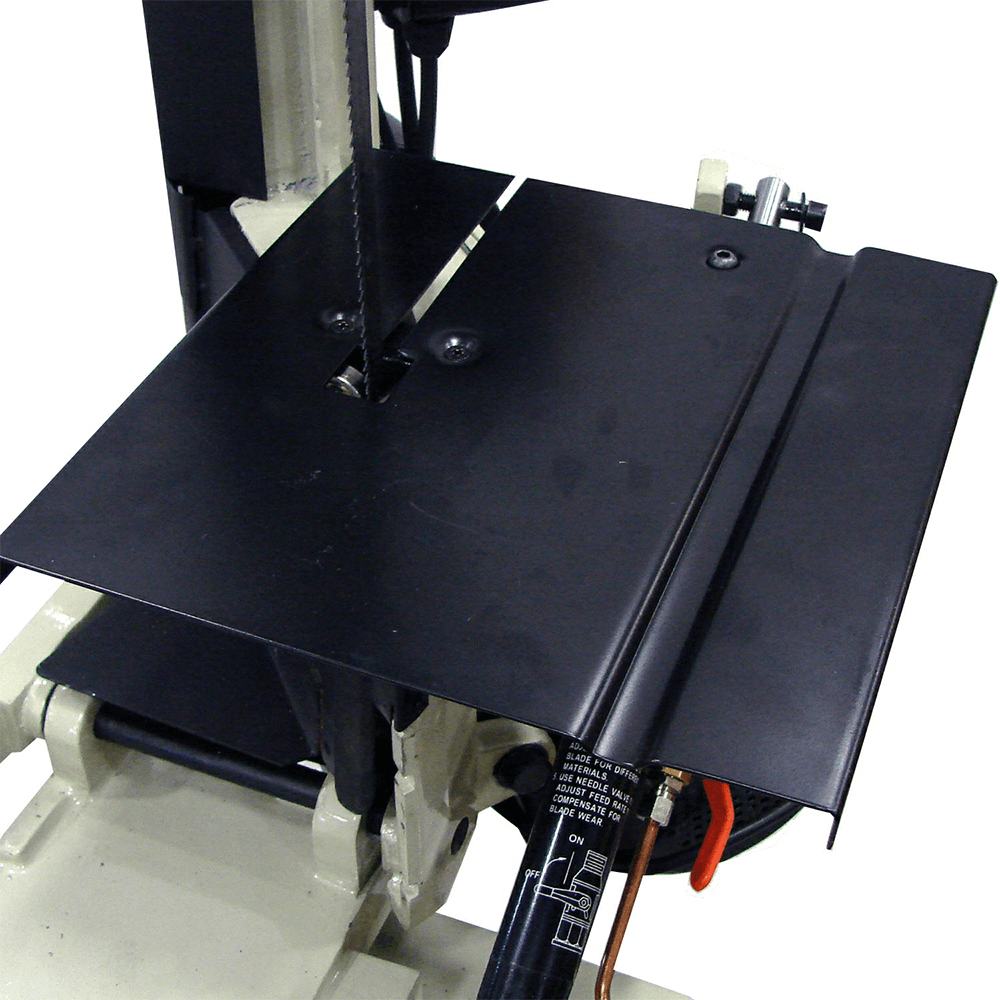

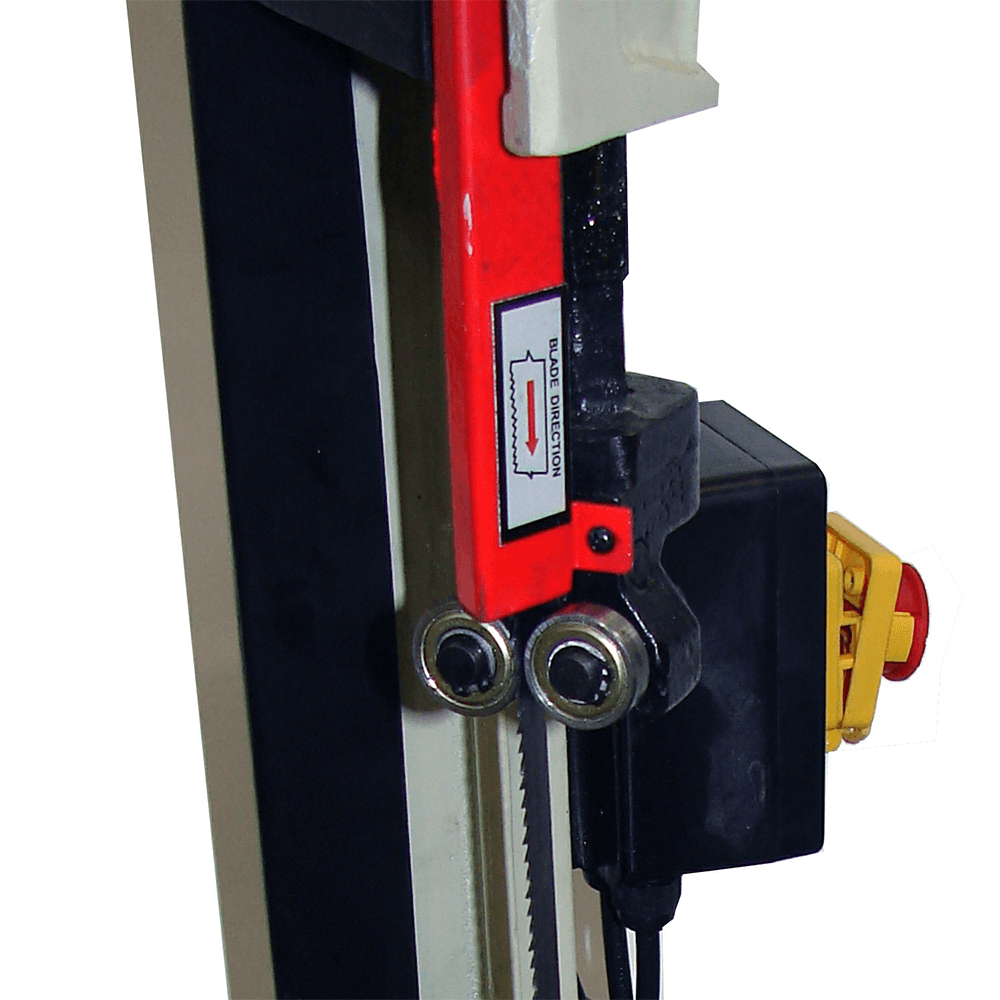

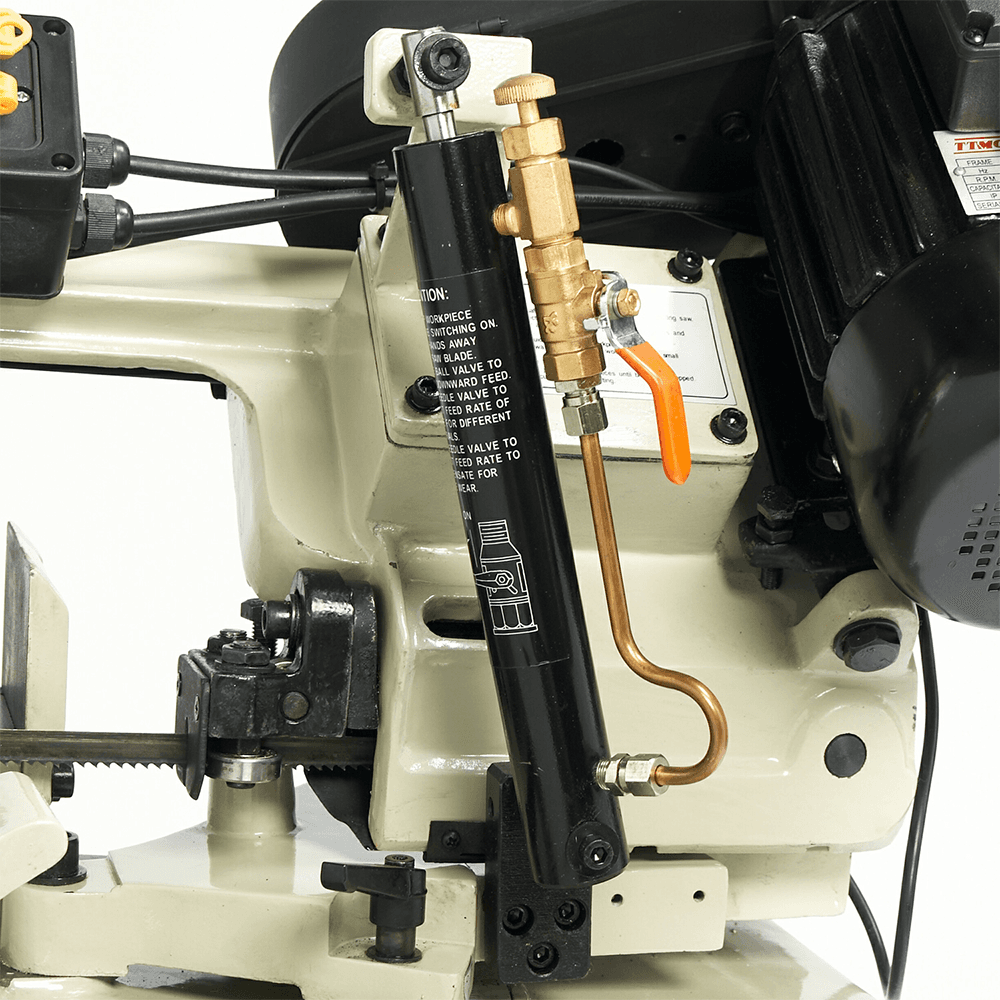

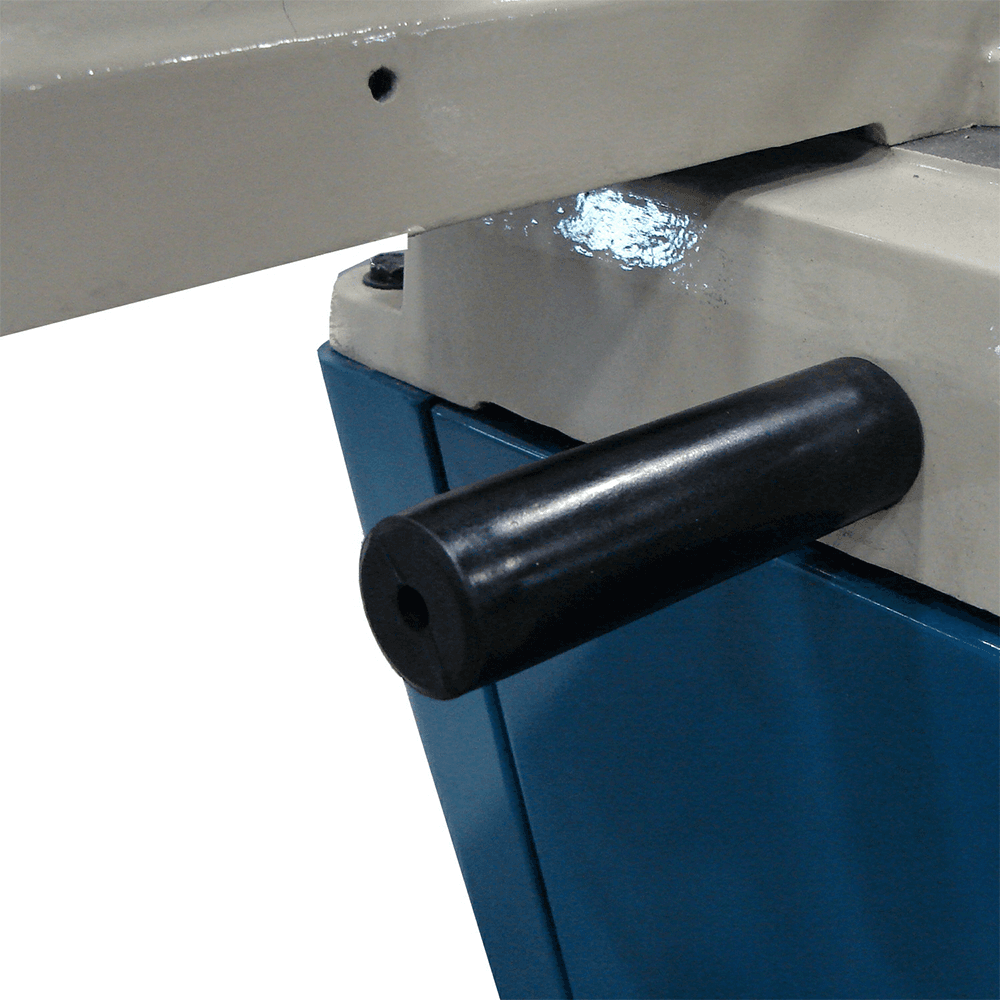

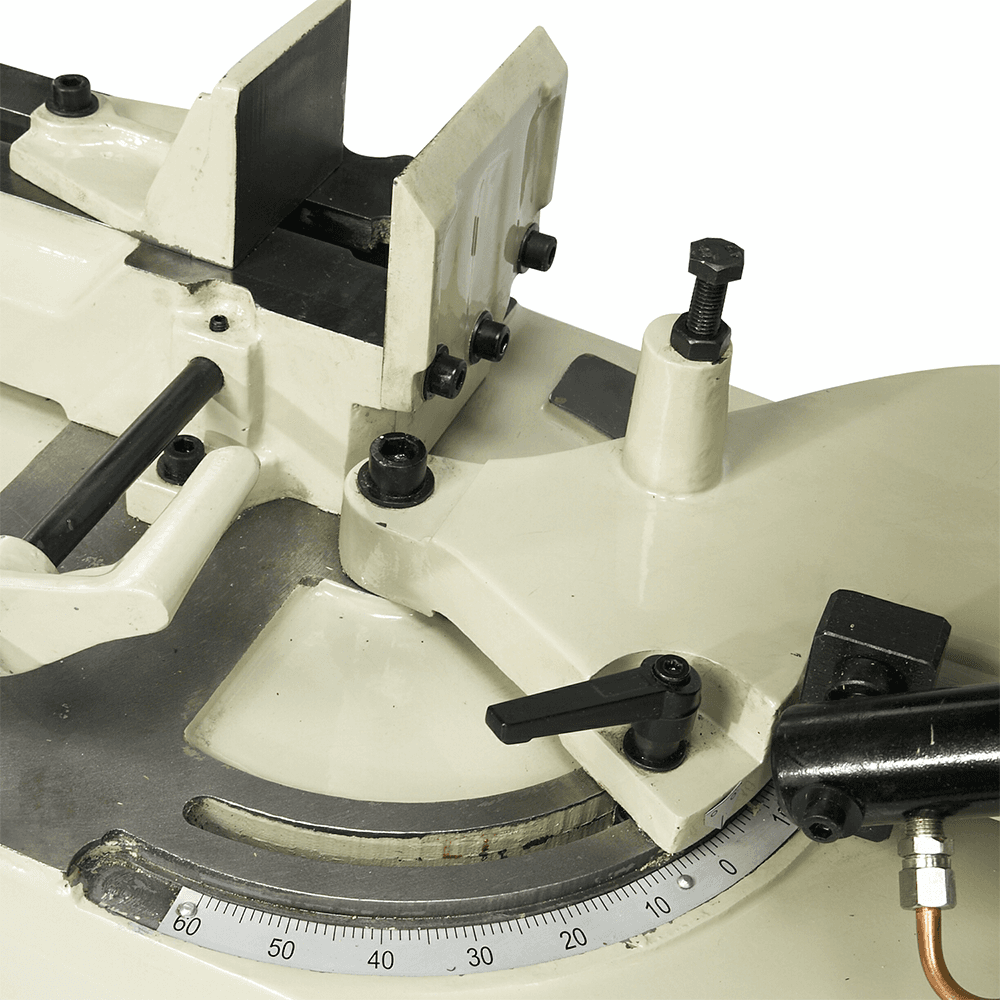

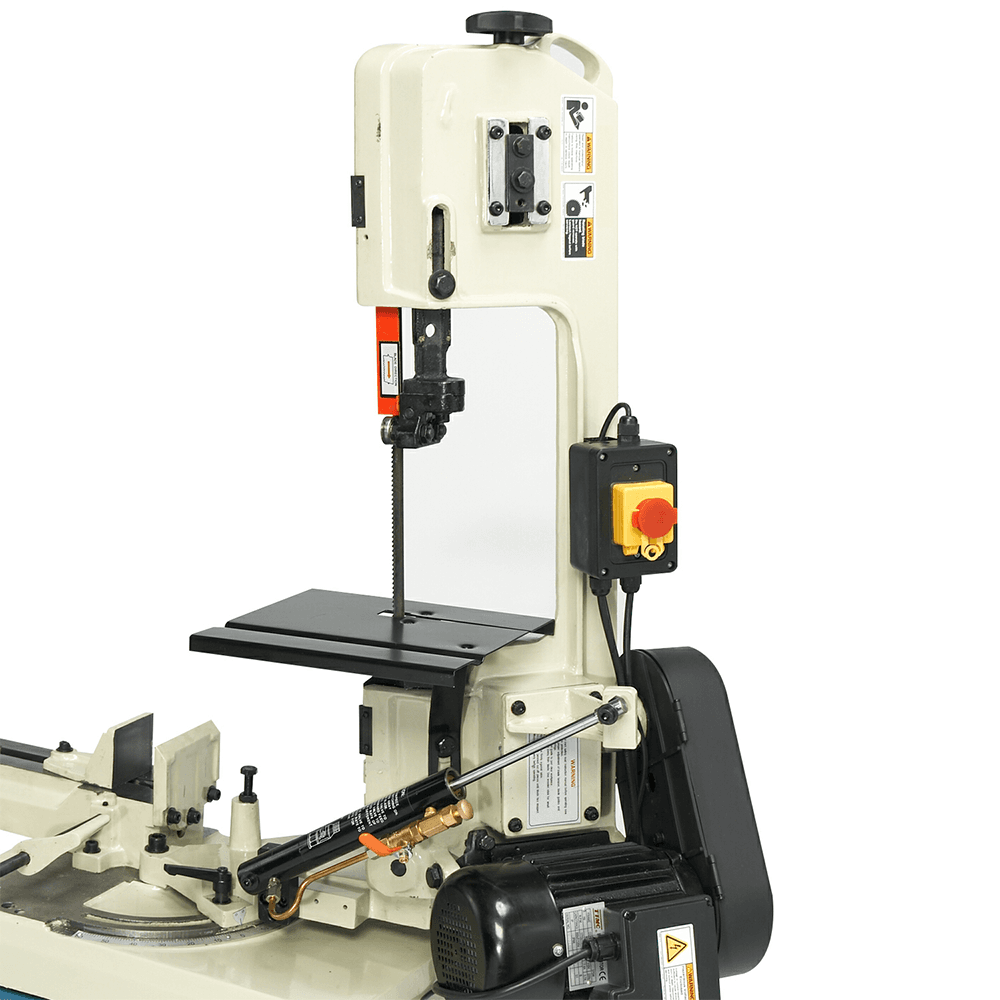

This manual machine can run as a pivot-style horizontal band saw or as a vertical band saw, if you lift the head 90° and lock it in. The Baileigh BS-128m portable metal cutting bandsaw is a great multipurpose saw for intricate designs! Features: • Similar to our BS-127 but adds hydraulic descent - Ideal for home shops and hobbyists • Accepts standard .5" blades and cuts up to 5" round stock at 90° and up to 6" rectangle • Includes a steel work stand with wheels for portability and tackles several other profiles and shapes • Head miters 60° left and 45° right • Cast iron saw head and bow reduce vibrations and maintain accuracy • Choose from 3 blade speeds (78, 154, and 200 fpm) via a step pulley-something you won't find on other saws in this price range • Hydraulically controlled descent makes clean cuts and reduces operator effort • Stop rod helps you make repeatable cuts for small runs • Adjustable bearing blade guides move as close as possible to the material to produce accurate cuts • Fully welded steel plate framework provides stability and helps this metal band saw last for many years
Specifications
| Box Quantity | 1 |
| Blade Guide | |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 110V / 60Hz |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 45° - 0° - 60° |
| Motor (HP) | 3/4 HP |
| Overall Dimensions (L x W x H) | |
| Product Type | Manual Band Saws |
| Rectangle at 90 Degrees | |
| Return | Manual |
| Short Description | 110V 1-phase power 5" round capacity at 90° Head miters 45°-0°-60° 0.5" blade width 3 cutting speeds Variable speed : 78, 154, 200 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | |
| Drive | Belt |
| Descent Control | Hydraulic |
| Blade Speeds (SFPM) | 78, 154, 200 |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | 5" x 6" x 1.75" x 2.19" x 3" x 3.7" |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | 5" x 1.75" x 3.75" |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Swivel Head |
