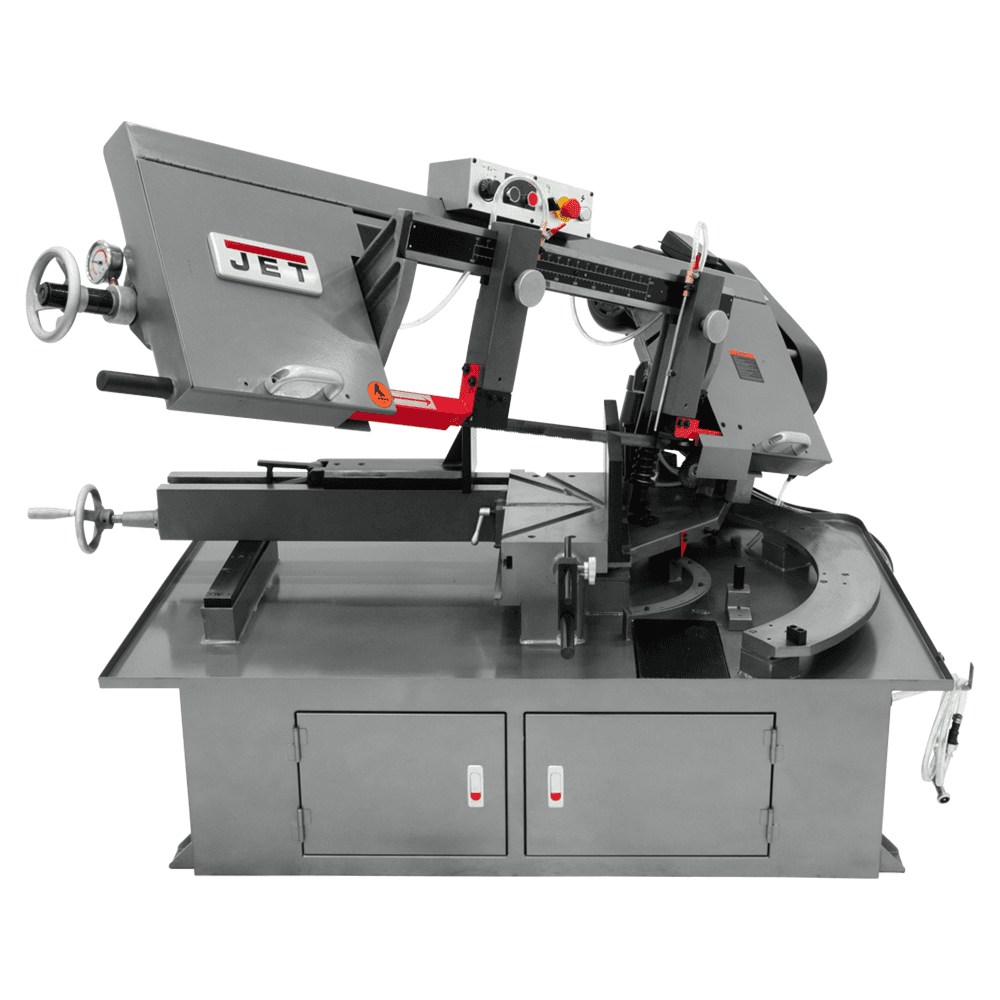

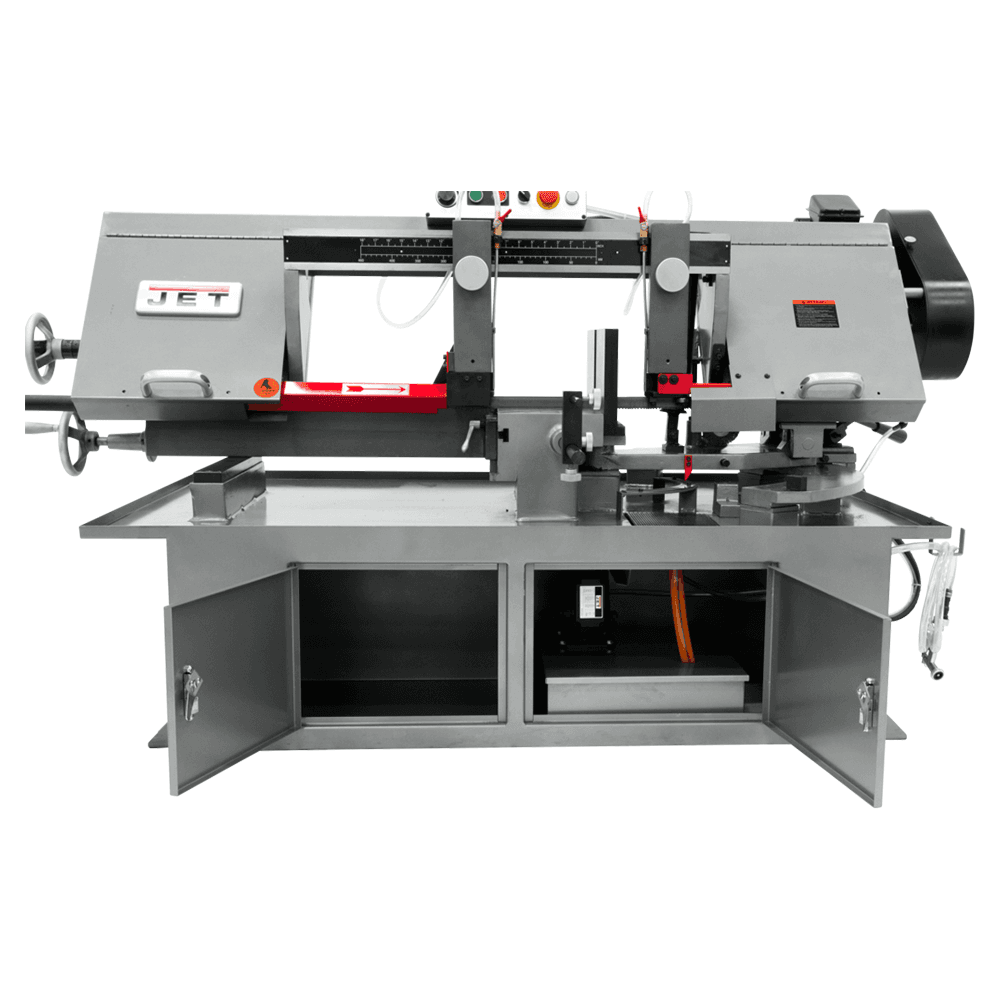

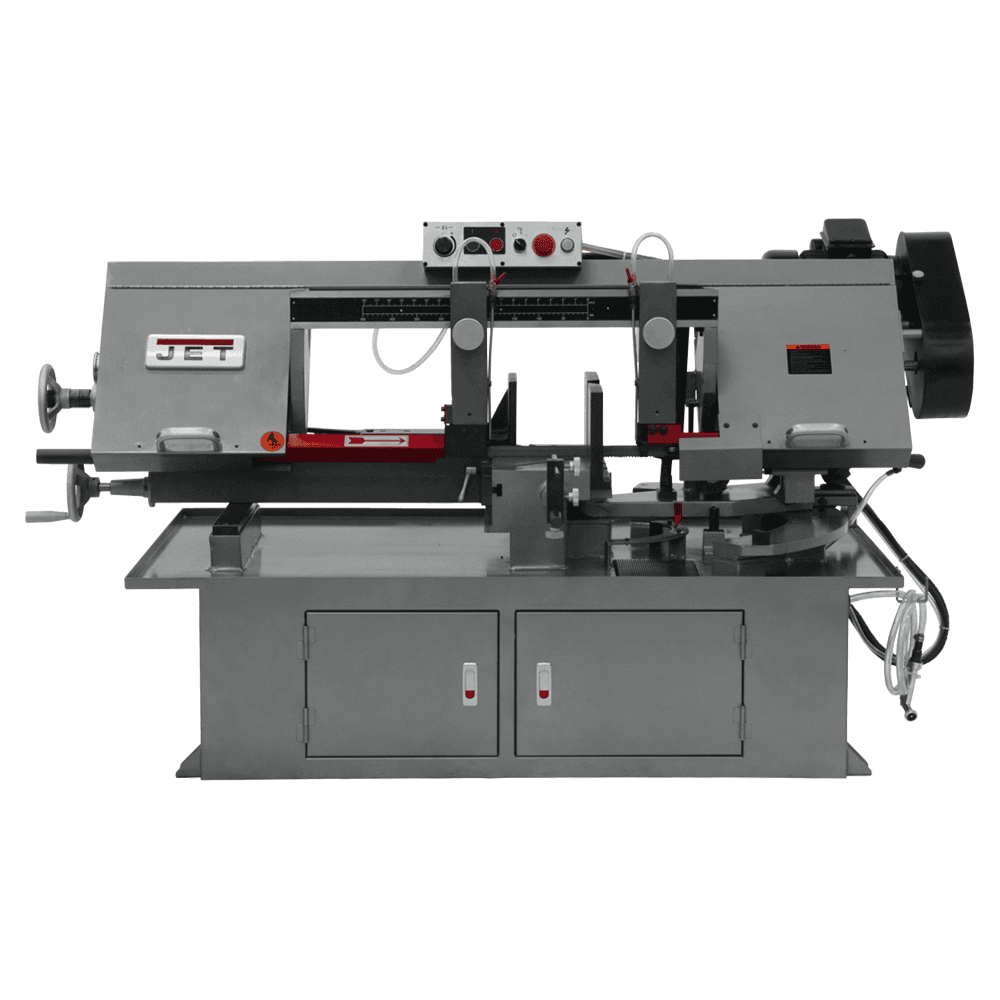

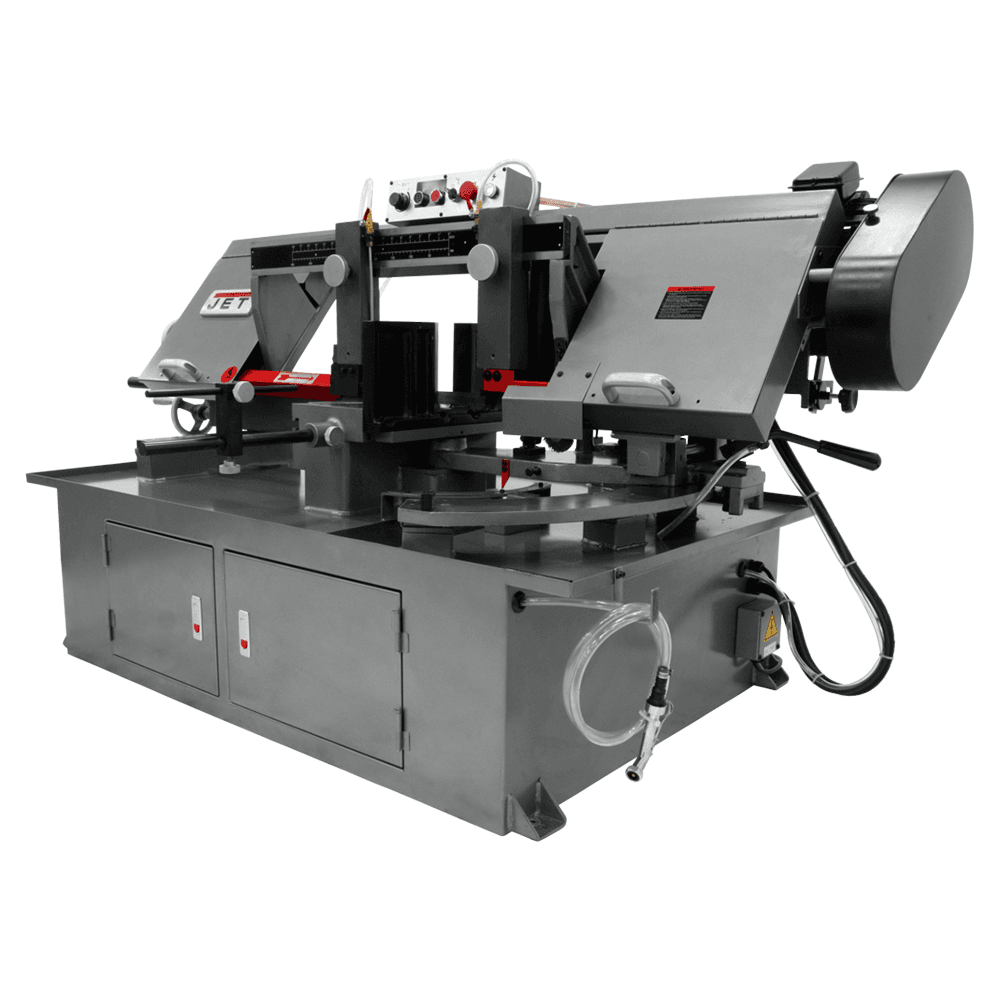

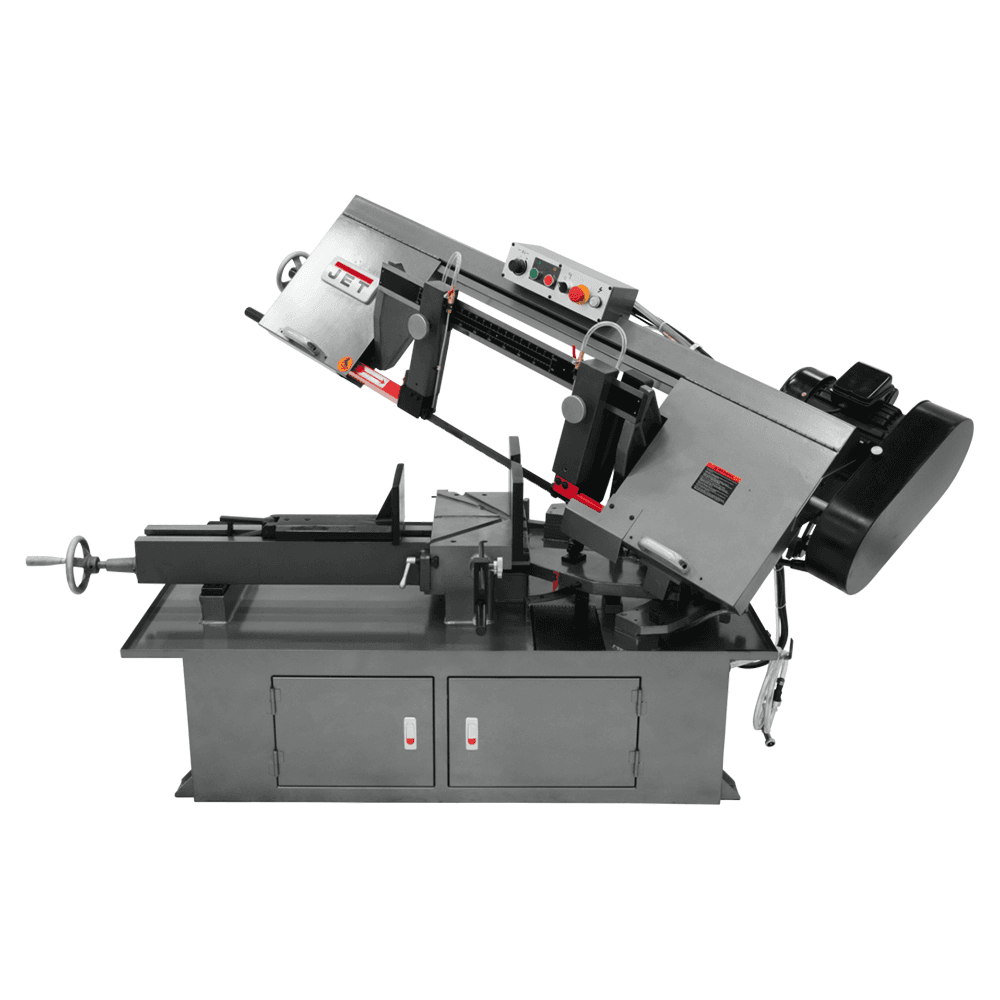

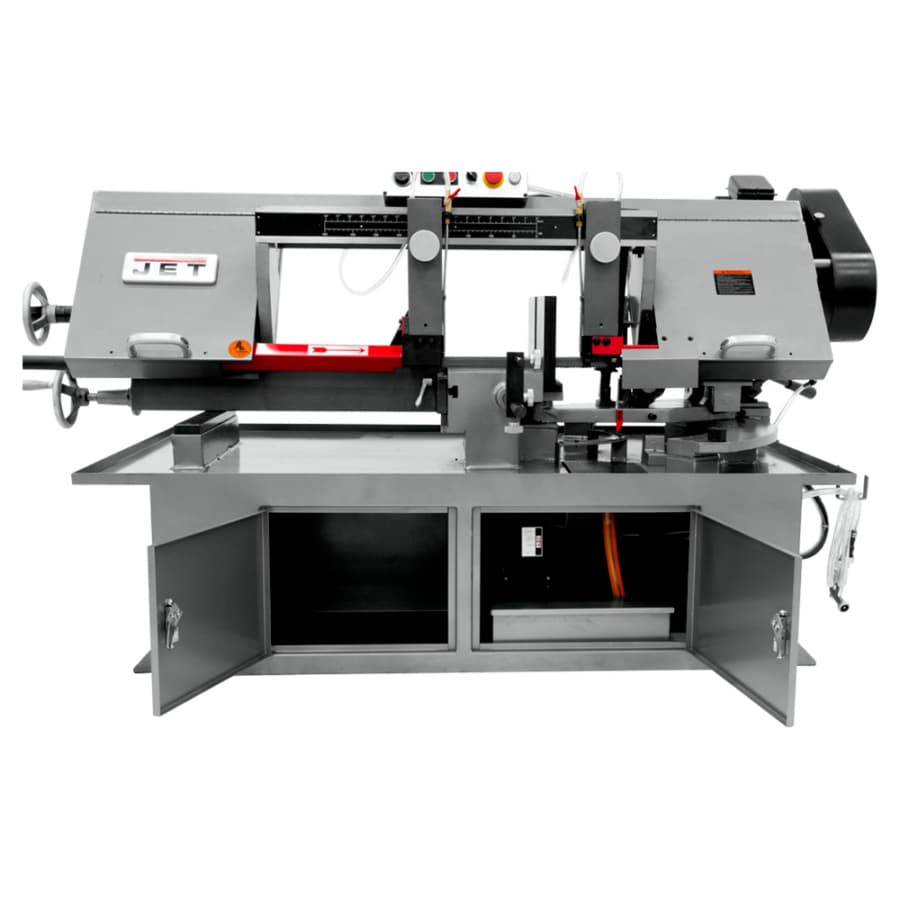

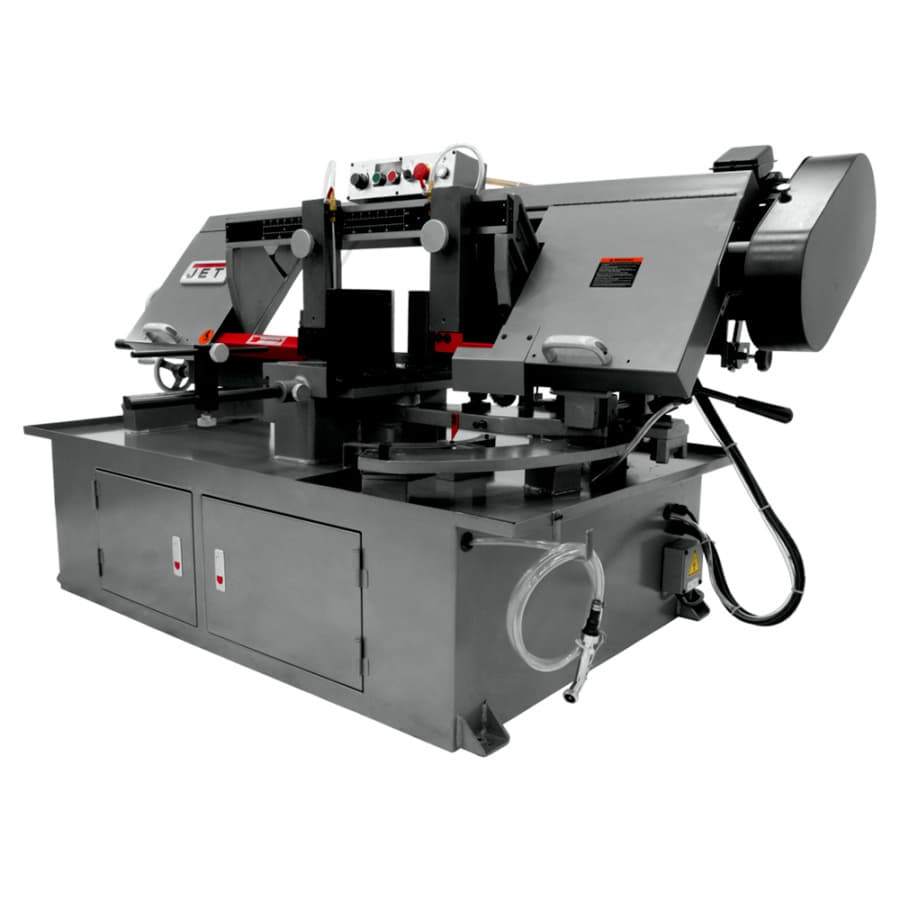

Jet Tools MBS-1018-3 10" x 18" Horizontal Dual Mitering Band Saw, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details

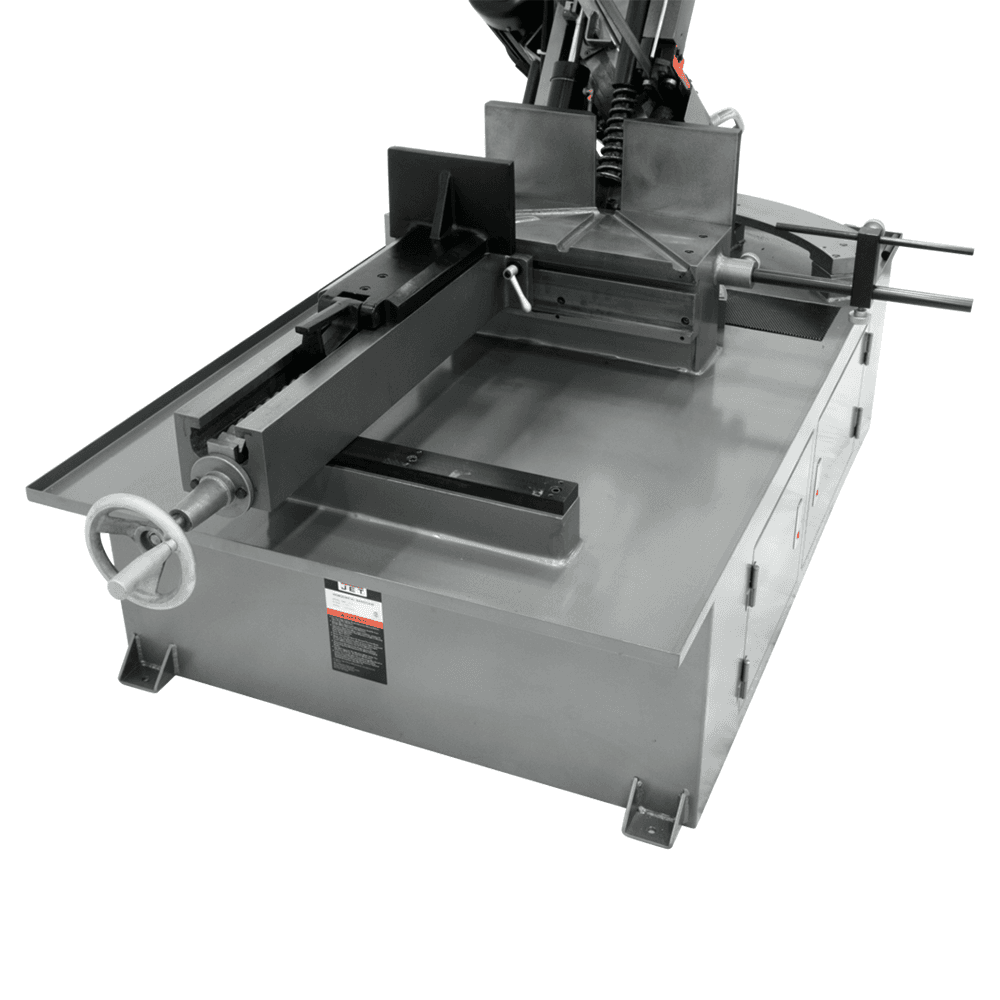

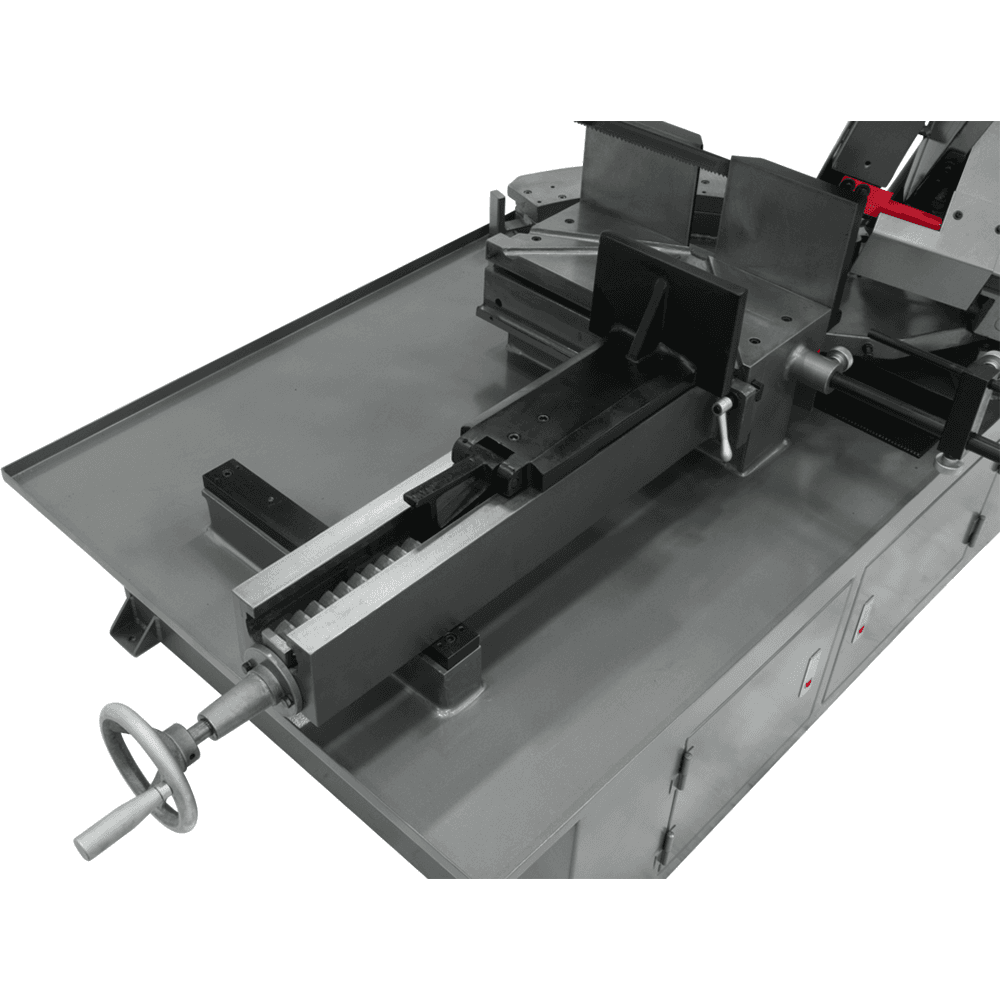

Jet Dual Mitering horizontal bandsaws unique design head dual miters both left and right for quick angle cuts. The Heavy-Duty construction on the bandsaw features a fully guarded blade for operator Safety and blade tension gauge to ensure correct cutting position. The automatic blade breakage sensor detects accidental breakage and interrupts the power. With the built-in, self-propelled blade brush, the stress of chip build up in blade guides is no longer. Features: • Adjustable material stop • Automatic shut off switch stops the sawing process • Hydraulic down feed control is easily adjusted enabling feed rates to evolve with variable types of materials • Integrated pressurized wash hose for easy machine clean up • Magnetic starter for low voltage and lost phase protection • Quick action vise on 10" saws
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | |
| Rectangle at 45 Degrees | 10" x 12" |
| Product Type | Mitering Horizontal Bandsaws |
| Prewired Voltage | |
| Overall Height | 46" |
| Overall Dimensions (L x W x H) | 79" x 36" x 46" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V/460V |
| Rectangle at 60 Degrees | 6" x 5" |
| Rectangle at 90 Degrees | 10" x 17" |
| Round at 45 Degrees | 10" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 10" |
| Round at 60 Degrees | 6" |
| Motor Power (HP) | 2 HP |
| Motor Phase | 3 |
| Blade Width | |
| Blade Wheel Diameter | 14-1/4" |
| Blade Speeds (SFPM) | |
| Blade Speed (SFPM) | |
| Blade Size | 1" x 0.032" x 144" |
| Blade Length | |
| Bed Height | 22-1/2" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |

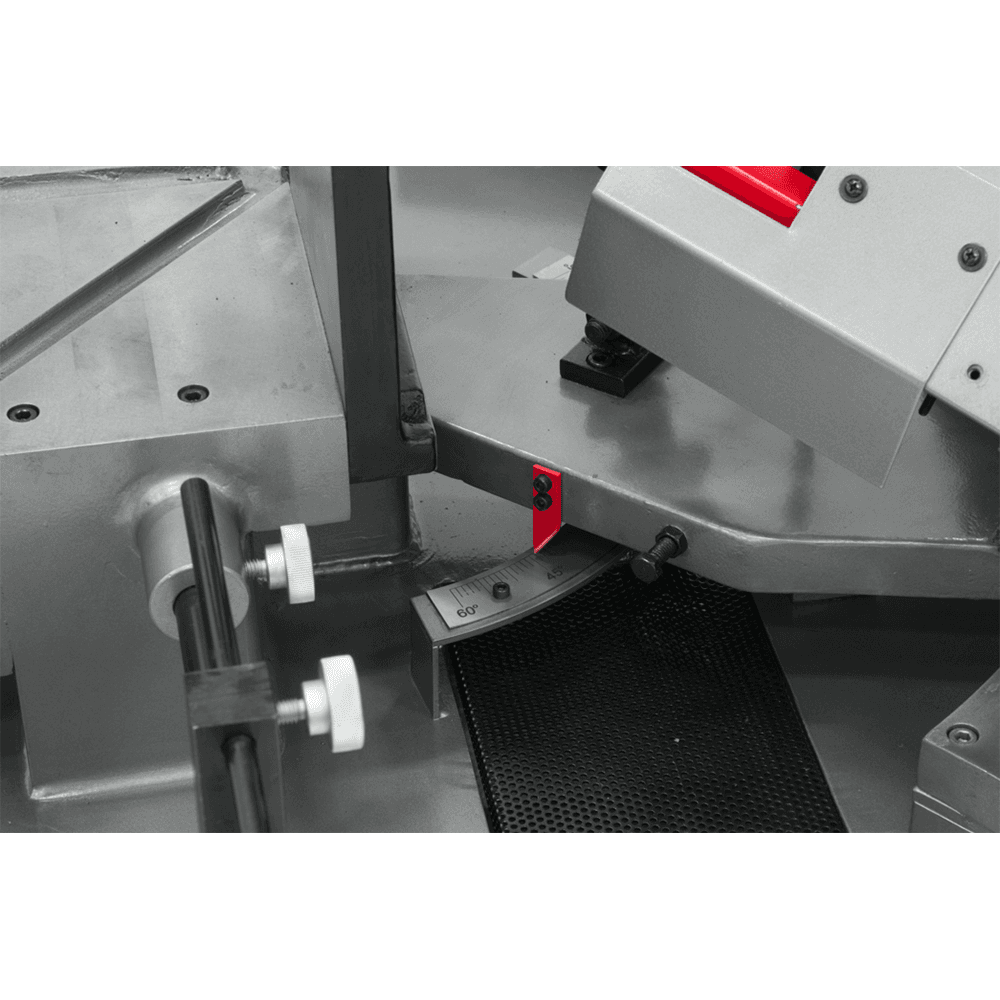

| Head Movement (Deg.) | 45R ,60L |
| Enhanced Description | |
| Electrics | |
| Drive | |
| Cutting Capacity Width | 10" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 10" x 18" |
| Amperage |
