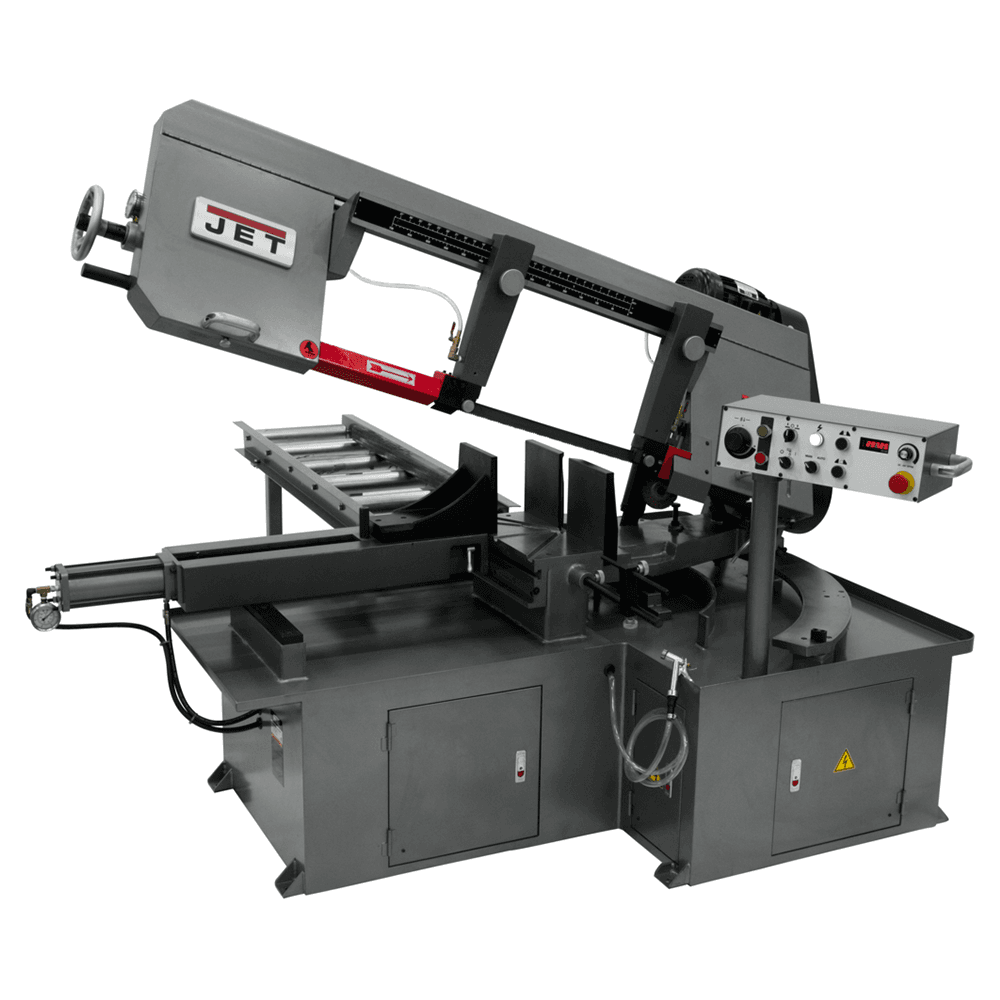

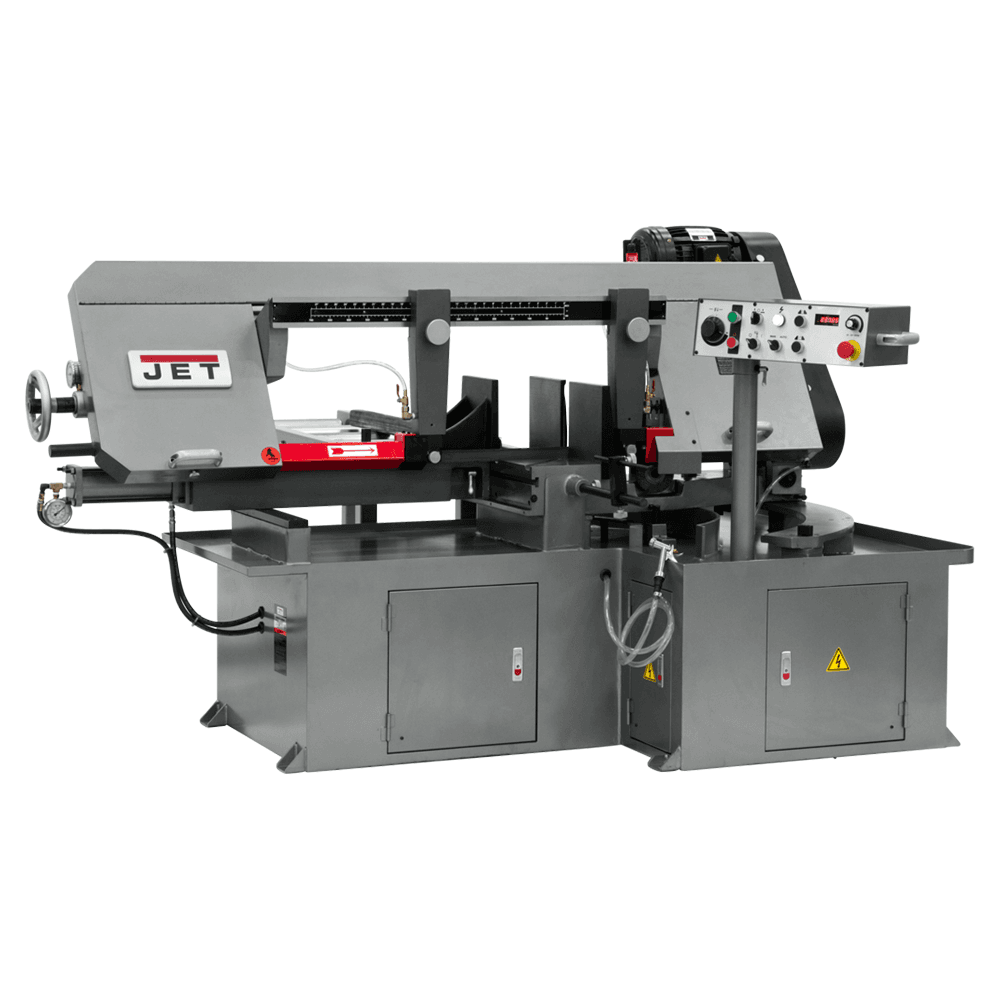

Jet Tools MBS-1323EVS-H 3 HP Semi-Automatic Dual Mitering Band Saw, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

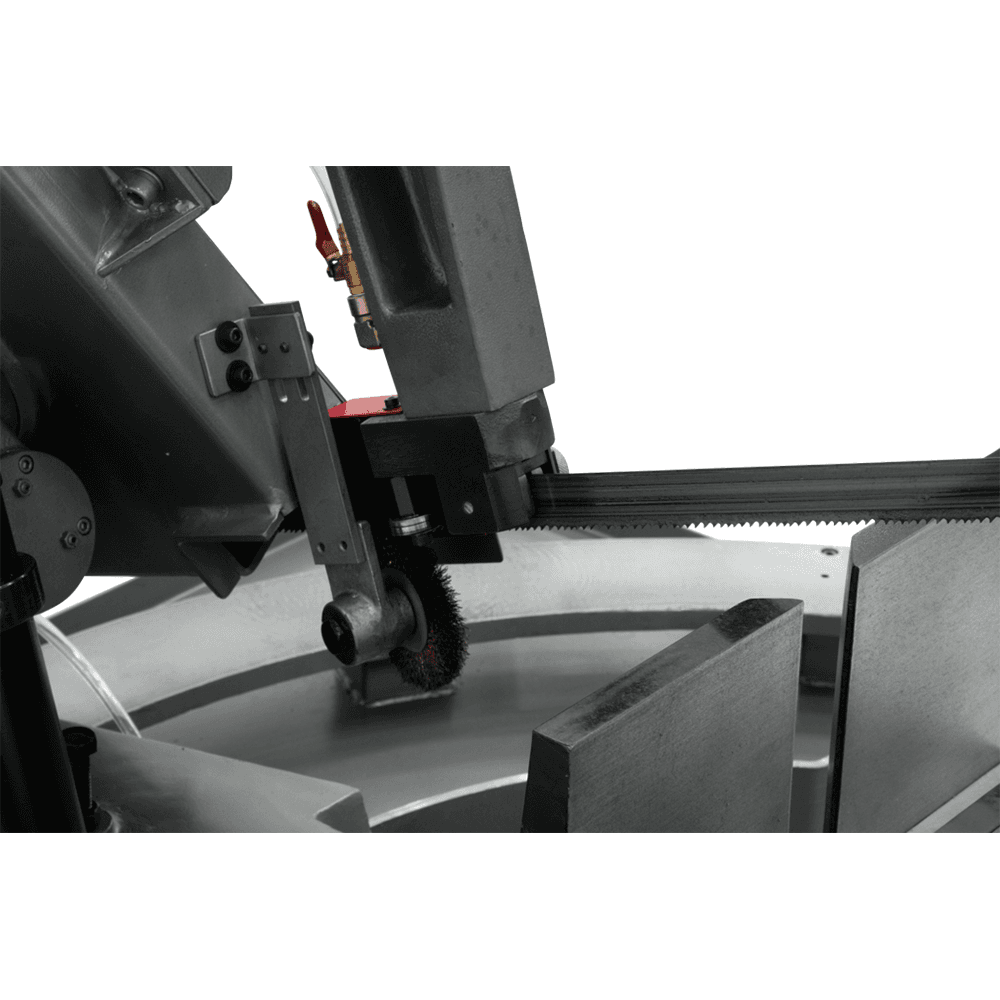

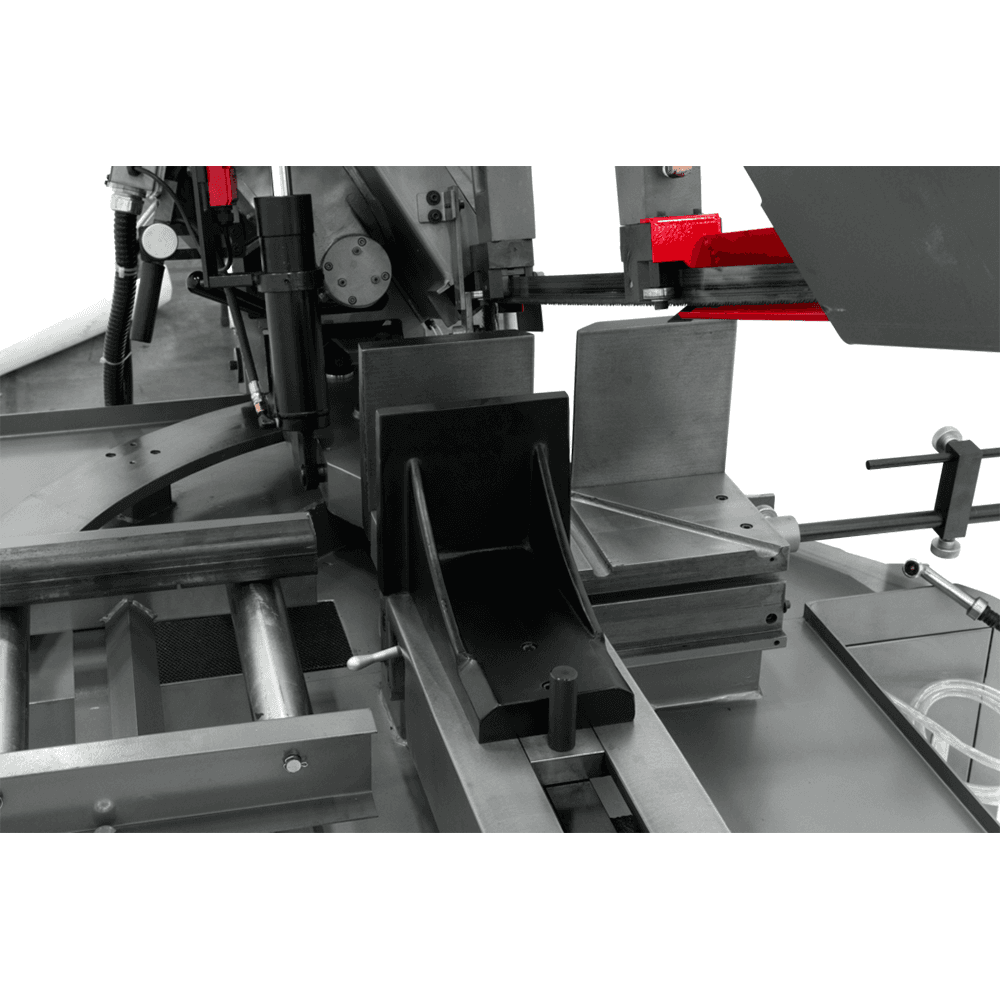

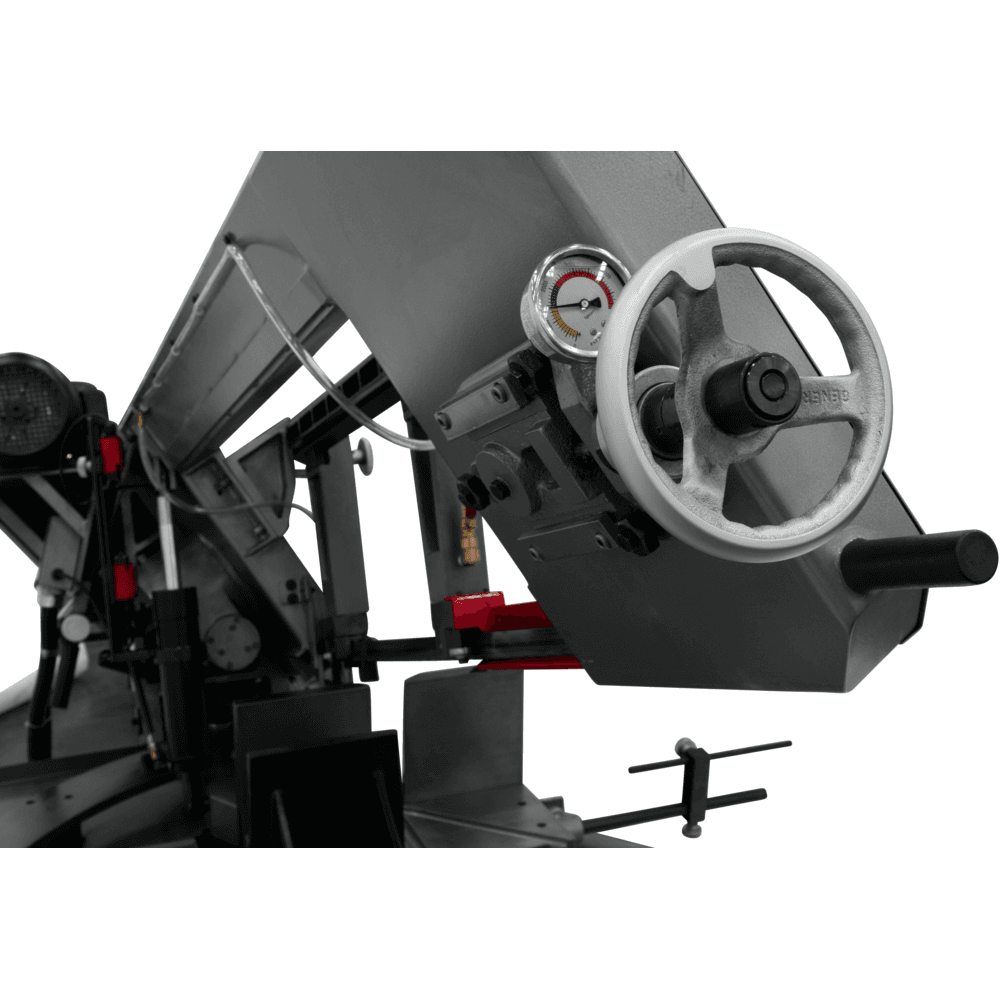

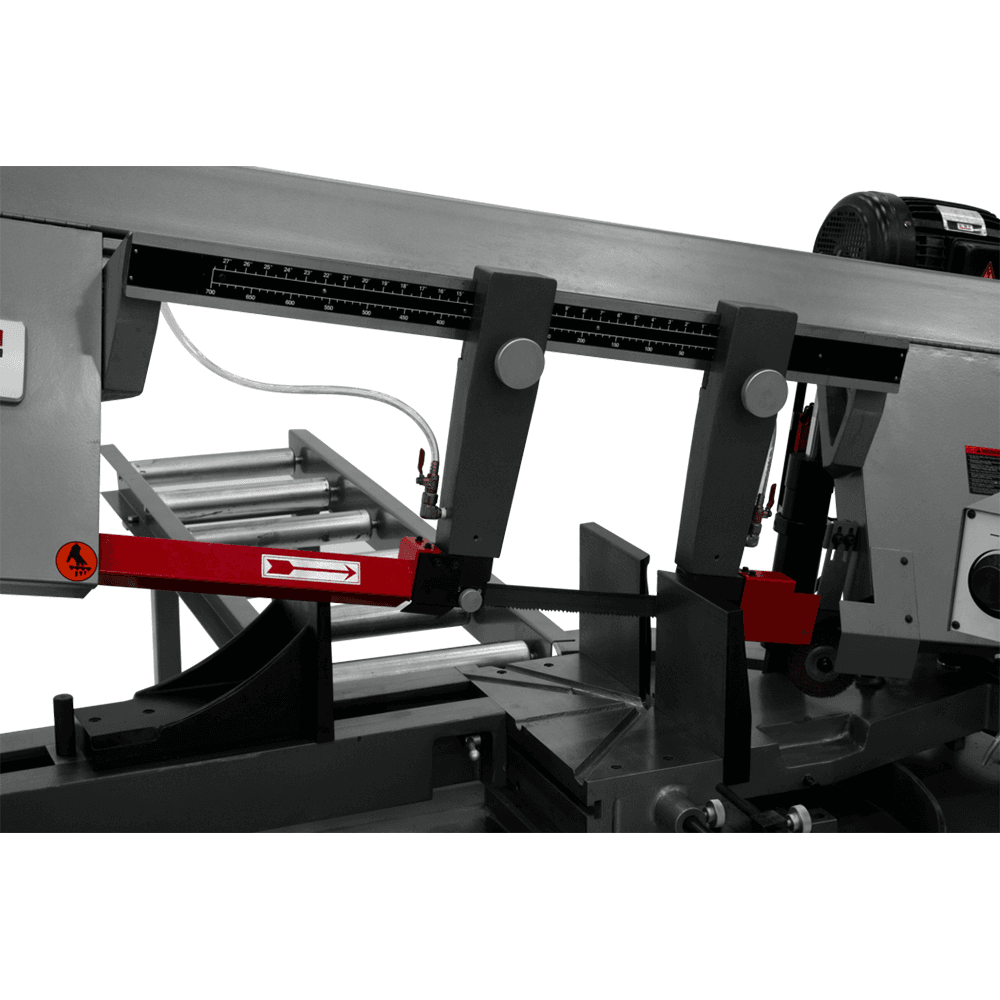

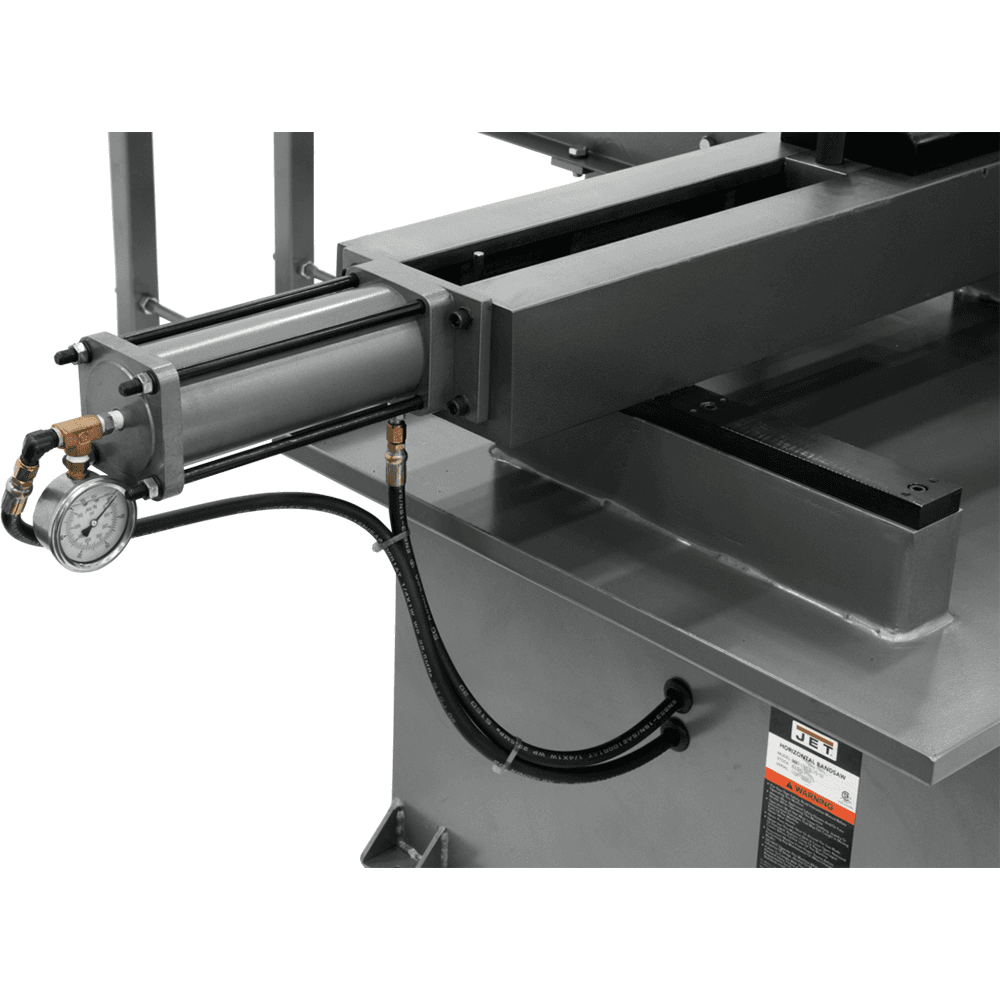

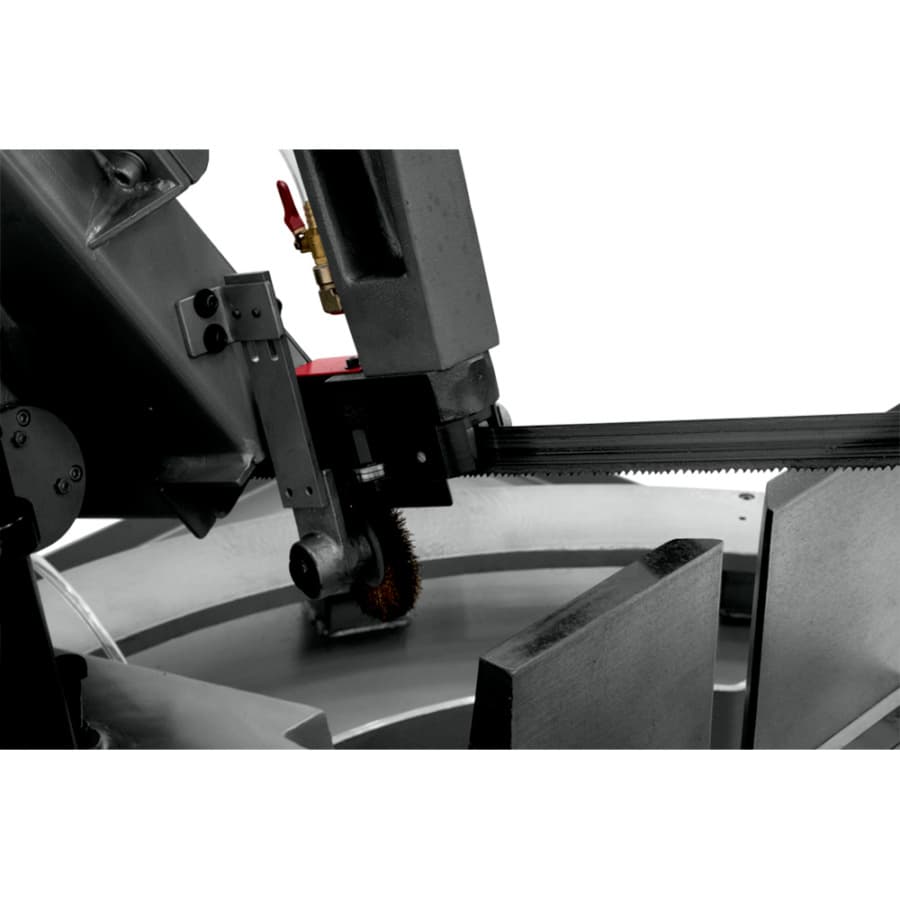

Jet Dual Mitering horizontal bandsaws“ unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds. The saw comes with an automatic blade breakage sensor that detects accidental breakage and interrupts the power as well as an automatic shut off switch to stop the sawing process. To ensure operator Safety, the blade is fully guarded. Features: • Adjustable material stop • Blade tension gauge helps to ensure the blade is in the correct cutting position • Built-in, self-propelled blade brush prevents chip build up in blade guides • Heavy Duty construction • Hydraulic down feed control is easily adjusted enabling feed rates to evolve with variable types of materials • Hydraulic Vise for rapid clamping of material on 13" saw • Integrated pressurized wash hose for easy machine clean up • Magnetic starter for low voltage and lost phase protection • Semi-automatic bow raises after cut to predetermined height
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | |
| Rectangle at 45 Degrees | 8" x 16" |
| Product Type | Mitering Horizontal Bandsaws |
| Prewired Voltage | 230V |
| Overall Height | 51" |
| Overall Dimensions (L x W x H) | 88" x 55" x 51" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V |
| Rectangle at 60 Degrees | 7" x 12" |
| Rectangle at 90 Degrees | 12" x 23-1/2" |
| Round at 45 Degrees | 13" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 13" |
| Round at 60 Degrees | 11" |
| Motor Power (HP) | 3 HP |
| Motor Phase | 3 |
| Blade Width | |

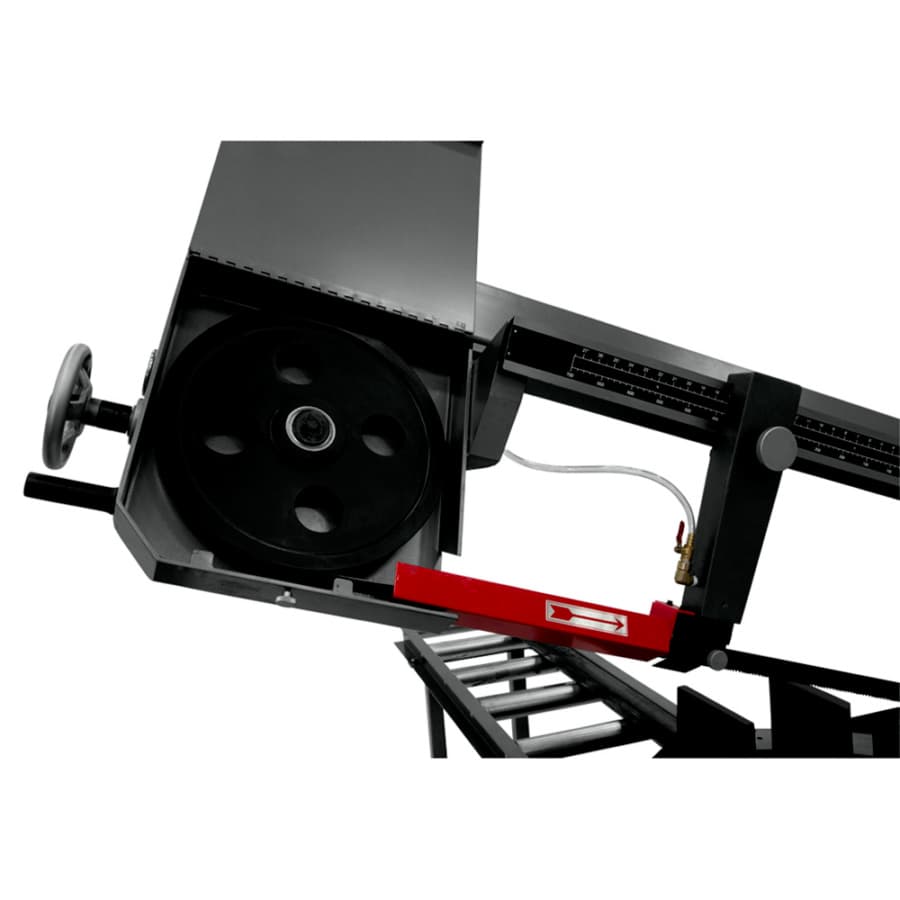

| Blade Wheel Diameter | 16" |
| Blade Speeds (SFPM) | |
| Blade Speed (SFPM) | Variable 50 - 297 |
| Blade Size | 1-1/4" x 0.043" x 172" |
| Blade Length | |
| Bed Height | 27.75" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | |
| Electrics | |
| Drive | EVS |
| Cutting Capacity Width | 12" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 12" x 32" |
| Amperage |
