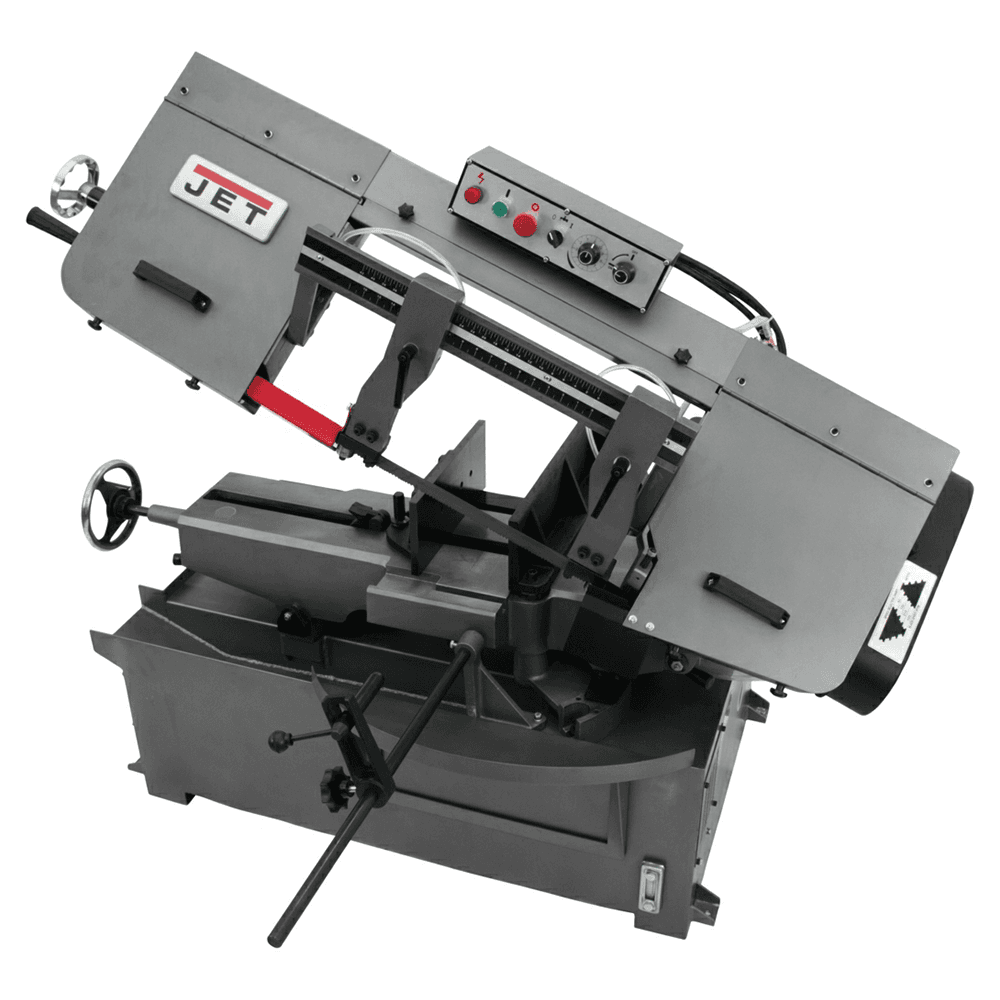

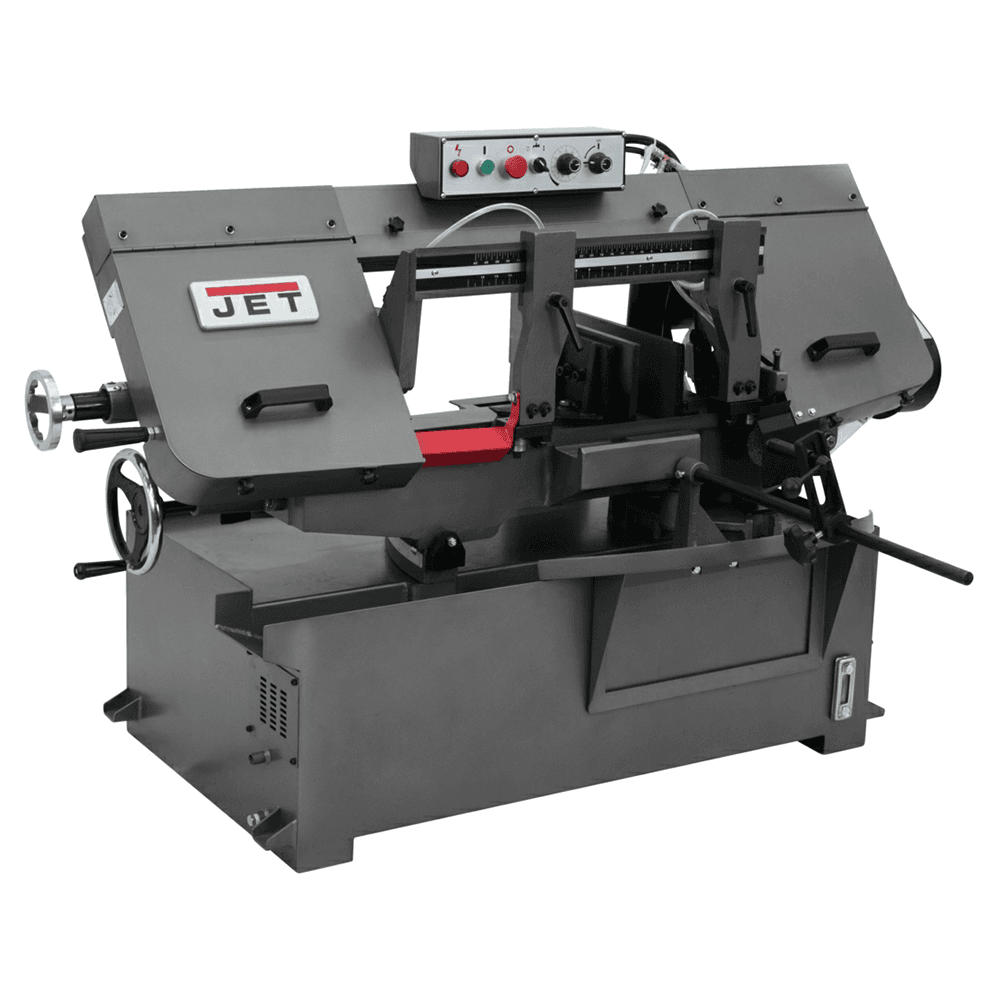

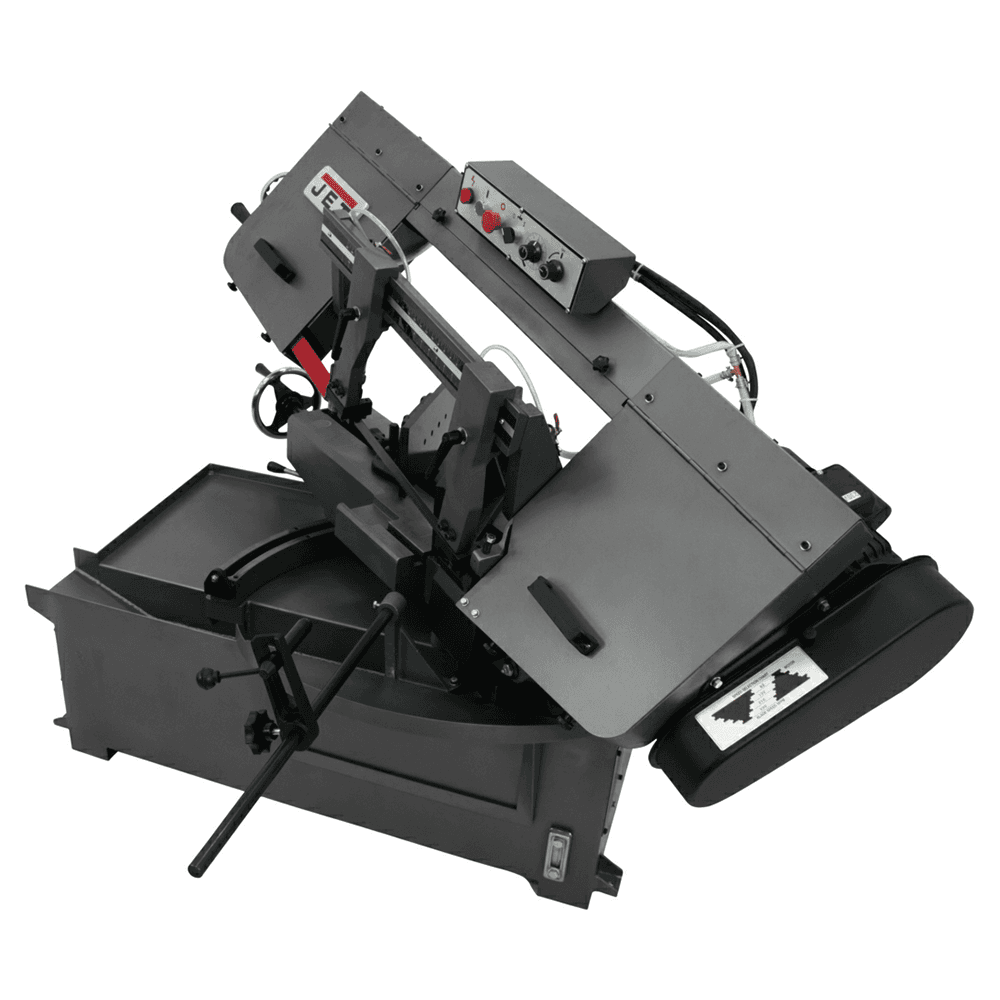

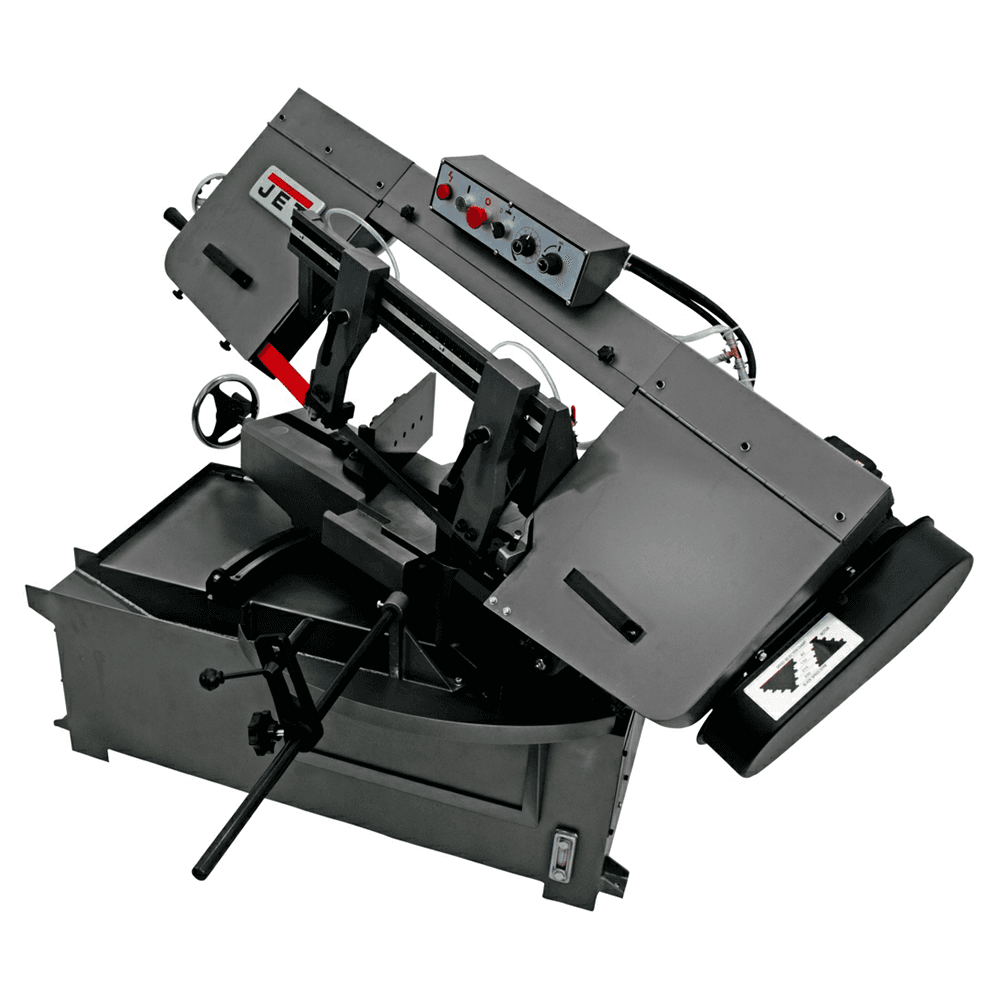

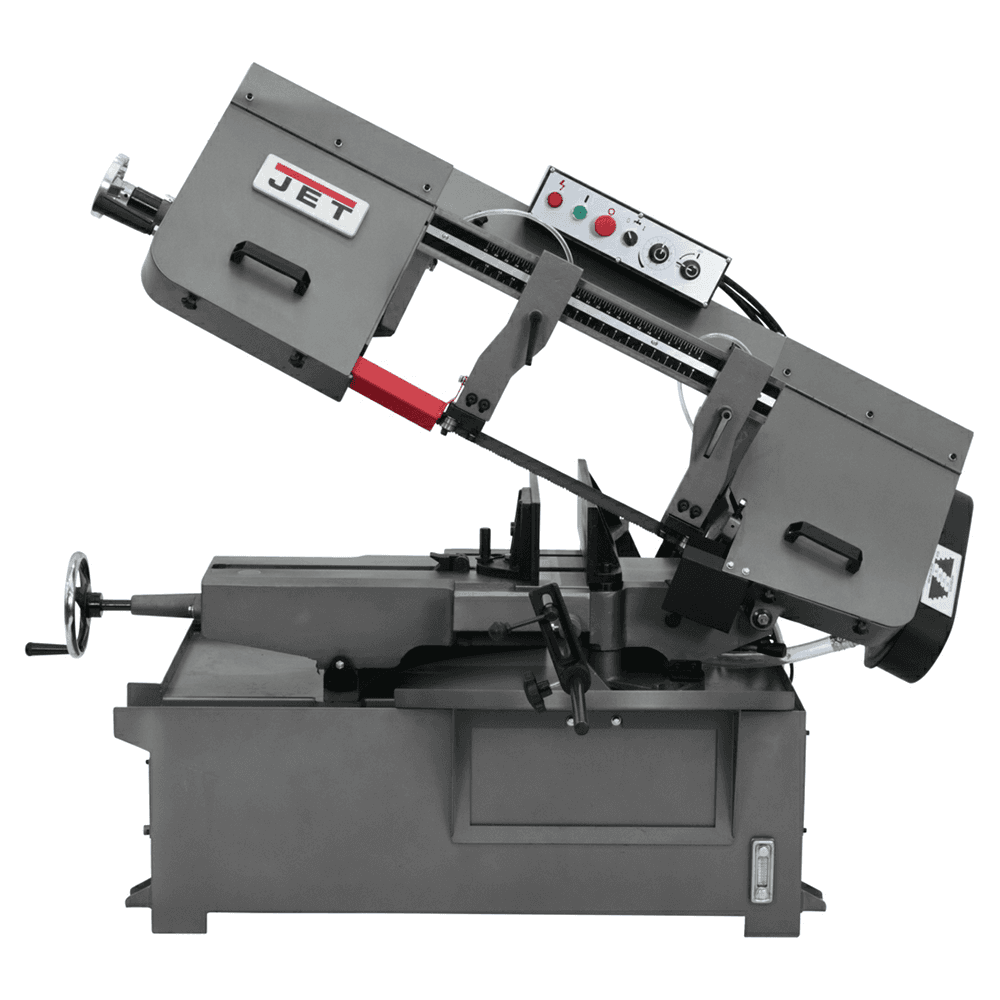

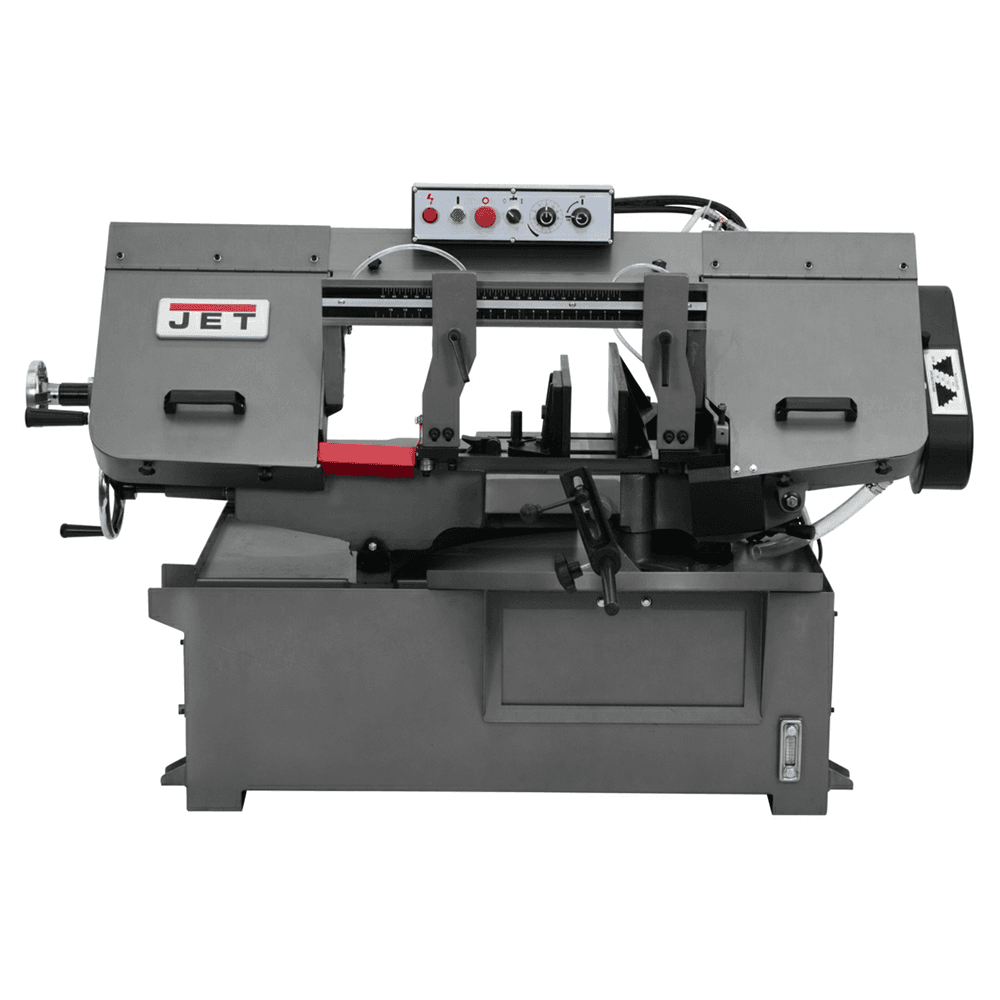

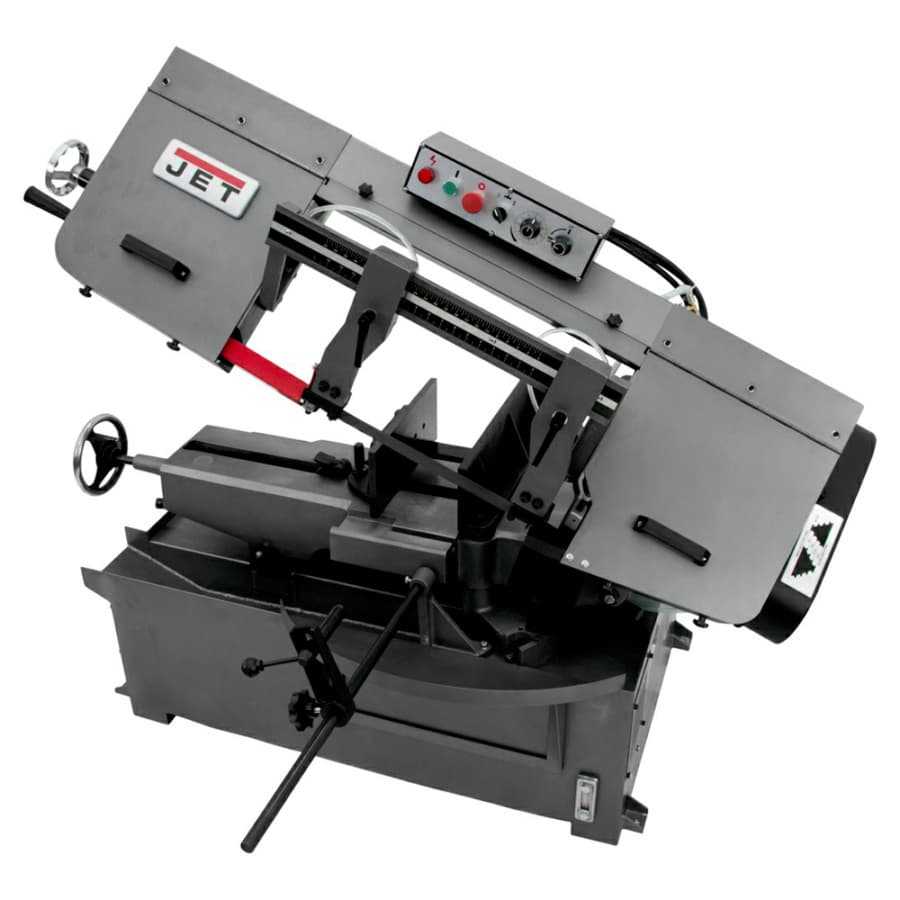

Jet Tools MBS-1014W-3 10" x 14" Horizontal Mitering Band Saw, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details
Jet Mitering horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, Jet Mitering Bandsaws are built to last and deliver precision results. Features: • Adjustable material stop • Built-in, self-propelled blade brush extends blade life • Carbide blade guides with roller bearings • Coolant is distributed through the blade guides • Fully adjustable hydraulic down feed with separate on/off control valve • Large , easy-to-read scale for accurate positioning of the saw head • Large hand wheel and built-in gauge provides easy blade tensioning • Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured • Quick positioning vise reduces set-up time
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 9" x 8-1/2" |
| Product Type | Mitering Horizontal Bandsaws |
| Prewired Voltage | 230V |
| Overall Height | 44" |
| Overall Dimensions (L x W x H) | 26" x 69" x 44" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 230V/460V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 10" x 14" |
| Round at 45 Degrees | 9" |
| Vertical Cutting Capacity | |
| Throat Depth | 10-1/2" |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 10" |
| Round at 60 Degrees | |
| Motor Power (HP) | 3 HP |
| Motor Phase | 3 |
| Blade Width | |
| Blade Wheel Diameter | 14" |
| Blade Speeds (SFPM) | |
| Blade Speed (SFPM) | 82, 132, 210, 330 |
| Blade Size | 1" x .035" x 130" |
| Blade Length | 130" |
| Bed Height | 25" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | 45° |
| Enhanced Description | |
| Electrics | |
| Drive | Belt Drive |
| Cutting Capacity Width | 10" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 10" x 14" |
| Amperage |
