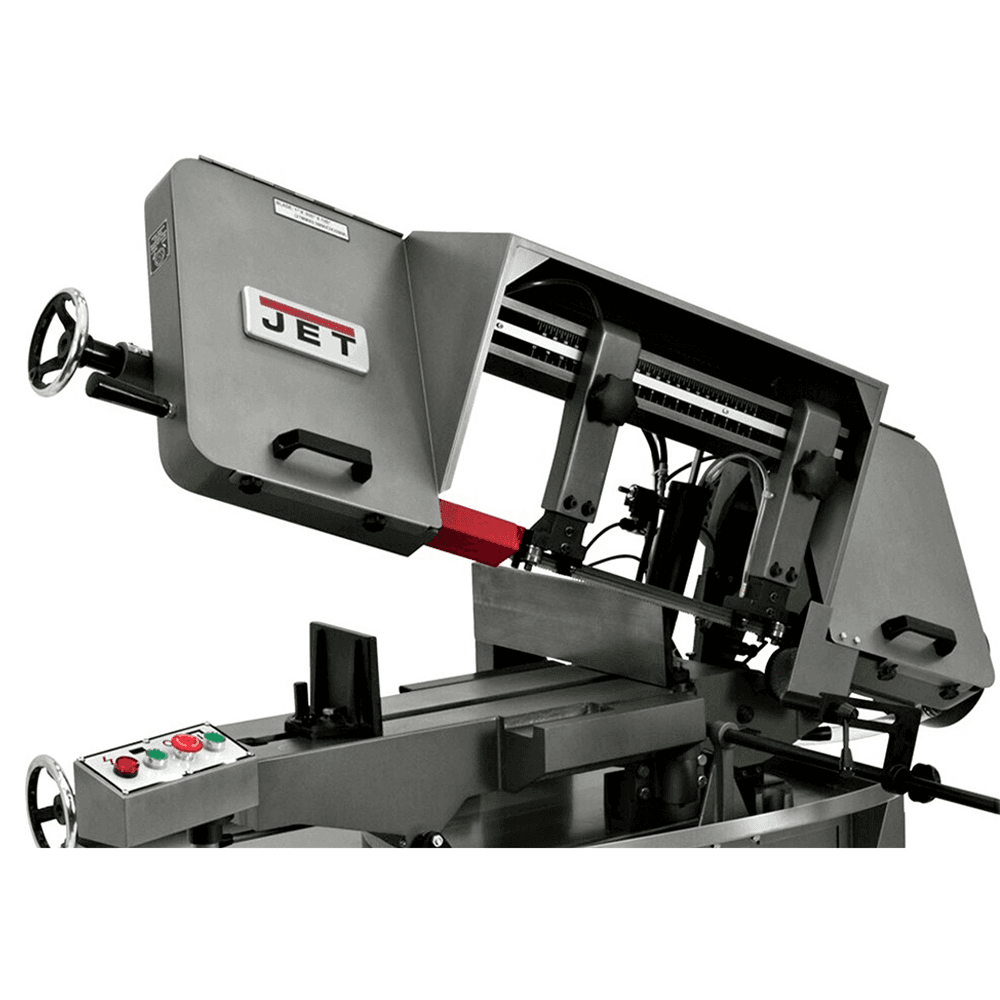

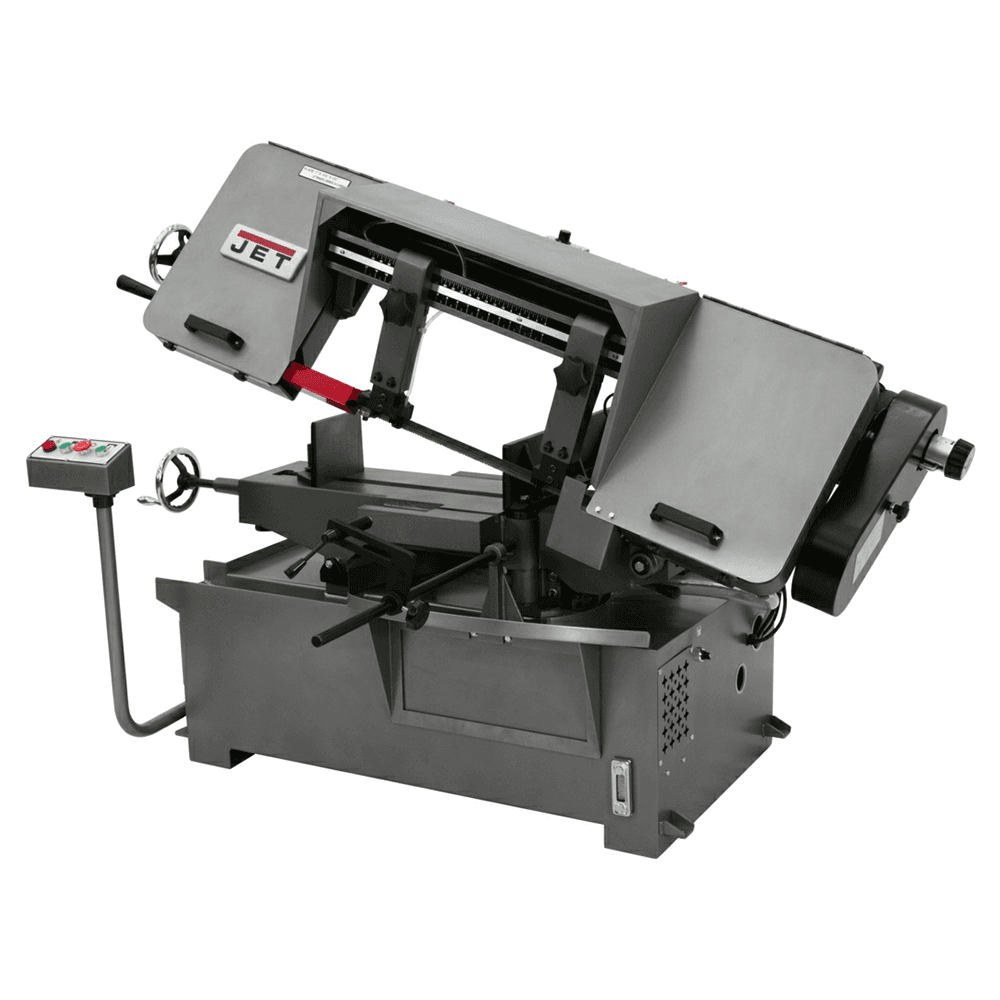

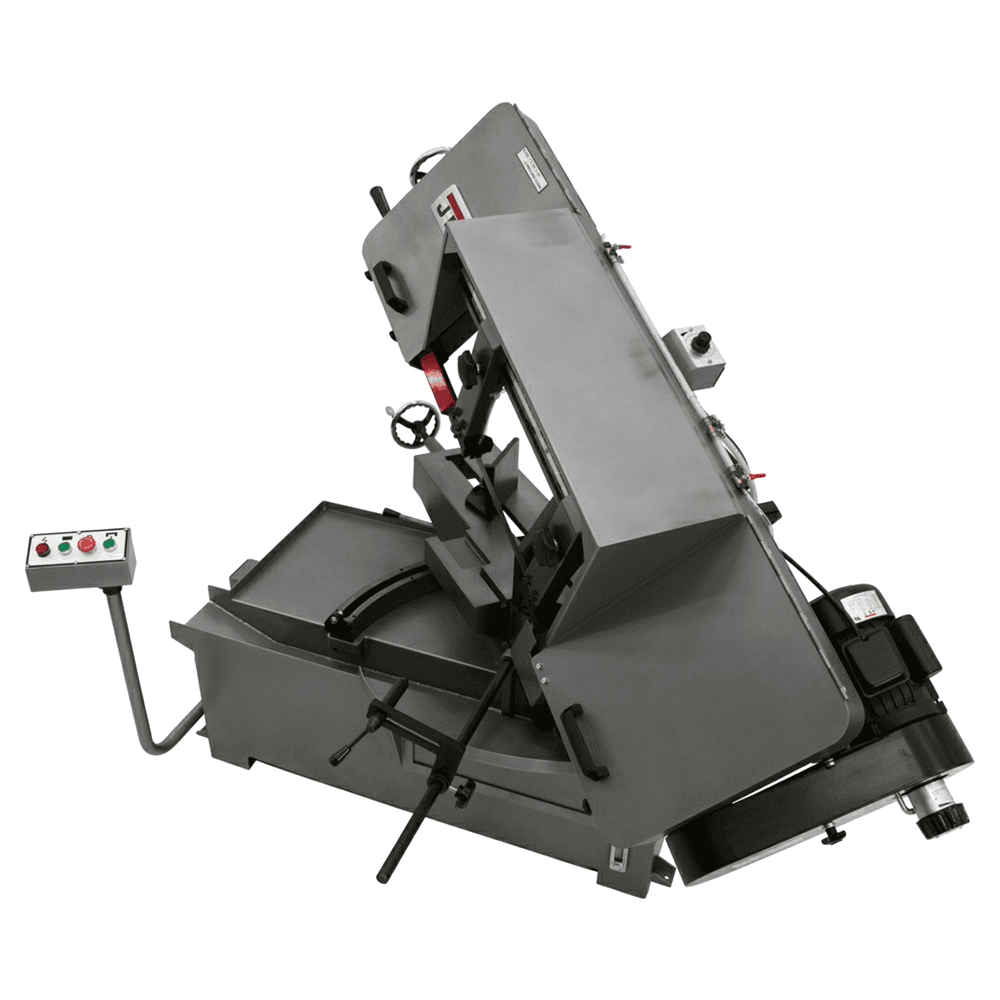

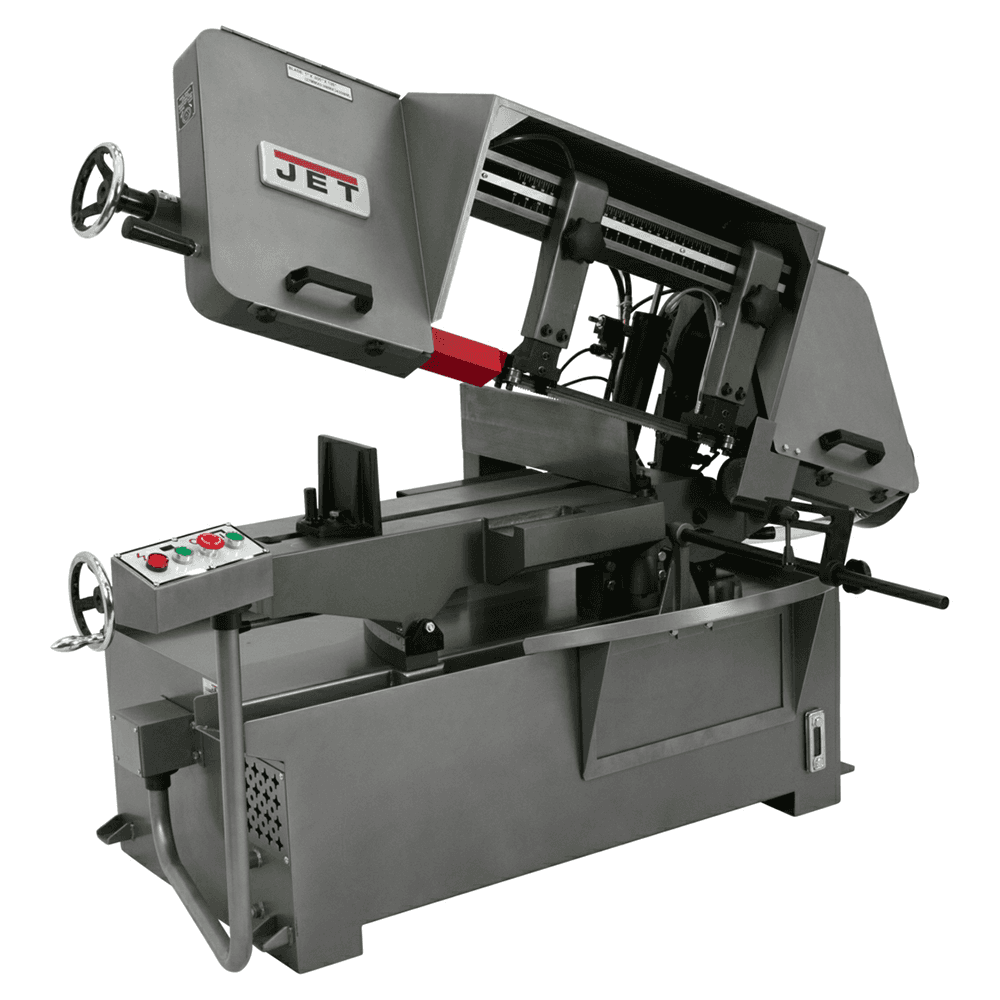

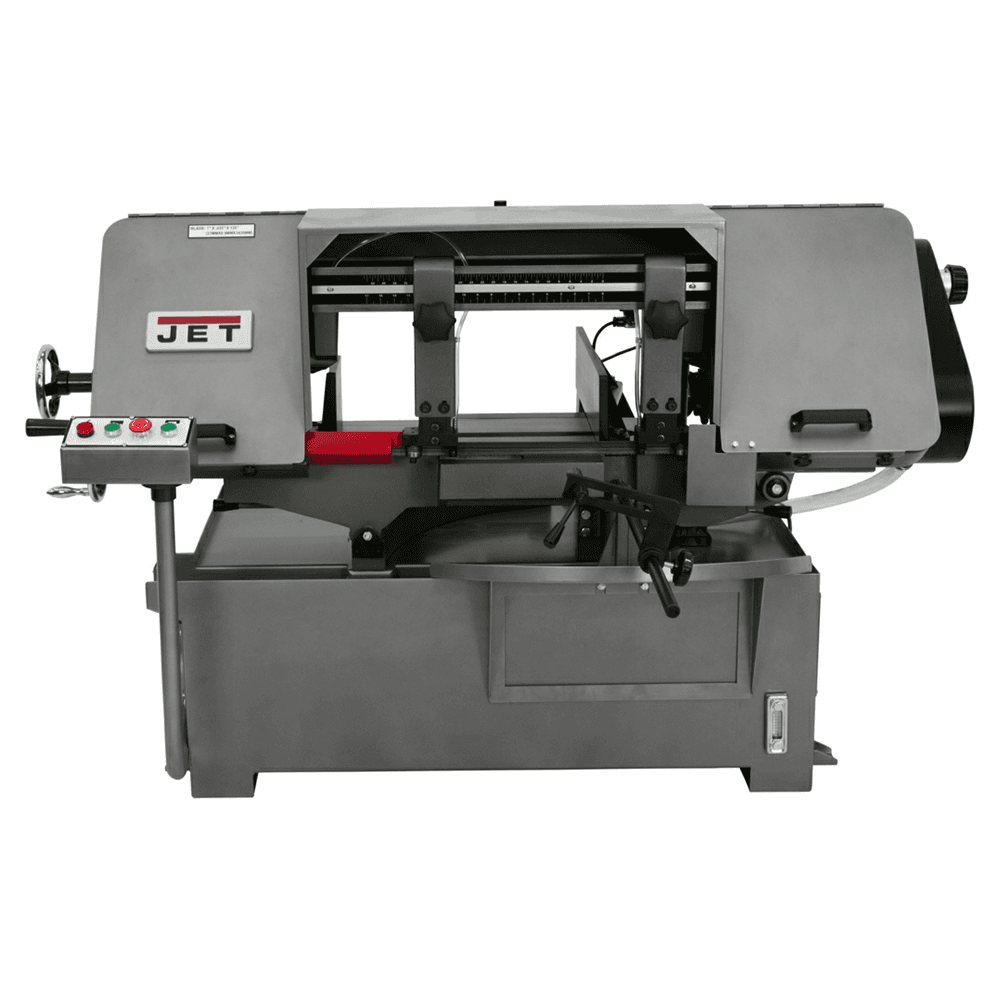

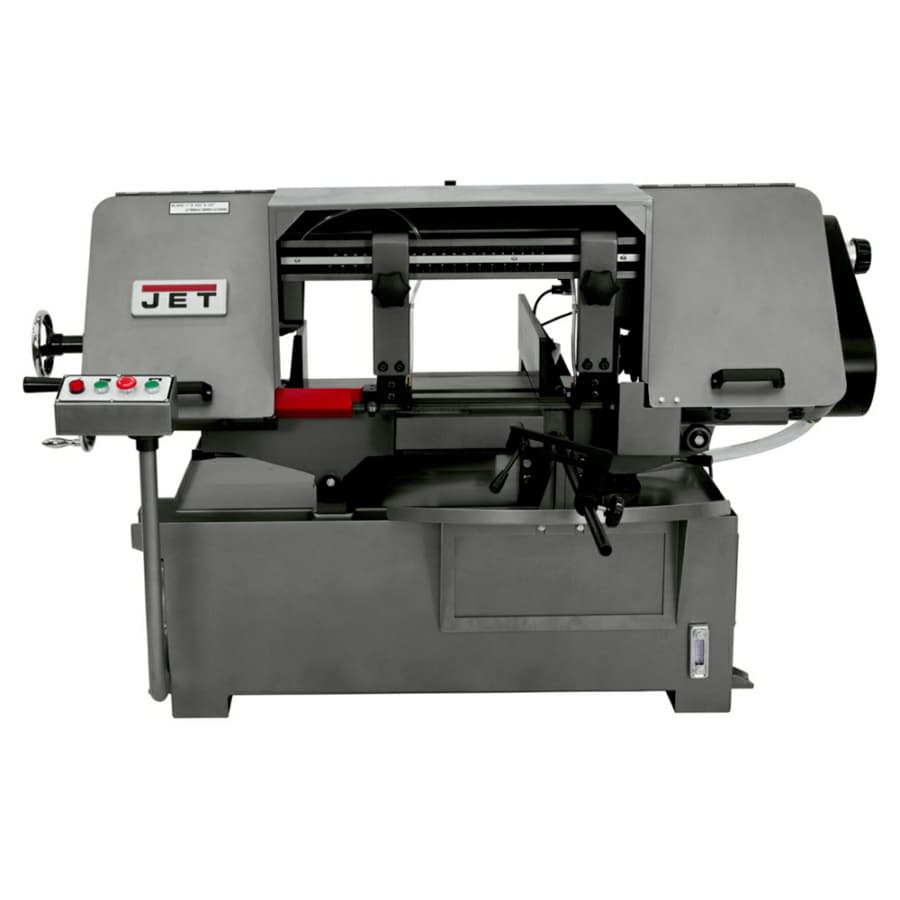

Jet Tools J-7020M 10" x 16" Horizontal Mitering Band Saw, 1 Phase/115V/230V
This item may incur additional shipping costs and lead times.
Product Details
Jet Mitering horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, Jet Mitering Bandsaws are built to last and deliver precision results. Features: • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades • Adjustable material stop • Cast iron blade wheels • Down feed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder • Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath • Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured • Swing away control panel houses major saw controls • Blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally • Variable speed drive system
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 45° |
| Rectangle at 45 Degrees | 8-1/2" x 9" |
| Product Type | Mitering Horizontal Bandsaws |
| Prewired Voltage | 230V |
| Overall Height | 48" |
| Overall Dimensions (L x W x H) | 76" x 30" x 48" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V/230V |
| Rectangle at 60 Degrees | |
| Rectangle at 90 Degrees | 10" x 14" and 2" x 16" |
| Round at 45 Degrees | 10" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 10" |
| Round at 60 Degrees | |
| Motor Power (HP) | 1-1/2 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 14" |
| Blade Speeds (SFPM) | |
| Blade Speed (SFPM) | 100 - 350 |
| Blade Size | 1" x .035" x 135" |
| Blade Length | 135" |
| Bed Height | 25-1/2" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | 45° |
| Enhanced Description | |
| Electrics | |
| Drive | Variable Speed |
| Cutting Capacity Width | 10" |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | 10" x 16" |
| Amperage |
