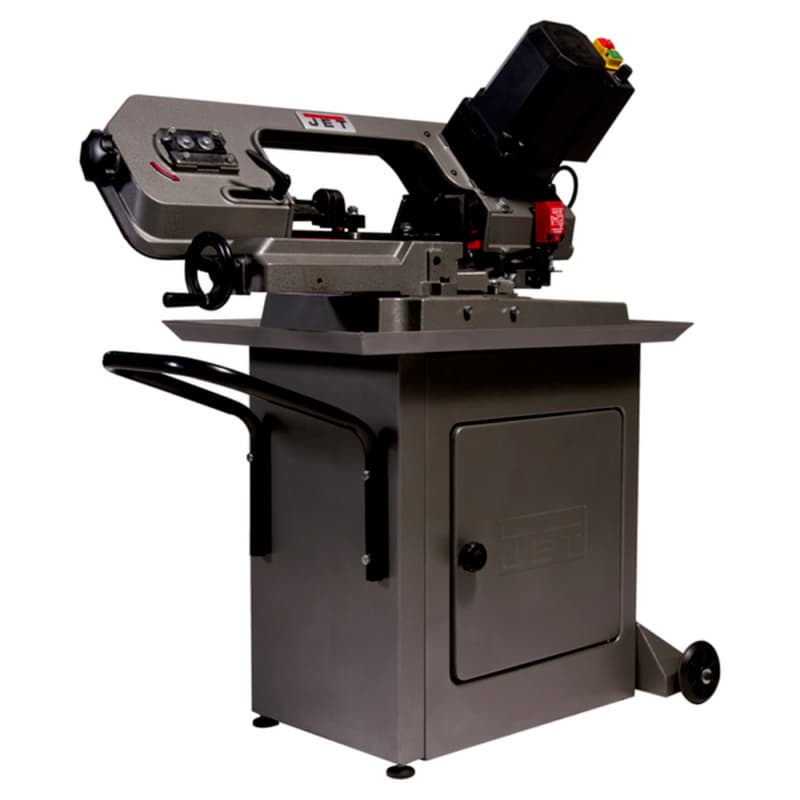

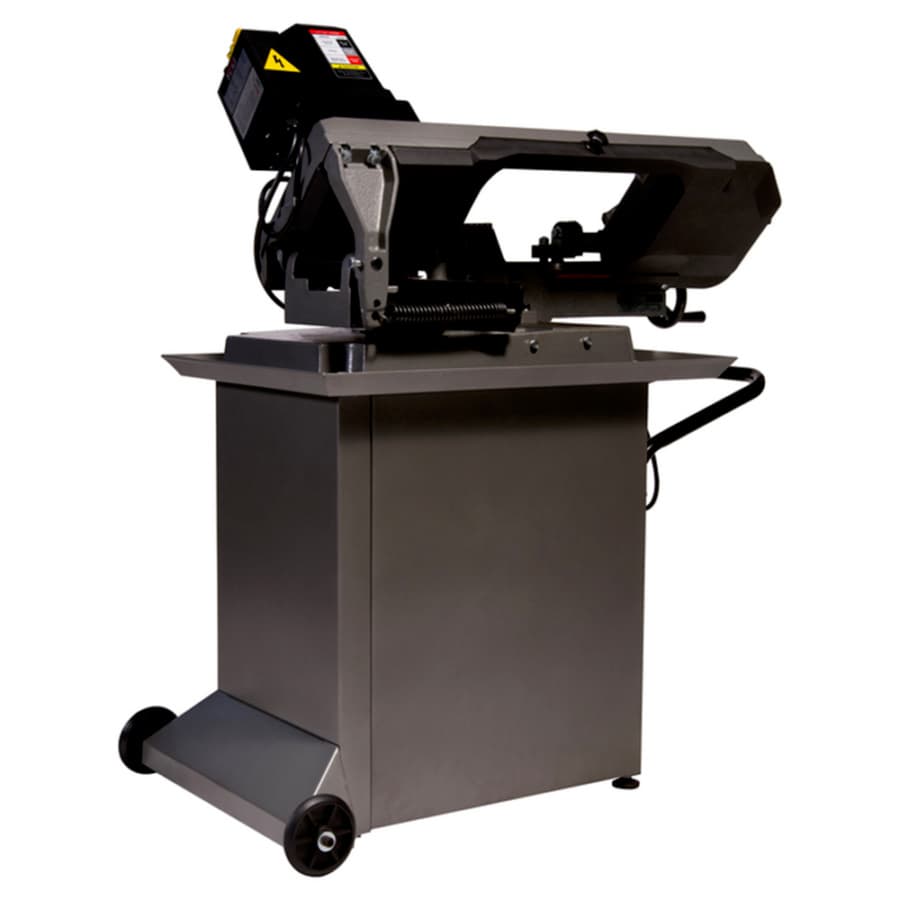

Jet Tools HBS-56MVS 1/2 HP Variable Speed Mitering 5" x 6" Horizontal Band Saw, 1 Phase/115V/230V
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

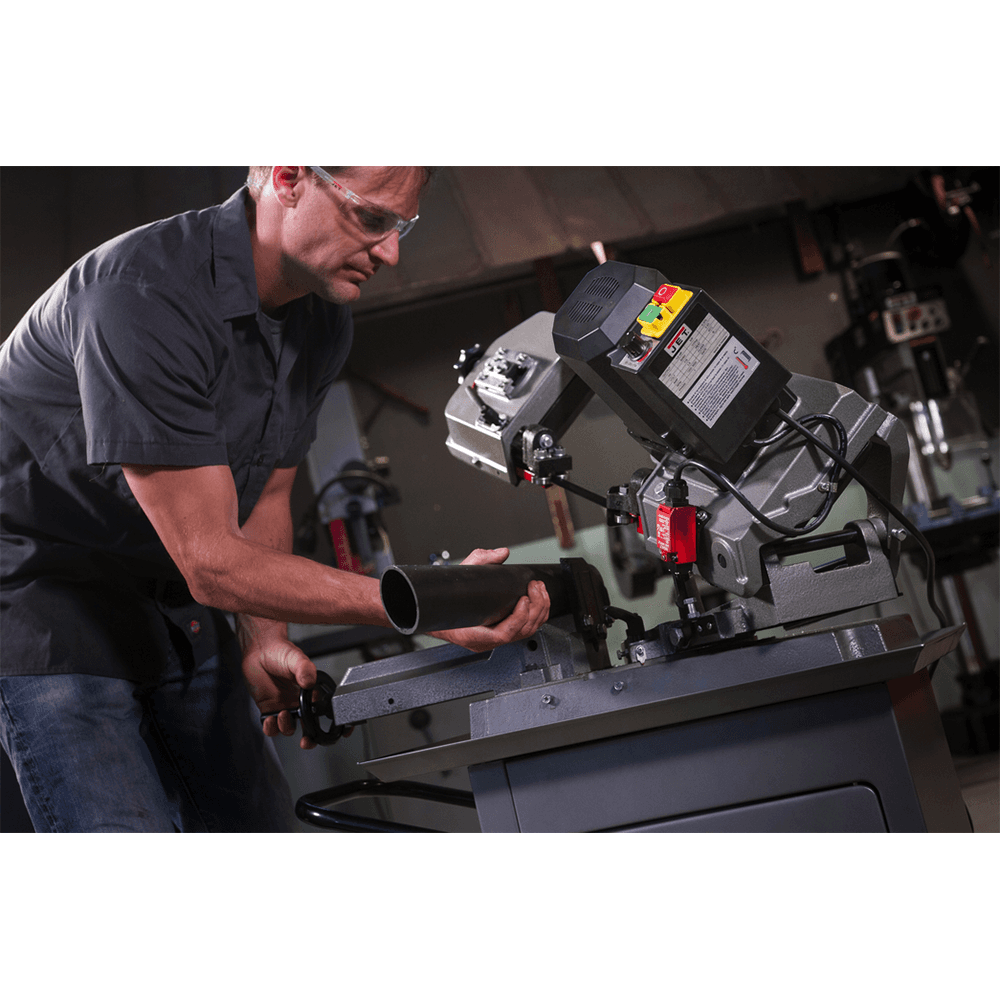

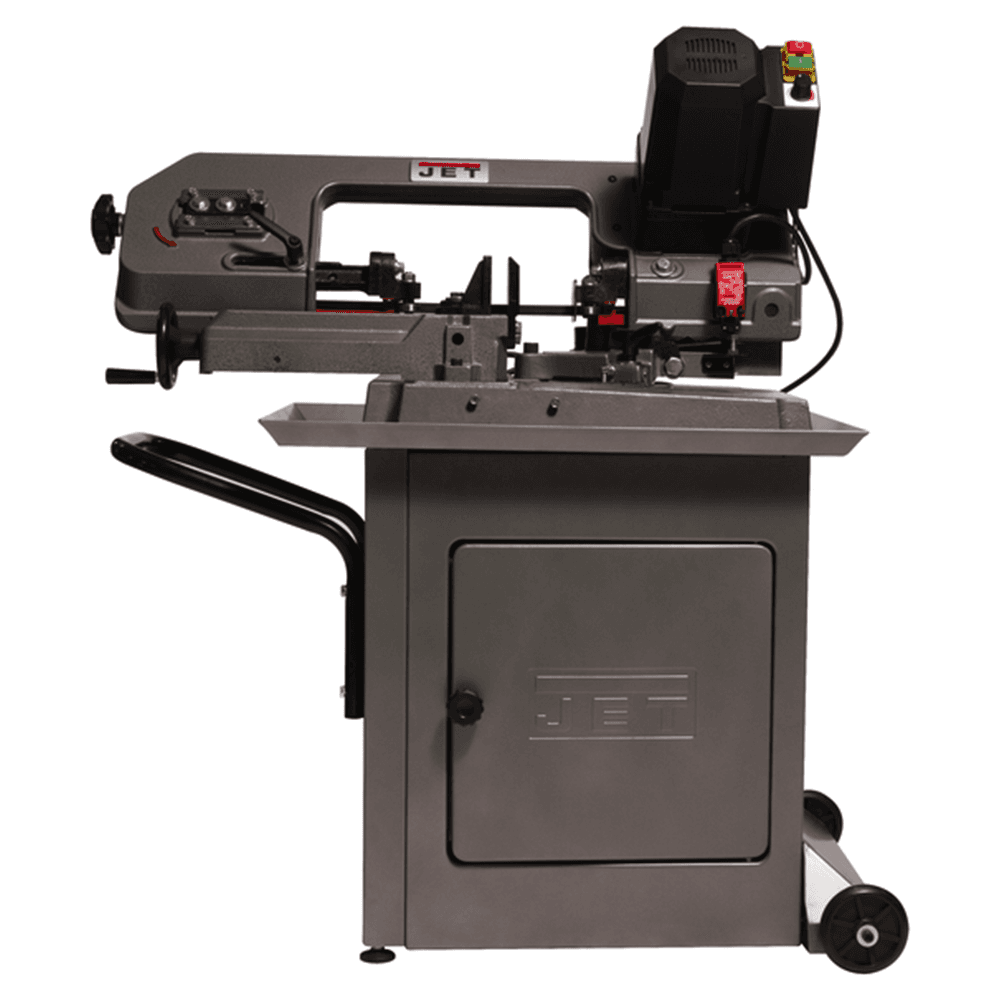

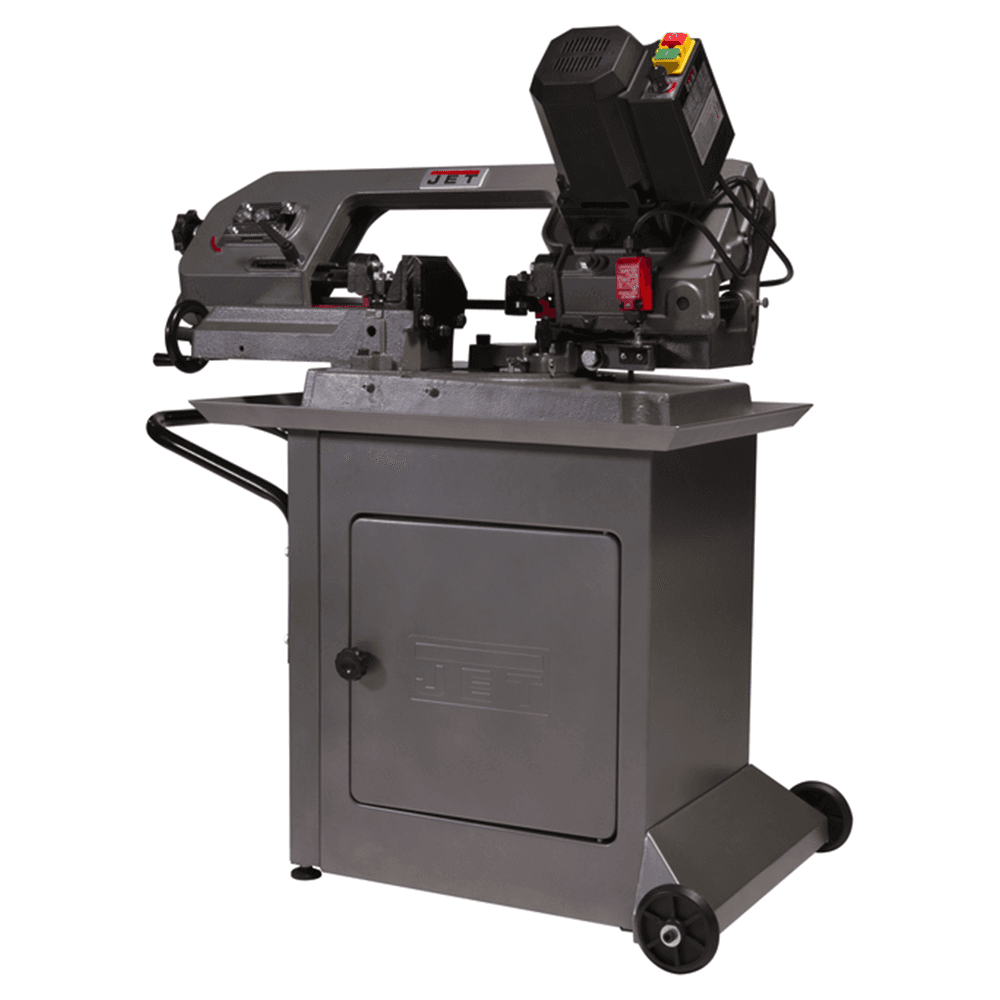

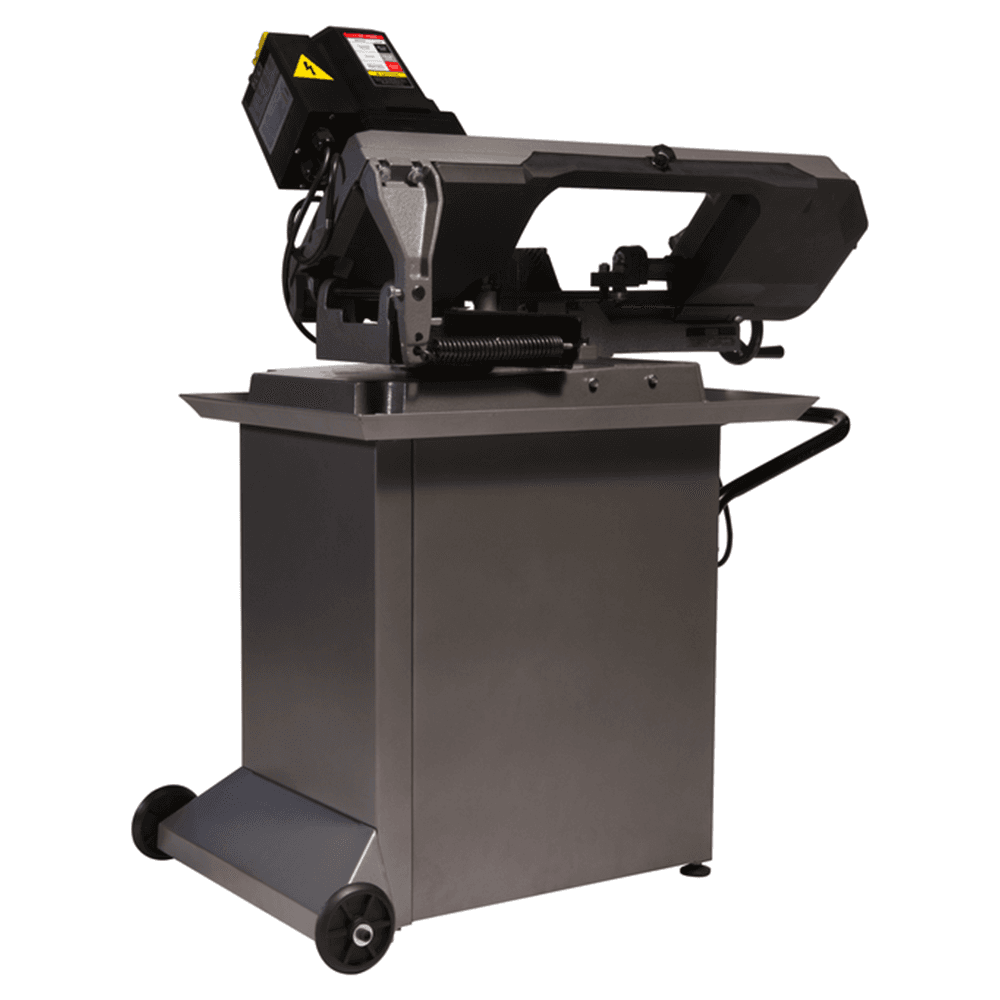

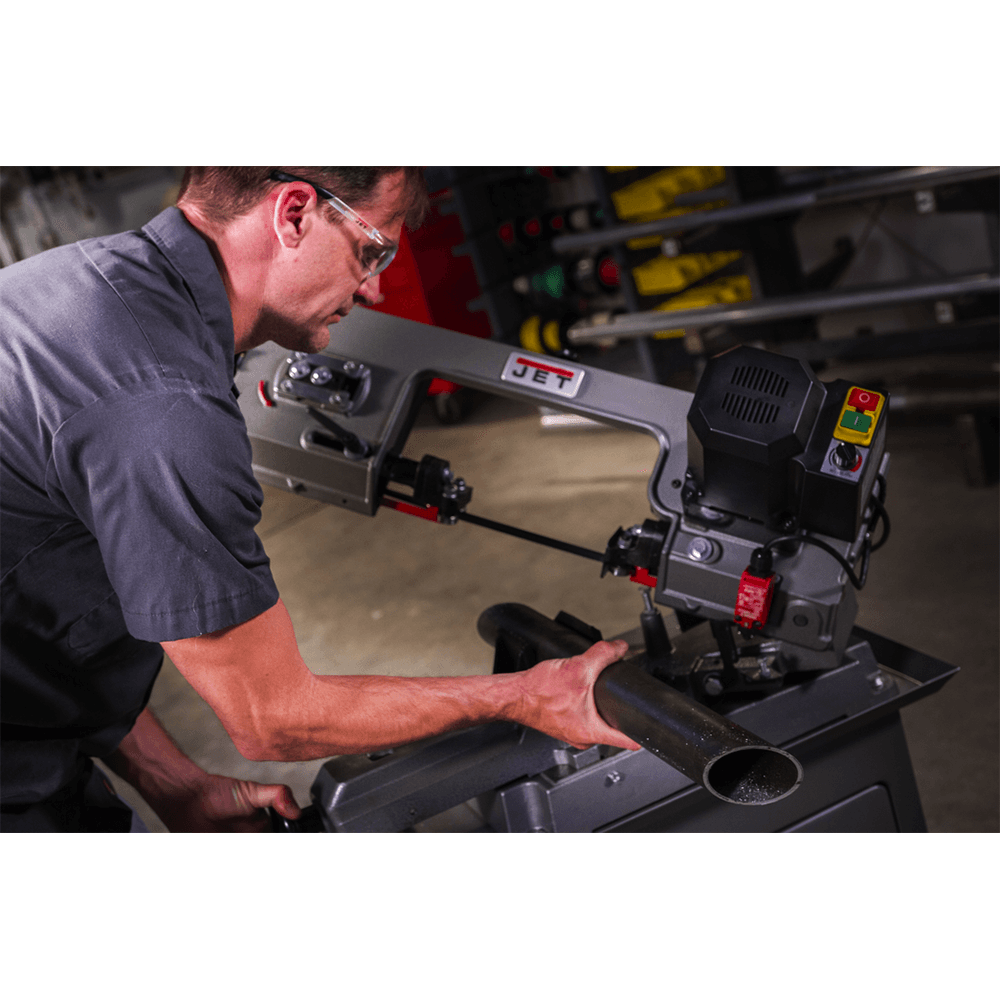

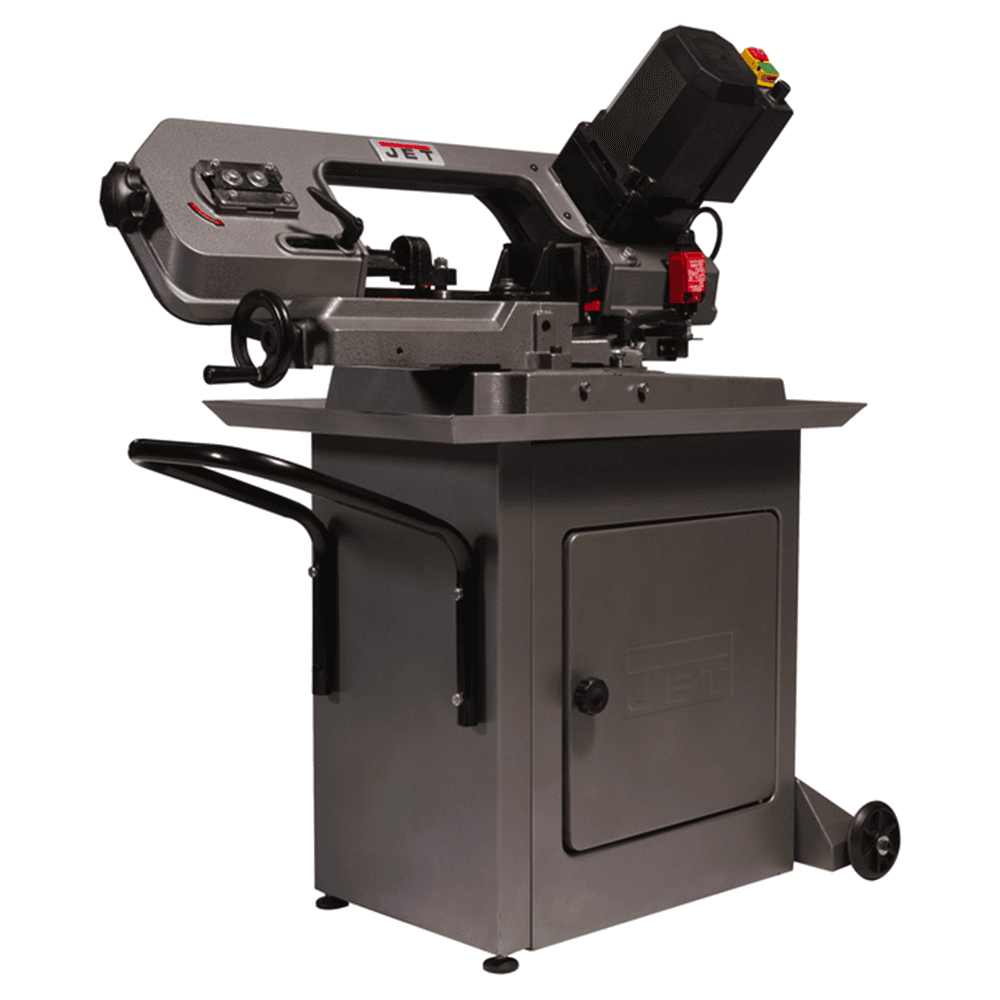

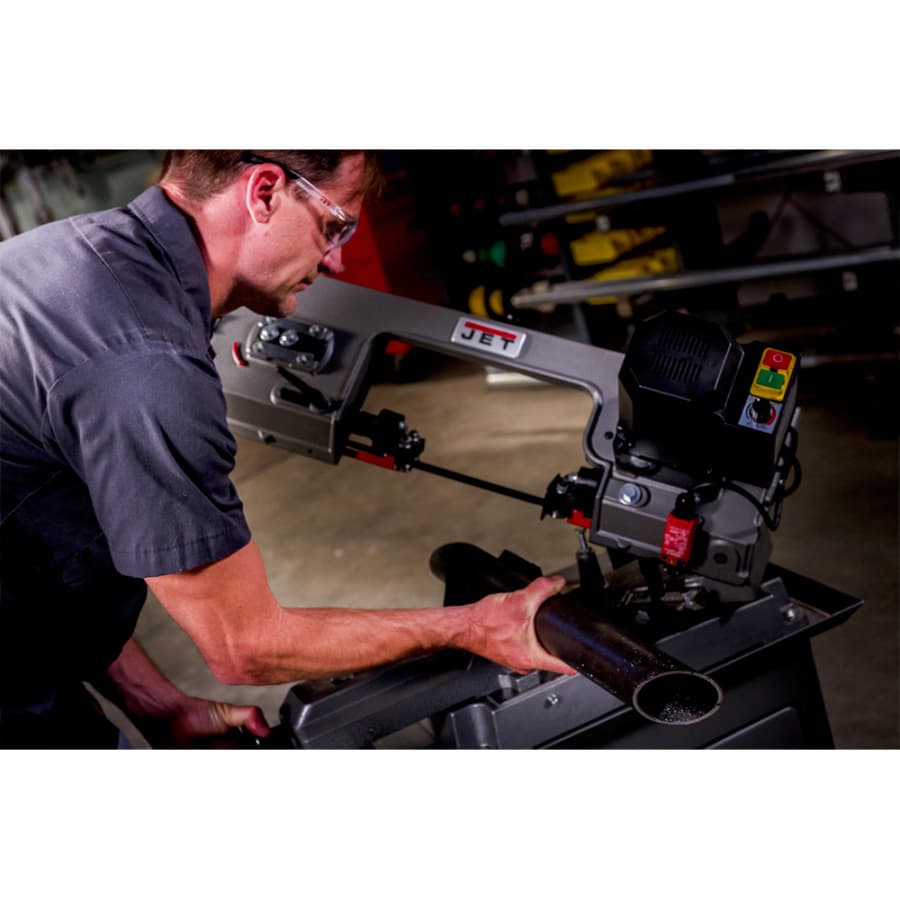

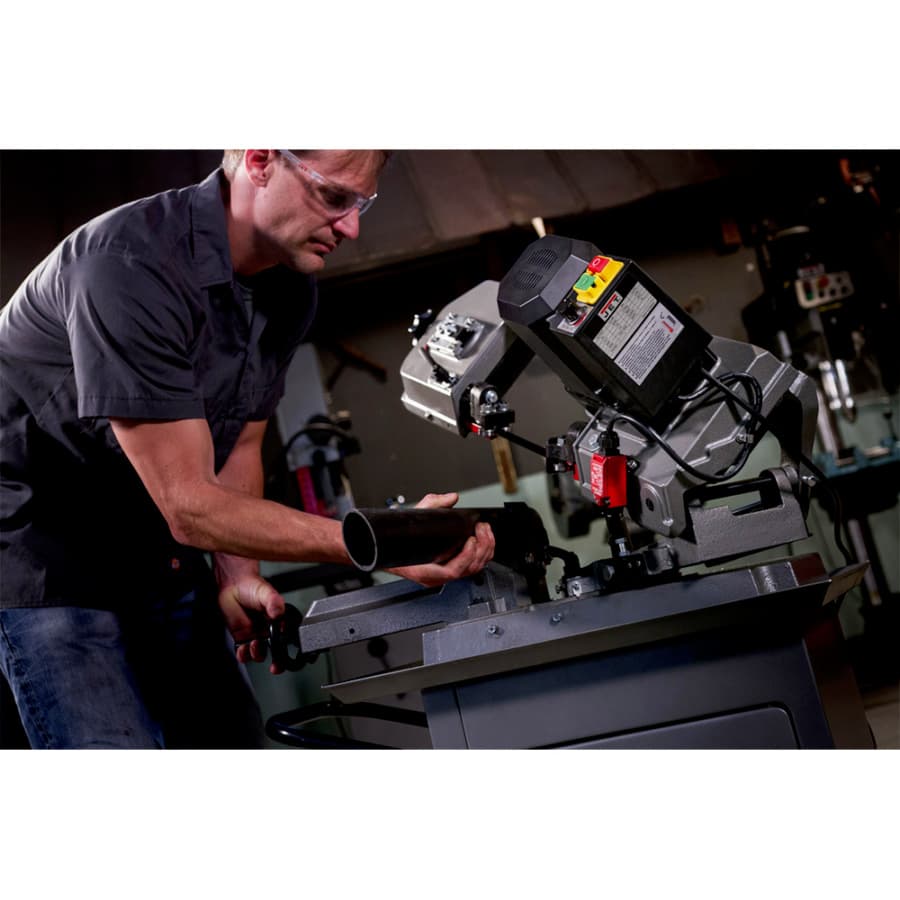

This Jet variable speed mitering bandsaw packs the features in a small package. The exclusive 5x6 portable variable speed mitering bandsaw includes a newly designed motor with a 3-step gear transmission for unprecedented torque output. The versatile Heavy-Duty casted head swivels for a maximum cut at 45° & 60° allowing precision cuts without the hassle of moving the material. CSA/CUS Certified. Features: • Front legs feature leveling pads • Fully adjustable ball bearing blade guides • Hardened Ferrous 82-130 SFPM • Quick speed changes with the turn of a dial, no more belt changes • Variable Speed gives you the ability to cut various material • Wheels come standard for ease of movement around your shop
Specifications
| Box Quantity | 1 |
| Vise Swivels (Deg.) | 0° - 60° |
| Rectangle at 45 Degrees | 3-3/4" x 2-1/3" |
| Product Type | Mitering Horizontal Bandsaws |
| Prewired Voltage | 115V |
| Overall Height | 43.3" |
| Overall Dimensions (L x W x H) | 38.58" x 20.47" x 43.3" |
| Overall Assembled (Bow Raised) (L x W x H) | |
| Overall Assembled (Bow Lowered) (L x W x H) | 38.58" x 20.47" x 47.3" |
| Oil Pump Motor | |
| Motor Voltage (V.) | 115V |
| Rectangle at 60 Degrees | 1-1/4" x 1-3/4", 5" x 1-3/4" |
| Rectangle at 90 Degrees | 5" x 6", 2" x 6" |
| Round at 45 Degrees | 3-3/4" |
| Vertical Cutting Capacity | |
| Throat Depth | |
| Throat Capacity | |
| Table Height | |
| Square at 90 Degrees | |
| Square at 60 Degrees | |
| Square at 45 Degrees | |
| Round at 90 Degrees | 5" |
| Round at 60 Degrees | |
| Motor Power (HP) | 1/2 HP |
| Motor Phase | 1 |
| Blade Width | |
| Blade Wheel Diameter | 7-3/8" |
| Blade Speeds (SFPM) | Variable, 80 - 230 |
| Blade Speed (SFPM) | Variable 80 - 230 |
| Blade Size | 1/2" x 0.025" x 64-1/2" |
| Blade Length | |
| Bed Height | 28" |
| Band Saw Size/Wheel Diameter | |
| Amperage Draw @ 115V 1Ph | 3.8 Amp |
| Configurable Base Item | No |
| Coolant Capacity (Gal.) | |
| Coolant Pump Motor | |
| Motor Amps | |
| Maximum Vise Opening | |
| Head Movement (Deg.) | |
| Enhanced Description | This JET variable-speed mitering bandsaw packs the features in a small package. The exclusive 5" x 6" bandsaw includes a newly-designed motor with a 3-step gear transmission for unprecedented torque output. The versatile swiveling head allows precision cuts without the hassle of moving the material. |
| Electrics | 1/2HP, 115/230V/ 1Ph Prewired 115V |
| Drive | |
| Cutting Capacity Width | |
| Cutting Capacity Height | |
| Cutting Capacity (W x D) | |
| Amperage | 3.8 Amp |
