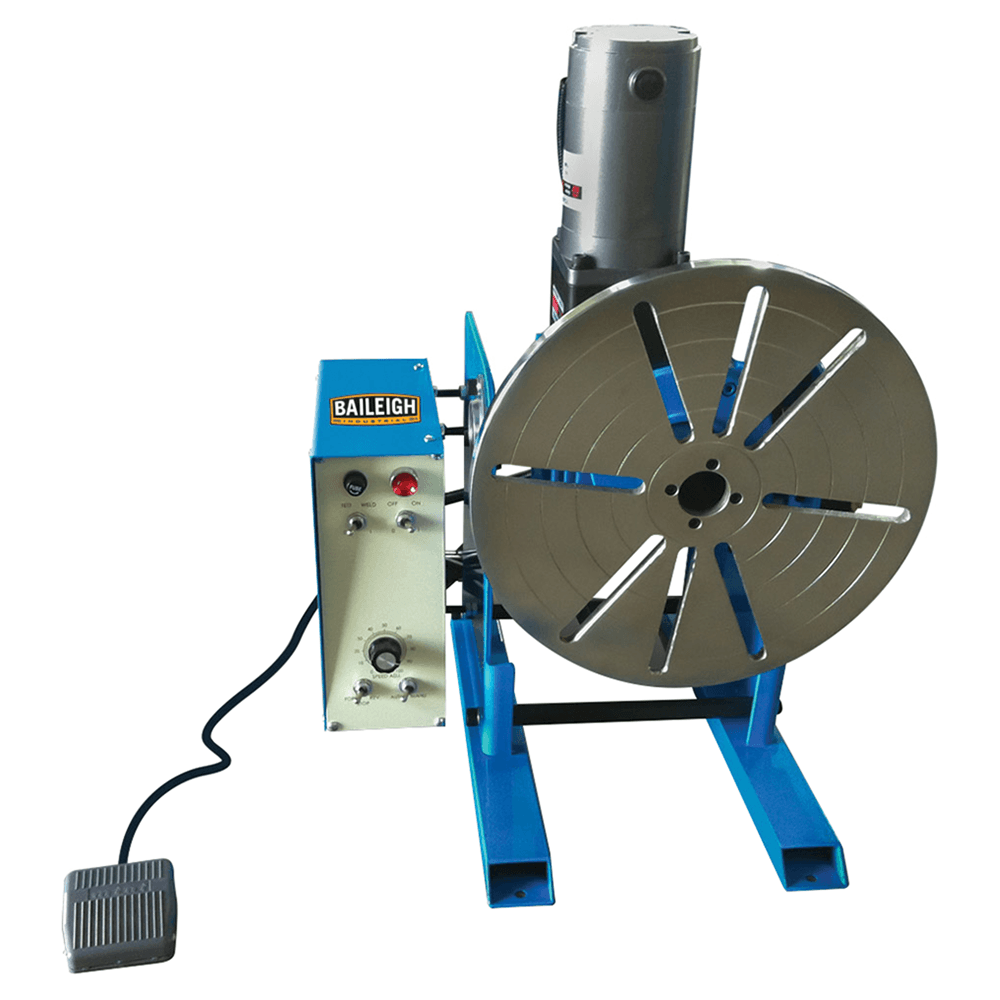

Baileigh WP-750 Welding Positioner, 110V
This item may incur additional shipping costs and lead times.
Product Details
The WP-750 welding positioner from Baileigh Industrial is built to last using only the best components. This 110-volt powered machine has a 770lb capacity in the vertical position and a 385lb capacity in the horizontal position. It is very easy to use with its foot pedal control and variable speed. Welding positioners are great for any fabrication shop as it helps save time and money by reducing the handling of parts and almost eliminating the waste caused by inaccurate welds. Features: • Table capacity 770 lbs • Variable speed • 110V foot pedal operated • Easy to use manual tilt • 135° of tilt • 13" turn table
Specifications
| Box Quantity | 1 |
| Bar Hole Size | |
| Product Type | Rotary Positioners |
| Rubber Roller Diameter | |
| Rubber Roller Width | |
| Short Description | 110V 13" Welding Positioner, 770 lbs Capacity and 90 degrees |
| Speed (rpm) | 0.3 to 4 RPM |
| Speed Control | Variable |
| Steel Roller Diameter | |
| Steel Roller Width | |
| Turntable Size | 13" |
| Motor Output Wattage | |
| Minimum Diameter | |
| Capacity - Vertical (lbs.) | 770 lbs |
| Chuck Size | |
| Current Draw (Watts) | 300 Amps |
| Drive | Foot Pedal |
| Driven Rollers | |
| Horizontal Capacity | 385 |
| Input Power | 110V |
| Max Burst Current | 500 |
| Max Diameter | |
| Working Load Limit (Lbs.) |
