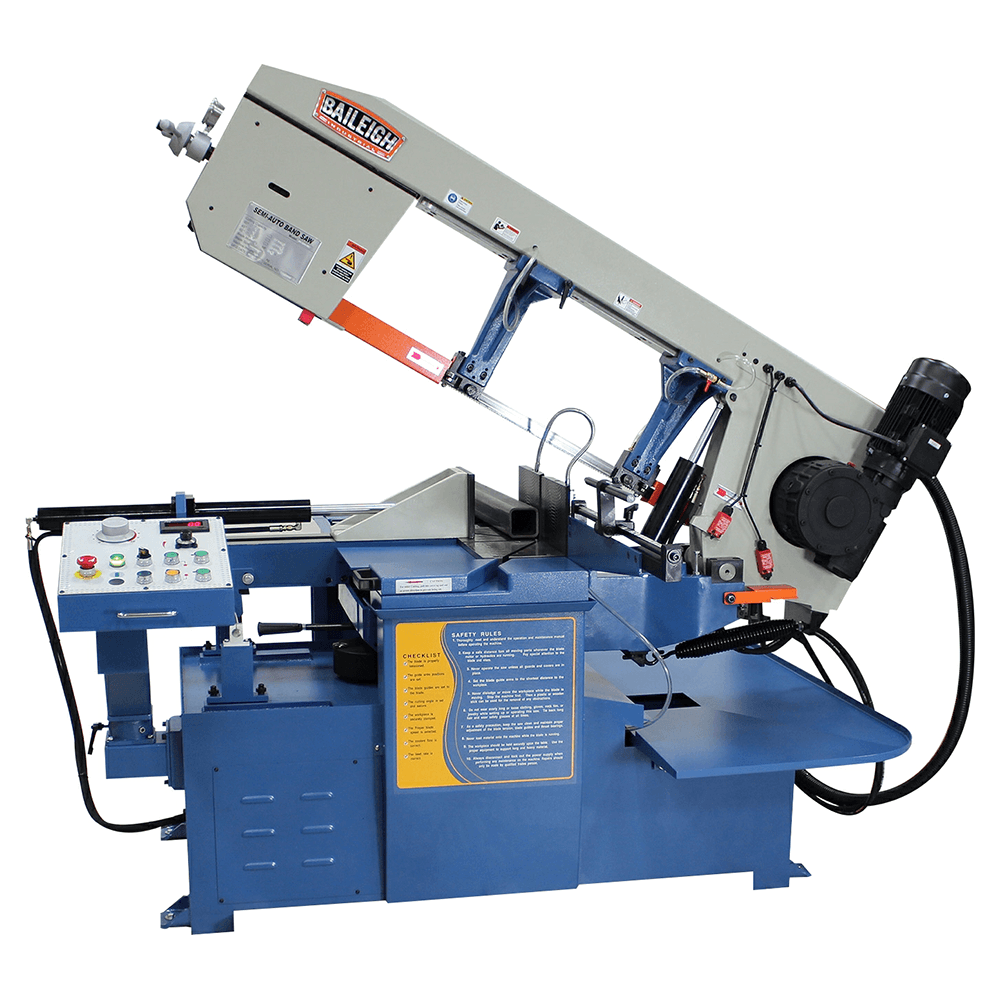

Baileigh BS-20SA-DM 3 HP Semi-Automatic Dual-Miter Band Saw, 3 Phase/220V/440V
Product Details

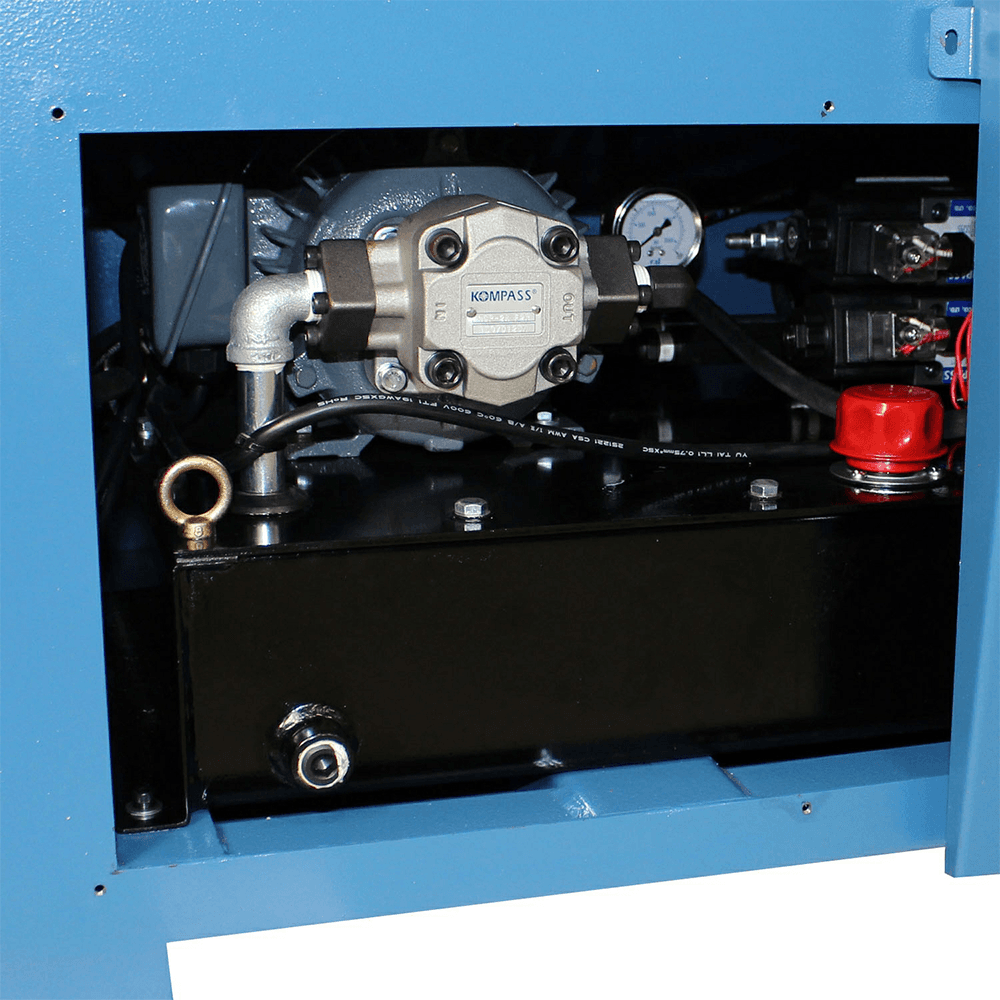

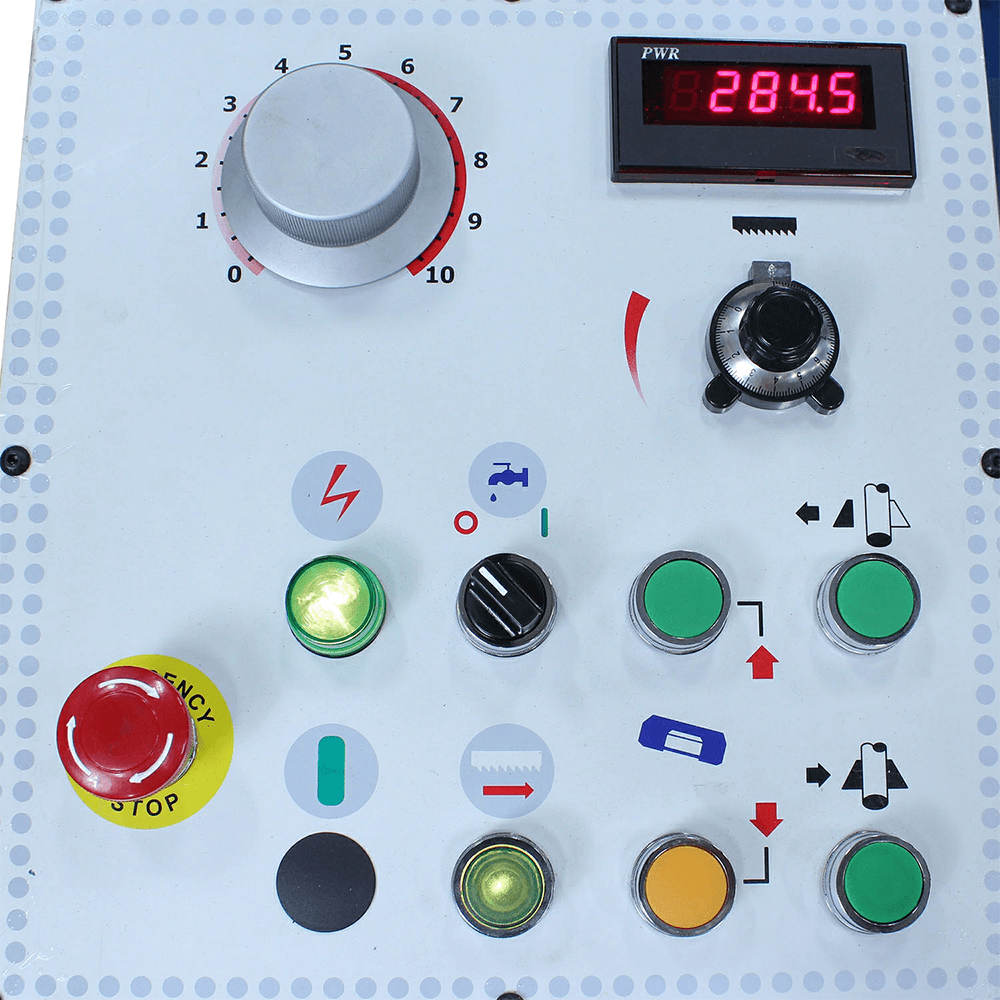

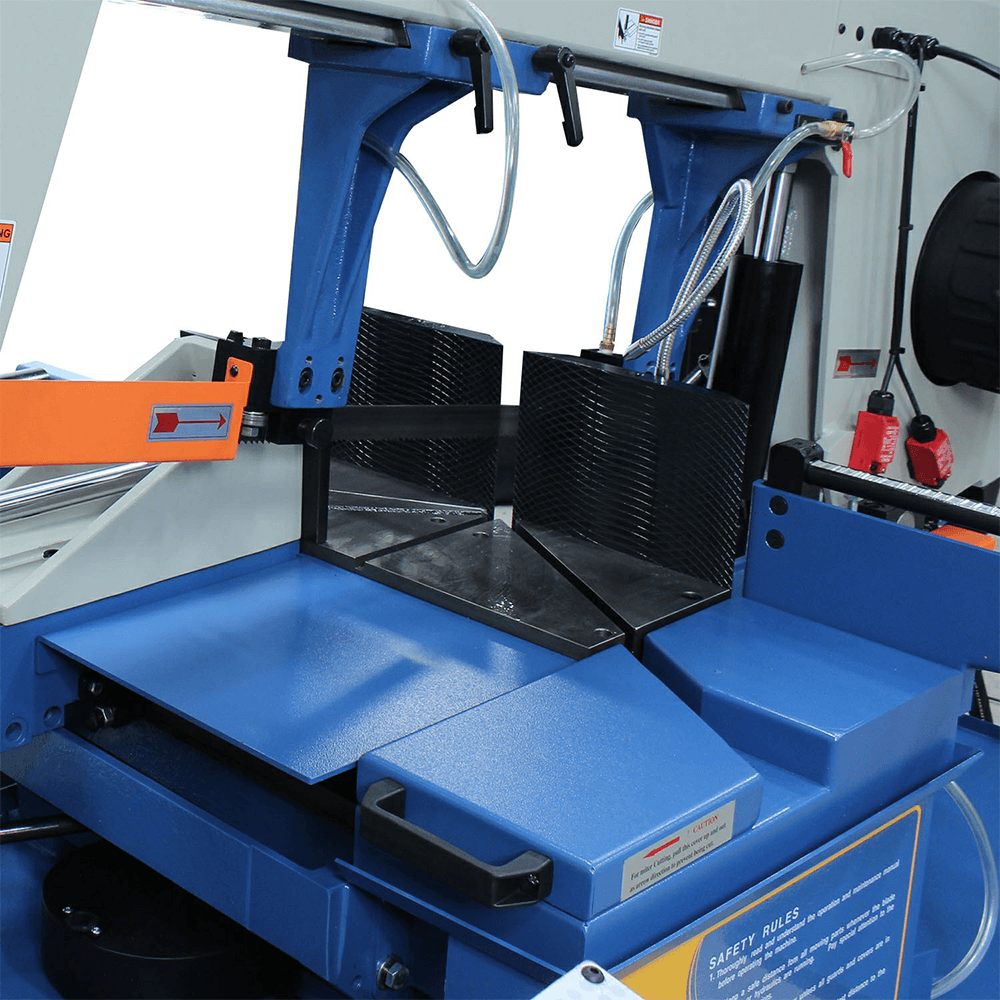

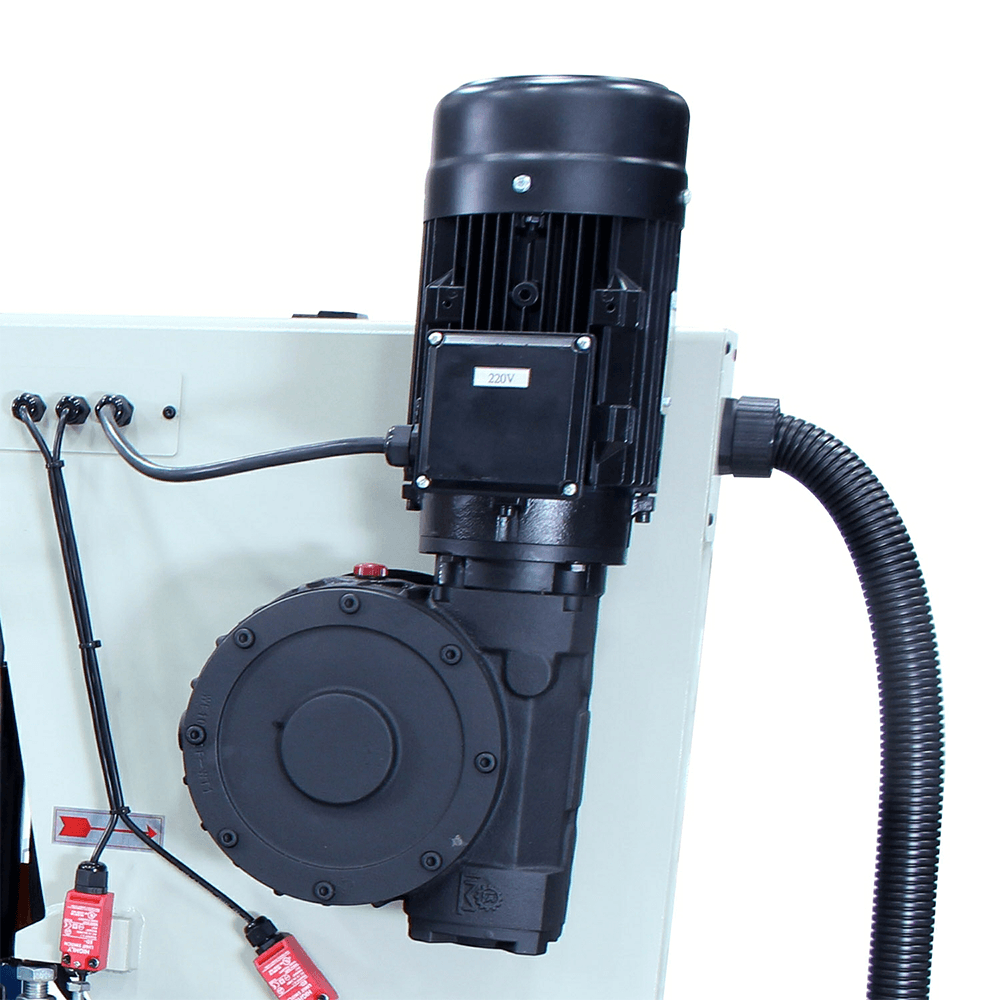

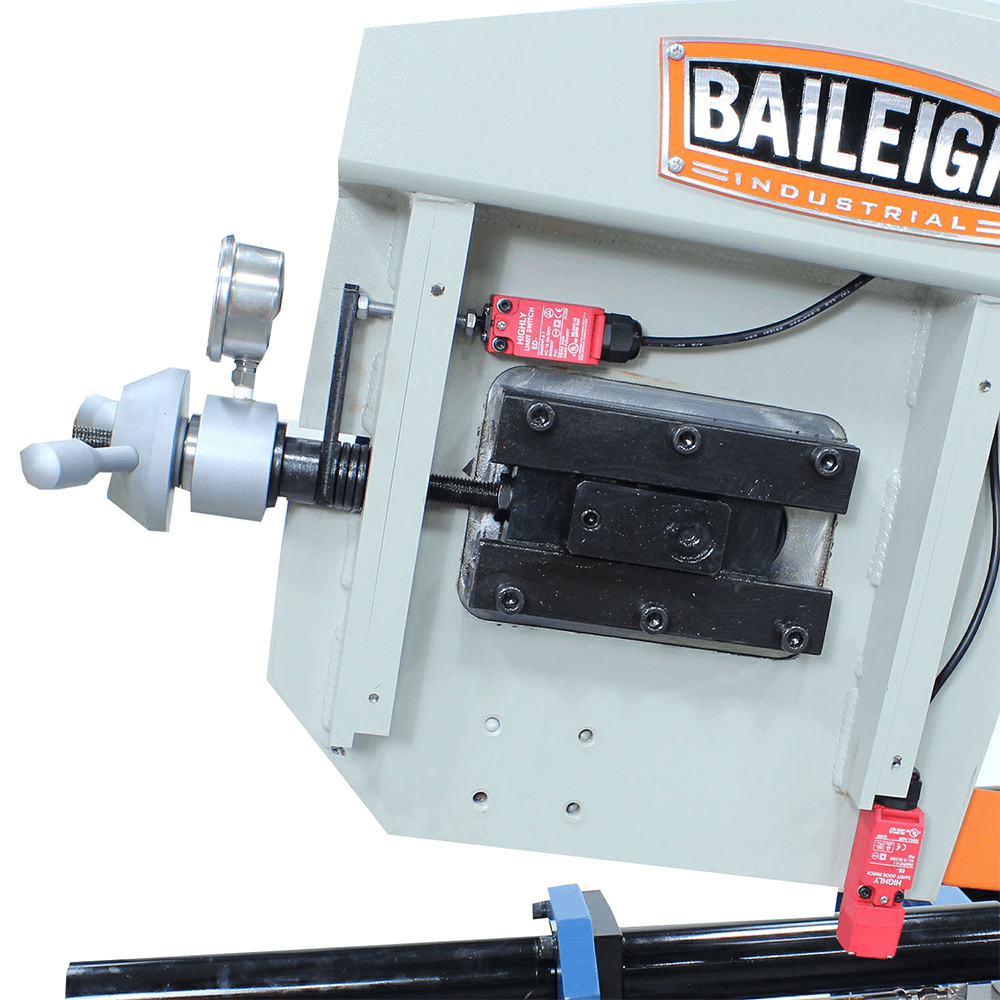

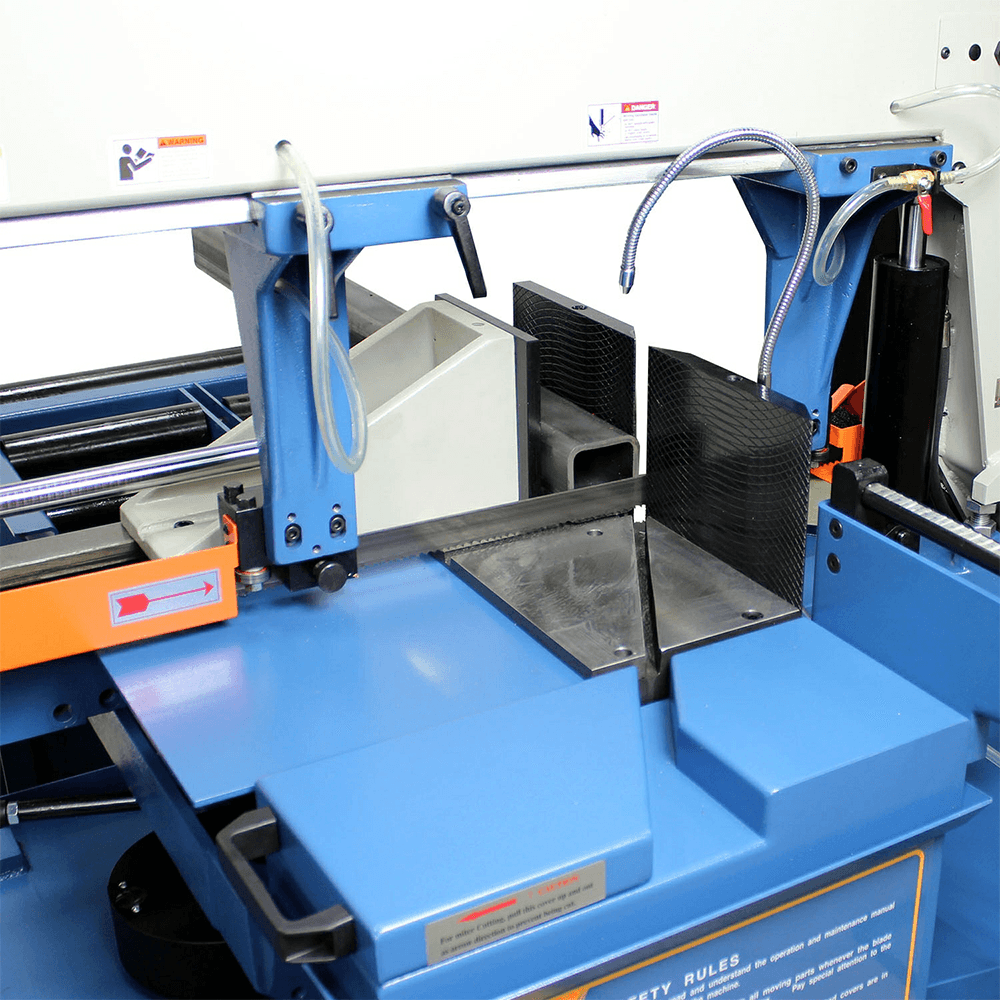

We built this semi-automatic dual miter band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort. Features: • Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle • Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm with digital readout (DRO) which allows you to reproduce settings with ease • Maximum capacity of 13" OD round at 90° with fine-tuning speed capabilities for materials like mild steel, bronze, or aluminum • Available in 220-volt or 440-volt triple-phase models (440-volt is a special order) and accepts a 1.25" blade (included). The large size makes faster and more accurate cuts • Hydraulic vise, down feed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest • You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life • Cutting head return position can be altered for faster cycle times between cuts on smaller pieces • Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge • Compact floor plan conserves space in your shop with a high-pressure flood coolant system that washes away metal chips and helps blades last longer • Electro-welded steel frame gives the machine structural strength to maintain accuracy and cast-iron bow resists vibrations and helps to ensure a high-quality cut. Comes with heavy-duty infeed and outfeed tables for easier material handling
Specifications
| Box Quantity | 1 |
| Blade Guide | Carbide / Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 220V or 440V 3-Phase (440V special order) |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 60°, 45°L |
| Motor (HP) | 3 HP |
| Overall Dimensions (L x W x H) | |
| Product Type | Semi-Automatic Band Saws |
| Rectangle at 90 Degrees | |
| Return | Hydraulic |
| Short Description | 220V or 440V 3-phase models 13" round capacity at 90° Miters 45° left and 60° right 1.25" blade width Variable speed : 69 to 306 fpm |
| Solid Rectangle at 90 Degrees | 13" x 18" / 13" x 10.6" / 12.4" x 7.7" |
| Square at 90 Degrees | |
| Table Height | |
| Drive | Inverter Direct |
| Descent Control | Pressure Assist Hydraulic |
| Blade Speeds (SFPM) | 60 - 306 Inverter Driven |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | |
| Capacity Round 90 X 45 X 60 | 13" x 12" x 8.5" |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | 13" x 12" x 8.5" |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Dual Miter Swivel Head |
