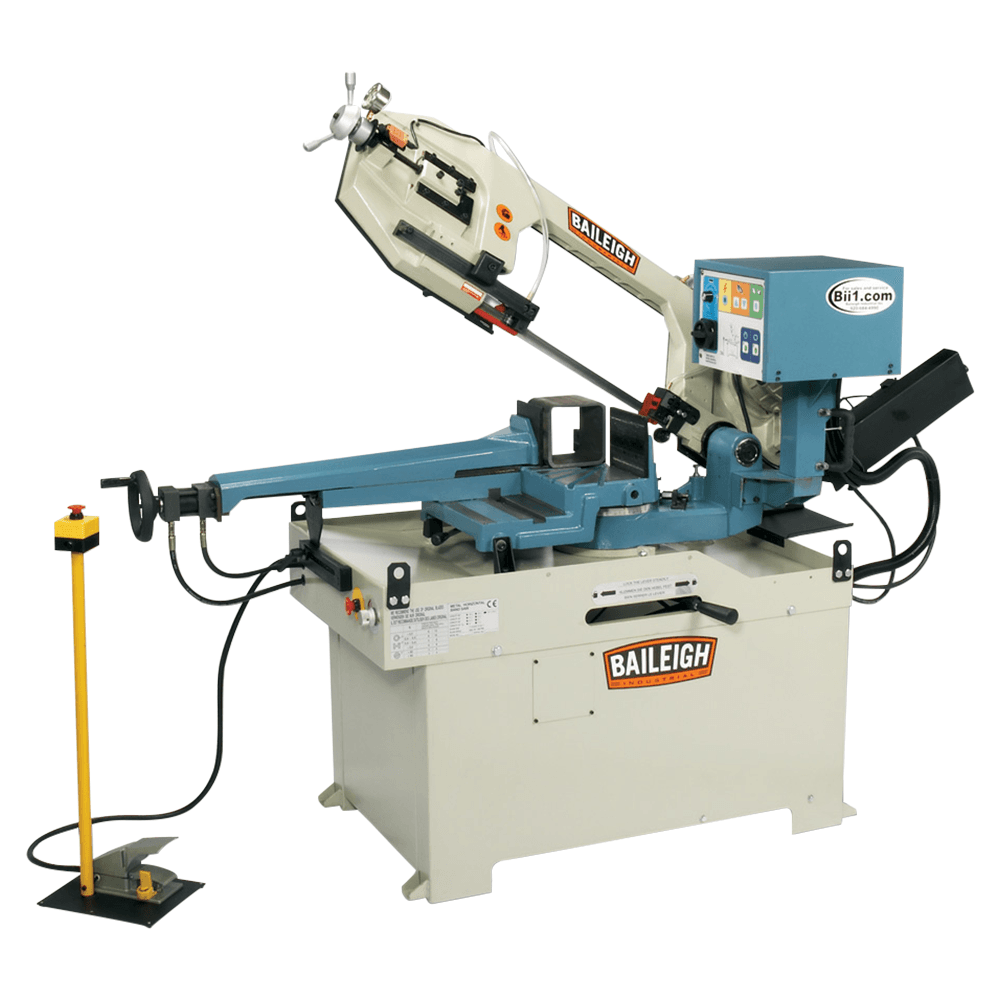

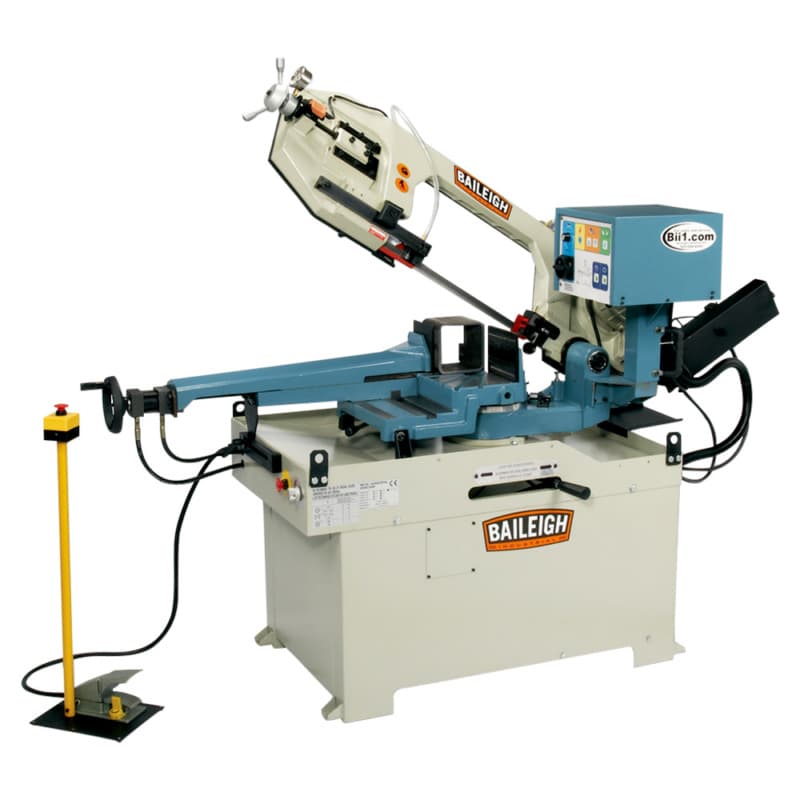

Baileigh BS-350SA Gear Driven Dual Miter Band Saw, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
Cast iron and steel construction-plus a hydraulic system to increase productivity. This semi-automatic metal band saw is an investment that will pay off for years to come. Recommended for: Shops that regularly take on light production work. Features: • Motor runs on 220-volt single-phase power with a 10.5" OD round capacity at 90° and accepts a standard 1" blade (included) • Adjust the variable speed control from 66 to 280 fpm to deliver the best possible cut for a given material and make blades last longer • Driven by an AC inverter to maintain a high standard of reliability with the head mitering at 60° right and 45° left • Electro-welded steel plate framework maintains accuracy and prevents the machine from wobbling while the cast iron head and bow, machined to exacting tolerances, keep vibrations to a minimum and produce accurate cuts • Industrial grade hydraulic system raises and lowers the head. It also clamps and releases the vise • Patented blade tension device lets you easily check the blade tension by looking at the liquid-filled gauge • Precision ball bearing guides move the blade as close to the material as possible to make clean, accurate cuts • Direct-drive gearbox saves you the trouble of adjusting pulleys and replacing broken belts • Start and stop the machine with the convenient foot pedal and change settings on the control panel • Comes standard with a large-capacity flood coolant system that washes away metal shavings and prolongs blade life
Specifications
| Box Quantity | 1 |
| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 220V / 1-phase |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 60°, 45°L |
| Motor (HP) | High Torque 1.5Kw (AC) |
| Overall Dimensions (L x W x H) | 72" x 30" x 66" |
| Product Type | Semi-Automatic Band Saws |
| Rectangle at 90 Degrees | |
| Return | Hydraulic |
| Short Description | 220V 1-phase power 10.5" round capacity at 90° Miters 60° right and 45° left 1" blade width Variable speed : 66-280 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 35" |
| Drive | Gear |
| Descent Control | Pressure Assist Hydraulic |
| Blade Speeds (SFPM) | 66 - 280 Variable |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | 10.63" x 9.45" x 6.3" x 8.28" |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | 10.24" x 8.66" x 5.9" x 7.09" |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Dual Swivel Head |
