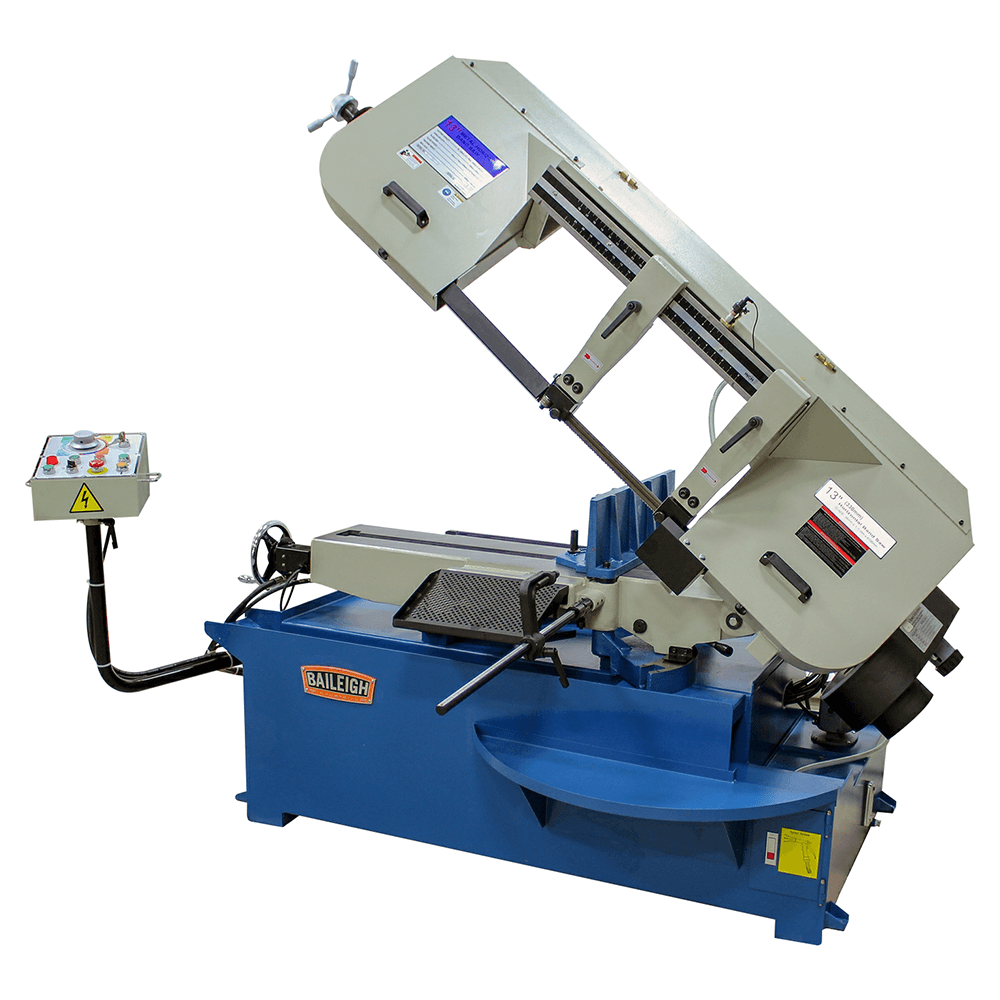

Baileigh BS-330SA 3 HP Semi-Automatic Band Saw, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

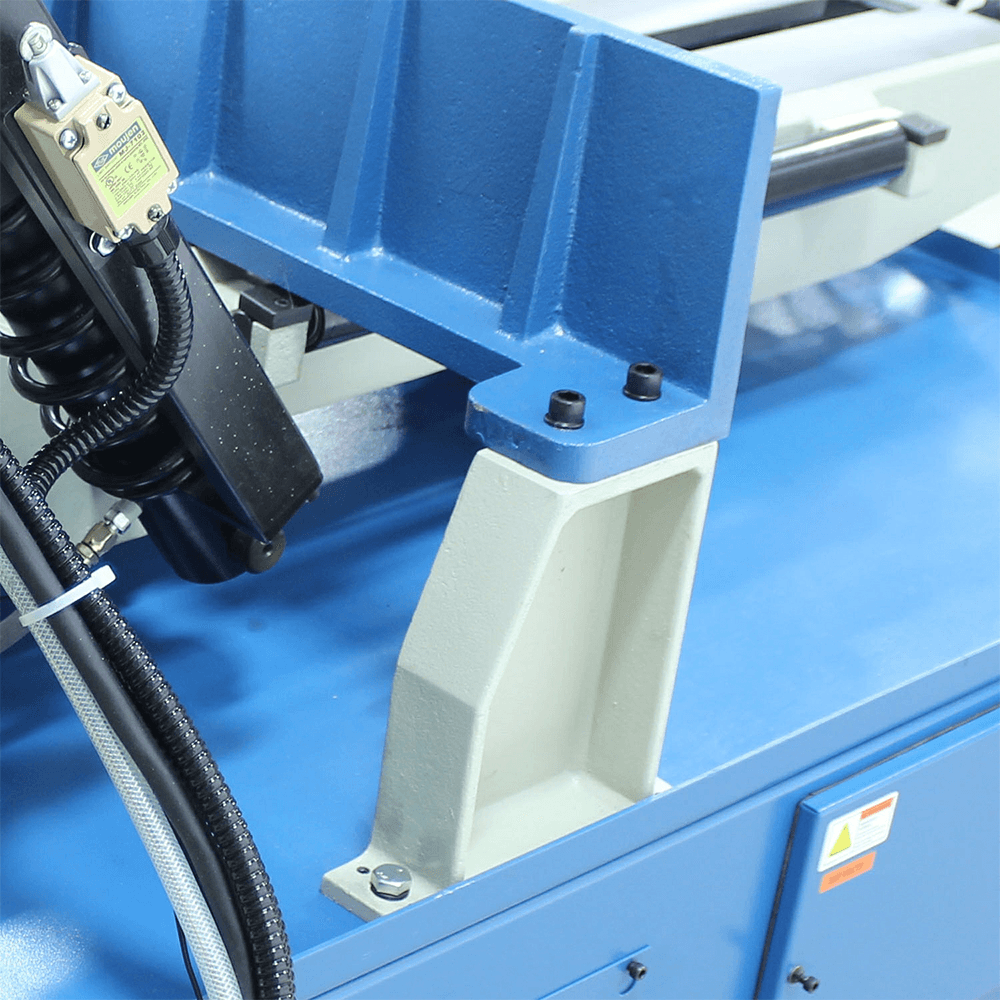

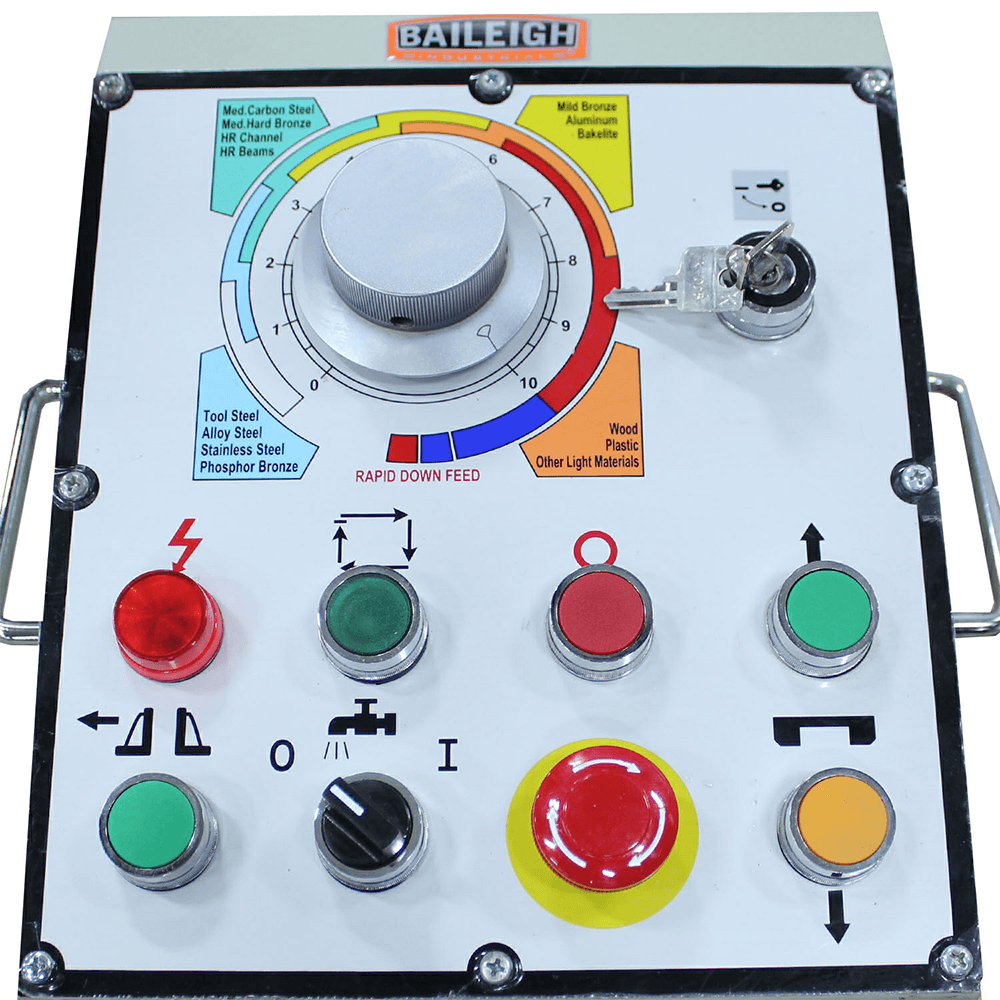

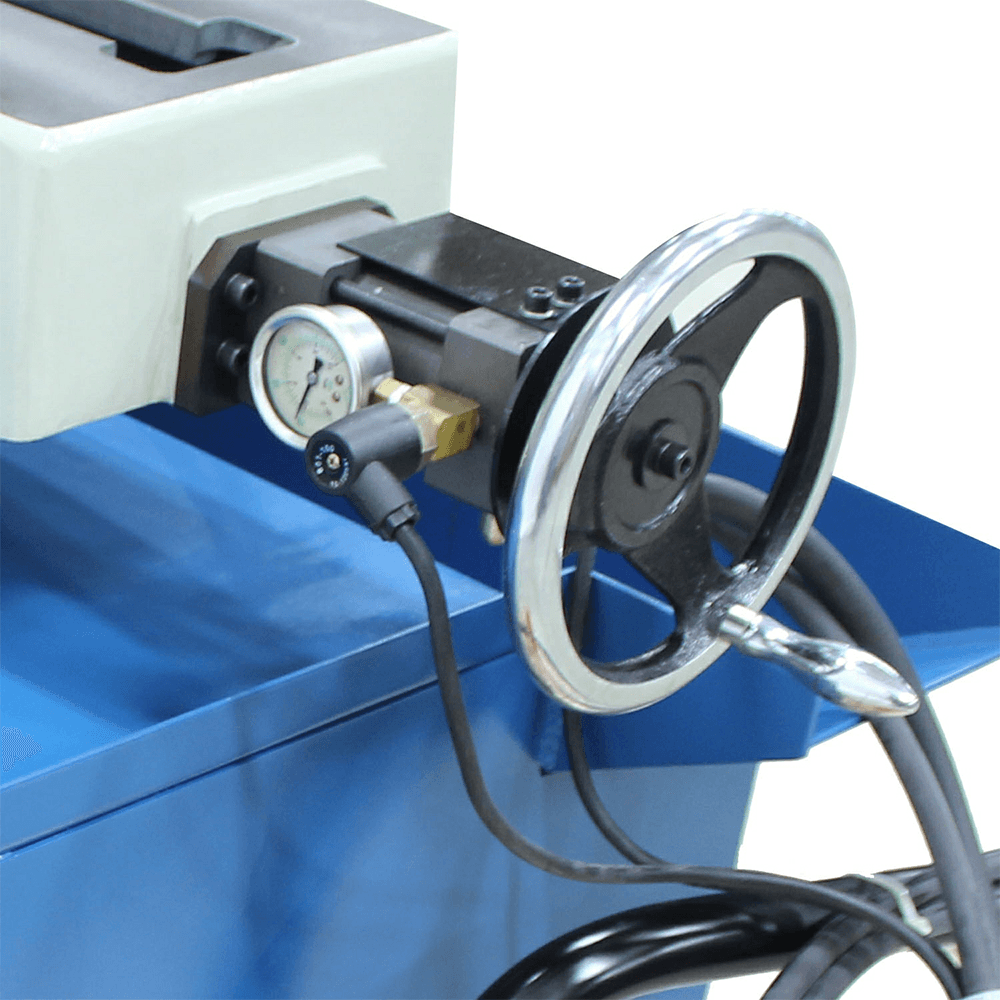

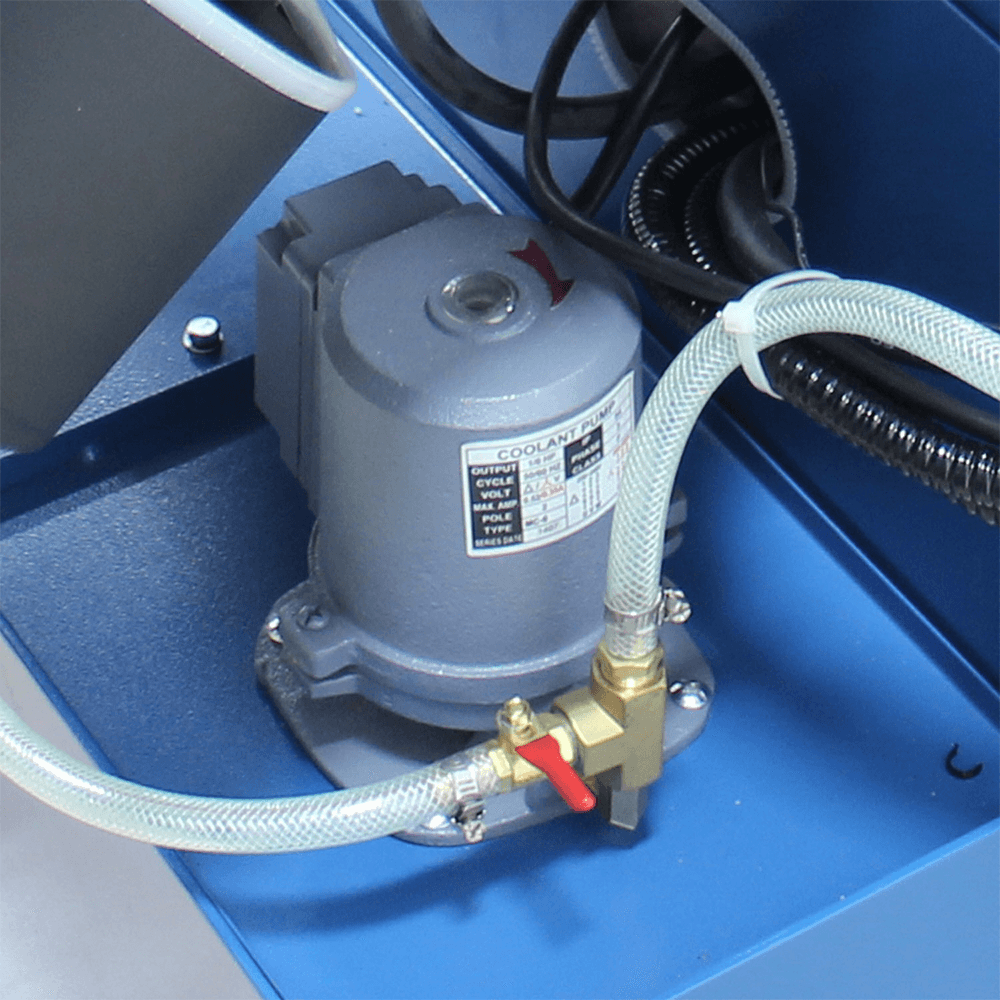

This horizontal band saw has an impressive track record: 10+ years of dependable use. The BS-330SA will improve your efficiency with a hydraulic vise, down feed, and bow return. Features: • 3 hp motor runs on 220-volt three-phase power with a maximum capacity of 13" OD round at 90° • Accepts a 1.25" blade, a large size for greater accuracy and speed • Variable blade speed ranges from 82 to 270 fpm with a laser pointer guide that lets you see where the cut will be, for more accurate work • You can adjust the dial to set the speed at the perfect fpm for your material • Gear-driven transmission makes the machine more reliable. No belts to break and replace • Saw head miters up to 45° with a large-capacity flood coolant system that washes away metal chips and helps blades last longer • Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done • Electro-welded steel construction keeps the machine stable for more accurate cutting including a cast iron mitering head and bow which reduces vibrations when cutting • Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut • Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area
Specifications
| Box Quantity | 1 |
| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 220V / 3-phase |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 45° |
| Motor (HP) | 3 HP |
| Overall Dimensions (L x W x H) | |
| Product Type | Semi-Automatic Band Saws |
| Rectangle at 90 Degrees | |
| Return | Hydraulic |
| Short Description | 220V 3-phase power 13" round capacity at 90° Head miters 45° 1.25" blade width Variable speed : 82 to 270 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 30.5" |
| Drive | Belt x Pulley |
| Descent Control | Pressure Assist Hydraulic |
| Blade Speeds (SFPM) | 82 - 270 |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | 13" x 18.9" x 11" x 10.04" |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | 13" x 8.86" |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | 13" x 8.86" |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Swivel Head and Vise |
