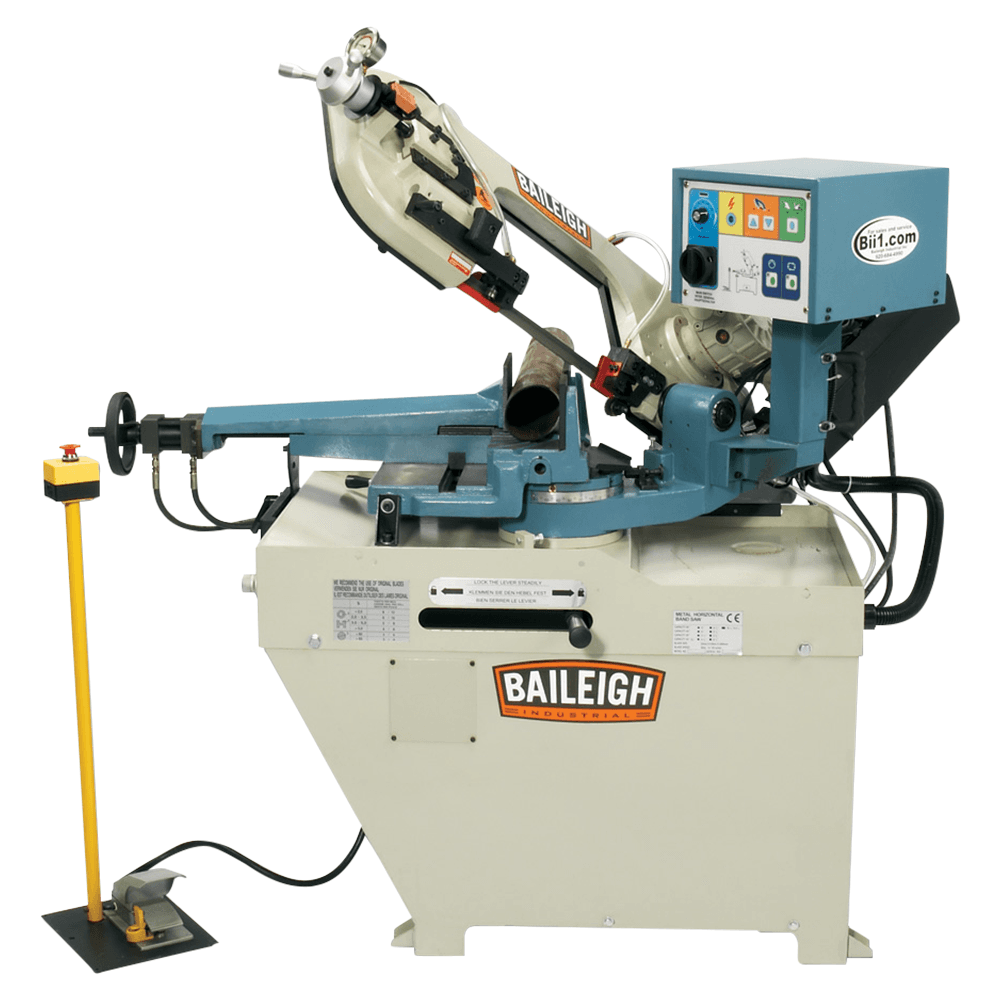

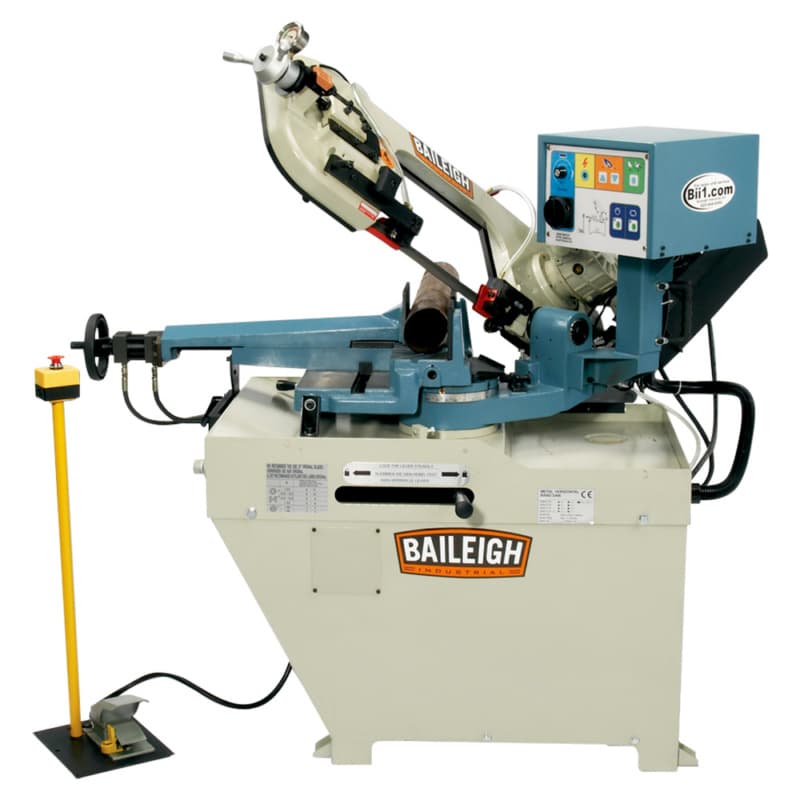

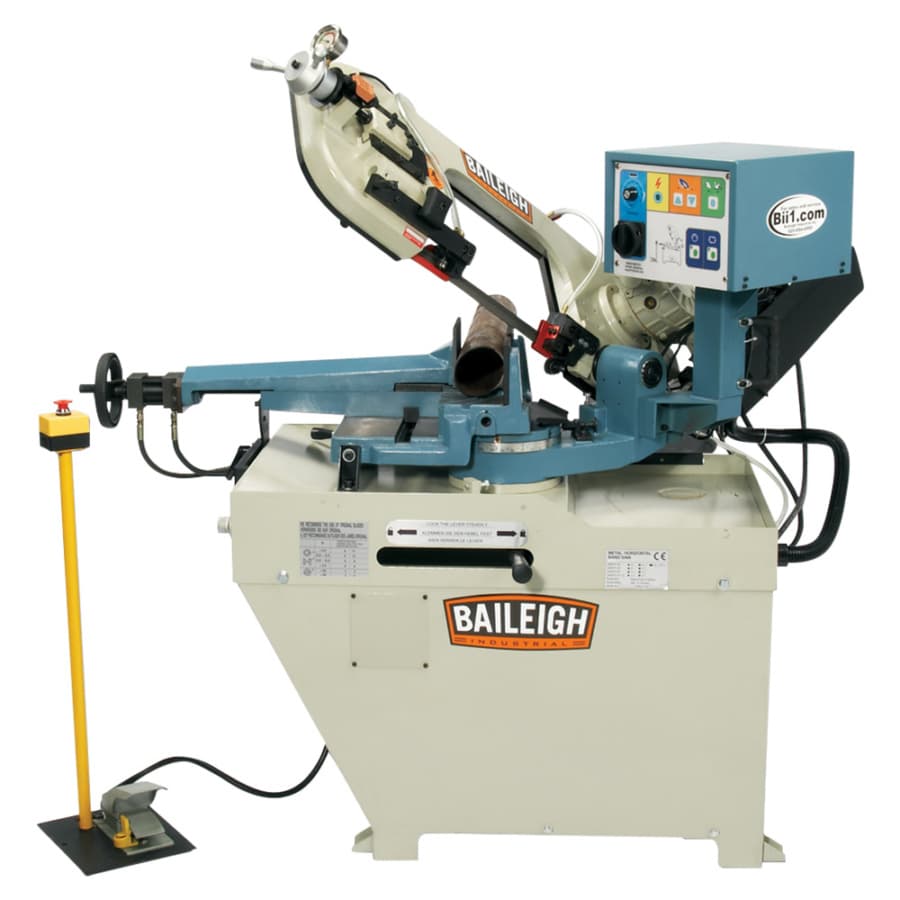

Baileigh BS-260SA 1.5 HP Semi-Auto Band Saw, 1 Phase/110V/220V
This item may incur additional shipping costs and lead times.
Product Details
Similar to our BS-260M, the BS-260SA semi-automatic bandsaw manages faster turnaround times. We designed this model with foot pedal controls for production runs. Features: • Maximum capacity of 8.93" round at 90° • Dual-angle head cuts at up to 60° right and up to 45° left, making it one of the most versatile mitering band saws on the market • Quick-release head lock allows you to change the miter angle in seconds • Industrial-grade hydraulic system runs on 220-volt single-phase power • Foot pedal controls the clamping of material as well as the raising a lowering of the saw head (both automatic) • AC inverter controls the speed of the 1.5 hp motor-a big improvement over the old DC driver board set-up. Inverters are more reliable and last longer • Adjust the variable speed from 66 to 280 fpm to fit the material and the application and extend blade life • Cast iron bow and pivot head plus a heavy-duty reinforced sheet metal base provide a rigid platform to ensure the straightest cuts • Hydraulic blade break switch automatically shuts the machine down if the blade should break • Comes standard with a coolant system, which will extend the machine's lifetime of use
Specifications
| Box Quantity | 1 |
| Blade Guide | Carbide x Roller |
| Horse Power (HP) | |
| Hydraulic Motor | |
| Input Power | 110 / 220V, 1-phase |
| Material Clamping Bundling | |
| Material Feed | |
| Miter Angle Range (Deg.) | 0 - 60°, 45°L |
| Motor (HP) | High Torque 1.1Kw (AC) |
| Overall Dimensions (L x W x H) | |
| Product Type | Semi-Automatic Band Saws |
| Rectangle at 90 Degrees | |
| Return | Hydraulic |
| Short Description | 220V 1-phase dual-mitering band saw 8.93" round capacity at 90° Head miters 60° right and 45° left 1" blade width Variable speed : 66-280 fpm |
| Solid Rectangle at 90 Degrees | |
| Square at 90 Degrees | |
| Table Height | 33.34" |
| Drive | Gear |
| Descent Control | Pressure Assist Hydraulic |
| Blade Speeds (SFPM) | 66 - 280 Variable |
| Capacity Rectangular 90 X 45 | |
| Capacity Rectangular 90 X 45 X 45 | |
| Capacity Rectangular 90 X 60 X 45 | |
| Capacity Round 45 | |
| Capacity Round 90 | |
| Capacity Round 90 X 45 | |
| Capacity Round 90 X 45 X 60 | |
| Capacity Round 90 X 45 X 60 X 45 | 8.66" / 5.9" / 3.54" / 4.33" |
| Capacity Round 90 X 60 X 45 | |
| Capacity Square 90 X 45 | |
| Capacity Square 90 X 45 X 60 | |
| Capacity Square 90 X 45 X 60 X 45 | 8.26" x 8.26" / 5.51" x 5.51" / 3.3" x 3.3" / 4.25" x 4.25" |
| Capacity Square 90 X 45 X 60 X 45L | |
| Chip Removal | |
| Type of Miter Adjustment | Dual Swivel Head |
