2-Way Adjustable Pivot Hinge, Matte Silver
Item # SGPH-01
•Mfr # PH-01
$108.42
/Each
20 items
$90.34/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:

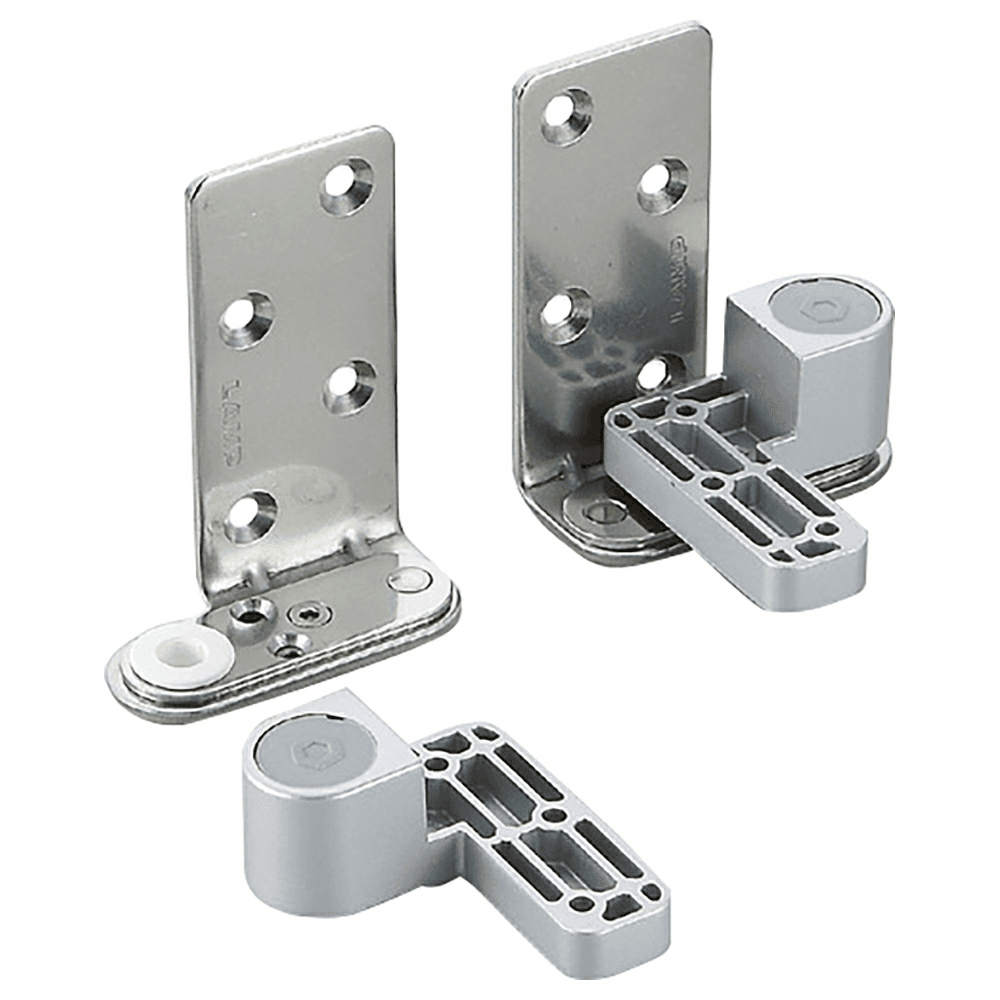

• Pivot hinge in matte silver finish
• Vertically and laterally adjustable after installed
• Sold in pairs (top and bottom), non-handed
• Supplied with wood screw 4 × 30
• Separate body and bracket for easy installation
• Door Height: Max. 2300mm (90-34/64")
• Door Width: Max. 850mm (33-15/32")
• Door Weight: Max. 35kg (77lbs)/pair
• Door Thickness: 33mm - 42mm (1-19/64" - 1-21/32")
• Pivot hinge in matte silver finish
• Vertically and laterally adjustable after installed
• Sold in pairs (top and bottom), non-handed
• Supplied with wood screw 4 × 30
• Separate body and bracket for easy installation
• Door Height: Max. 2300mm (90-34/64")
• Door Width: Max. 850mm (33-15/32")
• Door Weight: Max. 35kg (77lbs)/pair
• Door Thickness: 33mm - 42mm (1-19/64" - 1-21/32")
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Matte Silver |
| Overlay | |
| Opening Angle | |
| Hinge Type | Pivot Hinge |
| Material | Zinc Alloy |
| Width | |
| Door Thickness | 33mm - 42mm |
